GQ4-34RAutomotive Security/Convienence Receiver

Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: GQ4-34R IC: 1470A-6R This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, TRW requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan August 5, 2004 Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Keith Fraley Tel: (248) 442-5290 Fax: (248) 553-1480 It will be manufactured by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Keith Fraley Tel: (248) 442-5290 Fax: (248) 553-1480 Canadian Contact: TRW Canada Limited 16643 Highway 12 Midland, Ontario, Canada L4R4L5 Bob Millet Tel: (705) 526-8791 ext 4103 Fax: (705) 527-6232

TRW TRW ProprietaryRx_500N_Block.doc 12/17/03 Toyota 500Super-heterodyne Receiver Supply Voltage: 12 VI Continuous: 3.0 mA max (continuous or via power cycling)Bandwidth: 400 KHz @ -3dBCenter Fre q uenc y : 315 MHz Low Noise Pre Am p lifie r BasebandA m p lifier/dectector MatchingNetwork and SAW filter A ntenna DataOut p ut PowerConditioning B Microchi p 16F76 EEPROM RDA Serial Output 8.00 MHz Crystalfor system clock Super-HeterodyneReceiver PRGin p ut 32.768KHz Crystal for 10.178125 MHz Crystalf o r PLL PLLReference Divide b y 2 VCO Phasedetecto Loop Filter IF Filter IF Am p lifier

August 5, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: GQ4-34R Please find enclosed application materials for certification of TRW 500N Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

August 5, 2004 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R Please find enclosed application materials for certification of TRW 500N Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist August 5, 2004 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for TRW 500N Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R Please find enclosed application materials for certification of TRW 500N Receiver. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 1470A-6R If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

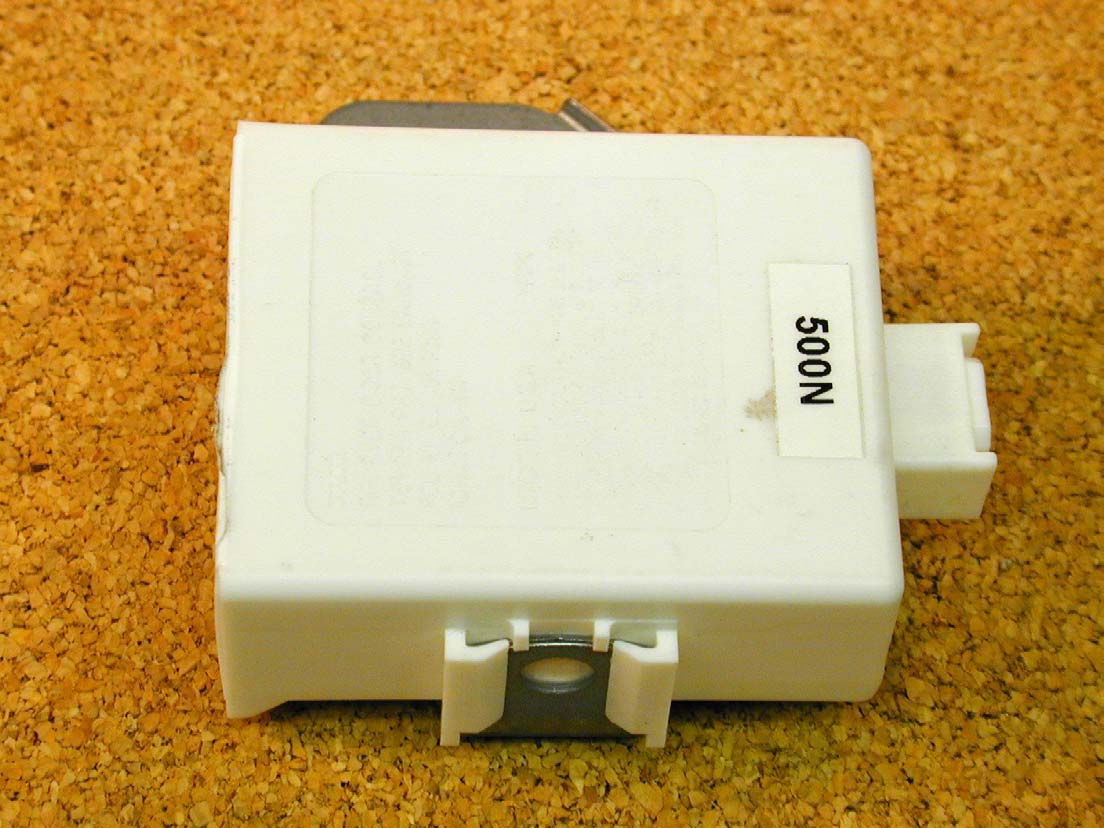

Page: 1 1 TOYOTA 500N RECEIVER DESCRIPTION The module is a Super-heterodyne Radio Frequency receiver used to receive transmissions from automotive Remote Keyless Entry transmitters. It consist of a super- heterodyne ASIC, a Microchip PIC16F76 microcomputer, a stamped wire antenna, discrete components, a single piece polypropylene housing with a living hinge cover, and a Zinc plated bracket. All of the electronics are mounted on a FR4 double-sided PCB. All components except two screws are mounted on the topside of the PCB. All of the electrical components except the connector and antenna utilize surface mount packaging and are placed on the topside of the PCB and reflow soldered. CIRCUIT DESCRIPTION The antenna signal is fed through an impedance matching network into a SAW filter that prevents the receiver from being overloaded by interference signals. Then it goes into another matching network, and then into a superhet chip made by Infineon which converts the RF signal into a demodulated data signal which is output to a microprocessor. A surface mount crystal is connected to the superhet chip to provide a reference frequency for the local oscillator, and a 10.7 MHz surface mount IF filter determines system bandwidth. Additional components (resistors, capacitors) are connected to the ASIC (U2) to set up the data slicer. MODULE OPERATION The normal receiver state is the “sleep” mode. In this state the RF section is disabled. Approximately every 38 ms the receiver will wake up, enable the RF section and check for valid data. If no data is found, the receiver returns to sleep mode. If valid data is detected, the receiver decodes the transmission and sends the appropriate message to the vehicles Body Control Module over a USART serial data line, RDA. The module can also receive programming or diagnostic messages from the Body Control Module over a separate USART serial data line, PRG. SIGNAL DEFINITIONS +B - Connects to vehicle positive battery power. RDA – Active Low, pulled high inside Body Computer. This serial data link is a single direction data channel (receiver to body module) that communicates received remote commands to the body module for execution. It also provides feedback during programming and diagnostics for service or plant use. PRG – Active Low, pulled high inside receiver module. This serial data link is a single direction data channel (body module to receiver) that communicates commands to the receiver to enter programming or diagnostic modes. GND - Connects to vehicle ground.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From TRW Receiver Model: 500N Report No. 415031-212 August 5, 2004 Copyright © 2004 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Keith Fraley Tel: (248) 442-5290 Fax: (248) 553-1480 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Edward Courtney Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210, were performed on TRW model 500N. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on May 6, 2004, the device tested in the worst case met the allowed FCC (Class B) specifications for radiated emissions by 11.8 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. 2 1. Introduction TRW model 500N was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87- 389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B 3. Configuration and Identification of Device Under Test 3 The DUT is a superheterodyne receiver, designed for onboard automobile security/convenience applications, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 2 by 2.5 by 1 inches; antenna is internal. For testing, a generic harness was provided by the manufacturer. The VCO in the onboard RFIC (based from a 10.178 MHz reference) operates at 651.4 MHz; the LO is 325.7 MHz. In the receiver digital section, the decoding, signal processing, etc. are performed by a microprocessor timed by an 8.0127 MHz oscillator. The DUT was designed by TRW Inc., 24175 Research Drive, Farmington Hills, MI 48335-2642. It is identified as: TRW Inc. Receiver Model: 500N FCC ID: GQ4-34R IC: 1470A-6R 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: 15.33, 15.35, and 15.109). Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Average readings apply above 1000 MHz (1 MHz BW) 4.2 Conducted Emission Limits Table 4.3 Conducted Emission Limits (FCC:15.107 (CISPR); IC: RSS-210, 6.6). Frequency Class A (dBμV) Class B (dBμV) MHz Quasi-peak Average Quasi-peak Average .150 - 0.50 79 66 66 - 56* 56 - 46* 0.50 - 5 73 60 56 46 5 - 30 73 60 60 50 Notes: 1. The lower limit shall apply at the transition frequency 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15-0.50 MHz: *Class B Quasi-peak: dBμV = 50.25 - 19.12*log( f ) *Class B Average: dBμV = 40.25 - 19.12*log( f ) 3. 9 kHz RBW 4.3 Antenna Power Conduction Limits Ref: 15.111(a). Pmax = 2 nW; for frequency range see Table 4.1. 4 5. Emission Tests and Results NOTE:…
