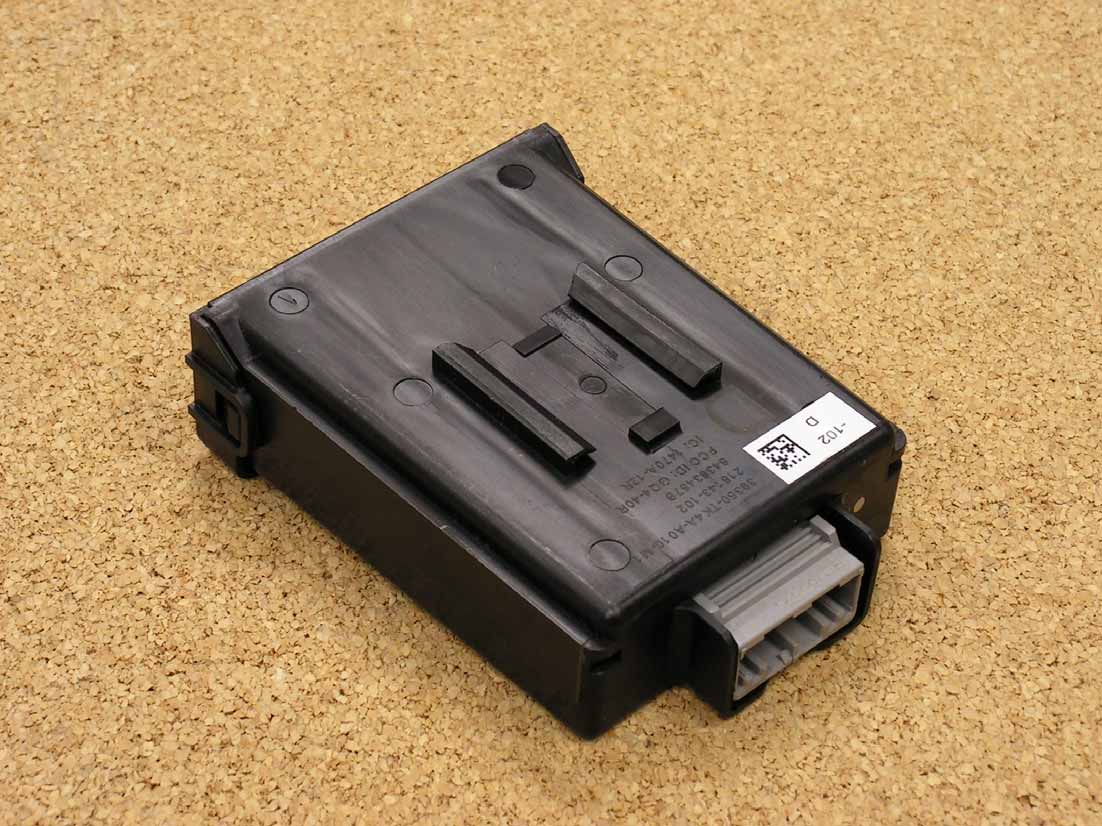

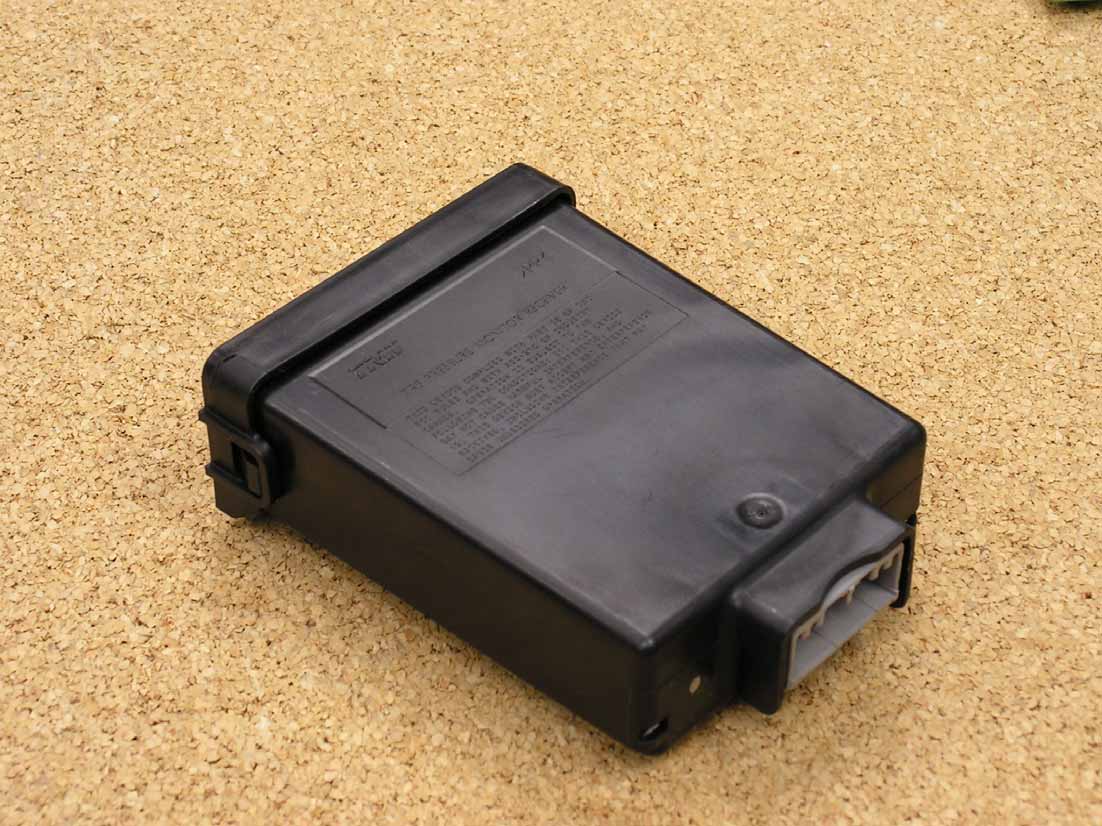

GQ4-40RTire Pressure Monitor Transmitter

Re: Certification for TRW Transceiver Model/PN(s): 218143-119, 218143-120 FCC ID: GQ4-40R IC: 1470A-12R The device under test is manufactured by the grantee (TRW) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. TRW will supply the following information to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual if it is not visible to the end consumer. ************************************************************************ FCC ID:GQ4-40R IC: 1470A-12R This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ************************************************************************

Re: Certification for TRW Transceiver Model/PN(s): 218143-119, 218143-120 FCC ID: GQ4-40R IC: 1470A-12R POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. May 5, 2008 Re: Certification for TRW Transceiver Model/PN(s): 218143-119, 218143-120 FCC ID: GQ4-40R IC: 1470A-12R STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for TRW Transceiver Model/PN(s): 218143-119, 218143-120 FCC ID: GQ4-40R IC: 1470A-12R GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Daniel J. Wyman [email protected] Tel: 248.442.5397 Fax: 248.478.7241 It will be manufactured by: TRW Automotive Electronics 2240 Cranbrook Drive Auburn, New York, 13021 Contact: Daniel J. Wyman [email protected] Tel: 248.442.5397 Fax: 248.478.7241 Canadian Contact: TRW Canada Limited 16643 Highway 12 Midland, Ontario, Canada L4R4L5 Contact: Bob Millett [email protected] Tel: 705.526.8791 x4103 Fax:705.527.6232

TRW Automotive February 8, 2008 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.478.7241 Re: Certification for Honda MY09 TPM Highline Receiver Model #: 218143-119, 218143-120 FCC ID: GQ4-40R Canada IC: 1470A-12R GENERAL DESCRIPTION The TPM receiver is used to demodulate and decode information transmitted from the wheel- mounted sensors. This information is then sent to a display unit. The receiver communicates tire status to the vehicle via a high speed CAN bus. The receiver shall be able to do diagnostics on the system to determine if the system needs to be serviced. When the ignition is in the run position, the receiver will activate the initiators to put the wheel-mounted sensors in normal operating mode, and start monitoring for RF data from the sensors. The time it takes the receiver to complete this operation is approximately 16 seconds. The receiver will also activate the initiators to request data from the sensors, if the receiver does not receive information from the sensors for more than 5 minutes. When the ignition is in the off position, the receiver will activate the initiators to put the wheel- mounted sensors in shut-down mode. The receiver will then turn itself off. This operation takes approximately 30 seconds. The initiator is part of the system used to detect the tire pressure sensors of the tires in a vehicle. Four initiators are used in each vehicle, one for each tire. They are located in or near the wheel well and are connected by wire harness to the central receiver. This central receiver sends a 125KHz waveform over the wire harness to the initiator where it is converted to a magnetic field that is broadcast to a sensor in the tire.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-426 Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From TRW Inc. Transceiver Transmitter Test Report FCC ID: GQ4-40R IC: 1470A-12R Report No. 415031-426 May 5, 2008 Copyright © 2008 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Daniel J. Wyman [email protected] Tel: 248.442.5397 Fax: 248.478.7241 Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report written by: Joseph D Brunett Research Scientist Summary Tests for compliance with FCC Regulations, Part 15, Subpart C, and for compliance with Industry Canada RSS-210/Gen, were performed on TRW Inc. Transceiver, model/PN(s) 218143-119, 218143-120. This device is subject to Rules and Regulations as a Transceiver. In testing completed February 14, 2008, the device tested in the worst case met the allowed specifications for transmitter radiated emissions by 39.8 dB (see p. 7). Conducted emissions tests do not apply since the device is powered from a 12 VDC system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-426 Page 2 of 12 1. Introduction TRW Inc. model/PN(s) 218143-119, 218143-120 was(were) tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedures and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) X EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-426 Page 3 of 12 3. Device Under Test 3.1 Identification The DUT was designed and manufactured by TRW Automotive Electronics, 2240 Cranbrook Drive, Auburn, New York, 13021. It is identified as: TRW Inc. Transceiver Model/PN(s): 218143-119, 218143-120 FCC ID: GQ4-40R IC: 1470A-12R 3.2 Variants The DUT contains a 125-160 kHz LF transmitter (initiator) and 315 MHz superheterodyne receiver. This report details the emissions relating to the transmitter portion of the device. The DUT is a 125 kHz Transceiver designed for an onboard automobile Tire Pressure Monitoring System (TPMS), and as such, it is powered from an automotive 12VDC source. Receiver and LF signal generating circuitry are housed in a plastic case approximately 3 by 5 by 1.5 inches. Coils are external. For testing, a generic harness was provided by the manufacturer. There are two variants of this device. Model 218143-119 was fully tested and represents one of two software variantions. Model 218143-120 is the other software variation, with slightly modified receiver processing for different tire pressure performance criteria. Both are electrically identical with identical RF. 3.3 Modes of Operation The DUT is designed to transmit over a range of frequencies between 125 and 160 kHz. The LF coil is tuned to the lowest operating frequency (125 kHz), and emissions were determined to be maximum at that frequency. All measurements are performed at with the device operating at 125 kHz. 3.4 EMI Relevant Modifications No EMI Relevant Modifications were performed by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intention…
