GQ4-43TTire Pressure Transmitter

TRW Automotive Legal name here July 20, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Aftermarket 315MHz TPM Sensor Model #: 221849-103 FCC ID: GQ4-43T Canada IC: 1470A-24T USER’S MANUAL & COMPLIANCE STATEMENT The TPM Transmitter is sold only as part of a vehicle by the retail automobile dealers and as such has no separate manual. This exhibit is provided electronically to the vehicle manufacturer after submission. The compliance statement for the TPM transmitter (FCC ID: GQ4-43T) will be integrated by the OEM into the vehicle owner’s manual. It will read: This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment. .

August 25, 2011 Re: Certification for TRW Transmitter Model/PN(s): 221849-103 FCC ID: GQ4-43T IC: 1470A-24T STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for TRW Transmitter Model/PN(s): 221849-103 FCC ID: GQ4-43T IC: 1470A-24T GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Tel: (248) 699-4235 Fax: (248) 699-4241 It will be manufactured by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Tel: (248) 699-4235 Fax: (248) 699-4241 Canadian Contact: TRW Automotive 683 Victory LaSalle, Ontario Canada N9J 1V8 Contact: Scott Relf [email protected] Tel: (734) 855-2483 Fax: (734) 855-3351 Re: Certification for TRW Transmitter Model/PN(s): 221849-103 FCC ID: GQ4-43T IC: 1470A-24T POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested.

Re: Certification for TRW Transmitter FCC ID: GQ4-43T IC: 1470A-24T REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, TRW requests that a part of the subject application be held confidential. TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: TRW requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): TRW requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

TRW Automotive Legal name here July 27, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Aftermarket 315MHz TPM Sensor Model #: 221849-103 FCC ID: GQ4-43T Canada IC: 1470A-24T

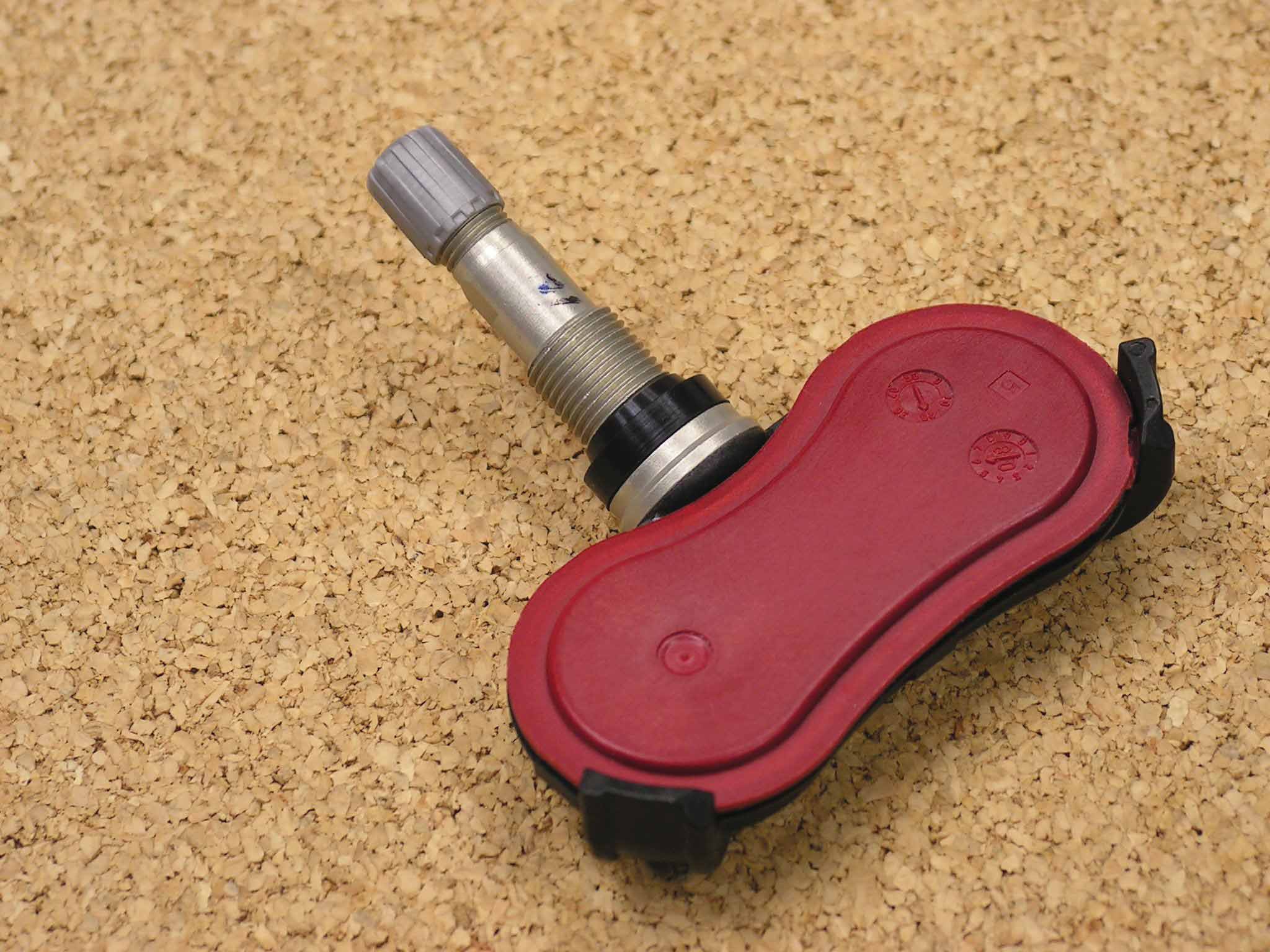

TRW Automotive Legal name here July 20, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Toyota Pacific Aftermarket 315MHz TPM Sensor Model #: 221849-103 FCC ID: GQ4-43T Canada IC: 1470A-24T GENERAL DESCRIPTION This transmitter is a transmitter device with tire valve, which is mounted in the valve hole of the wheel rim and transmits the pressure and temperature inside the tire, the battery voltage of the transmitter, and the tire identification code (ID) at no rmal and abnormal condition with the radio wave (RF) that conforms to the used area. Also this device has a countermeasure function such as the random delay of transmission time so that the RF signal from each tire will not interfere due to the simultaneous transmission. The transmitter supports Low Frequency (LF) magnetic field communications allowing the changing of measurement/monitoring states of the transmitter by commands sent via the TPM diagnostic tool. The RF signal operates at 315MHz and uses FSK Manchester and FSK Bi-Phase code modulation. 221849-103 transmits 1 data frame every 60 seconds +/- 5 seconds for random deviation. Descripti on of Operations Mode of Operation Explanation Frequency of Transmission Storage Mode No transmission. Measures temperature & pressure 5 bi-phase and 2 Manchester data frames when activation occurs with TPM diagnostic tool Normal Mode Measures temperature and pressure. Transmits periodically. Enters this mode from storage when pressure goes above threshold.  1 bi-phase data frame every 60 seconds  5 bi-phase and 2 Manchester data frames when activation occurs with TPM diagnostic tool Alert Mode Transmits when: a) significant pressure delta detected b) high temperature is detected 5 bi-phase data frames every 12 seconds 8 times 1 bi-phase data frame every 12 seconds 120 data frames total.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-610 Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From TRW Inc. Transmitter FCC ID: GQ4-43T IC: 1470A-24T Test Report No. 417124-610 August 25, 2011 Copyright © 2011 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Phone: (248) 699-4235 Fax: (248) 699-4241 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a TRW, FCC ID: GQ4-43T, IC: 1470A-24T. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on June 27, 2011, the DUT tested met the allowed specifications for radiated emissions by 1.5 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-610 Page 2 of 12 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-610 Page 3 of 12 1. Introduction This TRW Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210, Issue 8, December 2010. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter Hewlett-…
