TRW Automotive Legal name here March 12, 2012 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Chrysler RFHM SKIM/RKE Internal/External Antenna 434MHz without LF Antenna Model #: 229145-101, -102, -104, -108, -111, -115, -116 FCC ID: GQ4-46R Canada IC: 1470A-18R User’s Manual and Compliance Statement The SKIM/RKE is individually sold by the distributing supplier and as such it will require each module sold to be accompanied with the FCC Statement Part 15. The compliance statement for the SKIM/RKE will read: FCC ID: GQ4-46R This devi ce complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le present appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage. 2. L’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for TRW Receiver FCC ID: GQ4-46R POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. May 25, 2012 Re: Certification for TRW Receiver FCC ID: GQ4-46R STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist

Re: Certification for TRW Receiver FCC ID: GQ4-46R REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, TRW requests that a part of the subject application be held confidential. TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: TRW requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): TRW requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

GQ4-46R XXXXX - XXX GQ4-46R 229145-102 GQ4-46R 229145-104 GQ4-46R 229145-115 GQ4-46R 229145-111 GQ4-46R 229145-108 GQ4-46R 229145-116

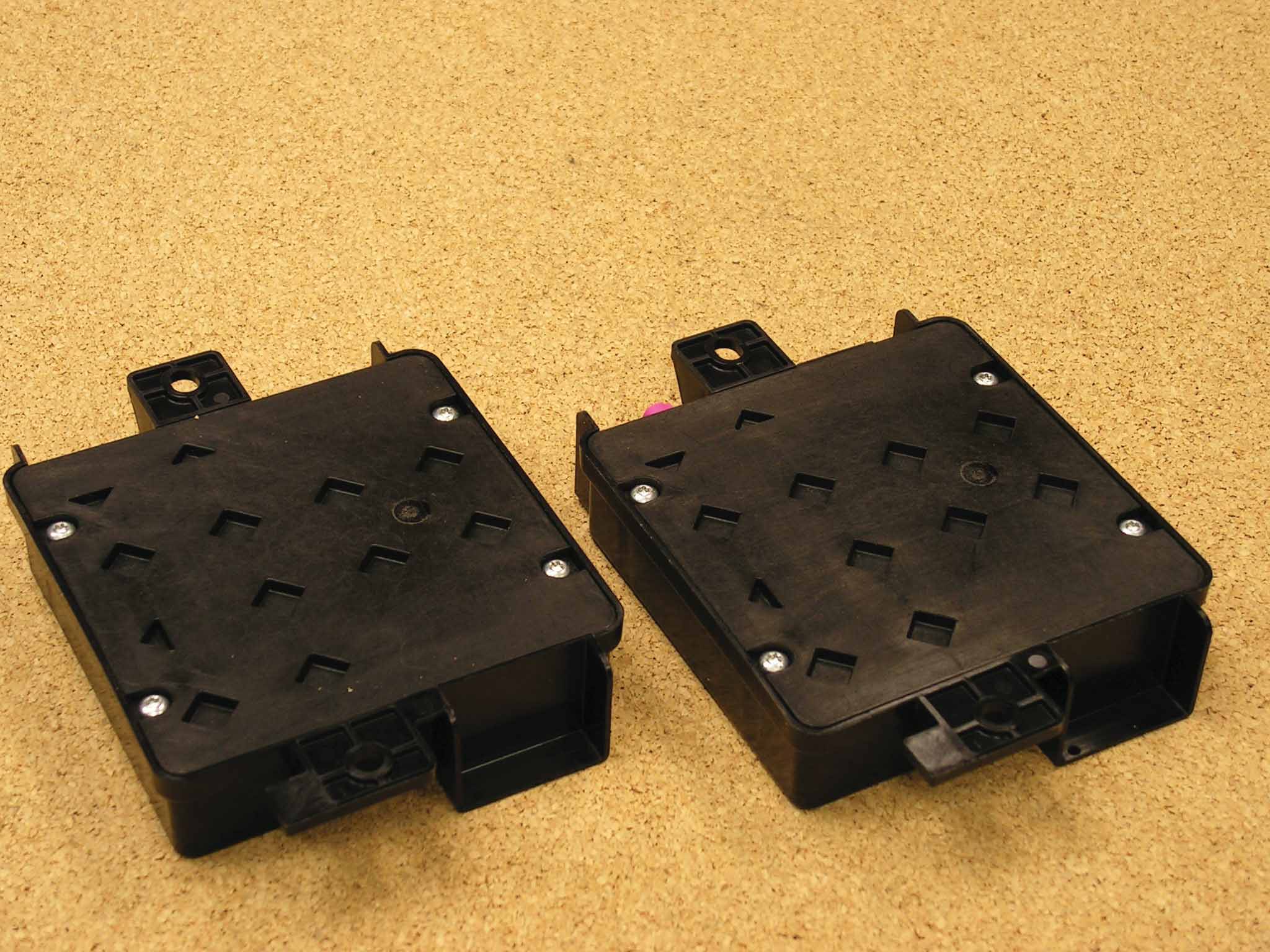

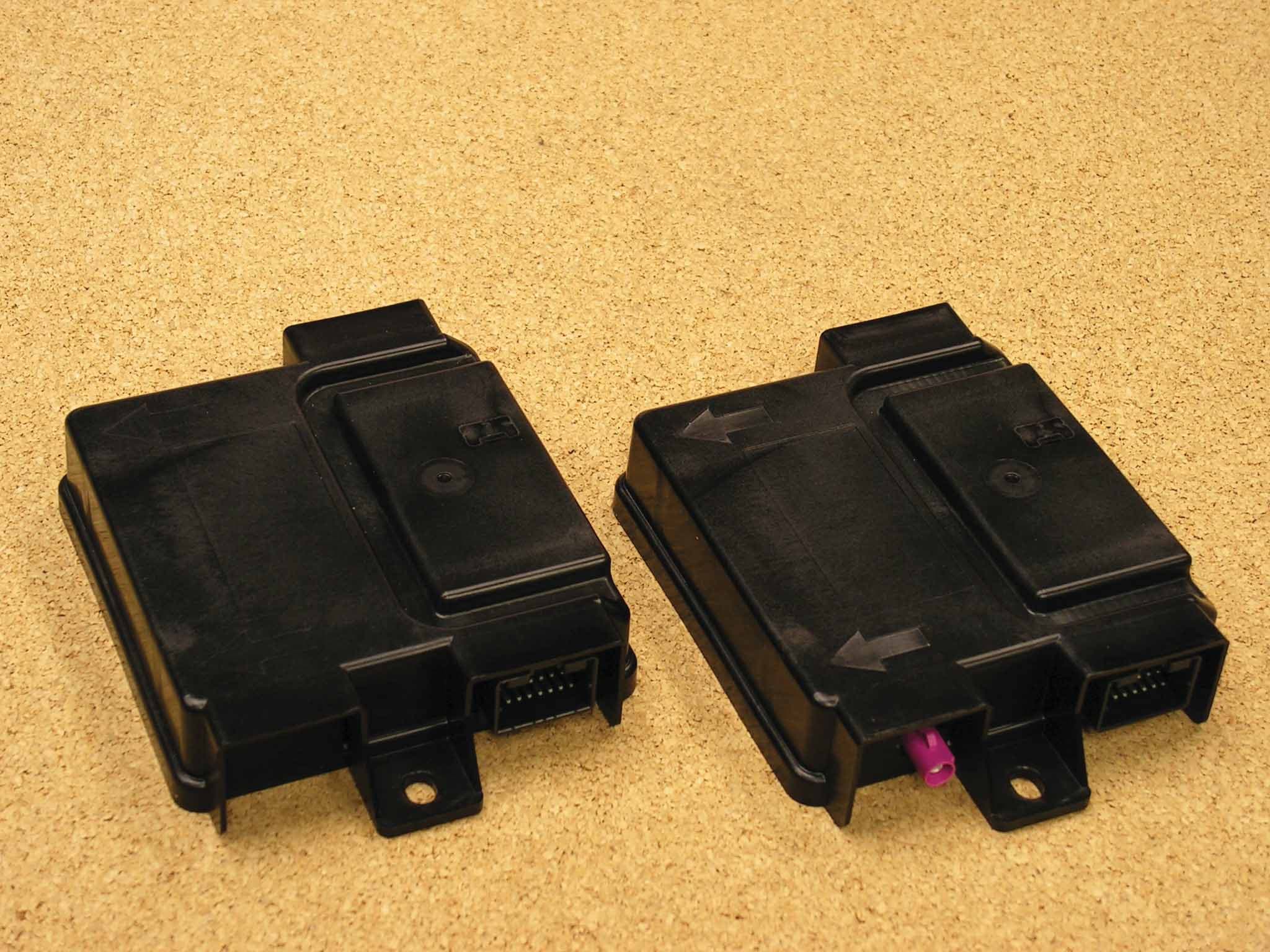

TRW Automotive Legal name here March 12, 2012 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Chrysler RFHM SKIM/RKE Internal/External Antenna 434MHz without LF Antenna Model #: 229145-101, -102, -104, -108, -111, -115, -116 FCC ID: GQ4-46R Canada IC: 1470A-18R GENERAL DESCRIPTION The RFHM receiver is used to demodulate and decode RF transmissions from the up to 8 Remote Keyless Entry transmitters (Fobiks). The RFHM communicates with other ECU’s in the vehicle via a 500kHz CAN-B bus. The RFHM communicates with the ignition module via a LIN2 bus. The RFHM has provisions for up to 5 discrete inputs and 4 discrete outputs. These I/O are very low frequency (eg. transition only on ignition on/off), and vary wetting current between 10mA and 5A. Depending on the configuration of the vehicle, 0 to 4 discrete outputs and/or 0 to 3 discrete outputs may not be populated on the RFHM. PRINCIPLES OF CIRCUIT OPERATION Refer to the Block diagram for Circuit operation: 8 B+ Reverse Battery Protection 6 GND System Basis IC Window Watchdog Vreg, CAN HS, LIN CAN Choke 10 Security K-Line CAN C+ CAN C+ 12 11 VPB+ Voltage B+ Reverse Protected VReg Active HighClutch Switch 7 Clutch Out 15 14 Active High Active Low Brake Switch 3 Active LowGated Park Switch 2 BufferRun/Start Switch 9 BufferWired Remote Start 4 RFHM μC VReg BTSI HSDBTSI Solenoid 13 IGN HSDIGN Run/Start 1 ESCL HSDESCL HSD (Protect for) 5 Match Ant. Pwr. SAW Filter LNA RF Section Superhet. Match VReg Remote Start / Japan External Antenna Feed # # Connector 1 ~ Tyco 174053-2 Connector 2 ~ Tyco 175975-2 ESCL LIN Live Debug Connector

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-«Report_» Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From TRW Inc. Receiver FCC ID: GQ4-46R Test Report No. 417124-631 June 6, 2012 Copyright © 2012 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Phone: (248) 699-4235 Fax: (248) 699-4241 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a TRW, FCC ID: GQ4-46R. This device under test (DUT) is subject to the rules and regulations as a Receiver. In testing completed on February 27, 2012, the DUT tested met the allowed specifications for radiated emissions by 9.0 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-«Report_» Page 2 of 12 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 4.2 Power Line Conducted Emissions Limits ............................................................................. 5 5. Measurement Procedures ................................................................................................................. 5 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 5 5.2 Outdoor Radiated Emissions ................................................................................................. 5 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 6 6. Test Results : Radiated Emissions ................................................................................................... 6 6.1.1 Emission Spectrum ........................................................................................................... 6 6.1.2 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.1.3 Receive Antenna Conducted Emissions ............................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-«Report_» Page 3 of 12 1. Introduction This TRW Receiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87- 389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 8. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter Hewlett-Packard, 432A HP432A1 Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 HP11970A1 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 HP11970U1 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 HP11970W1 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 PMPGMA1 S-Band St…
