TRW Automotive Legal name here May 6, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for FSK 315MHz Low Line Transmitter Model #: 225816106, 225816108 FCC ID: GQ4-46T Canada IC: 1470A-27T USER’S MANUAL & COMPLIANCE STATEMENT The TPM Transmitter is sold only as part of a vehicle by the retail automobile dealers and as such has no separate manual. This exhibit is provided electronically to the vehicle manufacturer after submission. The compliance statement for the TPM transmitter (FCC ID: GQ4-46T) will be integrated by the OEM into the vehicle owner’s manual. It will read: This device complies with part 15 of the FCC rules, and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. (3) WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment.

Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 2 1046 Re: Letter of Agency for FCC Compliance Testing TRW Au/omo/ive TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 Please be advised that TRW Automotive authorizes Professor Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications COllunission with respect to all matters relating to cCl1ification. Anti-Drug Abuse Certification: I further certify that no party (as defmed in 1.2002 ofCFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988,21 U.S.C. 853(a). Dated this _~~=-_day of M;i-Y .20/15 By: Jeff Rochette (Print Name) Title: Director of Global Infrastructure & Engineering Services Email: [email protected] On behalf of: TRW Automotive Telephone: 248.699.4235 Legal name here Exh 02 -Letter of Agency for FCC Compliance Testing.doc

July 4, 2011 Re: Certification for TRW Transmitter Model/PN(s): 2 25816106, 225816108 FCC ID: GQ4-46T IC: 1470A-27T STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for TRW Transmitter Model/PN(s): 2 25816106, 225816108 FCC ID: GQ4-46T IC: 1470A-27T GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Tel: (248) 699-4235 Fax: (248) 699-4241 It will be manufactured by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Tel: (248) 699-4235 Fax: (248) 699-4241 Canadian Contact: TRW Automotive 683 Victory LaSalle, Ontario Canada N9J 1V8 Contact: Scott Relf [email protected] Tel: (734) 855-2483 Fax:(734) 855-3351 Re: Certification for TRW Transmitter Model/PN(s): 2 25816106, 225816108 FCC ID: GQ4-46T IC: 1470A-27T POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested.

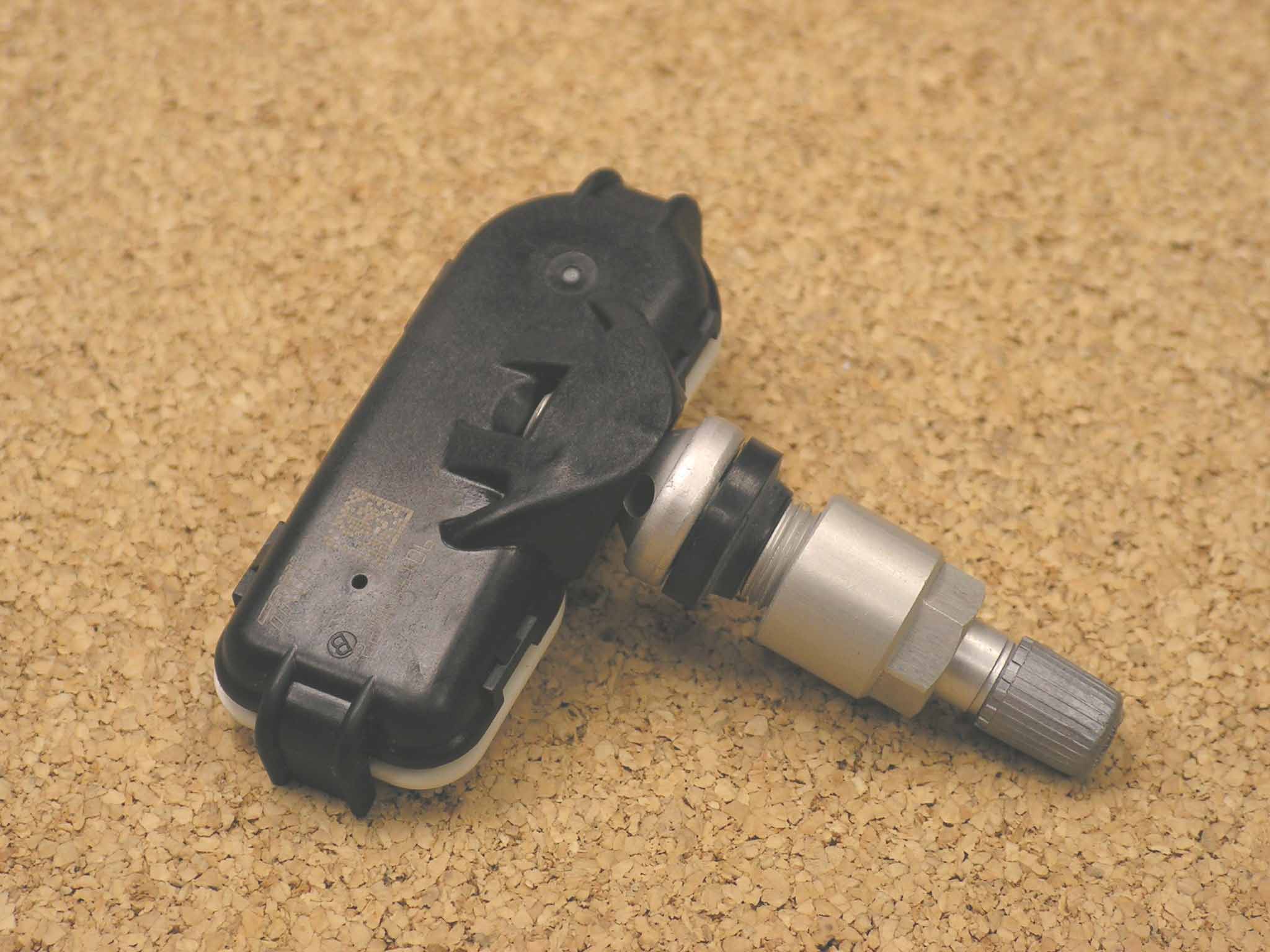

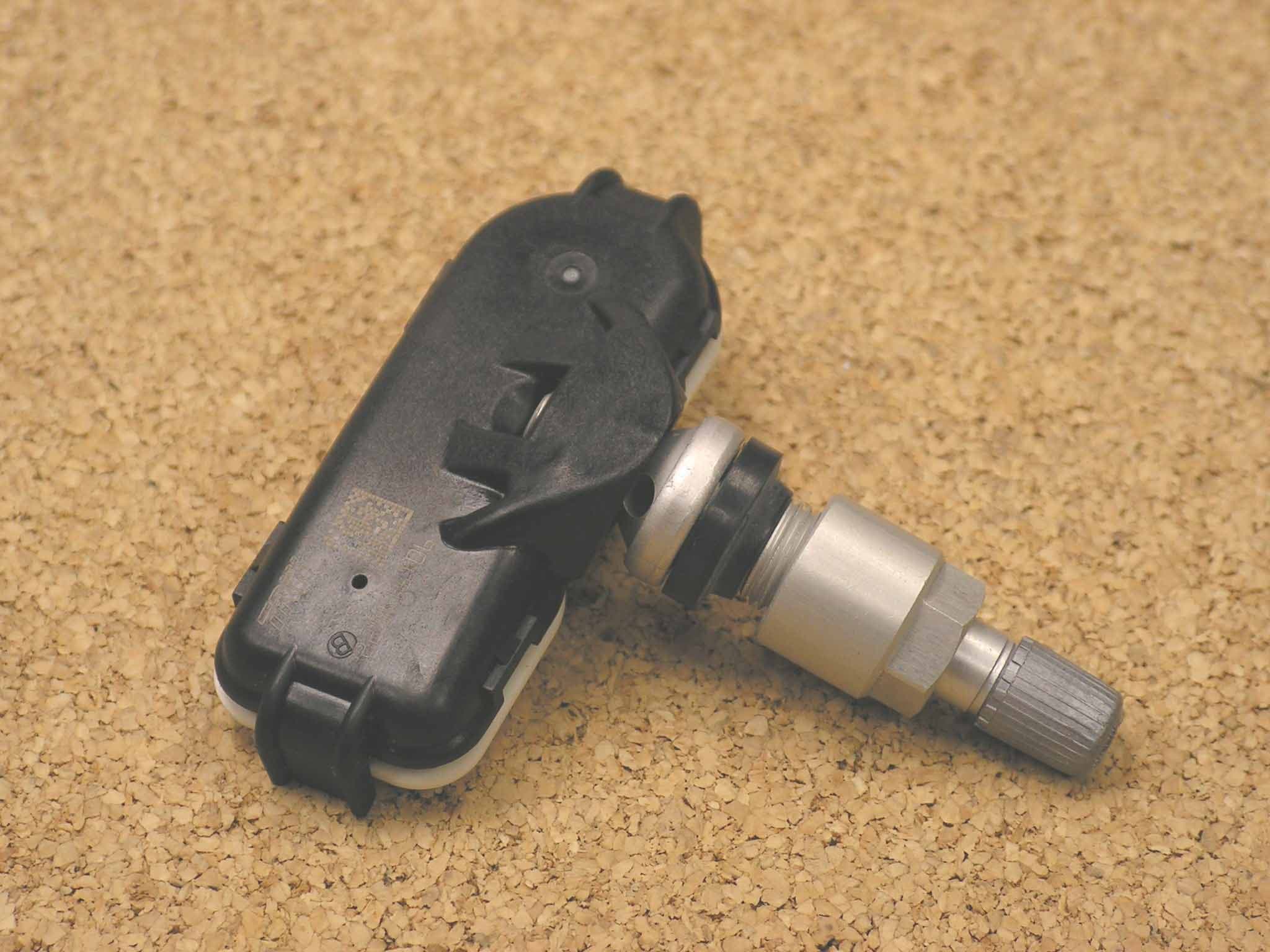

TRW Automotive Legal name here May 6, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for FSK 315MHz Low Line Transmitter Model #: 225816106, 225816108 FCC ID: GQ4-46T Canada IC: 1470A-27T GENERAL DESCRIPTION This transmitter is a transmitter device with tire valve, which is mounted in the valve hole of the wheel rim and transmits the pressure and temperature inside the tire, the battery voltage of the transmitter, and the tire identification code (ID) at no rmal and abnormal condition with the radio wave (RF) that conforms to the used area. Also this device has a countermeasure function such as the random delay of transmission time so that the RF signal from each tire will not interfere due to the simultaneous transmission. The transmitter device also has a Low Frequency (LF) receiver. This receiver supports Low Frequency (LF) m agnetic field communi cations allowing the changing of measurement/monitoring states of the transmitter by commands sent via the TPM diagnostic tool. The RF signal operates at 315MHz and uses FSK Manchester code modulation. The EUT tr ansmits 4 RF packets every 210 seconds . Description of Operations Mode of Operation Explanation Frequency of Transmission Storage Mode No transmission. Measures temperature & pressure 4 words when activation occurs with TPM diagnostic tool Normal Mode Measures temperature and pressure. Transmits periodically. Enters this mode from storage when pressure goes above threshold.  4 words every 210 seconds  4 wo rds when activation occurs with TPM diagnostic tool Alert Mode Transmits when: a) significant pressure delta detected b) high temperature is detected 8 words every 4 seconds for 1 minute

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-606 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From TRW Transmitter FCC ID: GQ4-46T IC: 1470A-27T Test Report No. 417124-606 July 4, 2011 Copyright © 2011 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Phone: (248) 699-4235 Fax: (248) 699-4241 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a TRW’s FCC ID: GQ4-46T , IC: 1470A-27T . This device under test (DUT) is subj ect to the rules and regulations as a Transmitter. In testing completed on June 1, 2011, the DUT tested met the allowed specifications for radiated emissions by 10.9 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-606 Page 2 of 11 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi -Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-606 Page 3 of 11 1. Introduction This TRW Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter Hewlett-Pac…
