GQ4-51TTire Pressure Monitoring Transmitter

TRW Automotive Legal name here October 20, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Toyota MY13 420A FSK 315 MHz TPM Sensor FCC ID: GQ4-51T Canada IC: 1470A-32T USER’S MANUAL & COMPLIANCE STATEMENT The TPM Sensor is sold only as part of a vehicle by the retail automobile dealers and as such has no separate manual. This exhibit is provided electronically to the vehicle manufacturer after submission. The compliance statement for the TPM Sensor (FCC ID: GQ4-51T) will be integrated by the OEM into the vehicle owner’s manual. It will read: This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le present appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment. .

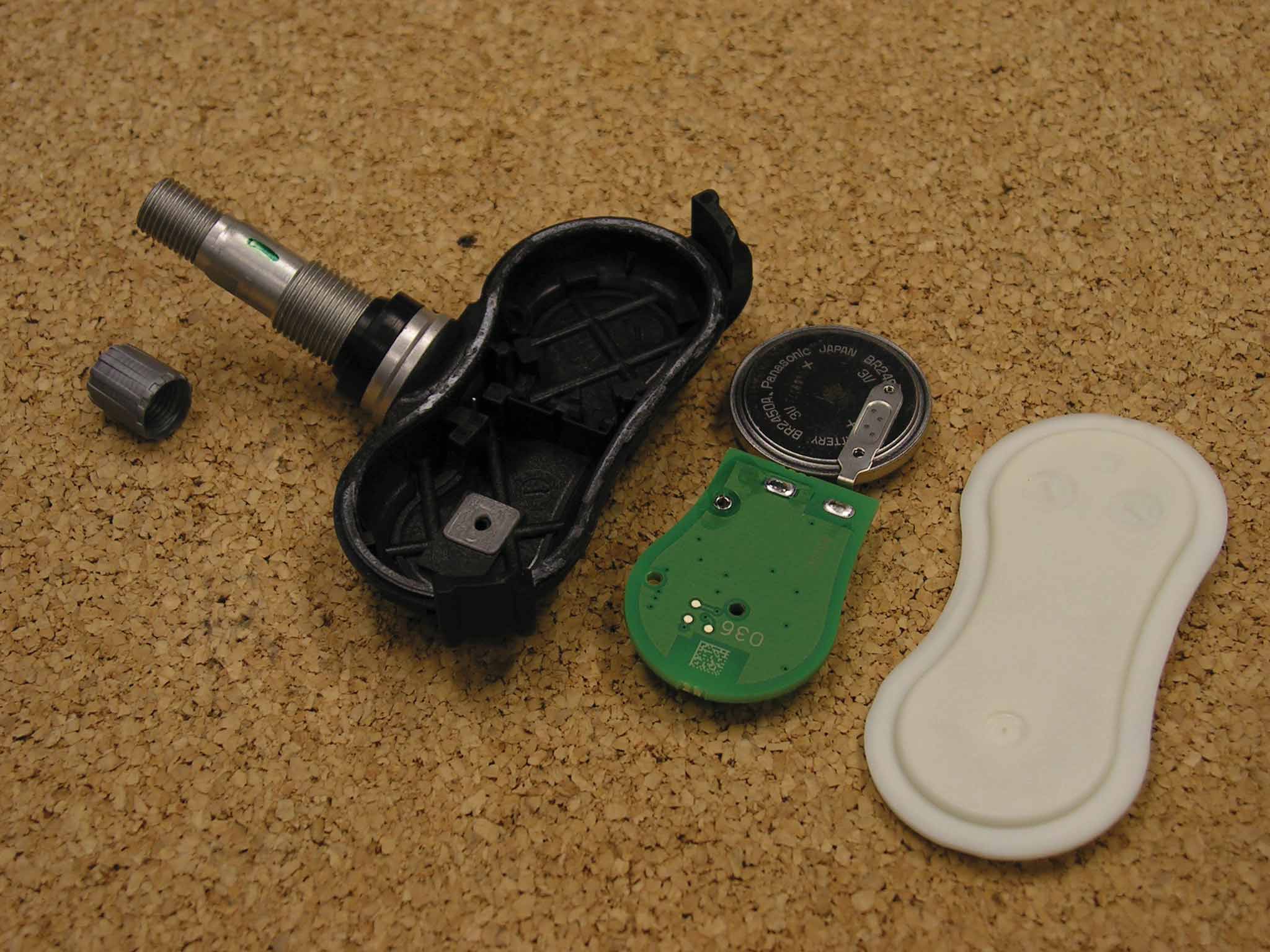

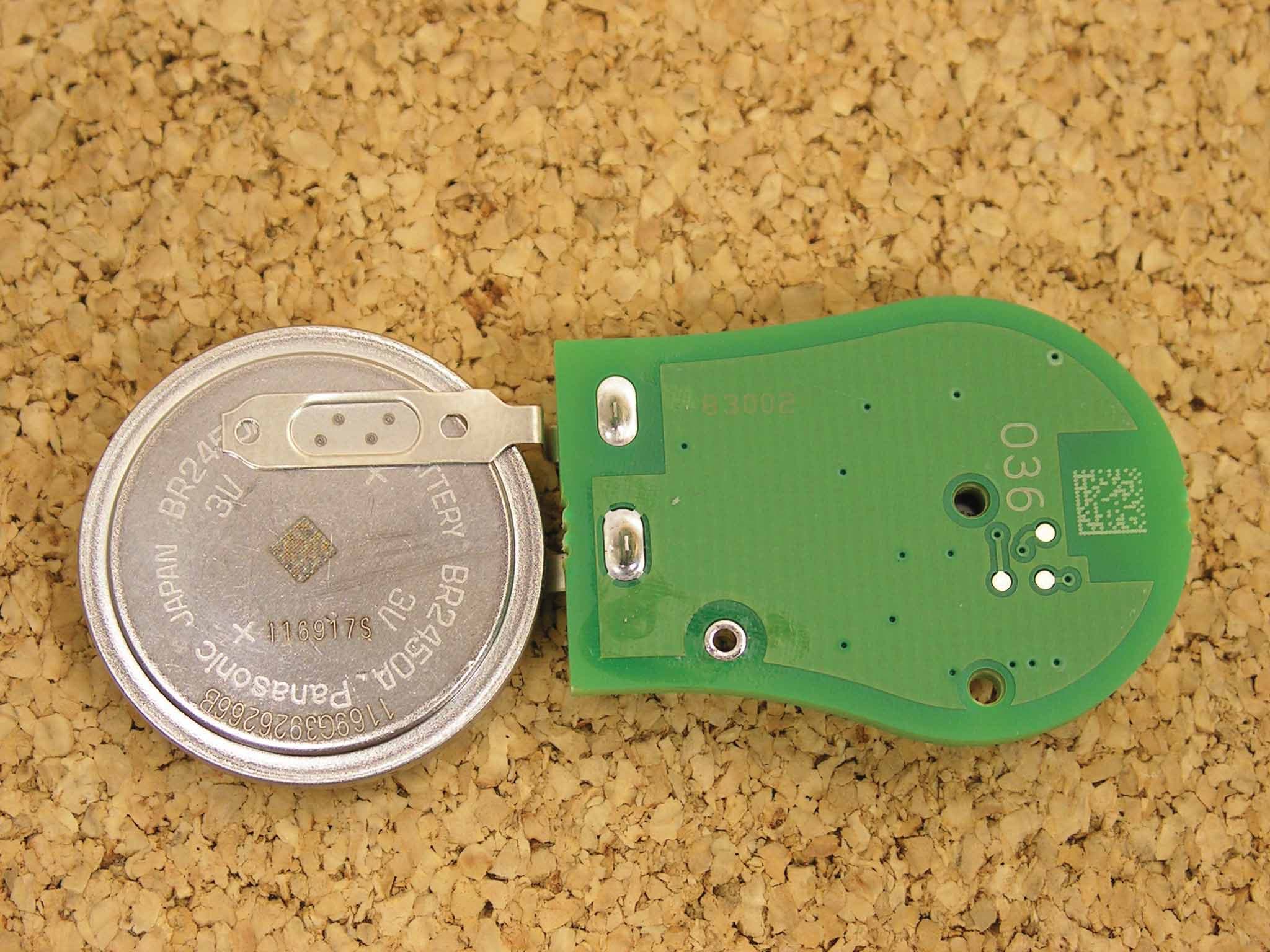

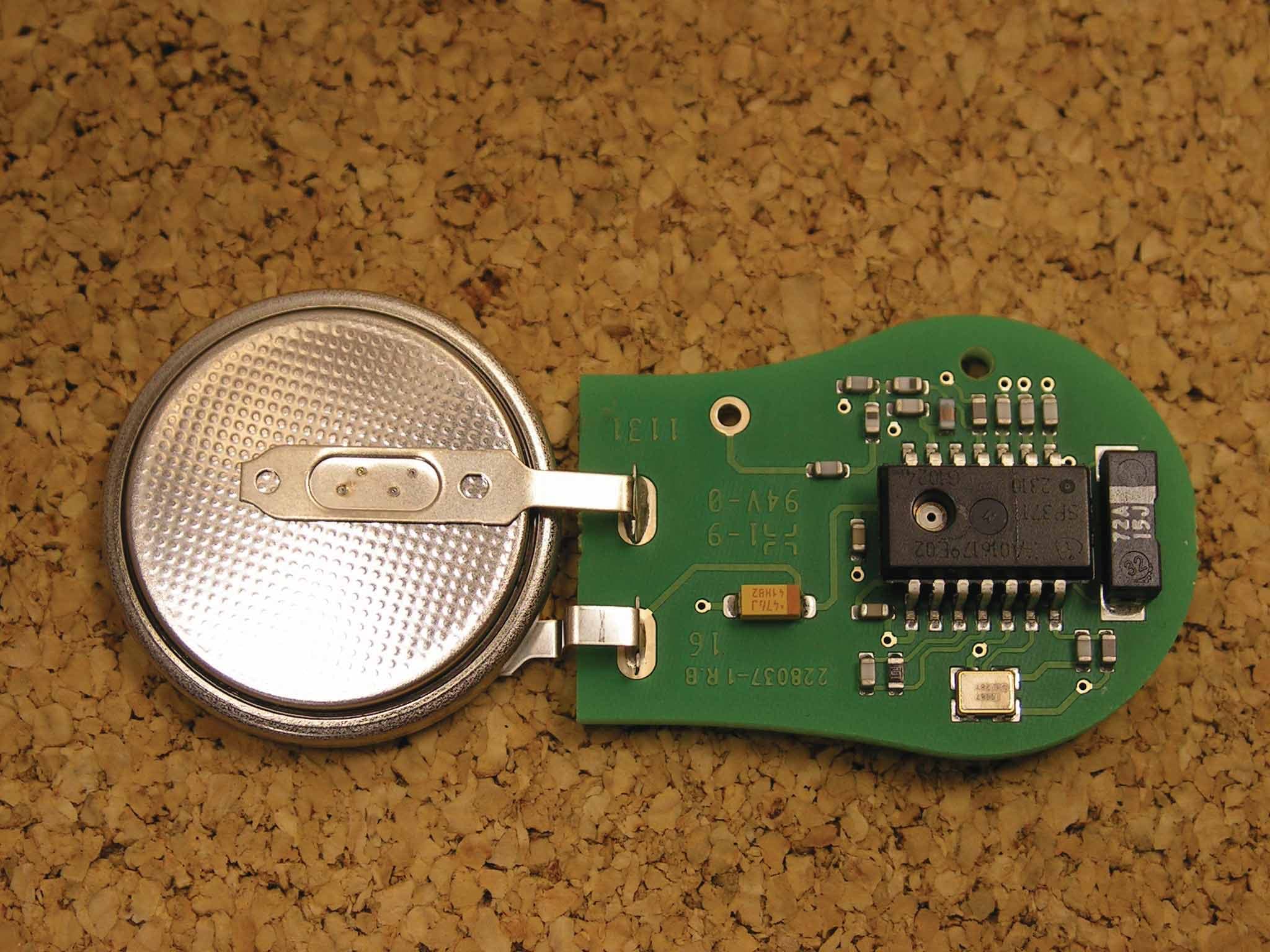

TRW Automotive Legal name here October 20, 2011 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Toyota MY13 420A FSK 315 MHz TPM Sensor FCC ID: GQ4-51T Canada IC: 1470A-32T Model #: 228408-101 GENERAL DESCRIPTION The Toyota Tire Pressure Monitor Sensor (TPM Sensor) is a self-contained module that includes the valve stem and sensor ECU subsystems and is attached to the rim of each monitored tire. There are no hardwired electrical connections to the TPM Sensors. The TPM Sensor monitors the pressure and the temperature inside the tire and transmits the information to a TPM receiver located in a vehicle by way of an Ultra High Frequency (UHF) band wireless signal. The TPM Sensor receives programming and diagnostic requests by way of a Low Frequency (LF) band wireless signal. Description of Operations Table 1 Sensor State Table State Name Transmit Period (sec) Datagram Type Pressure Measure Period (sec) Temp Measure Period (sec) Battery Measure Period (sec) LF Poll Period (ms) Normal 180 Normal 12 12 180 25ms on / 1000ms off Sleep N/A N/A 60 (if pressure exit enabled) 60 N/A 50ms on / 500ms off Accidental Pressure Change 4 Alert 4 4 4 25ms on / 1000ms off

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-618 Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From TRW Inc. Transmitter FCC ID: GQ4-51T IC: 1470A-32T Test Report No. 417124-618 December 27, 2011 Copyright © 2011 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Jeff Rochette [email protected] Phone: (248) 699-4235 Fax: (248) 699-4241 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a TRW, FCC ID: GQ4-51T, IC: 1470A-32T. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on November 22, 2011, the DUT tested met the allowed specifications for radiated emissions by 8.5 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-618 Page 2 of 12 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-618 Page 3 of 12 1. Introduction This TRW Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 8, December 2010. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter…
