GQ43VT20TAutomitive Remote Control

Re: Certification for TRW 500N/592N Transmitter Model: 500N/592N FCC ID: GQ43VT20T IC: 1470A-1T USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: GQ43VT20T IC: 1470A-1T This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

September 16, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for TRW 500N/592N Transmitter Model: 500N/592N FCC ID: GQ43VT20T IC: 1470A-1T Please find enclosed application materials for certification of TRW 500N/592N Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist September 16, 2002 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for TRW 500NT/592NT Transmitter Model: 500NT/592NT FCC ID: GQ43VT20T IC: 1470A-1T Please find enclosed application materials for certification of TRW 500NT/592NT Transmitter. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 1470A-1T If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

500NTrans.PPT BJT 9/8/2002 1 TRW Proprietary Toyota 500N/592N Transmitter Lock Antenna Data Output RF Amplifier Panic Unlock Power Back Door RH-Power Door LH-Power Door HCS1370 Transmitter ASIC 3V RF Oscillator

Re: Certification for TRW 500N/592N Transmitter Model: 500N/592N FCC ID: GQ43VT20T IC: 1470A-1T POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for TRW 500N/592N Transmitter Model: 500N/592N FCC ID: GQ43VT20T IC: 1470A-1T REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, TRW requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan September 16, 2002 Re: Certification for TRW 500N/592N Transmitter Model: 500N/592N FCC ID: GQ43VT20T IC: 1470A-1T STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for TRW 500N/592N Transmitter Model: 500N/592N FCC ID: GQ43VT20T IC: 1470A-1T GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Brennan Trese Tel: 248-442-5296 Fax: 248-478-7241 It will be manufactured by: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Brennan Trese Tel: 248-442-5296 Fax: 248-478-7241

September 16, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: GQ43VT20T Please find enclosed application materials for certification of TRW 500N/592N Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

209030 J:\shared\toyota\eng-docs\500NTx-TRD.doc Page: 1 Toyota 500N/592N TRANSMITTER DESCRIPTION The Toyota 500N and 592N transmitters are designed to operate Remote Keyless Entry functions in automotive vehicles. The Toyota 500N/592N transmitter will utilize six design configurations. These are listed by part number below: 1) 89742-AE010 - 3 button - Lock, Unlock, Panic. 2) 89742-AE020 - 4 button - Lock, Unlock, P-Back Door, Panic. 3) 89742-AE030 - 5 button - Lock, Unlock, P-Slide Door LH, P-Slide Door RH, Panic. 4) 89742-AE040 - 5 button - Lock, Unlock, P-Back Door, P-Slide Door, LH, Panic. 5) 89742-AE050 - 6 button - Lock, Unlock, P-Slide Door LH, P-Slide Door RH, P-Back Door, Panic. 6) 89742-AA040 - 4 button - Lock, Unlock, Trunk, Panic. The Toyota 500N and 592N transmitter is a Microchip ASIC based transmitter that utilizes a RF oscillator and RF amplifier with a tuned output antenna as the RF circuit. The transmitter operates from a single 3V CR2032 lithium battery, and transmits at 315 MHz using a Variable Pulse Width Modulation bit format. The Microchip ASIC (U1) is used for encoding and control. The design uses special Toyota transmitter tooling for the top and bottom plastic housing, and switchpad. The PCB utilizes all surface mount components except the battery terminals. The PCB utilizes .031” FR4 material and a common PCB is used for all six design configurations. The different configurations are determined by which switches are or are not populated. The transmitter utilizes surface mount tact switches with switch functions mapped to the ASIC as shown below. Lock Function: The Lock function is mapped to ASIC input S1 (pin 2). Unlock Function: The Unlock function is mapped to ASIC input S2 (pin 3). P-Back Door/Trunk Function: The P-Back Door/Trunk function is mapped to ASIC input S3 (pin 4). P-Slide Door LH Function: The P-Slide Door LH function is mapped to ASIC input S5 (pin 6). P-Slide Door RH Function: The P-Slide Door RH function is mapped to ASIC input S4 (pin 5). Panic Function: The Panic function is mapped to ASIC input S0 (pin 1). The Microchip HCS1370T-I/SL042 ASIC is normally in the standby mode in which the current draw is very low. When a switch is depressed, the output pin (12) goes high and low to gate the RF oscillator and RF amplifier on or off at times that achieve the RF pulse widths required (200us and 400us). The RF oscillator is a common base Colpitts configuration, with base grounded at the frequency of operation by the SAW resonator. Radiation is by a loop from the RF amp collector to ground (One end is grounded by the 330pF capacitor C2.). Data is encoded via variable pulse width modulation by gating the Colpitts oscillator on and off via data out (pin 12 of the Microchip ASIC). When Data Out goes high, the Colpitts is enabled to oscillate at 315 MHz for the period that data out remains high. Typical oscillator startup and decay periods are 15 to 20 μS. The Colpitts oscillator is pulled to 315 MHz due to the resonance of the SAW at 315 MHz, given that the natural frequency of the oscillator (less SAW) is near 315 MHz.

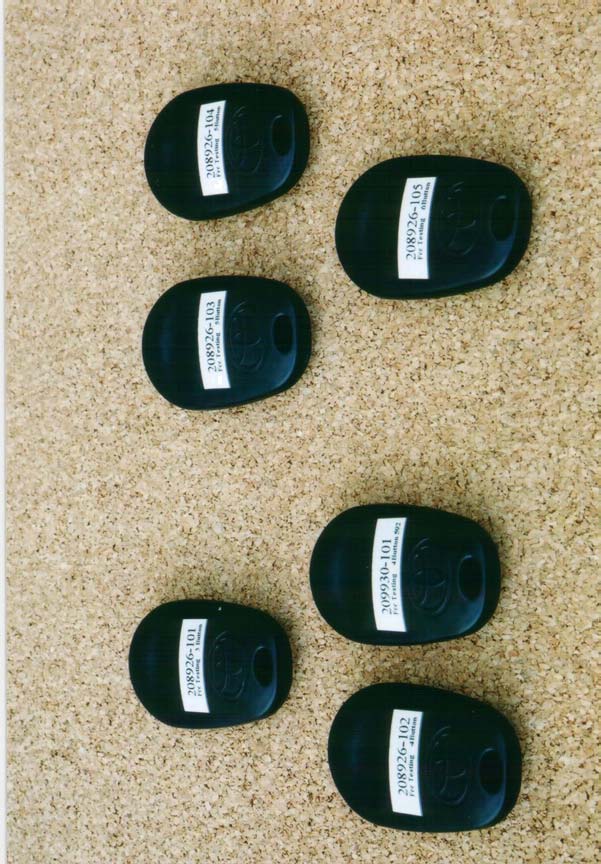

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From TRW Transmitters Model: 500N/592N PN: 208926-101 (3,4), -102, -103, -104, -105 Report No. 415031-134 September 10, 2002 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Brennan Trese Tel: 248-442-5296 Fax: 248-442-7241 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210, were performed on TRW model 500N/592N transmitters with 3-6 buttons; 6 versions were tested. These devices are subject to the Rules and Regulations as Transmitters. In testing completed on 27-Aug-02, the devices tested in the worst case met the allowed FCC specifications for radiated emissions by 4.3 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the devices are powered from a 3 VDC battery. 2 1. Introduction TRW model 500N/592N was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz transmitter, 2.25 x 0.5 x 1.5 inches in size. It operates at 315 MHz and the carrier is pulse width modulated. The carrier is SAW stabilized; while the modulation is performed by an RFIC. The antenna is integrated into the PCB. The DUT was designed and manufactured by TRW Inc., 24175 Research Drive, Farmington Hills, MI 48335-2642. It is identified as: TRW Inc Transmitter Model: 500N/592N P/N: 208926-101 (3,4), -102, -103, -104, -105 FCC ID: GQ43VT20T IC: 1470A-1T The transmitter transmits up to 24.5 seconds so long as the button is depressed. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Sections 6.1 and 6.3). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.109; IC: RSS-210, 6.2.2(r)). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak readings apply to 1000 MHz (120 kHz BW) 4 Table 4.2. Radiated Emission Limits (FCC: 15.231(b), 15.205(a); IC: RSS-210; 6.1, 6.3). (Transmitter) Fundamental Spurious** Frequency Ave. E lim (3m) Ave. E lim (3m) (MHz) (μV/m) dB (μV/m) (μV/m) dB (μV/m) 260.0-470.0 3750-12500* 375-1250 322-335.4 Restricted 399.9-410 Bands 200 46.0 608-614 960-1240 1300-1427 Restricted 1435-1626.5 Bands 500 54.0 1660-1710 1718.9-1722.2 2200-2300 * Linear interpolation, …
