GQ43VT29RAutomotive Security Receiver

Re: Certification for TRW 500N/592N Receiver Model: 500N/592N FCC ID: GQ43VT29R IC: 1470A-1R USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: GQ43VT29R IC: 1470A-1R This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

September 16, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for TRW 500N/592N Receiver Model: 500N/592N FCC ID: GQ43VT29R IC: 1470A-1R Please find enclosed application materials for certification of TRW 500N/592N Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist September 16, 2002 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for TRW 500N/592N Receiver Model: 500NR/592NR FCC ID: GQ43VT29R IC: 1470A-1R Please find enclosed application materials for certification of TRW 500NR/592NR Receiver. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 1470A-1R If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

SUPERHET.PPT BJT 9/10/20021 TRW Proprietary Toyota 500N/592N Super-heterodyne Receiver Supply Voltage: 12 V I Continuous: 3.0mAmax (continuous or via power cycling) Bandwidth: 400 KHz@ -3dB Center Frequency: 315 MHz Low Noise Pre Amplifier Baseband Amplifier/dectector Matching Network and SAW filter Antenna Data Output Power Conditioning and 5V Regulator B+ Microchip 16F76 uC EEPROM RDA Serial Output 8.00 MHz Crystal for system clock Super-Heterodyne Receiver PRG input 32.768 KHz Crystal for sleep timer 5.088 MHz Crystal for PLL PLL Reference oscillator Divide by 2 VCO Phase detector Loop Filter IF Filter IF Amplifier

September 16, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: GQ43VT29R Please find enclosed application materials for certification of TRW 500N/592N Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

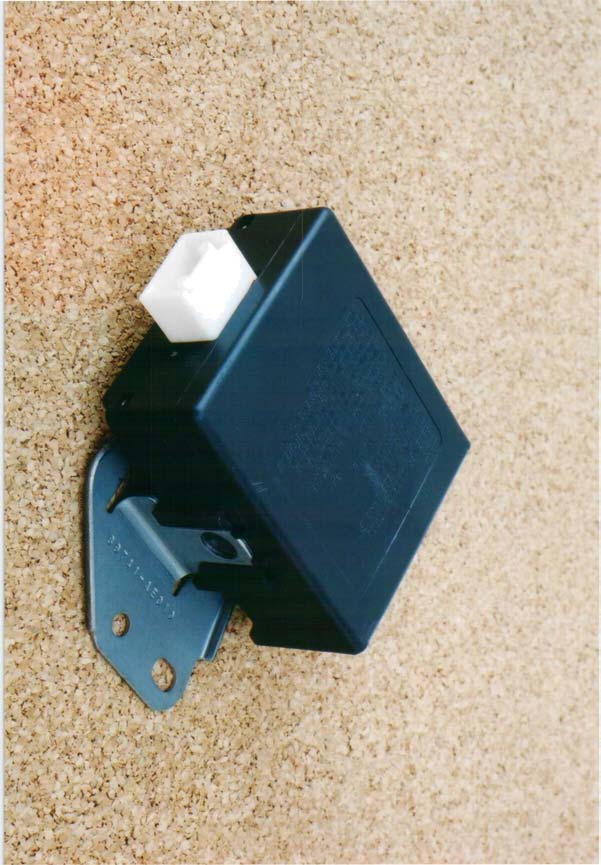

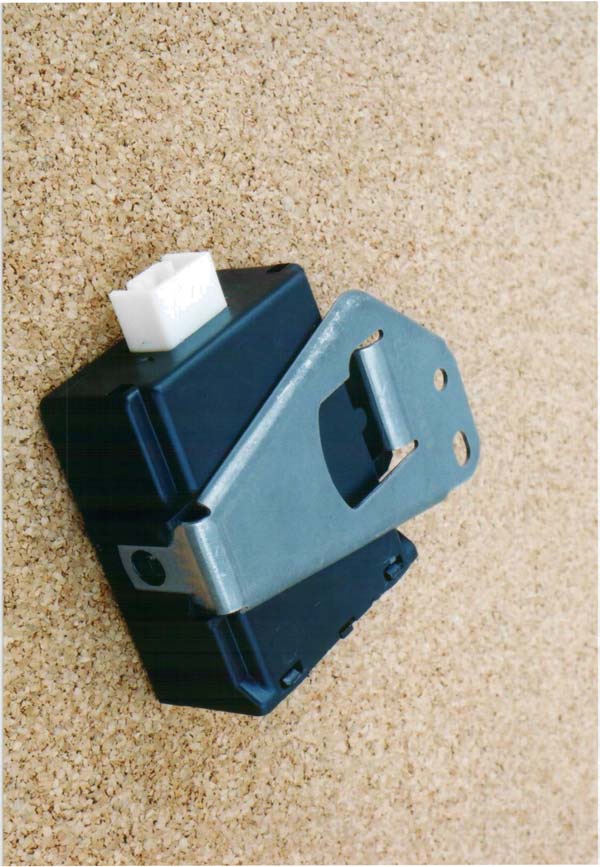

Page: 1 1 TOYOTA 500N/592N RECEIVER DESCRIPTION The module is a Super-heterodyne Radio Frequency receiver used to receive transmissions from automotive Remote Keyless Entry transmitters. It consist of a super-heterodyne ASIC, a Microchip PIC16F76 microcomputer, a stamped wire antenna, discrete components, a single piece polypropylene housing with a living hinge cover, and a Zinc plated bracket. All of the electronics are mounted on a FR4 double-sided PCB. All components except two screws are mounted on the topside of the PCB. All of the electrical components except the connector and antenna utilize surface mount packaging and are placed on the topside of the PCB and reflow soldered. CIRCUIT DESCRIPTION The antenna signal is fed through an impedance matching network into a SAW filter that prevents the receiver from being overloaded by interference signals. Then it goes into another matching network, and then into a superhet chip made by Infineon which converts the RF signal into a demodulated data signal which is output to a microprocessor. A surface mount crystal is connected to the superhet chip to provide a reference frequency for the local oscillator, and a 10.7 MHz surface mount IF filter determines system bandwidth. Additional components (resistors, capacitors) are connected to the ASIC (U2) to set up the data slicer. MODULE OPERATION The normal receiver state is the “sleep” mode. In this state the RF section is disabled. Approximately every38 ms the receiver will wake up, enable the RF section and check for valid data. If no data is found, the receiver returns to sleep mode. If valid data is detected, the receiver decodes the transmission and sends the appropriate message to the vehicles Body Control Module over a USART serial data line, RDA. The module can also receive programming or diagnostic messages from the Body Control Module over a separate USART serial data line, PRG. SIGNAL DEFINITIONS +B - Connects to vehicle positive battery power. RDA – Active Low, pulled high inside Body Computer. This serial data link is a single direction data channel (receiver to body module) that communicates received remote commands to the body module for execution. It also provides feedback during programming and diagnostics for service or plant use. PRG – Active Low, pulled high inside receiver module. This serial data link is a single direction data channel (body module to receiver) that communicates commands to the receiver to enter programming or diagnostic modes. GND - Connects to vehicle ground.

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From TRW Receiver Model: 500N/592N Report No. 415031-135 September 10, 2002 For: TRW Inc 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Brennan Trese Tel: 248-442-5296 Fax: 248-478-7241 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210, were performed on TRW model 500N/592N. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on 8-Aug-27, the device tested in the worst case met the allowed FCC (Class B) specifications for radiated emissions by more than 16.9 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. 2 1. Introduction TRW model 500N/592N was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz superheterodyne receiver, designed for onboard automobile security/convenience applications, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 2 by 2.5 by 1 inches; antenna is internal. For testing, a generic three meter harness was provided by the manufacturer. The (12 VDC) power wires were separated from the signal wires. In the receiver digital section, the decoding, signal processing, etc. are performed by a microprocessor timed by an 32.7 kHz oscillator. The DUT has an LO frequency of 325.7 MHz. The DUT was designed and manufactured by TRW Inc, 24175 Research Drive, Farmington Hills, MI 48335-2642. It is identified as: TRW Inc Receiver Model: 500N/592N S/N or P/N: 208305-1 FCC ID: GQ43VT29R IC: 1470A-1R 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: 15.33, 15.35, and 15.109). Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Average readings apply above 1000 MHz (1 MHz BW) 4.2 Conducted Emission Limits Table 4.2. Conducted Emission Limits (Ref: 15.107). Freq. (MHz) μV dB(μV) 0.450 - 1.705 250 48.0 1.705 - 30.0 250 48.0 Note: Quasi-Peak readings apply here 4 4.3 Antenna Power Conduction Limits Ref: 15.111(a). Pmax = 2 nW; for frequency range see Table 4.1. 5. Emission Tests and Results NOTE: Even though the FCC and/or Industry Canada specify that both the radiated and conductive emissions be measured using the Quasi-Peak and/or average detection schemes, we normally use peak detection since especially the Quasi-Peak is cumbersome to use with our instrumentation. In case t…
