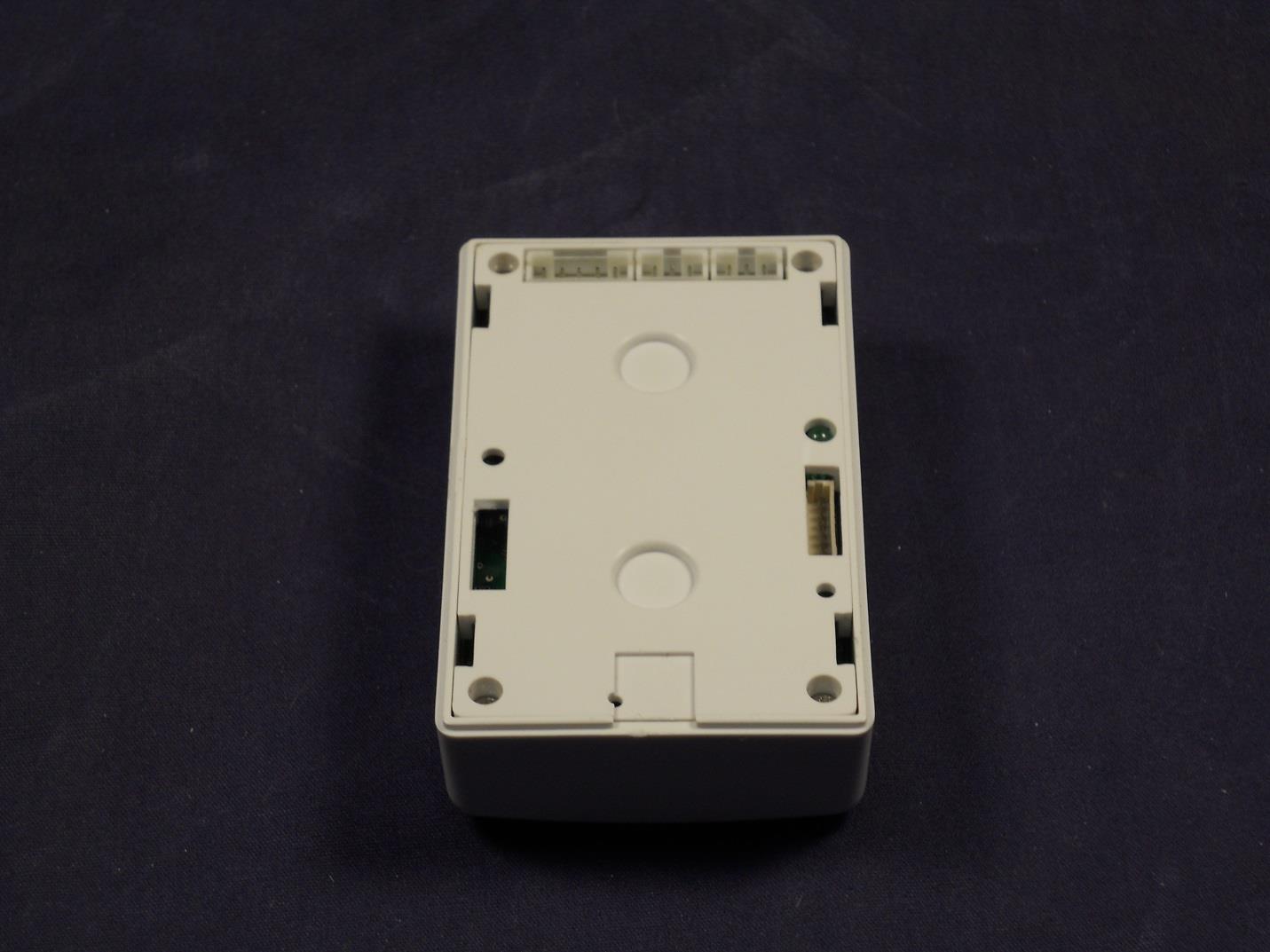

GTC202125TXRWireless Repeater Module

INNCOM PC-502.2 Datasheet Overview The INNCOM PC-502 wall mounted module can be used to expand the range of a network (IR or Layer-1 or Layer-2 RF) or to provide the protocol gateway from INNCOM S5-bus to Layer-1 or Layer-2 RF protocol. In an IR network, the PC-502 module can be used to provide remote eye functionality or protocol gateway from INNCOM S5-bus to IR wireless protocols. The PC-502 adds functionality beyond the traditional remote eye because, as a smart 5-bus device, it can be powered from a standard 3-pin 5-bus connection. In a Layer-1 RF network, the PC-502 provides S5-bus to RF protocol conversion, giving any INNCOM product participating in the INNCOM Integrated Room Automation System (IRAS) an RF transceiver for control of wireless products in the guestroom. In the Deep Mesh 802.15.4 network, the PC-502 is designed to patch areas within the network where signal strength is lost due to distance limitations or interference. It also serves to create multiple pathways, increasing the redundancy of the mesh communications to ensure maximum network reliability. Features  Small wall mountable form factor  2.4Ghz IEEE 802.15.4 compliant RF transceiver (CC2430 radio core)  Medium and long range variants available  Industrial temperature ratings 0–65 degrees C  FCC Part 15b listed Specification Parameter PC-502.2 RF Data Rate 250kbps Antenna Type SMT Indoor Range 100ft Outdoor/ RF line-of-sight range 1000ft+ Transmit Power 10mW (+18dBm) Receive Sensitivity -94.6dBm Frequency Band 2.4Ghz Encryption AES-128 Protocol 802.15.4 Frequency Channels 11-26 Input Voltage 12VDC Current Consumption 100mA (Peak) Operating Ambient Temperature 40°C Figure 1 PC-502 INNCOM PC-502 Datasheet P a g e | 2 Network Topology In this application, the PC-502 provides S5-bus to IR protocol conversion giving any INNCOM product participating in the INNCOM Integrated Room Automation System (IRAS) an IR transceiver for control of wireless products in the guestroom. S5bus e527PC-502.1 D254.DIN S55x Lamp Controller L208 Lamp Controller X07 HVAC Controller Layer-1 RF Network Figure 3 PC-502 Layer-1 Topology In this application, the PC-502 is providing S5-bus to RF protocol conversion, giving any INNCOM product participating in the INNCOM Integrated Room Automation System (IRAS) an RF transceiver for control of wireless products in the guestroom. S 5 b u s e 5 2 7 P C - 5 0 2 . . I R D 2 5 4 . D I N S 5 5 x L a m p C o n t r o l l e r L 2 0 8 L a m p C o n t r o l l e r X 0 7 H V A C C o n t r o l l e r Figure 2 PC-502.IR Topology INNCOM PC-502 Datasheet P a g e | 3 S 5 b u s G S - 5 2 8 H E 5 2 8 . 3 G P C - 5 0 2 . 2 S 5 5 x L a m p C o n t r o l l e r L 2 0 8 L a m p C o n t r o l l e r X 0 7 H V A C C o n t r o l l e r L a y e r - 1 R F N e t w o r k L a y e r - 2 R F N e t w o r k T C T . R F E t h e r n e t B 5 7 3 - M B X Figure 4 PC-502 Layer-2 Topology In this application, the PC-502 in participation with the e528.3G provides the Layer-1 to Layer-2 RF Bridge where both wireless in-room and wireless back-end networking are required. The PC-502 can also patch areas within the Layer-2 network where signal strength is lost due to distance limitations or interference. Safety/Regulatory Parameter Condition Status FCC Part 15b This device contains FCC ID: FCC ID: GTC202125TXR Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20 cm between the radiator& your body Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off INNCOM PC-502 Datasheet P a g e | 4 and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the  Receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IC ID: 1609A-202125TXR, This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. PC-502 Dimensions S …

Text truncated - open the document above for the full version.

To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle, #1 Littleton, MA 02702 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. INNCOM International Inc. requests that the following documents regarding this submission for FCC ID GTC202125TXR be kept confidential: 1. Schematics 2. Block Diagram 3. Circuit/Technical Description The material above contains technical data, which would customarily be guarded from competitors. Sincerely, Ryan Gardner Director of New Product Development 07/10/2014

Agent’s Authorization Letter 07/10/2014 I, an officer of INNCOM International Inc. do hereby authorize, until further notice, Christopher Reynolds of Curtis-Straus LLC, One Distribution Center Circle, #1, Littleton, MA 01460, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certify that no party (as defined in 47 CFR 1.2002) to this application, including myself, is subject to a denial of federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853A. Certified By: __________________ Ryan Gardner> Director of New Product Development> 07/10/2014

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:15.00(dBm) Maximum peak output power at the antenna terminal:31.6227766(mW) Antenna gain(typical):1(dBi) Maximum antenna gain:1.258925412(numeric) Prediction distance:20(cm) Prediction frequency:2405(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.007920(mW/cm^2) Maximum allowable antenna gain:22.01269855(dBi) 2 4 R PG S p =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 24 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EN1124-1 Client Inncom Ryan Gardner Address 277 West Main Street Niantic, CT 06357 Phone 860-739-4468 Items tested PC-502.2 4G RF Repeater FCC ID IC GTC202125TXR 1609A-202125TXR FRN 0017924150 Equipment Type Part 15.247 Digitally Modulated Equipment Code DTS FCC/IC Rule Parts 47 CFR 15.247, RSS-210 Issue 8, RSS-Gen Issue 3 Test Dates August 19, 20, 23, 36, 2013 Results As detailed within this report Prepared by Tuyen Truong – Test Engineer Authorized by Chris Reynolds – EMC Supervisor Issue Date 7/31/2014 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 23 of this report. Test Report for Inncom  Report No. EN1124-1 July 31, 2014 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 24 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 4 Product Tested - Configuration Documentation ....................................................................... 5 Test Results ............................................................................................................................ 7 Bandwidth ............................................................................................................................ 7 Peak Power ........................................................................................................................... 10 Band Edge Measurements .................................................................................................... 11 Duty Cycle Correction Calculation ......................................................................................... 13 Radiated Spurious Emissions ............................................................................................ 15 Conducted Spurious Emissions ......................................................................................... 17 Power Spectral Density ...................................................................................................... 18 AC Line Conducted Emissions .............................................................................................. 19 Occupied Bandwidth .......................................................................................................... 20 Measurement Uncertainty .................................................................................................. 22 Conditions Of Testing ............................................................................................................ 23 Form Final Report REV 7-20-07 (DW) Test Report for Inncom  Report No. EN1124-1 July 31, 2014 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release November 10, 2012 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 24 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the PC-502.4G RF Repeater. It is a digitally modulated transmitter that operates in the range 2400-2483.5MHz. We found that the product met the above requirements without modification. Ryan Gardner, from Inncom, was present during the testing. The test sample was received in good condition. Test Report for Inncom  Report No. EN1124-1 July 31, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 24 Test Methodology Radiated emissions testing was performed according to the procedures specified in FCC guidelines for DTS measurement (April 2013), ANSI C63.10 (2009) and C63.4 (2009). Radiated Emissions were maximized by rotating the device around its axes as well as varying the test antenna’s height and polarity. The device antenna cannot be maximized separately. Conducted emission at the antenna port was not applicable as the EUT has an integral chip antenna. The EUT operating voltage is 120VAC, 60Hz Low operating channel frequency = 2405MHz Mid operating channel frequency = 2445MHz High operating channel frequency = 2480MHz The following bandwidths were used during radiated spurious and line conducted emissions. Frequency RBW VBW 0.15-30MHz 9kHz 30kHz 30-1000MHz 120kHz 1MHz 1-25GHz 1MHz 3MHz Test Report for Inncom  Report No. EN1124-1 July 31, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center …

Text truncated - open the document above for the full version.

Radiated Emissions – Front View Radiated Emissions – Rear View AC Side of the DC Supply AC Side of the DC Supply
