GXZE10738Remote Control Transmitter

TCTX12P-0 Rev. D 11/5/2003 P P R R O O G G R R A A M M M M I I N N G G A A N N D D U U S S E E R R S S M M A A N N U U A A L L TELEMOTIVE telePendant TM TRANSMITTERS R R A A D D I I O O C C O O N N T T R R O O L L E E Q Q U U I I P P M M E E N N T T 175 Wall Street Glendale Heights, IL 60139-1985 Phone: 630-582-1111, Toll Free: 888-687-4400 Website: http://www.telemotive.com telePendant programming is found on page 20. Table of Contents 2 1- Service Information.....................................................................................................3 2- Radio Controlled Crane Safety...................................................................................4 3- General System Information.....................................................................................11 4- Operation....................................................................................................................12 5- Programming.............................................................................................................18 6- Spare Parts..................................................................................................................30 Section 1 - Service Information 1-1. Service Information. For questions regarding service or technical information or ordering replacement parts, ask for Telemotive Customer Care. Telemotive’s normal business hours are Monday through Friday 8:00 AM to 5:00 PM Central Standard Time. After hours emergency technical service is available. For new product orders or quotations, ask for Telemotive Sales. Telemotive Industrial Controls 175 Wall Street Glendale Heights, IL 60139-1985 USA Telephone: (630) 582-1111 In the USA toll free: (888) 687-4400 Website: http://www.telemotive.com Manuals for downloading are available for many products at the Telemotive website. Telemotive Fax Numbers: Main: (630) 582-1195 Sales: (630) 582-1204 Customer Care: (630) 582-1205 Telemotive Industrial Control trademarks: Boommate, GateMate, 10K, inteleSmart, Telemotive, telePilot, telePendant, Laser Guard, Teledrive, Teltec, TeleMotion are either trademarks or registered trademarks of Telemotive Industrial Controls. Third-party trademarks: All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners. CAUTION • DO NOT ATTEMPT TO OPEN OR SER- VICE THE TELEPENDANT UNIT. • ONLY TRAINED QUALIFIED INDIVIDU- ALS SHOULD DO SERVICING. • STRICT ANTI-STATIC HANDLING PROCEDURES MUST BE FOLLOWED. • FAILURE TO FOLLOW THIS CAUTION COULD RESULT IN SERIOUS DAMAGE TO EQUIPMENT AND/OR VOID THE WARRANTY. . Section 2 – Radio Controlled Safety 4 2-1. Warnings, Cautions and Notes. Through out this document WARNING, CAUTION and NOTE statements have been deliberately placed to highlight items critical to the protection of personnel and equipment. WARNING – A warning highlights an essential operating or maintenance procedure, practice, etc. which if not strictly observed, could result in injury or death of personnel, or long term physical hazards. Warnings are highlighted as shown below: WARNING CAUTION – A caution highlights an essential operating or maintenance procedure, practice, etc. which if not strictly observed, could result in damage to, or destruction of equipment, or loss of functional effectiveness. Cautions are highlighted as shown below: CAUTION NOTE – A note highlights an essential operating or maintenance procedure, condition or statement. Notes are shown as below: NOTE WARNINGS, CAUTIONS AND NOTES SHOULD NEVER BE DISREGARDED. The safety rules in this section are not intended to replace any rules or regulations of any applicable local, state, or federal governing organizations. The following information is intended to be used in conjunction with other rules or regulations already in existence. It is important to read all of the safety information contained in this section before installing or operating the Radio Control System. 2-2. Critical Installation Considerations. WARNING ALL EQUIPMENT MUST HAVE A MAINLINE CONTACTOR INSTALLED AND ALL TRACKED CRANES AND SIMILAR EQUIPMENT MUST HAVE A BRAKE INSTALLED. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT. WARNING ON ALL REMOTE CONTROLLED CRANES AN AUDIBLE AND/OR VISUAL WARNING MEANS MUST BE PROVIDED. THESE AUDIBLE AND/OR VISUAL WARNING DEVICES MUST MEET ALL GOVERNMENTAL REQUIRE- MENTS. FAILURE TO FOLLOW THIS WARN- ING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT. WARNING REMOVE ALL ELECTRICAL POWER FROM THE CRANE OR MACHINERY BEFORE AT- TEMPTING ANY INSTALLATION PROCE- DURES. DE-ENERGIZE AND TAG OUT ALL SOURCES OF ELECTRICAL POWER BEFORE TOUCH TESTING ANY EQUIPMENT. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAM- AGE TO EQUIPMENT. Section 2 – Radio Controlled Safety (Continued) 5 WARNING THE DIRECT OUTPUTS OF THIS PRODUCT ARE NOT DESIGNED TO INTERFACE DI- RECTLY TO TWO STATE SAFETY CRITICAL MAINTAINED FUNCTIONS, I.E., MAGNETS, VACUUM LIFTS, PUMPS, EMERGENCY EQUIPMENT, ETC. A MECHANICALLY LOCK- ING INTERMEDIATE RELAY SYSTEM WITH SEPARATE POWER CONSIDERATIONS MUST BE PROVIDED. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS IN- JURY OR DEATH AND DAMAGE TO EQUIP- MENT. 2-3. General. Radio controlled overhead cranes and other material handling equipment operate in several directions. They are large, bulky pieces of equipment that handle heavy loads efficiently at high speeds. Quite frequently, the equipment is operated in areas where people are working on the floor below. The crane operator must exercise extreme caution at all times. Workers must constantly be alert to avoid accidents. The following rules have been included to indicate how your careful and thoughtful actions may prevent injuries, damage to equipment, or even save a life. If radio controlled material-handling equipment is operated from the cab, special care mu…

Text truncated - open the document above for the full version.

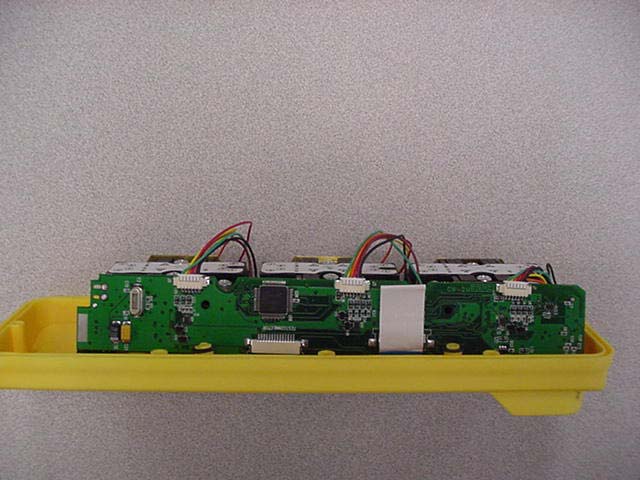

Exhibit C 1 telePendant External Front Photo Exhibit C 2 telePendant External Back Photo Exhibit C 3 telePendant Internal Front Photo Exhibit C 4 telePendant Internal Back Photo

Exhibit A 1 telePendant FCC ID Number

Exhibit C 1 telePendant External Front Photo Exhibit C 2 telePendant External Back Photo Exhibit C 3 telePendant Internal Front Photo Exhibit C 4 telePendant Internal Back Photo

Page 1 of 32 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE Engineering Test Report No. 32677-01 Measurement of RF Interference from a Model Telependant Transmitter For : Telemotive Industrial Controls Glendale Heights IL P.O. No. : 11521-000 OP Date Received : September 15, 2003 Date Tested : September 15th. And 16th., 2003 Test Personnel : Richard E. King Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart C, Class C Test Report By : Richard E. King Witnessed by : Talamage Wesley Telemotive Industrial Controls Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 32677-01 Page 2 of 32 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. NO. 1.0 INTRODUCTION....................................................................................................................................4 1.1 Description of Test Item........................................................................................................................4 1.2 Purpose................................................................................................................................................4 1.3 Deviations, Additions and Exclusions......................................................................................................4 1.4 Applicable Documents...........................................................................................................................4 1.5 Subcontractor Identification....................................................................................................................4 1.6 Laboratory Conditions............................................................................................................................4 2.0 TEST ITEM SETUP AND OPERATION.................................................................................................4 2.1 Power Input..........................................................................................................................................4 2.2 Grounding.............................................................................................................................................4 2.3 Peripheral Equipment.............................................................................................................................4 2.4 Interconnect Cables...............................................................................................................................4 2.5 Operational Mode..................................................................................................................................5 3.0 TEST EQUIPMENT.................................................................................................................................5 3.1 Test Equipment List...............................................................................................................................5 3.2 Calibration Traceability..........................................................................................................................5 3.3 Measurement Uncertainty......................................................................................................................5 4.0 REQUIREMENTS, PROCEDURES AND RESULTS...............................................................................5 4.1 Powerline Conducted Emissions.............................................................................................................5 4.1.1 Requirements.................................................................................................................................5 4.2 Duty Cycle Factor Measurements.........................................................................................................6 4.2.1 Procedures....................................................................................................................................6 4.2.2 Results..........................................................................................................................................6 4.3 Radiated Measurements........................................................................................................................6 4.3.1 Requirements.................................................................................................................................6 4.3.2 Procedures.....................................................................................................................................6 4.3.3 RESULTS....................................................................................................................................7 4.4 Occupied Bandwidth Measurements.......................................................................................................8 4.4.1 Requirement...................................................................................................................................8 4.4.2 Procedures.....................................................................................................................................8 4.4.3 Results...........................................................................................................................................8 5.0 CONCLUSIONS......................................................................................................................................8 6.0 CERTIFICATION....................................................................................................................................8 7.0 ENDORSEMENT DISCLAIMER.............................................................................................................8 TABLE I - …

Text truncated - open the document above for the full version.

Engineering Test Report No. 32677-01 Page 12 of 32 Radiated Emissions Horizontal Polarity Radiated Emissions Vertical Polarity
