H4JAMP-3A130AMP-3A130-25

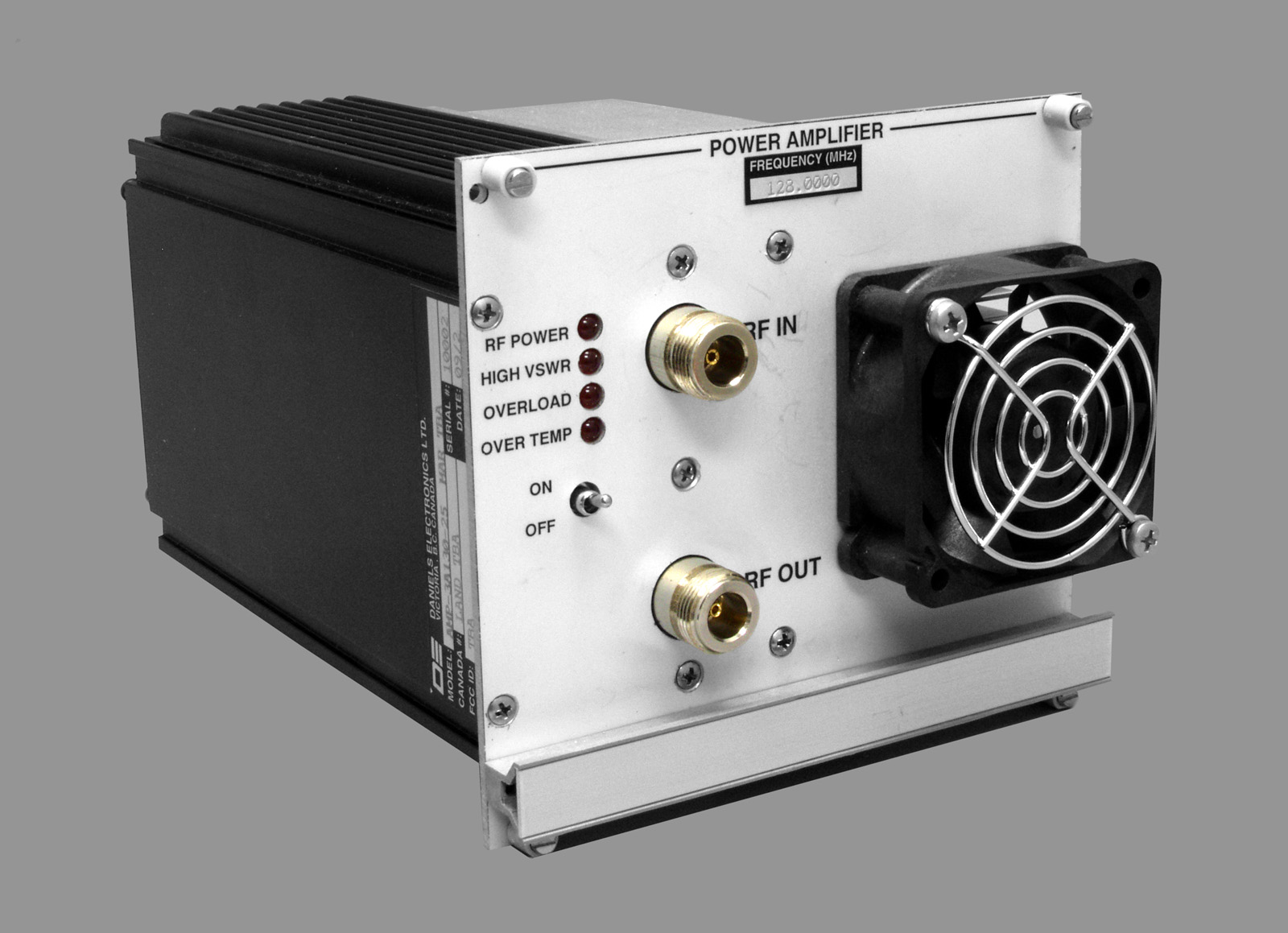

DANIELS ELECTRONICS LTD. TM MT-3 RADIO SYSTEMS 25W AM POWER AMP INSTRUCTION MANUAL AMP-3 118 - 138 MHz Covers Model: AMP-3A130-25-00 Copyright © 2002 Daniels Electronics Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Daniels Electronics Ltd. DE™ is a registered trademark of Daniels Electronics Ltd. registered in the United States Patent and Trademark Office. Printing Date: Nov 2002 Daniels Electronics Ltd. Issue Date: Nov 2002 Previous Issue Date: N/ A Victoria, BC Issue:1Previous Issue: N/A Document No.:IM71-AMP3A130-25PRINTED IN CANADA DANIELS ELECTRONICS LTD. TM ii25W AM Power Amplifier Instruction Manual IM71-AMP3A130-25 NOTE: The user's authority to operate this equipment could be revoked through any changes or modifications not expressly approved by Daniels Electronics Ltd. The design of this equipment is subject to change due to continuous development. This equipment may incorporate minor changes in detail from the information contained in this manual. RF Exposure Warning S= PG 4πR 2 RF Exposure Warning This transmitting equipment conforms to SAR (Specific Absorption Rate) limits regarding exposure of human beings to radio frequency electromagnetic energy, as defined in the following national and international standards and guidelines: 1. Industry Canada Radio Standards Specification 102 (RSS-102), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields; 2. Health Canada Safety Code 6, Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz 1 ; 3. United States Federal Communications Commission, Code of Federal Regulations; 47 CFR Part 1, § 1.1310 Radiofrequency radiation exposure limits; and 4. American National Standards Institute (ANSI) criteria for localized SAR in Section 4.2 of “IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz” 2 . Notes: A. The SAR limit for uncontrolled exposure of persons not classed as RF and microwave exposed workers (including the general public) for transmitter equipment operating below 10 GHz, as defined in the references above, is 2 W/m 2 (0.2 mW/cm 2 ). B. This transmitting equipment is designed for use with an outdoor antenna with a characteristic antenna gain of 10 dBi, typically mounted at a significant height above ground to provide for adequate signal coverage. To ensure that the general public is not exposed to a power density above the recommended limit of 2 W/m 2 (0.2 mW/cm 2 ), the equipment must be installed such that the following minimum safe distances from the antenna are maintained: 6.0 m (19.7 ft) when configured with 25 W AM PA (at 90% modulation) 2.4 m (7.9 ft) standalone (i.e. no PA) 4 W AM TX (at 90% modulation) C. The following power density formula has been utilized in determining minimum safe distances: where: S = Power density (in appropriate units, e.g. W/m 2 ) P = Power input to the Antenna (in appropriate units, e.g., W) G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (appropriate units, e.g., m) 1 Minister of Public Works and Government Services, Canada 1999, Cat. H46- 2/ 99- 237E, ISBN 0- 662- 28032- 6 2 ANSI/IEEE C95.1–1992, Copyright 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017 DANIELS ELECTRONICS LTD. TM 25W AM Power Amplifier Instruction Manual IM71-AMP3A130-25iii TABLE OF CONTENTS Page 1GENERAL................................................................................................................ 1-1 1.1Introduction .................................................................................................... 1-1 1.2Performance Specifications............................................................................. 1-1 1.3Physical Specifications ................................................................................... 1-2 2THEORY OF OPERATION..................................................................................... 2-1 2.1General............................................................................................................ 2-1 2.2Control Board Circuitry ................................................................................. 2-1 2.3RF Amplifier Circuitry................................................................................... 2-2 2.4Printed Circuit board Numbering Convention ................................................ 2-3 3INSTALLATION AND SITE OPERATION ........................................................... 3-1 4AMPLIFIER ALIGNMENT..................................................................................... 4-1 4.1Recommended Test Equipment List .............................................................. 4-1 4.2RF Amplifier Board Alignment ...................................................................... 4-3 4.3Control Board Alignment ............................................................................... 4-5 5ILLUSTRATIONS AND SCHEMATIC DIAGRAMS ........................................... 5-1 5.1Rack Mounting Positions ............................................................................... 5-1 5.2RF Power Amplifier Block Diagram .............................................................. 5-2 5.3RF Power Amplifier Exploded View.............................................................. 5-3 5.4RF Power Amplifier Board - Component Layout ........................................ 5-4 5.5RF Power Amplifier Board - Schematic ........................................................ 5-5 5.6Control Board - Component Layout .................…

Text truncated - open the document above for the full version.

DANIELS ELECTRONICS LTD. TM Telephone: (250) 382-8268 43 ERIE ST., VICTORIA, BC Fax: (250) 382-6139 CANADA, V8V 1P8 E-Mail: [email protected] Website: www.danelec.com RADIO COMMUNICATION MANUFACTURER Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Authority To Act As Agent To The Federal Communications Commission I hereby appoint Nemko Canada Inc. to act as an agent of Daniels Electronics Ltd. in the preparation of applications for equipment authorization to the Federal Communications Commission. I certify that Exhibits submitted properly describe the devices or system for which authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations, will have affixed to it a label identical to that submitted for approval with this application. Agency Agreement Expiration Date: 31 December, 2003 Dated this 18 th day of December, 2002 By: Ron Backlund Engineering Manager Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Phone: (250) 382-8268 Fax: (250) 382-6139 E-Mail: [email protected]

DANIELS ELECTRONICS LTD. TM Telephone: (250) 382-8268 43 ERIE ST., VICTORIA, BC Fax: (250) 382-6139 CANADA, V8V 1P8 E-Mail: [email protected] Website: www.danelec.com RADIO COMMUNICATION MANUFACTURER FCC ID: H4JAMP-3A130 December 18, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 REQUEST FOR CONFIDENTIALITY Reference: FCC ID: H4JAMP-3A130 In accordance with 47 CFR§ 0.457 (d) (ii) and pursuant to 47 CFR§ 0.459 (a), Daniels Electronics Ltd requests that the following information contained within its 25W AM POWER AMP INSTRUCTION MANUAL not be made routinely available to the public: Specific Information: Circuit Description (Theory of Operation) Schematic Diagrams Component Layout Diagrams (including Alignment Location Diagram) Electrical Parts Lists The above-mentioned sections contain trade secret information which is not made routinely available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. This information should be treated as confidential for the duration of effectiveness of the Grant of Authorization. Regards, Ron Backlund Engineering Manager Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Phone: (250) 382-8268 Fax: (250) 382-6139 E-Mail: [email protected] Web: www.danelec.com

Telephone: (250) 382-8268 43 ERIE ST., VICTORIA, BC FAX: (250) 382-6139 CANADA, V8V 1P8 Website: www.danelec.com FCC ID: H4JAMP-3A130 RADIO COMMUNICATION MANUFACTURER 19 December, 2002 Mr. Oscar Alvarez Federal Aviation Administration Spectrum Assignment & Engineering Division 800 Independence Ave. SW. Washington, DC 20591 Reference: FCC Part 87.147(d) Dear Mr. Alvarez: In accordance with the subject FCC reference, this letter will serve as notification that Daniels Electronics Ltd is filing a type acceptance application with the FCC for its VHF AM 25 Watt Power Amplifier, model AMP-3A130-25. Additional equipment information, as required by the reference, is as follows: 1. Description of the equipment: VHF AM 25 Watt Power Amplifier 2. Manufacturer’s identification: Daniels Electronics Ltd 3. Antenna characteristics: External, 50 Ohm 4. Rated output power: Adjustable from 10.0 to 25.0 watts 5. Emission type and characteristics: A3E, analog AM 6. Frequency of operation: 118.000 MHz to 138.000 MHZ 7. Essential receiver characteristics: N/A Please contact me directly should you require any additional information. Regards, Ron Backlund Engineering Manager Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Phone: (250) 382-8268 Fax: (250) 382-6139 E-Mail: [email protected] Web: www.danelec.com

Mr. Andy Leimer Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Dear Mr. Leimer: The Federal Aviation Administration (FAA) Office of Spectrum Policy and Management, has reviewed the Type Acceptance Certification request from Daniels Electronics Ltd., for their 25-Watt Am power amplifier model number AMP-3A130-25, ID number H4JAMP-3A130. The technical data for this equipment is consistent with the spectrum requirements and we have no objections to certification of this device. Should you have any questions or concerns, please contact Mr. Donald Nellis, Spectrum Planning and International Division, at (202) 267-9779. Sincerely, George K. Sakai Program Director for Spectrum Policy and Management File: 1200-5-1 S/ASRSHARE/DNELLIS/ljg/3/7/03/H4JAMP-3A130.doc

DANIELS ELECTRONICS LTD. MODEL: CANADA #: FCC ID: EQUIPMENT IDENTIFICATION LABEL FORMAT AMP-3A130-25 H4JAMP-3A130 10001 12/02 FCC ID: H4JAMP-3A130 AMP-3A130 25 Watt Power Amplifier VICTORIA , B.C. CANADA SERIAL #: DATE: Dated thisday of18thDecember 2002 By:Ron Backlund Title: Applicant: Telephone: Engineering Manager Daniels Electronics Ltd. (250) 382-8268 PrintedSignature REDUCE TO 3.10 INCHES 0.77 INCHES 142A-AMP3A130

FRONT PANEL BOTTOM TOP LEFT SIDE COVER EQUIPMENT IDENTIFICATION LABEL LOCATION FCC ID: H4JAMP-3A130 AMP-3A130 25 Watt Power Amplifier Dated thisday of18thDecember 2002 By:Ron Backlund Title: Applicant: Telephone: Engineering Manager Daniels Electronics Ltd. (250) 382-8268 PrintedSignature DANIELS ELECTRONICS LTD. MODEL: CANADA #: FCC ID: AMP-3A130-25 H4JAMP-3A130 10001 12/02 VICTORIA , B.C. CANADA SERIAL #: DATE: 142A-AMP3A130

RF Exposure Warning S= PG 4πR 2 RF Exposure Warning This transmitting equipment conforms to SAR (Specific Absorption Rate) limits regarding exposure of human beings to radio frequency electromagnetic energy, as defined in the following national and international standards and guidelines: 1. Industry Canada Radio Standards Specification 102 (RSS-102), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields; 2. Health Canada Safety Code 6, Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz 1 ; 3. United States Federal Communications Commission, Code of Federal Regulations; 47 CFR Part 1, § 1.1310 Radiofrequency radiation exposure limits; and 4. American National Standards Institute (ANSI) criteria for localized SAR in Section 4.2 of “IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz” 2 . Notes: A. The SAR limit for uncontrolled exposure of persons not classed as RF and microwave exposed workers (including the general public) for transmitter equipment operating below 10 GHz, as defined in the references above, is 2 W/m 2 (0.2 mW/cm 2 ). B. This transmitting equipment is designed for use with an outdoor antenna with a characteristic antenna gain of 10 dBi, typically mounted at a significant height above ground to provide for adequate signal coverage. To ensure that the general public is not exposed to a power density above the recommended limit of 2 W/m 2 (0.2 mW/cm 2 ), the equipment must be installed such that the following minimum safe distances from the antenna are maintained: 6.0 m (19.7 ft) when configured with 25 W AM PA (at 90% modulation) 2.4 m (7.9 ft) standalone (i.e. no PA) 4 W AM TX (at 90% modulation) C. The following power density formula has been utilized in determining minimum safe distances: where: S = Power density (in appropriate units, e.g. W/m 2 ) P = Power input to the Antenna (in appropriate units, e.g., W) G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (appropriate units, e.g., m) 1 Minister of Public Works and Government Services, Canada 1999, Cat. H46- 2/ 99- 237E, ISBN 0- 662- 28032- 6 2 ANSI/IEEE C95.1–1992, Copyright 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017

Master: FCC-PR24-E Date: February 13, 2002 Test Report:2W06489 Applicant:Daniels Electronics Ltd. 43 Erie Street Victoria, B.C., V8V 1P8 Equipment Under Test:AM 25W Power Amplifier (AMP-3A130-25) 118-138MHz In Accordance With:FCC Part 87 Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date:18 December 2002 Total Number of Pages:21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 2 of 21 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................6 Section 4. Occupied Bandwidth............................................................................................8 Section 5. Spurious Emissions at Antenna Terminals........................................................12 Section 6. Field Strength of Spurious..................................................................................16 Section 7. Block Diagrams...................................................................................................19 Section 8. Test Equipment List...........................................................................................21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 3 of 21 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 87. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________DATE: 17 December 2002 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 4 of 21 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complies Occupied Bandwidth2.1049Complies Spurious Emissions at Antenna Terminals2.1051Complies Field Strength of Spurious Emissions2.1053Complies Frequency Stability2.1055N/A Notes: (1) This application is for a 25W AM amplifier used for VHF Aviation support. This amplifier is used in the transmit path for a single channel only, and is driven by an FCC & Industry Canada approved exciter, FCC ID. H4JVT-3A130-S-FSH and Ind. Can. # 142411117. This amplifier is connected via coaxial connection and operated in an equipment rack. (2) This amplifier does not translate the RF input, therefore frequency stability is not applicable. IndoorTemperature:22 °C Humidity:17 % OutdoorTemperature:-3 °C Humidity:20 % Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 5 of 21 Section 2.General Equipment Specification Manufacturer: Daniels Electronics Ltd. Model No.: AMP-3A130-25 Serial No.: S/N 10002 Date Received In Laboratory: 20 Nov, 2002 Nemko Identification No.: #1 Supply Input Voltage: 24-32Vdc Frequency Range: 118-138MHz RF Output (Rated): 25W Amplifier Gain (Rated): 10dB Emission Designator (modulation): A3E Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 6 of 21 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Glen WestwellDate of Test: 5 Dec. 2002 Minimum Standard:Para. No.: 87.131, 50W Test Results:Complies. The maximum RF output power is within ± 1dB of the manufacturer’s rating. Measurement Data:Rated Power = 25W (44dBm) Frequency (MHz) Rated Power (dBm) Measured Power (dBm) 1184443.5 1284444.7 1384444 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 7 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 8 of 21 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Glen WestwellDate of Test: 6 Dec. 2002 Minimum Standard:Para. No.: 87.139. Test Results:Complies. The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine if there was any degradation to the output signal due to the amplification through the repeater. Test Data:See attached graph(s). Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 9 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 10 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 11 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 12 of 21 Section 5.Spurious Emissions at Antenna Terminals Para. No.: 2.1051 Test Performed By: Glen WestwellDate of Test: 6 Dec. 2002 Minimum Standard:Para. No.: 87.139. Test Results:Complies. Measurement Data:See attached graphs (worst case). Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 13 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 14 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 15 of 21 Nemko Canada Inc.FCC PART 87 PROJECT NO.:2W06489 EQUIPMENT: AMP-3A130-25 Page 16 of 21 Section 6.Field Strength of Spurious Para. No.: 2.1053 Test Performed By: Glen WestwellDate of Test: 11 Dec. 2002 Minimum Standard:Para. No.: 87.139. Test R…

Text truncated - open the document above for the full version.
