H4JUT-4E450UHF Base Station Transmitter

2. Transmitter Block Diagram COAX ENABLE RF AMPLIFIER MODULE Synthesizer Module MODULATOR Mainboard MICROPHONE CSEL0CSEL3 CSEL2 CSEL1 BANK A/B Channel/Bank Select Universal Daughter Board (UDB) PTT NORM OFF KEY TX A / D MIC MODE SELECT RJ45 FRONT PANEL RSS Programming/ Flashing Analog PTT Digital PTT LVDS 600 OHM BALANCED I/P TX Audio Level Adjust LED1 LED2 DIGITAL LED ANALOG LED Mmicrophone Aaudio Level Adjust Balance I/P Level Adjust Codec Interface Analog/Digital Select Vocoder Per-emp Filter CTCSS/ DCS Encoder WB/NB Select USB Synthesizer Module PTT Out RF Output Power 0.5-8 Watts RF Frequency Range136-174 MHz380-406 MHz406-470 MHz470-512 MHz RF RF Input RF Output RF R F I n t e r f a c e Interface Channel Type (Analog, Digital, Mixed Mode PTT Control

JULY 25, 2006 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: H4JUT-4E450 Product Name: UT-4E450 UHF TRANSMITTER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Operational Description • All Schematics • All Parts Lists (BOMs) • All Internal Photographs • User’s Guide These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 25 Day of JULY 20 06 By: MICHAEL J CYR Signature Printed Title: COMMUNICATION SYSTEMS DESIGNER On behalf of : DANIELS ELECTRONICS LTD Telephone: (250)382-8268

July 25, 2006 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada located at 303 River Road, Ottawa, ON to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Daniels Electronics Ltd located at 43 Erie St, Victoria, BC. Dated this 25 Day of JULY 20 06 Agency agreement expiration date: Jul 25, 2007 By: MICHAEL J CYR Signature Printed Title: COMMUNICATION SYSTEM DESIGNER On behalf of : DANIELS ELECTRONICS LTD Telephone: (250)382-8268

JULY 25, 2006 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: H4JUT-4E450 Product Name: UT-4E450 UHF TRANSMITTER Compliance with 47 CFR Part 90.203 (g), (j)(3) Pursuant to 47 CFR Sections 90.203(g) and (j)(3) of the commission’s rules we hereby certify that the above listed transmitter is fully compliant with these guidelines for the following listed reasons. The UT-4E450 transmit frequency is capable of being programmed within the range of 406 to 470 MHz via an external USB connection and Radio Services Software (RSS) package, which is made available only to service and/or maintenance personnel. The narrowband setting of this equipment operates from 0.5 to 8 Watts and meets a spectrum efficiency standard of one voice channel per 12.5 kHz of channel bandwidth in analog transmit mode. In the digital transmit mode, the equipment supports the minimum data rate of 9600 bits per second per 12.5 kHz of channel bandwidth. Dated this 25 Day of JULY 20 06 By: MICHAEL J CYR Signature Printed Title: COMMUNICATION SYSTEMS DESIGNER On behalf of : DANIELS ELECTRONICS LTD Telephone: (250)382-8268

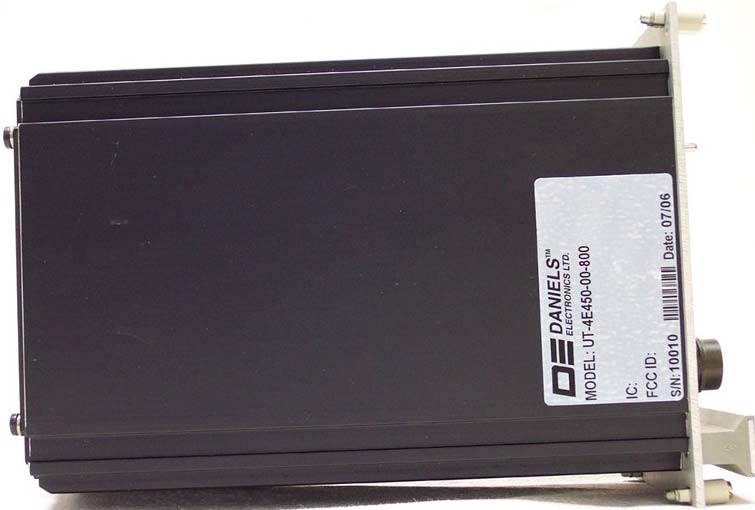

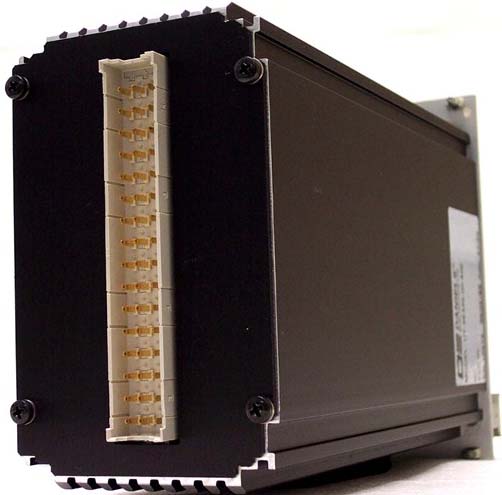

Transmitter Front View with Case (1) Transmitter Front View with Case (2) Transmitter Side View with Case (1) Transmitter Side View with Case (2) Transmitter Rear View with Case

FRONT PANEL BOTTOM TOP LEFT SIDE COVER 2.250 1.375 DATE: 25 July 2006 TITLE: UT-4E450 UHF TX Body Tube Label Format and Location DRAWN BY: M. Cyr REV DATE: 25 July 2006 DWG No: DANIELS ELECTRONICS LTD. TM 1 11 21 2 12 22 3 13 23 4 14 24 5 15 25 6 16 26 7 17 27 8 18 28 9 19 29 10 20 30 A

17 November 2005 Mike Cyr Daniels Electronic Ltd. 43 Erie Street, Victoria, British Columbia Canada V8V 1P8 Dear Mr. Cyr, Enclosed is the 47 CFR Part 2 Subpart J Section 2.1053 (Radiated Spurious Emissions) Test Report for three UHF Transmitters (i.e., Models UT-4E400, UT-4E450, and UT-4E500), and the CD-ROM containing this Test Report in PDF Format. Please check it thoroughly for discrepancies and please contact us immediately if you have any questions or if you identify any problems. This is an official copy of your Test Report, complete with the original Acme Testing Co. staff signatures. You should retain this Test Report as the official record of testing, as proof of compliance in the future. Please be aware that our internal controls require us to retain a historical copy of your Test Report on file for a three-year period, after which our copy of your Test Report will be destroyed. Please note that the FCC Certification Procedure Rules require that this Test Report (and all other Exhibits that form the FCC Filing Package on your UHF Transmitters) must be retained by the Responsible Party for two years after the manufacturing of the product has been permanently discontinued [cf., 47 CFR Part 2 Section 2.938(c)]. Please note that Acme Testing Co. is accredited by the American Association for Laboratory Accreditation (A2LA). Further, Acme Testing Co.’s Open Area Test Site [OATS] # 1 is registered with the FCC. Thank you for your business! We look forward to being of service to you in the future. Yours sincerely, :sg Enclosure Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 1 of 52 TEST REPORT 47 CFR Part 2 Subpart J Section 2.1053 Measurements of Field Strength of Spurious Radiation From: Power Amplifier Family DEVICES: THREE UHF TRANMITTERS MODELS: UT-4E400, UT-4E450, UT-4E500 MANUFACTURER: DANIELS ELECTRONICS LTD. ADDRESS: 43 ERIE STREET, VICTORIA, BRITISH COLUMBIA CANADA V8V 1P8 WORK ORDER: 05-EMC-1007-0225 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 2 of 52 TABLE OF CONTENTS 1. GENERAL......................................................................................................................................................................3 1.1 DOCUMENT HISTORY...................................................................................................................................................3 1.2 PURPOSE......................................................................................................................................................................3 1.3 MANUFACTURER.........................................................................................................................................................4 1.4 TEST LOCATION...........................................................................................................................................................4 1.5 ACCREDITATIONS AND LISTINGS.................................................................................................................................4 2. TEST RESULTS SUMMARY......................................................................................................................................5 3. DESCRIPTION OF EQUIPMENT AND PERIPHERALS.......................................................................................6 3.1 EQUIPMENTS UNDER TEST (EUTS)..............................................................................................................................6 3.2 SUPPORT EQUIPMENT USED DURING EMISSIONS TESTING..........................................................................................6 3.3 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 3.4 DESCRIPTION OF INTERFACE CABLES USED DURING EMISSIONS TESTING..................................................................7 3.5 MODE OF OPERATION DURING EMISSIONS TESTING....................................................................................................7 3.6 MODIFICATIONS REQUIRED FOR COMPLIANCE............................................................................................................7 4. RADIATED SPURIOUS EMISSIONS TESTS...........................................................................................................8 4.1 TEST EQUIPMENT.........................................................................................................................................................8 4.2 PURPOSE......................................................................................................................................................................9 4.3 TEST PROCEDURES....................................................................................................................................................10 4.3.1 Procedures Applicable to Testing of the UHF Transmitter Model UT-4E400........................................................ 10 4.3.2 Procedures Applicable to Testing of the Power Amplifier Model UT-4E450.......................................................... 10 4.3.3 Procedures Applicable to Testing of the Power Amplifier Model UT-4E500.......................................................... 11 4.3.4 Radiated Spurious Emissions Test Characteristics...............…

Text truncated - open the document above for the full version.

Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 30 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 31 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 32 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 33 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 34 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 35 of 52 4.5.3 UT-4E500 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 36 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 37 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 38 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 39 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 40 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 41 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 42 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 43 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 44 of 52 Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 November 2005 Daniels Electronics Ltd. UHF Transmitters (i.e., Model UT-4E400, Model UT-4E450, & Model UT-4E500) FCC Rules: 47 CFR Part 2 Subpart J Section 2.1053 (per Client Request) Page 45 of 52 5. Miscellaneous Comments and Notes None. Acme Testing Co. 2002 Valley Highway, P.O. Box 3, Acme, WA 98220-0003 USA Telephone: 1-360-595-2785 Fax: 1-360-595-2722 Document Number: 2005100 Document Date: 17 Nove…

Text truncated - open the document above for the full version.

Daniel’s Electronics Ltd. 47 CFR Parts 22 and 90 UT-4E450 Transmitter Page 1 of 31 Applicant: Daniels Electronics Ltd. 43 Erie St Victoria, BC V8V 1P8 Equipment Under Test: UT-4E450 UHF Transmitter FCC ID: H4JUT-4E450 In Accordance With: FCC Part 22 FCC Part 90 Tested By: Daniels Electronics Ltd. 43 Erie St Victoria, BC, V8V 1P8 And Acme Testing Co. 2002 Valley Highway Acme, WA, 98220-0003 Authorized By: ________________________________________ Dale Reitsma, D&D Manager Testing Verified By: ________________________________________ John Shields, Communication Systems Designer Date: 2 Aug 2006 Total Number of Pages: 31 Daniel’s Electronics Ltd. 47 CFR Parts 22 and 90 UT-4E450 Transmitter Page 2 of 31 Table of Contents 1. Summary of Test Results ............................................................................................................. 3 2. General Equipment Specifications............................................................................................... 4 3. RF Power Output ......................................................................................................................... 5 4. Audio Frequency Response ......................................................................................................... 6 5. Audio Low-Pass Filter Response................................................................................................. 8 6. Modulation Limiting .................................................................................................................. 10 7. Occupied Bandwidth (with audio low-pass filter installed) ...................................................... 11 8. Spurious Emissions at Antenna Terminals ................................................................................ 17 9. Field Strength of Spurious Emissions........................................................................................24 10. Frequency Stability .................................................................................................................... 25 11. Transient Frequency Response .................................................................................................. 26 12. Block Diagrams ......................................................................................................................... 28 13. Test Equipment List ................................................................................................................... 31 Appendix A: UT-4E450 UHF Transmitter – Measurements of Field Strength of Spurious Radiation Daniel’s Electronics Ltd. 47 CFR Parts 22 and 90 UT-4E450 Transmitter Summary of Test Results Page 3 of 31 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Parts 22 and 90. This application is a new submission for approval of the UT-4E450 UHF Transmitter. The model under test, UT-4E450, operates in the 406 to 470 MHz frequency band of the Land Mobile Services. The equipment under test is a pre-production unit. 9 New Submission Production Unit Modification Filing 9 Pre-Production Unit Family Listing Summary of Test Data Name of Test Para No. Result RF Power Output 47 CFR §2.1046 Complies Audio Frequency Response 47 CFR §2.1047 a) Complies Audio Low-Pass Filter Response 47 CFR §2.1047 a) Complies Modulation Limiting 47 CFR §2.1047 b) Complies Occupied Bandwidth (with Audio Low-Pass Filter Installed) 47 CFR §2.1049 g), h) 47 CFR §90.210 d) 47 CFR §90.210 d) 4) Complies Spurious Emissions at Antenna Terminals 47 CFR §2.1051 47 CFR §90.210 d) Complies Field Strength of Spurious Emissions 47 CFR §2.1053 47 CFR §90.210 d) Complies Frequency Stability 47 CFR §2.1055 47 CFR §90.213 47 CFR §90.539 Complies Transient Frequency Behaviour 47 CFR §90.214 Complies Test Conditions: The following conditions apply to all of the testing except when otherwise specified. Temperature: 23°C Humidity: 30% Daniel’s Electronics Ltd. 47 CFR Parts 22 and 90 UT-4E450 Transmitter General Equipment Specifications Page 4 of 31 2. General Equipment Specifications Manufacturer: Daniels Electronics Ltd. FCC ID: H4JUT-4E450 Model Number for EUT: UT-4E450 Starting Date of Testing: June 8, 2006 Serial Numbers of EUTs: R&D 10010 Note: Used for Frequency Stability and Transient Frequency Behaviour Testing. R&D 10011 Note: Used for the majority of the tests. R&D 10003 Note: Used for Field Strength of Spurious Emissions Testing Primary Power: 13.8V DC Emission Designators (Analog) 12.5kHz Channel Spacing: 11K0F3E 25kHz Channel Spacing: 16K0F3E Emission Designators (Digital): Voice: 12.5kHz Channel Spacing: 8K10F1E Data: 12.5kHz Channel Spacing: 8K10F1D Data: Paging with external modulator: 9K2F1D Rated RF Power Output: Variable: 0.5 to 8.0W Channel Spacing: 12.5kHz & 25kHz Frequency Range: 406 to 470 MHz Daniel’s Electronics Ltd. 47 CFR Parts 22 and 90 UT-4E450 Transmitter RF Power Output Page 5 of 31 3. RF Power Output Test Results: Complies Minimum Standard: 47 CFR §2.1046 ± 1dB (defined by the manufacturer) Test Procedure: TIA-603-C Sect 2.2.1 Notes: The center frequency is tested at the variable maximum and minimum output power; 8.0W (39.0dBm) and 0.5W (27.0dBm) respectively. EUT Model #: UT-4E450 Serial Number: R&D 10011 Test Equipment: Power Meter, Sensor, Rohde & Schwarz CMS 54 (DE #1545) 50 ohm Load Measurement Data: Rated Power = 8.0W (39.0dBm) Frequency (MHz) Rated Power (dBm) Measured Power (dBm) 438 8.0W (39.0dBm) 8.0W (39.0dBm) Rated Power = 0.5W (27.0dBm) Frequency (MHz) Rated Power (dBm) Measured Power (dBm) 438 0.5W (27.0dBm) 0.52W (27.2dBm) Daniel’s Electronics Ltd. 47 CFR Parts 22 and 90 UT-4E450 Transmitter Audio Frequency Response Page 6 of 31 4. Audio Frequency Response Test Results: Complies Minimum Standard: 47 CFR §2.1047 a) Test Procedure: TIA-603-C Sect 2.2.6 Notes: The center frequency is tested using a 12.5kHz and 25kHz …
