H4JUT-4E500MT-4E T-Band (470 to 512MHz) Transmitter

March 19, 2007 Federal Communications Commission Equipment Authorisation and Evaluation Division FCC ID: H4JUT-4E500 Product Name: MT-4E T-Band TRANSMITTER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: ∑ Operational Description ∑ Block Diagram ∑ Tune-Up Procedure ∑ All Schematics ∑ All Parts Lists (BOMs) These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: ∑ External Photos ∑ Internal Photos ∑ Test Setup Photos ∑ User’s Manual Dated this 19 Day of MARCH 20 07 By: MICHAEL J CYR Signature Printed Title: COMMUNICATION SYSTEMS DESIGNER On behalf of : DANIELS ELECTRONICS LTD Telephone: (250)382-8268

MARCH 21, 2007 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: H4JUT-4E500 Product Name: MT-4E T-Band TRANSMITTER Compliance with 47 CFR Part 90.203 (g), (j)(3) Pursuant to 47 CFR Sections 90.203(g) and (j)(3) of the commission’s rules we hereby certify that the above listed transmitter is fully compliant with these guidelines for the following listed reasons. The UT-4E450 transmit frequency is capable of being programmed within the range of 470 to 512 MHz via an external USB connection and Radio Services Software (RSS) package, which is made available only to service and/or maintenance personnel. The narrowband setting of this equipment operates from 0.5 to 8 Watts and meets a spectrum efficiency standard of one voice channel per 12.5 kHz of channel bandwidth in analog transmit mode. In the digital transmit mode, the equipment supports the minimum data rate of 9600 bits per second per 12.5 kHz of channel bandwidth. Dated this 21 Day of MARCH 20 07 By: MICHAEL J CYR Signature Printed Title: COMMUNICATION SYSTEMS DESIGNER On behalf of : DANIELS ELECTRONICS LTD Telephone: (250)382-8268

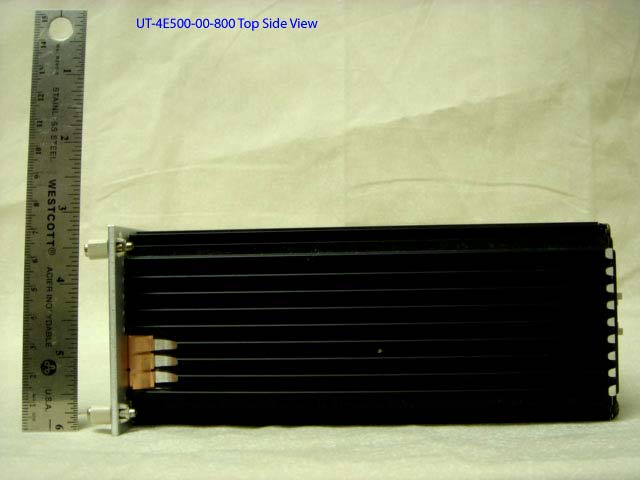

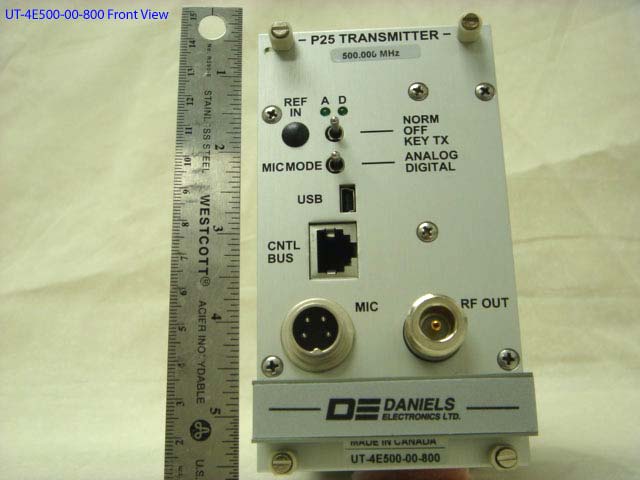

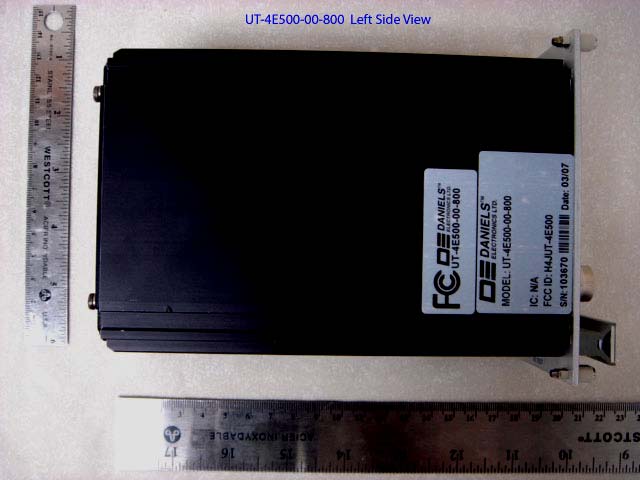

FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EXHIBIT C - EUT PHOTOGRAPHS EUT- Top View EUT- Back View FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT- Top Side View EUT – Bottom Side View FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – Right Side View EUT – Right Side View FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – Rear View (Heat Sink removed) EUT – Bottom View (Heat Sink removed)

FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – TX Main Board and 8 Watt Power Amplifier (Top View) EUT – 8 Watt Power Amplifier board (bottom view) FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – Transmitter Mainboard, all shields installed (Top View) EUT – Transmitter Mainboard, all shields removed (Top View) FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – Transmitter Mainboard, all shields installed (Bottom View) EUT – Transmitter Mainboard, all shields removed, UDB PCB Installed (Bottom View) FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – Transmitter Mainboard, all shields removed, UDB PCB Removed (Bottom View) EUT – UDB PCB (Bottom View) FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – UDB PCB (Top View) EUT – Synthesizer board (bottom view) FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EUT – Synthesizer board, shield removed (Top view)

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government ) FCC PART 22, 90 TYPE APPROVALS MEASUREMENT AND TEST REPORT For Daniels Electronics Ltd. 43 Erie, St. Victoria, BC V8V 1P8, Canada FCC ID: H4JUT-4E500 This Report Concerns: Original Report Product type: UHF FM Transmitter Test Engineer: James Ma Report Number: R0703072 Report Date: 2007-04-04 Reviewed By: Hans Mellberg, VP of Engineering Prepared By: (12) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave Sunnyvale, CA 94085, U.S.A. Tel: (408) 732-9162 Fax: (408) 732 9164 www.baclcorp.com FCC ID: H4JUT-4E500 Report Number: R0703072 Page 2 of 48 FCC PART 22, 90 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 POWER SUPPLY AND LINE FILTERS..............................................................................................................................6 LOCAL SUPPORT EQUIPMENT.......................................................................................................................................6 HOST CONFIGURATION................................................................................................................................................6 RADIATED EMISSION TEST SETUP BLOCK DIAGRAM...................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1046, and §90.205 - RF OUTPUT POWER............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST RESULT.............................................................................................................................................................10 §2.1047, and §90.207 - MODULATION CHARACTERISTIC ...............................................................................16 APPLICABLE STANDARD............................................................................................................................................16 TEST PROCEDURE......................................................................................................................................................16 ENVIRONMENTAL CONDITIONS..................................................................................................................................16 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................16 TEST RESULT.............................................................................................................................................................16 §2.1049, §22.359, and § 90.209/210– OCCUPIED BANDWIDTH & EMISSION LIMITATION .......................25 APPLICABLE STANDARD............................................................................................................................................25 TEST PROCEDURE......................................................................................................................................................26 ENVIRONMENTAL CONDITIONS............................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: H4JUT-4E500 Report Number: R0703072 FCC PART 22, 90 Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission – Front View Radiated Emission – Rear View
