H4JVT-3-150-SNVT-3/140-SN & VT-3/160-SN VHF TRANSMITTERS

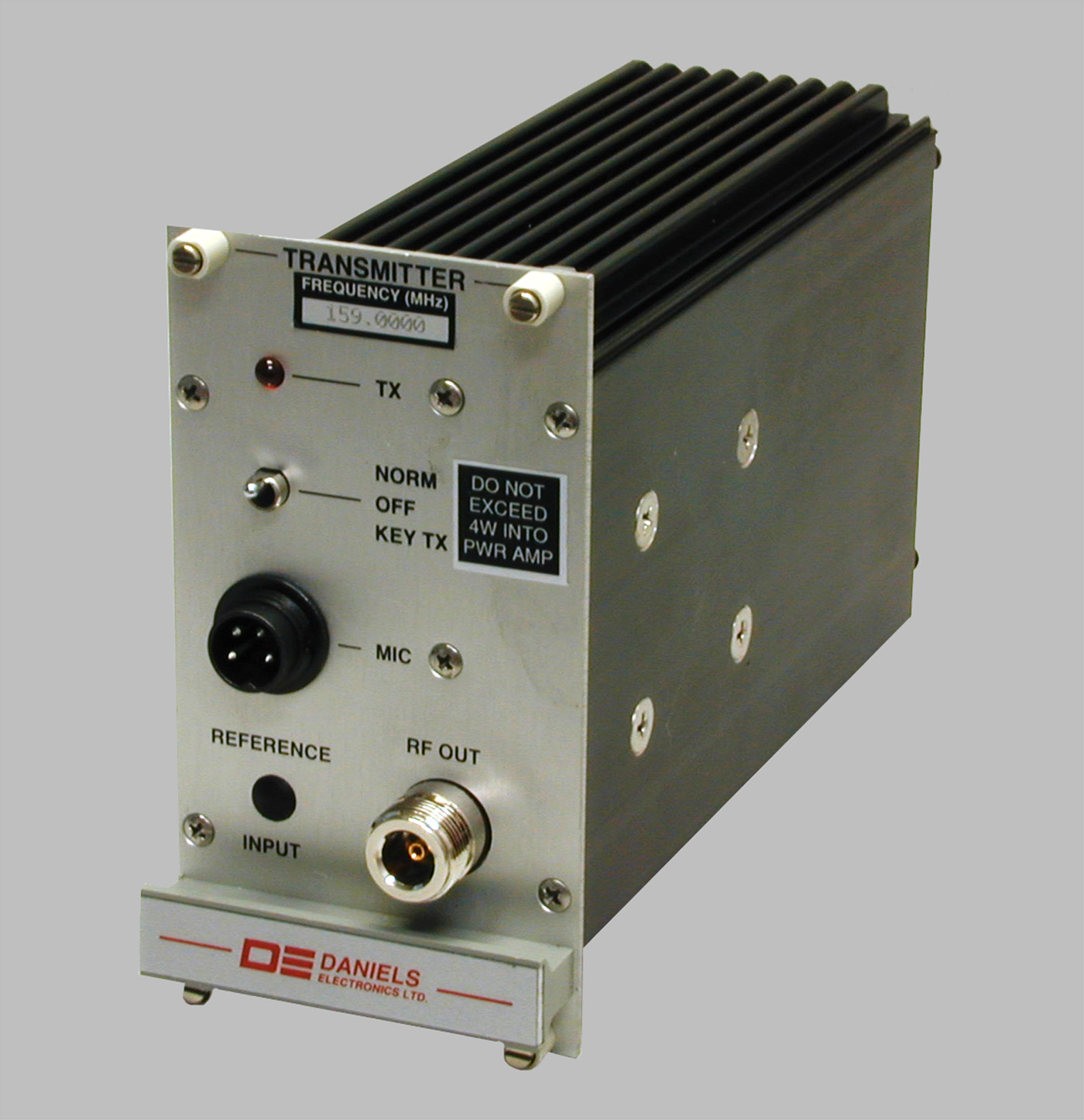

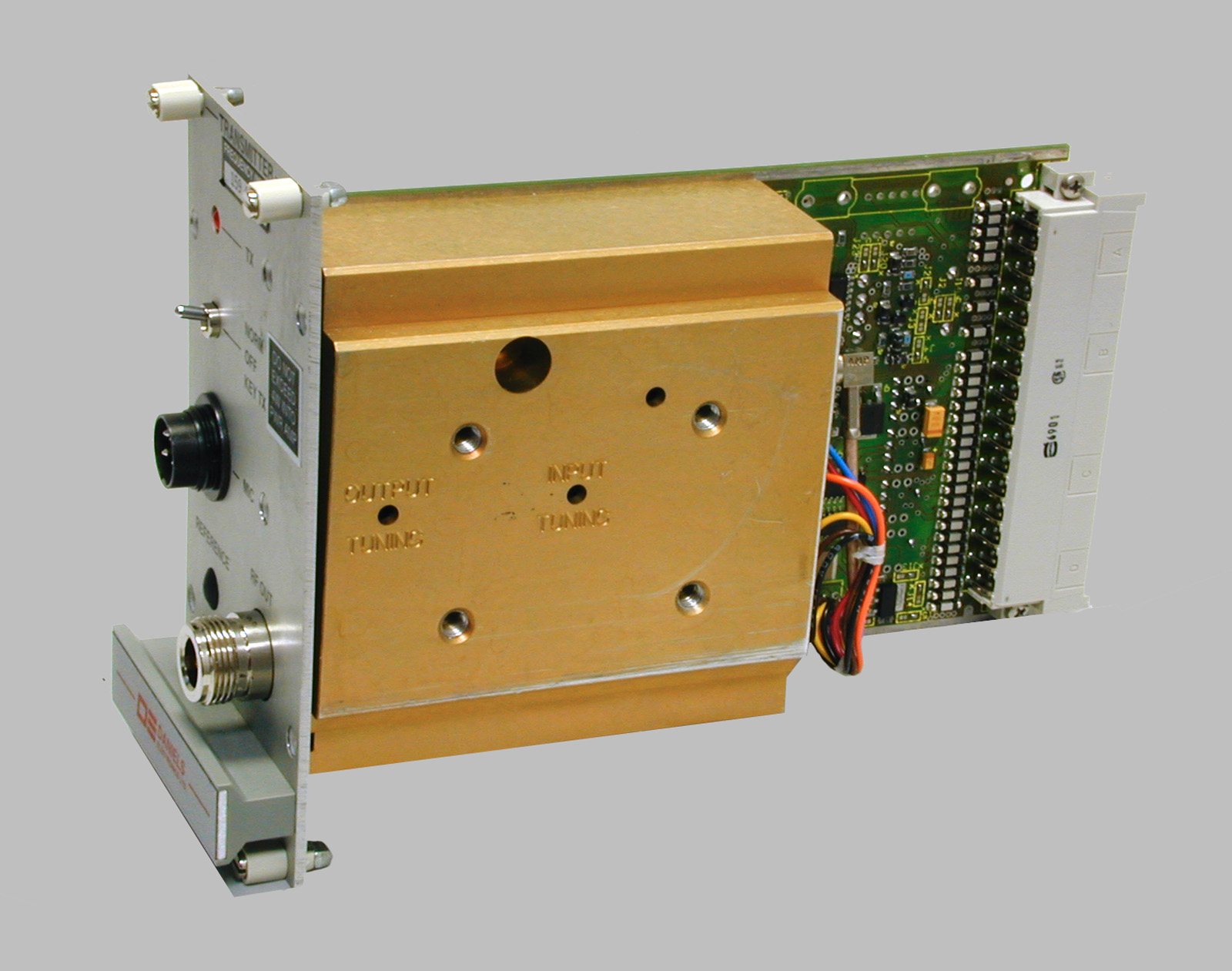

MT-3 RADIO SYSTEMS VHF TRANSMITTER INSTRUCTION MANUAL VT-3132 - 174 MHz Covers model:VT-3/140-SWA2, VT-3/160-SWA2 VT-3/140-SWA8, VT-3/160-SWA8 VT-3/140-SNA2, VT-3/160-SNA2 VT-3/140-SNA8, VT-3/160-SNA8 Copyright © 1998 Daniels Electronics Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Daniels Electronics Ltd. DE™ is a registered trademark of Daniels Electronics Ltd. registered in the United States Patent and Trademark Office. Issue:3Previous Issue:2 Issue Date:May 1998Previous Issue Date:April 1997Daniels Electronics Ltd. Printing Date:January 2001Victoria, B.C. Part No.:IM21-VT3150PRINTED IN CANADA iiVHF Enhanced Transmitter Instruction Manual VT-3 132 - 174 MHz NOTE: The user's authority to operate this equipment could be revoked through any changes or modifications not expressly approved by Daniels Electronics Ltd. The design of this equipment is subject to change due to continuous development. This equipment may incorporate minor changes in detail from the information contained in this manual. VHF Enhanced Transmitter Instruction Manual VT-3 132 - 174 MHziii TABLE OF CONTENTS Page 1GENERAL................................................................................................................. 1-1 1.1Introduction.................................................................................................... 1-1 1.2Manual Organization...................................................................................... 1-1 1.3VT-3 132 - 174 MHz Transmitter Family Models.......................................... 1-2 1.4Performance Specifications............................................................................. 1-3 1.4.1General............................................................................................... 1-3 1.4.2Audio Specifications........................................................................... 1-4 1.4.3Physical Specifications....................................................................... 1-5 2SYSTEM OVERVIEW.............................................................................................. 2-1 2.1Transmitter Operation..................................................................................... 2-1 2.2Frequency Selection........................................................................................ 2-3 2.2.1Synthesizer Transmitter.................................................................... 2-3 2.3Transmitter Assembly and Adjustment........................................................... 2-4 2.3.1Complete Transmitter Alignment........................................................ 2-4 2.3.2Frequency Change.............................................................................. 2-5 2.3.3Output Power Adjustment................................................................... 2-5 2.3.4Deviation Setting................................................................................. 2-6 2.3.5Setting RF Alarm Thresholds............................................................. 2-6 2.4Recommended Test Equipment List................................................................ 2-6 2.5Repair Note..................................................................................................... 2-7 2.6Printed Circuitboard Numbering Convention.................................................. 2-7 3ILLUSTRATIONS..................................................................................................... 3-1 3.1MT-3 Transmitter Front Panel........................................................................ 3-1 3.2MT-3 Transmitter Case - Exploded View....................................................... 3-2 4PARTS LIST.............................................................................................................. 4-1 5REVISION HISTORY............................................................................................... 5-1 MODULE MANUALS Transmitter Main Board Instruction Manual ......................................IM20-MT3TXMN VHF Amplifier Instruction Manual VT-3 132 - 174 MHz................IM21-VT3150AMP Enhanced Synthsizer Instruction Manual OS(R/T)-3A/H 29-470 MHz .. IM10-OS3AH VHF Transmitter Channel Designation Table ..................................... IM21-VT3150CT RF Exposure Warning RF Exposure Warning This transmitting equipment conforms to SAR (Specific Absorption Rate) limits regarding exposure of human beings to radio frequency electromagnetic energy, as defined in the following national and international standards and guidelines: 1. Industry Canada Radio Standards Specification 102 (RSS-102), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields; 2. Health Canada Safety Code 6, Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz 1 ; 3. United States Federal Communications Commission, Code of Federal Regulations; 47 CFR Part 1, § 1.1310 Radiofrequency radiation exposure limits; and 4. American National Standards Institute (ANSI) criteria for localized SAR in Section 4.2 of “IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz” 2 . Notes:A.The SAR limit for uncontrolled exposure of persons not classed as RF and microwave exposed workers (including the general public) for transmitter equipment operating below 10 GHz, as defined in the references above, is 2 W/m 2 (0.2 mW/cm 2 ). B.This transmitting equipment is designed for use with an outdoor antenna with a characteristic antenna gain of 10 dBi, typically mounted at a significant height above ground to provide for adequate signal coverage. To ensure that the g…

Text truncated - open the document above for the full version.

Telephone: (250) 382-8268 43 ERIE ST., VICTORIA, BC FAX: (250) 382-6139 CANADA, V8V 1P8 E-Mail: [email protected] Website: www.danelec.com RADIO COMMUNICATION MANUFACTURER Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Authority To Act As Agent To The Federal Communications Commission I hereby appoint KTL-Ottawa Inc. to act as agent in the preparation of applications for equipment authorization on behalf of Daniels Electronics Ltd. to the Federal Communications Commission. I certify that Exhibits submitted properly describe the device or system for which authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations, will have affixed to it a label identical to that submitted for approvals with this application. Agency Agreement Expiration Date: 31 December, 2001 Dated this 29 th day of December, 2000 By: Ron Backlund Engineering Manager Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Phone: (250) 382-8268 Fax: (250) 382-6139 E-Mail: [email protected]

DANIELS ELECTRONICS LTD. TM Telephone: (250) 382-8268 43 ERIE ST., VICTORIA, BC FAX: (250) 382-6139 CANADA, V8V 1P8 Website: www.danelec.com RADIO COMMUNICATION MANUFACTURER January 19, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Declaration of Compliance Reference: FCCID: H4JVT-3-150-SN This is to certify that the Daniels Electronics Ltd. VHF FM transmitter at reference conforms to SAR (Specific Absorption Rate) limits regarding exposure of human beings to radio frequency electromagnetic energy, as defined in United States Federal Communications Commission, Code of Federal Regulations; 47 CFR Part 1, § 1.1310 Radiofrequency radiation exposure limits, which is in turn based on American National Standards Institute (ANSI) criteria for localized SAR in Section 4.2 of “IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz” 1 . A warning statement to the installer/user has been included with the Instruction Manual for this transmitter indicating minimum safe distances from the antenna for various common power amplifier configurations. Dated this 19 th day of January, 2001 By: Ron Backlund, MEng, PMP, CD, rmc Engineering Manager Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Fax: (250) 382-6139 E-Mail: [email protected] Web: www.danelec.com 1 ANSI/IEEE C95.1–1992, Copyright 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017

Master: ktlPT90PLMT Date: August 16, 2000 KTL Test Report:0R03307.1 Applicant:Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Equipment Under Test:VT-3/140-SN & VT-3/160-SN (E.U.T.)VHF Transmitter In Accordance With:FCC Part 22 & 90 Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:30 KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 2 of 30 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. RF Power Output .....................................................................................................6 Section 4. Audio Frequency Response ..................................................................................... 7 Section 5. Audio Low-Pass Filter Response............................................................................. 9 Section 6. Modulation Limiting .............................................................................................. 11 Section 7. Occupied Bandwidth.............................................................................................. 13 Section 8. Spurious Emissions at Antenna Terminals........................................................... 18 Section 9. Field Strength of Spurious Emissions................................................................... 19 Section 10. Frequency Stability................................................................................................ 21 Section 11. Transient Frequency Behaviour ........................................................................... 22 Section 12. Test Equipment List ............................................................................................... 26 Section 13. Test Diagrams ......................................................................................................... 27 KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 3 of 30 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22 and 90. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit TNB Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any us e whic h a third p a rty ma k e s o f this re p o rt, o r a ny re lia nc e o n o r d e c is io ns to b e ma d e b a s e d o n it, a re the re s p o ns ib ility of such third parties. KTL Ottawa Inc. accepts no responsibility fo r d a ma ge s , if a ny, s uffe re d b y a ny third p a rty a s a re s ult o f d e c is io ns ma d e o r a c tio ns b a s e d o n this re p o rt. This report applies only to the items tested. KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 4 of 30 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complies Audio Frequency Response2.1047Complies Audio Low-Pass Filter Response2.1047Complies Modulation Limiting2.1047Complies Occupied Bandwidth2.1049Complies Spurious Emissions at Antenna Terminals 2.1051Complies Field Strength of Spurious Emissions2.1053Complies Frequency Stability2.1055Complies Transient Frequency Behavior——Complies . KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 5 of 30 Section 2.General Equipment Specification Manufacturer: Daniels Electronics Inc. Model No.: VT-3/140-SN VT-3/160-SN Date Received In Laboratory: December 7, 2000 KTL Identification No.: Item #1SN RF Output Power: 8W Frequency Range: VT-3/140-SN = 132 – 150 MHz VT-3/160-SN = 150 – 174 MHz Emission Designator: 11K0F3E Channel Spacing: 12.5 kHz KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 6 of 30 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Russell Grant Date of Test: December 19, 2000 Minimum Standard: ± 1 dB Test Results: Complies. Measurement Data: 8W KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 7 of 30 Section 4.Audio Frequency Response Para. No.: 2.1047 Test Performed By: Russell Grant Date of Test: December 19, 2000 Minimum Standard: N/A Test Results: Complies. Measurement Data: See attached graph. KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 8 of 30 KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 9 of 30 Section 5.Audio Low-Pass Filter Response Para. No.: 2.1047 Test Performed By: Daniels Electronics Ltd. Date of Test: December 12, 2000 Minimum Standard: N/A Test Results: Complies. Measurement Data: See attached graph. KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page 10 of 30 KTL Ottawa FCC PART 22 & 90 PRIVATE LAND MOBILE TRANSMITTER PROJECT NO.: 0R03307.1 EQUIPMENT: VT-3/140-SN & VT-3/160-SN VHF Transmitter Page …

Text truncated - open the document above for the full version.

Master: ktlFCC80 Date: December 22, 2000 KTL Test Report:0R03310.1 Applicant:Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Equipment Under Test:VT-3/160-SN (E.U.T.)VHF Transmitter In Accordance With:FCC Part 80 Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Technologist Date: Total Number of Pages:24 KTL Ottawa FCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 2 of 24 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. RF Power Output .....................................................................................................6 Section 4. Audio Frequency Response ..................................................................................... 7 Section 5. Audio Low-Pass Filter Response............................................................................. 9 Section 6. Modulation Limiting .............................................................................................. 11 Section 7. Occupied Bandwidth.............................................................................................. 14 Section 8. Spurious Emissions at Antenna Terminals........................................................... 16 Section 9. Field Strength of Spurious Emissions................................................................... 17 Section 10. Frequency Stability................................................................................................ 19 Section 11. Test Equipment List ............................................................................................... 21 Section 12. Test Diagrams ......................................................................................................... 22 KTL Ottawa FCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 3 of 24 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 80. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit TNB Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Russell Grant, Wireless Group Manager KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any us e whic h a third p a rty ma k e s o f this re p o rt, o r a ny re lia nc e o n o r d e c is io ns to b e ma d e b a s e d o n it, a re the re s p o ns ib ility of such third parties. KTL Ottawa Inc. accepts no responsibility fo r d a ma ge s , if a ny, s uffe re d b y a ny third p a rty a s a re s ult o f d e c is io ns ma d e o r a c tio ns b a s e d o n this re p o rt. This report applies only to the items tested. KTL Ottawa FCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 4 of 24 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complies Audio Frequency Response2.1047Complies Audio Low-Pass Filter Response2.1047Complies Modulation Limiting2.1047Complies Occupied Bandwidth2.1049Complies Spurious Emissions at Antenna Terminals 2.1051Complies Field Strength of Spurious Emissions2.1053Complies Frequency Stability2.1055Complies . KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 5 of 24 Section 2.General Equipment Specification Manufacturer: Daniels Electronics Ltd. Model No.: VT-3/160-SN Date Received In Laboratory: December 7, 2000 KTL Identification No.: Item #1 Transmitter RF Output Power: 8W Frequency Range: 156 – 162 MHz Emission Designator: 11K0F3E 16K0F3E Channel Spacing: 12.5 kHz, 25 kHz KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 6 of 24 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Russell Grant Date of Test: December 19, 2000 Minimum Standard: ± 1dB Test Results: Complies. Measurement Data: 8W KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 7 of 24 Section 4.Audio Frequency Response Para. No.: 2.1047 Test Performed By: Russell Grant Date of Test: December 19, 2000 Minimum Standard: N/A Test Results: Complies. Measurement Data: See attached graph. KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 8 of 24 Audio Frequency Response -3.5 -3 -2.5 -2 -1.5 -1 -0.5 0 0.5 1 1.5 00.5 11.5 22.5 33.5 Frequency (kHz) Response (dB ) KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 9 of 24 Section 5.Audio Low-Pass Filter Response Para. No.: 2.1047 Test Performed By: Daniels Electronics Ltd. Date of Test: December 12, 2000 Minimum Standard: 80.213 (e), 60 log (f/3) Test Results: Complies. Measurement Data: See attached graph. KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 10 of 24 KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 11 of 24 Section 6.Modulation Limiting Para. No.: 2.1047 Test Performed By: Russell Grant Date of Test: December 19, 2000 Minimum Standard: 80.205(b), 5kHz Test Results: Complies. Measurement Data: See attached graphs. KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: VT-3/160-SN VHF Transmitter Page 12 of 24 Modulation Limiting 0 0.5 1 1.5 2 2.5 3 8090100110120130140 (dBuV) Frequency Deviation (kHz) 300 Hz 1000 Hz 2500 Hz KTL OttawaFCC PART 80 PROJECT NO.: 0R03310.1 EQUIPMENT: …
