H4JVT-3H040-S-HSOVT-3H040 VHF Transmitter

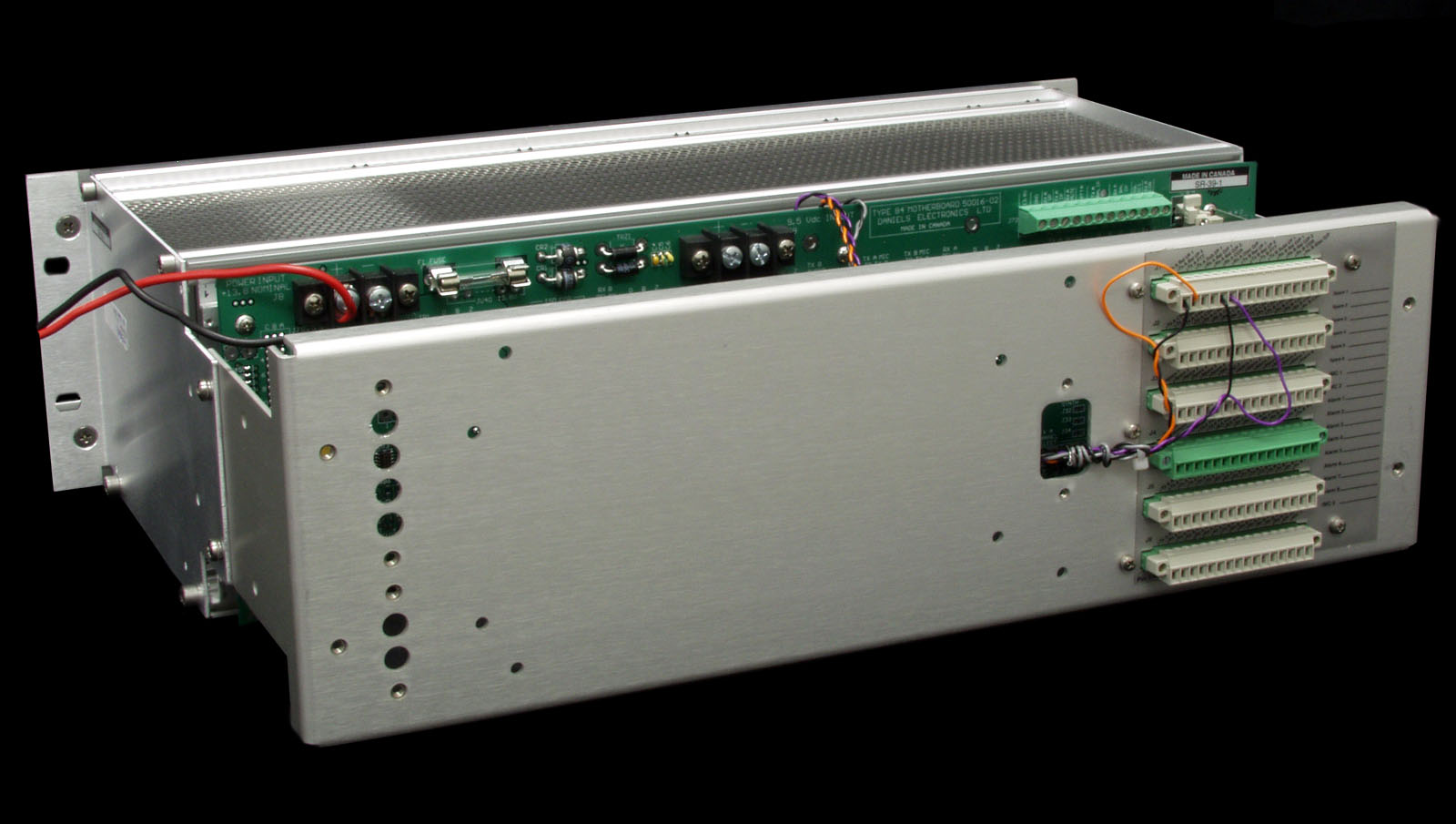

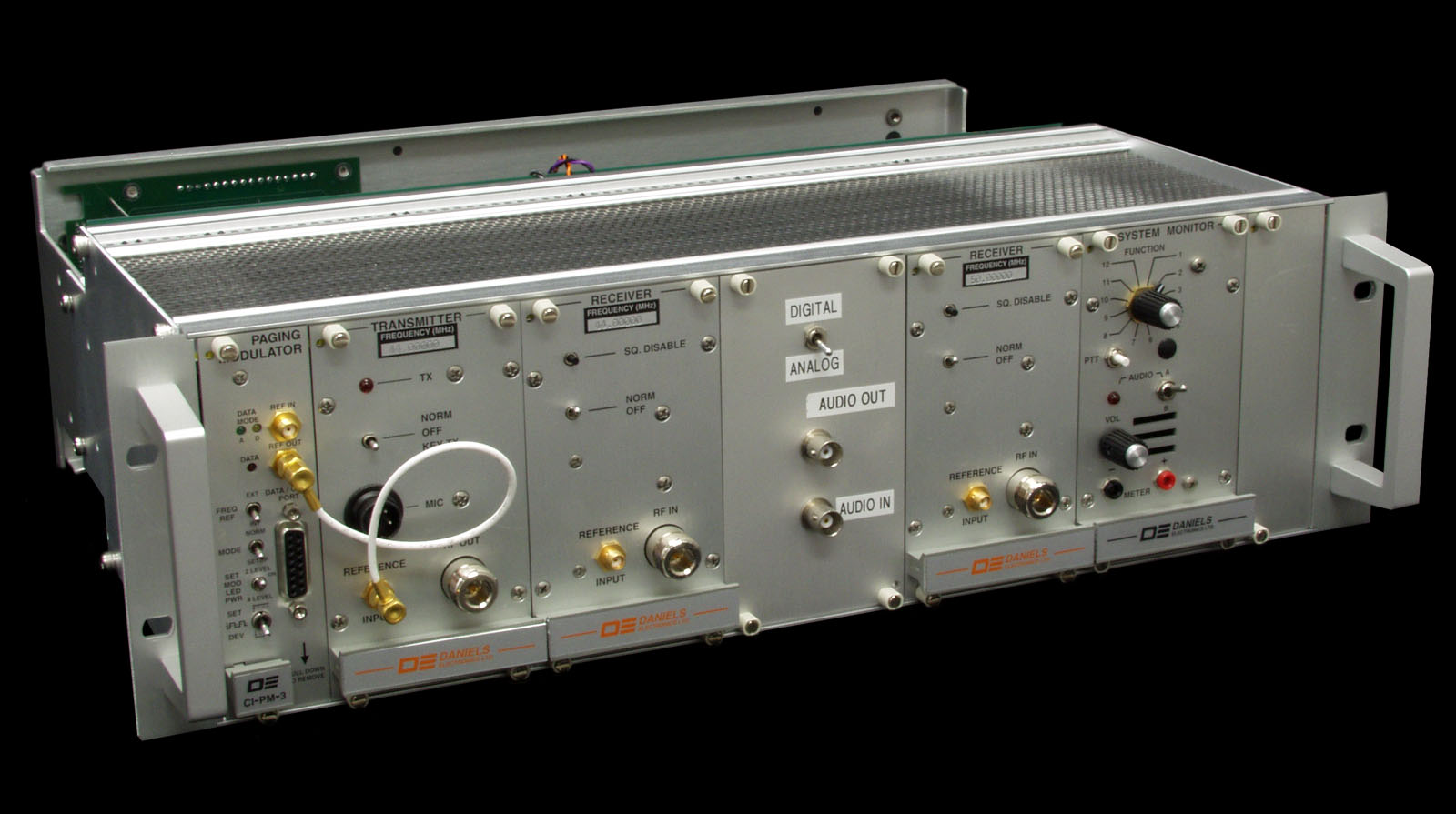

DANIELS ELECTRONICS LTD. TM MT-3 RADIO SYSTEMS VHF ENHANCED TRANSMITTER INSTRUCTION MANUAL Covers model: VT-3H035-SWA3, VT-3H045-SWA3 Copyright © 1998 Daniels Electronics Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Daniels Electronics Ltd. DE™ is a registered trademark of Daniels Electronics Ltd. registered in the United States Patent and Trademark Office. Issue: 1 Rev A Previous Issue: 1 Issue Date: September 98 Previous Issue Date: July 97 Daniels Electronics Ltd. Printing Date: Month Year Victoria, B.C. Part No.: IM20-VT3H040 PRINTED IN CANADA DE DANIELS ELECTRONICS ii VT-3H040 VHF Enhanced Transmitter Instruction Manual Document Control: This document has been produced, verified and controlled in accordance with Daniels Electronics’ Quality Management System requirements. Please report any errors or problems to Daniels Electronics’ Customer Service Department NOTE: The user's authority to operate this equipment could be revoked through any changes or modifications not expressly approved by Daniels Electronics Ltd. The design of this equipment is subject to change due to continuous development. This equipment may incorporate minor changes in detail from the information contained in this manual. DE DANIELS ELECTRONICS VT-3H040 VHF Enhanced Transmitter Instruction Manual iii TABLE OF CONTENTS Page 1 GENERAL 1.1 Introduction.................................................................................................... 1-1 1.2 Manual Organization ..................................................................................... 1-1 1.3 VT-3H040 Transmitter Family Models ......................................................... 1-2 1.4 Performance Specifications ........................................................................... 1-3 1.4.1 General ............................................................................................... 1-3 1.4.2 Audio Specifications .......................................................................... 1-5 1.4.3 Physical Specifications ...................................................................... 1-6 2 SYSTEM OVERVIEW 2.1 Transmitter Operation.................................................................................... 2-1 2.2 Frequency Selection....................................................................................... 2-2 2.3 Transmitter Assembly and Adjustment ......................................................... 2-2 2.3.1 Complete Transmitter Alignment ...................................................... 2-3 2.3.2 Frequency Change ............................................................................. 2-3 2.3.3 Output Power Adjustment.................................................................. 2-4 2.3.4 Deviation Setting ............................................................................... 2-5 2.3.5 Setting RF Alarm Thresholds ............................................................ 2-5 2.4 Recommended Test Equipment List .............................................................. 2-5 2.5 Repair Note .................................................................................................... 2-6 2.6 Printed Circuitboard Numbering Convention................................................ 2-6 3 ILLUSTRATIONS 3.1 MT-3 Transmitter Front Panel ....................................................................... 3-1 3.2 MT-3 Transmitter Case - Exploded View ..................................................... 3-2 4 PARTS LISTS ........................................................................................................... 4-1 5 REVISION HISTORY............................................................................................... 5-1 MODULE MANUALS Transmitter Main Board Instruction Manual ....................................IM20-MT3TXMN VT3H040 VHF Amplifier Instruction Manual .............................. IM20-VT3040AMP OS-3A/H Enhanced Synthsizer Instruction Manual 29-470 MHz ......... IM10-OS3AH VT-3H040 Channel Designation Table .......................................... IM20-VT3H040CT DE DANIELS ELECTRONICS VT-3H040 VHF Enhanced Transmitter Instruction Manual 1 1 GENERAL 1.1 Introduction The VT-3H040 transmitter is a low power, synthesized FM transmitter capable of operating in 20 kHz or 25 kHz channels and within one of two bands: 29 MHz to 38 MHz or 38 MHz to 50 MHz. The transmitter is rated for continuous duty at an RF output power of 3.0 Watt. The RF output power level is preset at the factory. A modular design allows each of the transmitter's modules; MT-3 Transmitter Main Board, MT-3 Audio Processor, VT-3H040 Amplifier and OS- 3H040 Synthesizer to be individually assembled and tested. This facilitates construction, tuning, maintainance as well as troubleshooting procedures. The synthesizer module can be programmed to have up to 16 channels exclusive to one frequency band. The VT-3H040 Transmitter is designed to interface with Daniels Electronics' MT-3 Repeater System while maintaining MT-2 System compatibility. Both radio systems are characterized by dependable, low maintanence performance under the most severe environmental conditions. 1.2 Manual Organization The organization of this manual reflects the modular makeup of the VT-3 product line. Each module is fully described within its respective submanual, all of which are contained within this document. In general, each submanual contains: 1. A functional description and specification summary, 2. a detailed technical description (Theory of Operation) and 3. assembly, setup and alignment procedures relevent to that particular module. The module manuals are as follows. Note: material presented in a given "sub-manual" may include information related to other module versions not dir…

Text truncated - open the document above for the full version.

DANIELS ELECTRONICS LTD. TM Telephone: (250) 382-8268 43 ERIE ST., VICTORIA, BC Fax: (250) 382-6139 CANADA, V8V 1P8 E-Mail: [email protected] Website: www.danelec.com RADIO COMMUNICATION MANUFACTURER FCC ID: H4JVT-3H040-S-HSO August 22, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 REQUEST FOR CONFIDENTIALITY Reference: FCC ID: H4JVT-3H040-S-HSO In accordance with 47 CFR§ 0.457(d)(ii) and pursuant to 47 CFR§ 0.459(a), Daniels Electronics Ltd requests that the following exhibits submitted in support of this application for equipment authorization not be made routinely available to the public: Exhibits: Operational Description Schematics and Illustrations Parts Lists The above-mentioned exhibits contain trade secret information which is not made routinely available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. This information should be treated as confidential for the duration of effectiveness of the Grant of Authorization. Ron Backlund Manager, Projects & Regulatory Strategy Daniels Electronics Ltd. 43 Erie Street Victoria, BC V8V 1P8 Phone: (250) 382-8268 Ext 273 Fax: (250) 382-6139 E-Mail: [email protected] Web: www.danelec.com

Response to TCB Findings 1. Please point out the section where we can find the DC voltages and currents in the final RF amplifier stage of the transmitter in the operational description. DC voltages and currents in the TX amplifier stage can be found in the Operational Description Exhibit on the following pages: • Page 1 Section 2.1 • Pages 34 and 35 Sections 2.1, 2.2 and 2.3 2. The tune-up procedure described in the operational description should be extracted and supplied as a separate exhibit. Tune-Up Procedure attached as a separate exhibit. Revised Operational Description also attached.

FRONT PANEL BOTTOM TOP LEFT SIDE COVER EQUIPMENT ID LABEL FORMAT AND LOCATION FCC ID: H4JVT-3H040-S-HSO VT-3 VHF Low Band Transmitter Dated thisday of25thAugust 2003 By:Ron Backlund Title: Applicant: Telephone: Manager, Projects & Regulatory Strategy Daniels Electronics Ltd. (250) 382-8268 PrintedSignature DANIELS ELECTRONICS LTD. MODEL: CANADA #: FCC ID: VT-3H045-S H4JVT-3H040-S-HSO 10001 9/03 VICTORIA , B.C. CANADA SERIAL #: DATE: 142195285

iii RF Exposure Warning Exposure to radio frequency (RF) energy has been identifi ed as a potential environmental factor that must be considered before a radio transmitter can be authorized or licensed. The FCC has therefore developed maximum permissible exposure (MPE) limits for fi eld strength and power density, listed in FCC 47 CFR § 1.1310. The FCC has furthermore determined that determination of compliance with these exposure limits, and preparation of an Environmental Assessment (EA) if the limits are exceeded, is necessary only for facilities, operations and transmitters that fall into certain risk categories, listed in FCC 47 CFR § 1.1307 (b), Table 1. All other facilities, operations and transmitters are categorically excluded from making such studies or preparing an EA, except as indicated in FCC 47 CFR §§ 1.1307 (c) and (d). Revised FCC OET Bulletin 65 (Edition 97-01) provides assistance in determining whether a proposed or existing transmitting facility, operation or device complies with RF exposure limits. In accordance with OET Bulletin 65 and FCC 47 CFR § 1.1307 (b), this Daniels Electronics Ltd. transmitter is categorically excluded from routine evaluation or preparing an EA for RF emissions and this exclusion is suffi cient basis for assuming compliance with FCC MPE limits. This exclusion is subject to the limits specifi ed in FCC 47 CFR §§ 1.1307 (b) and 1.1310. Daniels Electronics Ltd. has no reason to believe that this excluded transmitter encompasses exceptional characteristics that could cause non-compliance. Notes: • The FCC’s exposure guidelines constitute exposure limits, not emission limits. They are relevant to locations that are accessible to workers or members of the public. Such access can be restricted or controlled by appropriate means (i.e. fences, warning signs, etc.). • The FCC’s limits apply cumulatively to all sources of RF emissions affecting a given site. Sites exceeding these limits are subject to an EA and must provide test reports indicating compliance. RF Safety Guidelines and Information Base and Repeater radio transmitters are designed to generate and radiate RF energy by means of an external antenna, typically mounted at a signifi cant height above ground to provide adequate signal coverage. The following antenna installation guidelines are extracted from Appendix A to OET Bulletin 65 and must be adhered to in order to ensure RF exposure compliance: Non-building-mounted Antennas: Height above ground level to lowest point of antenna ≥ 10 m or Power ≤ 1000W ERP (1640 W EIRP) Building-mounted Antennas: Power ≤ 1000 W ERP (1640 W EIRP) The following RF Safety Guidelines should be observed when working in or around transmitter sites: • Do not work on or around any transmitting antenna while RF power is applied. • Before working on an antenna, disable the appropriate transmitter and ensure a “DO NOT USE” or similar sign is placed on or near the PTT or key-up control. • Assume all antennas are active unless specifi cally indicated otherwise. • Never operate a transmitter with the cover removed. • Ensure all personnel entering a transmitter site have electromagnetic energy awareness training. For more information on RF energy exposure and compliance, please refer to the following: [1] FCC Code of Regulations; 47 CFR §§ 1.1307 and 1.1310. [2] FCC OET Bulletin 65, Edition 97-01, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields”. [3] http://www.fcc.gov/oet/rfsafety/

Master: PT90PLMT Date: February 25, 2001 Test Report: 3W07463 Applicant: Daniels Electronics Ltd. 43 Eire Street Victoria, BC V8V-1P8 Equipment Under Test: VT-3H045-SXA300 (EUT) Transmitter FCC ID: H4JVT-3H040-S-HSO In Accordance With: FCC Part 22,90 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario. K1V 1H2 Authorized By: Kevin Carr, EMC Specialist. Date: 17 September 2003 Total Number of Pages: 24 Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 2 of 24 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................7 Section 4. Audio Frequency Response ................................................................................8 Section 5. Modulation Limiting.........................................................................................10 Section 6. Occupied Bandwidth ........................................................................................12 Section 7. Spurious Emissions at Antenna Terminals ....................................................14 Section 8. Field Strength of Spurious Emissions .............................................................18 Section 9. Frequency Stability...........................................................................................20 Section 10. Test Equipment List .........................................................................................21 Section 11. Test Diagrams ....................................................................................................22 Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 3 of 24 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, 90. New Submission Production Unit Class II Permissive Change Pre-Production Unit T N B Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. TESTED BY: _____________________________________ DATE: 12 September 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 4 of 24 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies Audio Frequency Response 2.1047 Complies Modulation Limiting 2.1047 Complies Occupied Bandwidth 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 Complies Frequency Stability 2.1055 Complies Indoor Temperature: 25°C Humidity: 37 % Outdoor Temperature: 20°C Humidity: 43 % Test Arrangement Diagram : RAD IO TEST SET TRANSMITTE R PAGIN G MODUL ATOR REF OU T REF IN REF IN RF OUT 10 MH z F REQ UEN CY ST ANDAR D SUBR ACK SR39 13 .8 Vd cPOWER SUPPLY 13 .8 Vdc 5A AUD IO IN DAN IEL S SU B R ACK 39 F UNC TI O N G ENERAT O R ATTEN UATOR SPECTRU M ANAL YZER EMISSIONS TEST SETUP PO W ER / F REQ UENC Y STABIL ITY TESTS . Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 5 of 24 Section 2. General Equipment Specification Manufacturer: Daniels Electronics Ltd. Model No.: VT-3H045-SXA300 Serial No.: 10369,10370,10371 Date Received In Laboratory: Aug. 26, 2003 Nemko Identification No.: 1 Primary Power: 13.8Vdc Modulation: FM Emission Designator: 16K0F3E Power Output: 3.0W, (34.8dBm) Channel Spacing: 25 kHz Frequency Range: 29-50MHz Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 6 of 24 Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 7 of 24 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Glen Westwell Date of Test: 8 Sept. 2003 Minimum Standard: 90.205, 22.535 Test Results: Complies Measurement Data: Conducted Power Rated (dBm) Measured (dBm) Delta (dB) High Band 34.8 35.1 0.3 Mid Band 34.8 35.0 0.2 Low Band 34.8 35.0 0.2 Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 8 of 24 Section 4. Audio Frequency Response Para. No.: 2.1047 Test Performed By: Glen Westwell Date of Test: 5 Sept., 2003 Minimum Standard: N/A Test Results: Complies Measurement Data: See attached graph. Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 9 of 24 Audio Frequency Response -60 -50 -40 -30 -20 -10 0 10 100100010000100000 Frequency (Hz) Response (dB) Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 10 of 24 Section 5. Modulation Limiting Para. No.: 2.1047 Test Performed By: Glen Westwell Date of Test: 5 Sept., 2003 Minimum Standard: N/A Test Results: Complies Measurement Data: See attached graph. Nemko Canada Inc. FCC PART 22,90 PROJECT NO.:3W07463 EQUIPMENT: VT-3H045-SXA300 Transmitter Page 11 of 24 Modulation Limiting 0 2 4 6 7090110130 Audio Level (dBuV) Frequency Deviation (kHz) 300 Hz 1000 Hz 3000 Hz Nemko Canada Inc. FCC PART 22,90 …
