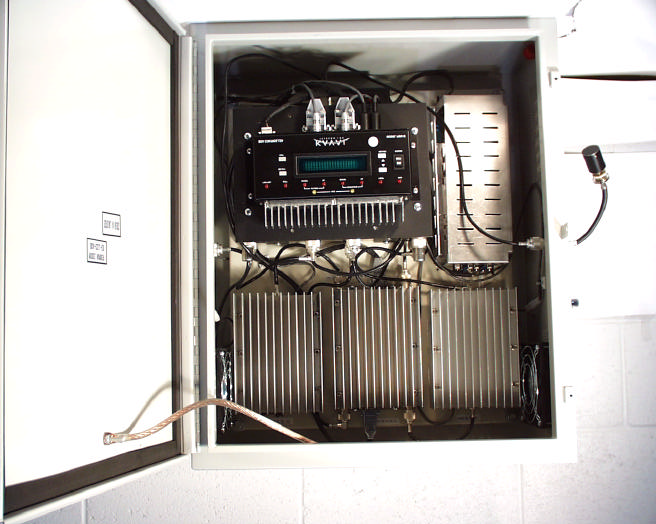

H6M-BDA1200Bi-Directional Amplifier, Model BDA1200

l Page 1Kaval Telecom Inc. - Company SecretDCT000000003 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 TEST & ALIGNMENT SPECIFICATION FOR BDA 800 MHz 1W Booster DCT000000003 Revision 1, May 18, 1999 TITLESIGNATUREDATE Originator Product Group Team Leader Marketing Administration l Page 2Kaval Telecom Inc. - Company SecretDCD000000003 TABLE OF CONTENTS •REVISION RECORD3 •PROPRIETARY NOTICE:3 •INTRODUCTION:4 •EQUIPMENT4 •MATERIALS4 •DOCUMENTATION4 •PROCESS5 •Inspection and Preparation5 •Housing Kit.5 •PCB5 •Divider Wall Subassembly5 •Hookup Wire.5 •Regulator Leads5 •Installation of Leaded Components5 •Installation of PCB into Housing5 •Installation of Bolted Components5 •Installation of Divider Wall Assembly5 •BIAS TEST6 •ALIGNMENT OF FAULT DETECT6 •RF TEST6 •Swept Response6 •Overall Gain6 •Passband6 •Input Return Loss6 •Single Tone Tests6 •Saturated Power6 •Coarse Gain Adjustment6 •Maximum Gain6 •AGC Alignment7 •Verification of Fine Gain Control7 •INSTALLATION OF BOTTOM COVER7 •FINAL TEST AND INSPECTION7 •FIGURE #1: TYPICAL BOOSTER RESPONSE WITH LID REMOVED8 •FIGURE #2: TYPICAL BOOSTER INPUT RETURN LOSS9 •FIGURE #3: ASSEMBLY DRAWING10 •FIGURE #4: BOARD OUTLINE #111 •FIGURE #5: BOARD OUTLINE #212 •FIGURE #6: BOOSTER TO DB-9 WIRING13 l Page 3Kaval Telecom Inc. - Company SecretDCD000000003 • REVISION RECORD Revisions are tracked here as ... 1May 18, 1999Updated from SMA DocumentsAlan Aslett • PROPRIETARY NOTICE: This document contains restricted, proprietary, copyrighted information, ownership of which is retained by Kaval Telecom Inc. Kaval Telecom Inc.’s express written consent is required prior to any reproduction, implementation, publication or other use of such information. This is a controlled document for internal company use only, and is to be distributed only to the parties listed in the Distribution List. Technical information in this document may qualify for patent protection, and for this reason, “public disclosure”, as defined in applicable Patent Law is strictly forbidden except with the express written authorization of the President of Kaval Telecom Inc. This document is considered “Strategic Technical Information” by Kaval Telecom Inc. All Kaval employee recipients must maintain confidentiality in accordance with Kaval Employee Confidentiality regulations per the Employee Manual. All contractors in possession of this information must maintain confidentiality in accordance with applicable Non-Disclosure Agreements and Product Development Agreements, but notwithstanding the preceding, shall, at a minimum, maintain at least the same level of confidentiality that they apply to their own confidential internal documents. l Page 4Kaval Telecom Inc. - Company SecretDCD000000003 • INTRODUCTION: This document provides a step by step procedure for final assembly and test of a Kaval dual cellular booster. This procedure presupposes availability of a complete mechanical parts kit and PCBs with all SMD parts installed. Major activities are installation of PCBs into housing, installation of remaining parts and test. Because of the nature of the interface connector, it is easier to test PCBs once installed. There are no parts on the underside of the PCB, so all repairs can be done without removing PCBs from housing. This procedure is specific to the production of cellular band boosters intended for installation into Cellcom BDA systems. Some adjustment parameters may differ for other customers and applications. It is recommended that debug and repair not be done by personnel that do test. Unit should be taken to an offline repair station. Test operator should apply a tag or sticker to defective unit coded with paragraph number of test step at which unit failed. It is recommended that a test checklist be produced to accompany this document which is used to record test results for each unit. Checklist should refer to paragraph numbers of tests. This can have plots attached and should be filed by serial number for future reference. • EQUIPMENT The following tools or instruments are required for final assembly: Multimeter Booster test interface (custom made) 24V DC Power supply with current limiting at 1A Scalar Network Analyzer capable of 900 MHz operation 1W minimum 10 or 20 dB attenuator, type N. Type N test cables N- Female to N-Female adapter. 1 Ohm 1W Resistor with test leads. (One banana, the other, a pointed probe such as used with multimeters) Insulated Tuning Screwdriver #0 Philips Screwdriver #1 Philips Screwdriver (preferably motorized) Nutdriver for D-sub jack screws. Wire Stripper Flush Cutter Static Protected Soldering Station Hobby Knife Moderate Viscosity Cyanoacrylate Glue Coarse File or Dremel Tool • MATERIALS Each Dual Booster requires the following materials. Refer to BOM for details. 2 Booster PCB Assemblies 1 Housing Kit. Approx. 13.5” #24 AWG insulated hookup wire, assorted colours. Heatsink Grease Parts listed on BOMs • DOCUMENTATION Referenced documentation is listed below: DCA000000001: Assembly Drawing, 1W Dual Booster SCH000000004:Schematic Diagram: 800MHz 1W Booster l Page 5Kaval Telecom Inc. - Company SecretDCD000000003 • PROCESS • Inspection and Preparation • Housing Kit. Inspect housing parts for hazardous burrs, loose metal chips and clean and deburr as required. If machining oil residue exists, clean with Varsol. Install Top Cover to Wall Extrusion using 16 #2-56 flat head machine screws. • PCB Inspect PCB for missing or improperly installed SMD parts. Using a file or Dremel tool, chamfer two corners of PCB closest to RF connectors approximately 0.100” to eliminate interference with weld fillets in housing. • Divider Wall Subassembly Install two divider walls to center divider wall using 4 #2-56 x 3/8” thread cutting screws. Be mindful of correct orientation of grooves and notched in walls to ensure they conform to PCB ground locations and allow clearance for components. Install EMI gasket material to groo…

Text truncated - open the document above for the full version.

l Page 1Kaval Telecom Inc. - Company SecretDCT000000004 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 TEST & ALIGNMENT SPECIFICATION FOR BDA 800 MHz 20W PA (Power Amplifier) DCT000000004 Revision 1, May 17, 1999 TITLESIGNATUREDATE Originator Product Group Team Leader Marketing Administration l Page 2Kaval Telecom Inc. - Company SecretDCD000000004 TABLE OF CONTENTS •REVISION RECORD3 •PROPRIETARY NOTICE:3 •INTRODUCTION:4 •EQUIPMENT:4 •PROCEDURE5 •Initial Conditions5 •DC Regulator5 •Overcurrent Trip Point5 •Preliminary Gate Bias5 •Temperature Shutdown Point5 •Input Match5 •Output Match5 •Review Input Return Loss (Optional once process capability proven)6 •Measure 1 dB Compression Point.6 •Temperature Limit Setting6 •Over-current Back-down and Under-current Fault Detect6 •Record Results6 •SAMPLE RESULTS7 •FIGURE #1: 20W PA GAIN & RETURN LOSS MEASUREMENT SETUP8 •FIGURE #2: 20W PA INTERMOD & COMPRESSION MEASUREMENT SETUP9 •FIGURE #3: INPUT ADJUSTMENT10 •FIGURE #4: OUTPUT ADJUSTMENT11 •FIGURE #5: ASSEMBLY DRAWING12 l Page 3Kaval Telecom Inc. - Company SecretDCD000000004 • REVISION RECORD Revisions are tracked here as ... 1May 17, 1999Updated from SMA DocumentsAlan Aslett • PROPRIETARY NOTICE: This document contains restricted, proprietary, copyrighted information, ownership of which is retained by Kaval Telecom Inc. Kaval Telecom Inc.’s express written consent is required prior to any reproduction, implementation, publication or other use of such information. This is a controlled document for internal company use only, and is to be distributed only to the parties listed in the Distribution List. Technical information in this document may qualify for patent protection, and for this reason, “public disclosure”, as defined in applicable Patent Law is strictly forbidden except with the express written authorization of the President of Kaval Telecom Inc. This document is considered “Strategic Technical Information” by Kaval Telecom Inc. All Kaval employee recipients must maintain confidentiality in accordance with Kaval Employee Confidentiality regulations per the Employee Manual. All contractors in possession of this information must maintain confidentiality in accordance with applicable Non-Disclosure Agreements and Product Development Agreements, but notwithstanding the preceding, shall, at a minimum, maintain at least the same level of confidentiality that they apply to their own confidential internal documents. l Page 4Kaval Telecom Inc. - Company SecretDCD000000004 • INTRODUCTION: The objective is to align variable elements in Kaval 20W 800-900 MHz power amps to optimize RF performance, and verify performance against specifications. This procedure applies to amplifiers to be used together with external electronic fault monitoring modules in Kaval BDA systems. Certain internal fault detection features are not aligned in such case and these adjustments are set to positions which defeat these functions. Alignment of fault detection circuitry not necessary in BDA applications are covered in another document. The Kaval 20W power amplifier is a single stage Class AB linear power amplifier using a high power LDMOS amplifier transistor. Compression point is about 20W, and intermod performance rivals that of similar amplifiers with 30W ratings. This design is optimized for best intermodulation and minimum heat in multicarrier repeaters, not necessarily highest output power in saturation. Due to the necessity of using microstrip matching elements at these frequencies, and the need to tune the amplifier to various application bands, microstrip element lengths must be adjusted in some cases. The PCB design includes easily cuttable “zipper links” in the microstrip stubs which allows tuning using a hobby knife. Care must be taken when cutting links that the entire link is removed. A thin knife cut may leave copper slivers that may later reconnect and detune the amp after exposure to vibration. For this reason, use the wider back edge of the hobby or putty knife, and verify, using a magnifier, that the links are properly and permanently cut. If during adjustment, it is found that one went too far, and a link needs to be restored, this can be easily done by solder bridging. At all times, do not apply power to UUT unless both input and output are properly RF terminated. Be especially careful not to connect UUT with input and output reversed since this unit has ample capability to destroy network or spectrum analyzers. • EQUIPMENT: The following equipment is needed for execution of this procedure. q Scalar Network analyzer, 1 GHz capable. Analyzer must be normalized and calibrated per manufacturer’s instructions prior to any test session and at 1 hour intervals thereafter. q Termination calibration kit for above (type N) q Spectrum Analyzer, 1 GHz capable, input dynamic range up to +25 dBm with input intermod < -60 dBc q 50W 20 dB Attenuator good to 1 GHz. Type N. q Multimeter q 800-1000 MHz Splitter/Combiner, Isolation > 20 dB 800 MHz to 1000 MHz. (Narda 4322-2 or equivalent) q Two 10 dB fixed attenuators q Turret Attenuator with 1 dB resolution. 0-30 dB minimum range. q Broadband Linear Power Amplifier, 3W, 800-100 MHz, (Mini-Circuits ZHL-1000-3W or equivalent.) q Two synthesized signal generators capable of tuning over 800-900 MHz band with output capability of +5 dBm minimum. q Johanson capacitor trimming tool No. 8777 q Power supply cable with male Framatome “Jupiter” connector. q DC Power supply capable of 2A at 24 VDC with variable current limiting. q Customized Amplifier top cover with access holes drilled for access to C19 and R5 q Toggle press or other means for temporarily securing amplifier top lid during test. (You may use 4 screws in the corners as an alternative. q RF interconnection cables as required. Do not use between series adaptors between network analyzer and UUT RF input or between UUT RF output and high power attenuator. Note, for …

Text truncated - open the document above for the full version.

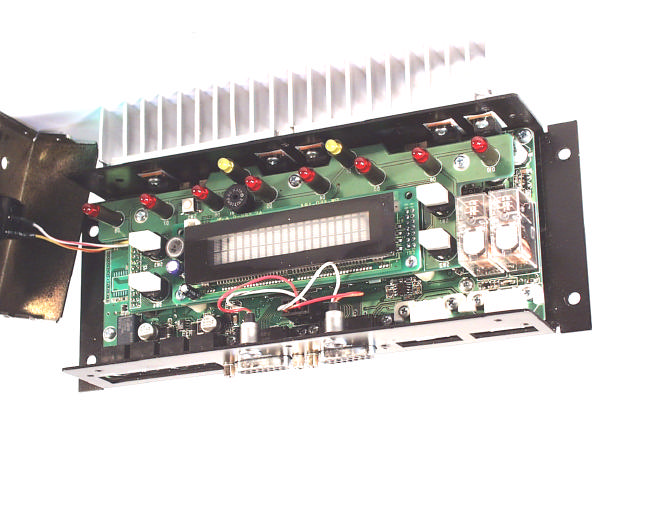

l Page 1Kaval Telecom Inc.DCM000000001 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 http://www.kaval.com USER MANUAL FOR BI-DIRECTIONAL AMPLIFIERS 800 & 900 MHz MODEL BDA-1000 DCM000000001 Revision 1, May 27, 1999 l Page 2Kaval Telecom Inc.DCM000000001 TABLE OF CONTENTS •FCC NOTICE3 •INTRODUCTION4 •BLOCK DIAGRAM5 •TECHNICAL SPECIFICATIONS6 •MULTIPLE CHANNEL AMPLIFICATION POWER DE-RATING REQUIREMENTS7 •BOOSTER AUTOMATIC GAIN CONTROL (AGC) FUNCTIONAL DESCRIPTION7 •BDA CONTROLLER OPERATION8 •BDA Controller User Interface9 •LED and Audible Indicators:9 •Controls:9 •Status Displays10 •Current Monitor Status10 •Thermal Monitor Status10 •AGC Status10 •Master Status10 •Menus11 •Main Menu11 •Gain Menu12 •Uplink & Downlink Booster Menus12 •Uplink and Downlink PA Menus13 •AGC Menu13 •Temperature Menu13 •Fan Select13 •Battery14 •Controller Menu14 •Calibration Menu14 •INSTALLATION15 •FIELD ADJUSTMENTS15 •TROUBLESHOOTING16 •Maintenance & Safety16 •Maintenance Philosophy16 •Troubleshooting Procedure16 l Page 3Kaval Telecom Inc.DCM000000001 • FCC NOTICE l Page 4Kaval Telecom Inc.DCM000000001 • INTRODUCTION This Operator’s Manual covers the use, operation and installation of the BDA-1000 800 & 900 MHz Bi-Directional Amplifiers (BDA’s). BDA’s are intended to extend radio frequency coverage into areas with coverage deficiency such as inside office buildings, shopping malls, hospitals, tunnels etc. They are designed to be located independent of the Donor Transceiver Site and are equipped with their own antenna systems - one to communicate with the Donor Transceiver Site and the other(s) to communicate with radio equipment in the area with coverage deficiency. For proper BDA System operation with no feedback problems, the RF isolation between the roof top antenna and the indoor antenna(s) must exceed the net system gain by at least 12 dB. Note that the net system gain takes into account the BDA gain, antenna gain, cable & connectors losses. ROOF TOP ANTENNA SIGNAL TAP FROM / DONOR TRANSCEIVER D N-1 D N F1 B F2 KAVAL BDA SIGNAL TAP COAX CABLE l Page 5Kaval Telecom Inc.DCM000000001 • BLOCK DIAGRAM REJECT FILTER #2 UPLINK DIRECTION IN BUILDING ANTENNA HP ANTENNA COOLING FANS VENTILATION INPUT AC POWER TERMINAL BLOCK VENTILATION BDA SUPPLY 28V POWER CONTROLLER ROOF TOP HP LP LP DOWNLINK DIRECTION PA #1 REJECT FILTER #1 PA #2 BOOSTER #1 BOOSTER #2 Power and Control Connections------- RF Connections____ BDA Controller :An enclosed unit with microcontroller, LED indicators, buttons, and two-line display. Temp Sense & Cooling Fans :Controlled by the BDA Controller to ensure safe and reliable operation. 28V Power Supply :Providing all DC Power, with optional Gell-Cell Battery Backup. Duplexers :Isolating Downlink and Uplink Frequencies, and coupling to antennas. Reject Filters :Installed if required to eliminate feedback. Boosters :High Gain (11 to 65 dB) Linear Amplifiers supplying up to 1 Watt of RF Power. The basic gain is adjustable via the BDA Controller over a 33 to 65 dB range, and an Automatic Gain Control (AGC) provides an additional 23 dB range. PA Power Amplifiers :Optional Linear Power Amplifiers providing 15 dB of additional gain, and up to 20 Watts of RF Power. l Page 6Kaval Telecom Inc.DCM000000001 • TECHNICAL SPECIFICATIONS The BDA provides for both directions a nominal 65dB gain Booster and a 15dB gain Power Amplifier (PA). The linear Booster has a high gain range of 11 to 65 dB supplying up to 1 Watt of RF Power. The basic gain is adjustable via the BDA Controller over a 31 dB range, and an Automatic Gain Control (AGC) provides an additional 23 dB range. The isolation between the uplink and down- link paths is provided by two high performance bandpass Duplexers. RF PerformanceDownlinkUplink Frequency RangeAs per Band requirements and Duplexer: Trunking:851-869 MHz Cellular:869-891.5 MHz Cellular:880-894 MHz Trunking:935-941 MHz Please consult Kaval for other 800-960 MHz band options. As per Band requirements and Duplexer: Trunking:806-824 MHz Cellular:824-846.5 MHz Cellular:835-849 MHz Trunking:896-902 MHz Please consult Kaval for other 800-960 MHz band options. Nominal Max. Gain65 dB with Booster only 80 dB with Booster & PA Gain Adjustment31dB (in 1dB steps) 1 dB Compression Point+27 dBm with Booster only +40 dBm with Booster & PA 3 rd Order Intercept Point IP3+37 dBm with Booster only +50dBm with Booster & PA Impedance50 ohms Nominal VSWR1.5:1 Max BDA Controller FeaturesMicroprocessor Controller Current Monitoring for 2 Boosters, 2 PA’s, 2 Fans Full Gain Control Battery Backup Control & Charging Electrical Primary AC PowerSwitchmode Universal 120/230V AC +/- 10%, 50-60Hz Total DC Current DrainNominal 2 to 6 Amps @ 28 VDC BDA Controller300 ma @ 28 VDC 1W Boosters650 ma @ 28 VDC Fault thresholds Typically 200 ma and 900 ma 20 Watt PA’s1.5A @ 28 VDC Fault thresholds Typically 160 ma and 1.8 A BatteriesTwo 12 VDC Sealed Lead -Acid Batteries, 10-100 AH Battery Backup Time: Boosters only, 20 AH - 8 hrs Typical Battery Backup Time: Boosters & PA’s, 100 AH - 8 hrs Typical Charge Time: 10 AH - Approx. 6 hrs, 100 AH - Approx. 48 hrs. Typical Charge Current from BDA Controller is 3 Amps Maximum The BDA will shut down for Battery Voltages below 21 VDC. Mechanical Dimensions W x H x D20” x 24”x12” Weight100 lbs. approx. HousingRugged Nema-Style Cabinet - Wall Mountable ConnectorsN female l Page 7Kaval Telecom Inc.DCM000000001 • MULTIPLE CHANNEL AMPLIFICATION POWER DE-RATING REQUIREMENTS BDA’s will amplify all signals that fall within their Pass-Band range. The output power will be “shared” between all channels being amplified. Another multiple channel effect is Intermodulation - off-channel signals produced from non-linear effects between the intended channel signals. These may cause interference to receiving equipment. In order to minimize Intermodulation off-channel signals, Power De-rating must be applied. In the USA there are FCC Intermodulation Sp…

Text truncated - open the document above for the full version.

l Page 1Kaval Telecom Inc. - Company SecretDCT000000003 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 TEST & ALIGNMENT SPECIFICATION FOR BDA 800 MHz 1W Booster DCT000000003 Revision 1, May 18, 1999 TITLESIGNATUREDATE Originator Product Group Team Leader Marketing Administration l Page 2Kaval Telecom Inc. - Company SecretDCD000000003 TABLE OF CONTENTS •REVISION RECORD3 •PROPRIETARY NOTICE:3 •INTRODUCTION:4 •EQUIPMENT4 •MATERIALS4 •DOCUMENTATION4 •PROCESS5 •Inspection and Preparation5 •Housing Kit.5 •PCB5 •Divider Wall Subassembly5 •Hookup Wire.5 •Regulator Leads5 •Installation of Leaded Components5 •Installation of PCB into Housing5 •Installation of Bolted Components5 •Installation of Divider Wall Assembly5 •BIAS TEST6 •ALIGNMENT OF FAULT DETECT6 •RF TEST6 •Swept Response6 •Overall Gain6 •Passband6 •Input Return Loss6 •Single Tone Tests6 •Saturated Power6 •Coarse Gain Adjustment6 •Maximum Gain6 •AGC Alignment7 •Verification of Fine Gain Control7 •INSTALLATION OF BOTTOM COVER7 •FINAL TEST AND INSPECTION7 •FIGURE #1: TYPICAL BOOSTER RESPONSE WITH LID REMOVED8 •FIGURE #2: TYPICAL BOOSTER INPUT RETURN LOSS9 •FIGURE #3: ASSEMBLY DRAWING10 •FIGURE #4: BOARD OUTLINE #111 •FIGURE #5: BOARD OUTLINE #212 •FIGURE #6: BOOSTER TO DB-9 WIRING13 l Page 3Kaval Telecom Inc. - Company SecretDCD000000003 • REVISION RECORD Revisions are tracked here as ... 1May 18, 1999Updated from SMA DocumentsAlan Aslett • PROPRIETARY NOTICE: This document contains restricted, proprietary, copyrighted information, ownership of which is retained by Kaval Telecom Inc. Kaval Telecom Inc.’s express written consent is required prior to any reproduction, implementation, publication or other use of such information. This is a controlled document for internal company use only, and is to be distributed only to the parties listed in the Distribution List. Technical information in this document may qualify for patent protection, and for this reason, “public disclosure”, as defined in applicable Patent Law is strictly forbidden except with the express written authorization of the President of Kaval Telecom Inc. This document is considered “Strategic Technical Information” by Kaval Telecom Inc. All Kaval employee recipients must maintain confidentiality in accordance with Kaval Employee Confidentiality regulations per the Employee Manual. All contractors in possession of this information must maintain confidentiality in accordance with applicable Non-Disclosure Agreements and Product Development Agreements, but notwithstanding the preceding, shall, at a minimum, maintain at least the same level of confidentiality that they apply to their own confidential internal documents. l Page 4Kaval Telecom Inc. - Company SecretDCD000000003 • INTRODUCTION: This document provides a step by step procedure for final assembly and test of a Kaval dual cellular booster. This procedure presupposes availability of a complete mechanical parts kit and PCBs with all SMD parts installed. Major activities are installation of PCBs into housing, installation of remaining parts and test. Because of the nature of the interface connector, it is easier to test PCBs once installed. There are no parts on the underside of the PCB, so all repairs can be done without removing PCBs from housing. This procedure is specific to the production of cellular band boosters intended for installation into Cellcom BDA systems. Some adjustment parameters may differ for other customers and applications. It is recommended that debug and repair not be done by personnel that do test. Unit should be taken to an offline repair station. Test operator should apply a tag or sticker to defective unit coded with paragraph number of test step at which unit failed. It is recommended that a test checklist be produced to accompany this document which is used to record test results for each unit. Checklist should refer to paragraph numbers of tests. This can have plots attached and should be filed by serial number for future reference. • EQUIPMENT The following tools or instruments are required for final assembly: Multimeter Booster test interface (custom made) 24V DC Power supply with current limiting at 1A Scalar Network Analyzer capable of 900 MHz operation 1W minimum 10 or 20 dB attenuator, type N. Type N test cables N- Female to N-Female adapter. 1 Ohm 1W Resistor with test leads. (One banana, the other, a pointed probe such as used with multimeters) Insulated Tuning Screwdriver #0 Philips Screwdriver #1 Philips Screwdriver (preferably motorized) Nutdriver for D-sub jack screws. Wire Stripper Flush Cutter Static Protected Soldering Station Hobby Knife Moderate Viscosity Cyanoacrylate Glue Coarse File or Dremel Tool • MATERIALS Each Dual Booster requires the following materials. Refer to BOM for details. 2 Booster PCB Assemblies 1 Housing Kit. Approx. 13.5” #24 AWG insulated hookup wire, assorted colours. Heatsink Grease Parts listed on BOMs • DOCUMENTATION Referenced documentation is listed below: DCA000000001: Assembly Drawing, 1W Dual Booster SCH000000004:Schematic Diagram: 800MHz 1W Booster l Page 5Kaval Telecom Inc. - Company SecretDCD000000003 • PROCESS • Inspection and Preparation • Housing Kit. Inspect housing parts for hazardous burrs, loose metal chips and clean and deburr as required. If machining oil residue exists, clean with Varsol. Install Top Cover to Wall Extrusion using 16 #2-56 flat head machine screws. • PCB Inspect PCB for missing or improperly installed SMD parts. Using a file or Dremel tool, chamfer two corners of PCB closest to RF connectors approximately 0.100” to eliminate interference with weld fillets in housing. • Divider Wall Subassembly Install two divider walls to center divider wall using 4 #2-56 x 3/8” thread cutting screws. Be mindful of correct orientation of grooves and notched in walls to ensure they conform to PCB ground locations and allow clearance for components. Install EMI gasket material to groo…

Text truncated - open the document above for the full version.

l Page 1Kaval Telecom Inc.DCM000000001 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 http://www.kaval.com USER MANUAL FOR BI-DIRECTIONAL AMPLIFIERS 800 & 900 MHz MODEL BDA-1000 DCM000000001 Revision 1, May 27, 1999 l Page 2Kaval Telecom Inc.DCM000000001 TABLE OF CONTENTS •FCC NOTICE3 •INTRODUCTION4 •BLOCK DIAGRAM5 •TECHNICAL SPECIFICATIONS6 •MULTIPLE CHANNEL AMPLIFICATION POWER DE-RATING REQUIREMENTS7 •BOOSTER AUTOMATIC GAIN CONTROL (AGC) FUNCTIONAL DESCRIPTION7 •BDA CONTROLLER OPERATION8 •BDA Controller User Interface9 •LED and Audible Indicators:9 •Controls:9 •Status Displays10 •Current Monitor Status10 •Thermal Monitor Status10 •AGC Status10 •Master Status10 •Menus11 •Main Menu11 •Gain Menu12 •Uplink & Downlink Booster Menus12 •Uplink and Downlink PA Menus13 •AGC Menu13 •Temperature Menu13 •Fan Select13 •Battery14 •Controller Menu14 •Calibration Menu14 •INSTALLATION15 •FIELD ADJUSTMENTS15 •TROUBLESHOOTING16 •Maintenance & Safety16 •Maintenance Philosophy16 •Troubleshooting Procedure16 l Page 3Kaval Telecom Inc.DCM000000001 • FCC NOTICE l Page 4Kaval Telecom Inc.DCM000000001 • INTRODUCTION This Operator’s Manual covers the use, operation and installation of the BDA-1000 800 & 900 MHz Bi-Directional Amplifiers (BDA’s). BDA’s are intended to extend radio frequency coverage into areas with coverage deficiency such as inside office buildings, shopping malls, hospitals, tunnels etc. They are designed to be located independent of the Donor Transceiver Site and are equipped with their own antenna systems - one to communicate with the Donor Transceiver Site and the other(s) to communicate with radio equipment in the area with coverage deficiency. For proper BDA System operation with no feedback problems, the RF isolation between the roof top antenna and the indoor antenna(s) must exceed the net system gain by at least 12 dB. Note that the net system gain takes into account the BDA gain, antenna gain, cable & connectors losses. ROOF TOP ANTENNA SIGNAL TAP FROM / DONOR TRANSCEIVER D N-1 D N F1 B F2 KAVAL BDA SIGNAL TAP COAX CABLE l Page 5Kaval Telecom Inc.DCM000000001 • BLOCK DIAGRAM REJECT FILTER #2 UPLINK DIRECTION IN BUILDING ANTENNA HP ANTENNA COOLING FANS VENTILATION INPUT AC POWER TERMINAL BLOCK VENTILATION BDA SUPPLY 28V POWER CONTROLLER ROOF TOP HP LP LP DOWNLINK DIRECTION PA #1 REJECT FILTER #1 PA #2 BOOSTER #1 BOOSTER #2 Power and Control Connections------- RF Connections____ BDA Controller :An enclosed unit with microcontroller, LED indicators, buttons, and two-line display. Temp Sense & Cooling Fans :Controlled by the BDA Controller to ensure safe and reliable operation. 28V Power Supply :Providing all DC Power, with optional Gell-Cell Battery Backup. Duplexers :Isolating Downlink and Uplink Frequencies, and coupling to antennas. Reject Filters :Installed if required to eliminate feedback. Boosters :High Gain (11 to 65 dB) Linear Amplifiers supplying up to 1 Watt of RF Power. The basic gain is adjustable via the BDA Controller over a 33 to 65 dB range, and an Automatic Gain Control (AGC) provides an additional 23 dB range. PA Power Amplifiers :Optional Linear Power Amplifiers providing 15 dB of additional gain, and up to 20 Watts of RF Power. l Page 6Kaval Telecom Inc.DCM000000001 • TECHNICAL SPECIFICATIONS The BDA provides for both directions a nominal 65dB gain Booster and a 15dB gain Power Amplifier (PA). The linear Booster has a high gain range of 11 to 65 dB supplying up to 1 Watt of RF Power. The basic gain is adjustable via the BDA Controller over a 31 dB range, and an Automatic Gain Control (AGC) provides an additional 23 dB range. The isolation between the uplink and down- link paths is provided by two high performance bandpass Duplexers. RF PerformanceDownlinkUplink Frequency RangeAs per Band requirements and Duplexer: Trunking:851-869 MHz Cellular:869-891.5 MHz Cellular:880-894 MHz Trunking:935-941 MHz Please consult Kaval for other 800-960 MHz band options. As per Band requirements and Duplexer: Trunking:806-824 MHz Cellular:824-846.5 MHz Cellular:835-849 MHz Trunking:896-902 MHz Please consult Kaval for other 800-960 MHz band options. Nominal Max. Gain65 dB with Booster only 80 dB with Booster & PA Gain Adjustment31dB (in 1dB steps) 1 dB Compression Point+27 dBm with Booster only +40 dBm with Booster & PA 3 rd Order Intercept Point IP3+37 dBm with Booster only +50dBm with Booster & PA Impedance50 ohms Nominal VSWR1.5:1 Max BDA Controller FeaturesMicroprocessor Controller Current Monitoring for 2 Boosters, 2 PA’s, 2 Fans Full Gain Control Battery Backup Control & Charging Electrical Primary AC PowerSwitchmode Universal 120/230V AC +/- 10%, 50-60Hz Total DC Current DrainNominal 2 to 6 Amps @ 28 VDC BDA Controller300 ma @ 28 VDC 1W Boosters650 ma @ 28 VDC Fault thresholds Typically 200 ma and 900 ma 20 Watt PA’s1.5A @ 28 VDC Fault thresholds Typically 160 ma and 1.8 A BatteriesTwo 12 VDC Sealed Lead -Acid Batteries, 10-100 AH Battery Backup Time: Boosters only, 20 AH - 8 hrs Typical Battery Backup Time: Boosters & PA’s, 100 AH - 8 hrs Typical Charge Time: 10 AH - Approx. 6 hrs, 100 AH - Approx. 48 hrs. Typical Charge Current from BDA Controller is 3 Amps Maximum The BDA will shut down for Battery Voltages below 21 VDC. Mechanical Dimensions W x H x D20” x 24”x12” Weight100 lbs. approx. HousingRugged Nema-Style Cabinet - Wall Mountable ConnectorsN female l Page 7Kaval Telecom Inc.DCM000000001 • MULTIPLE CHANNEL AMPLIFICATION POWER DE-RATING REQUIREMENTS BDA’s will amplify all signals that fall within their Pass-Band range. The output power will be “shared” between all channels being amplified. Another multiple channel effect is Intermodulation - off-channel signals produced from non-linear effects between the intended channel signals. These may cause interference to receiving equipment. In order to minimize Intermodulation off-channel signals, Power De-rating must be applied. In the USA there are FCC Intermodulation Sp…

Text truncated - open the document above for the full version.
