Kaval’s advanced LinkNet VHF Service Module is a digitally controlled Class-A amplifier designed to operate within the LinkNet Convergence Platform to extend coverage of the vhf ( 136-174 MHz) spectrum range. Software configured, this broadband amplifier’s main function is to receive, amplify and transmit its designatedfrequency range and to ensure that clean, clear signals arrive at their intended destination.Because of LinkNet’s modular design, additional service modules can be added to keep pace with technologicaladvancements or changes in user demand, making LinkNet the most flexible, scalable, and cost-effective solutionon the market today. Servicing VHF. Broadband Version. Features & BenefitsInstallation & Service Features All LinkNet Service Modules are ‘plug-and-play/unplug-and-remove’ to minimize installationdown time and eliminate the need for extensive service equipment on site.Hot Swappable Features LinkNet Service Modules can be added or replaced within the LinkNet Convergence Platform withoutpowering down the system. This provides quick and easy maintenance with no disruption to service. Diagnostic Features Each LinkNet Service Module automatically performs a self-diagnostic check when inserted into the chassis.As well, all major fault conditions are constantly monitored,including:Primary power failureThermal managementOver-current/under-currentTM Trademark of Kaval Wireless Technologies. SM Service Mark of Kaval Wireless Technologies. 1.888.86.kaval www.kaval.com Wireless inside. Made possible. SM LinkNet TM Service Module LNKA100 ab LinkNet™ Convergence Platform Donor Antenna Tap-In™ and Ceiling Antenna Coaxial Cable Product DeploymentSignals are received via an off air donor antenna located onthe exterior of the building, from a nearby macro cell site.* The LinkNet Convergence platform converges and amplifiessignals which are then distributed to each floor via coaxialcable. Kaval’s patented Tap-In signal taps and a series of ceiling mounted antennas provide balanced coveragethroughout the building. * Signals may be taken directly from base station via fiber or T 1 connection if so desired. Specifications Module SpecificationsFrequency Range LNKA 100 -A 136-155 MHz, LNKA 100 -B 150-174 MHz Modulation and Bandwidth Broadband Amplifier RF Gain Adjustment Range + 34 dB to +84 dB, in 1 dB increments AGC Control Adjustment Range + 15 dBm to +30 dBm 3 rd Order Intercept Point IP3 + 47 dBm Typical Noise Figure < 8 dB, 5 dB Typical Transmit Duty Cycle Continuous Transmit Spurious - 13 dBm Maximum Receive Conducted Spurious - 57 dBm Maximum Power Module Supply Requirements 40 Watts Maximum Group Delay < 5 μs RF Connectors SMA ( 50 Ω ) Connectors on back of Chassis Connections DB- 15 Connector on back of Chassis provides Per-Module Fault Relay, Interconnect to other Modules, and RS- 232 connection . Front Panel Indicators Operating, Stand By, Fault, Program Mode, Receive, Transmit Configuration Options Modules may be configured via optional Gateway Module, or via PC and a RS- 232 Connection V1-10/03 1.888.86.kaval www.kaval.com Wireless inside. Made possible. SM Mechanical CharacteristicsDimensions (W x H x D) 2" x 9.11" x 14" Weight 10 lbs. approx. Operating Temperature Range* - 10 0 C to + 50 0 C Operating Humidity Range 10 to 90% RH, Non-Condensing * Consult Kaval for installation specific forced-air cooling requirements.Specifications are subject to change without notice. LinkNet TM Service Module LNKA100

60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX LNKA100 Theory Of Operation Updated Dec.15,2003 A LINKNET AMPLIFIER MODULE is a Broad-Band Digitally Controlled Class-A Amplifier. The most common LINKNET AMPLIFIER MODULE applications are the extension of above ground signals into buildings, tunnels, vehicles or the extension of radio coverage patterns into outdoor shaded areas such as deep valleys. From an applications standpoint, an LINKNET AMPLIFIER MODULE is very similar to a regular two-way radio repeater. On Frequency Radio Repeaters can be combined using regular two-way radio multicoupling or duplexing equipment and have input and output signal characteristics to those of regular transmitters and receivers. The one special consideration in LINKNET AMPLIFIER MODULE systems is that of input to output antenna isolation. This must be carefully engineered for each installation. These Modules are designed for indoor use only and are intended for mounting in a standard EIA 19 inch rack. Modular design of LINKNET AMPLIFIER MODULE circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability. Amplifier Board UMC Controller Board without TCXO RF Input 136-174 MHz RF Output 136-174 MHz Micro- Controller with lines to all Boards SMA RF Connector SMA RF Connector Power & Control to Backplane AGC Gain Control Loop Communication Interfaces Gain Control Filter Linear Power Amplifier Power Circuits Filter Digital Gain Control There is no Tuning for this product. It is calibrated when it undergoes Factory Testing. When installed the Amplifier is set up by software (see the User Manual) for the desired Gain and AGC setting. The combination of these two settings ensures that the Maximum Power and RF De-Rating requirements are met.

Page 1 60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX October 27, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD, 21046, USA Subject: CONFIDENTIALTY REQUEST Dear Sir or Madam; Kaval Wireless Technologies respectfully requests confidentiality of certain materials provided with the submission of the LNKA100 under FCC ID H6M-LNKA100 in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, SCH000000028 and SCH000000087, contained in Exhibit 2. The LNKA100 has been developed at considerable effort and expense by Kaval Wireless Technologies. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this manner. Yours sincerely, Name: Alan Aslett, P.Eng. Signature: _________________________________ Title: Director of Engineering - Product Development Date: October 27, 2003

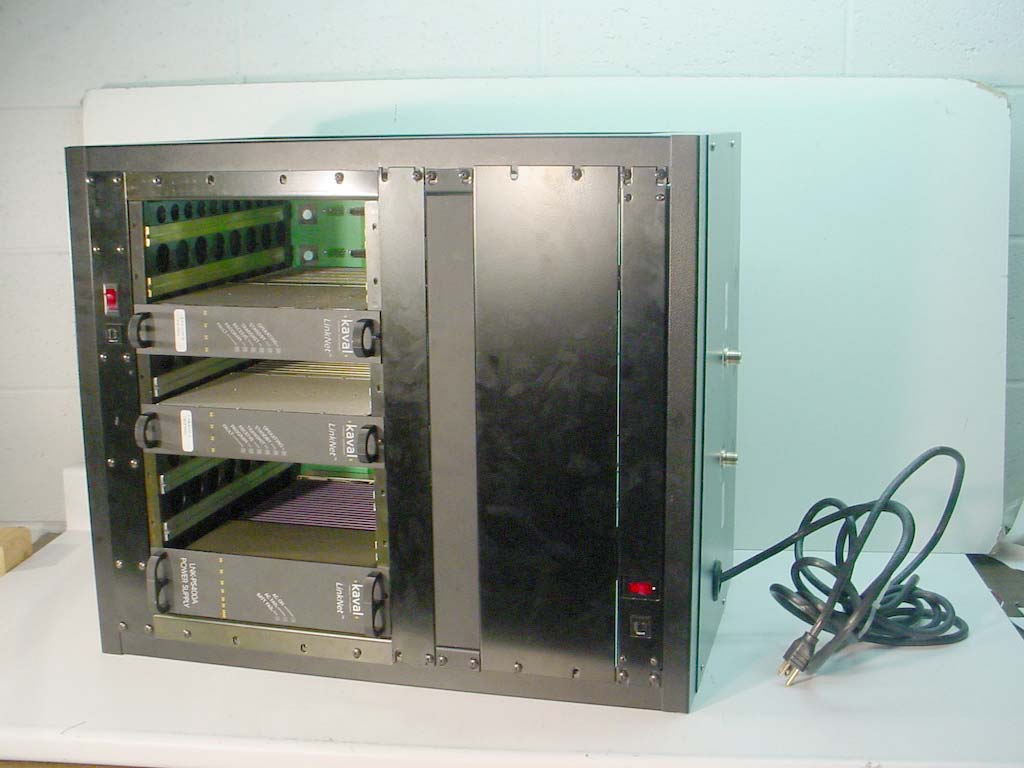

Annex 2 – External Photographs of The EUT Photo # 1 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 Annex 2 – External Photographs of The EUT Photo # 2 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 Annex 2 – External Photographs of The EUT Photo # 3 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100

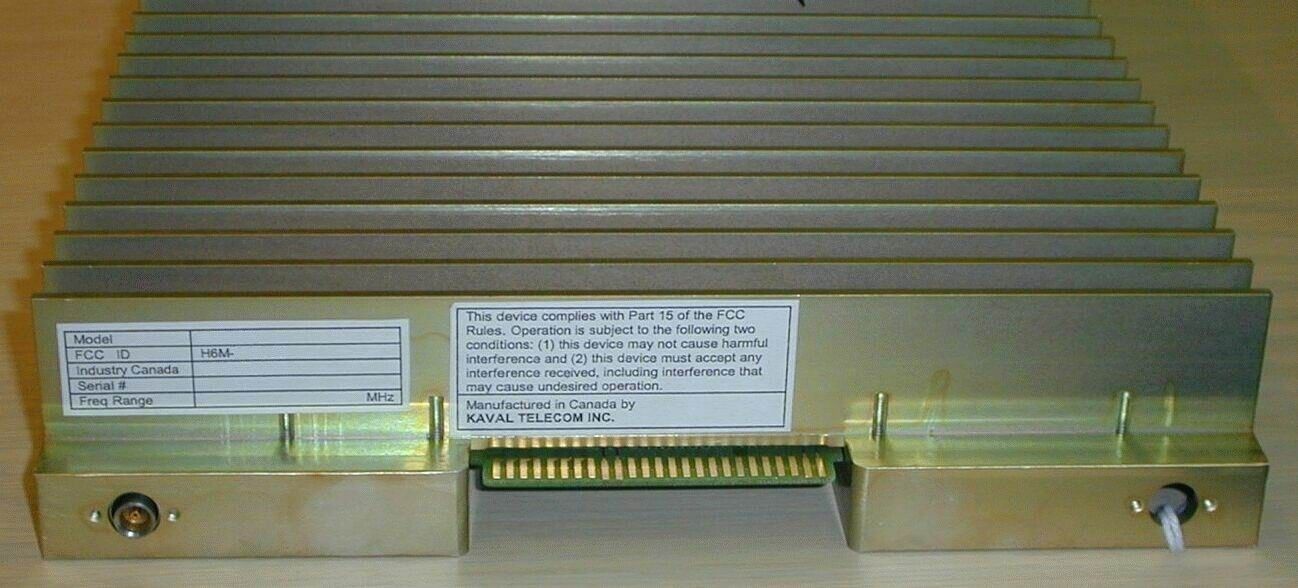

Kaval Wireless Technologies LAB000000048, Rev.0 October 27, 2003 Model LNKA100- FCC ID H6M-LNKA100 Industry Canada IC:1541A-LNKA100 Serial # Freq Range MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured in Canada by KAVAL WIRELESS TECHNOLOGIES

Annex 3 – Internal Photographs of The EUT Photo # 1 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 1 Annex 3 – Internal Photographs of The EUT Photo # 2 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 2 Annex 3 – Internal Photographs of The EUT Photo # 3 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 3 Annex 3 – Internal Photographs of The EUT Photo # 4 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 4 Annex 3 – Internal Photographs of The EUT Photo # 5 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 5 Annex 3 – Internal Photographs of The EUT Photo # 6 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 6 Annex 3 – Internal Photographs of The EUT Photo # 7 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 7 Annex 3 – Internal Photographs of The EUT Photo # 8 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 8 Annex 3 – Internal Photographs of The EUT Photo # 9 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 9 Annex 3 – Internal Photographs of The EUT Photo # 10 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 10 Annex 3 – Internal Photographs of The EUT Photo # 11 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 11 Annex 3 – Internal Photographs of The EUT Photo # 12 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 12 Annex 3 – Internal Photographs of The EUT Photo # 13 LinkNet RF Broadband Amplifier Module, Model: LNKA100 FCC ID: H6M-LNKA100 IC: 1541A-LNKA100 13

60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX LNKA100 Theory Of Operation Updated Dec.15,2003 A LINKNET AMPLIFIER MODULE is a Broad-Band Digitally Controlled Class-A Amplifier. The most common LINKNET AMPLIFIER MODULE applications are the extension of above ground signals into buildings, tunnels, vehicles or the extension of radio coverage patterns into outdoor shaded areas such as deep valleys. From an applications standpoint, an LINKNET AMPLIFIER MODULE is very similar to a regular two-way radio repeater. On Frequency Radio Repeaters can be combined using regular two-way radio multicoupling or duplexing equipment and have input and output signal characteristics to those of regular transmitters and receivers. The one special consideration in LINKNET AMPLIFIER MODULE systems is that of input to output antenna isolation. This must be carefully engineered for each installation. These Modules are designed for indoor use only and are intended for mounting in a standard EIA 19 inch rack. Modular design of LINKNET AMPLIFIER MODULE circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability. Amplifier Board UMC Controller Board without TCXO RF Input 136-174 MHz RF Output 136-174 MHz Micro- Controller with lines to all Boards SMA RF Connector SMA RF Connector Power & Control to Backplane AGC Gain Control Loop Communication Interfaces Gain Control Filter Linear Power Amplifier Power Circuits Filter Digital Gain Control There is no Tuning for this product. It is calibrated when it undergoes Factory Testing. When installed the Amplifier is set up by software (see the User Manual) for the desired Gain and AGC setting. The combination of these two settings ensures that the Maximum Power and RF De-Rating requirements are met.

60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX LNKA100 Theory Of Operation Updated Dec.15,2003 A LINKNET AMPLIFIER MODULE is a Broad-Band Digitally Controlled Class-A Amplifier. The most common LINKNET AMPLIFIER MODULE applications are the extension of above ground signals into buildings, tunnels, vehicles or the extension of radio coverage patterns into outdoor shaded areas such as deep valleys. From an applications standpoint, an LINKNET AMPLIFIER MODULE is very similar to a regular two-way radio repeater. On Frequency Radio Repeaters can be combined using regular two-way radio multicoupling or duplexing equipment and have input and output signal characteristics to those of regular transmitters and receivers. The one special consideration in LINKNET AMPLIFIER MODULE systems is that of input to output antenna isolation. This must be carefully engineered for each installation. These Modules are designed for indoor use only and are intended for mounting in a standard EIA 19 inch rack. Modular design of LINKNET AMPLIFIER MODULE circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability. Amplifier Board UMC Controller Board without TCXO RF Input 136-174 MHz RF Output 136-174 MHz Micro- Controller with lines to all Boards SMA RF Connector SMA RF Connector Power & Control to Backplane AGC Gain Control Loop Communication Interfaces Gain Control Filter Linear Power Amplifier Power Circuits Filter Digital Gain Control There is no Tuning for this product. It is calibrated when it undergoes Factory Testing. When installed the Amplifier is set up by software (see the User Manual) for the desired Gain and AGC setting. The combination of these two settings ensures that the Maximum Power and RF De-Rating requirements are met.

LinkNet™ LNKA RF MODULES z USER MANUAL DCM000000054 Printed: 03.10.27,15:29 Revision Date:10/27/03 12 • All Antenna Installation to be performed by Qualified Technical Personnel only. • Antenna Installation Instructions and locations below are for the purpose of satisfying FCC RF Exposure Compliance requirements. • Note that if multiple LinkNet™ Modules are used, the Instructions below apply to the composite power output of all Modules when transmitting simultaneously. • The Roof Top Antenna or Antennae for linking to the Donor Site(s) is/are directional (high gain) Antennae, fixed-mounted physically on the side or top of a building, or on a tower. The Antenna Gain must be no more than 20 dBi. If multiple LinkNet™ Modules are used with output combiners into any one Antenna, and/or multiple Antennae are used on one Roof Top, then the sum of composite powers into all Roof Top Antennae must not exceed 20 Watts maximum. Please consult Kaval Wireless for assistance as required. The Roof Top Antennae location should be such that only Qualified Technical Personnel can access it, and that under normal operating conditions no other person can touch the Antenna, or approach within 10 meters of the Antenna. • For the Cellular Uplink Band (824-849 MHz) the Roof Top Antenna or Antennae for linking to the Donor Site(s) has the added restriction that the Effective Radiated Power (ERP) must not exceed 7 Watts (+38 dBm). Thus, if the AGC is set (as per the Carrier De-Rating Chart) to +28dBm as an example, the maximum allowed Antenna Gain must be no more than 10 dBi. • The In-Building Antenna connection is via a coaxial cable distribution system with Signal Taps at various points connected to the fixed-mounted Indoor Antennae. This is shown in the figure in the Introduction. The Indoor Antennae are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL WIRELESS TECHNOLOGIES 12, 16, or 20 dB Cable Taps. As such the maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below the maximum signal level of the LinkNet™ (+40 dBm); +28 dBm, or 0.63 Watts EIRP. If multiple LinkNet™ Modules are used with output combiners, then the composite power output of all Modules transmitting simultaneously must meet this maximum EIRP requirement. Please consult Kaval Wireless for assistance as required. These Antennae are to be installed such that no person can touch the Antenna, or approach within 0.2 Meters. Antenna Installation
