H6M-US800TPLinkNet UniServ Unit, Model US800TP

LinkNet UniServ Unit (USU) RF - FIBER Interface Modules User Manual Installation, Operation And Maintenance KAVAL WIRELESS TECHNOLOGIES 60 Gough Road Markham, Ontario, L3R8X7 Telephone: (888) 86-KAVAL Web: www.kaval.com E-mail: [email protected] Document #DCM000000104, Rev.9 May 21, 2003 USU z USER MANUAL DCM000000104 Printed: 2003-05-21 10:40:07 Revision Date: 5/21/03: ii P P R R O O P P R R I I E E T T A A R R Y Y S S T T A A T T E E M M E E N N T T © 2000 KAVAL WIRELESS TECHNOLOGIES All rights reserved. No part of this publication, or any software included with it may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, including photocopying, electronic, mechanical, recording or otherwise, without the prior written permission of the copyright holder. This document contains proprietary information of KAVAL WIRELESS TECHNOLOGIES The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of KAVAL WIRELESS TECHNOLOGIES, is strictly prohibited. KAVAL WIRELESS TECHNOLOGIES provides this document as is, without any warranty of any kind either expressed or implied including, but not limited to, the implied warranties of merchantability and fitness of a particular purpose. KAVAL WIRELESS TECHNOLOGIES may make changes or improvements in the equipment, software, or specifications described in this document at any time and without notice. These changes will be incorporated in new releases of this document. This document may contain technical inaccuracies or typographical errors. KAVAL WIRELESS TECHNOLOGIES waives responsibility for any labour, materials, or costs incurred by any person or party as a result of using this document. KAVAL WIRELESS TECHNOLOGIES, and any of its affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or loss of profits or date) even if they were foreseeable and KAVAL WIRELESS TECHNOLOGIES has been informed of their potential occurrence, arising out of or in connection with this document or its use. T T R R A A D D E E M M A A R R K K N N O O T T I I C C E E This manual makes reference to trademarks that are the property of other companies. References are used only to refer to the products or services of the trademark owners. USU is a trademark of KAVAL WIRELESS TECHNOLOGIES USU z USER MANUAL DCM000000104 Printed: 2003-05-21 10:40:07 Revision Date: 5/21/03: iii TABLE OF CONTENTS 1. USU MODULES........................................ 4 OVERVIEW............................................................. 4 Theory Of Operation......................................... 4 Typical Application............................................ 4 MODELS................................................................. 5 BLOCK DIAGRAMS.................................................. 6 LNKFIB-H03 and LNKFIB-H04 Head-End Modules ............................................................ 6 US Remote Modules ........................................ 7 CONNECTIONS....................................................... 8 LNKFIB-H03 and LNKFIB-H04 Head-End Module Connections......................................... 8 US Remote Module Connections ..................... 9 HEAD-END TO REMOTE INTERCONNECTS............... 11 FIBER-OPTIC CONNECTIONS................................. 11 POWER FOR THE.................................................. 11 REMOTE MODULE................................................. 11 BATTERY BACKUP OF REMOTE MODULE................ 11 MODULE SPECIFICATIONS..................................... 12 REMOTE MODULE PER-CARRIER DE-RATING......... 13 OPERATION.......................................................... 14 Normal Operation ........................................... 14 Fault Indications ............................................. 14 Configuration and PC Commands.................. 15 GAIN ADJUSTMENTS............................................. 16 SIGNAL LEVEL ADJUSTMENTS............................... 16 PRODUCT WARRANTY........................................... 17 RMA PROCEDURE............................................... 17 LASER SAFETY..................................................... 18 ANTENNA INSTALLATION........................................ 19 FCC INFORMATION TO USERS.............................. 19 USU z USER MANUAL Printed: 03.05.21,10:40 Revision Date:5/21/03 4 Theory Of Operation The USU RF to Fiber Modules provide a single-band link from a Head-End Distribution center to multiple local antennae. RF Signals are distributed over a pair of Single-Mode Fiber-Optic Distribution Lines to each USU Remote. Each Head-End Module can interface to multiple Remote Modules, the number depending upon the Head-End Model. The Head-End Modules do not transmit directly out into the air. Note that the Remote Module Fiber-Optic I/O's are band specific, but the Head-End Fiber-Optic I/O's are not; the Head-End I/O's may be used for any band. Typical Application A typical installation would be.... 1. USU MODULES Overview USU RF to Fiber Remote Modules These may be single or multiple units, and are usually grouped on floors of a building, mounted in Elect rical R ooms. In-Building Antennae Refer to Antenna Installation Section Head-End Module H ead- End M odule Head-End Module Head-End Module Head-End Module HEA D- END DI ST RI BUT I ON C ENT ER REMOTE LOCATIONS IN BUILDING Usually co-located with the RF Base StationFloors, Halls, Tunnels, Etc. Any required Amplifiers, Filters, Couplers, Etc. RF Cable RF Cable RF Cable RF Cable RF Cable RF Cables RF Cable to/from B ase St at ion( s) SMF = Single-Mode Optical Fiber SM F SM F SM F SM F SM F SM F SM F SM F SM F SM F USU z USER MANUAL DCM000000104 Printed: 03.05.21,10:40 Revision Date:5/21/03 5 MODEL DESCRIPTION US800TP USU Remote Module Wall, Shelf, or Rack Mounted Rem…

Text truncated - open the document above for the full version.

LinkNet UniServ Unit (USU) RF - FIBER Interface Modules User Manual Installation, Operation And Maintenance KAVAL WIRELESS TECHNOLOGIES 60 Gough Road Markham, Ontario, L3R8X7 Telephone: (888) 86-KAVAL Web: www.kaval.com E-mail: [email protected] Document #DCM000000104, Rev.9 May 21, 2003 USU z USER MANUAL DCM000000104 Printed: 2003-05-21 10:40:07 Revision Date: 5/21/03: ii P P R R O O P P R R I I E E T T A A R R Y Y S S T T A A T T E E M M E E N N T T © 2000 KAVAL WIRELESS TECHNOLOGIES All rights reserved. No part of this publication, or any software included with it may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, including photocopying, electronic, mechanical, recording or otherwise, without the prior written permission of the copyright holder. This document contains proprietary information of KAVAL WIRELESS TECHNOLOGIES The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of KAVAL WIRELESS TECHNOLOGIES, is strictly prohibited. KAVAL WIRELESS TECHNOLOGIES provides this document as is, without any warranty of any kind either expressed or implied including, but not limited to, the implied warranties of merchantability and fitness of a particular purpose. KAVAL WIRELESS TECHNOLOGIES may make changes or improvements in the equipment, software, or specifications described in this document at any time and without notice. These changes will be incorporated in new releases of this document. This document may contain technical inaccuracies or typographical errors. KAVAL WIRELESS TECHNOLOGIES waives responsibility for any labour, materials, or costs incurred by any person or party as a result of using this document. KAVAL WIRELESS TECHNOLOGIES, and any of its affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or loss of profits or date) even if they were foreseeable and KAVAL WIRELESS TECHNOLOGIES has been informed of their potential occurrence, arising out of or in connection with this document or its use. T T R R A A D D E E M M A A R R K K N N O O T T I I C C E E This manual makes reference to trademarks that are the property of other companies. References are used only to refer to the products or services of the trademark owners. USU is a trademark of KAVAL WIRELESS TECHNOLOGIES USU z USER MANUAL DCM000000104 Printed: 2003-05-21 10:40:07 Revision Date: 5/21/03: iii TABLE OF CONTENTS 1. USU MODULES........................................ 4 OVERVIEW............................................................. 4 Theory Of Operation......................................... 4 Typical Application............................................ 4 MODELS................................................................. 5 BLOCK DIAGRAMS.................................................. 6 LNKFIB-H03 and LNKFIB-H04 Head-End Modules ............................................................ 6 US Remote Modules ........................................ 7 CONNECTIONS....................................................... 8 LNKFIB-H03 and LNKFIB-H04 Head-End Module Connections......................................... 8 US Remote Module Connections ..................... 9 HEAD-END TO REMOTE INTERCONNECTS............... 11 FIBER-OPTIC CONNECTIONS................................. 11 POWER FOR THE.................................................. 11 REMOTE MODULE................................................. 11 BATTERY BACKUP OF REMOTE MODULE................ 11 MODULE SPECIFICATIONS..................................... 12 REMOTE MODULE PER-CARRIER DE-RATING......... 13 OPERATION.......................................................... 14 Normal Operation ........................................... 14 Fault Indications ............................................. 14 Configuration and PC Commands.................. 15 GAIN ADJUSTMENTS............................................. 16 SIGNAL LEVEL ADJUSTMENTS............................... 16 PRODUCT WARRANTY........................................... 17 RMA PROCEDURE............................................... 17 LASER SAFETY..................................................... 18 ANTENNA INSTALLATION........................................ 19 FCC INFORMATION TO USERS.............................. 19 USU z USER MANUAL Printed: 03.05.21,10:40 Revision Date:5/21/03 4 Theory Of Operation The USU RF to Fiber Modules provide a single-band link from a Head-End Distribution center to multiple local antennae. RF Signals are distributed over a pair of Single-Mode Fiber-Optic Distribution Lines to each USU Remote. Each Head-End Module can interface to multiple Remote Modules, the number depending upon the Head-End Model. The Head-End Modules do not transmit directly out into the air. Note that the Remote Module Fiber-Optic I/O's are band specific, but the Head-End Fiber-Optic I/O's are not; the Head-End I/O's may be used for any band. Typical Application A typical installation would be.... 1. USU MODULES Overview USU RF to Fiber Remote Modules These may be single or multiple units, and are usually grouped on floors of a building, mounted in Elect rical R ooms. In-Building Antennae Refer to Antenna Installation Section Head-End Module H ead- End M odule Head-End Module Head-End Module Head-End Module HEA D- END DI ST RI BUT I ON C ENT ER REMOTE LOCATIONS IN BUILDING Usually co-located with the RF Base StationFloors, Halls, Tunnels, Etc. Any required Amplifiers, Filters, Couplers, Etc. RF Cable RF Cable RF Cable RF Cable RF Cable RF Cables RF Cable to/from B ase St at ion( s) SMF = Single-Mode Optical Fiber SM F SM F SM F SM F SM F SM F SM F SM F SM F SM F USU z USER MANUAL DCM000000104 Printed: 03.05.21,10:40 Revision Date:5/21/03 5 MODEL DESCRIPTION US800TP USU Remote Module Wall, Shelf, or Rack Mounted Rem…

Text truncated - open the document above for the full version.

z Page 1 60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX April 30, 2003 Federal Communications Commission P.O. Box 429 Columbia, MD, 21045, USA Subject: AGENCY AGREEMENT Dear Sir or Madam; I hereby appoint Ultratech Engineering Labs Inc. to act as our agent in the preparation of an application for equipment authorization of the USU US800TP under parts as required of the FCC Rules and Regulations. I certify that Exhibit 2 properly describes the device for which authorization is sought, that the information described in the User’s Manual will be provided with each item manufactured or distributed by Kaval Wireless Technologies, and that the labels described by exhibit 3 will be affixed to each item manufactured by the applicant. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission’s requirements. I further certify by signature below that no party (per 47 CFR 1.20012(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Yours sincerely, Name: Alan Aslett, P.Eng. Signature: _________________________________ Title: Director of Engineering - Product Development Date: April 30, 2003

z Page 1 60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX April 30, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD, 21046, USA Subject: CONFIDENTIALTY REQUEST Dear Sir or Madam; Kaval Wireless Technologies respectfully requests confidentiality of certain materials provided with the submission of the USU US800TP under FCC ID H6M-US800TP in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, SCH000000065 and SCH000000069, contained in Exhibit 2. The USU has been developed at considerable effort and expense by Kaval Wireless Technologies. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this manner. Yours sincerely, Name: Alan C. Aslett, P.Eng. Signature: _________________________________ Title: Director of Engineering - Product Development Date: April 30, 2003

60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX USU Block Diagram April 30, 2004 The USU RF to Fiber Modules provide a single-band link from a Head-End Distribution center to multiple local antennae. RF Signals are distributed over a pair of Single-Mode Fiber-Optic Distribution Lines. Note that the Remote Module Fiber-Optic I/O's are band specific, but the Head-End Fiber-Optic I/O's are not; the Head-End I/O's may be used for any band. LNKFIB-H03 and LNKFIB-H04 Head-End Modules SM F.O. In SM F.O. Out (PI N Diodes) (Lasers) Power Supply 120 / 240 VAC 120/240 VAC PreAmp Laser Diode Ph o to d etecto rs & PreAmp s RF O u t "A" RF Input "A" SM F.O. In SM F.O. Out (PI N Diodes) (Lasers) PreAmp Laser Diode Ph o to d etecto rs & PreAmp s RF O u t "A" RF Input "A" With UpLink Gain Control W it h UpLink G ain Cont rol M icro-Controller Circuitry CAN Interface RS232 Interface To Head-End To P C Green P ower On LE D Red Fault LE D Fault Relay In the LNKFIB-H03 Head-End Module the 8 Fiber-Optic Pairs are in two groups of four, with the RF connections combined inside the Module in those groupings. The LNKFIB-H04 is identical, but with one group of 4 removed. Each of the Groups of four consists of a single RF Input feeding a single Laser Transmitter split optically to four Fiber-Optic Outputs. The four matching Fiber-Optic Inputs each go to their own Photodiode Receiver, followed by a 0 to -15dB digitally controlled attenuator providing Uplink Gain Control. The RF signals from the four digital attenuators are combined into a single RF Output. The Group-of-Four RF Input and Output combining inside the Module alleviates the need for external combining / splitting. US Remote Modules The US series Remote Modules have a Fiber-Optic transceiver pairs downlink and uplink filtering, and an downlink RF Power Amplifier.

June 11, 2003 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Services in the Frequency Band 851 - 869 MHz (Trunking / iDEN / Public Safety Services). Applicant: KAVAL WIRELESS TECHNOLOGIES INC. Product: RF Fiber Interface Module Model: US800TP FCC ID: H6M-US800TP Dear Sir/Madam, As appointed agent for KAVAL WIRELESS TECHNOLOGIES INC., we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site for detailed information. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: 1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

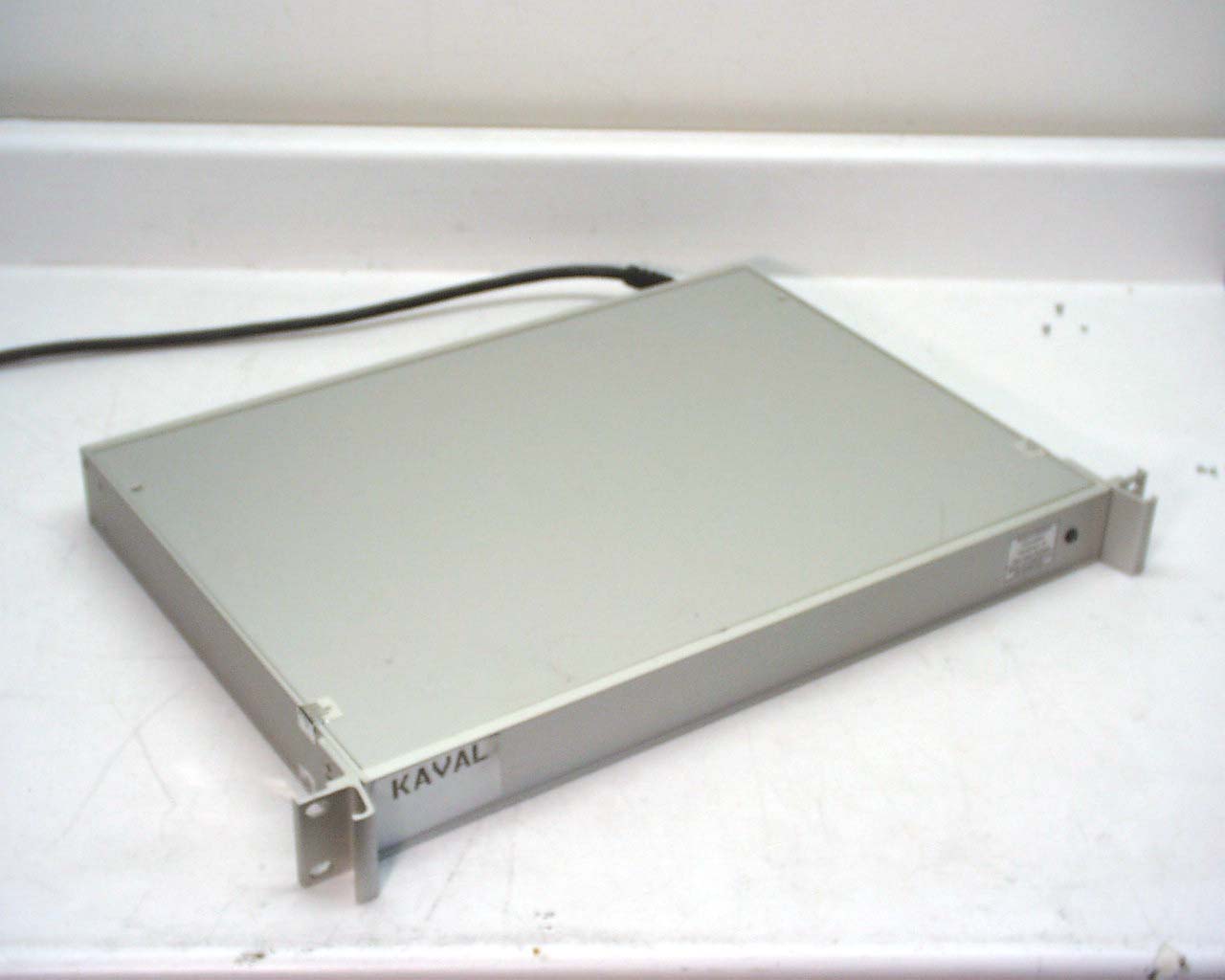

ANNEX 2 - EXTERNAL PHOTOGRAPHS OF Kaval H ead End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 1 IC: 1541A-US800TP ANNEX 2 - EXTERNAL PHOTOGRAPHS OF Kaval H ead End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 2 IC: 1541A-US800TP

ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 11 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 12 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 13 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 14 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 15 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 16 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 17 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 18 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 19 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 20 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 21 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 22 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 23 IC: 1541A-US800TP

Kaval Wireless Technologies LAB000000039, Rev.1 May 9, 2003 Model US800TP FCC ID H6M-US800TP Industry Canada IC:1541A-US800TP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Serial # Freq Range 851-869 MHz Manufactured in Canada by KAVAL WIRELESS TECHNOLOGIES Power Connectors below are... 28 VDC 24 VDC Power Battery To be attached to the back of the Unit, above the edge connector.

FCC/IC Label Location

ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 1 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 2 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 3 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 4 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 5 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 6 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 7 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 8 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 9 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Head End RF Module, Model No.: LNKFIB-H04 FCC ID: H6M-US800TP Photo # 10 IC: 1541A-US800TP

ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 11 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 12 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 13 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 14 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 15 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 16 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 17 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 18 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 19 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 20 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 21 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 22 IC: 1541A-US800TP ANNEX 3 - INTERNAL PHOTOGRAPHS OF Kaval Remote RF Module, Model No.: US800TP FCC ID: H6M-US800TP Photo # 23 IC: 1541A-US800TP

USU z USER MANUAL DCM000000104 Printed: 03.05.13,10:28 Revision Date:5/13/03 4 Theory Of Operation The USU RF to Fiber Modules provide a single-band link from a Head-End Distribution center to multiple local antennae. RF Signals are distributed over a pair of Single-Mode Fiber-Optic Distribution Lines. Note that the Remote Module Fiber-Optic I/O's are band specific, but the Head-End Fiber-Optic I/O's are not; the Head-End I/O's may be used for any band. The models are.... MODEL DESCRIPTION US800TP Remote Module Wall, Shelf, or Rack Mounted Remote Module that connects to the Single-Mode Fiber-Optic Distribution Lines and provides a single duplex Antenna RF Distribution connection. This model covers 800MHz Trunking / iDEN / Public-Safety Services (806-824 MHz / 851-869 MHz). US800C Remote Module As above, but this model covers 800MHz Cellular Services (824-849 MHz / 869-894 MHz) US900P Remote Module As above, but this model covers 900MHz Paging Services (896-902 MHz / 928-941 MHz) US1900P Remote Module As above, but this model covers 1.9GHz PCS Services (1850-1910 MHz / 1930-1990 MHz). Note that for each Model above there is a Model with a "-2" suffix. These extra models have separate Rx and Tx RF Ports instead of a combined Transceiver (Antenna) Port. US-PS01 Power Supply for 1 US Remote Module. LNKFIB-H03 Head-End Module This is a 1U high, 19" Rack-Mount Module providing low signal level interfacing between Head-End RF Modules and 8 Pairs of Single-Mode Fiber-Optic Distribution Lines. The 8 Fiber-Optic Pairs are in two groups of four, with the RF connections combined inside the Module in those groupings. LNKFIB-H04 Head-End Module This is a 1U high, 19" Rack-Mount Module providing low signal level interfacing between Head-End RF Modules and 4 Pairs of Single-Mode Fiber-Optic Distribution Lines. The RF connections for the 4 Fiber-Optic Pairs are combined inside the Module. 1. USU MODULES Overview Models

USU z USER MANUAL DCM000000104 Printed: 03.05.13,10:28 Revision Date:5/13/03 15 The RF Gains are adjustable downwards in 1dB steps up to -15dB in order to compensate for the wide gain variations of the Fiber-Optic interfaces. This is to be done when the USU based system is installed, and whenever a USU or Head-End Module is replaced. The Configuration Commands are as described in the previous section. Uplink Gain: The Uplink Gain is adjusted at the Head-End Module on an individual RF path basis. Generally speaking the individual Uplink RF Gains are all set to maximum, and the lowest gain path is noted. The other paths are then reduced to match this one. This will optimize / balance both gain and noise. Downlink Gain: The Downlink Gain is adjusted at the USU Remote Module on a one by one basis. The Gain is adjusted downwards to achieve a Head-End to Remote overall gain of about 15 to 20dB. Gain Adjustments

USU z USER MANUAL DCM000000104 Printed: 03.05.21,10:40 Revision Date:5/21/03 19 • All Antenna Installation to be performed by Qualified Technical Personnel only. • Antenna Installation Instructions and locations below are for the purpose of satisfying FCC RF Exposure Compliance requirements. • The In-Building Antenna connection is via a coaxial cable distribution system with Signal Taps at various points connected to the fixed-mounted Indoor Antennae. This is shown in the figure in the Introduction. The Indoor Antennae are simple 1/4 Wavelength (0 dB Gain) types. Please consult Kaval Wireless for assistance as required. These Antennae are to be installed such that no person can touch the Antenna, or approach within 0.2 Meters. ANTENNA INSTALLATION WARNING ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED TECHNICAL PERSONNEL ONLY. ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, AND ARE NOT OPTIONAL. ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2 METERS. • This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provided reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. WARNING CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY KAVAL COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Antenna Installation FCC Information to Users

June 11, 2003 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Services in the Frequency Band 851 - 869 MHz (Trunking / iDEN / Public Safety Services). Applicant: KAVAL WIRELESS TECHNOLOGIES INC. Product: RF Fiber Interface Module Model: US800TP FCC ID: H6M-US800TP Dear Sir/Madam, As appointed agent for KAVAL WIRELESS TECHNOLOGIES INC., we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site for detailed information. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: 1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] June 11, 2003 KAVAL WIRELESS TECHNOLOGIES INC. 60 Gough Road Markham, Ontario Canada, L3R 8X7 Attn.: Mr. Alan Aslett Subject: Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Services in the Frequency Band 851 - 869 MHz (Trunking / iDEN / Public Safety Services). Product: RF Fiber Interface Module Model: US800TP FCC ID: H6M-US800TP Dear Mr. Aslett, The product sample has been tested in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Services in the Frequency Band 851 - 869 MHz (Cellular Base Station Band, and the results and observation were recorded in the engineering report, Our File No.: KTI-024FCC90 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 F…
