H6M-LNKF800LinkNet LNKF800 Repeater Module

LinkNet™ LinkNet™LinkNet™ LinkNet™ LNKF800 RF MODULES LNKF800 RF MODULESLNKF800 RF MODULES LNKF800 RF MODULES USER MANUAL USER MANUALUSER MANUAL USER MANUAL INSTALLATION, OPERATION INSTALLATION, OPERATIONINSTALLATION, OPERATION INSTALLATION, OPERATION AND MAINTENANCE AND MAINTENANCEAND MAINTENANCE AND MAINTENANCE KAVAL WIRELESS TECHNOLOGIES 60 Gough Road Markham, Ontario, L3R 8X7 Telephone: (888) 86-KAVAL Web: www.kaval.com E-mail: [email protected] Document #DCM000000014, Rev.10 October 19, 2001 LinkNet™ LNKF800 RF MODULES ! USER MANUAL DCM000000014 Printed: 2001-10-19 15:50:25 Revision Date: 10/19/01: ii P PP P P PP P R RR R R RR R O OO O O OO O P PP P P PP P R RR R R RR R I II I I II I E EE E E EE E T TT T T TT T A AA A A AA A R RR R R RR R Y YY Y Y YY Y S SS S S SS S T TT T T TT T A AA A A AA A T TT T T TT T E EE E E EE E M MM M M MM M E EE E E EE E N NN N N NN N T TT T T TT T © 2000 KAVAL WIRELESS TECHNOLOGIES All rights reserved. No part of this publication, or any software included with it may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, including photocopying, electronic, mechanical, recording or otherwise, without the prior written permission of the copyright holder. This document contains proprietary information of KAVAL WIRELESS TECHNOLOGIES The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of KAVAL WIRELESS TECHNOLOGIES, is strictly prohibited. KAVAL WIRELESS TECHNOLOGIES provides this document as is, without any warranty of any kind either expressed or implied including, but not limited to, the implied warranties of merchantability and fitness of a particular purpose. KAVAL WIRELESS TECHNOLOGIES may make changes or improvements in the equipment, software, or specifications described in this document at any time and without notice. These changes will be incorporated in new releases of this document. This document may contain technical inaccuracies or typographical errors. KAVAL WIRELESS TECHNOLOGIES waives responsibility for any labour, materials, or costs incurred by any person or party as a result of using this document. KAVAL WIRELESS TECHNOLOGIES, and any of its affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or loss of profits or date) even if they were foreseeable and KAVAL WIRELESS TECHNOLOGIES has been informed of their potential occurrence, arising out of or in connection with this document or its use. T TT T T TT T R RR R R RR R A AA A A AA A D DD D D DD D E EE E E EE E M MM M M MM M A AA A A AA A R RR R R RR R K KK K K KK K N NN N N NN N O OO O O OO O T TT T T TT T I II I I II I C CC C C CC C E EE E E EE E This manual makes reference to trademarks that are the property of other companies. References are used only to refer to the products or services of the trademark owners. LinkNet™ is a trademark of KAVAL WIRELESS TECHNOLOGIES LinkNet™ LNKF800 RF MODULES ! USER MANUAL DCM000000014 Printed: 2001-10-19 15:50:25 Revision Date: 10/19/01: iii TABLE OF TABLE OF TABLE OF TABLE OF CONTENTS CONTENTSCONTENTS CONTENTS 1. LNKF800 MODULES ................................ 4 OVERVIEW.............................................................. 4 Theory Of Operation ......................................... 4 MODELS................................................................. 4 BLOCK DIAGRAM..................................................... 5 LNKF800 RF Module ........................................ 5 MODULE SPECIFICATIONS....................................... 6 OPERATION............................................................ 7 Software Set-up ................................................ 7 Configuration..................................................... 7 Power On Self Test (POST).............................. 8 Normal Operation.............................................. 9 LINKNET FM MODULE Module ..................... 10 ANTENNA INSTALLATION........................................ 11 LinkNet™ LNKF800 RF MODULES ! USER MANUAL DCM000000014 Printed: 01.10.19,15:50 Revision Date:10/19/01 4 Theory Of Operation An LINKNET FM MODULE is a radio repeater that simultaneously receives and transmits a single narrow band radio channel on exactly the same frequency. The LINKNET FM MODULE accomplishes its repeater function without store and forward circuitry, or expensive conventional simulcasting techniques. The fact that the same frequency is retransmitted by an LINKNET FM MODULE means that additional frequency allocations are not required in situations where an existing radio coverage pattern needs to be extended. The most common LINKNET FM MODULE applications are the extension of above ground signals into buildings, tunnels, vehicles or the extension of radio coverage patterns into outdoor shaded areas such as deep valleys. From an applications standpoint, an LINKNET FM MODULE is very similar to a regular two-way radio repeater. LINKNET FM MODULES can be combined using regular two-way radio multicoupling or duplexing equipment and have input and output signal characteristics to those of regular transmitters and receivers. The one special consideration in LINKNET FM MODULE systems is that of input to output antenna isolation. This must be carefully engineered for each installation. LINKNET FM MODULES are designed for indoor use only and are intended for mounting in a standard EIA 19 inch rack. The Modular design of LINKNET FM MODULE circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability. LNKF800 MODULE FAMILY MODEL TYPE FREQUENCY LNKF800-A1 25 KHz FM Channels 806-824 MHz (FM) LNKF800-B1 25 KHz FM Channels 851-869 MHz (FM) LNKF800-C2 12.5 KHz FM Channels 806-824 MHz (FM) LNKF800-D2 12.5 KHz FM Channels 851-869 MHz (FM) LNKF800-G1 12.5 KHz FM Channels 896-902 MHz (…

Text truncated - open the document above for the full version.

! Page 1 60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX October 23, 2001 Federal Communications Commission P.O. Box 429 Columbia, MD, 21045, USA Subject: AGENCY AGREEMENT Dear Sir or Madam; I hereby appoint Ultratech Engineering Labs Inc. to act as our agent in the preparation of an application for equipment authorization of the LinkNet LNKF800 under parts 15 and 90 of the FCC Rules and Regulations. I certify that Exhibit 2 properly describes the device for which authorization is sought, that the information described in the User’s Manual will be provided with each item manufactured or distributed by Kaval Wireless Technologies, and that the labels described by exhibit 3 will be affixed to each item manufactured by the applicant. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission’s requirements. I further certify by signature below that no party (per 47 CFR 1.20012(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Yours sincerely, Name: Alan Aslett, P.Eng. Signature: _________________________________ Title: Director of Engineering - Product Development Date: Oct.23, 2001

! Page 1 60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX October 23, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD, 21046, USA Subject: CONFIDENTIALTY REQUEST Dear Sir or Madam; Kaval Wireless Technologies respectfully requests confidentiality of certain materials provided with the submission of the LinkNet LNKF800 under FCC ID: H6M-LNKF800 in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, SCH000000028, SCH000000029, SCH000000030 and SCH000000031, and all related Parts Lists contained in Exhibit 2. The LinkNet LNKF800 has been developed at considerable effort and expense by Kaval Wireless Technologies. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this manner. Yours sincerely, Name: Alan C. Aslett, P.Eng. Signature: _________________________________ Title: Director of Engineering - Product Development Date: Oct.23, 2001

LinkNet™ LNKF800 RF MODULES ! USER MANUAL DCM000000014 Printed: 01.10.19,15:50 Revision Date:10/19/01 5 LNKF800 RF Module Block diagram Transmit Board UMC Controller Board Receive Board IF Board RF Input 806-941 MHz RF Output 806-941 MHz Micro- Controller with lines to all Boards Blind-Mate to SMA RF Connector Blind-Mate to SMA RF Connector Power & Control to Backplane Gain Control Communication Interfaces Gain Control Test Oscillator Low Noise Pre-AmplifierBuffer Amplifiers 2'nd Local Oscillator First Local Oscillator Buffers, Filters, and Linear Power Amplifier Power Circuits First Local Oscillator 2'nd IF Crystal Filter First IF Filter First IF Filter 2'nd IF Crystal Filter 2'nd Local Oscillator

Nov. 05, 2001 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 896-901 MHz and 935-940 MHz (12.5 kHz Channel Spacing). Applicant:KAVAL WIRELESS TECHNOLOGIES INC. Product:LinkNet LNKF800 RF REPEATER Module (896-901 MHz/935-940 MHz Bi-Directional Repeater) Model:LNKF800 FCC ID:H6M-LNKF800 Dear Sir/Madam, As appointed agent for KAVAL WIRELESS TECHNOLOGIES INC., we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. The Model LNKF800 is a family product of Model OFR-800, FCC ID: H6M-OFR800 with the frequency sub-bands are extended to cover the 896-901 MHz and 935-940 MHz. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs

l Page 1 60 Gough Rd., Markham, Ontario, L3R8X7 www.kaval.com, 905-940-3860, 905-946-3003 FAX October 23, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD, 21046, USA Subject:CONFIDENTIALTY REQUEST Dear Sir or Madam; Kaval Wireless Technologies respectfully requests confidentiality of certain materials provided with the submission of the LinkNet LNKF800 under FCC ID: H6M-LNKF800 in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, SCH000000028, SCH000000029, SCH000000030 and SCH000000031, and all related Parts Lists. The LinkNet LNKF800 has been developed at considerable effort and expense by Kaval Wireless Technologies. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this manner. Yours sincerely, Name: Alan C. Aslett, P.Eng.Signature: _________________________________ Title: Director of Engineering - Product DevelopmentDate: Oct.23, 2001

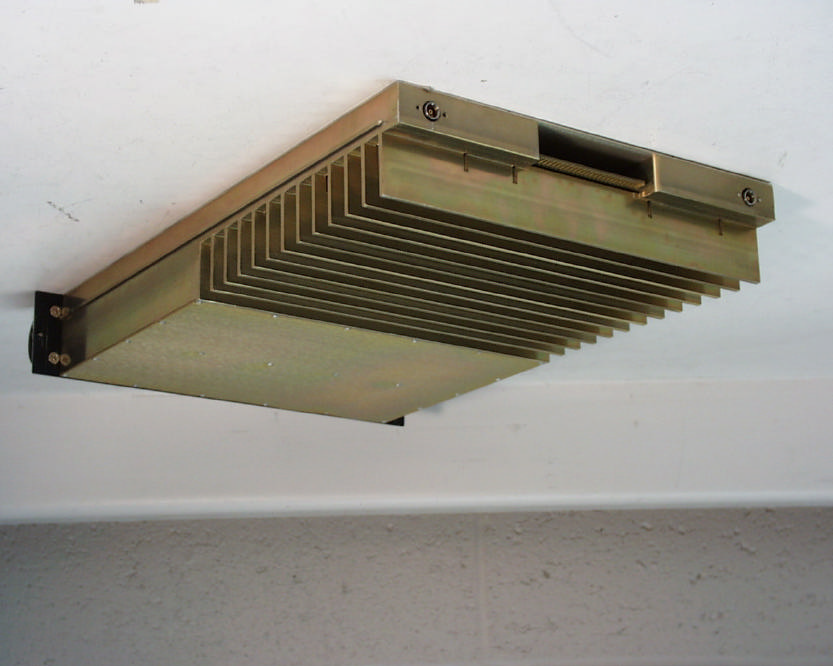

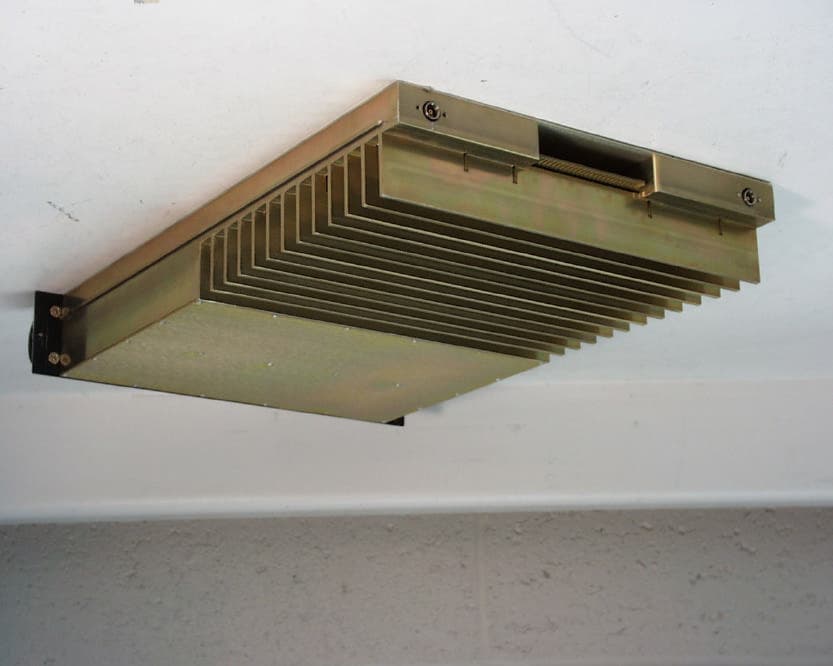

Annex 3 - External Photographs of the Equipment under TestPhoto # 1 Annex 3 - External Photographs of the Equipment under TestPhoto # 2 Annex 3 - External Photographs of the Equipment under TestPhoto # 3

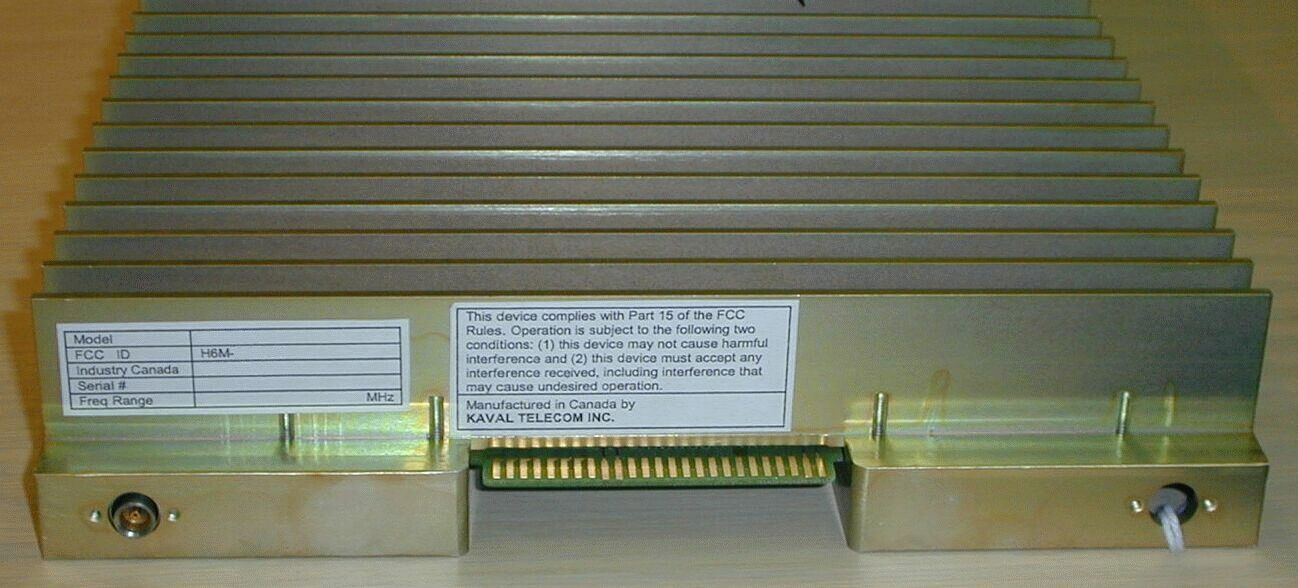

Kaval Wireless Technologies LAB000000032, Rev.0 October 23, 2001 Model LNKF800- FCC ID H6M-LNKF800 Industry Canada Serial # Freq Range MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured in Canada by KAVAL WIRELESS TECHNOLOGIES To be attached to the back of the Unit.

Kaval Wireless Technologies LAB000000032, Rev.0 October 23, 2001 Model LNKF800- FCC ID H6M-LNKF800 Industry Canada Serial # Freq Range MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured in Canada by KAVAL WIRELESS TECHNOLOGIES To be attached to the back of the Unit.

Annex 4 - Internal Photographs of the Equipment under TestPhoto # 1 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 2 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 3 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 4

Annex 4 - Internal Photographs of the Equipment under TestPhoto # 5 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 6 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 7 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 8 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 9 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 10

Annex 4 - Internal Photographs of the Equipment under TestPhoto # 11 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 12 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 13 Annex 4 - Internal Photographs of the Equipment under TestPhoto # 14

LinkNet LNKF800 LinkNet is the Ultimate Wireless Service Convergence Platform – made simple to meet complex challenges. It is the only platform you will need now or in the future. The LinkNet 800 MHz FM Module is a single narrow band on-frequency repeater designed to receive and transmit on the same frequency. It ensures that your clean, clear signals arrive at their intended destination no matter where you are – buildings, tunnels, garages, deep valleys and other challenging RF shielded structures. The LinkNet 800 MHz FM modules cover the 800 MHz range. Please see specifications on reverse for sub-band selections. The LinkNet 800 MHz FM module is designed to operate in the LinkNet Convergence Platform with its unique modular design, making it the most flexible and scalable solution on the market today and allowing you to extend coverage in ways that macro-networks can’t. LinkNet™ 800 MHz FM Module. Wireless Inside. Made Simple. Additional Features and Benefits Easy Set-up Configuration All major components are ‘plug-and-play/ unplug and-remove’ to minimize installation down time and eliminate the need for extensive service equipment on-site. Hot Swappable Insertion and Modules can be added to the LinkNet Platform without powering down the entire system. Responds only to Assigned Channels The LinkNet 800 MHz FM Module does not re-transmit noise, interference or adjacent channels. Only those frequencies desired will be retransmitted, ideal for congested urban or high density RF environments. Diagnostic Features The LinkNet 800 MHz FM module automatically performs a self- diagnostic check when inserted into the chassis. As well, with the Gateway Module major fault conditions can be constantly monitored, including; • Frequency synchronization • Primary power failure • Thermal management • Over-current/under-current Module Specifications Frequncy Bands 806-824 MHz, 851-869 MHz, (FM) Modulation & Bandwidths Narrowband FM 25 or 12.5 KHz (as per Model Chart below) RF Frequency Stability Tracks input Signal Exactly Maximum RF Output Power +38 dBm RF Output Power Range Power can be reduced 20 dB in 1dB Steps (AGC Controlled) RF Output Power Variation +/- 1 dB Input Dynamic Range -110 to –30 dBm Input Sensitivity Adjust Range -110 to –50 dBm Input Hysteresis 1 to 10 dB Adjacent Channel Selectivity 60 dB Minimum Transmit Duty Cycle Continuous Transmit Spurious -13 dBm max Receive Conducted Spurious -57 dBm max Group Delay <120 uS for 25 KHz, <160 uS for 12.5 KHz Audio Distortion & Noise <3% Increase RF Connectors SMA (50Ω)Connectors on back of Card-Cage Module Power Supply Requirements 45 Watts Maximum Connections Edge Connector & 2 Blind-Mate RF Connectors to Card-Cage, DB-15 Connector on back of Card- Cage provides per-Module Fault Relay, Interconnect to other Modules, & RS-232 Connection Front Panel Indicators Operating, Stand by, Fault, Program Mode, Receive, Transmit Configuration Options RF Modules may be configured either via the optional Gateway Module, or via a PC and an RS-232 Connection via the Card-Cage. Operating Temperature Range -10 to +50°C; consult Kaval for installation specific forced-air cooling requirements. Operating Humidity Range 10 to 90% RH, Non-Condensing Size 9.11”High x 2.00”Wide x 14.00”Deep Weight 10 lbs., 4.5 kg. Max LNKF400 Module Family MODEL TYPE FREQUENCY LNKF800-A1 25 KHz FM Channels 806-824 MHz (FM) LNKF800-B1 25 KHz FM Channels 851-869 MHz (FM) LNKF800-C2 12.5 KHz FM Channels 806-824 MHz (FM) LNKF800-D2 12.5 KHz FM Channels 851-869 MHz (FM) Specifications

LinkNet™ LNKF800 RF MODULES ! USER MANUAL DCM000000014 Printed: 01.10.19,15:50 Revision Date:10/19/01 4 Theory Of Operation An LINKNET FM MODULE is a radio repeater that simultaneously receives and transmits a single narrow band radio channel on exactly the same frequency. The LINKNET FM MODULE accomplishes its repeater function without store and forward circuitry, or expensive conventional simulcasting techniques. The fact that the same frequency is retransmitted by an LINKNET FM MODULE means that additional frequency allocations are not required in situations where an existing radio coverage pattern needs to be extended. The most common LINKNET FM MODULE applications are the extension of above ground signals into buildings, tunnels, vehicles or the extension of radio coverage patterns into outdoor shaded areas such as deep valleys. From an applications standpoint, an LINKNET FM MODULE is very similar to a regular two-way radio repeater. LINKNET FM MODULES can be combined using regular two-way radio multicoupling or duplexing equipment and have input and output signal characteristics to those of regular transmitters and receivers. The one special consideration in LINKNET FM MODULE systems is that of input to output antenna isolation. This must be carefully engineered for each installation. LINKNET FM MODULES are designed for indoor use only and are intended for mounting in a standard EIA 19 inch rack. The Modular design of LINKNET FM MODULE circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability. LNKF800 MODULE FAMILY MODEL TYPE FREQUENCY LNKF800-A1 25 KHz FM Channels 806-824 MHz (FM) LNKF800-B1 25 KHz FM Channels 851-869 MHz (FM) LNKF800-C2 12.5 KHz FM Channels 806-824 MHz (FM) LNKF800-D2 12.5 KHz FM Channels 851-869 MHz (FM) LNKF800-G1 12.5 KHz FM Channels 896-902 MHz (FM) LNKF800-H1 12.5 KHz FM Channels 935-941 MHz (FM) 1. LNKF800 MODULES Overview Models

LinkNet LNKF800 LinkNet is the Ultimate Wireless Service Convergence Platform – made simple to meet complex challenges. It is the only platform you will need now or in the future. The LinkNet 800 MHz FM Module is a single narrow band on-frequency repeater designed to receive and transmit on the same frequency. It ensures that your clean, clear signals arrive at their intended destination no matter where you are – buildings, tunnels, garages, deep valleys and other challenging RF shielded structures. The LinkNet 800 MHz FM modules cover the 800 MHz range. Please see specifications on reverse for sub-band selections. The LinkNet 800 MHz FM module is designed to operate in the LinkNet Convergence Platform with its unique modular design, making it the most flexible and scalable solution on the market today and allowing you to extend coverage in ways that macro-networks can’t. LinkNet™ 800 MHz FM Module. Wireless Inside. Made Simple. Additional Features and Benefits Easy Set-up Configuration All major components are ‘plug-and-play/ unplug and-remove’ to minimize installation down time and eliminate the need for extensive service equipment on-site. Hot Swappable Insertion and Modules can be added to the LinkNet Platform without powering down the entire system. Responds only to Assigned Channels The LinkNet 800 MHz FM Module does not re-transmit noise, interference or adjacent channels. Only those frequencies desired will be retransmitted, ideal for congested urban or high density RF environments. Diagnostic Features The LinkNet 800 MHz FM module automatically performs a self- diagnostic check when inserted into the chassis. As well, with the Gateway Module major fault conditions can be constantly monitored, including; • Frequency synchronization • Primary power failure • Thermal management • Over-current/under-current Module Specifications Frequncy Bands 806-824 MHz, 851-869 MHz, (FM) Modulation & Bandwidths Narrowband FM 25 or 12.5 KHz (as per Model Chart below) RF Frequency Stability Tracks input Signal Exactly Maximum RF Output Power +38 dBm RF Output Power Range Power can be reduced 20 dB in 1dB Steps (AGC Controlled) RF Output Power Variation +/- 1 dB Input Dynamic Range -110 to –30 dBm Input Sensitivity Adjust Range -110 to –50 dBm Input Hysteresis 1 to 10 dB Adjacent Channel Selectivity 60 dB Minimum Transmit Duty Cycle Continuous Transmit Spurious -13 dBm max Receive Conducted Spurious -57 dBm max Group Delay <120 uS for 25 KHz, <160 uS for 12.5 KHz Audio Distortion & Noise <3% Increase RF Connectors SMA (50Ω)Connectors on back of Card-Cage Module Power Supply Requirements 45 Watts Maximum Connections Edge Connector & 2 Blind-Mate RF Connectors to Card-Cage, DB-15 Connector on back of Card- Cage provides per-Module Fault Relay, Interconnect to other Modules, & RS-232 Connection Front Panel Indicators Operating, Stand by, Fault, Program Mode, Receive, Transmit Configuration Options RF Modules may be configured either via the optional Gateway Module, or via a PC and an RS-232 Connection via the Card-Cage. Operating Temperature Range -10 to +50°C; consult Kaval for installation specific forced-air cooling requirements. Operating Humidity Range 10 to 90% RH, Non-Condensing Size 9.11”High x 2.00”Wide x 14.00”Deep Weight 10 lbs., 4.5 kg. Max LNKF400 Module Family MODEL TYPE FREQUENCY LNKF800-A1 25 KHz FM Channels 806-824 MHz (FM) LNKF800-B1 25 KHz FM Channels 851-869 MHz (FM) LNKF800-C2 12.5 KHz FM Channels 806-824 MHz (FM) LNKF800-D2 12.5 KHz FM Channels 851-869 MHz (FM) Specifications

LinkNet™ LNKF800 RF MODULES ! USER MANUAL DCM000000014 Printed: 01.10.19,15:50 Revision Date:10/19/01 11 • All Antenna Installation to be performed by Qualified Technical Personnel only. • Antenna Installation Instructions and locations below are for the purpose of satisfying FCC RF Exposure Compliance requirements. • Note that if multiple LinkNet™ Modules are used, the Instructions below apply to the composite power output of all Modules when transmitting simultaneously. • The Roof Top Antenna or Antennae for linking to the Donor Site(s) is/are directional (high gain) Antennae, fixed-mounted physically on the side or top of a building, or on a tower. The Antenna Gain must be no more than 10 dB. If multiple LinkNet™ Modules are used with output combiners into any one Antenna, and/or multiple Antennae are used on one Roof Top, then the sum of composite powers into all Roof Top Antennae must not exceed 100 Watts maximum. Please consult Kaval Wireless for assistance as required. The Roof Top Antennae location should be such that only Qualified Technical Personnel can access it, and that under normal operating conditions no other person can touch the Antenna, or approach within 10 meters of the Antenna. • The In-Building Antenna connection is via a coaxial cable distribution system with Signal Taps at various points connected to the fixed-mounted Indoor Antennae. This is shown in the figure in the Introduction. The Indoor Antennae are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL WIRELESS TECHNOLOGIES 12, 16, or 20 dB Cable Taps. As such the maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below the maximum signal level of the LinkNet™ (+40 dBm); +28 dBm, or 0.63 Watts EIRP. If multiple LinkNet™ Modules are used with output combiners, then the composite power output of all Modules transmitting simultaneously must meet this maximum EIRP requirement. Please consult Kaval Wireless for assistance as required. These Antennae are to be installed such that no person can touch the Antenna, or approach within 0.2 Meters. ANTENNA INSTALLATION WARNING ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED TECHNICAL PERSONNEL ONLY. ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, AND ARE NOT OPTIONAL. ALL ROOF TOP ANTENNA INSTALLATION MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNA, OR APPROACH CLOSER THAN 10 METERS. ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2 METERS. Antenna Installation

2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Nov. 05, 2001 KAVAL WIRELESS TECHNOLOGIES INC. 60 Gough Road Markham, Ontario Canada, L3R 8X7 Attn.:Mr. Alan Aslett Subject:Certification Testing in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 896-901 MHz and 935-940 MHz (12.5 kHz Channel Spacing). Product:LinkNet LNKF800 RF REPEATER Module (896-901 MHz/935-940 MHz Bi-Directional Repeater) Model:LNKF800 Dear Mr. Aslett, The product sample has been tested in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the frequency bands 896-901 MHz and 935-940 MHz (12.5 kHz Channel Spacing), and the results and observation were recorded in the engineering report, Our File No.: KTI-021FCC90 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs LinkNet LNKF800 RF MODULE (896-901 MHz/935-940 MHz BI-DIRECTIONAL REPEATER) Model No.: LNKF800 FCC ID: H6M-LNKF800 Applicant: KAVAL WIRELESS TECHNOLOGIES INC. 60 Gough Road Markham, Ontario Canada, L3R 8X7 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, PARTS 2 and 90 (Subpart I) UltraTech's File No.: KTI-021FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Nov. 07, 2001 Report Prepared by: Tri M. LuuTested by: Mr. Hung Trinh, EMI/RFI Technician Issued Date: Nov. 05, 2001Test Dates: Oct. 29 - Nov. 03, 2001 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 1 LinkNet LNKF800 RF REPEATER Module (896-901 MHz/935-940 MHz Bi-Directional Repeater), Model LNKF800 FCC ID: H6M-LNKF800 ULTRATECH GROUP OF LABSFile #: KTI-021FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Nov. 05, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) Recognized/Listed by FCC (USA ) All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST............................................................................................................................................3 EXHIBIT 2.INTRODUCTION.............................................................................................................................................................4 2.1.SCOPE..............................................................................................................................................................................................4 2.2.RELATED SUBMITAL(S)/GRANT(S)...............................................................................................................................................4 2.3.NORMATIVE REFERENCES........................................................................................................................................................4 EXHIBIT 3.PERFORMANCE ASSESSMENT.................................................................................................................................5 3.1.CLIENT INFORMATION...............................................................................................................................................................5 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION..................................................................................................................5 3.3.EUT’S TECHNICAL SPECIFICATIONS.............................................................................................…
