H6M-OFR800LINKnet OFR800 RF Module

LINK LINKLINK LINKnet netnet netô ôô ô USER MANUAL USER MANUAL USER MANUAL USER MANUAL INSTALLATION, OPERATION AND INSTALLATION, OPERATION AND INSTALLATION, OPERATION AND INSTALLATION, OPERATION AND MAINTENANCE MAINTENANCEMAINTENANCE MAINTENANCE KAVAL TELECOM INC. 60 Gough Road Markham, Ontario L3R 8X7 Telephone: (888) 86-KAVAL Web: www.kaval.com E-mail: [email protected] Document #DCM00000008, Rev.2 LINKnetô ! USER MANUAL DCM000000008 Printed: 2000-03-22 09:08:05 Revision Date: 3/22/00: ii P PP P P PP P R RR R R RR R O OO O O OO O P PP P P PP P R RR R R RR R I II I I II I E EE E E EE E T TT T T TT T A AA A A AA A R RR R R RR R Y YY Y Y YY Y S SS S S SS S T TT T T TT T A AA A A AA A T TT T T TT T E EE E E EE E M MM M M MM M E EE E E EE E N NN N N NN N T TT T T TT T © 2000 KAVAL TELECOM INC. All rights reserved. No part of this publication, or any software included with it may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, including photocopying, electronic, mechanical, recording or otherwise, without the prior written permission of the copyright holder. This document contains proprietary information of KAVAL TELECOM INC. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of KAVAL TELECOM INC., is strictly prohibited. KAVAL TELECOM INC. provides this document as is, without any warranty of any kind either expressed or implied including, but not limited to, the implied warranties of merchantability and fitness of a particular purpose. KAVAL TELECOM INC. may make changes or improvements in the equipment, software, or specifications described in this document at any time and without notice. These changes will be incorporated in new releases of this document. This document may contain technical inaccuracies or typographical errors. KAVAL TELECOM INC. waives responsibility for any labour, materials, or costs incurred by any person or party as a result of using this document. KAVAL TELECOM INC., and any of its affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or loss of profits or date) even if they were foreseeable and KAVAL TELECOM INC. has been informed of their potential occurrence, arising out of or in connection with this document or its use. LINKnetô ! USER MANUAL DCM000000008 Printed: 2000-03-22 09:08:05 Revision Date: 3/22/00: iii R RR R R RR R E EE E E EE E V VV V V VV V I II I I II I S SS S S SS S I II I I II I O OO O O OO O N NN N N NN N R RR R R RR R E EE E E EE E C CC C C CC C O OO O O OO O R RR R R RR R D DD D D DD D Rev. No Page No Description of Revision Date 0 Pre-release All Draft Issues. Feb.2000 1 All Original Release Mar.6,2000 2 All Updated drawings and Logos Mar.21,2000 T TT T T TT T R RR R R RR R A AA A A AA A D DD D D DD D E EE E E EE E M MM M M MM M A AA A A AA A R RR R R RR R K KK K K KK K N NN N N NN N O OO O O OO O T TT T T TT T I II I I II I C CC C C CC C E EE E E EE E This manual makes reference to trademarks that are the property of other companies. References are used only to refer to the products or services of the trademark owners. LINK net ô is a trademark of KAVAL TELECOM INC. LINKnetô ! USER MANUAL DCM000000008 Printed: 2000-03-22 09:08:05 Revision Date: 3/22/00: iv TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS 1. PREFACE .................................................1 C ONVENTIONS U SED I N T HIS M ANUAL ..................... 1 G LOSSARY OF T ERMS ............................................. 2 2. INTRODUCTION....................................... 3 D OCUMENT S COPE ................................................. 3 W HAT I S T HE ......................................................... 3 LINK NET ô P LATFORM ?......................................... 3 3. CARD-CAGE ............................................ 4 OFR1000 C ARD - CAGE S PECIFICATIONS ................. 4 C ARD - CAGE D ESCRIPTION ...................................... 4 C ARD - CAGE D RAWING (F RONT V IEW )...................... 4 C ARD -C AGE D RAWING (R EAR V IEW ) ....................... 5 OFR000 S PACER M ODULE ......................................... 6 C ARD -C AGE M AINTENANCE .................................... 6 4. CONTROL MODULE ................................ 7 5. POWER SUPPLY MODULE..................... 8 P OWER S UPPLY S PECIFICATIONS ............................ 8 D ESCRIPTION ......................................................... 8 Normal Operation ............................................. 8 F USE ..................................................................... 9 Location: ........................................................... 9 Replacement: ................................................... 9 B ATTERIES ............................................................. 9 Operation without batteries............................... 9 Operation with batteries.................................... 9 Battery Requirements: .................................... 10 Battery Sizing ................................................. 10 Battery Cable .................................................. 11 Battery Charge Time ...................................... 12 Battery Maintenance....................................... 12 6. PHYSICAL INSTALLATION...................13 C ARD - CAGE (E NCLOSURE ).................................... 13 P OWER S UPPLY ................................................... 13 AC Power Connection .................................... 14 B ATTERY .............................................................. 14 Battery connection .......................................... 14 RF M ODULES ....................................................... 15 E XPANDING THE S YSTEM ...................................... 15 Additional Modules ...............................…

Text truncated - open the document above for the full version.

UltraTech Group of Labs May 09, 2000 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 806-821 MHz/851-866 MHz and 821-824MHz / 866-869 MHz. Applicant:KAVAL TELECOM INC. Product:LINKnet OFR800 RF Module (Repeater/Translator) Model:OFR800 FCC ID:H6M-OFR800 Dear Sir/Madam, As appointed agent for KAVAL TELECOM INC., please find enclosed copies of the engineering report, authorization form, application form and a cheque of US $610.00. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/AK Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] May 09, 2000 KAVAL TELECOM INC. 60 Gough Road Markham, Ontario Canada, L3R 8X7 Attn.:Mr. Alan Aslett Subject:Certification Testing in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 806-821 MHz/851-866 MHz and 821-824MHz / 866-869 MHz. Product:LINKnet OFR800 RF Module (Repeater/Translator) Model:OFR800 FCC ID:H6M-OFR800 Dear Mr. Aslett, The product sample has been tested in accordance with FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 806-821 MHz/851-866 MHz and 821-824MHz / 866-869 MHz, and the results and observation were recorded in the engineering report, Our File No.: KTI-006FTX Enclosed you will find copies of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs March 22, 2000 Federal Communications Commission P.O. Box 429 Columbia, MD, 21045, USA Subject:AGENCY AGREEMENT Dear Sir or Madam; I hereby appoint Ultratech Engineering Labs Inc. to act as our agent in the preparation of an application for equipment authorization of the LINKnet OFR800 under parts 15 and 90 of the FCC Rules and Regulations. I certify that Exhibit 2 properly describes the device for which authorization is sought, that the information described in the User’s Manual will be provided with each item manufactured or distributed by Kaval Telecom Inc., and that the labels described by exhibit 3 will be affixed to each item manufactured by the applicant. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission’s requirements. I further certify by signature below that no party (per 47 CFR 1.20012(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Yours sincerely, Name: Alan Aslett, P.Eng.Signature: _________________________________ Title: Manager of RF Product DevelopmentDate: March 22, 2000 March 22, 2000 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 60 GOUGH ROAD, MARKHAM, ONTARIO L3R 8X7 Tel: (905) 940-1400 Toll Free: 888-86KAVAL Fax: (905) 946-3392 March 22, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD, 21046, USA Subject:CONFIDENTIALTY REQUEST Dear Sir or Madam; Kaval Telecom Inc. respectfully requests confidentiality of certain materials provided with the submission of the LINKnet OFR800 under FCC ID: H6M-OFR800 in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, SCH000000026,SCH000000028, SCH000000029, SCH000000030, and SCH000000031, SCH000000036,contained in Exhibit 2. The LINKnet OFR800 has been developed at considerable effort and expense by Kaval Telecom Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this manner. Yours sincerely, Name: Alan C. Aslett, P.Eng.Signature: _________________________________ Title: Manager of RF Product DevelopmentDate: March 22, 2000

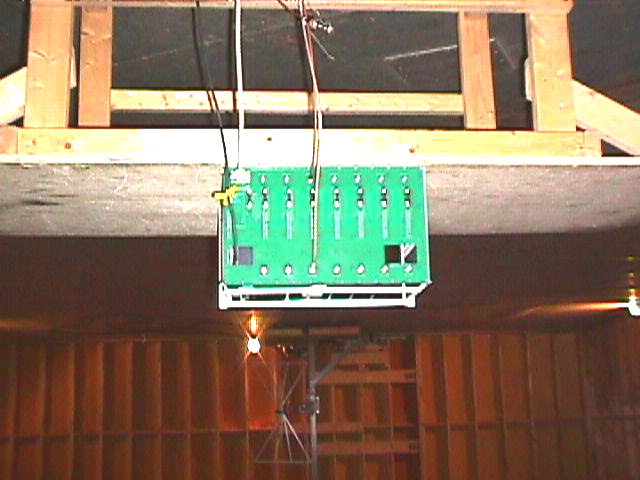

Exhibit 10 - Photograph # 1 of Radiated Emission Test Setup Exhibit 10 - Photograph # 2 of Radiated Emission Test Setup

1 Kaval LINKnet Rack Exhibit 11 – Photo # 2 Kaval LINKnet Rack Exhibit 11 – Photo # 3 Kaval LINKnet OFR800 Module Exhibit 11 – Photo # 4 Kaval LINKnet OFR800 Module Exhibit 11 – Photo # 5 Kaval LINKnet SP400A Power Supply Module Exhibit 11 – Photo # 6 Kaval LINKnet SP400A Power Supply Module

FCC ID H6M-OFR800 Industry Canada Serial # Frequency MHz Power Volts Hz VA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured in Canada by KAVAL TELECOM INC. To be attached to the back of the OFR800 Unit.

FCC ID H6M-OFR800 Industry Canada Serial # Frequency MHz Power Volts Hz VA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured in Canada by KAVAL TELECOM INC. To be attached to the back of the OFR800 Unit.

FCC ID LABEL LOCATION

Exhibit 12 – Photo # 1 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 2 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 3 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 4 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 5 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 6 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 7 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 8 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 9 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 10 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 11 Kaval LINKnet OFR800 Module Exhibit 12 – Photo # 12 Kaval LINKnet OFR800 Module

13 Kaval LINKnet SP400A Power Supply Module Exhibit 12 – Photo # 14 Kaval LINKnet SP400A Power Supply Module Exhibit 12 – Photo # 15 Kaval LINKnet SP400A Power Supply Module Exhibit 12 – Photo # 16 Kaval LINKnet SP400A Power Supply Module Exhibit 12 – Photo # 17 Kaval LINKnet SP400A Power Supply Module

LINK LINKLINK LINK net netnet netô ôô ô OFR800 RF MODULES OFR800 RF MODULESOFR800 RF MODULES OFR800 RF MODULES USER MANUAL USER MANUALUSER MANUAL USER MANUAL INSTALLATION, OPERATION INSTALLATION, OPERATION INSTALLATION, OPERATION INSTALLATION, OPERATION AND MAINTENANCE AND MAINTENANCEAND MAINTENANCE AND MAINTENANCE KAVAL TELECOM INC. 60 Gough Road Markham, Ontario L3R 8X7 Telephone: (888) 86-KAVAL Web: www.kaval.com E-mail: [email protected] Document #DCM000000014, Rev.2 LINKnetô OFR800 RF MODULES ! USER MANUAL DCM000000014 Printed: 2000-03-22 09:09:29 Revision Date: 3/22/00: ii P PP P P PP P R RR R R RR R O OO O O OO O P PP P P PP P R RR R R RR R I II I I II I E EE E E EE E T TT T T TT T A AA A A AA A R RR R R RR R Y YY Y Y YY Y S SS S S SS S T TT T T TT T A AA A A AA A T TT T T TT T E EE E E EE E M MM M M MM M E EE E E EE E N NN N N NN N T TT T T TT T © 2000 KAVAL TELECOM INC. All rights reserved. No part of this publication, or any software included with it may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, including photocopying, electronic, mechanical, recording or otherwise, without the prior written permission of the copyright holder. This document contains proprietary information of KAVAL TELECOM INC. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of KAVAL TELECOM INC., is strictly prohibited. KAVAL TELECOM INC. provides this document as is, without any warranty of any kind either expressed or implied including, but not limited to, the implied warranties of merchantability and fitness of a particular purpose. KAVAL TELECOM INC. may make changes or improvements in the equipment, software, or specifications described in this document at any time and without notice. These changes will be incorporated in new releases of this document. This document may contain technical inaccuracies or typographical errors. KAVAL TELECOM INC. waives responsibility for any labour, materials, or costs incurred by any person or party as a result of using this document. KAVAL TELECOM INC., and any of its affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or loss of profits or date) even if they were foreseeable and KAVAL TELECOM INC. has been informed of their potential occurrence, arising out of or in connection with this document or its use. LINKnetô OFR800 RF MODULES ! USER MANUAL DCM000000014 Printed: 2000-03-22 09:09:29 Revision Date: 3/22/00: iii R RR R R RR R E EE E E EE E V VV V V VV V I II I I II I S SS S S SS S I II I I II I O OO O O OO O N NN N N NN N R RR R R RR R E EE E E EE E C CC C C CC C O OO O O OO O R RR R R RR R D DD D D DD D Rev. No Page No Description of Revision Date 0 Pre-release All Draft Issues. Feb.2000 1 All Original Release Mar.6,2000 2 All Updated drawings and Logos Mar.21,2000 T TT T T TT T R RR R R RR R A AA A A AA A D DD D D DD D E EE E E EE E M MM M M MM M A AA A A AA A R RR R R RR R K KK K K KK K N NN N N NN N O OO O O OO O T TT T T TT T I II I I II I C CC C C CC C E EE E E EE E This manual makes reference to trademarks that are the property of other companies. References are used only to refer to the products or services of the trademark owners. LINK net ô is a trademark of KAVAL TELECOM INC. LINKnetô OFR800 RF MODULES ! USER MANUAL DCM000000014 Printed: 2000-03-22 09:09:29 Revision Date: 3/22/00: iv TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS 1. OFR800 MODULES.................................. 4 O VERVIEW ............................................................. 4 Theory Of Operation ......................................... 4 M ODELS ................................................................. 4 B LOCK DIAGRAM ..................................................... 5 OFR800 RF Module ......................................... 5 M ODULE S PECIFICATIONS ....................................... 6 O PERATION ............................................................ 8 Software Set-up ................................................ 8 Power On Self Test (POST) ............................. 9 Normal Operation ........................................... 10 OFR Drawing (Sides and Top) ....................... 11 A NTENNA I NSTALLATION ........................................ 12 LINKnetô OFR800 RF MODULES ! USER MANUAL DCM000000014 Printed: 00.03.22,09:09 Revision Date:3/22/00 4 Theory Of Operation An OFR, or On Frequency Repeater, is a radio repeater that simultaneously receives and transmits a single narrow band radio channel on exactly the same frequency. The OFR accomplishes its repeater function without store and forward circuitry, or expensive conventional simulcasting techniques. The fact that the same frequency is retransmitted by an OFR means that additional frequency allocations are not required in situations where an existing radio coverage pattern needs to be extended. The most common OFR applications are the extension of above ground signals into buildings, tunnels, vehicles or the extension of radio coverage patterns into outdoor shaded areas such as deep valleys. From an applications standpoint, an OFR is very similar to a regular two-way radio repeater. On Frequency Radio Repeaters can be combined using regular two-way radio multicoupling or duplexing equipment and have input and output signal characteristics to those of regular transmitters and receivers. The one special consideration in OFR systems is that of input to output antenna isolation. This must be carefully engineered for each installation. Standard On Frequency Radio Repeaters are designed for indoor use only and are intended for mounting in a standard EIA 19 inch rack. Modular design of OFR circuitry allows for easy servicing, stocking of spares, adaptability and upgrade ability. OFR800 MODULE FAMI…

Text truncated - open the document above for the full version.

Printed: 00.08.09,11:00 Revision Date:8/9/003 • All Antenna Installation to be performed by Qualified Technical Personnel only. • Antenna Installation Instructions and locations below are for the purpose of satisfying FCC RF Exposure Compliance requirements. • Note that if multiple LINKnet™ Modules are used, the Instructions below apply to the composite power output of all Modules when transmitting simultaneously. • The Roof Top Antenna or Antennae for linking to the Donor Site(s) is/are directional (high gain) Antennae, fixed-mounted physically on the side or top of a building, or on a tower. The Antenna Gain must be no more than 10 dB. If multiple LINKnet™ Modules are used with output combiners into any one Antenna, and/or multiple Antennae are used on one Roof Top, then the sum of composite powers into all Roof Top Antennae must not exceed 100 Watts maximum. Please consult Kaval Telecom for assistance as required. The Roof Top Antennae location should be such that only Qualified Technical Personnel can access it, and that under normal operating conditions no other person can touch the Antenna, or approach within 5 meters of the Antenna. • The In-Building Antenna connection is via a coaxial cable distribution system with Signal Taps at various points connected to the fixed-mounted Indoor Antennae. This is shown in the figure in the Introduction. The Indoor Antennae are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL TELECOM INC. 12, 16, or 20 dB Cable Taps. As such the maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below the maximum signal level of the LINKnet™ (+40 dBm); +28 dBm, or 0.63 Watts EIRP. If multiple LINKnet™ Modules are used with output combiners, then the composite power output of all Modules transmitting simultaneously must meet this maximum EIRP requirement. Please consult Kaval Telecom for assistance as required. These Antennae are to be installed such that no person can touch the Antenna, or approach within 0.2 Meters. ANTENNA INSTALLATION WARNING ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED TECHNICAL PERSONNEL ONLY. ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, AND ARE NOT OPTIONAL. ALL ROOF TOP ANTENNA INSTALLATION MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNA, OR APPROACH CLOSER THAN 10 METERS. ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2 METERS. Antenna Installation

Printed: 00.09.05,10:01 Revision Date:9/5/003 • All Antenna Installation to be performed by Qualified Technical Personnel only. • Antenna Installation Instructions and locations below are for the purpose of satisfying FCC RF Exposure Compliance requirements. • Note that if multiple LINKnet™ Modules are used, the Instructions below apply to the composite power output of all Modules when transmitting simultaneously. • The Roof Top Antenna or Antennae for linking to the Donor Site(s) is/are directional (high gain) Antennae, fixed-mounted physically on the side or top of a building, or on a tower. The Antenna Gain must be no more than 10 dB. If multiple LINKnet™ Modules are used with output combiners into any one Antenna, and/or multiple Antennae are used on one Roof Top, then the sum of composite powers into all Roof Top Antennae must not exceed 100 Watts maximum. Please consult Kaval Telecom for assistance as required. The Roof Top Antennae location should be such that only Qualified Technical Personnel can access it, and that under normal operating conditions no other person can touch the Antenna, or approach within 10 meters of the Antenna. • The In-Building Antenna connection is via a coaxial cable distribution system with Signal Taps at various points connected to the fixed-mounted Indoor Antennae. This is shown in the figure in the Introduction. The Indoor Antennae are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL TELECOM INC. 12, 16, or 20 dB Cable Taps. As such the maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below the maximum signal level of the LINKnet™ (+40 dBm); +28 dBm, or 0.63 Watts EIRP. If multiple LINKnet™ Modules are used with output combiners, then the composite power output of all Modules transmitting simultaneously must meet this maximum EIRP requirement. Please consult Kaval Telecom for assistance as required. These Antennae are to be installed such that no person can touch the Antenna, or approach within 0.2 Meters. ANTENNA INSTALLATION WARNING ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED TECHNICAL PERSONNEL ONLY. ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, AND ARE NOT OPTIONAL. ALL ROOF TOP ANTENNA INSTALLATION MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNA, OR APPROACH CLOSER THAN 10 METERS. ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2 METERS. Antenna Installation

LINKnet OFR800 RF Module (Repeater/Translator) Model No.: OFR800 FCC ID: H6M-OFR800 Applicant: KAVAL TELECOM INC. 60 Gough Road Markham, Ontario Canada, L3R 8X7 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, PARTS 2 and 90 (Subpart I) UltraTech's File No.: KTI-006FTX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: May 10, 2000 Report Prepared by: Tri M. Luu ................................................................... . Tested by: Mr. Hung Trinh, EMI/RFI Technician ............................................................. . Issued Date: May 09, 2000Test Dates: April 01 - May 03, 2000 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] FCC PARTS 2 & 90, SUBPART I, RADIO SERVICES TRANSMITTERS Page 1 LINKnet OFR800 RF Module (Repeater/Translator), Model OFR800FCC ID: H6M-OFR800 ULTRATECH GROUP OF LABSFile #: KTI-006FTX 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4May 15, 2000 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia) • Recognized/Listed by FCC (USA), Industry Canada (Canada) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST..................................................................................................................5 EXHIBIT 2.INTRODUCTION...................................................................................................................................7 2.1.SCOPE.................................................................................................................................................................7 2.2.NORMATIVE REFERENCES.............................................................................................................................7 EXHIBIT 3.PERFORMANCE ASSESSMENT..........................................................................................................8 3.1.CLIENT INFORMATION.......................................................................................................................................8 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION..................................................................................................8 3.3.EUT’S TECHNICAL SPECIFICATIONS.............................................................................................................9 3.4.LIST OF EUT’S PORTS............................................................................................................................................9 3.5.SPECIAL CHANGES ON THE EUT’S HARDWARE/SOFTWARE FOR TESTING PURPOSES......................10 3.6.MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES................................................................10 3.7.RELATED SUBMITAL(S)/GRANT(S)..........................................................................................................................10 3.8.ANCILLARY EQUIPMENT.......................................................................................................................................10 3.9.TEST SETUP FOR EQUIPMENT UNDER TEST..............................................................................................11 EXHIBIT 4.EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS............................12 4.1.CLIMATE TEST CONDITIONS..................................................................................................................................12 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS...................................................................12 EXHIBIT 5.SUMMARY OF TEST RESULTS........................................................................................................13 5.1.LOCATION OF TESTS.....................................................................................................................................13 5.2.APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS......................................................................13 EXHIBIT 6.MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS...........................14 6.1.TEST PROCEDURES...............................................................................................................................................14 6.2.MEASUREMENT UNCERTAINTIES............................................................................................................................14 6.3.MEASUREMENT EQUIPMENT USED:.........................................................................................................................14 6.4.ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER:....................................14 6.5.RF POWER OUTPUT @ FCC 2.985 & 90.205..........................................................................................................15 6.5.1.Limits @ FCC 90.205.................................................................................................................................15 6.5.2.Method of Measurements............................................................................................................................15 6.5.3.Test Equipment List................................................................................................…
