H78KPELB160PIT2.4GHz MODULE

1 User manual 2.4 GHZ module (ELB160PIT) version V1.0 Jan 10 2013 User manual 2.4 GHZ module (ELB160PIT) Contents 1. Module Specification: ...................................................................................................................... 1 2. Signal Description: ........................................................................................................................... 2 3. CC2500 Setting: ............................................................................................................................... 2 1. Module Specification: 2 User manual 2.4 GHZ module (ELB160PIT) version V1.0 Jan 10 2013 Out power: -6dBm Base Frequency 2.4329990 GHz C hannel Spacing 199.951172 kHz Rx Filter BW 541.666667 MHz Data Rate 249.939 kbps D ata Modulation MSK External power supply (VBAT) maximum 14.8V Current consumption maximum 30ma Single channel of operation: 2433 MHz 2. S ignal Description: PWR_ON; Switches on the 3.3V regulator (U1). Use this power to save power when the ISM transceiver is not required. SCLK, SI, SO, and CSN; Signals are the SPI (serial interface with the CC2500). SCLK is the clock. SI is the serial data from eternal controller. SO is the serial data from the CC2500. NCS is the chip select of the SPI communication (positive logic). All these signals are at 3.3V logic level. ThFor more information refer to CC2500 Low-Cost Low-Power 2.4 GHz RF Transceiver. RED1, GRN1, and BLK1; Not used signals. GUP: Indicates the red switch position. “1” no magnet, “0” senses magnet. This signal is an option for low current control. PROG; Not used. VBAT; Power supply. 3. CC2500 Setting: For Data rate of 250KHz, MSK modulation and optimization for sensitivity use the register value as it is specified by table 3.

P.O.Box 42 Tefen Industrial Park 24959 Tefen Tel:972-4- 9873066,Fax:972-4- 9873692 E-mail:[email protected] www.kpsystems.com 12/25/12 Timco Engineeri ng, Inc. P.O. Box 370 Newberr y, FL 32669 We are requestin g li mit ed modular appro val for our Module , FCC ID: H78ELB160PIT. We meet the modular appro val re quire ments as lis ted below: 1. The modula r tra nsmitter must have its own RF shie ld ing. This is intended to ensure that the module does not have to re ly upon the shielding pro vid ed by the devic e into whic h it is installed in ord er for all modula r transmitter emissions to comply with Part 15 li mit s. It is also in tended to pre vent coupli ng between the RF circuitry of the module and any wires or cir cuit s in the device in to whic h the module is installed. Such coupli ng may re sult in non- compli ant operation. The design of our module does not have its own RF shielding. But we intend to use it only in our own products. 2. The modula r tra nsmitter must have buffere d modulation/ data in puts (if such inputs are pro vided) to ensure that the module wil l comply wit h Part 15 re quirements under conditions of excessive data ra tes or over-modulation. Our product in cludes has TX buffered inputs. 3. The modular transmitter must have it s own power supply re gula tion. This is in tended to ensure that the module will comply with Part 15 re quirements regardle ss of the design of the power supplyin g circuit ry in the devic e into whic h the module is installed. Our product has an in tegra ted 3.3v regula tor for the ISM radio. 4. The modula r transmitt er must comply wit h the antenna re quire ments of Sectio n 15.203 and 15.204(c). The antenna must eit her be permanently attached or employ a “unique” ante nna coupler (at all connections between the module and the antenna, inclu din g the cable). Any antenna used wit h the module must be appro ved wit h the module, eit her at the time of initial authoriz ation or through a Class II permissive change. The “pro fessional installation” pro visio n of Sectio n 15.203 may not be applied to modules. Our product contains an in tegra ted antenna – i. e. chip antenna – for the ISM radio. P.O.Box 42 Tefen Industrial Park 24959 Tefen Tel:972-4- 9873066,Fax:972-4- 9873692 E-mail:[email protected] www.kpsystems.com 5. The modular transmitter must be tested in a stand-alone configura tion, i.e., the module must not be inside another device during testing. This is intended to demonstra te that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitte r module will be battery powere d, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC po wer lines and data input/output lin es connected to the module must not contain ferr ites; unless they will be marketed with the module (s ee Section 15.27(a)) . The length of these lin es shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no couplin g between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during te sting shall be unmodified or commerc ially available (see Section 15.31(i)) . The module was tested stand alone. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitt er Module FCC ID: XYZMODEL1” or “C ontains FCC ID: XYZMODEL1.” Any si milar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Our module will contain the FCC ID and there will be a label on the outside of the pro duct that states that the product contains the FCC ID of the module. 7. The modular transmitte r must comply with any specific rule or operating requirements applicable to the transmitte r and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized fo r operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The user’ s manual supplied with the module will contact adequate instru ctions for the module. 8 The modular transmitter must comply with any applicable RF exposure require ments. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and mill imeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectru m transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessa ry, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Our module is a very low power module which compli…

Text truncated - open the document above for the full version.

P.O. Box 42, Tefen Industrial Park, Tefen 24959, Israel Tel: 972-4-987-3066 Fax: 972-4-987-3692 E-mail: [email protected] Web Site: www.kpsystems.com 12/25/12 Federal Communication Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:H78ELB160PIT Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as below: BLOCK DIAGRAM, SCHEMATICS, PART LIST, CIRCUIT DESCRIPTION & TUNINING PROCEDURE The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Liad Kenig Vice President P.O. Box 42, Tefen Industrial Park, Tefen 24959, Israel Tel: 972-4-987-3066 Fax: 972-4-987-3692 E-mail: [email protected] Web Site: www.kpsystems.com

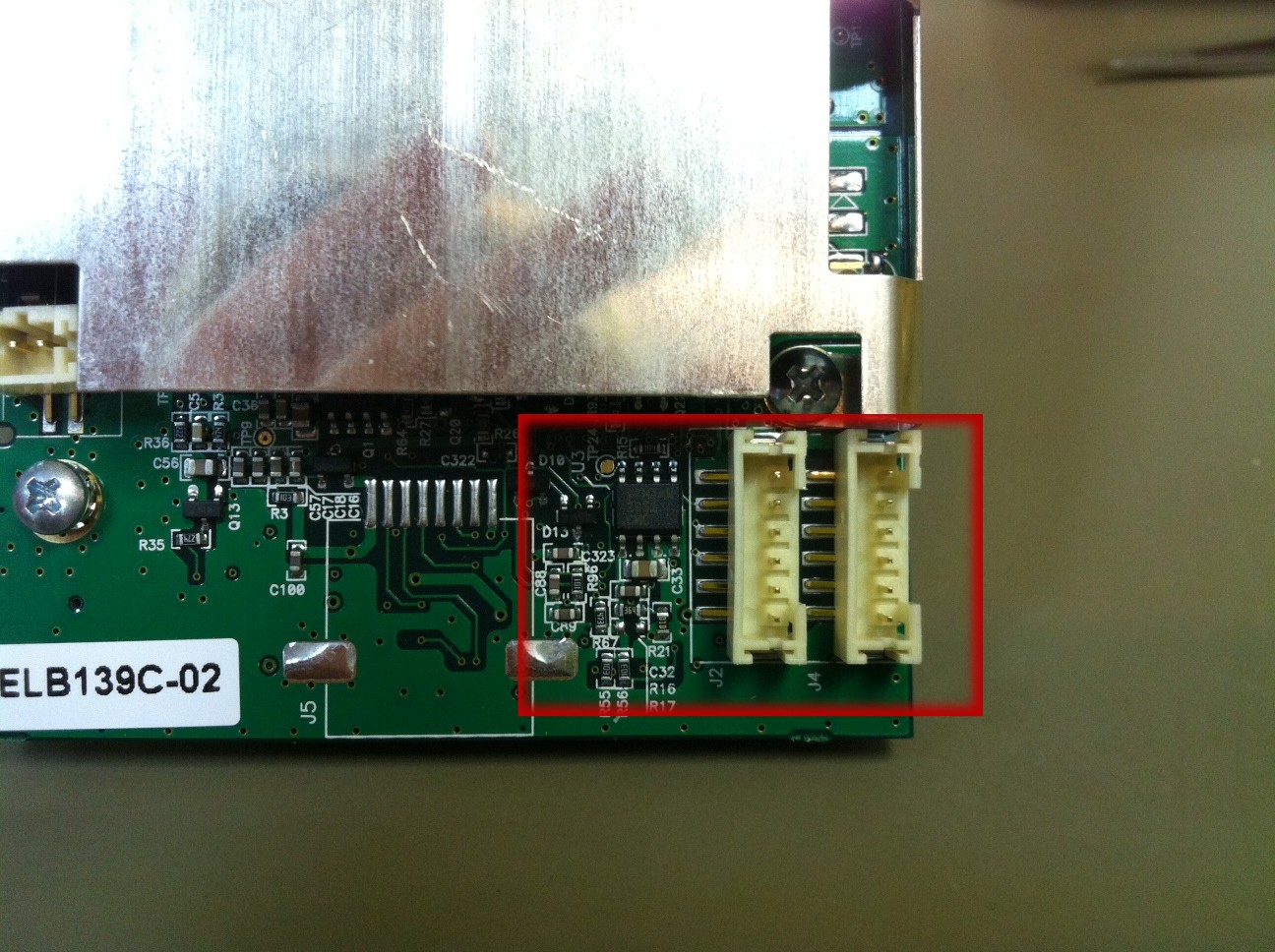

APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPELB160PIT

APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPELB160PIT

FCC PART 15.249 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant KP ELECTRONIC SYSTEMS LTD. Address P.O. BOX 42 TEFEN INDUSTRIAL PARK 24959 ISRAEL FCC ID H78KPELB160PIT Product Description DATA MODULE Date Sample Received 6/28/2012 Date Tested 7/13/2012 Tested By Nam Nguyen Approved By Mario de Aranzeta Report Number 1633UT12TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPELB160PIT REPORT: K\KP H78\1633UT12\1633UT12TestReport.doc Page 2 of 14 Mdea 9.20.2007 TABLE OF CONTENTS GENERAL REMARKS ...................................................................................................................... 3 GENERAL INFORMATION ............................................................................................................... 4 EMC EQUIPMENT LIST ................................................................................................................... 5 TEST PROCEDURES ....................................................................................................................... 6 RADIATION INTERFERENCE .......................................................................................................... 7 OCCUPIED BANDWIDTH ................................................................................................................ 9 BAND EDGE COMPLIANCE .......................................................................................................... 10 DUTY CYCLE ................................................................................................................................ 13 POWER LINE CONDUCTED INTERFERENCE ................................................................................ 14 APPLICANT: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPELB160PIT REPORT: K\KP H78\1633UT12\1633UT12TestReport.doc Page 3 of 14 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: July/13/2012 APPLICANT: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPELB160PIT REPORT: K\KP H78\1633UT12\1633UT12TestReport.doc Page 4 of 14 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description MODULE FCC ID H78KPELB160PIT Operating Frequency TX: 2432.95 MHz RX: Same Modulation GFSK DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications None Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPELB160PIT REPORT: K\KP H78\1633UT12\1633UT12TestReport.doc Page 5 of 14 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 12/31/11 12/31/13 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Active Loop ETS-Lindgren 6502 00062529 CAL 9/23/10 9/23/12 Frequency Counter HP 5385A 2730A03025 CAL 8/17/11 8/17/13 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 7/18/11 7/18/13 Digital Multimeter Fluke FLUKE-77 35053830 CAL 9/9/11 9/9/13 Power Meter Boonton Electronics 4531 11793 CAL 11/12/2010 11/12/2012 EMI Receiver Rohde & Schwarz ESIB40 100274 CAL 3/16/2012 3/16/2014 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 10/28/11 10/28/13 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 10/28/11 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 10/28/11 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 10/28/11 10/28/13 Antenna ETS 3117 35923 12/7/2011 12/7/2013 Antenna Electro metrics LPA-25 1122 5/04/2011 5/04/2013 Antenna Electro metrics BIA-25 1096 5/04/2011 5/04/2013 APPLICANT: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPELB160PIT REPORT: K\KP H78\1633UT12\1633UT12TestReport.doc Page 6 of 14 Mdea 9.20.2007 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna w…

Text truncated - open the document above for the full version.
