H78KPRFM200UBASE STATION TRANSCEIVER

RFM200U™ UHF Radio Transceiver Installation Manual Web Site: www.kpsystems.com ISRAEL Office Email: [email protected] Tefen Industrial Park, Tefen 24959 Tel: 972-4-987-3066 Fax: 972-4-987-3692 USA Office: KP ELECTRONICS INC. Email: [email protected] 415 Sargon way Suite F Horsham PA 19044 Tel: (215) 442-7460 Fax: (215) 442-7461 P.N.: Book 116 Rev: New Approved: Amir 28/12/10 RFM200U™ General Description The RFM200U is used as RF modem which holds the RF communication between he RMR and the metering devices. The interface with the PC is done through USB Type B for data exchange and Mini Type B for parameter setting. The RFMU radio is high power 5W UHF radio covers the 430 to 471MHz RF band. The RFM200U is power from 12.5V power supply that is backed up with Lid Accid 12V battery. Connectors Power Connector. Data Connector USB Type B used as data link between the RFM200U™ and the PC. Antenna Tx/Rx and Tx BNC connector. It is used as Tx/Rx (2 ways) antenna connection or just Tx antenna connection if the second Rx connecter is in used i.e. by special jumper in the board. Antenna Rx BNC connector. It is used for Rx antenna connection in case the other connecter is just for Tx. Sets by special jumper in the board. Programmer Connector Mini USB type B connector. This connector is used to connect a special PC application (“GUP”) to set or read parameters as Tx and Rx frequencies. Data LED Whenever there is data on the USB cable then the LED is flickering. PTT LED Whenever the radio is on transmission this LED is on. CM LED Whenever the RFM200U™ senses any RF signal above -107dBm then this LED is on. Data LED Whenever the RFM200U™ is powered then the LED is on. Preparing for Operation The BSRU100N is not a standalone unit, this device always combined in to products like the RMR perform the following steps: a.Connecting Assembly Cables 1. Connect one end of the coax cable to Rx/Tx BNC. In case the Tx and the Rx signals are separated then connect the second (Rx) cable to the Rx Coax. 2. Connect the DC plug to the Power Plug Socket. 4. Connect one end of the data cable to USB rear panel connector. b.Setting Communication Parameters Using KP’s GUP5000™ Utility Program, the RFM200U™ parameter values listed below can be programmed or modified. Transmit frequency (MHz) Rx frequency (MHz) Operating Instructions Connecting BSRU100N™ to GUP5000™ (utility program) Loading Parameter Values Changing Parameter Values Updating Parameter Value Changes Confirming Parameter Value Changes Activating Self Test Technical Specification General UHF Band 430-471 MHzFrequency Range 12.5 KHz Channel Spacing Fully PC programming Programming Part 15.109 Subpart (B) radiated spurious emissions. Part 22,90,95 FCC rules and reg. under 10-15 VDCOperating Voltage Tx/Rx mod, Tx timer, power trouble, LD, Low Bat, Ovrl., CM, RSSI Diagnostics Receiver -116dBm @ 12 dB SINAD Sensitivity analogy -119dBmMDS sensitivity 60 dB for 12.5 KHz Adj. Ch. Selectivity >60dBIntermodulation response 70dB Spurious and image rejection Transmitter 5w Nominal output power RF EXPOSURE: The antenna gain used with this transmitter should be 0 dBi or less and all persons should maintain a minimum safety separation distance of 35.64 cm

December 11, 2019 Federal Communications Commission Authorization and Evaluation Division, 7435 Oakland Mills Road Columbia, MD 21046 USA Re: FCC ID: H78KPRFM200U Attestation Statement per 90.203(e) and (g) Programming of transmitter frequencies can only be performed by the manufacturer or authorized service and maintenance personnel. The radio output power is fixed and can’t be changed. S incerely, Yoram Kenig P.O.Box 42 Tefen Industrial Park 2495900 Tefen Tel: 972-4-9873066, Fax: 972-4-9873692 [email protected]: -E www.kpsystems.com

P.O.Box 42 Tefen Industrial Park 2495900 Tefen Tel: 972-4-9873066, Fax: 972-4-9873692 [email protected]: -E www.kpsystems.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: H78KPRFM200U Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Circuit Description Tuning Procedure Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180 days Sincerely, Yoram Kenig P.O.Box 42 Tefen Industrial Park 2495900 Tefen Tel: 972-4-9873066, Fax: 972-4-9873692 [email protected]: -E www.kpsystems.com

P.O.Box 42 Tefen Industrial Park 2495900 Tefen Tel: 972-4-9873066, Fax: 972-4-9873692 [email protected]: -E www.kpsystems.com Date: Mar 11, 2020 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: H78KPRFM200U To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Note: We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to- government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to tes t for the DoC procedure. Sincerely, Yoram Kenig President

P. O.Box 42 Tefen Industrial Park 2495900 Tefen Tel: 972-4-9873066, Fax: 972-4-9873692 tems.comi nfo@kpsysmail: -E www.kpsystems.com 12/11/19 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification Gentlemen: We, KP Electronic Systems, Ltd., would like to submit the following justification to show the frequency range (430-471 MHz) on the Grant of Equipment Authorization under Part 90 for our FCC ID: H78KPRFM200U Per the FCC’S KDB 634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. This radio is intended for use by public agencies, as well as commercial, business, and industrial services. Additionally, it will be used in other countries that accept the FCC Grant of Equipment Authorization. These services account for a majority of users as described in the below table. Frequencies MHz Part 90 Federal ITU Region 430 to 454 90 454- 456 X 1, 2, 3 456 – 462.5375 90 462.5375- 462.7375 X 462.7375 – 467.5375 90 467.5375 – 467.7375 X 1, 2, 3 467.7375 – 471 90 T his radio complies with 47 CFR Part 90.203(e) in that the operator cannot program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel, using the equipment’s external operation controls. Sincerely, Y oram Kenig

Mar 10, 2020

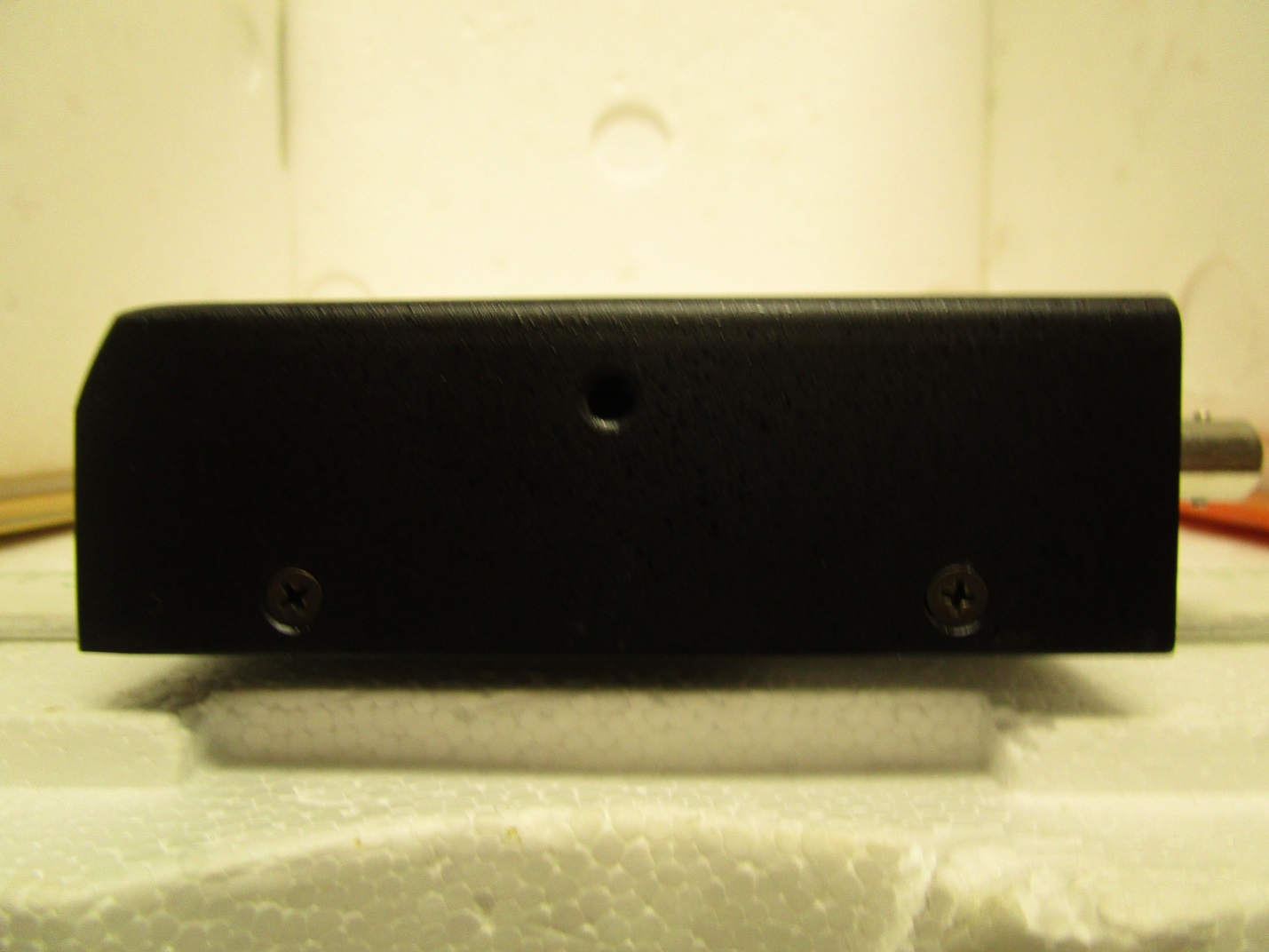

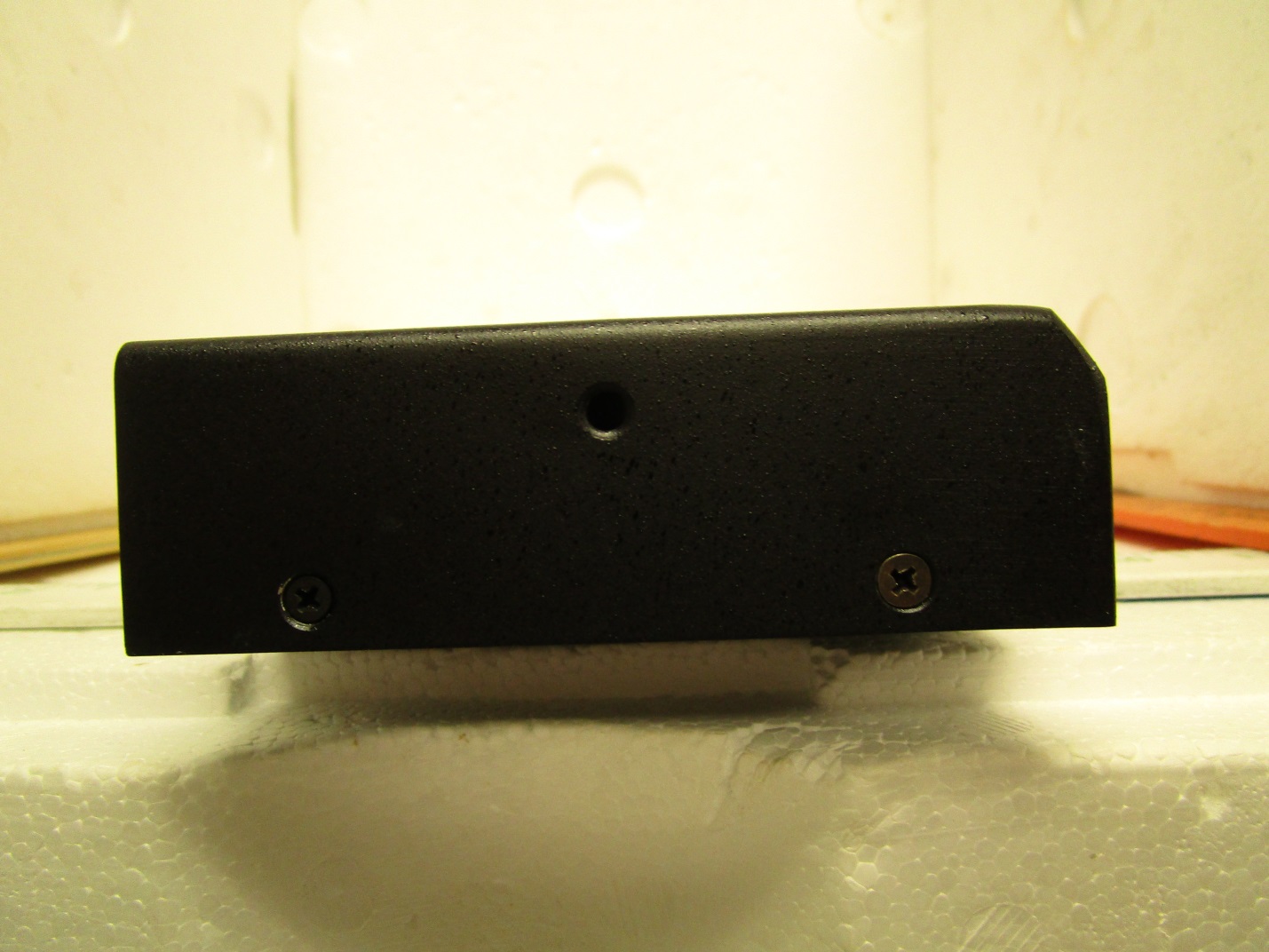

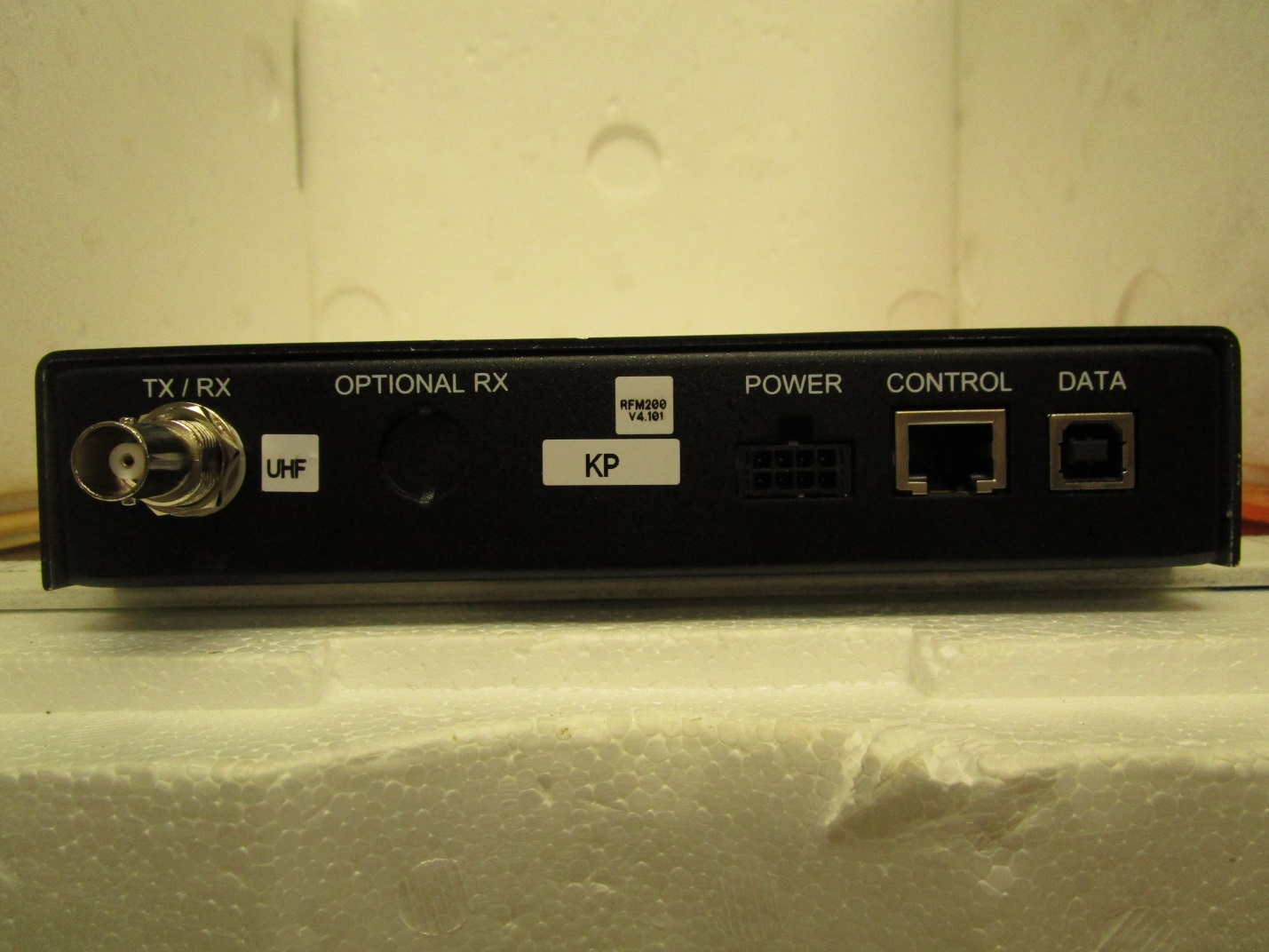

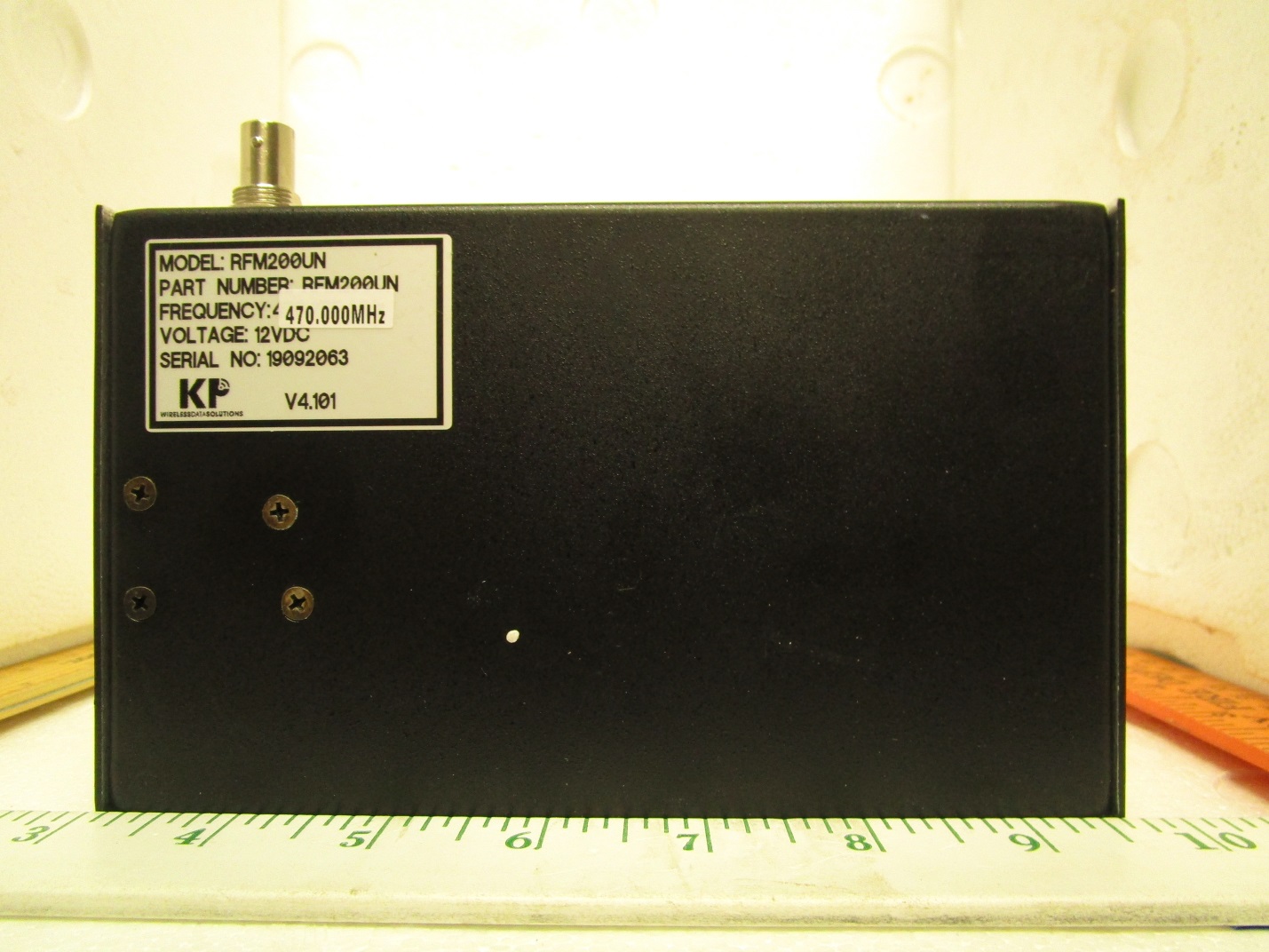

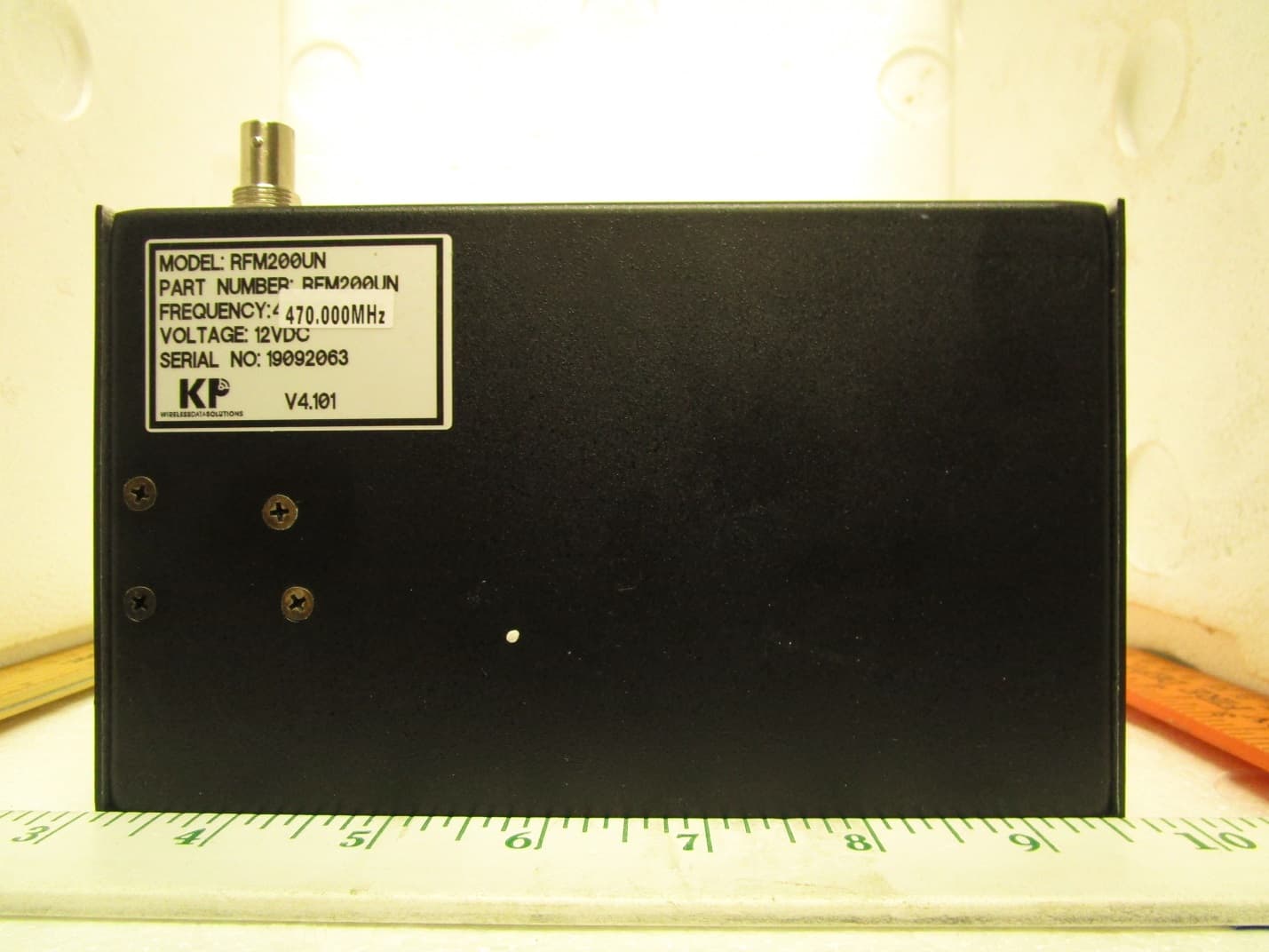

KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPRFM200U EXTERNAL PHOTOS FRONT VIEW REAR VIEW RIGHT SIDE LEFT SIDE BOTTOM VIEW Top View

849 NW STATE ROAD 45 PHONE: 888.472.2424 OR 352.472.5500 NEWBERRY, FL 32669 USA EMAIL: [email protected] WEB: HTTP://WWW.TIMCOENGR.COM An IIA Company RF Exposure Evaluation Report APPLICANT KP ELECTRONIC SYSTEMS LTD. FCC ID H78KPRFM200U MODEL NUMBER RFM200UN PRODUCT DESCRIPTION BASE STATION TRANSCEIVER DATE SAMPLE RECEIVED 12/16/2019 FINAL TEST DATE 12/30/2019 TEST RESULTS PASS FAIL Report Number Report Version Description Issue Date 3438AUT19 MPETestReport_ Rev1 Initial Issue 1/6/2020 Rev2 Revised DC Power and output power 4/15/2020 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................ 2 GENERAL INFORMATION ................................................................................................ 3 ANTENNA INFORMATION ............................................................................................... 3 MPE CALCULATION ......................................................................................................... 4 MPE LIMITS .................................................................................................................... 4 MPE TABLE ..................................................................................................................... 5 GENERAL UNCONTROLLED EXPOSURE ......................................................................................... 5 GENERAL CONTROLLED EXPOSURE ............................................................................................ 6 Report: 3438AUT19 MPE_TestReport_Rev2 Page 2 of 6 GENERAL REMARKS Summary The device under test does: Fulfill the general approval requirements as identified in this test report and was selected by the customer. Not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Designation #: US1070 Prepared by: Name and Title Tim Royer, Project Manager / EMC Engineer Date 1/6/2020 Report: 3438AUT19 MPE_TestReport_Rev2 Page 3 of 6 GENERAL INFORMATION EUT Description BASE STATION TRANSCEIVER Model Number RFM200UN Modified for Testing ☐ If so, Explain: Antenna Connector ☒ UHF ☐ BNC ☒ N ☐ TNC ☐ SMA ☒ Other EUT Power Source ☐ AC Power (110-120 V) ☒ DC Power (12.5 V) ☐ DC Battery (7.4 V) Test Item ☐ Engineering Prototype ☒ Pre-Production ☐ Post-Production Type of Equipment ☒ Fixed ☐ Mobile ☐ Portable ANTENNA INFORMATION Antenna is Provided Type Max Gain (dBi) No n/a 0.0 RF POWER OUTPUT Maximum Power Output: 5 W. Report: 3438AUT19 MPE_TestReport_Rev2 Page 4 of 6 MPE CALCULATION The minimum separation distance is calculated as follows: MPE LIMITS Report: 3438AUT19 MPE_TestReport_Rev2 Page 5 of 6 MPE Table General Uncontrolled Exposure The limit for General Uncontrolled Exposure Environment is calculated as shown in FCC Pt. 1.1310, Table B: Variable Value Max Power 5 W Frequency Range 430 - 47 1 MHz Duty Cycle (at full power) 100% Max Antenna Gain 0 dBi Coax Loss 0 dB Power Density 0.3133 W/cm 2 Minimum Separation Distance 35.64 cm EUT 20 cm (Standard MPE Distance) 35.64 cm 0.313 W/cm 2 0.995 W/cm 2 Report: 3438AUT19 MPE_TestReport_Rev2 Page 6 of 6 General Controlled Exposure The limit for General Controlled Exposure Environment is calculated as shown in FCC Pt. 1.1310, Table A: Variable Value Max Power 5 W Frequency Range 430 - 470 MHz Duty Cycle (at full power) 100% Max Antenna Gain 0 dBi Coax Loss 0 dB Power Density 1.566 W/cm 2 Minimum Separation Distance 15.94 cm EUT 15.94 cm 20 cm (Standard MPE Distance) 1.566 W/cm 2 0.995 W/cm 2

849 NW STATE ROAD 45 PHONE: 888.472.2424 OR 352.472.5500 NEWBERRY, FL 32669 USA EMAIL: [email protected] WEB: HTTP://WWW.TIMCOENGR.COM An IIA Company FCC 47 CFR Part 90 UHF Test Report APPLICANT KP ELECTRONIC SYSTEMS LTD. FCC ID H78KPRFM200U MODEL NUMBER RFM200UN PRODUCT DESCRIPTION BASE STATION TRANSCEIVER DATE SAMPLE RECEIVED 12/16/2019 FINAL TEST DATE 12/30/2019 TEST RESULTS PASS FAIL Report Number Report Version Description Issue Date 3438AUT19_PT90 TestReport_ Rev1 Initial Issue 12/31/2019 Rev2 Revised DC Power, Frequency Stability 4/15/2020 This report shall not be reproduced except in full without the written approval of Timco Engineering, Inc. This report relates only to the Equipment Under Test (EUT) sample(s) tested. TABLE OF CONTENTS SIGNATURE PAGE .............................................................................................................. 2 EUT INFORMATION ............................................................................................................. 3 TEST INFORMATION ........................................................................................................... 3 2.1033 APPLICATION REQUIREMENTS .................................................................................. 4 90.203, 90.217 EXEMPTION FROM REQUIREMENTS ................................................................ 5 2.1041 MEASUREMENT PROCEDURE ..................................................................................... 6 2.1046 – 2.1055 TECHNICAL REQUIREMENTS........................................................................ 6 2.1057 FREQUENCY SPECTRUM TO BE INVESTIGATED ............................................................ 7 2.1033 MODULATION CHARACTERISTICS .............................................................................. 8 2.1046 RF POWER OUTPUT .................................................................................................. 9 90.205 RF POWER OUTPUT ................................................................................................ 10 2.1047 AUDIO FREQUENCY RESPONSE ............................................................................... 14 2.1047 LOW PASS FILTER RESPONSE ................................................................................. 15 2.1047 MODULATION LIMITING ......................................................................................... 16 2.1049 OCCUPIED BANDWIDTH ......................................................................................... 17 90.209 OCCUPIED BANDWIDTH ......................................................................................... 20 90.210 EMISSION MASKS ................................................................................................. 24 2.1051 CONDUCTED SPURIOUS EMISSIONS AT ANTENNA TERMINALS ................................... 29 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................ 32 2.1055 FREQUENCY STABILITY .......................................................................................... 39 90.213 FREQUENCY STABILITY .......................................................................................... 41 90.214 TRANSIENT FREQUENCY RESPONSE ........................................................................ 43 STATEMENT OF MEASUREMENT UNCERTAINTY .................................................................... 44 EMC EQUIPMENT LIST....................................................................................................... 45 ANNEX I – MEASUREMENT DATA ........................................................................................ 46 RF POWER OUTPUT .......................................................................................................... 46 ANNEX II – MANUFACTURER-PROVIDED INFORMATION ........................................................ 59 Report: 3438AUT19_PT90 TestReport_Rev2 Page 2 of 60 SIGNATURE PAGE The device under test does: Fulfill the general approval requirements as identified in this test report and was selected by the customer. Not fulfill the general approval requirements as identified in this test report The results here-in relate only to the device under test. To the best of my knowledge and belief, this device has been tested in accordance with the standards identified in this test report, and these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that measurements were made at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Designation #: US1070 Name and Title Franklin Rose, Project Manager / EMC Specialist Name and Title Tim Royer, Project Manager / EMC Engineer Name and Title Sharon Hoffman, Sales and Marketing / Operations Date 12/31/2019 Report: 3438AUT19_PT90 TestReport_Rev2 Page 3 of 60 EUT INFORMATION EUT Description BASE STATION TRANSCEIVER Model Number RFM200UN Modified for Testing ☐ If so, Explain: Antenna Connector ☒ UHF ☐ BNC ☒ N ☐ TNC ☐ SMA ☒ Other EUT Power Source ☐ AC Power (110-120 V) ☒ DC Power (12.5 V) ☐ DC Battery (7.4 V) Test Item ☐ Engineering Prototype ☒ Pre-Production ☐ Post-Production Type of Equipment ☒ Fixed ☐ Mobile ☐ Portable TEST INFORMATION Test Conditions Temperature during testing: 26ºC, Humidity during testing: 50% Test Exercise The EUT was operated in accordance with the service manual using software supplied by the manufacturer. Applicable Standards ANSI/TIA 603-E, March 2016 ANSI C63.26, December 11, 2015 FCC CFR 47 Part 2, December 5, 2019 FCC CFR 47 Part 90, November 25, 2019 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Designation #: US1070 Report: 3438AUT19_PT90 TestReport_Rev2 Page 4 of 60 2.1033 APPLICATION REQUIREMENTS Application Requirement Requirement Infor…

Text truncated - open the document above for the full version.

FCC ID: H78KPRFM200U Page 1 of 4 TEST SETUP PHOTOGRAPHS Applicant: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPRFM200U Field Strength of Spurious Emissions, Below 1 GHz FCC ID: H78KPRFM200U Page 2 of 4 Field Strength of Spurious Emissions, Above 1 GHz FCC ID: H78KPRFM200U Page 3 of 4 Frequency Stability
