H9P2121160IEEE 802.11 a/b/g WLAN RF Module

BABT, Segensworth Road Fareham Hampshire, United Kingdom, PO15 5RH Tel: +44(0) 1329 443300 Website: www.tuvps.co.uk RO611511 Bandwidth Comparisons Page 1 of 4 POWER AND BANDWIDTH COMPARISON BETWEEN DATA RATES & MOD/SCHEMES ON BEHALF OF SYMBOL TECHNOLOGIES The sample used for testing was a Symbol 21-21160 Module Serial Number TH4290078, this unit is the same build standard (Rev 3.5) as those recorded in BABT Test Reports OR611511/01 Issue 01, OR611511/02 Issue 04 RO611511/01 Issue 02, RO611511/02 Issue 02 and RO611511/03 Issue 01. BABT, Segensworth Road Fareham Hampshire, United Kingdom, PO15 5RH Tel: +44(0) 1329 443300 Website: www.tuvps.co.uk RO611511 Bandwidth Comparisons Page 2 of 4 Power The EUT was connected to the peak power analyser via a 20dB attenuator & cable. The previously measured path loss was then offset in the peak power analyser and the average power measured. Average Power 2.4GHz RLAN Sample No OS 611511/24 Temperature 23°C Humidity 44% Operating Frequency 2412MHz 2442MHz 2472MHz Data Rate/Mod/Sch Average Power dBm 802.11b 1 Mbps (BPSK) 17.29 17.25 17.29 2 Mbps (BPSK) 17.53 17.35 17.45 5.5 Mbps (CCK) 17.59 17.58 17.54 11 Mbps (CCK) 17.63 17.60 17.58 802.11g 6 Mbps (OFDM) 16.09 16.10 16.16 9 Mbps (OFDM) 15.98 15.99 16.05 12 Mbps (OFDM) 14.29 14.49 14.50 18 Mbps (OFDM) 14.40 14.53 14.72 24 Mbps (OFDM) 11.90 12.03 12.12 36Mbps (OFDM) 11.84 11.91 11.99 48 Mbps (OFDM) 10.20 10.37 10.80 54 Mbps (OFDM) 10.12 9.95 10.03 Average Power 5GHz Hyper LAN Sample No OS 611511/24 Temperature 23°C Humidity 44% Operating Frequency 5180MHz 5240MHz 5320MHz 5745MHz 5805MHz 5830MHz Data Rate/Mod/Sch Average Power dBm 6 Mbps (OFDM) 16.14 16.20 16.06 16.15 16.12 16.04 9 Mbps (OFDM) 15.94 15.98 16.03 16.04 16.01 15.82 12 Mbps (OFDM) 14.79 15.04 14.21 14.15 15.01 14.35 18 Mbps (OFDM) 14.66 14.40 14.47 14.42 14.21 14.39 24 Mbps (OFDM) 14.07 11.47 11.81 12.04 12.40 12.30 36Mbps (OFDM) 11.59 11.67 11.41 11.82 12.28 12.14 48 Mbps (OFDM) 10.84 10.69 10.13 10.08 10.14 10.34 54 Mbps (OFDM) 9.61 9.51 9.71 9.80 10.04 10.05 BABT, Segensworth Road Fareham Hampshire, United Kingdom, PO15 5RH Tel: +44(0) 1329 443300 Website: www.tuvps.co.uk RO611511 Bandwidth Comparisons Page 3 of 4 6dB Bandwidth The EUT was transmitted at the maximum output power at all data rates via a 20dB attenuator & cable to the spectrum analyser. The analyser settings were adjusted to display the resultant trace on the screen with 100kHz Res & 300kHz Vid coupling. Using a peak detector on Max hold/view, the delta markers were used to display the 6dB bandwidth from the peak point of the signal. 6dB Bandwidth 2.4GHZ RLAN 6dB B/W Sample No OS 611511/24 Temperature 23°C Humidity 44% Operating Frequency 2412MHz 2442MHz 2472MHz Data Rate/Mod/Sch 6dB Bandwidth MHz 802.11b 1 Mbps (BPSK) 12.986 12.986 12.966 2 Mbps (BPSK) 12.665 12.485 12.645 5.5 Mbps (CCK) 12.826 12.806 12.806 11 Mbps (CCK) 12.345 12.325 12.164 802.11g 6 Mbps (OFDM) 16.513 16.493 16.473 9 Mbps (OFDM) 16.513 16.493 16.473 12 Mbps (OFDM) 16.513 16.493 16.473 18 Mbps (OFDM) 16.513 16.493 16.473 24 Mbps (OFDM) 16.513 16.493 16.473 36Mbps (OFDM) 16.513 16.493 16.473 48 Mbps (OFDM) 16.513 16.493 16.473 54 Mbps (OFDM) 16.513 16.493 16.473 BABT, Segensworth Road Fareham Hampshire, United Kingdom, PO15 5RH Tel: +44(0) 1329 443300 Website: www.tuvps.co.uk RO611511 Bandwidth Comparisons Page 4 of 4 26dB emission bandwidth The EUT was connected to a spectrum analyser via a 20dB attenuator & cable. The RBW was set to 100kHz & VBW to 300kHz. The span was adjusted to encompass the whole of the fundamental. The peak detector was selected and the trace set to view. The –26dB points were searched for using the Marker delta function from the peak of the trace. The resultant difference in markers was recorded as the Emission Bandwidth. Emission Bandwidth 5GHz 26dB B/W Sample No OS 611511/24 Temperature 23°C Humidity 44% Operating Frequency 5180MHz 5240MHz 5320MHz 5745MHz 5805MHz 5830MHz Data Rate/Mod/Sch 26dB Emission Bandwidth MHz 6 Mbps (OFDM) 34.469 35.271 35.271 30.140 33.186 31.272 9 Mbps (OFDM) 36.072 36.072 35.271 27.896 34.469 29.509 12 Mbps (OFDM) 29.820 29.820 28.056 22.124 25.972 24.218 18 Mbps (OFDM) 29.656 28.537 27.896 21.323 23.246 22.936 24 Mbps (OFDM) 26.293 23.246 21.002 18.597 19.078 18.607 36Mbps (OFDM) 19.078 19.078 19.078 18.437 18.597 18.607 48 Mbps (OFDM) 17.956 18.116 17.796 17.956 17.796 17.806 54 Mbps (OFDM) 18.277 18.277 18.116 18.277 18.116 18.126 MEASUREMENT UNCERTAINTY For a 95% confidence level, the measurement uncertainties for defined systems are: - Test Discipline Frequency / Parameter MU For Emissions Bandwidth ±210.894kHz ±0.5dB For Output Power Not Applicable ±0.5dB

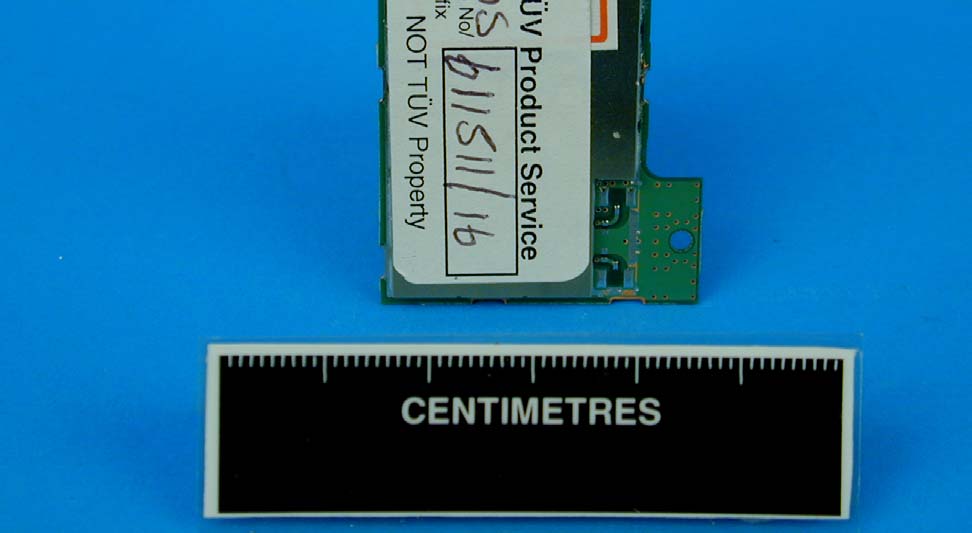

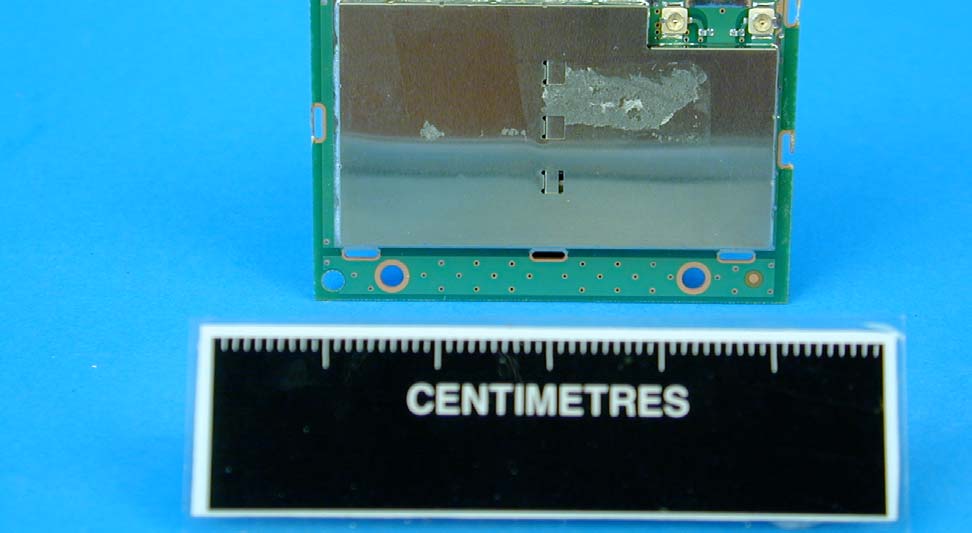

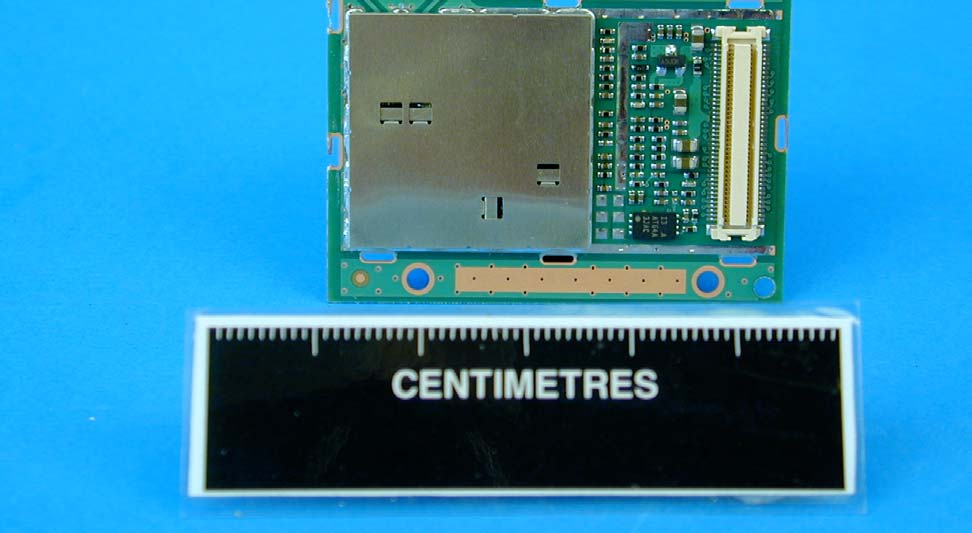

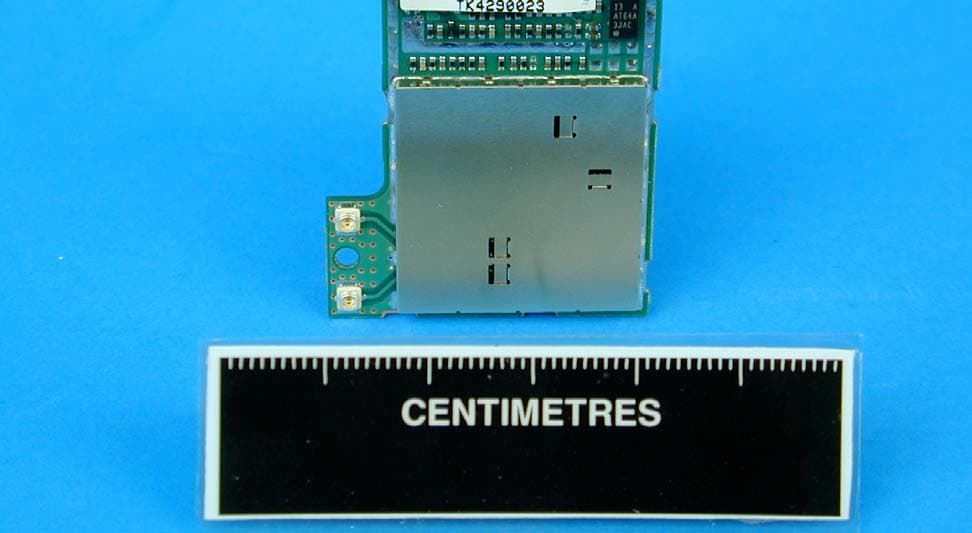

FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 1 of 5 PHOTOGRAPHS OF EQUIPMENT Front View 21-21160-01 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 2 of 5 PHOTOGRAPHS OF EQUIPMENT Rear View 21-21160-01 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 3 of 5 PHOTOGRAPHS OF EQUIPMENT Front View 21-21160-02 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 4 of 5 PHOTOGRAPHS OF EQUIPMENT Rear View 21-21160-02 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 5 of 5 PHOTOGRAPHS OF EQUIPMENT View Showing Extender Cards & Antennas

FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC Symbol 802.11a/g Wireless LAN Radio Module ID Label/Location

FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 1 of 4 PHOTOGRAPHS OF EQUIPMENT Internal View 1 21-21160-01 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 2 of 4 PHOTOGRAPHS OF EQUIPMENT Internal View 2 21-21160-01 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 3 of 4 PHOTOGRAPHS OF EQUIPMENT Internal View 3 21-21160-02 FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 4 of 4 PHOTOGRAPHS OF EQUIPMENT Internal View 4 21-21160-02

REPORT ON FCC CFR 47: Parts 15 B, C and E Testing in support of an Application for Grant of Equipment Authorisation of a Symbol 802.11a/b/g RLAN Module (2400-2483.5MHz, 5150-5250MHz, 5250-5350MHz and 5725-5830MHz) FCC ID: H9P2121160 Report No OR611511/02 Issue 4 September 2004 BABT, Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44 (0)1329 443300 Website: www.tuvps.co.uk Report No OR611511/02 Issue 4Page 1 of 193 REPORT ONLimited FCC CFR 47: Parts 15 B, C and E Testing in support of an Application for Grant of Equipment Authorisation of a Symbol 802.11a/b/g RLAN Module (2400-2483.5MHz, 5150-5250MHz, 5250-5350MHz and 5725-5830MHz) FCC ID: H9P2121160 Report No OR611511/02 Issue 4 September 2004 PREPARED FORSymbol Technologies Inc One Symbol Plaza Holtsville NY 11742-1300 New York United States of America PREPARED BY J Plummer Technical Author APPROVED BY C GouldM Jenkins UKAS EMC SignatoryUKAS Radio Signatory DATED 24-09-04 24-09-04 DISTRIBUTIONSymbolCopy 1 BABTCopy 2 Copy No ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 B, C & E. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; S HartleyA GuyG LawlerJ Holcombe B AirsR Henley FCC ID: H9P2121160 Report No OR611511/02 Issue 4Page 2 of 193 CONTENTS SectionPage No 1REPORT SUMMARY 1.1Status..................................................................................................................................5 1.2Introduction .........................................................................................................................6 1.3Product information............................................................................................................7 1.4Brief Summary of Results (and Observations) ...................................................................10 1.5Test Conditions (Configuration)..........................................................................................13 1.6Opinions and Interpretations ..............................................................................................13 1.7Deviations from the Standard.............................................................................................13 1.8Modification Record............................................................................................................13 1.9Alternative Test Site ...........................................................................................................13 2TEST DETAILS Part 15 B - 2.4GHz RLAN Band 2.1Spurious Radiated Emissions ............................................................................................15 2 TEST DETAILS Part 15 B 5.15GHz-5.25GHz and 5.25GHz-5.35GHz – U-NII Bands I & II 2.2Spurious Radiated Emissions ............................................................................................18 2TEST DETAILS Part 15 B 5725MHz-5825MHz– U-NII Band III 2.3Spurious Radiated Emissions ............................................................................................21 2TEST DETAILS Part 15 C 2.4GHz Band 2.4Measurement At The Band Edge .......................................................................................24 2.5 Conducted Emissions On Power Lines..............................................................................29 2.66dB Bandwidth ...................................................................................................................33 2.7Maximum Peak Output Power (Conducted).......................................................................42 2.8Spurious Conducted Emissions On Antenna Port .............................................................44 2.9Spurious Radiated Emissions ............................................................................................69 2.10Peak Power Spectral Density .............................................................................................75 FCC ID: H9P2121160 Report No OR611511/02 Issue 4Page 3 of 193 CONTENTS - continued Section 2TEST DETAILS Part 15 E 5.15GHz-5.25GHz and 5.25GHz-5.35GHz – U-NII Bands I & II 2.11Peak Power Spectral Density .............................................................................................86 2.12Peak Output Power ............................................................................................................92 2.13Emissions Bandwidth .........................................................................................................94 2.14Peak Excursion................................................................................................................... 100 2.15 Spurious Radiated Emissions ............................................................................................ 106 2.16 Spurious Conducted Emissions on Power Lines ............................................................... 112 2.17 Measurement at the Band Edge......................................................................................... 117 2.18 Conducted Emission .......................................................................................................... 120 2.19 Frequency Stability Under Temperature ............................................................................ 137 2TEST DETAILS Part 15 E 5725MHz-5825MHz– U-NII Band III 2.20 Peak Power Spectral Density............................................................................................. 139 2.21 Peak Output Power ............................................................................................................ 144 2.22 Emissions Bandwidth ......................................................................................................... 146 2.23 Peak Excursion................................…

Text truncated - open the document above for the full version.

FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 1 of 2 PHOTOGRAPHS OF TEST SET UP Radiated Emissions FCC ID: H9P2121160 SYMBOL TECHNOLOGIES INC 802.11a/b/g RLAN Module 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 2 of 2 PHOTOGRAPHS OF TEST SET UP Conducted Emissions
