H9PTC75AHTouch Computer

We reserves the right to make changes to any product to improve reliability, function, or design. We do not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which our products might be used. An implied license exists only for equipment, circuits, and subsystems contained in the products. Warranty For the complete hardware product warranty statement, go to: http:// www.zebra.com/warranty. Service Information If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Global Support Center at: http://www.zebra.com/ support. For the latest version of this guide go to: http://www.zebra.com/support. TC75 REGULATORY GUIDE Zebra Technologies Corporation Lincolnshire, IL, U.S.A. http://www.zebra.com Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The Symbol logo is a registered trademark of Symbol Technologies, Inc., a Zebra Technologies company. © 2015 Symbol Technologies, Inc. All Rights Reserved. MN001704A01 Rev. A — February 2015 Regulatory Information This device is approved under Symbol Technologies, Inc., a Zebra Technologies company. This guide applies to the Model Number: TC75AH and TC75BH. All Zebra devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Local language translations are available at the following website: http://www.zebra.com/support. Any changes or modifications to Zebra equipment, not expressly approved by Zebra, could void the user's authority to operate the equipment. Declared maximum operating temperature: 50°C. UL Listed Products with GPS Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the Global Positioning System (GPS) hardware, operating software or other aspects of this product. UL has only tested for fire, shock or casualties as outlined in UL's Standard(s) for Safety for Information Technology Equipment, UL60950-1. UL Certification does not cover the performance or reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS RELATED FUNCTIONS OF THIS PRODUCT. Bluetooth ® Wireless Technology This is an approved Bluetooth product. For more information or to view the End Product Listing, please visit http://www.bluetooth.org/ tpg/listings.cfm. Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying the radio(s) are approved for use in the following countries: United States, Canada, Japan, China, S. Korea, Australia, and Europe. Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at http://www.zebra.com/doc. Note: Europe includes, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. Country Roaming This device incorporates the International Roaming feature (IEEE802.11d) which will ensure the product operates on the correct channels for the particular country of use. Frequency of Operation – IC 5 GHz Only The use in the UNII (Unlicensed National Information Infrastructure) band 1 (5150-5250 MHz) is restricted to Indoor Use Only; any other use will make the operation of this device illegal. Industry Canada Statement Caution: The device for the band 5150 - 5250 MHz is only for indoor usage to reduce potential for harmful interference to co- Channel mobile satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250 - 5350 MHz and 5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices. Avertissement: Le dispositive fonctionnant dans la bande 5150 - 5250 MHz est réservé uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bands 5250 - 5350 MHz et 5650 - 5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. 2.4 GHz The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The range of channels is limited by firmware. Health and Safety Recommendations Ergonomic Recommendations • Reduce or eliminate repetitive motion • Maintain a neutral postures • Reduce or eliminate excessive force • Keep objects that are used frequently within easy reach • Perform tasks at correct heights • Reduce or eliminate vibration • Reduce or eliminate direct pressure • Provide adjustable workstations • Provide adequate clearance • Provide a suitable working environment • Improve work procedures Vehicle Installation RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles (including safety systems). Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle. An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, se…

Text truncated - open the document above for the full version.

Regulatory Engineering Symbol Technologies, Inc., One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date:February 5, 2015 Address: One Motorola Plaza Holtsville NY 11742-1300 USA POWER OF ATTORNEY To whom it may concern, Please be notified that we, Symbol Technologies, Inc., have assigned Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan as being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of BV CPS Taoyuan, on the matters of relating to all processes required in the FCC matters and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the following product: FCC ID: H9PTC75AH Please send any acknowledgement or response to Daniel Lee of BV CPS Taoyuan directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Yours sincerely, _______________________ Andrew Ho Regulatory Manager Tel: +65 6643 9326 E-mail: [email protected]

Regulatory Engineering Symbol Technologies, Inc., One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: February 5, 2015 Address: One Motorola Plaza Holtsville NY 11742-1300 USA Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Subject: Letter of Authorization As the designated signatory for FCC application under the Symbol Technologies, Inc., Grantee code H9P, I hereby authorize Andrew Ho to sign all corresponding application documents relating to the processes of FCC Approval. This authorization is limited to the following Model(s): TC75AH If you have any questions regarding the authorization, please don’t hesitate to contact me. Respectfully, Mark S. Luksich DMTS, Regulatory 631-738-5134 [email protected]

Regulatory Engineering Symbol Technologies, Inc., One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: February 5, 2015 Address: One Motorola Plaza Holtsville NY 11742-1300 USA Federal Communications Commission Equipment Authorization Division RE: Certification Application FCC ID: H9PTC75AH To the Commission: Long-Term Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Parts List  Tune-up Procedure  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards, _______________________ Andrew Ho Regulatory Manager Tel: +65 6643 9326 E-mail: [email protected]

Regulatory Engineering Symbol Technologies, Inc., One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: February 5, 2015 Address: One Motorola Plaza Holtsville NY 11742-1300 USA Federal Communications Commission Equipment Authorization Division RE: Certification Application FCC ID: H9PTC75AH To the Commission: Short-Term Confidentiality Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Motorola Solutions, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Best Regards, _______________________ Andrew Ho Regulatory Manager Tel: +65 6643 9326 E-mail: [email protected]

Regulatory Engineering Symbol Technologies, Inc., One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: February 5, 2015 Address: One Motorola Plaza Holtsville NY 11742-1300 USA Federal Communications Commission Authorization and Evaluation Division SUBJECT: FCC Application for FCC ID: H9PTC75AH To the Commission: We, Symbol Technologies, Inc., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Yours sincerely, Andrew Ho Regulatory Manager Tel: +65 6643 9326 E-mail: [email protected]

Regulatory Engineering Symbol Technologies, Inc., One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.zebra.com Date: February 5, 2015 Statement We, Symbol Technologies, Inc., FCC ID: H9PTC75AH, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Yours sincerely, _________________________ Andrew Ho Regulatory Manager Tel: +65 6643 9326 E-mail: [email protected]

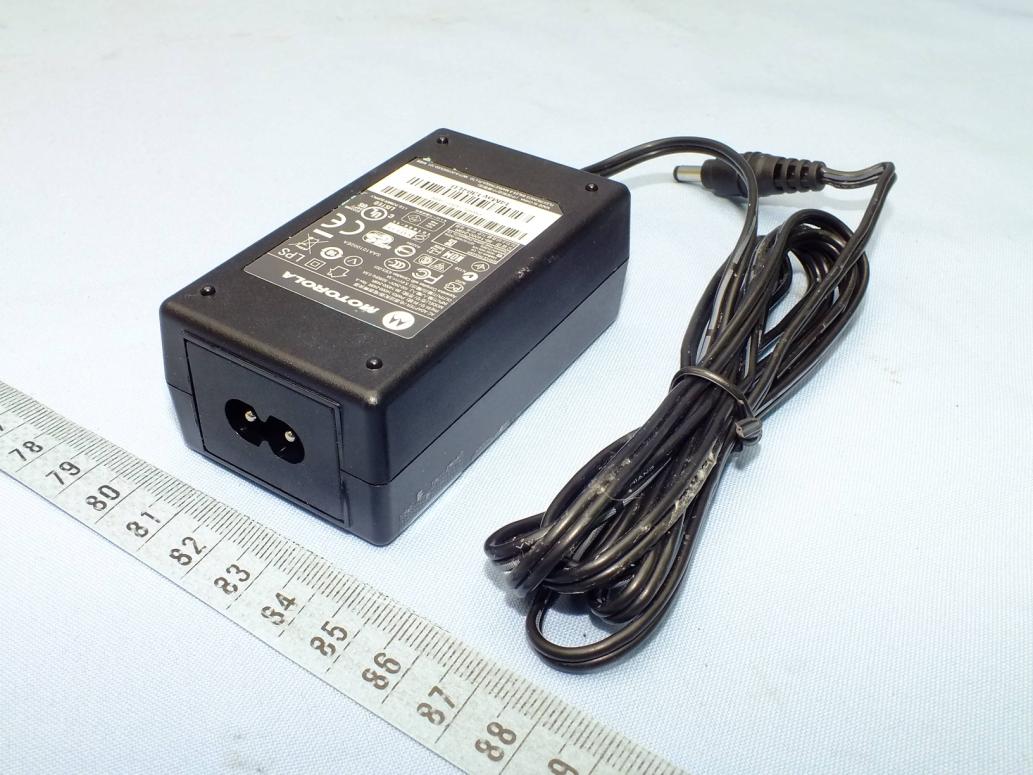

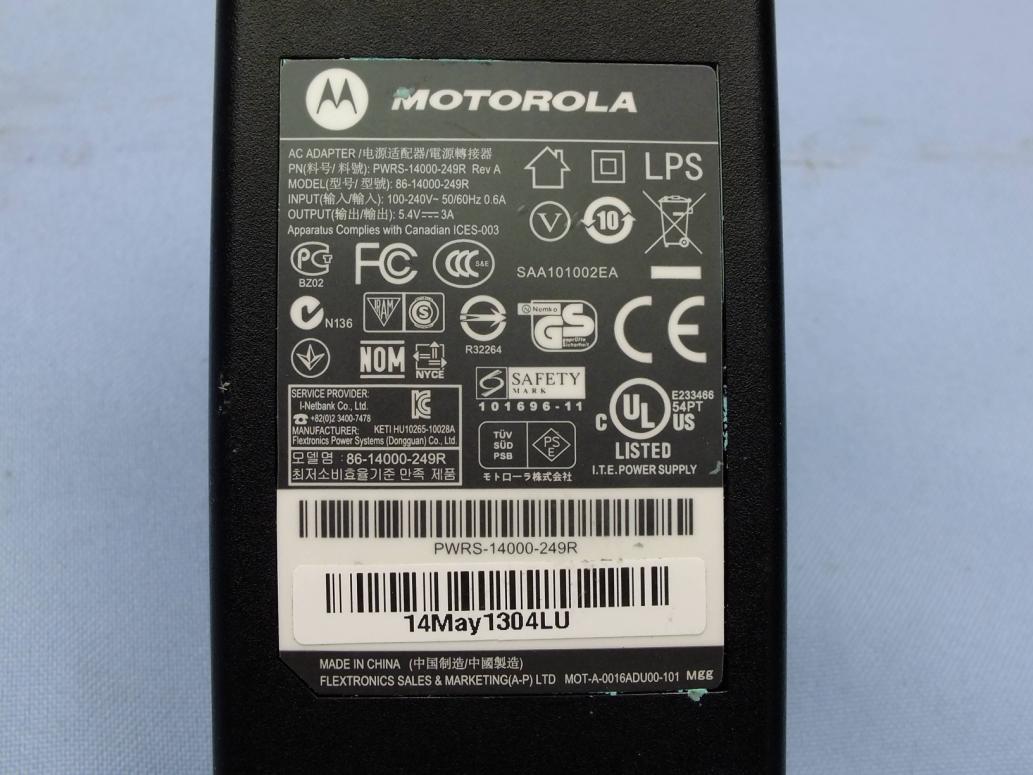

Report No.: 141117C22 1 of 22 CONSTRUCTION PHOTOS OF EUT Report No.: 141117C22 2 of 22 Report No.: 141117C22 3 of 22 Report No.: 141117C22 4 of 22 Report No.: 141117C22 5 of 22 Report No.: 141117C22 6 of 22 Report No.: 141117C22 7 of 22

(Printing Drawing) MODELNO.: PARTNAME: A/WNO.: SCALE: UNIT: SHEET REVDESCRIPTIONSIGNDATE 1:1 mm 1 WistronIncorporated OF 1 LBL SPEC FOR US(SKU1-3G) QP200(Pollux)-SYSTEM 40.18R04.041 Moto Logo:Pantone 877C (Instruction Drawing) COMPLIES WITH 21CFR1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007 AND IEC 60825-1:2001, 2007 (Ed.1.2, 2.0); EN 60825-1:2007 & IEC 62471:2006 (Ed.1.0); EN 62471:2008. MODEL: TC75AH P/N: XXXXXXXXXXXXX IMEI: XXXXXXXXXXXXXXX (S) S/N: XXXXXXXXXXXXXX MFD: XXXXXXX X DV WIFI MAC ID: XXXXXXXXXXXXXXX Printed by Wistron’s Factory (REF 40.18R04.021) Barcode Area Size:28(W)x35(H) mm HAC COMPLIES WITH 21CFR1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007 AND IEC 60825-1:2001, 2007 (Ed.1.2, 2.0); EN 60825-1:2007 & IEC 62471:2006 (Ed.1.0); EN 62471:2008. CAUTION- CLASS 2 LASER, 1M LED LIGHT WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VORSICHT-LASERLICHT KLASSE 2, LED KLASSE 1M WENN ABDECKUNG GEÖFFNET NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN. ATTENTION- LASER CLASSE 2, 1M LED LIGHT EN CAS D'OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU OU REGARDER DIRECTEMENT AVEC DES INSTRUMENTS OPTIQUES. 注意:打開時有2類 激光,1M類LED幅射 請勿直視或通過光 學儀器直視光束 CAUTION- CLASS 2 LASER, 1M LED LIGHT WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. VORSICHT-LASERLICHT KLASSE 2, LED KLASSE 1M WENN ABDECKUNG GEÖFFNET NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN. ATTENTION- LASER CLASSE 2, 1M LED LIGHT EN CAS D'OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU OU REGARDER DIRECTEMENT AVEC DES INSTRUMENTS OPTIQUES. 注意:打開時有2類 激光,1M類LED幅射 請勿直視或通過光 學儀器直視光束 REVIEWED: APPROVED: DRAWN: 1. MATERIAL: WHITE POLYESTER (T=0.075mm) +0.02mm (+可打印霧P.P.) 2.T HE MATERIAL MUSE BE APPROVED BY UL 3. ADHESIVE: 壓花永久膠. 4. PRINT COLOR:LETTERS-----------PANTONE COOL GRAY 9C BACKGROUND-----------BLACK MOTO LOGO-----------PANTONE 877C 5. PRINT TOLERANCE OF DIMENSION: +0mm/-0.2mm MVDG00 Dora Chang 1/26/2015 MVDG0 Vicki Jan 1/26/2015 5.4V 3A CAN ICES-3(B)/ NMB-3(B) FCC ID: H9PTC75AH IC: 1549D-TC75AH ANATEL: AAAA-YY-BBB CNC: XXXXXXXXXXXXX Made in China Factory ID: KS ® Symbol Technologies, Inc. Holtsville, N.Y. 11742 Size: To be legible ® Minimum Size Required Size: 4pt(3.32pt) Symbol Technologies, Inc. Holtsville, N.Y. 11742 ® Symbol Technologies, Inc. Holtsville, N.Y. 11742 HAC HAC Line mark 88.5mm 18.7mm 58.5mm 18.74mm 5.4V 3A CAN ICES-3(B)/ NMB-3(B) FCC ID: H9PTC75AH IC: 1549D-TC75AH ANATEL: AAAA-YY-BBB CNC: XXXXXXXXXXXXX Made in China Factory ID: KS

Battery Door Barcode label Spec label SIM Door Laser label

Report No.: 141117C22 8 of 22 Report No.: 141117C22 9 of 22 Report No.: 141117C22 10 of 22 Report No.: 141117C22 11 of 22 Report No.: 141117C22 12 of 22 Report No.: 141117C22 13 of 22 Report No.: 141117C22 14 of 22 Report No.: 141117C22 15 of 22 Report No.: 141117C22 16 of 22 Report No.: 141117C22 17 of 22 Report No.: 141117C22 18 of 22 Report No.: 141117C22 19 of 22 Report No.: 141117C22 20 of 22 Report No.: 141117C22 21 of 22 Report No.: 141117C22 22 of 22

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 65 Report No. : SA141117C22 Issued Date : Feb. 16, 2015 FCC SAR Test Report Report No. : SA141117C22 Applicant : Symbol Technologies, Inc. Address : One Motorola Plaza, Holtsville, NY 11742-1300 USA Product : Touch Computer FCC ID : H9PTC75AH Brand : Symbol Model No. : TC75AH Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 / KDB 941225 D01 v02 KDB 941225 D02 v02r02 / KDB 941225 D03 v01 / KDB 941225 D05 v02r03 KDB 941225 D06 v01r01 Sample Received Date : Nov. 17, 2014 Date of Testing : Nov. 27, 2014 ~ Feb. 06, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 65 Report No. : SA141117C22 Issued Date : Feb. 16, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 7 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 7 3.2 SPEAG DASY System ................................................................................................................................................. 7 3.2.1 Robot .................................................................................................................................................................. 8 3.2.2 Probes ................................................................................................................................................................ 9 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 9 3.2.4 Phantoms ......................................................................................................................................................... 10 3.2.5 Device Holder ................................................................................................................................................... 11 3.2.6 System Validation Dipoles ................................................................................................................................ 11 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 12 3.3 SAR System Verification ............................................................................................................................................ 15 3.4 SAR Measurement Procedure ................................................................................................................................... 16 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 16 3.4.2 Volume Scan Procedure ................................................................................................................................... 16 3.4.3 Power Drift Monitoring ...................................................................................................................................... 17 3.4.4 Spatial Peak SAR Evaluation .......................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Feb. 16, 2015 Report No. : SA141117C22 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Annual Confirmation of SAR Reference Dipole Model: D1900V2 S/N : 5d036 Measured Date : Jan. 20, 2014 Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Note 1900 Head TSL Return Loss -25.996 -25.844 -0.6 % ±20 % PASS Real Impedance 51.111 51.555 0.444 ±5 Ω PASS Imaginary Impedance 4.957 5.0363 0.0793 ±5 Ω PASS 1900 Body TSL Return Loss -24.508 -24.067 -1.8 % ±20 % PASS Real Impedance 47.498 46.556 -0.942 ±5 Ω PASS Imaginary Impedance 5.2422 4.9878 -0.2544 ±5 Ω PASS 1900 MHz, Head TSL 1900 MHz, Body TSL

Report No.: RF141117C22-2 1 of 125 Report Format Version 5.3.0 FCC TEST REPORT (15.407) REPORT NO.: RF141117C22-2 MODEL NO.: TC75AH FCC ID: H9PTC75AH RECEIVED: Nov. 17, 2014 TESTED: Dec. 06, 2014 ~ Jan. 25, 2015 ISSUED: Feb. 16, 2015 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Motorola Plaza, Holtsville, NY 11742-1300 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF141117C22-2 2 of 125 Report Format Version 5.3.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..............................................................................................................4 1. CERTIFICATION ..................................................................................................................................5 2. SUMMARY OF TEST RESULTS .........................................................................................................6 2.1 MEASUREMENT UNCERTAINTY...............................................................................................6 3. GENERAL INFORMATION ..................................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................7 3.2 DESCRIPTION OF TEST MODES ..............................................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 11 3.3 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 14 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................... 14 3.4 DUTY CYCLE TEST SIGNAL ................................................................................................... 15 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 19 4. TEST TYPES AND RESULTS .......................................................................................................... 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................... 20 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 20 4.1.3 TEST INSTRUMENTS ................................................................................................. 21 4.1.4 TEST PROCEDURES ................................................................................................. 23 4.1.5 DEVIATION FROM TEST STANDARD ....................................................................... 23 4.1.6 TEST SETUP ............................................................................................................... 24 4.1.7 EUT OPERATING CONDITIONS ................................................................................ 25 4.1.8 TEST RESULTS........................................................................................................... 26 4.2 CONDUCTED EMISSION MEASUREMENT ......................................................................... 100 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................... 100 4.2.2 TEST INSTRUMENTS ............................................................................................... 100 4.2.3 TEST PROCEDURES ............................................................................................... 101 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................... 101 4.2.5 TEST SETUP ............................................................................................................. 102 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 102 4.2.7 TEST RESULTS......................................................................................................... 103 4.3 TRANSMIT POWER MEASUREMENT .................................................................................. 105 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT .................................................. 105 4.3.2 TEST SETUP ............................................................................................................. 105 4.3.3…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Set UUT as Client without radar detection mode (Radar injected into Master) Radar Master UUT

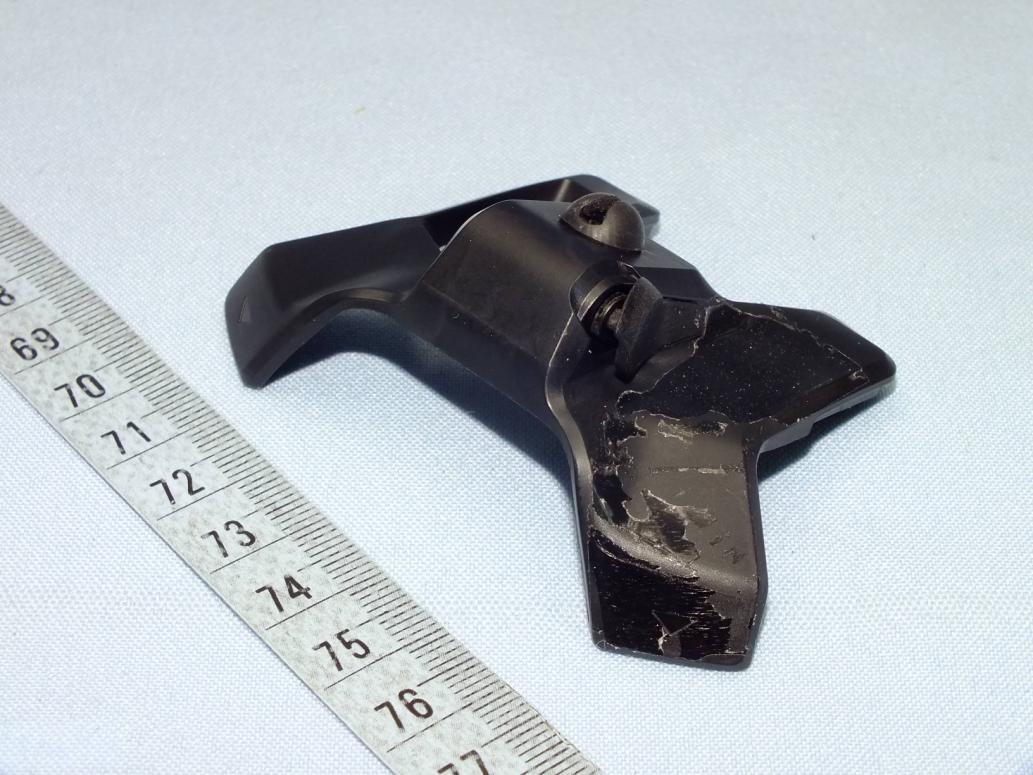

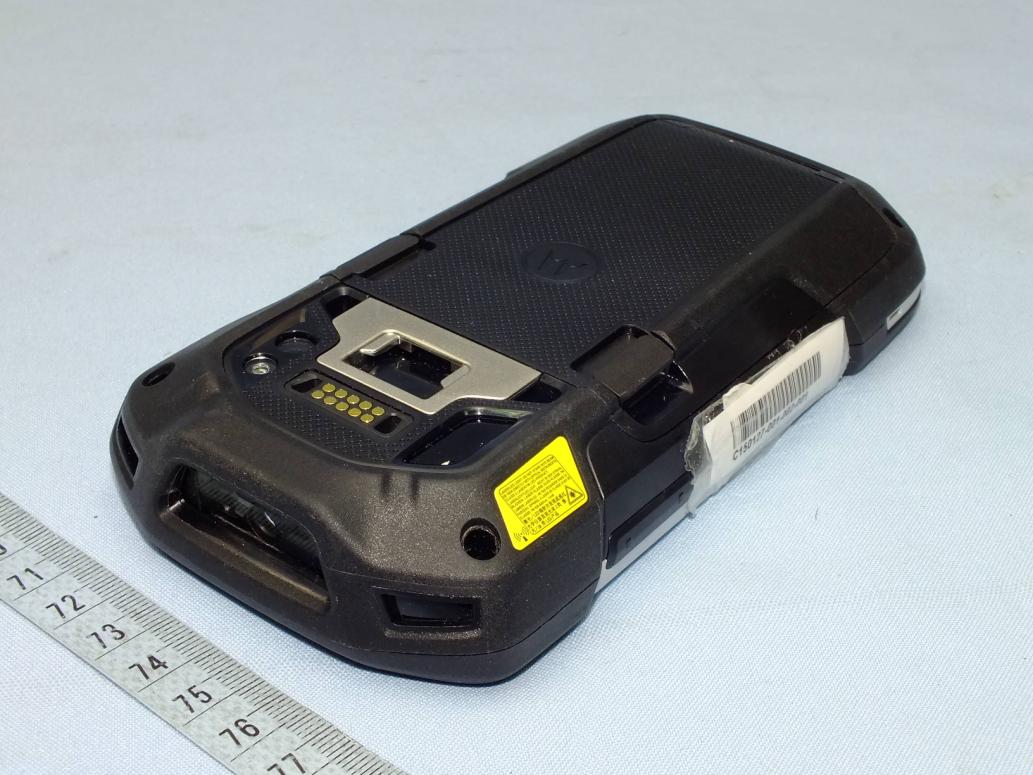

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Feb. 16, 2015 Report No. : SA141117C22 Appendix D. Photographs of EUT and Setup FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA141117C22 <Photographs of EUT> EUT – Front View EUT – Rear View Battery – Front View Battery – Rear View Holster – Front View Holster – Rear View FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA141117C22 Earphone 1 Earphone 2 <Antenna Location> The separation distance for antenna to edge: Antenna To Top Side (mm) To Bottom Side (mm) To Left Side (mm) To Right Side (mm) WWAN 130 3.16 1.93 1.93 WLAN / BT 6.95 110.72 62.53 4.58 EUT Top Side EUT Bottom Side EUT Right Side EUT Left Side WLAN / BT Antenna <EUT Front View> WWAN Antenna FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA141117C22 <Photographs of SAR Setup> Right Cheek Right Tilted Left Cheek Left Tilted FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA141117C22 Front Face of EUT with 1.5 cm Gap (EUT Standalone) Rear Face of EUT with 1.5 cm Gap (EUT Standalone) Rear Face of EUT with 1.5 cm Gap (EUT + Earphone1) Rear Face of EUT with 1.5 cm Gap (EUT + Earphone2) Front Face of EUT with 0 cm Gap (EUT + Holster) FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA141117C22 Front Face of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap Left Side of EUT with 1.0 cm Gap Right Side of EUT with 1.0 cm Gap Top Side of EUT with 1.0 cm Gap Bottom Side of EUT with 1.0 cm Gap

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (For Bluetooth) 2 CONDUCTED EMISSION TEST (For WLAN 2.4GHz) 3 CONDUCTED EMISSION TEST (For WLAN 5GHz) 4 RADIATED EMISSION TEST (For WLAN 2.4GHz & Bluetooth) MODE A 5 MODE B 6 MODE C 7 RADIATED EMISSION TEST (For WLAN 5GHz) (5180-5240MHz) MODE A 8 MODE B 9 MODE C 10 RADIATED EMISSION TEST (For WLAN 5G…
