H9P2192955802.11a/b/g WLAN SDIO Radio Module

21-92955 Integration Guide Copyright 2006 Symbol Technologies, Inc. Page 1 of 11 21-92955: 802.11abg SDIO radio module Integration Guide USA – FCC 28 Mar 07 21-92955 Integration Guide Copyright 2006 Symbol Technologies, Inc. Page 2 of 11 Table of Contents 1. INTRODUCTION 3 1.1 BACKGROUND 3 1.2 PURPOSE 3 1.3 PART NUMBER 3 1.4 KEY FEATURES AND STANDARDS SUPPORTED 3 2. HARDWARE 4 2.1 INTRODUCTION 4 2.2 OPERATING CHANNELS 4 2.3 ELECTRICAL INTERFACE 6 3. REGULATORY PRODUCT COMPLIANCE 6 3.1 FINAL PRODUCT COMPLIANCE 6 3.2 REFERENCE ANTENNA 7 PRODUCT MARKINGS 8 3.3 8 3.4 NATIONAL COUNTRY REQUIREMENTS 8 3.4.1 United States of America 8 3.5 STATEMENTS REQUIRED FOR THE USER GUIDE 9 3.5.1 General Statements 9 3.5.2 FCC Statements 9 21-92955 Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 3 of 11 1. Introduction 1.1 Background 21-92955 is the next generation SDIO radio module for Symbol embedded solutions and is intended for handheld applications. 1.2 Purpose The purpose of this document is to define the functional characteristics (electrical, mechanical) of the module and provide regulatory information helpful to the product teams to integrate or embed the module in a variety of systems. A section outlining Good Design Practices is also incorporated to help with the overall integration of the device. 1.3 Part Number Part NumberSKU 21-92955-01 Diversity version with RF connection through BGA pins 1.4 Key Features and Standards supported The module supports all required modes of operation as an 802.11g and 802.11a Mobile Unit (MU). In 802.11g mode, the radio supports three different modulation modes: Legacy 1 and 2Mbps, Complimentary Code Keying (CCK), and Orthogonal Frequency Division Multiplexing (OFDM). The radio supports the following 12 data rates in 802.11b/g mode: Data Rate (Mbps) Modulation 1 DBPSK 2 DQPSK 5.5 CCK 6 OFDM with BPSK Carrier Modulation 9 OFDM with BPSK Carrier Modulation 11 CCK 12 OFDM with QPSK Carrier Modulation 18 OFDM with QPSK Carrier Modulation 24 OFDM with 16QAM Carrier Modulation 36 OFDM with 16QAM Carrier Modulation 21-92955 Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 4 of 11 48 OFDM with 64QAM Carrier Modulation 54 OFDM with 64QAM Carrier Modulation The radio supports 8 data rates in 802.11a mode: Data Rate (Mbps) Modulation 6 OFDM with BPSK Carrier Modulation 9 OFDM with BPSK Carrier Modulation 12 OFDM with QPSK Carrier Modulation 18 OFDM with QPSK Carrier Modulation 24 OFDM with 16QAM Carrier Modulation 36 OFDM with 16QAM Carrier Modulation 48 OFDM with 64QAM Carrier Modulation 54 OFDM with 64QAM Carrier Modulation 2. Hardware 2.1 Introduction The 21-92955 module can be used in handheld mobile devices to provide wireless network access. The module communicates using Radio Frequencies (RF) between two or more users or between a user and the wired network. The module implements the IEEE 802.11a and IEEE802.11g physical (RF) specification. The chipset used provides for modulation, demodulation, spreading and despreading of the RF signals. 2.2 Operating Channels Channel Number Channel Frequency (MHz) Countries 1 2412 USA, Canada, EU, Japan 2 2417 USA, Canada, EU, Japan 3 2422 USA, Canada, EU, Japan 4 2427 USA, Canada, EU, Japan 5 2432 USA, Canada, EU, Japan 6 2437 USA, Canada, EU, Japan 7 2442 USA, Canada, EU, Japan 8 2447 USA, Canada, EU, Japan 9 2452 USA, Canada, EU, Japan 10 2457 USA, Canada, EU, Japan 11 2462 USA, Canada, EU, Japan 21-92955 Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 5 of 11 12 2467 EU, Japan 13 2472 EU, Japan 14 2484 Japan Table 1. IEEE 802.11g Channels UNII BAND Channel Number Channel Frequency (MHz) Countries 240 4920 Japan 244 4940 Japan 248 4960 Japan 252 4980 Japan 5040 Japan 5060 Japan 5080 Japan 34 5170 Japan 36 5180 USA, Canada, EU, Japan 38 5190 Japan 40 5200 USA, Canada, EU, Japan 42 5210 Japan 44 5220 USA, Canada, EU, Japan 46 5230 Japan Lower Band 48 5240 USA, Canada, EU, Japan 52 5260 USA, Canada, EU, Japan 56 5280 USA, Canada, EU, Japan 60 5300 USA, Canada, EU, Japan Middle Band 64 5320 USA, Canada, EU, Japan 100 5500 USA, Canada, EU, Japan 104 5520 USA, Canada, EU, Japan 108 5540 USA, Canada, EU, Japan 112 5560 USA, Canada, EU, Japan 116 5580 USA, Canada, EU, Japan 120 5600 USA, Canada, EU, Japan 124 5620 USA, Canada, EU, Japan 128 5640 USA, Canada, EU, Japan 132 5660 USA, Canada, EU, Japan 136 5680 USA, Canada, EU, Japan 140 5700 USA, Canada, EU, Japan 149 5745 USA, Canada 153 5765 USA, Canada 157 5785 USA, Canada 161 5805 USA, Canada Upper (ISM) 165 5825 USA, Canada Table 2. IEEE 802.11a Channels 21-92955 Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 6 of 11 2.3 Electrical Interface The electrical interface for the module is SDIO. The chipset used supports this interface; therefore no external component is required. The host must support the SDIO interface as well. 3. Regulatory Product Compliance Legal Disclaimer: This Guide may contain information on regulatory matters. The information should be used with the understanding that Symbol is not engaged in rendering any legal, regulatory or other professional opinion. Each country has specific laws and regulations governing the use of radio communications. Please consult the official code for each country of interest. Symbol does not warrant the accuracy of the information contained herein and accepts no liability or responsibility for any use or misuse of the information Symbol’s wireless network devices are designed to be compliant with rules and regulations in locations they are sold. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user’s authority to operate the equipment. IMPORTANT NOTE: End product user guide must NOT include any information regarding how to install or remove this RF module. 3.1 Final Product Compliance The model Number used for Regulatory Approvals is: 21-92955 The module has been regulatory approved for integrati…

Text truncated - open the document above for the full version.

The Enterprise Mobility Company SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com Date: 16 Mar, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: H9P2192955 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Marco Belli Manager, Regulatory Compliance Symbol Technologies, Inc. TEL: + 44 (0) 118 945 7313 [email protected]

The Enterprise Mobility Company SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com Date: 16 Mar, 2007 Federal Communications Commission Authorization and Evaluation Division Short Term Confidentiality Request FCC ID: H9P2192955 Pursuant to DA 04-1705 of the Commission’s public notice, we request short- term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ‧ External Photos ‧ Test Setup Photos ‧ User’s Manual ‧ Internal Photos Yours Sincerely, ------------------------------------------------------------------------------ Marco Belli Manager, Regulatory Compliance Symbol Technologies, Inc. TEL: + 44 (0) 118 945 7313 [email protected]

The Enterprise Mobility Company SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com Power of Attorney Date: 16 Mar, 2007 To whom it may concern: We, the undersigned Symbol Technologies, Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+E approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. This authorization is limited to the following products： 802.11a/b/g WLAN SDIO Radio Module; Model No：21-92955 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Marco Belli Manager, Regulatory Compliance Symbol Technologies, Inc. TEL: + 44 (0) 118 945 7313 [email protected]

FCC ID: H9P2192955 Report No. RF960308H04 Modular Approval Request Letter Advance Data Technology April 4, 2007 Dear Application Examiner, Symbol Technologies Inc.’s 802.11a/b/g WLAN SDIO Radio Module, FCC ID: H9P2192955, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CX53822. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The SDIO interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is CX3420. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H9P2192955 Report No. RF960308H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

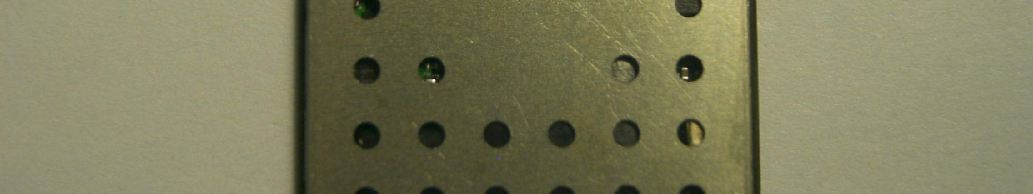

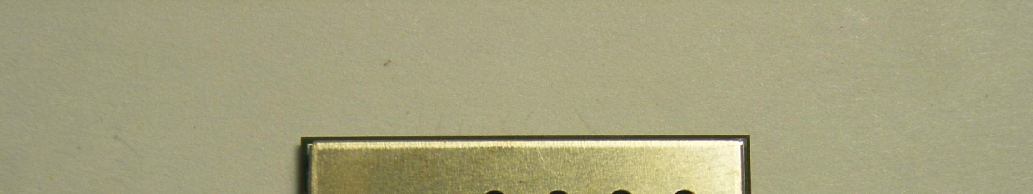

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: H9P2192955 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3 Page 4

Report No.: SA960308H04 1 Issued: March 29, 2007 RF EXPOSURE REPORT REPORT NO.: SA960308H04 MODEL NO.: 21-92955 FCC ID: H9P2192955 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960308H04 2 Issued: March 29, 2007 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960308H04 3 Issued: March 29, 2007 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960308H04 4 Issued: March 29, 2007 6 Test Results 6.1 Antenna Gain Model No. Symbol P/N Frequency Range Gain (dBi) Cable Loss (dB) Net Gain (dBi) Antenna Type Connector 2.4GHz 3 0.5 2.5 C802-5100 01-A ML-2452-A PA2-01 5GHz 4 1.2 2.8 Dipole RP-SMA MALE 6.2 Output Power Into Antenna & RF Exposure value: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 43.652 0.015 1.0 6 2437 43.652 0.015 1.0 11 2462 44.668 0.016 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 60.256 0.021 1.0 2 2417 85.114 0.030 1.0 6 2437 107.152 0.038 1.0 10 2457 77.625 0.027 1.0 11 2462 58.884 0.021 1.0 Note: Channel 2 and 10 required by manufacture. Report No.: SA960308H04 5 Issued: March 29, 2007 For 5GHz Operated in 5150MHz ~ 5350MHz: (15.407) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 5180 15.524 0.0059 1.0 4 5240 27.040 0.0103 1.0 5 5260 34.834 0.0132 1.0 8 5320 16.520 0.0063 1.0 Operated in 5470MHz ~ 5725MHz: (15.407) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 9 5500 17.378 0.0066 1.0 14 5600 25.351 0.0096 1.0 19 5700 6.607 0.0025 1.0 Operated in 5725 ~ 5850MHz band: (15.247) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 5745 102.329 0.0388 1.0 3 5785 104.713 0.0397 1.0 5 5825 102.329 0.0388 1.0

Report No.: RF960308H04 1 Report Format Version 2.0.5 FCC TEST REPORT (15.407) REPORT NO.: RF960308H04 MODEL NO.: 21-92955 RECEIVED: March 09, 2007 TESTED: March 20 to 29, 2007 ISSUED: March 29, 2007 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960308H04 2 Report Format Version 2.0.5 Table of Contents 1. CERTIFICATION....................................................................................................4 2. SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3. GENERAL INFORMATION.....................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................7 3.2 DESCRIPTION OF TEST MODES.........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................12 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................13 4. TEST TYPES AND RESULTS..............................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................14 4.1.2 TEST INSTRUMENTS..........................................................................................14 4.1.3 TEST PROCEDURES..........................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.................................................................15 4.1.5 TEST SETUP.......................................................................................................16 4.1.6 EUT OPERATING CONDITIONS.........................................................................16 4.1.7 TEST RESULTS...................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT.............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................19 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........20 4.2.3 TEST INSTRUMENTS..........................................................................................21 4.2.4 TEST PROCEDURES..........................................................................................22 4.2.5 DEVIATION FROM TEST STANDARD.................................................................22 4.2.6 TEST SETUP.......................................................................................................23 4.2.7 EUT OPERATING CONDITION............................................................................23 4.2.8 TEST RESULTS...................................................................................................24 4.3 PEAK TRANSMIT POWER MEASUREMENT......................................................32 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT....................................32 4.3.2 TEST INSTRUMENTS..........................................................................................32 4.3.3 TEST PROCEDURE.............................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD.................................................................33 4.3.5 TEST SETUP.......................................................................................................33 Report No.: RF960308H04 3 Report Format Version 2.0.5 4.3.6 EUT OPERATING CONDITIONS.........................................................................33 4.3.7 TEST RESULTS...................................................................................................34 4.4 PEAK POWER EXCURSION MEASUREMENT...................................................43 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.................................43 4.4.2 TEST INSTRUMENTS..........................................................................................43 4.4.3 TEST PROCEDURE.............................................................................................44 4.4.4 DEVIATION FROM TEST STANDARD.................................................................44 4.4.5 TEST SETUP.......................................................................................................44 4.4.6 EUT OPERATING CONDITIONS.........................................................................44 4.4.7 TEST RESULTS...................................................................................................45 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT.....................................49 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT...................49 4.5.2 TEST INSTRUMENTS..........................................................................................49 4.5.3 TEST PROCEDURES..........................................................................................50 4.5.4 D…

Text truncated - open the document above for the full version.

Report No.: RF960308H04 1 Report Format Version 2.0.5 DFS TEST REPORT REPORT NO.: RF960308H04 MODEL NO.: 21-92955 RECEIVED: March 09, 2007 TESTED: March 20 to 29, 2007 ISSUED: March 29, 2007 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 19 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960308H04 2 Report Format Version 2.0.5 Table of Contents 1. CERTIFICATION.............................................................................................................3 2. SUMMARY OF TEST RESULTS...................................................................................4 2.1 DYNAMIC FREQUENCY SELECTION........................................................................4 2.1.1 OPERATING FREQUENCY OF U-NII DEVICE...........................................................5 2.1.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS.................................................5 2.1.3 TEST INSTRUMENTS...................................................................................................8 2.1.4 DESCRIPTION OF SUPPORT UNITS.........................................................................8 2.1.5 SOFTWARE AND FIRMWARE......................................................................................8 2.1.6 DESCRIPTION OF AVAILABLE ANTENNAS...............................................................9 2.1.7 MAXIMUM AND MINIMUM CONDUCTED POWER...................................................9 2.1.8 MAXIMUM AND MINIMUM E.I.R.P. POWER...............................................................9 2.1.9 STATEMENT OF MAUNFACTURER..........................................................................10 2.1.10 TEST PROCEDURE.....................................................................................................10 2.1.11 DEVIATION FROM TEST STANDARD.......................................................................12 2.1.12 CONDUCTED TEST SETUP CONFIGURATION......................................................12 2.1.13 LIST OF MEASUREMENTS........................................................................................13 2.1.14 TEST RESULTS............................................................................................................14 2.2 ANTENNA REQUIREMENT........................................................................................17 2.2.1 STANDARD APPLICABLE...........................................................................................17 2.2.2 ANTENNA CONNECTED CONSTRUCTION.............................................................17 3 INFORMATION ON THE TESTING LABORATORIES..............................................18 APPENDIX-A.........................................................................................................................A-1 Report No.: RF960308H04 3 Report Format Version 2.0.5 1. CERTIFICATION PRODUCT: 802.11a/b/g WLAN SDIO Radio Module BRAND NAME: Symbol Technologies Inc. MODEL NO.: 21-92955 TEST SAMPLE: ENGINEERING SAMPLE TESTED: March 20 to 29, 2007 APPLICANT: Symbol Technologies Inc. STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (Model: 21-92955) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: March 29, 2007 ( Carol Liao ) TECHNICAL ACCEPTANCE : , DATE: March 29, 2007 Responsible for RF ( Moris Lin ) APPROVED BY : , DATE: March 29, 2007 (Hank Chung, Deputy Manager ) Report No.: RF960308H04 4 Report Format Version 2.0.5 2. SUMMARY OF TEST RESULTS 2.1 DYNAMIC FREQUENCY SELECTION The manufacturer shall state whether the UUT is capable of operating as a Master and/or a Client. If the UUT is capable of operating in more than one operating mode then each operating mode shall be tested separately. See tables 1 and 2 for the applicability of DFS requirements for each of the operational modes. Table 1: Applicability of DFS requirements prior to use a channel Operational Mode Requirement Master Client without radar detection Client with radar detection Non-Occupancy Period ̧ Not required ̧ DFS Detection Threshold ̧ Not required ̧ Channel Availability Check Time ̧ Not required Not required Uniform Spreading ̧ Not required Not required U-NII Detection Bandwidth ̧ Not required ̧ Table 2: Applicability of DFS requirements during normal operation. Operational Mode Requirement Master Client without radar detection Client with radar detection DFS Detection Threshold ̧ Not required ̧ Channel Closing Transmission Time ̧ ̧ ̧ Channel Move Time ̧ ̧ ̧ U-NII Detection Bandwidth ̧ Not required ̧ Report No.: RF960308H04 5 Report Format Version 2.0.5 2.1.1 OPERATING FREQUENCY OF U-NII DEVICE Table 3: Operating frequency range of UUT. Operating Frequency Range Operational Mode 5250~5350MHz 5470~5725MHz Master ̧ ̧ Client without radar detection Not Apply Not Apply Client with radar detection ̧ ̧ 2.1.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS DETECTION THRESHOLD VALUES Table 4: DFS Detection Thresholds for Master Devices and Client Devices With Radar Detection. Maximum Transmit Power Value (See Notes 1 and 2) ≥ 200 milliwatt -64 dBm < 200 milliwatt -62 dBm Note 1: This is the level at the in…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Set UUT as Client without radar detection mode (Radar injected into Master) Radar Master UUT
