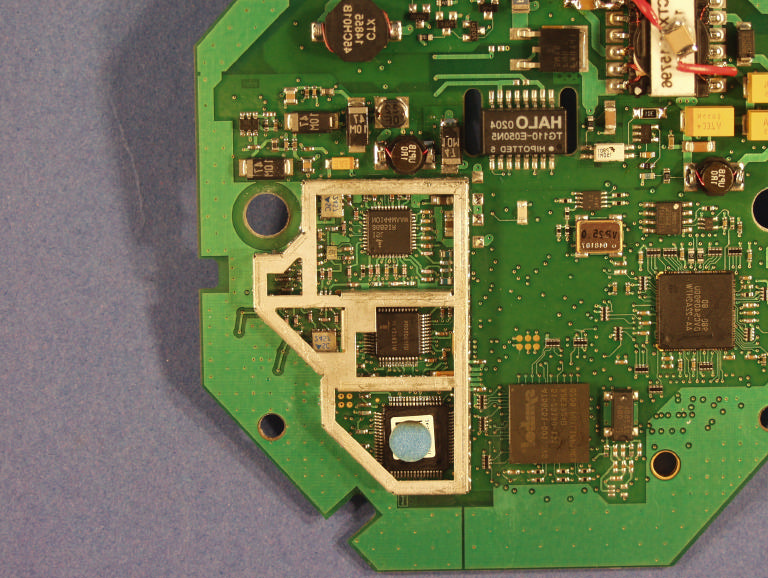

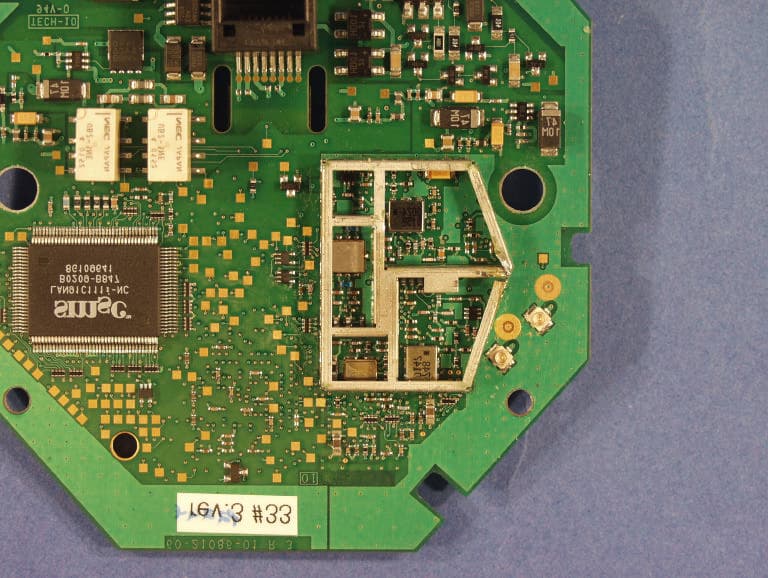

H9PCCRF5020802.11b RF Port

Mobius    Model CCRF-5020-10-WW IEEE 802.11b Access Port Hardware Installation Guide Pre-Release 72-55582-01 May 20, 2002 Copyright Copyright © 2002 by Symbol Technologies, Inc. All rights reserved. No part of this publication may be modified or adapted i n any way, for any purposes without permission i n writing from Symbol Technologies, Inc. (Symbol). The material in this manual is subject to change without notice. Symbol reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication, estoppels, or otherwise under any Symbol Technologies, Inc., intellectual property rights. An implied license only exists for equipment, circuits and subsystems contai ned in Symbol products. Symbol, the Symbol logo and Spectrum24 are registered trademarks of Symbol Technologies, Inc. Patents This product is covered by one or more of the followi ng U.S. and foreign Patents: U.S. Patent No. 4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,068,190; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562 Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/0938; Italy 1,138,713 Symbol Technologies, Inc. One Symbol Plaza Holtsvi lle, N.Y. 11742-1300 Telephone: (800)SCAN234, (516) 738-2400 Telex: 6711519 http://www.symbol.com About this Document Audience This guide is intended for the technician responsible for installing the Mobius Wireless LAN Switch. It is also assumed that the technician is familiar with Ethernet LAN-based networking concepts. Purpose The purpose of this document is to provide specifications, features and guidelines for the installer to use during installation. This document does not give site-specific installation instructions. Refer to site-specific documentation, derived from site survey and site network analysis, for detailed installations. Document Conventions Before working on any equipment, be aware of the hazards associated with its installation and use. Also, become familiar with standard practices for preventing accidents. Note: Indicates tips, hints and special requirements that the reader should take note. Caution! Indicates that care is required. Disregarding cautions can result in data loss or equipment damage. WARNING! Indicates a potentially dangerous condition or procedure that only Symbol-trained personnel should attempt to correct or perform. Warnings WARNING! Only trained and qualified personnel are allowed to install this equipment. WARNING! Read all installation instructions and site survey reports, and verify correct equipment installation before connecting the system to its power source. WARNING! Remove any jewelry (rings, watches, necklaces, etc.) while installing this equipment. WARNING! Verify that any device connected to this unit is properly wired and grounded. WARNING! Verify connecting power circuits have appropriate overload protection. WARNING! Attached only approved cables to this device. WARNING! Verify adequate ventilation around the device, and that ambient temperatures meet equipment operation specifications. WARNING! Verify uninterruptible power sources, if equipment is carrying emergency traffic. WARNING! Install unit in plenum-rated ceilings only. WARNING! Do not include the surface assembly for plenum-rated ceiling mounting. Mobius Model 5020 Access Port Hardware Installation Guide Jun/19/2002 Page 6 of 13 Introduction The Mobius Access Port provides area coverage to 802.11b wireless network devices. The Access Port includes different installing options, allowing best placement for the operate with its optimum range. The standard mounting base allows the unit to get secured to most surfaces by the use of two screws. The ceiling mounting option allows the unit to attach to ceiling by a single screw The Access Port receives power and transfers data through the same (CAT-5) cable. Technical Specifications Operating Voltage48 vdc (typical) 36 vdc to 57 vdc (range) Operating Current10 mA to 150 mA Peak Current250 mA Operating Temper…

Text truncated - open the document above for the full version.

Network Systems Organization Date: May 10, 2002 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality To The Commission: Symbol Technologies, Inc. ("Symbol"), requests that the Block Diagram, Schematics, and Operational Description Exhibits of the FCC ID: H9PCCRF5020 application be withheld from routine availability for public inspection pursuant to Section 0.459 of the Commissions Rules and Freedom of Information Act ("FOIA") Exemption 4, 5 U.S.C. 552(b)(4). Exhibit Type File Name Confidential Block Diagram ----------------------- CCRF5020 Blk Dia.pdf X Operational Description ------------ CCRF5020 OpDesc.pdf X Schematics ----------------------------CCRF5020 Schem.pdf X These exhibits consist of "trade secrets [or] commercial or financial information obtained from a person and privileged or confidential", 5 U.S.C. 552(b)(4), and is therefore entitled to protection from disclosure under FOIA. The documents in question contain trade secrets: detailed technical descriptions, specifications and schematics for a product to be offered for sale. These materials provide particulars on the product design that can be ascertained from inspection of the product itself only with extraordinary expenditures of time and effort, if at all. This information would give Symbol's would-be competitors an unearned and unwarranted competitive advantage. Moreover, the documents contain "commercial information" within the scope of FOIA Exemption 4. This information is the product of Symbol's investment of money, personnel, and other resources. The result of that investment is a fairly earned position in the marketplace. Premature release of the information threatens substantial and unwarranted harm to Symbol's competitive position. For these reasons, Symbol has taken pains to keep this technical information confidential, and intends to continue doing so. Symbol customarily withholds this information from persons outside the employ of Symbol and certain of its suppliers and contractors, and even within these groups routinely limits access to persons having a particular need for the information. If the Commission were to make these documents public, it would be giving away hard won fruits of Symbol's labors without compensation. Respectfully submitted, Norman H. Nelson Sr. EMC Engineer 6480 Via Del Oro Drive San Jose, CA 95119-1208 Voice: (408) 528-2649 FAX: (408) 528-2740 E-mail: [email protected]

From: Steve Cheng Sent: Tuesday, June 11, 2002 12:33 PM To: Mike Kuo Cc: CLIENT ADVOCATES Subject: RE: Symbol Technologies, FCC ID:H9PCCRF5020, AN02T2059 Dear Mike, Question #1: In accordance with operational description, the max. peak output for this device is rated as 100mW , Max. average output power is rated as 50mW. In the page 10 of test report indicates the measurement was made with peak power meter with 57.5mW as the highest output power. Please explain the differences between measured power and rated power. CCS answer: 100mw is rated maximum radiated power (EIRP) and 57.5 mW (17.61 dBm) is conducted RF peak power. Since antenna gain of this device is 2.5 dBi, it match reasonablely with the specified 100 mw (20 dBm) isotropic radiated power. Q2: CCS answer: CCS will update the User Manual with RF exposure warning information shortly. Best regards, Steve -----Original Message----- From: Mike Kuo Sent: Tuesday, June 11, 2002 2:10 PM To: Steve Cheng Cc: CLIENT ADVOCATES Subject: FW: Symbol Technologies, FCC ID:H9PCCRF5020, AN02T2059 -----Original Message----- From: CERTADM Sent: Tuesday, June 11, 2002 12:10 PM To: '[email protected]' Subject: Symbol Technologies, FCC ID:H9PCCRF5020, AN02T2059 Notice_content ------------- Question #1: In accordance with operational description, the max. peak output for this device is rated as 100mW , Max. average output power is rated as 50mW. In the page 10 of test report indicates the measurement was made with peak power meter with 57.5mW as the highest output power. Please explain the differences between measured power and rated power. Question #2: User Manual does not contain RF exposure warning information . Please provide revised user manual to comply this requirement. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

APPLICANT: SYMBOL FCC ID: H9PCCRF5020 MPE CALCULATION for 2.5 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) =1.00 from 1.1310 Table 1 P (dBm) = 17.61 EUT output power G (dBi) = 2.50 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 2.86 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR 802.11b WLAN RF PORT MODEL NUMBER: CCRF-5020 BRAND NAME: SYMBOL MOBIUS™ ACCESS PORT FCC ID: H9PCCRF5020 REPORT NUMBER: 02U1260-1 ISSUE DATE: MAY 8, 2002 Prepared for SYMBOL TECHNOLOGIES, INC. 6480 VIA DEL ORO DRIVE SAN JOSE, CA 95119 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 2 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................4 4. TEST FACILITY.....................................................................................................................4 5. ACCREDITATION AND LISTING.........................................................................................4 5.1. LABORATORY ACCREDITATIONS AND LISTINGS.....................................................................5 6. CALIBRATION AND UNCERTAINTY..................................................................................6 6.1. MEASURING INSTRUMENT CALIBRATION...............................................................................6 6.2. MEASUREMENT UNCERTAINTY.............................................................................................6 6.3. TEST AND MEASUREMENT EQUIPMENT.................................................................................7 7. SUPPORT EQUIPMENT / EUT SETUP..................................................................................7 8. APPLICABLE RULES AND BRIEF TEST RESULT............................................................10 9. TEST SETUP, PROCEDURE AND RESULT........................................................................15 9.1. PEAK POWER OUTPUT..................................................................................................15 9.2. 6 DB BANDWIDTH MEASUREMENT.............................................................................16 9.3. CONDUCTED SPURIOUS EMISSION.............................................................................23 9.4. PEAK POWER SPECTRAL DENSITY..............................................................................36 9.5. RESTRICTED BAND EDGE MEASUREMENT................................................................43 9.6. RADIATED EMISSION....................................................................................................48 9.6.1. RADIATED EMISSION AND RESTRICTED BANDS...................................................48 9.7. POWER LINE CONDUCTED EMISSION.........................................................................61 9.8. SETUP PHOTOS..............................................................................................................64 REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 3 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: SYMBOL TECHNOLOGIES, INC. 6480 VIA DEL ORO DRIVE SAN JOSE, CA 95119 USA CONTACT PERSON: NORMAN H. NELSON / SR. EMC ENGINEER TELEPHONE NO: (408) 528-2649 EUT DESCRIPTION: 802.11B WLAN RF PORT MODEL NUMBER: CCRF-5020 DATE TESTED: ARPIL 16 – 30, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 2.4GHz TRANSCEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15 Subpart C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 15 Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE KERWIN CORPUZ CHIEF EMC ENGINEER ASSOCIATE EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 4 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The 802.11b WLAN RF Port is a Direct Sequence Spread Spectrum Wireless Transceiver that operates on the 2400 – 2483.5 MHz band. There are two antenna…

Text truncated - open the document above for the full version.

REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 41 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. ANTENNA 2 MID CHANNEL REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 42 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. ANTENNA 2 HIGH CHANNEL REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 43 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.5. RESTRICTED BAND EDGE MEASUREMENT TEST SETUP Detector Function Setting of Test Receiver Frequency Range (MHz) Detector Function Resolution Bandwidth Video Bandwidth Above 1000 Peak Average 100 KHz 1 MHz 100 KHz 10 Hz TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator; the lower and upper band edge of the EUT is investigated. The resolutions and video bandwidth were set to 100kHz. RESULT No non-compliance noted. See below plots for ANTENNA 1 and 2; LOW and HIGH channels HOST EUT Spectrum Analyzer REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 44 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. BANDEDGE @ ANTENNA 1 LOW CHANNEL REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 45 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. BANDEDGE @ ANTENNA 1 HIGH CHANNEL REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 46 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. BANDEDGE @ ANTENNA 2 LOW CHANNEL REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 47 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. BANDEDGE @ ANTENNA 2 HIGH CHANNEL REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 48 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.6. RADIATED EMISSION 9.6.1. RADIATED EMISSION AND RESTRICTED BANDS TEST SETUP Detector Function Setting of Test Receiver Frequency Range (MHz) Detector Function Resolution Bandwidth Video Bandwidth 30 to 1000 Peak Quasi Peak 100 KHz 1 MHz 100 KHz 1 MHz Above 1000 Peak Average 1 MHz 1 MHz 1 MHz 10 Hz REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 49 of 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TEST PROCEDURE 1. The EUT was placed on the turntable 0.8 meter above ground in 3 meter open area test site. 2. Set the resolution bandwidth to 100KHz in the test receiver and select Peak function to scan the frequency below 1 GHz. 3. Shift the interference-receiving antenna located in antenna tower upwards and downwards between 1 and 4 meters above ground and find out the local peak emission on frequency domain. 4. Locate the interference-receiving antenna at the position where the local peak reach the maximum emission. 5. Rotate the turntable and stop at the angle where the measurement devic…

Text truncated - open the document above for the full version.

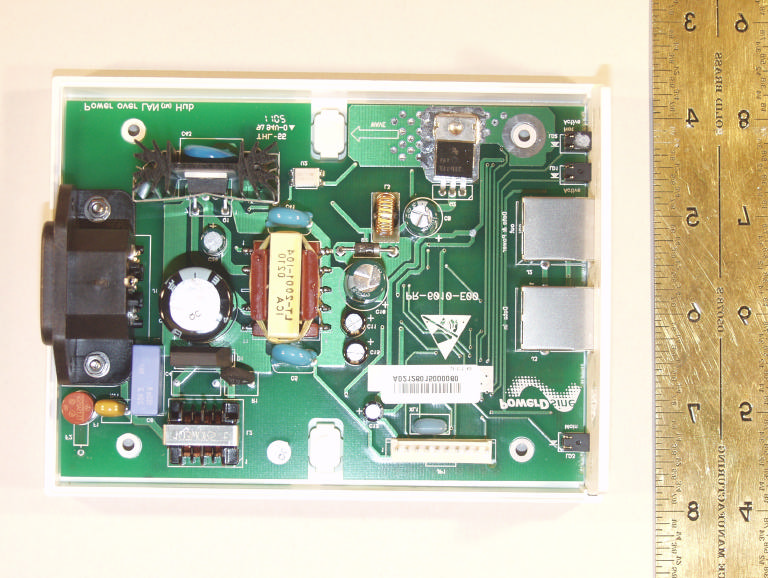

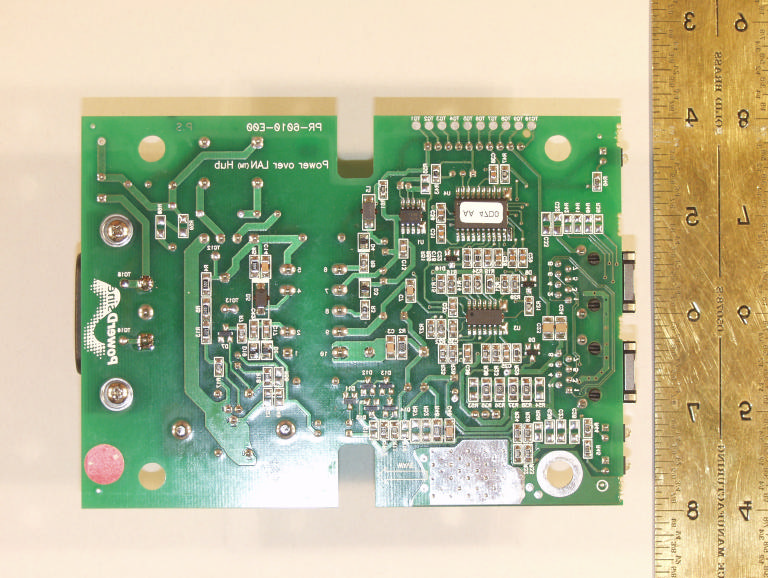

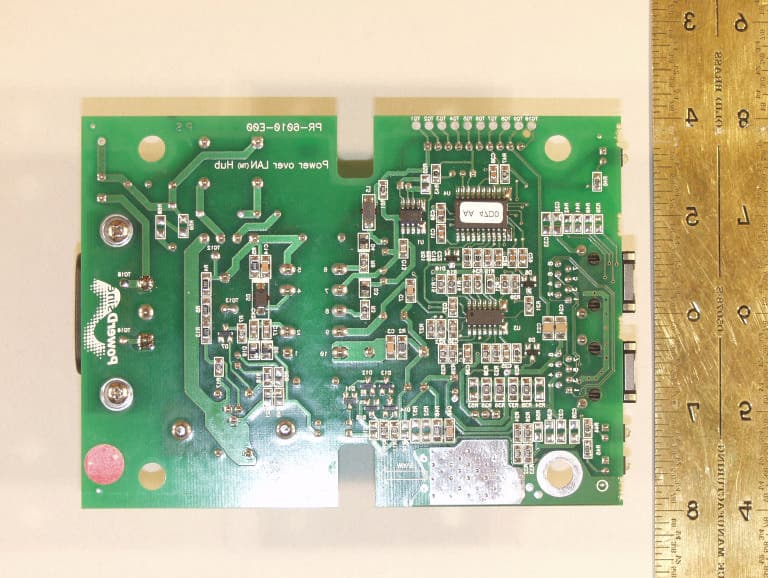

REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 65 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.9. SETUP PHOTOS Radiated Emission below 1 GHz Measurement with Power Supply Model 4001 REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 66 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission below 1 GHz Measurement with Power Supply Model 6012 REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 67 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 68 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Conducted Emission Measurement with Power Supply Model 4001 REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 69 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Conducted Emission Measurement with Power Supply Model 6012 REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 70 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz Measurement REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 71 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 72 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Antenna Port Terminal Measurement REPORT NO: 02U1260-1 DATE: MAY 8, 2002 EUT: 802.11b WLAN RF PORT FCC ID: H9PCCRF5020 Page 73 of 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Peak Power Measurement at Antenna Port Terminal END OF REPORT
