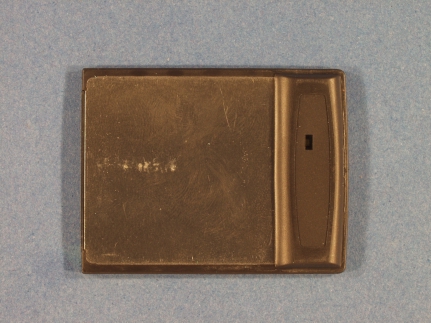

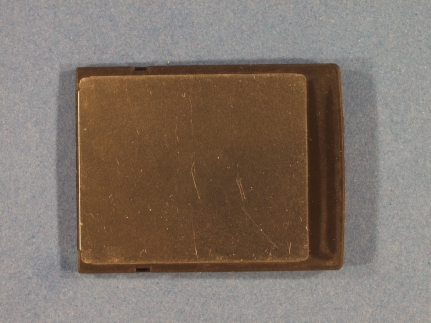

H9PLA4137PWLAN Compact Flash Card

Introduction The LA-4137 CFWL adapter allows CF Card slot equipped handheld computer systems to configure, connect to and establish a Spectrum24 network. Features Include: • 50-pin Type I adapter card fully compliant with PCMCIA electrical and mechanical specifications • Low-power operation for battery-powered devices with CF Card slots • Pocket PC and Windows CE driver support • Compact Flash form factor (CF+Type I extended) • Automatic data rate and channel selection of 1, 2, 5.5 and 11 Mbps • Wireless software upgrade • Wired Equivalent Privacy (WEP) encryption and decryption • An integrated antenna • Card and Socket Services support • Power management [Continuously Aware Mode (CAM) and Power Save Polling (PSP)]. Scope This Quick Reference Guide contains the CFWL adapter installation and configuration instructions for Windows CE/Pocket PC. Preparation Before beginning the installation, verify the hardware package contains: • LA-4137 CFWL adapter with an integrated antenna • Spectrum24 High Rate 11 Mbps Wireless LAN Software CDROM. Note: Verify the model indicated on the card and packaging before use. Contact the Symbol Support Center if an item is missing or not functioning. Supported Devices The LA-4137 CFWL adapter has been qualified by Symbol Technologies to support the following devices: • Palm/Handheld (PH) computers running Windows CE/Pocket PC • Palm OS (i.e. Hand ERA/TRG Pro). Installing the LA-4137 CFWL Adapter The LA-4137 CFWL adapter installation requires: • a handheld computer with a Type I CF Card slot • a desktop computer with a CDROM drive or Web access • a Spectrum24 High Rate 11 Mbps Wireless LAN Software CDROM. To install the CFWL adapter: 1. Insert the CFWL adapter into the CF Card slot. Arrows on the front of the CFWL adapter indicate the insertion point to the slot. 2. Slide in the CFWL adapter until it firmly seats. Caution! Align the CFWL adapter properly when inserting. Insert the CFWL adapter firmly without forcing. Forcing the CFWL adapter into the slot can damage the device or the adapter. Note: If the CFWL adapter does not fit into the CF Card slot, a 68-pin, male reciever PCMCIA adapter is needed. Additional Information Obtain additional information by contacting Symbol at: 1-800-722-6234, inside North America. +1-516-738-5200, in/outside North America http://www.symbol.com/ Copyright Copyright 2001 by Symbol Technologies, Inc. All rights reserved. No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Symbol Technologies, Inc. (Symbol). The material in this manual is subject to change without notice. Symbol reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication, estoppel, or otherwise under any Symbol Technologies, Inc., intellectual property rights. An implied license only exists for equipment, ciecuits, and subsystems contained in Symbol products. Symbol, the Symbol logo and Spectrum24 are registerd trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademark of their respective companies and are hereby acknowledged. IBM is a registered trademark of International Business Machine Corporation. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and LAN Workplace are registered trademarks of Novell Inc. Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,387,297; 4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D419,548 Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713 Symbol Technologies, Inc. One Symbol Place Holtsville, NY 11742-1300 *73-20990-01A*1 72-52486-01 Revision A ORGI nser Anat PC2MbpsShort.cdr ® LA-4137 Compact Flash Wireless LAN Adapter Quick Reference Guide www.symbol.com Installing and Configuring the Driver in Windows CE Install the Spectrum24 Windows CE device driver from the Spectrum24 High Rate 11 Mbps Wireless LAN Software CDROM or download the driver from the Symbol Web site to a desktop computer. Symbol has bundled the NICTT and NCPA utilities with the Spectrum24 Windows CE driver. Use these utilitie…

Text truncated - open the document above for the full version.

1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA-4137 Date of Test: May 23, 2001 File: 2046983D2Version 1.0Page 22 of 23 FCC Part 15B DoC 8.4Manufacturer's Certification Declaration of Conformity Standard to which conformity is declared: FCC Part 15 DoC Manufacturer/Importer’s Information Name:Symbol Technologies, Inc. Address:6480 Via Del Oro, San Jose, CA 95119-1208 USA Telephone Number:(408) 528-2649 Equipment Information Type of Equipment: 2.4 GHz Spread Spectrum Transceiver Trade Name: Spectrum 24 WLAN Compact Flash Card Model Number: LA-4137 Test Report Reference: May 24 to 26, 2001 I, the undersigned, hereby declare that the equipment specified above conforms to Part 15 of the FCC Rules. (Name & Title) (Date) June 18, 2001 Norman H. Nelson, Sr. EMC Engineer (Signature)

Network Systems Organization Norman H. Nelson Symbol Technologies, Inc. 6480 Via Del Oro Federal Communications Commission San Jose, CA 95119-1208 Equipment Approval Services Voice: (408) 528-2649 P.O. Box 358315 FAX: (408) 528-2740 Pittsburgh, PA 15251-5315 [email protected] Re: Certification request for the Symbol model LA-4137 Wireless LAN Compact Flash Card FCC ID: H9PLA4137P Date: June 29, 2001 To The Commission: This certification request is for the Spectrum 24 model LA-4137 WLAN Compact Flash Card. The LA- 4137 is a 2.4 GHz direct sequence IEEE 802.11(b) compliant radio incorporated into a Compact Flash Card package. This request is for certification of a Part 15 transmitting device operating under 15.247(c) and its associated antennas. Symbol Technologies, Inc. manufactures information systems that are employed in commercial establishment to assist in controlling inventory. Spectrum 24 is a Wireless Local Area Network (WLAN) used along with hand held computers to assist in information collection typically in retail stores, warehouses, and factories. The following files are electronically submitted as attachments. Exhibit Type File Name Confidential Block Diagram -----------------------------------LA4137P Blk Dia.pdf X Cover Letters --------------------------------------LA4137P Cvr Ltr.pdf Attestation Statements ---------------------------LA4137P DOC.pdf External Pictures ---------------------------------LA4137P Ext Pics.pdf Internal Pictures ----------------------------------LA4137P Int Pics.pdf ID Label/Location Info --------------------------LA4137P Label.pdf Operational Description -------------------------LA4137P OpDesc.pdf X RF Exposure Info --------------------------------LA4137P RF Info.pdf RF Exposure Info --------------------------------LA4137P SAR Rpt.pdf RF Exposure Info --------------------------------LA4137P SAR Plts.pdf Schematics -----------------------------------------LA4137P Schem.pdf X Test Report Photos -------------------------------LA4137P TstRpt Photos.pdf Test Report ----------------------------------------LA4137P TstRpt.pdf User Manual ---------------------------------------LA4137P User Man.pdf Symbol Technologies, Inc. ("Symbol"), requests that the Block Diagram, Schematics, and Operational Description Exhibits of the above referenced application be withheld from routine availability for public inspection pursuant to Section 0.459 of the Commissions Rules and Freedom of Information Act ("FOIA") Exemption 4, 5 U.S.C. 552(b)(4). LA4137P CvrLtr.doc Page 2 of 2 These exhibits consist of "trade secrets [or] commercial or financial information obtained from a person and privileged or confidential", 5 U.S.C. 552(b)(4), and is therefore entitled to protection from disclosure under FOIA. The documents in question contain trade secrets: detailed technical descriptions, specifications and schematics for a product to be offered for sale. These materials provide particulars on the product design that can be ascertained from inspection of the product itself only with extraordinary expenditures of time and effort, if at all. This information would give Symbol's would-be competitors an unearned and unwarranted competitive advantage. Moreover, the documents contain "commercial information" within the scope of FOIA Exemption 4. This information is the product of Symbol's investment of money, personnel, and other resources. The result of that investment is a fairly earned position in the marketplace. Premature release of the information threatens substantial and unwarranted harm to Symbol's competitive position. For these reasons, Symbol has taken pains to keep this technical information confidential, and intends to continue doing so. Symbol customarily withholds this information from persons outside the employ of Symbol and certain of its suppliers and contractors, and even within these groups routinely limits access to persons having a particular need for the information. If the Commission were to make these documents public, it would be giving away hard won fruits of Symbol's labors without compensation. The filing fee required for this request was submitted by credit card as entered on Web based forms. If there are any questions about this request, please call me at the number above. Thank you for your attention. Respectfully submitted, Norman H. Nelson

FccID:H9PLA4137PWLAN Flash Card, 11 Mbps Conf Num: EA101536 Original Equip. Corespondence # 20403 Date Emailed: 8/28/01 1 Question Please submit a Parts List. Answer: I have uploaded the parts list. This list is confidential and should be withheld from the public. 2 Question Please submit Processing Gain test report and data. Answer: I have uploaded a processing gain test report. This report is based on our H9PLA4131 radio. Both the LA4131 and the LA4137 are based on the Intersil chipsets and contain the same RF, filtering, and baseband proccessing chips. The parts list are identicle except for the PCB and Rs and Cs that are reduced in size so as to fit the LA4137 into a Compact Flash form factor. 3 Question The test configuration is not clear. The EUT description mentions that the device has an integral PCB antenna, but the test report setup shows an external antenna attached with RF cables. Please clarify. Answer: The prototype was tested with the antenna on a separate PCB. This was done since only the connectorized version of the new card was available at testing time. The integrated antenna test was simulated by connecting the chip antennas mounted on an piece of older card and connected to the new card by very short RF cables. The production card has the chip antennas mounted on an extended PCB. The connectorized version has not been applied for yet. Page 1 of 1 Tuesday, August 28, 2001 11:45 AM

NOTES: 1. SCRIPT FILE (S) TO BE CREATED BY SAN JOSE AND TRANSFERRED TO MANUFACTURING. SEE ELTRON SPEC P/N SP-10083-01. SCRIPT FILE MUST MATCH THIS DOCUMENT EXACTLY. PCX FILES AVAILABLE FOR REGULATORY PORTION. SEE BELOW.* 2. LABEL STOCK NUMBER IS SUBJECT TO CHANGE. CHECK BOM FOR ACTUAL PART NUMBER. 3. IN ALL CASES "X's......" REPRESENT VARIABLE FIELDS IN SCRIPT FILE. ACTUAL NUMBER OF CHARACTERS MAY VARY. 4. IN CASE OF MULTIPLE APPROVALS THE ID NUMBER AND TYPE NUMBERS APPEAR IN SAME ORDER. 5. MODEL NUMBER MAY OR MAY NOT HAVE DASH NUMBER BEFORE COUNTRY CODE. SEE BOM FOR EXACT MODEL NAME. 6. MONTH AND YEAR IF REQUIRED. (IE: NOVEMBER, 2001) 7. COUNTRY OF ORIGIN REQUIRED. 8. CREATE VARIABLE FIELD FOR PLANT CODE PROD FAM: COMPACT FLASH CARD DESCRIPTION: LBL:LCD, LA-4137-WW CTRY CODE: WW COUNTRY: EU, JAPAN, US,CANADA (SEE 21-40866-01 FOR LIST OF EU COUNTRIES) SN POOL: STANDARD LBL STOCK: 63-52799-01 LBL SCRIPT : 52800011 CCG1: 29904 *69-52800-01.1.PCX 69-52800-01.1 PPD:66416 * SEE NOTE 5 SEE NOTE 7 SEE NOTE 8 FCC ID: H9PLA4137P CANADA :XXXXXXXXXX N410 FREQ: MAX 2400-2483.5 MHz TYPE: LA-4137 0168 MAX 100 mW P/N: LA-4137-XXXX-WW BAR CODE SYMBOL TECHNOLOGIES INC., HOLTSVILLE N.Y., 11742 MADE IN XXXXXX XXXX S/N AAOOAAOOEA AFFIX STAMP HERE R NYDA00XX/ GZDA00XX 2.4DS4

Network Systems Organization RF Exposure Antenna Summary FCC ID: H9PLA4137P new Original Equip. WLAN Flash Card, 11 Mbps Output Power: 89 Remote DC Factor: 0.710 mW AP DC Factor: 0.720 Source Based Portable Antennas (R < 5cm) Ant No Model Symbol P/N Gain (dBi) Cable Loss (dB) Pout (dBm) EIRP (mW) TR Status Device Use Type 01. Trilogy3 CF 50-21900-039 2.0 0.00 19.49 100.1 Tested + SAR PCB Portable Laptop Antenna Gain listed without cableTR Status refers to wither the antenna was tested. If not refer to the directed antenna test data Page 1 of 1 Friday, June 22, 2001 03:28 PM Duty Cycle Factors are applied to MPE and EIRP Small and lightweight No tuning components typically required Available in tape-and-reel packaging for automatic mounting 2400–2483.5 Frequency Range (MHz) VSWR Polarization Powerhandling Feedpoint Impedance Weight Peak Gain +2 dBi < 2.5 : 1 Linear 10 Watt cw 50 Ohms 1 g © 2001 Rangestar Wireless™, Inc. All Rights Reserved. Unauthorized dissemination or duplication of the information and images contained herein without Rangeestar's written consent is expressly prohibited and will be prosecuted to the full extent of the law. Protected by one or more U.S. Patents 5,507,012; 5,666,125; 5,777,586; 5,945,954; 5,999,140; D417,221; 6,095,820; 6,181,283; 2,191,751; 6,2088,300; 6,215,447; and other U.S. and foreign patents and trademarks pending. Description The 100953 and 100955 are surface- mounted antennas intended for use in 802.11b applications. These antennas provide excellent diversity performance at a low cost. Typical Applications • PCMCIA cards • Flash cards Customization and Integration This standard antenna concept can be customized to your exact specifications and operational requirements. Because your device acts as the ground plane, you should consider the placement of the antenna early in the design process. Using our design expertise and state-of- the-art facilities, our engineers will work with you to guide your product through our comprehensive six point integration process—from initial consultation and design to manufacturing and quality assurance. For integration assistance, contact a Rangestar Wireless sales representative at: Rangestar Wireless 9565 Soquel Dr. Aptos, CA 95003-4153 USA Tel: 831.661.4200 Fax: 831.661.4202 www.rangestar.com DN 100318 rev. A • • • 802.11b Diversity Antennas Part Numbers 100953 & 100955 Features Specifications Features Mounting Dimensions TOP VIEW 12.85 3.76 6.037.70 12.3210.80 3.38 0.38 0.00 0.000.38 2.31 2.62 1.14 2.16 (dimensions in mm) 100955 TM 0.79 mm 12.85 mm 3.76 mm © 2001 Rangestar Wireless™, Inc. All Rights Reserved. Unauthorized dissemination or duplication of the information and images contained herein without Rangestar's written consent is expressly prohibited and will be prosecuted to the full extent of the law. Protected by one or more U.S. Patents 5,507,012; 5,666,125; 5,777,586; 5,945,954; 5,999,140; D417,221; 6,095,820; 6,181,283; 2,191,751; 6,208,300; 6,215,447; and other U.S. and foreign patents and trademarks pending. DN 100318 rev. A 0 ̊ 90 ̊ ̊ 0 ̊ azimuth plane 0 ̊90 ̊ 802.11b Diversity Antennas Part Numbers 100953 & 100955 elevation plane 0 ̊ 90 ̊ Radiation PatternsVSWR Legend 100953 100955 +5 dBi 0 dBi 90 ̊ 0 ̊ +5 dBi 0 dBi +5 dBi 0 dBi +5 dBi 0 dBi frequency (MHz) VSWR 25002400 1.0 5.0 frequency (MHz) VSWR 25002400 1.0 5.0 T M

1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA 4137Date of Test: June 11-12, 2001 Report # 205200911FCC Part 2 SAR Evaluation Table of Contents 1.0JOB DESCRIPTION..................................................................................................2 1.1Client Information.............................................................................................2 1.2Equipment under test (EUT).............................................................................2 1.3 Test plan reference..............................................................................................3 1.4 System test configuration....................................................................................3 1.4.1 System block diagram & Support equipment........................................3 1.4.3 Test Position for Muscle.......................................................................4 1.4.4 Test Condition....................................................................................6 1.5Modifications required for compliance..............................................................6 1.6Additions, deviations and exclusions from standards.........................................6 2.0SAR EVALUATION..................................................................................................7 2.1SAR Limits.......................................................................................................7 2.2Configuration Photographs...............................................................................8 2.3System Verification........................................................................................18 2.4Evaluation Procedures....................................................................................18 2.5Test Results....................................................................................................19 3.0EQUIPMENT...........................................................................................................21 3.1Equipment List...............................................................................................21 3.2 Tissue Simulating Liquid................................................................................22 3.3E-Field Probe Calibration...............................................................................23 3.4Measurement Uncertainty...............................................................................24 3.5Measurement Traceability...............................................................................24 4.0WARNING LABEL INFORMATION - USA.........................................................25 5.0REFERENCES.........................................................................................................26 6.0Document History.....................................................................................................27 APPENDIX A - SAR Evaluation Data................................................................................28 APPENDIX B - E-Field Probe Calibration Data................................................................38 1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA 4137Date of Test: June 11-12, 2001 Report # 205200912FCC Part 2 SAR Evaluation 1.0 JOB DESCRIPTION 1.1 Client Information The EUT has been tested at the request of: Company:Symbol Technologies, Inc. Address:6480 Via Del Oro San Jose, CA 95119-1208 USA Name of contact:Mr. Norm Nelson Telephone: (408) 528-2649 Fax:(408) 528-2740 1.2 Equipment under test (EUT) Product Descriptions: Equipment Spread Specrtum WLAN Compact Flash Card Trade NameSymbol Technologies, Inc.Model No:LA 4137 FCC IDH9PLA4137PS/N No.Not Labeled CategoryPortableRF ExposureUncontrolled Environment Frequency Band (up link)2412 - 2462 MHzSystemDSSS Antenna TypeIntegrated, PCB Chip, Model Trilogy CF, 2 dBi gain Location:Installed in a Laptop Computer Note: For details on antennas see Appendix C Use of Product:Wireless Data Communications Manufacturer:Symbol Technologies, Inc. Production is planned[X ] Yes, [ ] No EUT receive date:June 6, 2001 EUT received condition:Prototype in good condition. Test start date:June 11, 2001 Test end date:June 12, 2001 1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA 4137Date of Test: June 11-12, 2001 Report # 205200913FCC Part 2 SAR Evaluation 1.3 Test plan reference FCC rule part 2.1093, FCC Docket 96-326 & Supplement C to OET Bulletin 65 1.4 System test configuration 1.4.1 System block diagram & Support equipment Item #DescriptionModel No.Serial No. 1Compaq Laptop ComputerArmada E500AE5 P3700T5X12VC64N2 U: Unshielded Cable m: Length in meters 1 EUT Power Adapter U, 2 m U, 1 m 115V, 60 Hz 1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA 4137Date of Test: June 11-12, 2001 Report # 205200914FCC Part 2 SAR Evaluation 1.4.3 Test Position for Muscle The LA 4131 was configured for testing in a typical fashion (as a customer would normally use it), and in the confines as outlined in C95.1 (1992) and Supplement C of OET 65 (1998). Please refer to figures 1 – 3 below for the position details: Figure 1: laptop upside down (face down, closed) Figure 2: laptop in normal position (face up, open) Flat Phantom Laptop Computer Back Side Top Side (Keyboard) EUT installed in bottom port slot Flat Phantom Laptop Computer Top Side (Keyboard) Bottom Side EUT installed in top port slot 1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA 4137Date of Test: June 11-12, 2001 Report # 205200915FCC Part 2 SAR Evaluation Figure 3: laptop in vertical position Flat Phantom Laptop Computer Right Side Left Side EUT Installed in top port slot 1365 Adams Court, Menlo Park, CA 94025 Symbol Technologies, Inc., Model No: LA 4137Date of Test: June 11-12, 2001 Report # 205200916FCC Part 2 SAR Evaluation 1.4.4 Test Condition During tests, the worst case da…
