H9PLA4137SPS30462.4GHz Scan/LAN Sled w/ Compact Flash Internal Car

© 2001 PCTEST Lab ATTACHMENT J – USER’S MANUAL SPS3000 SCAN/LAN SPS 3000 SCAN/LAN © 2001 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license only exists for equipment, circuits, and subsystems contained in Symbol products. Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,036,098; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,068,190; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; 6,209,788; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,250,551; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104. Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713. rev. 07/01 1 Quick Reference Introduction The SPS 3000 series is a family of ergonomic expansion packs for the Compaq ® iPAQ ® Pocket PC device that extend the capabilities of the iPAQ by adding bar code scanning and wireless functionality. Its features include: •Integrated 1D Scan Engine •Integrated Spectrum24 802.11b (11Mbps) radio and antenna •Ergonomic, lightweight design •100% compatible with iPAQ cradles and chargers •Easy to Use Configurations There are four configurations of the SPS 3000, each providing specific features that extend the capabilities of the iPAQ: •·Scan Only - Integrated 1D bar code scanner •·Scan/WLAN - Integrated 1D bar code scan engine, Integrat- ed 802.11b (11Mbps) radio and antennae, and 770mAH Lith- ium-Ion battery •·WLAN -Integrated 802.11b (11Mbps) radio and antennae, and 770mAH Lithium-Ion battery About This Guide This guide describes how to set up and use the SPS 3000. Specific topics covered include: •Parts of the SPS 3000 on page 2 •iPAQ Pocket PC Parts Used by the SPS 3000 on page 3 •Installing the SPS 3000 SDK on page 4 •Inserting the iPAQ into the SPS 3000 on page 6 •Attaching the Lanyard on page 9 •Scanning Bar Codes on page 9 2 SPS 3000 SCAN/LAN Parts of the SPS 3000 Expansion Connector Top View Handstrap Connecter Expansion Connector Back View Inside View Exit Window 3 Quick Reference iPAQ Pocket PC Parts Used by the SPS 3000 Front View Power Button Q Start (Button 4) Q Menu (Button 3) Record Button (Button 5) (Default Scan Button) Calendar (Button 1) Contacts (Button 2) Bottom View Communications Port Expansion Connector Power Jack Reset Button 4 SPS 3000 SCAN/LAN Installing the SPS 3000 SDK The Symbol SPS 3000 Windows CE SDK (Software Developers Kit) provides the tools necessary to create and deploy bar code scanning applications for the Compaq iPAQ Pocket PC. Note:The SDK contains the scan drivers needed to operate the SPS 3000. Download the SDK from the Software Developer Zone at this web address: http://software.symbol.com/devzone After the SDK is properly installed, reboot the iPAQ by pressing the reset button with the stylus. Checking the Battery Power (For S24/LAN units only) 1. Power on the iPAQ by depressing and releasing the power button. 2. Open the "START" screen and select "Settings." 3. From the bottom of the "Settings" screen, select "System." 4. Scroll the screen, if necessary, and select the "Power" icon. 5 Quick Reference 5. The state of the expansion pack bettery can be found under the …

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S)

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER September 25, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Symbol Technologies, Inc. FCC ID: H9PLA4137SPS3046 Gentlemen: Attached herewith, on behalf of Symbol Technologies, Inc. is an application for Part 15.247 Certification of the following 2.4GHz Scan/LAN Sled w/ Integrated 11Mb WLAN Compact Flash Internal Card (DSSS): FCC ID:H9PLA4137SPS3046 TRADE/MODEL(s):SYMBOL SPS-3046 EUT TYPE:2.4GHz Scan/LAN Sled w/ Integrated 11Mb WLAN Compact Flash Internal Card (DSSS) Tx/Rx Freq. Range(s):2412 - 2462 MHz Max. RF Output Power:0.135 W (21.5 dBm) Max. SAR Measurement:0.637 mW/g (1 g. avg) DSSS Body SAR; 0.315 mW/g (10 g. avg) DSSS Hand SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, RF warning statement letter, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Sandy Mazzola Regulatory Engineer Symbol Technologies, Inc.

December 12, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Symbol Technologies, Inc. FCC ID: H9PLA4137SPS3046 731 Confirmation No.: EA102717 Correspondence Reference No.: 21447 Request for Tech. Info.: 12/07/01 Dear Andy: Transmitted herewith, on behalf of Symbol Technologies, Inc., is an amendment provided in response to the request for technical information dated December 7, 2001. 1. Please find the attached 6 dB BW plots, Power Density plots, Out-of-band Conducted Emissions plots, and Band Edge plots. 2. Please find the attached processing gain report. 3. The Symbol SPS3046 Scan/LAN expansion sled was designed for use only with the Compaq iPAQ. The connector at the bottom of the Compaq iPAQ is proprietary to Compaq. The Symbol expansion sled connector mates with the Compaq connector. This will make it unlikely for it to be used with any other products. This product was developed with Compaq's consent and Compaq will be supporting the product. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Symbol Technologies, Inc.

January 24, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Symbol Technologies, Inc. FCC ID: H9PLA4137SPS3046 731 Confirmation No.: EA102717 Correspondence Reference No.: 21784 Request for Tech. Info.: 1/18/02 Dear Andy: Transmitted herewith, on behalf of Symbol Technologies, Inc., is an amendment provided in response to the request for technical information dated January 18, 2002. 1. Please find the attached Z-axis scan plots. 2. Please find the attached certified conversion factors for all tissue parameters. 3. Please find the attached revised pages 14 and 15 of the SAR report containing the liquid temperatures during all tests and validations. 4. Please note that the conductivity used during the test is higher than the conductivity specified by Supplement C. This will lead to an overestimation of the SAR value. 5. We confirm that the phantom used is 2 mm thick. 6. Please note that the SAR power measurements were radiated. The difference of 2 dB is due to the 2 dBi gain of the antenna. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Symbol Technologies, Inc.

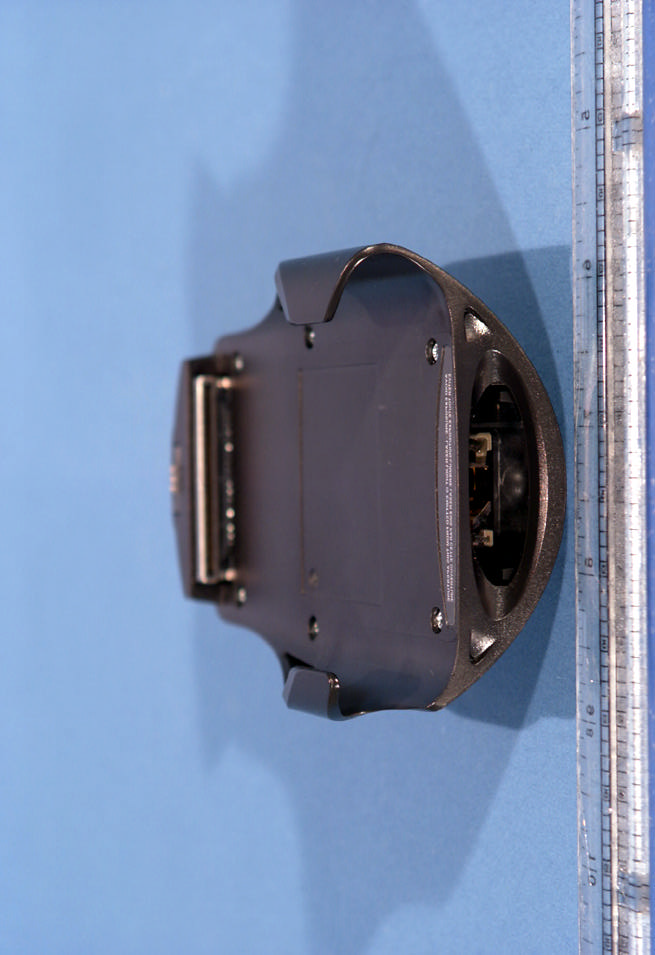

© 2001 PCTEST Lab ATTACHMENT H – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz)

© 2001 PCTEST Lab ATTACHMENT D – FCC ID LABEL & LOCATION (SEE NEXT PAGE) FCC ID Sample Label & Location LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. T h i s d ev i c e c o m p l i e s w i t h F C C Pa r t 1 5 , C a n a d a R S S - 2 1 0 , a n d c l a s s B o f t h e I n d u s t r y C a n a d a s t a n d a r d I C E S - 0 0 3 . O p e r a t i o n i s s u b j e c t t o t h e fo l l o w i n g t w o c o n d i t i o n s : ( 1 ) T h i s d ev i c e m ay n o t c a u s e h a r m f u l i n t e r fe r e n c e . ( 2 ) t h i s d ev i c e m u s t a c c e p t a n y i n t e r fe r e n c e r e c e i v e d i n c l u d i n g i n t e r fe r e n c e w h i c h m ay c a u s e u n d e s i r e d o p e r a t i o n .  C e t a p p a r e i l n u m é r i q u e d e l a c l a s s e B e s t c o n fo r m e à l a n o r m e N M B - 0 0 3 d u C a n a d a L22fdsa6166 FCC ID: H9PLA4137SPS3046 CANADA : 3.3V 5V 16 32 DMA Ö Tested to comply with FCC Standards FOR HOME OR OFFICE USE LA-4121 WLAN PC CARD Graphic added to Users Manual MOD: SPS-3046 SYMBOL TECHNOLOGIES INC., HOLTSVILLE N.Y. MADE IN USA

© 2001 PCTEST Lab ATTACHMENT I – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz)

© 2001 PCTEST Lab ATTACHMENT C – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Symbol Technologies Inc.Dates of Tests: September 17-18, 2001 1 Symbol PlazaTest Report S/N: SAR.210911538.H9P Holtsville, NY 11742-1300Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Sandy Mazzola, Regulatory Engineer cc: Dean La Rosa, Senior Design Engineer FCC ID H9PLA4137SPS3046 APPLICANT SYMBOL TECHNOLOGIES INC. EUT Type:2.4GHz Scan /LAN Sled w/ Integrated11Mb WLAN Compact Flash Internal Card(DSSS) (Internal LAN card FCC ID: H9PLA4137P) Tx/Rx Frequency:2412 – 2462 MHz Max. Radiated Power:0.135 Watts (21.5dBm) Max. Peak SAR:0.637 mW/g (1 g. avg) DSSS Body SAR; 0.315mW/g (10 g. avg) DSSS Hand SAR Trade Name/Model(s):SYMBOL SPS-3046 FCC Classification:Part 15 Spread Spectrum Transmitter Application Type:Certification Tx Original Grant Date:Internal 11Mb DSSS WLAN Compact Flash Card Symbol FCC ID: H9PLA4137P August 31, 2001 Serial Number:n/a (pre-production) FCC Rule Part(s):§ 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210911538.H9P SAR Measurement ReportFCC Certification © 2001 PCTEST Labi Table of Contents ATTACHMENT A - COVER LETTER ATTACHMENT B - ATTESTATION STATEMENT(S) ATTACHMENT C - SAR MEASUREMENT REPORT 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5 5.3 DATA EXTRAPOLATION 6 6.1 PHANTOM, HOLDER & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN CONFIGURATION 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-15 14.1 SAR TEST EQUIPMENT LIST 16 15.1 CONCLUSION 17 16.1 REFERENCES 18 ATTACHMENT D -FCC ID LABEL & LOCATION ATTACHMENT E -BLOCK DIAGRAM(S) ATTACHMENT F -SCHEMATIC DIAGRAM(S) ATTACHMENT G -OPERATIONAL DESCRIPTION ATTACHMENT H -EXTERNAL PHOTOGRAPHS ATTACHMENT I -INTERNAL PHOTOGRAPHS ATTACHMENT J -USER’S MANUAL ATTACHMENT K -PART 15.247 MEASUREMENT REPORT ATTACHMENT L -SAR TEST DATA ATTACHMENT M -SAR TEST SETUP PHOTOGRAPHS ATTACHMENT N -DIPOLE VALIDATION PLOTS ATTACHMENT O -PROBE CALIBRATION DATA ATTACHMENT P -COPY OF INTERNAL FHSS LAN RADIO CARD FCC GRANT Test Report S/N: SAR.210911538.H9PSAR Measurement Report Test Dates: September 17-18, 2001FCC Part 22 Certification 2.4GHz Scan/LAN Sled w/ Integrated 11MB WLAN Card (FCC ID: H9PLA4137P) © 2001 PCTEST LabSYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz)1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:Symbol Technologies Inc. Address:1 Symbol Plaza Holtsville, NY 11742-1300 Attention:Sandy Mazzola, Regulatory Engineer cc:Dean La Rosa, Senior Design Engineer • EUT Type:2.4GHz Scan/LAN Sled w/ 11Mb Integrated11Mb WLAN Compact Flash Internal Card(DSSS) Internal LAN card (Internal LAN card FCC ID: H9PLA4137P) • Trade Name:SYMBOL • FCC IDENTIFIER:H9PLA4137SPS3046 • Model:SPS-3046 • S/N:Pre-production • Tx/Rx Frequency:2412 – 2462 MHz • Application Type: Certification • FCC Classification:Part 15 Spread Spectrum Transmitter • Method/System:Direct Sequence Spread Spectrum System (DSSS) • FCC Rule Part(s):§ 2.1093, Docket 96-326 • Max. Radiated Power:0.135 Watts (21.5dBm) • Max. SAR Measurements: 0.637 mW/g (1 g. avg) DSSS Body SAR; 0.315 mW/g (10 g. avg) DSSS Hand SAR • Modulation:Spread Spectrum Transmitter (DSS) • Dates of Test(s):September 17-18, 2001 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.210911538.H9P • Original Grant Date:Internal 11Mb DSSS WLAN Compact Flash Card Symbol FCC ID: H9PLA4137P August 31, 2001 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210911538.H9PSAR Measurement Report Test Dates: September 17-18, 2001FCC Part 22 Certification 2.4GHz Scan/LAN Sled w/ Integrated 11MB WLAN Card (FCC ID: H9PLA4137P) © 2001 PCTEST LabSYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria pub…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT L – SAR TEST DATA SYMBOL FCC ID:H9PLA4137SPS3046 -- 2.4GHz Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 2450 MHz Muscle: σ = 2.20 mho/m ε r = 52.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.599 mW/g, SAR (10g): 0.310 mW/g SYMBOL DSSS Scan/LAN Sled w/Integrated 11MB WLAN card (FCC ID:H9PLA4137P) Model: SPS3046; CW (Continous Transmit) Mode, Low Channel [2412MHz]; No Beltclip, No Holster EIRP Power = 21.5dBm; Spacing = Back panel of EUT (internal antenna side) touching flat phantom Test Date -- 09/17/2001 SAR Tot [mW/g] 2.73E-2 8.19E-2 1.37E-1 1.91E-1 2.46E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PLA4137SPS3046 -- 2.4GHz Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 2450 MHz Muscle: σ = 2.20 mho/m ε r = 52.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.449 mW/g, SAR (10g): 0.234 mW/g SYMBOL DSSS Scan/LAN Sled w/Integrated 11MB WLAN card (FCC ID:H9PLA4137P) Model: SPS3046; CW (Continous Transmit) Mode, Mid Channel [2437MHz]; No Beltclip, No Holster EIRP Power = 21.5dBm; Spacing = Back panel of EUT (internal antenna side) touching flat phantom Test Date -- 09/17/2001 SAR Tot [mW/g] 1.96E-2 5.88E-2 9.80E-2 1.37E-1 1.76E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PLA4137SPS3046 -- 2.4GHz Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 2450 MHz Muscle: σ = 2.20 mho/m ε r = 52.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.637 mW/g, SAR (10g): 0.316 mW/g SYMBOL DSSS Scan/LAN Sled w/Integrated 11MB WLAN card (FCC ID:H9PLA4137P) Model: SPS3046; CW (Continous Transmit) Mode, High Channel [2462MHz]; No Beltclip, No Holster EIRP Power = 21.5dBm; Spacing = Back panel of EUT (internal antenna side) touching flat phantom Test Date -- 09/17/2001 SAR Tot [mW/g] 2.69E-2 8.07E-2 1.35E-1 1.88E-1 2.42E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PLA4137SPS3046 -- 2.4GHz Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 2450 MHz Muscle: σ = 2.20 mho/m ε r = 52.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.602 mW/g, SAR (10g): 0.309 mW/g SYMBOL DSSS Scan/LAN Sled w/Integrated 11MB WLAN card (FCC ID:H9PLA4137P) Model: SPS3046; CW (Continuous Transmit) Mode, Low Channel [2412MHz] EIRP Power = 21.5dBm; Spacing = Back panel of EUT (internal antenna side) touching flat phantom Test Date -- 09/17/2001 SAR Tot [mW/g] 2.65E-2 7.95E-2 1.33E-1 1.86E-1 2.39E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PLA4137SPS3046 -- 2.4GHz Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 2450 MHz Muscle: σ = 2.20 mho/m ε r = 52.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.443 mW/g, SAR (10g): 0.231 mW/g SYMBOL DSSS Scan/LAN Sled w/Integrated 11MB WLAN card (FCC ID:H9PLA4137P) Model: SPS3046; CW (Continuous Transmit) Mode, Mid Channel [2437MHz] EIRP Power = 21.5dBm; Spacing = Back panel of EUT (internal antenna side) touching flat phantom Test Date -- 09/17/2001 SAR Tot [mW/g] 1.98E-2 5.94E-2 9.90E-2 1.39E-1 1.78E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PLA4137SPS3046 -- 2.4GHz Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 2450 MHz Muscle: σ = 2.20 mho/m ε r = 52.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.638 mW/g, SAR (10g): 0.315 mW/g SYMBOL DSSS Scan/LAN Sled w/Integrated 11MB WLAN card (FCC ID:H9PLA4137P) Model: SPS3046; CW (Continuous Transmit) Mode, High Channel [2462MHz] EIRP Power = 21.5dBm; Spacing = Back panel of EUT (internal antenna side) touching flat phantom Test Date -- 09/17/2001 SAR Tot [mW/g] 2.54E-2 7.62E-2 1.27E-1 1.78E-1 2.29E-1 PCTEST Engineering Laboratory, Inc.

© 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz) © 2001 PCTEST Lab 2.4GHz Scan/LAN Sled w/Interated 11MB WLAN Card NVLAP Lab Code: 100431-0 SYMBOL FCC ID: H9PLA4137SPS3046 (Tx 2412-2462MHz)

© 2001 PCTEST Lab ATTACHMENT O – PROBE CALIBRATION DATA Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

© 2001 PCTEST Lab ATTACHMENT N – DIPOLE VALIDATION PLOTS 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.46 mW/g, SAR (10g): 4.88 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 9.07E-1 2.72E+0 4.53E+0 6.35E+0 8.16E+0 PCTEST Engineering Laboratory, Inc.

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 …
