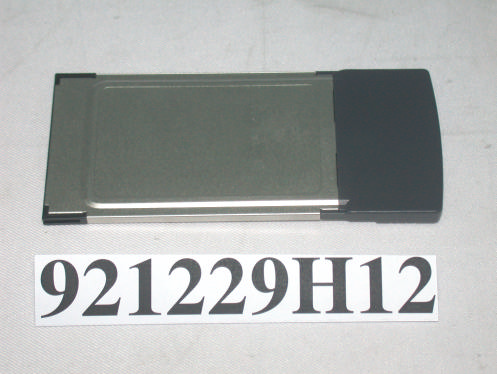

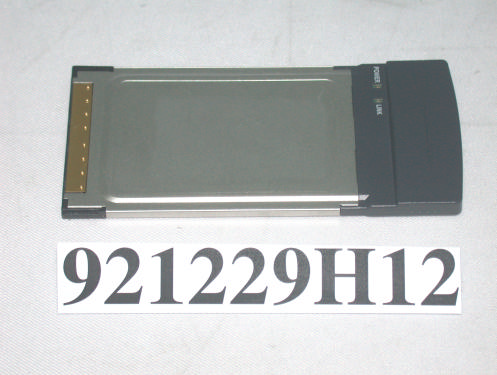

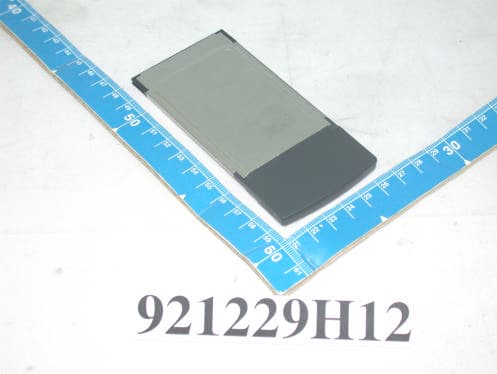

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: H9PLA5030 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5

FCC ID: H9PLA5030 Report No. RF921229H12 Technical Description This device is a Symbol Wireless Networker 802.11a/g CardBus Adapter operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps, and the maximum data rate could be up to 108Mbps in turbo mode. The transmitter of the EUT is powered by host equipment r. The antenna is Chip Antenna without connector. For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: H9PLA5030 Report No.: SA921229H12Issued: February 3, 2004 1 SAR TEST REPORT REPORT NO.: SA921229H12 MODEL NO.: LA-5030 RECEIVED: December 30, 2003 TESTED: January 31, 2004 APPLICANT: SYMBOL TECHNOLOGIES, INC. ADDRESS: One Symbol Plaza, HOLTSVILLE N.Y., 11742, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 30 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: H9PLA5030 Report No.: SA921229H12Issued: February 3, 2004 2 Table of Contents 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ............................... 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................ 13 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 14 5.TEST RESULTS ...................................................................................................................... 15 5.1TEST PROCEDURES .............................................................................................................15 5.2MEASURED SAR RESULT ..................................................................................................... 16 5.3SAR LIMITS ............................................................................................................................. 17 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 20 6.SYSTEM VALIDATION ............................................................................................................21 6.1TEST EQUIPMENT ................................................................................................................. 21 6.2TEST PROCEDURE................................................................................................................ 21 6.3VALIDATION RESULT............................................................................................................. 23 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 25 7.1PROBE CALIBRATION UNCERTAINTY ................................................................................. 25 7.2ISOTROPY UNCERTAINTY .................................................................................................... 25 7.3BOUNDARY EFFECT UNCERTAINTY ................................................................................... 26 7.4PROBE LINEARITY UNCERTAINTY ...................................................................................... 26 7.5READOUT ELECTRONICS UNCERTAINTY .......................................................................... 26 7.6RESPONSE TIME UNCERTAINTY ......................................................................................... 27 7.7INTEGRATION TIME UNCERTAINTY .................................................................................... 28 7.8PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 28 7.9PROBE POSITIONING............................................................................................................29 7.10 PHANTOM UNCERTAINTY..................................................................................................... 29 7.11 DASY4 UNCERTAINTY BUDGET........................................................................................... 30 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: H9PLA5030 Report No.: SA921229H12Issued: February 3, 2004 3 1. CERTIFICATION PRODUCT : Symbol Wireless Networker 802.11a/g CardBus Adapter MODEL NO. : LA-5030 BRAND NAME : SYMBOL Technologies APPLICANT : SYMBOL TECHNOLOGIES, INC. TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on January 31, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: H9PLA5030 Report No.: SA921229H12Issued: February 3, 2004 4 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Symbol Wireless Networker 802.11a/g CardBus Adapter MODEL NO. LA-5030 POWER SUPPLY…
