H9PLA5033Symbol Wireless Networker 802.11a/g PCI Adapter

Wireless Networker LA-5033 PCI Adapter & LA-5030 PC Card User Guide Preliminary 0.1 February, 2004 www.symbol.com ii Wireless Networker LA-5030 PC Card & LA-5033 PCI Adapter User Guide Copyright Copyright © 2003 by Symbol Technologies, Inc. All rights reserved. No part of this publication can be modified or adapted in any way, for any purposes without permission in writing from Symbol. The material in this manual is subject to change without notice. Symbol reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication, estoppel, or otherwise under any Symbol Technologies, Inc., intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in Symbol products. Symbol, the Symbol logo and Spectrum24 are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual can be trademarks or registered trademarks of their respective companies and are hereby acknowledged. IBM is a registered trademark of International Business Machine Corporation. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and LAN Workplace are registered trademarks of Novell Inc. Toshiba is a trademark of Toshiba Corporation. Patents This product is covered by one or more of the following U.S. and foreign Patents: 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894: 6,031,830; 6,036,098; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; 6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061; 6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587; 6,340,114; 6,340,115; 6,340,119; 6,348,773; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104. 5,912,662; 6,011873; 6,080,001; 6,234,389; 6,193,152B1; Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713 3/02 Wireless Networker LA-5030 PC Card & LA-5033 PCI Adapter User Guide Table of Contents 1 Introduction.........................................................1 2 About the LA-5030 PC Card & LA-5033 PCI Adapter..........................................................3 2.1 Installation Prerequisites...................................3 2.2 Operating Modes.............................................5 2.3 54Mbps Operation and Frequency Bands..........6 2.4 Power Management- TBD................................7 2.5 LA-5033 PCI Adapter and LA-5030 PC Card LED Descriptions - TBD.......................7 2.6 Wi-Fi Protected Access (WPA)............................8 2.7 Draft IEEE 802.11h Compatibility--TBD..............9 2.8 Symbol Value Add Features--TBD......................9 2.9 Software Installation Options............................10 3 LA-5033 PCI Adapter Installations.....................11 3.1 Windows 2000 Driver and Configuration Utility Installations.........................................11 3.2 Installing the LA-5033 PCI Adapter and Driver for use with Windows 2000 Zero Config...........13 iv Wireless Networker LA-5030 PC Card & LA-5033 PCI Adapter User Guide 3.3 Windows XP Driver and Configuration Utility Installations.........................................15 3.4 Installing the LA-5033 PCI Adapter and Driver for use with Windows XP Zero Config....17 4 Windows 2000 LA-5030 PC Card Installations...21 4.1 Installing the LA-5030 PC Card Driver and Wireless Utility in Windows 2000.....................21 4.2 Installing the Driver in Windows 2000 For Use With the Zero Config Utility.............................23 4.3 Removing the PC Card Driver in Windows 2000..............................................25 5 LA-5030 PC Card Windows XP Installations........27 5.1 Installing the LA-5030 PC Card Driver and Wireless Utility in Windows XP.........................28 5.2 Removing the PC Card Driver in Windows XP....30 5.3 Installing the Driver in Windows XP For Use With the Zero Config Utility.............................31 A Usin…

Text truncated - open the document above for the full version.

The Enterprise Mobility Company Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: H9PLA5033 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Respectfully, Mark S. Luksich Director, Regulatory Engineering SYMBOL TECHNOLOGIES, INC. E-MAIL : [email protected] TEL: US 631 738 5134 FAX: US 631 738 3915 SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com

30 March 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: Symbol Wireless Networker 802.11a/g PCI Adapter Model No.: LA-5033 Trade Name: Symbol Technologies Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number D930309H03. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Symbol Technologies, Inc. (Company Name) One Symbol Plaza Holtsville N.Y., 11742, USA (Company Address) TEL: US 631 738 5134 FAX: US 631 738 3318 Mark S. Luksich Director, Regulatory Engineering (Name) / (Title) 30 March 2004 (Signature) / (Date) Symbol Technologies Inc. One Symbol Plaza Holtsville NY 11742

30 March 2004 To whom it may concern: We, the undersigned SYMBOL TECHNOLOGIES, INC. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC approval and any communication needed with the national authority solely for the LA-5033 wireless device. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Mark S. Luksich Director, Regulatory Engineering SYMBOL TECHNOLOGIES, INC. E-MAIL : [email protected] TEL: US 631 738 5134 FAX: US 631 738 3318 Symbol Technologies Inc. One Symbol Plaza Holtsville NY 11742 Regards, Mark S. Luksich Director, Regulatory Symbol Technologies Inc. One Symbol Plaza Holtsville NY 11742

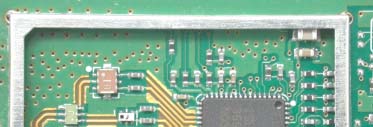

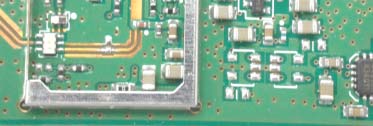

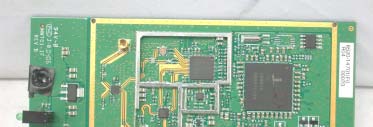

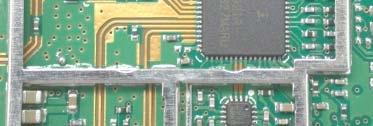

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: H9PLA5033 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: H9PLA5033 ADT No.: RF930309H031Issued: Mar. 30, 2004 RF EXPOSURE REPORT REPORT NO.: RF930309H03 MODEL NO.: LA-5033 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SYMBOL TECHNOLOGIES, INC. ADDRESS: HOLTSVILLE N.Y., 11742, USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: H9PLA5033 ADT No.: RF930309H032Issued: Mar. 30, 2004 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: H9PLA5033 ADT No.: RF930309H033Issued: Mar. 30, 2004 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: H9PLA5033 ADT No.: RF930309H034Issued: Mar. 30, 2004 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241260.1170.01191.0 6243759.1560.01181.0 11246257.4120.01141.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241228.5760.005671.0 6243729.0400.005781.0 11246228.2490.005611.0 For 802.11a (5GHz Band): Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518028.8400.005731.0 4524026.6690.005311.0 5526025.6450.005101.0 8532029.5800.005881.0 9574530.4790.006061.0 12580529.2420.005821.0

FCC ID: H9PLA5033 Report No.: RF930309H031IssuedMar. 30, 2003 FCC TEST REPORT REPORT NO.: RF930309H03 MODEL NO.: LA-5033 RECEIVED: Mar. 09, 2003 TESTED: Mar. 17 to 25, 2004 APPLICANT: SYMBOL TECHNOLOGIES, INC. ADDRESS: HOLTSVILLE N.Y., 11742, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 119 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: H9PLA5033 Report No.: RF930309H032IssuedMar. 30, 2003 Table of Contents 1.CERTIFICATION .................................................................................................................... 5 2.SUMMARY OF TEST RESULTS............................................................................................ 6 3.GENERAL INFORMATION .................................................................................................... 8 3.1GENERAL DESCRIPTION OF EUT....................................................................................... 8 3.2DESCRIPTION OF TEST MODES......................................................................................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4.TEST TYPES AND RESULTS (For Part 802.11b)................................................................ 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS ................................................................................................................... 15 4.2Radiated Emission Measurement ........................................................................................ 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 17 4.2.2TEST INSTRUMENTS ......................................................................................................... 18 4.2.3TEST PROCEDURES .......................................................................................................... 19 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 19 4.2.5TEST SETUP ....................................................................................................................... 20 4.2.6EUT OPERATING CONDITIONS......................................................................................... 20 4.2.7TEST RESULTS ................................................................................................................... 21 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 28 4.3.2TEST INSTRUMENTS ......................................................................................................... 28 4.3.3TEST PROCEDURE ............................................................................................................29 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 29 4.3.5TEST SETUP ....................................................................................................................... 29 4.3.6EUT OPERATING CONDITIONS......................................................................................... 29 4.3.7TEST RESULTS (A) ............................................................................................................. 30 4.3.8TEST RESULTS (B) ............................................................................................................. 34 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 38 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 38 4.4.2INSTRUMENTS.................................................................................................................... 38 4.4.3TEST PROCEDURES .......................................................................................................... 39 4.4.4TEST SETUP ....................................................................................................................... 39 4.4.5EUT OPERATING CONDITIONS......................................................................................... 39 4.4.6TEST RESULTS (A) ............................................................................................................. 40 4.4.7TEST RESULTS (B) ............................................................................................................. 40 FCC ID: H9PLA5…

Text truncated - open the document above for the full version.

Report No. 930309H03 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 HIGH PASS FILTER WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930309H03 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. 930309H03 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930309H03 4 Ch1 Report No. 930309H03 5 Ch11 Report No. 930309H03 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930309H03 7 Ch1 Report No. 930309H03 8 Ch11 Report No. 930309H03 9 TEST RESULTS – For 802.11a, Normal mode The spectrum plots are attached on the following 4 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930309H03 10 Ch1 Report No. 930309H03 11 Ch8 Report No. 930309H03 12 Ch9 Report No. 930309H03 13 Ch12

FCC ID: H9PLA5033 Report No.: RF930309H03117IssuedMar. 30, 2003 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: H9PLA5033 Report No.: RF930309H03118IssuedMar. 30, 2003 RADIATED EMISSION TEST
