H9PLA5127C1802.11b/g Compact Flash Radio Card

LA-5127 User Guide -FCC Copyright 2006 Symbol Technologies, Inc. Page 1 of 13 LA-5127 Integration Guide USA – FCC 15 th Feb 2007 XXXXXXXXXX Rev X LA-5127 User Guide – FCC Copyright 2006 Symbol Technologies, Inc. Page 2 of 13 Table of Contents 1. INTRODUCTION 3 1.1 BACKGROUND 3 1.2 PART NUMBERS 3 1.3 KEY FEATURES AND STANDARDS SUPPORTED 3 1.4 USER PROFILES 4 2. HARDWARE 4 2.1 HARDWARE ENVIRONMENT 4 2.1.1 Introduction 4 2.1.2 Card Dimensions 4 2.1.3 Operating Channels 4 2.1.4 Electrical Interface 5 3. WINCE SOFTWARE SUPPORT 5 3.1 WINCE CARD CONFIGURATION: 5 4. REGULATORY 6 4.1 FINAL PRODUCT COMPLIANCE 6 4.2 REGULATORY STANDARDS 7 4.3 REGULATORY APPROVALS 7 4.3.1 USA Release 7 4.4 REFERENCE ANTENNA (APPLICABLE TO CONNECTOR VERSION CARD) 7 4.5 RADIO CARD REGULATORY MARKINGS 9 4.6 NATIONAL COUNTRY REQUIREMENTS 9 4.6.1 United States of America 9 4.7 STATEMENTS REQUIRED FOR THE USER GUIDE 10 4.7.1 General Statements 10 4.7.2 FCC Statements 10 5. APPENDIX 2: PRODUCT MECHANICAL INTERFACE DRAWING 12 XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 3 of 13 Confidential Material – Disclosure Strictly Prohibited. 1. Introduction 1.1 Background LA-5127 is the next generation CF client card for embedded solutions and is intended for OEM customers. 1.2 Part Numbers LA-5127 CF card will come in one SKU: Part Number SKU LA-5127-1002 External Antenna Version 1.3 Key Features and Standards supported LA-5127 CF Card supports all required modes of operation as an 802.11g Mobile Unit (MU). In 802.11g mode, the radio supports three different modulation modes: Legacy 1 and 2Mbps, Complimentary Code Keying (CCK), and Orthogonal Frequency Division Multiplexing (OFDM). The radio supports the following 12 data rates in 802.11b/g mode: Data Rate (Mbps) Modulation 1 DBPSK 2 DQPSK 5.5 CCK 6 OFDM with BPSK Carrier Modulation 9 OFDM with BPSK Carrier Modulation 11 CCK 12 OFDM with QPSK Carrier Modulation 18 OFDM with QPSK Carrier Modulation 24 OFDM with 16QAM Carrier Modulation 36 OFDM with 16QAM Carrier Modulation 48 OFDM with 64QAM Carrier Modulation 54 OFDM with 64QAM Carrier Modulation XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 4 of 13 Confidential Material – Disclosure Strictly Prohibited. 1.4 User Profiles • The LA-5127 product is optimized for embedded, mobile enterprise and industrial applications where security, feature and technical service are required. • Mobile workers in healthcare, education, retail, manufacturing, hospitality and other industries with 802.11b, and 802.11g wireless LAN access. • Corporate Symbol device users with Wi-Fi wireless LAN access at the office, or with a subscription to a public wireless LAN. 2. Hardware 2.1 Hardware Environment 2.1.1 Introduction LA-5127 CF card can be used in handheld mobile devices to provide wireless network access. LA-5127 communicates using Radio Frequencies (RF) between two or more users or between a user and the wired network. The module implements the IEEE802.11g physical (RF) specification. The chipset used provides for modulation, demodulation, spreading and despreading of the RF signals. 2.1.2 Card Dimensions LA-5127 is a modified type I CFA card. See Appendix 2 for Mechanical Interface Drawing. 2.1.3 Operating Channels Channel Number Channel Frequency (MHz) Countries 1 2412 USA, Canada, EU, Japan 2 2417 USA, Canada, EU, Japan 3 2422 USA, Canada, EU, Japan 4 2427 USA, Canada, EU, Japan 5 2432 USA, Canada, EU, Japan 6 2437 USA, Canada, EU, Japan 7 2442 USA, Canada, EU, Japan 8 2447 USA, Canada, EU, Japan 9 2452 USA, Canada, EU, Japan 10 2457 USA, Canada, EU, Japan XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 5 of 13 Confidential Material – Disclosure Strictly Prohibited. 11 2462 USA, Canada, EU, Japan 12 2467 EU, Japan 13 2472 EU, Japan 14 2484 Japan Table 1. IEEE 802.11g Channels 2.1.4 Electrical Interface The electrical interface for LA-5127 is PC16. The chipset used supports this interface; therefore no external component is required. The host must support the PC16 interface as well. The card uses only the 16-bit interface. 3. WinCE Software Support Driver support for the 5127 radio is available for Windows CE Embedded 5.0. 3.1 WinCE Card Configuration: Device configuration is made using a built-in Microsoft OS WLAN configuration service (i.e. a utility) commonly known as Wireless Zero Configuration (WCZ). WZC allows a wireless device to connect to an existing wireless network, change wireless network connection settings, configure a new wireless network connection, and specify preferred wireless networks. WZC will also notify the user when new wireless networks are available. Once a desired wireless network is selected, WZC will automatically configure the wireless card to match the setting of the network and will attempt a network connection. XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 6 of 13 Confidential Material – Disclosure Strictly Prohibited. 4. Regulatory Legal Disclaimer: This Guide may contain information on regulatory matters. The information should be used with the understanding that Symbol is not engaged in rendering any legal, regulatory or other professional opinion. Each country has specific laws and regulations governing the use of radio communications. Please consult the official code for each country of interest. Symbol does not warrant the accuracy of the information contained herein and accepts no liability or responsibility for any use or misuse of the information Symbol’s wireless network devices are designed to be compliant with rules and regulations in locations they are sold. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user’s authority to operate the equipment. The OEM integrator must NOT provide information in the user guide of the end product regar…

Text truncated - open the document above for the full version.

FCC ID: H9PLA5127C1 Report No. RF960112H11 Modular Approval Request Letter Advance Data Technology Feb. 12, 2007 Dear Application Examiner, Symbol Technologies Inc.’s 802.11b/g Compact Flash Radio Card, FCC ID: H9PLA5127C1, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CX53822. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The CF interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is TPS79318YZQ. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H9PLA5127C1 Report No. RF960112H11 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

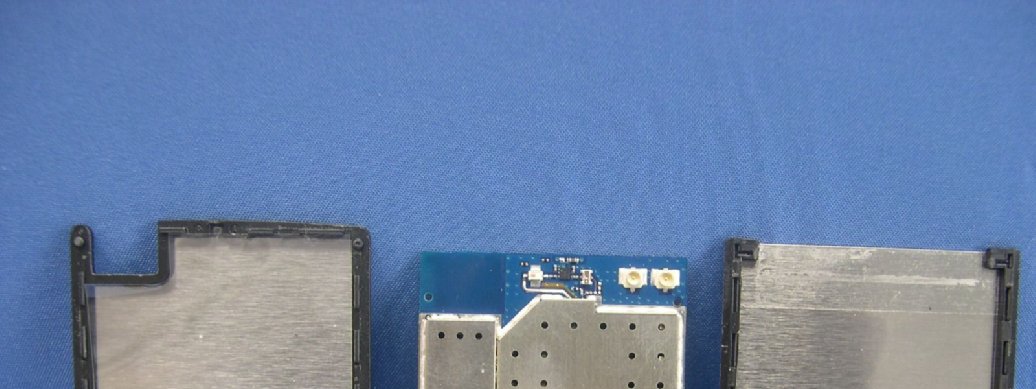

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: H9PLA5127C1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

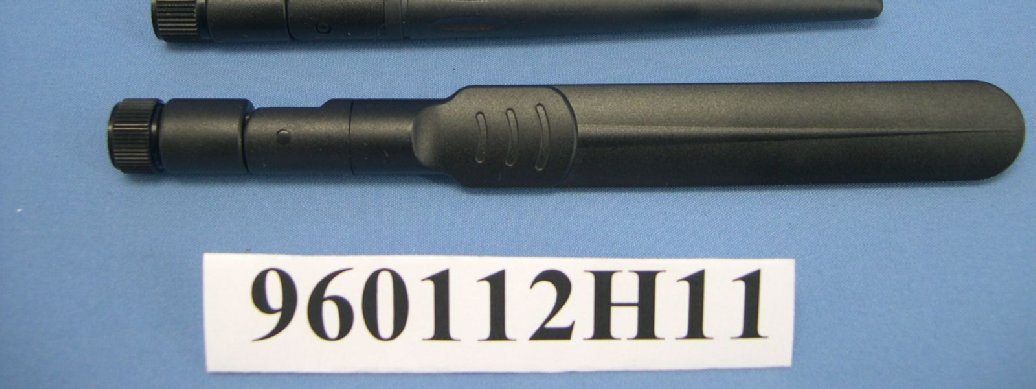

Page 2 Page 3 Page 4 Antenna Model No.: ML-2452-APA2-01 Page 5 Antenna Model No.: Printronics-HG2403RD-RSF Page 6

Report No.: SA960112H11 1 RF EXPOSURE REPORT REPORT NO.: SA960112H11 MODEL NO.: LA-5127C1 FCC ID: H9PLA5127C1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960112H11 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960112H11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960112H11 4 6. Test Results 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: No. Model No. Gain (dBi) Antenna Type Antenna Connector Condition (*) Net gain (dBi) 1 Printronics-HG2403 RD-RSF 3 Dipole R-SMA Condition 1: 1dB Condition 2: 0.9dB Condition 1: 2 Condition 2: 2.1 *There will have two conditions for this antenna: Condition 1: RF Cable(10cm)+PCB trace(1cm)/Cable loss:HG2403RD-RSF Short cable(Include PCB Trace):1dB Condition 2: RF Cable(23cm)/ cable loss:HG2403RD- RSF Long cable: 0.9dB No. Model No. Gain (dBi) Antenna Type Antenna Connector Cable loss Net gain (dBi) 2 ML-2452-APA2-01 3 Dipole R-SMA 0.9dB 2.1 Note: For antenna 1, Condition 2, the worse case one, was chosen for final test. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 43.652 0.014 1.0 2 2417 51.286 0.017 1.0 6 2437 58.884 0.019 1.0 10 2457 51.286 0.017 1.0 11 2462 43.652 0.014 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 47.863 0.015 1.0 2 2417 57.544 0.019 1.0 6 2437 53.703 0.017 1.0 10 2457 52.481 0.017 1.0 11 2462 38.019 0.012 1.0

Report No.: RF960112H11 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960112H11 MODEL NO.: LA-5127C1 RECEIVED: Jan. 15, 2007 TESTED: Jan. 16 to 29, 2007 ISSUED: Jan. 30, 2007 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 105 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960112H11 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION..........................................................................................4 2 SUMMARY OF TEST RESULTS..................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................6 3 GENERAL INFORMATION...........................................................................7 3.1 GENERAL DESCRIPTION OF EUT.............................................................7 3.2 DESCRIPTION OF TEST MODES...............................................................9 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:..............10 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................12 3.5 DESCRIPTION OF SUPPORT UNITS.......................................................13 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................13 4 TEST TYPES AND RESULTS....................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT..............................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................14 4.1.2 TEST INSTRUMENTS...............................................................................14 4.1.3 TEST PROCEDURES................................................................................15 4.1.4 TEST SETUP.............................................................................................15 4.1.5 EUT OPERATING CONDITIONS...............................................................16 4.1.6 TEST RESULTS.........................................................................................17 4.2 RADIATED EMISSION MEASUREMENT...................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................19 4.2.2 TEST INSTRUMENTS...............................................................................20 4.2.3 TEST PROCEDURES................................................................................21 4.2.4 TEST SETUP.............................................................................................22 4.2.5 EUT OPERATING CONDITIONS...............................................................22 4.2.6 TEST RESULTS – ANTENNA 1.................................................................23 4.2.7 TEST RESULTS – ANTENNA 2.................................................................50 4.3 6dB BANDWIDTH MEASUREMENT..........................................................77 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.......................................77 4.3.2 TEST INSTRUMENTS...............................................................................77 4.3.3 TEST PROCEDURE..................................................................................78 4.3.4 TEST SETUP.............................................................................................78 4.3.5 EUT OPERATING CONDITIONS...............................................................78 4.3.6 TEST RESULTS.........................................................................................79 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................85 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........85 Report No.: RF960112H11 3 Report Format Version 2.0.5 4.4.2 TEST INSTRUMENTS...............................................................................85 4.4.3 TEST PROCEDURES................................................................................86 4.4.4 TEST SETUP.............................................................................................86 4.4.5 EUT OPERATING CONDITIONS...............................................................86 4.4.6 TEST RESULTS.........................................................................................87 4.5 POWER SPECTRAL DENSITY MEASUREMENT.....................................89 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................89 4.5.2 TEST INSTRUMENTS...............................................................................89 4.5.3 TEST PROCEDURE..................................................................................90 4.5.4 TEST SETUP.............................................................................................90 4.5.5 EUT OPERATING CONDITIONS...............................................................90 4.5.6 TEST RESULTS.........................................................................................91 4.6 BAND EDGES MEASUREMENT...............................................................97 4.6.1 LIMITS OF BAND EDGES MEASUREMENT.............................................97 4.6.2 TEST INSTRUMENTS...............................................................................97 4.6.3 TEST PROCEDURE..................................................................................97 4.6.4 EUT OPERATING CONDITION.................................................................97 4.6.5 TEST RESULTS..............…

Text truncated - open the document above for the full version.

Report No.: RF960112H11 50 Report Format Version 2.0.5 4.2.7 TEST RESULTS – Antenna 2 Below 1GHz Worst-Case Data MODULATION TYPE CCK CHANNEL Channel 1 INPUT POWER (SYSTEM) 120Vac, 60 Hz FREQUENCY RANGE 30-1000 MHz ENVIRONMENTAL CONDITIONS 22deg. C, 64%RH, 980hPa TRANSFER RATE 1Mbps TESTED BY Sky Liao DETECTOR FUNCTION Quasi-Peak, 120kHz ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 133.17 28.00 QP 43.50 -15.50 1.43 H 322 15.10 12.90 2 149.65 26.70 QP 43.50 -16.80 1.20 H 157 12.90 13.80 3 166.50 34.10 QP 43.50 -9.40 1.55 H 357 20.40 13.80 4 233.20 28.80 QP 46.00 -17.20 1.55 H 338 15.70 13.00 5 399.85 32.10 QP 46.00 -13.90 1.79 H 37 13.10 19.00 6 500.04 31.30 QP 46.00 -14.70 1.45 H 218 9.50 21.80 7 666.32 28.10 QP 46.00 -17.90 1.67 H 299 2.80 25.30 8 933.01 32.60 QP 46.00 -13.40 1.80 H 52 3.10 29.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 133.49 30.60 QP 43.50 -12.90 1.49 V 242 17.70 12.90 2 147.93 26.90 QP 43.50 -16.60 1.00 V 221 13.20 13.70 3 166.62 31.50 QP 43.50 -12.00 1.00 V 136 17.70 13.80 4 233.17 23.20 QP 46.00 -22.80 1.05 V 1 10.20 13.00 5 399.78 32.60 QP 46.00 -13.40 1.00 V 335 13.60 19.00 6 500.24 26.30 QP 46.00 -19.70 1.00 V 296 4.60 21.80 7 666.59 32.20 QP 46.00 -13.80 1.00 V 16 7.00 25.30 8 932.87 33.90 QP 46.00 -12.10 1.00 V 235 4.40 29.50 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. Report No.: RF960112H11 51 Report Format Version 2.0.5 802.11b DSSS modulation MODE Channel 1 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 1 MHz ENVIRONMENTAL CONDITIONS 18 deg. C, 56%RH, 980hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2386.00 56.89 PK 74.00 -17.11 1.08 H 246 24.97 31.92 1 2386.00 44.67 AV 54.00 -9.33 1.08 H 246 12.75 31.92 2 *2412.00 95.00 PK 1.08 H 246 62.98 32.02 2 *2412.00 88.20 AV 1.08 H 246 56.18 32.02 3 4824.00 48.60 PK 74.00 -25.40 1.16 H 206 12.63 35.97 3 4824.00 40.20 AV 54.00 -13.80 1.16 H 206 4.23 35.97 4 7236.00 53.78 PK 74.00 -20.22 1.12 H 35 11.54 42.24 4 7236.00 41.58 AV 54.00 -12.42 1.12 H 35 -0.66 42.24 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2386.30 61.60 PK 74.00 -12.40 1.50 V 93 29.68 31.92 1 2386.30 51.96 AV 54.00 -2.04 1.50 V 93 20.04 31.92 2 *2412.00 109.40 PK 1.48 V 92 77.38 32.02 2 *2412.00 104.70 AV 1.48 V 92 72.68 32.02 3 4824.00 49.60 PK 74.00 -24.40 1.27 V 358 13.63 35.97 3 4824.00 42.20 AV 54.00 -11.80 1.27 V 358 6.23 35.97 4 7236.00 51.98 PK 74.00 -22.02 1.40 V 15 9.74 42.24 4 7236.00 38.78 AV 54.00 -15.22 1.40 V 15 -3.46 42.24 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF960112H11 52 Report Format Version 2.0.5 MODE Channel 2 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 1 MHz ENVIRONMENTAL CONDITIONS 18 deg. C, 56%RH, 980hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2386.00 57.30 PK 74.00 -16.70 1.50 H 126 25.40 31.90 1 2386.00 45.80 AV 54.00 -8.20 1.50 H 126 13.90 31.90 2 *2417.00 96.10 PK 1.09 H 250 64.10 32.00 2 *2417.00 88.70 AV 1.09 H 250 56.70 32.00 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2390.00 65.00 PK 74.00 -9.00 1.20 V 230 33.10 31.90 1 2390.00 53.60 AV 54.00 -0.40 1.20 V 230 21.70 31.90 2 *2417.00 109.90 PK 1.50 V 100 77.90 32.00 2 *2417.00 105.30 AV 1.50 V 100 73.30 32.00 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF960112H11 53 Report Format Version 2.0.5 MODE Channel 6 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 1 MHz ENVIRONMENTAL CONDITIONS 18 deg. C, 56%RH, 980hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2437.00 99.10 PK 1.03 H 244 66.99 32.11 1 *2437.00 92.70 AV 1.03 H 244 60.59 32.11 2 4874.00 49.31 PK 74.00 -24.69 1.25 H 257 13.23 36.08 2 4874.00 41.01 AV 54.00 -12.99 1.25 H 257 4.93 36.08 3 7311.00 54.77 PK 74.00 -19.23 1.30 H 25 12.25 42.52 3 7311.00 42.67 AV 54.00 -11.33 1.30 H 25 0.15 42.52 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degr…

Text truncated - open the document above for the full version.

Report No.: RF960112H11 77 Report Format Version 2.0.5 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960112H11 78 Report Format Version 2.0.5 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100 kHz RBW and 100 kHz VBW. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. 4.3.4 TEST SETUP For the actual test configuration, please refer to the related Item – Photographs of the Test Configuration. 4.3.5 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No.: RF960112H11 79 Report Format Version 2.0.5 4.3.6 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 980hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 12.53 0.5 PASS 6 2437 11.06 0.5 PASS 11 2462 12.53 0.5 PASS Report No.: RF960112H11 80 Report Format Version 2.0.5 CH1 CH6 Report No.: RF960112H11 81 Report Format Version 2.0.5 CH11 Report No.: RF960112H11 82 Report Format Version 2.0.5 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 980hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.45 0.5 PASS 6 2437 16.52 0.5 PASS 11 2462 16.52 0.5 PASS Report No.: RF960112H11 83 Report Format Version 2.0.5 CH1 CH6 Report No.: RF960112H11 84 Report Format Version 2.0.5 CH11 Report No.: RF960112H11 85 Report Format Version 2.0.5 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 Agilent SIGNAL GENERATOR E8257C MY43321031 July 26, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 Jun. 21, 2007 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960112H11 86 Report Format Version 2.0.5 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the peak response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUT or S.G OSCILLOSCOPE Detector Report No.: RF960112H11 87 Report Format Version 2.0.5 4.4.6 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 980hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 43.652 16.4 30 PASS 2 2417 51.286 17.1 30 PASS 6 2437 58.884 17.7 30 PASS 10 2457 51.286 17.1 30 PASS 11 2462 43.652 16.4 30 PASS Report No.: RF960112H11 88 Report Format Version 2.0.5 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 980hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 47.863 16.8 30 PASS 2 2417 57.544 17.6 30 PASS 6 2437 53.703 17.3 30 PASS 10 2457 52.481 17.2 30 PASS 11 2462 38.019 15.8 30 PASS Report No.: RF960112H11 89 Report Format Version 2.0.5 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the abo…

Text truncated - open the document above for the full version.
