H9PLA5127C2802.11b/g Compact Flash Radio Card

LA-5127 Integration Guide Copyright 2006 Symbol Technologies, Inc. Page 1 of 15 LA-5127 Integration Guide USA – FCC 12 th July 2007 XXXXXXXXXX Rev X LA-5127 Integration Guide Copyright 2006 Symbol Technologies, Inc. Page 2 of 15 Confidential Material – Disclosure Strictly Prohibited. Table of Contents 1. INTRODUCTION 3 1.1 BACKGROUND 3 1.2 PART NUMBERS 3 1.3 KEY FEATURES AND STANDARDS SUPPORTED 3 1.4 USER PROFILES 4 2. HARDWARE 4 2.1 HARDWARE ENVIRONMENT 4 2.1.1 Introduction 4 2.1.2 Card Dimensions 4 2.1.3 Operating Channels 4 2.1.4 Electrical Interface 5 3. REGULATORY 6 3.1 FINAL PRODUCT COMPLIANCE 6 3.2 REGULATORY STANDARDS 8 3.3 REGULATORY APPROVALS 8 3.3.1 Initial Release 8 3.4 REFERENCE ANTENNA (APPLICABLE TO CONNECTOR VERSION CARD) 8 3.5 RADIO CARD REGULATORY MARKINGS 8 3.6 NATIONAL COUNTRY REQUIREMENTS 8 3.6.1 United States of America 8 4. STATEMENTS REQUIRED FOR THE USER GUIDE 10 4.1.1 General Statements 10 4.1.2 FCC Statements 10 5. APPENDIX 1: PRODUCT MECHANICAL INTERFACE DRAWING 12 XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 3 of 15 Confidential Material – Disclosure Strictly Prohibited. 1. Introduction 1.1 Background LA-5127 is the next generation CF client card for embedded solutions and is intended for OEM customers. 1.2 Part Numbers LA-5127 CF card will come in two SKUs: Part Number SKU LA-5127-1002 External Antenna Version LA-5127-1020 Internal Antenna Version 1.3 Key Features and Standards supported LA-5127 CF Card supports all required modes of operation as an 802.11g Mobile Unit (MU). In 802.11g mode, the radio supports three different modulation modes: Legacy 1 and 2Mbps, Complimentary Code Keying (CCK), and Orthogonal Frequency Division Multiplexing (OFDM). The radio supports the following 12 data rates in 802.11b/g mode: Data Rate (Mbps) Modulation 1 DBPSK 2 DQPSK 5.5 CCK 6 OFDM with BPSK Carrier Modulation 9 OFDM with BPSK Carrier Modulation 11 CCK 12 OFDM with QPSK Carrier Modulation 18 OFDM with QPSK Carrier Modulation 24 OFDM with 16QAM Carrier Modulation 36 OFDM with 16QAM Carrier Modulation 48 OFDM with 64QAM Carrier Modulation 54 OFDM with 64QAM Carrier Modulation XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 4 of 15 Confidential Material – Disclosure Strictly Prohibited. 1.4 User Profiles • The LA-5127 product is optimized for embedded, mobile enterprise and industrial applications where security, feature and technical service are required. • Mobile workers in healthcare, education, retail, manufacturing, hospitality and other industries with 802.11b, and 802.11g wireless LAN access. • Corporate Symbol device users with Wi-Fi wireless LAN access at the office, or with a subscription to a public wireless LAN. 2. Hardware 2.1 Hardware Environment 2.1.1 Introduction LA-5127 CF card can be used in handheld mobile devices to provide wireless network access. LA-5127 communicates using Radio Frequencies (RF) between two or more users or between a user and the wired network. The module implements the IEEE802.11g physical (RF) specification. The chipset used provides for modulation, demodulation, spreading and despreading of the RF signals. 2.1.2 Card Dimensions LA-5127 is a modified type I CFA card. See Appendix 2 for Mechanical Interface Drawing. 2.1.3 Operating Channels Channel Number Channel Frequency (MHz) Countries 1 2412 USA, Canada, EU, Japan 2 2417 USA, Canada, EU, Japan 3 2422 USA, Canada, EU, Japan 4 2427 USA, Canada, EU, Japan 5 2432 USA, Canada, EU, Japan 6 2437 USA, Canada, EU, Japan 7 2442 USA, Canada, EU, Japan 8 2447 USA, Canada, EU, Japan 9 2452 USA, Canada, EU, Japan 10 2457 USA, Canada, EU, Japan 11 2462 USA, Canada, EU, Japan XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 5 of 15 Confidential Material – Disclosure Strictly Prohibited. 12 2467 EU, Japan 13 2472 EU, Japan 14 2484 Japan Table 1. IEEE 802.11g Channels 2.1.4 Electrical Interface The electrical interface for LA-5127 is PC16. The chipset used supports this interface; therefore no external component is required. The host must support the PC16 interface as well. The card uses only the 16-bit interface. XXXXXXXX Rev X LA-5127 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 6 of 15 Confidential Material – Disclosure Strictly Prohibited. 3. Regulatory Legal Disclaimer: This Guide may contain information on regulatory matters. The information should be used with the understanding that Symbol is not engaged in rendering any legal, regulatory or other professional opinion. Each country has specific laws and regulations governing the use of radio communications. Please consult the official code for each country of interest. Symbol does not warrant the accuracy of the information contained herein and accepts no liability or responsibility for any use or misuse of the information Symbol’s wireless network devices are designed to be compliant with rules and regulations in locations they are sold. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user’s authority to operate the equipment. The OEM integrator must NOT provide information in the user guide of the end product regarding how to install or remove this RF module. 3.1 Final Product Compliance The model numbers used for Regulatory Approvals are: LA-5127C2 (connector version) LA-5127A2 (antenna version) The LA-5127 has been regulatory approved for OEM integrations which meet the following conditions: 1. The radio integration is embedded 2. The antenna must be installed such that 20 cm is maintained between the antenna and users 3. The ‘Type’ and ‘Gain’ of the antenna selected for the integration of the external antenna must meet the requirements as detailed in section 3.2. Used outside of these conditions will trigger re-approval. Symbol advises the use of an accredited test laboratory for advice. Be …

Text truncated - open the document above for the full version.

FCC ID: H9PLA5127C2 Report No. RF960622H02A Reference No.: 960717H02 Modular Approval Request Letter Advance Data Technology Aug. 01, 2007 Dear Application Examiner, Symbol Technologies Inc.’s 802.11b/g Compact Flash Radio Card, FCC ID: H9PLA5127C2, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CX53822. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The CF interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is SI1040X. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H9PLA5127C2 Report No. RF960622H02A Reference No.: 960717H02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

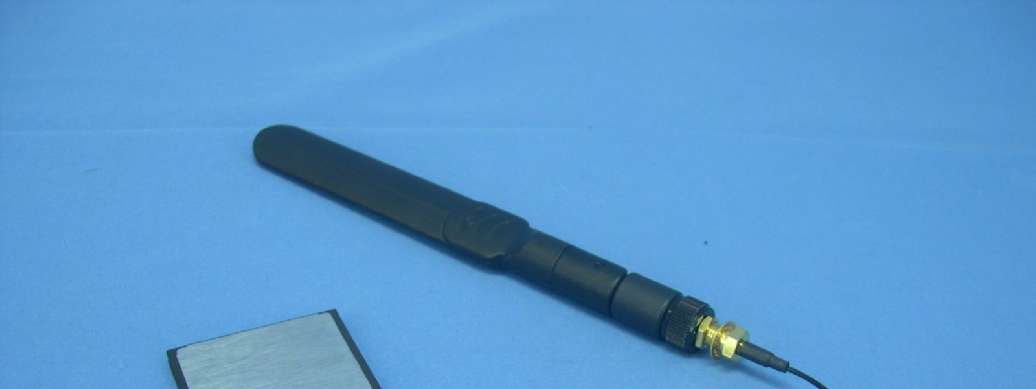

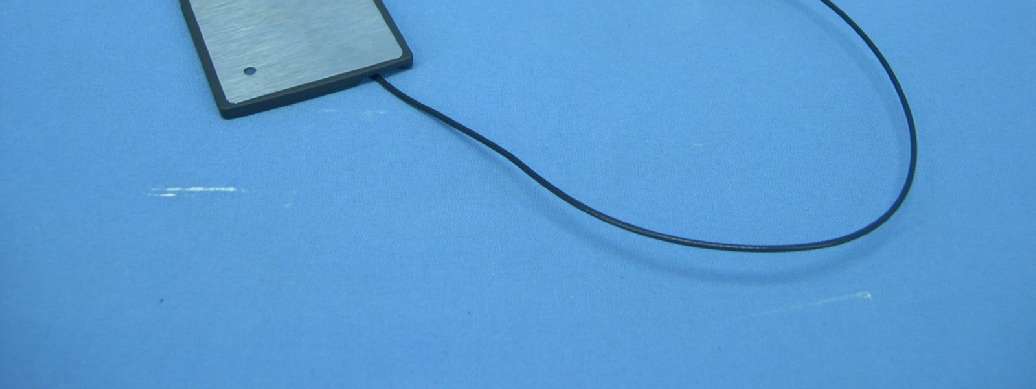

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna: ML-2452-APA2-01 Page 2 Antenna: Printronics-HG2403RD-RSF

(Fig.1) FCC ID: H9PLA5127C2 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

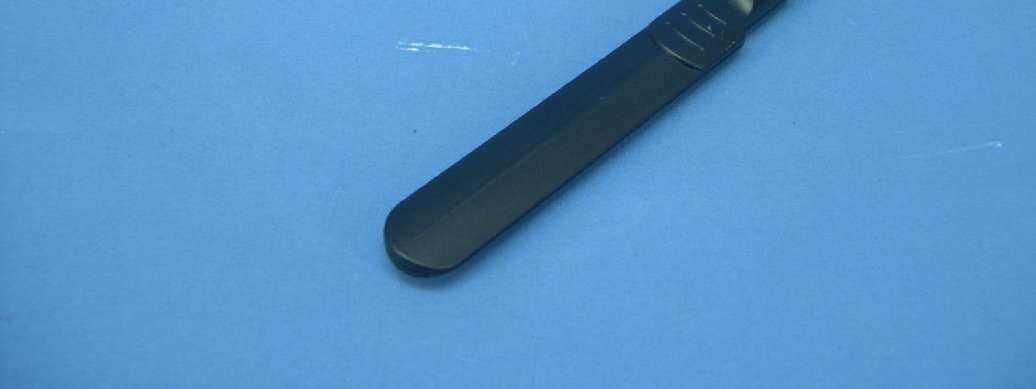

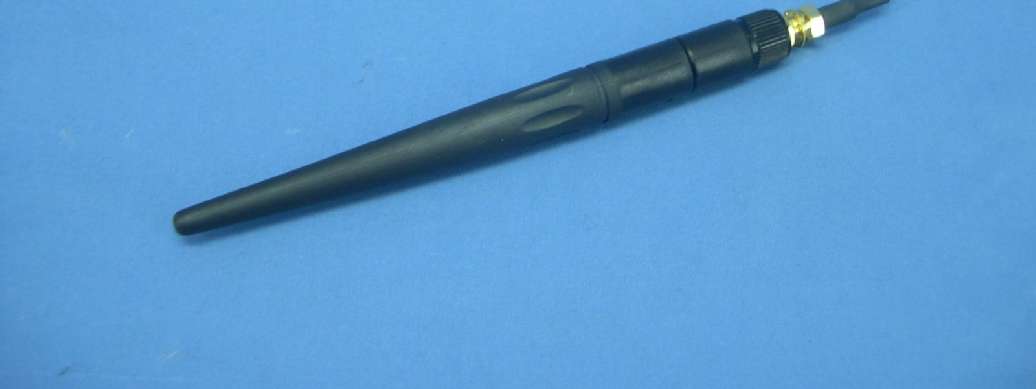

Page 3 Page 4 Page 5 Page 6 Page 7 Antenna: ML-2452-APA2-01 Page 8 Antenna: Printronics-HG2403RD-RSF

Report No.: SA960622H02A 1 Issued: July 12, 2007 Reference No.:960717H02 RF EXPOSURE REPORT REPORT NO.: SA960622H02A MODEL NO.: LA-5127C2 FCC ID: H9PLA5127C2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960622H02A 2 Issued: July 12, 2007 Reference No.:960717H02 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960622H02A 3 Issued: July 12, 2007 Reference No.:960717H02 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960622H02A 4 Issued: July 12, 2007 Reference No.:960717H02 6 Test Results 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Model No. Gain (dBi) Antenna Type Antenna Connector Condition (*) Net gain (dBi) Condition 1: 1dB Condition 1: 2 Printronics-HG2403RD-RSF 3 Dipole R-SMA Condition 2: 0.9dB Condition 2: 2.1 *There will have two conditions for this antenna: Condition 1: RF Cable(10mm)+PCB trace(10mm) / Cable loss:HG2403RD-RSF Short cable(Include PCB Trace):1dB Condition 2: RF Cable(268mm) / cable loss:HG2403RD-RSF Long cable: 0.9dB Model No. Frequency Gain (dBi) Antenna Type Antenna Connector Cable loss Net gain (dBi) ML-2452-APA2-01 2.4GHz 3 Dipole R-SMA 0.9dB 2.1 Above antennas the indicated in bold type was chosen for final test. 6.2 Output Power Into Antenna & RF Exposure value: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 60.256 0.019 1.0 2 2417 64.565 0.020 1.0 3 2422 87.096 0.027 1.0 6 2437 79.433 0.025 1.0 9 2452 91.201 0.029 1.0 10 2457 66.069 0.021 1.0 11 2462 63.096 0.020 1.0 Report No.: SA960622H02A 5 Issued: July 12, 2007 Reference No.:960717H02 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 45.709 0.014 1.0 2 2417 58.884 0.019 1.0 3 2422 77.625 0.024 1.0 4 2427 91.201 0.029 1.0 6 2437 100.000 0.032 1.0 8 2447 93.325 0.029 1.0 9 2452 74.131 0.023 1.0 10 2457 56.234 0.018 1.0 11 2462 42.658 0.013 1.0 Note: Channel 2~4 and 8~10 are required by manufacture.

Report No.: RF960622H02A 1 Report Format Version 2.0.6 Reference No.:960717H02 FCC TEST REPORT REPORT NO.: RF960622H02A MODEL NO.: LA-5127C2 RECEIVED: June 22, 2007 TESTED: July 04 to 10, 2007 ISSUED: July 12, 2007 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 96 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960622H02A 2 Report Format Version 2.0.6 Reference No.:960717H02 Table of Contents 1. CERTIFICATION........................................................................................................4 2. SUMMARY OF TEST RESULTS...............................................................................5 2.1 MEASUREMENT UNCERTAINTY.............................................................................6 3. GENERAL INFORMATION........................................................................................7 3.1 GENERAL DESCRIPTION OF EUT..........................................................................7 3.2 DESCRIPTION OF TEST MODES............................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................12 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST.....................................................13 4. TEST TYPES AND RESULTS.................................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT..........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................14 4.1.2 TEST INSTRUMENTS.............................................................................................14 4.1.3 TEST PROCEDURES..............................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD...................................................................15 4.1.5 TEST SETUP...........................................................................................................16 4.1.6 EUT OPERATING CONDITIONS............................................................................16 4.1.7 TEST RESULTS.......................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT...............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................19 4.2.2 TEST INSTRUMENTS.............................................................................................20 4.2.3 TEST PROCEDURES..............................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD...................................................................21 4.2.5 TEST SETUP...........................................................................................................22 4.2.6 EUT OPERATING CONDITIONS............................................................................22 4.2.7 TEST RESULTS.......................................................................................................23 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................68 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................68 4.3.2 TEST INSTRUMENTS.............................................................................................68 4.3.3 TEST PROCEDURE................................................................................................69 4.3.4 DEVIATION FROM TEST STANDARD...................................................................69 4.3.5 TEST SETUP...........................................................................................................69 4.3.6 EUT OPERATING CONDITIONS............................................................................69 4.3.7 TEST RESULTS.......................................................................................................70 4.4 MAXIMUM PEAK OUTPUT POWER.......................................................................76 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................76 4.4.2 INSTRUMENTS.......................................................................................................76 Report No.: RF960622H02A 3 Report Format Version 2.0.6 Reference No.:960717H02 4.4.3 TEST PROCEDURES..............................................................................................77 4.4.4 DEVIATION FROM TEST STANDARD...................................................................77 4.4.5 TEST SETUP...........................................................................................................77 4.4.6 EUT OPERATING CONDITIONS............................................................................77 4.4.7 TEST RESULTS.......................................................................................................78 4.5 POWER SPECTRAL DENSITY MEASUREMENT.................................................80 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................80 4.5.2 TEST INSTRUMENTS....................................................................…

Text truncated - open the document above for the full version.

Report No.: RF960622H02A 51 Report Format Version 2.0.6 Reference No.:960717H02 CHANNEL Channel 11 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 26deg. C, 69%RH, 960hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2462.00 98.60 PK 1.27 H 280 67.88 30.72 2 *2462.00 87.90 AV 1.27 H 280 57.18 30.72 3 2483.50 62.09 PK 74.00 -11.91 1.80 H 196 31.27 30.82 4 2483.50 46.55 AV 54.00 -7.45 1.80 H 196 15.73 30.82 5 4924.00 46.20 PK 74.00 -27.80 1.26 H 65 10.30 35.90 6 4924.00 33.40 AV 54.00 -20.60 1.26 H 65 -2.50 35.90 7 7386.00 54.20 PK 74.00 -19.80 1.28 H 64 11.40 42.80 8 7386.00 40.80 AV 54.00 -13.20 1.28 H 64 -2.00 42.80 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2462.00 108.10 PK 1.73 V 290 77.38 30.72 2 *2462.00 97.50 AV 1.73 V 290 66.78 30.72 3 2483.50 70.23 PK 74.00 -3.77 1.70 V 250 39.41 30.82 4 2483.50 51.83 AV 54.00 -2.17 1.70 V 250 21.01 30.82 5 4924.00 49.40 PK 74.00 -24.60 1.32 V 16 13.50 35.90 6 4924.00 35.20 AV 54.00 -18.80 1.32 V 16 -0.70 35.90 7 7386.00 53.60 PK 74.00 -20.40 1.16 V 22 10.80 42.80 8 7386.00 40.40 AV 54.00 -13.60 1.16 V 22 -2.40 42.80 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF960622H02A 52 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11g MODE,CH1, HORIZONTAL ) Report No.: RF960622H02A 53 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11g MODE,CH1, VERTICAL ) Report No.: RF960622H02A 54 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11g MODE,CH11, HORIZONTAL ) Report No.: RF960622H02A 55 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11g MODE,CH11, VERTICAL ) Report No.: RF960622H02A 56 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH2, HORIZONTAL ) Report No.: RF960622H02A 57 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH2, VERTICAL ) Report No.: RF960622H02A 58 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH10, HORIZONTAL ) Report No.: RF960622H02A 59 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH10, VERTICAL ) Report No.: RF960622H02A 60 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH3, HORIZONTAL ) Report No.: RF960622H02A 61 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH3, VERTICAL ) Report No.: RF960622H02A 62 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH9, HORIZONTAL ) Report No.: RF960622H02A 63 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH9, VERTICAL ) Report No.: RF960622H02A 64 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH4, HORIZONTAL ) Report No.: RF960622H02A 65 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH4, VERTICAL ) Report No.: RF960622H02A 66 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH8, HORIZONTAL ) Report No.: RF960622H02A 67 Report Format Version 2.0.6 Reference No.:960717H02 RESTRICTED BANDEDGE (802.11b MODE,CH8, VERTICAL ) Report No.: RF960622H02A 68 Report Format Version 2.0.6 Reference No.:960717H02 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960622H02A 69 Report Format Version 2.0.6 Reference No.:960717H02 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation 4.3.5 TEST SETUP 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. SPECTRUM ANALYZER EUT Report No.: RF960622H02A 70 Report Format Version 2.0.6 Reference No.:960717H02 4.3.7 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 62%RH, 960hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 11.55 0.5 PASS 6 2437 11.55 0.5 PASS 11 2462 11.13 0.5 PASS Report No.: RF960622H02A 71 Report Format Version 2.0.6 Reference No.:960717H02 CH1 CH6 Report No.: RF960622H02A 72 Report Format Version 2.0.6 Reference No.:960717H02 CH11 Report No.: RF960622H02A 73 Report Format Versi…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
