H9PLA5137A2802.11a/b/g Compact Flash Radio Card

LA-5137 Integration Guide Copyright 2006 Symbol Technologies, Inc. Page 1 of 17 LA-5137 Integration Guide USA – FCC 12 th July 2007 XXXXXXXXXX Rev X LA-5137 Integration Guide Copyright 2006 Symbol Technologies, Inc. Page 2 of 17 Confidential Material – Disclosure Strictly Prohibited. Table of Contents 1. INTRODUCTION 3 1.1 BACKGROUND 3 1.2 PART NUMBERS 3 1.3 KEY FEATURES AND STANDARDS SUPPORTED 3 1.4 USER PROFILES 4 2. HARDWARE 5 2.1 HARDWARE ENVIRONMENT 5 2.1.1 Introduction 5 2.1.2 Card Dimensions 5 2.1.3 Operating Channels 5 2.1.4 Electrical Interface 6 3. REGULATORY 7 3.1 FINAL PRODUCT COMPLIANCE 7 3.2 REFERENCE ANTENNA (APPLICABLE TO CONNECTOR VERSION CARD) 9 3.3 REGULATORY STANDARDS 10 3.4 REGULATORY APPROVALS 10 3.4.1 Initial Release 10 3.5 RADIO CARD REGULATORY MARKINGS 10 3.6 NATIONAL COUNTRY REQUIREMENTS 10 3.6.1 United States of America 10 3.7 STATEMENTS REQUIRED FOR THE USER GUIDE 11 3.7.1 General Statements 12 3.7.2 FCC Statements 12 4. APPENDIX 1: PRODUCT MECHANICAL INTERFACE DRAWING 13 XXXXXXXX Rev X LA-5137 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 3 of 17 Confidential Material – Disclosure Strictly Prohibited. 1. Introduction 1.1 Background LA-5137 is the next generation CF client card for embedded solutions and is intended for OEM customers. 1.2 Part Numbers LA-5137 CF card will come in two SKUs: Part Number SKU LA-5137-1002 802.11a/g External Antenna Version LA-5137-1020 802.11a/g Internal Antenna Version 1.3 Key Features and Standards supported LA-5137 CF Card supports all required modes of operation as an 802.11g Mobile Unit (MU). In 802.11g mode, the radio supports three different modulation modes: Legacy 1 and 2Mbps, Complimentary Code Keying (CCK), and Orthogonal Frequency Division Multiplexing (OFDM). The radio supports the following 12 data rates in 802.11b/g mode: Data Rate (Mbps) Modulation 1 DBPSK 2 DQPSK 5.5 CCK 6 OFDM with BPSK Carrier Modulation 9 OFDM with BPSK Carrier Modulation 11 CCK 12 OFDM with QPSK Carrier Modulation 18 OFDM with QPSK Carrier Modulation 24 OFDM with 16QAM Carrier Modulation 36 OFDM with 16QAM Carrier Modulation 48 OFDM with 64QAM Carrier Modulation 54 OFDM with 64QAM Carrier Modulation In addition to the supporting 802.11g, LA-5137 supports all required modes of operation as an 802.11a mobile unit. This radio supports the following 8 data rates in 802.11a mode: XXXXXXXX Rev X LA-5137 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 4 of 17 Confidential Material – Disclosure Strictly Prohibited. Data Rate (Mbps) Modulation 6 OFDM with BPSK Carrier Modulation 9 OFDM with BPSK Carrier Modulation 12 OFDM with QPSK Carrier Modulation 18 OFDM with QPSK Carrier Modulation 24 OFDM with 16QAM Carrier Modulation 36 OFDM with 16QAM Carrier Modulation 48 OFDM with 64QAM Carrier Modulation 54 OFDM with 64QAM Carrier Modulation 1.4 User Profiles • The LA-5137 product is optimized for embedded, mobile enterprise and industrial applications where security, feature and technical service are required. • Mobile workers in healthcare, education, retail, manufacturing, hospitality and other industries with 802.11b, 802.11g, and 802.11a wireless LAN access. • Corporate Symbol device users with Wi-Fi wireless LAN access at the office, or with a subscription to a public wireless LAN. XXXXXXXX Rev X LA-5137 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 5 of 17 Confidential Material – Disclosure Strictly Prohibited. 2. Hardware 2.1 Hardware Environment 2.1.1 Introduction LA-5137 CF card can be used in handheld mobile devices to provide wireless network access. LA-5137 communicates using Radio Frequencies (RF) between two or more users or between a user and the wired network. The module implements the IEEE802.11a/g physical (RF) specification. The chipset used provides for modulation, demodulation, spreading and despreading of the RF signals. 2.1.2 Card Dimensions LA-5137 is a modified type I CFA card. See Appendix 2 for Mechanical Interface Drawing. 2.1.3 Operating Channels Channel Number Channel Frequency (MHz) Countries 1 2412 USA, Canada, EU, Japan 2 2417 USA, Canada, EU, Japan 3 2422 USA, Canada, EU, Japan 4 2427 USA, Canada, EU, Japan 5 2432 USA, Canada, EU, Japan 6 2437 USA, Canada, EU, Japan 7 2442 USA, Canada, EU, Japan 8 2447 USA, Canada, EU, Japan 9 2452 USA, Canada, EU, Japan 10 2457 USA, Canada, EU, Japan 11 2462 USA, Canada, EU, Japan 12 2467 EU, Japan 13 2472 EU, Japan 14 2484 Japan Table 1. IEEE 802.11g Channels UNII BAND Channel Number Channel Frequency (MHz) Countries XXXXXXXX Rev X LA-5137 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page 6 of 17 Confidential Material – Disclosure Strictly Prohibited. 240 4920 Japan 244 4940 Japan 248 4960 Japan 252 4980 Japan 5040 Japan 5060 Japan 5080 Japan 34 5170 Japan 36 5180 USA, Canada, EU, Japan 38 5190 Japan 40 5200 USA, Canada, EU, Japan 42 5210 Japan 44 5220 USA, Canada, EU, Japan 46 5230 Japan Lower Band 48 5240 USA, Canada, EU, Japan 52 5260 USA, Canada, EU, Japan 56 5280 USA, Canada, EU, Japan 60 5300 USA, Canada, EU, Japan Middle Band 64 5320 USA, Canada, EU, Japan 100 5500 USA, Canada, EU, Japan 104 5520 USA, Canada, EU, Japan 108 5540 USA, Canada, EU, Japan 112 5560 USA, Canada, EU, Japan 116 5580 USA, Canada, EU, Japan 120 5600 USA, Canada, EU, Japan 124 5620 USA, Canada, EU, Japan 128 5640 USA, Canada, EU, Japan 132 5660 USA, Canada, EU, Japan 136 5680 USA, Canada, EU, Japan 140 5700 USA, Canada, EU, Japan 149 5745 USA, Canada 153 5765 USA, Canada 157 5785 USA, Canada 161 5805 USA, Canada Upper (ISM) 165 5825 USA, Canada Table 2. IEEE 802.11a Channels 2.1.4 Electrical Interface The electrical interface for LA-5137 is PC16. The chipset used supports this interface; therefore no external component is required. The host must support the PC16 interface as well. The card uses only the 16-bit interface. XXXXXXXX Rev X LA-5137 CF card Integration Guide Copyright 2004 Symbol Technologies, Inc. Page…

Text truncated - open the document above for the full version.

FCC ID: H9PLA5137A2 Report No. RF960622H01 Modular Approval Request Letter Advance Data Technology July 24, 2007 Dear Application Examiner, Symbol Technologies Inc. 802.11a/b/g Compact Flash Radio Card, FCC ID: H9PLA5137A2, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CX53822. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The CF interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is SI1040X. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: H9PLA5137A2 Report No. RF960622H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

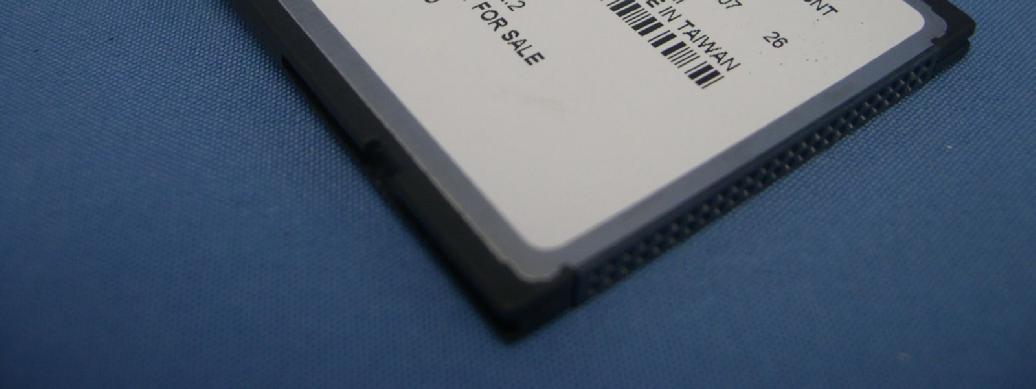

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: H9PLA5137A2 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 4 Page 5 Page 6 Page 7

Report No.: SA960622H01 1 Issued: July 12, 2007 RF EXPOSURE REPORT REPORT NO.: SA960622H01 MODEL NO.: LA-5137A2 FCC ID: H9PLA5137A2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960622H01 2 Issued: July 12, 2007 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960622H01 3 Issued: July 12, 2007 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960622H01 4 Issued: July 12, 2007 6 Test Results 6.1 Antenna Gain Brand Name Model No. Gain (dBi) Antenna Type Connector Tyco 1513671-1 2.4GHz: 1.58 5GHz: 2.78 Printed Antenna NA 6.2 Output Power Into Antenna & RF Exposure value: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 57.544 0.016 1.0 2 2417 63.096 0.018 1.0 3 2422 85.114 0.024 1.0 6 2437 79.433 0.023 1.0 9 2452 87.096 0.025 1.0 10 2457 63.096 0.018 1.0 11 2462 60.256 0.017 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 43.652 0.012 1.0 2 2417 56.234 0.016 1.0 3 2422 75.858 0.022 1.0 4 2427 91.201 0.026 1.0 6 2437 100.000 0.029 1.0 8 2447 95.499 0.027 1.0 9 2452 75.858 0.022 1.0 10 2457 54.954 0.016 1.0 11 2462 41.687 0.012 1.0 Note: Channel 2~4 and 8~10 are required by manufacture. Report No.: SA960622H01 5 Issued: July 12, 2007 For 5GHz Operated in 5150MHz ~ 5350MHz: (15.407) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 5180 26.546 0.010016803 1.0 4 5240 25.351 0.009565973 1.0 5 5260 27.669 0.010440688 1.0 8 5320 23.442 0.008845637 1.0 Operated in 5470MHz ~ 5725MHz: (15.407) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 9 5500 37.931 0.0143 1.0 14 5600 36.308 0.0137 1.0 19 5700 34.754 0.0131 1.0 Operated in 5725 ~ 5850MHz band: (15.247) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 5745 66.069 0.0249 1.0 3 5785 60.256 0.0227 1.0 5 5825 57.544 0.0217 1.0

Report No.: RF960622H01 1 Report Format Version 2.0.6 FCC TEST REPORT (15.247) REPORT NO.: RF960622H01 MODEL NO.: LA-5137A2 RECEIVED: July 02, 2007 TESTED: July 04 to 10, 2007 ISSUED: July 10, 2007 APPLICANT: Symbol Technologies Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742- 1300 U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 130 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960622H01 2 Report Format Version 2.0.6 Table of Contents 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................8 3. GENERAL INFORMATION.....................................................................................9 3.1 GENERAL DESCRIPTION OF EUT.......................................................................9 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................14 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................15 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS (802.11B & G, 2400 ~ 2483.5MHZ BAND).............16 4.1 CONDUCTED EMISSION MEASUREMENT........................................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................16 4.1.2 TEST INSTRUMENTS..........................................................................................16 4.1.3 TEST PROCEDURES..........................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD.................................................................17 4.1.5 TEST SETUP.......................................................................................................18 4.1.6 EUT OPERATING CONDITIONS.........................................................................18 4.1.7 TEST RESULTS...................................................................................................19 4.2 RADIATED EMISSION MEASUREMENT.............................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................21 4.2.2 TEST INSTRUMENTS..........................................................................................22 4.2.3 TEST PROCEDURES..........................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.................................................................23 4.2.5 TEST SETUP.......................................................................................................24 4.2.6 EUT OPERATING CONDITIONS.........................................................................24 4.2.7 TEST RESULTS...................................................................................................25 4.3 6DB BANDWIDTH MEASUREMENT...................................................................70 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT.................................................70 4.3.2 TEST INSTRUMENTS..........................................................................................70 4.3.3 TEST PROCEDURE.............................................................................................71 4.3.4 DEVIATION FROM TEST STANDARD.................................................................71 4.3.5 TEST SETUP.......................................................................................................71 4.3.6 EUT OPERATING CONDITIONS.........................................................................71 4.3.7 TEST RESULTS...................................................................................................72 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................78 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................78 4.4.2 INSTRUMENTS....................................................................................................78 Report No.: RF960622H01 3 Report Format Version 2.0.6 4.4.3 TEST PROCEDURES..........................................................................................79 4.4.4 DEVIATION FROM TEST STANDARD.................................................................79 4.4.5 TEST SETUP.......................................................................................................79 4.4.6 EUT OPERATING CONDITIONS.........................................................................79 4.4.7 TEST RESULTS...................................................................................................80 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................................82 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............................82 4.5.2 TEST INSTRUMENTS..........................................................................................82 4.5.3 TEST PROCEDURE.............................................................................................83 4.5.4 DEVIATION FROM TEST STANDARD...............................................…

Text truncated - open the document above for the full version.

Report No.: RF960622H01 51 Report Format Version 2.0.6 CHANNEL Channel 9 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 26deg. C, 69%RH, 960hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2452.00 106.60 PK 1.39 H 283 75.93 30.67 2 *2452.00 96.40 AV 1.39 H 283 65.73 30.67 3 2483.50 67.60 PK 74.00 -6.40 1.37 H 284 36.78 30.82 4 2483.50 49.73 AV 54.00 -4.27 1.37 H 284 18.91 30.82 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2452.00 106.30 PK 1.09 V 259 75.63 30.67 2 *2452.00 95.80 AV 1.09 V 259 65.13 30.67 3 2483.50 68.09 PK 74.00 -5.91 1.16 V 254 37.27 30.82 4 2483.50 50.00 AV 54.00 -4.00 1.16 V 254 19.18 30.82 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF960622H01 52 Report Format Version 2.0.6 CHANNEL Channel 10 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 26deg. C, 69%RH, 960hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2457.00 104.70 PK 1.29 H 282 74.00 30.70 2 *2457.00 93.90 AV 1.29 H 282 63.20 30.70 3 2483.50 67.34 PK 74.00 -6.66 1.37 H 284 36.52 30.82 4 2483.50 49.52 AV 54.00 -4.48 1.37 H 284 18.70 30.82 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2457.00 104.60 PK 1.07 V 260 73.90 30.70 2 *2457.00 94.00 AV 1.07 V 260 63.30 30.70 3 2483.50 67.82 PK 74.00 -6.18 1.15 V 254 37.00 30.82 4 2483.50 49.79 AV 54.00 -4.21 1.15 V 254 18.97 30.82 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF960622H01 53 Report Format Version 2.0.6 CHANNEL Channel 11 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 26deg. C, 69%RH, 960hPa TESTED BY Sky Liao ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2462.00 103.40 PK 1.30 H 283 72.68 30.72 2 *2462.00 92.70 AV 1.30 H 283 61.98 30.72 3 2483.50 67.14 PK 74.00 -6.86 1.38 H 285 36.32 30.82 4 2483.50 48.95 AV 54.00 -5.05 1.38 H 285 18.13 30.82 5 4924.00 46.90 PK 74.00 -27.10 1.29 H 111 11.00 35.90 6 4924.00 35.70 AV 54.00 -18.30 1.29 H 111 -0.20 35.90 7 7386.00 52.70 PK 74.00 -21.30 1.26 H 320 9.90 42.80 8 7386.00 40.90 AV 54.00 -13.10 1.26 H 320 -1.90 42.80 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2462.00 103.10 PK 1.06 V 260 72.38 30.72 2 *2462.00 92.10 AV 1.06 V 260 61.38 30.72 3 2483.50 67.25 PK 74.00 -6.75 1.17 V 254 36.43 30.82 4 2483.50 49.15 AV 54.00 -4.85 1.17 V 254 18.33 30.82 5 4924.00 45.20 PK 74.00 -28.80 1.40 V 156 9.30 35.90 6 4924.00 34.10 AV 54.00 -19.90 1.40 V 156 -1.80 35.90 7 7386.00 53.20 PK 74.00 -20.80 1.20 V 266 10.40 42.80 8 7386.00 39.20 AV 54.00 -14.80 1.20 V 266 -3.60 42.80 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF960622H01 54 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH1, HORIZONTAL ) Report No.: RF960622H01 55 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH1, VERTICAL ) Report No.: RF960622H01 56 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH2, HORIZONTAL ) Report No.: RF960622H01 57 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH2, VERTICAL ) Report No.: RF960622H01 58 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH3, HORIZONTAL ) Report No.: RF960622H01 59 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH3, VERTICAL ) Report No.: RF960622H01 60 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH4, HORIZONTAL ) Report No.: RF960622H01 61 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH4, VERTICAL ) Report No.: RF960622H01 62 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH8, HORIZONTAL ) Report No.: RF960622H01 63 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH8, VERTICAL ) Report No.: RF960622H01 64 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH9, HORIZONTAL ) Report No.: RF960622H01 65 Report Format Version 2.0.6 RESTRICTED BANDEDGE (802.11g MODE,CH9, VERTICAL ) Report No.: RF960622H01 66 Report Format Version 2.0.6 RESTRICTE…

Text truncated - open the document above for the full version.

Report No.: RF960622H01 75 Report Format Version 2.0.6 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 62%RH, 960hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.52 0.5 PASS 6 2437 16.52 0.5 PASS 11 2462 16.59 0.5 PASS Report No.: RF960622H01 76 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960622H01 77 Report Format Version 2.0.6 CH11 Report No.: RF960622H01 78 Report Format Version 2.0.6 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 Agilent SIGNAL GENERATOR E8257C MY43320668 Dec. 07, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 Jul. 04, 2008 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960622H01 79 Report Format Version 2.0.6 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR Report No.: RF960622H01 80 Report Format Version 2.0.6 4.4.7 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 62%RH, 960hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 57.544 17.60 30 PASS 2 2417 63.096 18.00 30 PASS 3 2422 85.114 19.30 30 PASS 6 2437 79.433 19.00 30 PASS 9 2452 87.096 19.40 30 PASS 10 2457 63.096 18.00 30 PASS 11 2462 60.256 17.80 30 PASS Report No.: RF960622H01 81 Report Format Version 2.0.6 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 62%RH, 960hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 43.652 16.40 30 PASS 2 2417 56.234 17.50 30 PASS 3 2422 75.858 18.80 30 PASS 4 2427 91.201 19.60 30 PASS 6 2437 100.000 20.00 30 PASS 8 2447 95.499 19.80 30 PASS 9 2452 75.858 18.80 30 PASS 10 2457 54.954 17.40 30 PASS 11 2462 41.687 16.20 30 PASS Note: Channel 2 and 10 required by manufacture. Report No.: RF960622H01 82 Report Format Version 2.0.6 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960622H01 83 Report Format Version 2.0.6 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6 SPECTRUM ANALYZER EUT Report No.: RF960622H01 84 Report Format Version 2.0.6 4.5.7 TEST RESULTS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg. C, 62%RH, 960hPa TESTED BY Rex Huang CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LE…

Text truncated - open the document above for the full version.
