H9PLMX5452Bluetooth Radio Module

The Enterprise Mobility Company FCC ID: H9PLMX5452 H9PLMX5452 End product User Guide Information The Symbol Technologies Inc. Bluetooth Module with Symbol Model number LMX5452 is a module intended for integration into Symbol Products only, as such it have no User Manual. The end user will be instructed to include the following information to the end product User Guide: 1. Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user’s authority to operate the equipment. Radio Modules The device contain approved radio module(s) as identified below: Symbol Bluetooth Module, Model: LMX5452 Products equipped with Bluetooth® Wireless Technology This is an approved Bluetooth product. BT ID: Bxxxxx 2. Country Approvals Regulatory markings are applied to the device signifying the radio (s) are approved for use in the following countries: United States, Canada, Australia, Japan and Europe 1, . Please refer to the Symbol Declaration of Conformity (DoC) for details of other country markings. This is available at http://www2.symbol.com/doc/. Note 1 : For 2.4GHz Products: Europe includes, Austria, Belgium, Czech Republic, Croatia, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. Operation of the device without regulatory approval is illegal. FCC ID: H9PLMX5452 IC: 1549D-LMX5452 The Enterprise Mobility Company FCC ID: H9PLMX5452 Warni Warnings for Use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. RF Exposure Guidelines Safety Information The device complies with Internationally recognised standards covering Specific Absorption Rate (SAR) related to human exposure to electromagnetic fields from radio devices. Reducing RF Exposure – Use Properly It is advisable to use the device only in the normal operating position. Handheld Devices This device was tested for typical body-worn operation. Use only Symbol tested and approved belt- clips, holsters, and similar accessories to ensure FCC Compliance. The use of third-party belt-clips, holsters, and similar accessories may not comply with FCC RF exposure compliance requirements, and should be avoided. Remote and Standalone Antenna Configurations. To comply with FCC RF exposure requirements, antennas that are mounted externally at remote locations or operating near users at stand-alone desktop of similar configurations must operate with a minimum separation distance of 20 cm from all persons. Radio Frequency Interference Requirements-FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the FCC ID: H9PLMX5452 IC: 1549D-LMX5452 The Enterprise Mobility Company FCC ID: H9PLMX5452 equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Radio Transmitters (Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radio Frequency Interference Requirements – Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Radio Transmitters This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Marking: The Term "IC:" before the radio certification only signifies that Industry Canada technical specifications were met. Marking and European Economic Area (EEA) Bluetooth ® Wireless Technology for use through the EEA has the following restrictions: • Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400 -2.4835 GHz • France, outside usage is restricted to 10mW EIRP • Italy requires a user license for outside usage. Statement…

Text truncated - open the document above for the full version.

LMX5452 Data Sheet There is no data sheet for this module as it is not intended for sale. It is to be used only in Symbol devices.

The Enterprise Mobility Company H9PLMX5452 REQUIREMENTS FOR A MODULAR APPROVAL Documentation most be provided to the FCC or TCB for each of these requirements listed. Documentation should be in the form of engineering drawings, schematics, photographs, and sample warning statements; these must accompany the submission. The submission cover letter must specifically request Modular approval under FCC DA 00-1407 Released: June 26, 2000. All of the antennas that will be approved with the product must be included in the submission, with special attention to the highest gain of each type of antenna. The modular approval exhibits are in addition to the normal 13 exhibits included in an FCC intentional radiator submission under Part 15. Exhibits required for Modular Approval 1. The modular transmitter must have its own RF shielding. Confirmed - the shielding is incorporated into the custom IC for the BT radio. 2. The modular transmitter must have buffered modulation/data inputs. Confirmed - all data inputs are buffered. See schematic 17-72903-01 3. The modular transmitter must have its own power supply regulation Confirmed - the BT radio (fixed layout on the PCB) has a dedicated voltage regulator IC, U32, type LP3995. See schematic drawing: 17-72903-01 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna. Confirmed - the antenna is ‘permanently’ attached to the PCB. 5. The modular transmitter must be tested in a stand-alone configuration. Confirmed, see the FCC test report exhibit. 6. The modular transmitter must be labeled with its own FCC ID number. Confirmed, the FCC ID will be H9PLMX5452. See Label exhibit for details. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization Confirmed – This Module is for Symbol Integrations only. The program teams will be instructed to include the relevant regulatory information as detailed in the ‘H9PLMX5452 End product user guide information’ 8. The modular transmitter must comply with any applicable RF exposure requirements. Confirmed – See RF Exposure Exclusion Letter SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com

Outstanding features
Implemented in 0.18 μm CMOS technology
Embedded ROM and Patch RAM memory
Bluetooth ® 1.2 compliant
On-chip firmware with complete HCI
RF includes baluns, switch and filters on chip
Secondary 32.768 kHz oscillator for low- power modes
Typically –84 dBm receiver sensitivity at antenna
Class 2 operation
Fractional-N sigma-delta modulator
Operating voltage range 2.5V to 3.0V
I/O voltage range 1.6V to 3.6V
Several power management functions
Accepts external clock 10 MHz to 40 MHz or crystal input 10 MHz to 20 MHz
Clocking option 12/13 MHz with PLL bypass mode for power reduction
Current consumption typically below 45 mA
Support for 2 simultaneous voice or SCO links
Available in a BGA-60 (6 mm x 9 mm) package Interfaces
Full duplex UART supporting transfer rates up to 921.6 kbps including baudrate detection for HCI
Full speed (12 Mbps) USB 2.0 for HCI
I 2 C and SPI/Microwire for interfacing with external non-volatile memory
Advanced Audio Interface (AAI) for interfacing with external 8/13-bit PCM CODEC
Single Rx/Tx-pin radio interface Applications
Mobile handsets
Personal digital assistants
Personal computers © National Semiconductor Corporation, February 2004. National Semiconductor and are registered trademarks and CompactRISC is a trademark of National Semiconductor Corporation. Bluetooth is a registered trademark of Bluetooth SIG, Inc. and is used under license by National Semiconductor Corp. All other brand or product names are trademarks or registered trademarks of their respective holders. National Semiconductor 2900 Semiconductor Drive PO Box 58090 Santa Clara, CA 95052 1 408 721 5000 Visit our Web site at: www.national.com/bluetooth For more information, send Email to: [email protected] 550252-002 Technicalspecifications BR4005_LM5452 2/4/04 10:21 AM Page 2

Regulatory Engineering MB/Agent Authorisation/2005 27 th April 2005 BABT 34 Molesey Road Walton on Thames Surrey KT12 4RQ Agent Authorisation Dear Sir or Madam: We, Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300, hereby authorize TÜV Product Service Limited, Octagon House, Concord Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on (1 st January 2006). Sincerely, Alan Parrish Director Regulatory Compliance Direct Tel: +44 118 945 7483 Direct Fax: +44 118 945 7274 Email: [email protected] Regulatory Engineering • Intranet site: http://wiley.symbol.com/regulatory/index.html

Regulatory Engineering Regulatory Engineering • Web Site: http://ww.symbol.com MB/TCB/Confidentiality/H9PLMX5452 21 st November 2005 BABT 34 Molesey Road WALTON-ON-THAMES Surrey KT12 4RQ Confidentiality Request Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Symbol Technologies Inc. hereby requests confidential treatment of information accompanying as outlined below: • Schematics • Block Diagrams • Theory of Operation • Antenna Specifications The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Marco Belli Symbol Regulatory Compliance Direct Tel: +44 118 945 7313 Direct Fax: +44 118 945 7274 Email: [email protected]

Regulatory Engineering Regulatory Engineering • Web Site: http://ww.symbol.com MB/TCB/Application Letter/H9PLMX5452 21 th November 2005 BABT 34 Molesey Road WALTON-ON-THAMES Surrey KT12 4RQ Subject: Request for Original Equipment Grant This certification request is for the Symbol Bluetooth Module with FCC ID: H9PLMX5452. The module meets the requirements for Modular approval under FCC DA 00-1407. Intended Use The Module is designed for integration into Symbol Host products only. SAR This is a class 2 Bluetooth module with a measured peak transmitter power of 1.75mW , therefore SAR testing is exempt for this FCC ‘portable’ application. Collocation This module has not been assessed for co-location with any other Radio. Antennas The following Antenna has been assessed with the Bluetooth radio module: Radio Module Antenna P/N Type Gain LMX5452 3030A5645-01 Surface-Mounted Device (SMD) 2.5 dBi Symbol respectfully request that the Antenna Type and Gain be listed in the comments section of the Grant Respectfully, Marco Belli Symbol Regulatory Compliance Direct Tel: +44 118 945 7313 Direct Fax: +44 118 945 7274 Email: [email protected]

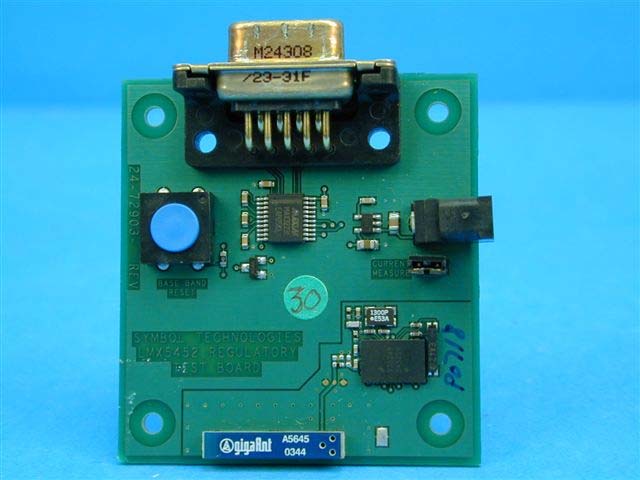

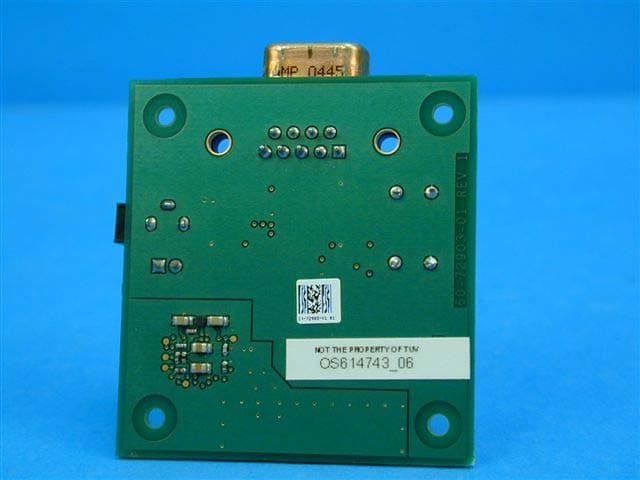

FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module ©2005 Not to be reproduced, except in its entirety, Page 1 of 3 without the Permission of TUV Product Service Ltd BABT Reference: OR614655 PHOTOGRAPHS OF EQUIPMENT Front View including PSU FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module ©2005 Not to be reproduced, except in its entirety, Page 2 of 3 without the Permission of TUV Product Service Ltd BABT Reference: OR614655 PHOTOGRAPHS OF EQUIPMENT Front View FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module PHOTOGRAPHS OF EQUIPMENT ©2005 Not to be reproduced, except in its entirety, Page 3 of 3 without the Permission of TUV Product Service Ltd BABT Reference: OR614655 Back View

FCC ID: H9PLMX5452 SYMBOL TECHNOLOGIES INC Bluetooth Module ID Label / Location Label NOT to scale.

FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module ©2005 Not to be reproduced, except in its entirety, Page 1 of 3 without the Permission of TUV Product Service Ltd BABT Reference: OR614655 PHOTOGRAPHS OF EQUIPMENT Front View including PSU FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module ©2005 Not to be reproduced, except in its entirety, Page 2 of 3 without the Permission of TUV Product Service Ltd BABT Reference: OR614655 PHOTOGRAPHS OF EQUIPMENT Front View FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module PHOTOGRAPHS OF EQUIPMENT ©2005 Not to be reproduced, except in its entirety, Page 3 of 3 without the Permission of TUV Product Service Ltd BABT Reference: OR614655 Back View

Regulatory Engineering Regulatory Engineering • Web Site: http://ww.symbol.com MB/TCB/Application Letter/H9PLMX5452 21 th November 2005 BABT 34 Molesey Road WALTON-ON-THAMES Surrey KT12 4RQ Subject: Request for Original Equipment Grant This certification request is for the Symbol Bluetooth Module with FCC ID: H9PLMX5452. The module meets the requirements for Modular approval under FCC DA 00-1407. Intended Use The Module is designed for integration into Symbol Host products only. SAR This is a class 2 Bluetooth module with a measured peak transmitter power of 1.75mW , therefore SAR testing is exempt for this FCC ‘portable’ application. Collocation This module has not been assessed for co-location with any other Radio. Antennas The following Antenna has been assessed with the Bluetooth radio module: Radio Module Antenna P/N Type Gain LMX5452 3030A5645-01 Surface-Mounted Device (SMD) 2.5 dBi Symbol respectfully request that the Antenna Type and Gain be listed in the comments section of the Grant Respectfully, Marco Belli Symbol Regulatory Compliance Direct Tel: +44 118 945 7313 Direct Fax: +44 118 945 7274 Email: [email protected]

REPORT ON Limited FCC CFR 47: Parts 15 B and C and Industry Canada Radio Standards RSS-Gen and RSS-210 Testing in Support of an Application for Grant of Equipment Authorisation of a Symbol LMX5452 Bluetooth Data Module FCC ID: H9PLMX5452 and IC: 1549D-LMX5452 Report No OR614743/01 Issue 2 November 2005 Competence. Certainty. Quality. TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report No OR614743/01 Issue 2 Page 1 of 81 REPORT ON Limited FCC CFR 47: Parts 15 B and C and Industry Canada Radio Standards RSS-Gen and RSS-210 Testing in Support of an Application for Grant of Equipment Authorisation of a Symbol LMX5452 Bluetooth Data Module FCC ID: H9PLMX5452 IC: 1549D-LMX5452 Report No OR614743/01 Issue 2 November 2005 PREPARED FOR Symbol Technologies Ltd Symbol Place Winnersh Triangle Berkshire RG41 5TP PREPARED BY J Plummer Technical Author APPROVED BY K Adsetts M Jenkins Authorised Signatory Authorised Signatory DATED 22 nd November 2005 This report has been re-issued as Issue 2 to correct the IC number. The Test Results are unaffected. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 B and C and Industry Canada Radio Standards RSS-Gen and RSS-210. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; S Hartley A Guy J Holcombe R Small FCC ID: H9PLMX5452 IC: 1549D-LMX5452 Report No OR614743/01 Issue 2 Page 2 of 81 CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status.................................................................................................................................. 4 1.2 Introduction ......................................................................................................................... 6 1.3 Product information............................................................................................................ 7 1.4 Brief Summary of Results................................................................................................... 9 1.5 Test Conditions................................................................................................................... 10 1.6 Deviations from the Standard............................................................................................. 10 1.7 Modification Record............................................................................................................ 10 2 TEST DETAILS Part 15 B/RSS-Gen 2.1 Spurious Radiated Emissions ............................................................................................ 12 2.2 Conducted Emissions on AC Power Lines......................................................................... 14 2 TEST DETAILS Part 15 C/RSS-Gen and RSS-210 2.3 Measurement at The Band Edge ....................................................................................... 16 2.4 Conducted Emissions On AC Power Lines........................................................................ 21 2.5 Channel Dwell Time ........................................................................................................... 25 2.6 Channel Occupancy/Separation ........................................................................................ 33 2.7 Number of Channels.......................................................................................................... 35 2.8 20dB Bandwidth ................................................................................................................. 40 2.9 Maximum Peak Output Power (Conducted Method)......................................................... 51 2.10 Spurious Conducted Emissions On Antenna Port............................................................. 53 2.11 Spurious Radiated Emissions ............................................................................................ 64 3 TEST EQUIPMENT USED 3.1 Table of Test Equipment Used ........................................................................................... 72 3.2 Measurement Uncertainty .................................................................................................. 74 4 PHOTOGRAPHS 4.1 Photograph of Equipment Under Test (EUT)..................................................................... 76 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 5.1 Accreditation, Disclaimers and Copyright .......................................................................... 81 FCC ID: H9PLMX5452 IC: 1549D-LMX5452 Report No OR614743/01 Issue 2 Page 3 of 81 SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Parts 15 B and C and Industry Canada Radio Standards RSS-Gen and RSS-210 Testing in Support of an Application for Grant of Equipment Authorisation of a Symbol LMX5452 Bluetooth Data Module FCC ID: H9PLMX5452 IC: 1549D-LMX5452 Report No OR614743/01 Issue 2 Page 4 of 81 1.1 STATUS Equipment Under Test LMX5452 Bluetooth Data Module Objective To undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. Name and Address of Client Symbol Technologies Limited Symbol Place Winnersh Triangle Wokingham Berkshire RG41 5TP Type Number LMX5452 Bluetooth Data Module Part Number LMX5452 Serial Number 9 & 30 Hardware Version Rev 0 (to be released as Rev A) Software Version Rev A Declared Variants None Test Specification/Issue/Date FCC CFR 47: Part 15, Subparts B and C, October 2003 RSS-Gen, Issue 1, September 2005 and RSS-210 Issue 6, September 2005 Number of Items Tested Two Security Classification of EUT Commercial in Confidence Incoming Release Commercial Invoice Date 22 nd September 2005 Disposal Held pending disposal Reference Number Not Applicable Date Not Applicable Order Number 450…

Text truncated - open the document above for the full version.

FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module PHOTOGRAPHS OF TEST SET UP Radiated Emissions ©2005 Not to be reproduced, except in its entirety, Page 1 of 2 without the Permission of TUV Product Service Ltd BABT Reference:OR614743-01 FCC ID: H9PLMX5452 IC:1549D-LMX5452 Symbol LMX5452 Bluetooth Data Module PHOTOGRAPHS OF TEST SET UP Conducted Emissions ©2005 Not to be reproduced, except in its entirety, Page 2 of 2 without the Permission of TUV Product Service Ltd BABT Reference: OR614743-01
