H9PMC3504EDA (Enterprise Digital Assistant)

MC35 Series EDA User Guide MC3504/MC3574 User Guide MC35 Series Enterprise Digital Assistant COPYRIGHT Copyright © 2006. Symbol Technologies Inc. All Rights Reserved. MC35 Series User Guide Original issue: November 2006 Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Microsoft, ActiveSync, Outlook, Pocket Outlook, Windows, Windows NT, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation. Other company’s product names or trademarks are used herein for identification purpose only and belong to their respective companies. Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this User Guide or supplementary documents and publications. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Symbol Technologies. DISCLAIMER AND LIMITATION OF LIABILITY Symbol Technologies and its subsidiaries makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Symbol Technologies and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this MC35 Series User Guide. NOTES Record the serial number, purchase date, and place of purchase information in the space provided below. The serial number is recorded on the label affixed to your device. Cor- respondence concerning your unit should include the serial number and purchase information. MC35 Series (MC3504/MC3574) S/N: _____________________________________ Date of purchase: ____________________________ Place of Purchase: _________________________ About this User Guide iii About this User Guide Thank you for making MC35 your choice for your mobile computing and communication needs. Your new sleek MC35 is a fully integrated PDA-mobile phone device. It combines the power of high-performance PDA applications for organizing personal and work- related information with the functionality of a mobile phone for communication with your contacts and a high-speed GPRS technology, you can connect to the Internet, your corporate networks, and send and receive email while on the go. It also provides high quality Global Positioning System (GPS) solution and features a digital camera for bar code scanning and image capture and flexible voice and data communication with wireless technologies for selected models. Read through this User Guide to help you get up and running quickly with your new Enterprise Digital Assistant (EDA). It describes all you need to know about how to use your new EDA as well as the application programs that came with it. About this User Guide iv v About this User Guideiii 1 First Things First1 Package contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Preparing to use your MC35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Installing the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Charging the MC35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Starting up MC35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 System procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Recalibrating the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Creating backup files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Resetting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Securing your device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2 Getting Started11 Features summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Phone features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GPS technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Design and ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 MC35 tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Left view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

5 Using The Phone Function Phone operation 51 Phone status icons The list below shows the Phone-related status icons. Phone operation Turning the phone function on and off If you have turned the phone function off, removed and then reinstalled the SIM card, the connection to your mobile service provider’s network is not automatically enabled. You have the option to just use the device’s PDA features or you can reestablish the mobile service connection. IMPORTANT:In many countries it is required by law to turn off cell phones when boarding commercial flights. Turning off your MC35 does not turn off the device’s phone function; you must use the Wireless Manager to turn off the phone. IconNameDescription Network searchIndicates that the device is attempting to establish mobile service connection. No networkIndicates that the device is not able to establish mobile service connection. Phone off Indicates that the phone is off. In network serviceIndicates that the phone is connected to a network. Signal statusThe number of bars indicates the strength of your connection signal. As the strength of the signal diminishes — the number of bars in the icon diminishes, with no bars indicating no signal. Active callNotifies you that a call is being made or there is an incoming call. SpeakerphoneIndicates that the speakerphone mode is enabled. For more information on activating the speakerphone, refer to page 54. Missed callIndicates that you have a missed call. Unread messageIndicates that you have unread text or email message(s), as well as voice mail notification(s). BluetoothIndicates that the Bluetooth wireless technology is on. Bluetooth audioIndicates that the device is connected to a Bluetooth-enabled headset. 5 Using The Phone Function Phone operation 52 To turn on the phone function: 1 Launch the Wireless Manager application by doing either of the following: •On the Today screen, tap the Wireless Manager icon. •On the Today screen, tap the signal icon on the upper right corner of the screen, then from the Phone callout, tap Wireless Manager. 2On the Wireless Manager screen, tap Phone to turn on phone function. This icon changes indicating your device is getting ready to search for a mobile connection. This may take a few seconds. During connection, the icon changes to then to and once a mobile connection is established. Tap to launch the Wireless Manager. 5 Using The Phone Function Phone operation 53 To turn off the phone function: 1 Launch the Wireless Manager application by doing either of the following: •On the Today screen, tap the Wireless data program icon. •On the Today screen, tap the signal icon on the upper right corner of the screen, then from the Phone callout, tap Wireless Manager. 2On the Wireless Manager screen, tap Phone to turn off phone function. Erasing number input If you entered a wrong phone number when dialing, you can either backspace to erase individual digits or you can delete the entire phone number •Tap to backspace over digits. •Press the Backspace key on the QWERTY keypad. Answering a call •Tap Answer or press the Send button. Rejecting a call •Tap Ignore or press the End button. Depending on your mobile service subscription, either a busy tone is sent out, or the call is forwarded to your voice mailbox. Ending a call •Tap the End button on the Dialer keypad or press the End button. 5 Using The Phone Function Phone operation 54 Adjusting the phone volume To adjust the phone volume, you must do it during a call. If you adjust the volume at another time it only affects the level of the system sounds (i.e., ring and notification alerts, .wmv/MP3 playback). To adjust the phone conversation volume: 1 Tap on the navigation bar or press the volume key down to bring up the In Call callout. 2Drag the slider to adjust the phone volume. Using the speakerphone To attend to phone calls, attach the single earbud headset or activate the speakerphone mode. The speakerphone function allows you to talk hands-free and/or let other people listen to the caller. To enable speakerphone mode: •Press and hold the Send button or press the Speaker On screen button until the speakerphone turns on as indicated by the appearance of the Speakerphone icon on the navigation bar. To disable speakerphone mode: •Press and hold the Send button or Speaker On screen button again until the Speakerphone icon disappears from the navigation bar. Muting a call During a call you can mute the microphone so that the person with whom you are speaking cannot hear you, but you can still hear him or her. This is useful if, for example, you do not want the other person to hear a conversation or background noise on your side of the call. 5 Using The Phone Function Making phone calls 55 To mute a call: •During a call, tap the Mute button on the dialer keypad to toggle the mute function on and off. The mute icon is displayed on the Dialer screen’s entry area to indicate that the mute function is enabled. Making phone calls The integrated nature of your device’s phone function lets you make calls in a variety of ways across different applications. You can make a call by: •Manually entering a phone number using the Dialer keypad. •Accessing numbers using Speed Dial, Call History, Microsoft Contacts or SIM Manager. Once a call has been initiated this icon changes to indicating an active call. Making a call using dialer 1 On the Dialer keypad, tap the phone number you want to call. 2Tap Talk or press the Send button . Tap to terminate the call. This icon indicates a call is being made and the strength of the signal. The number being called is displayed here. 5 Using The Phone Function Making phone calls 56 Making a call using Microsoft Contacts There are several ways to make a call in Contacts. In this section, only the method using the hardware buttons is described. For instructions on other methods, see page 120. 1 Tap , then Contacts . Contacts opens to the contact list. 2Type a name or number, or move the joystick up …

Text truncated - open the document above for the full version.

6 Customizing Your MC35 Adjusting settings 91 Power View power level for both the main and backup battery. To minimize power consumption, you can define settings for the auto-off function and the processor’s operation speed. Regional Settings Set default number and time display formats and other related options. 6 Customizing Your MC35 Adjusting settings 92 Remove Programs Remove programs from storage memory. Screen Set the viewing orientation and text size setting. You can also recalibrate screen and enable the ClearType feature. SIM Manager Manage all contacts stored on your SIM card. 6 Customizing Your MC35 Adjusting settings 93 System Information Displays your device’s hardware and software information. 6 Customizing Your MC35 Adjusting settings 94 Connections tab Beam Define settings for the beam function. 6 Customizing Your MC35 Adjusting settings 95 Bluetooth Use this option to configure the device’s Bluetooth settings. Connections Adjust settings for connecting your ISP or to a local network. Network Cards Customize settings for your device’s network adapter. 6 Customizing Your MC35 Adjusting settings 96 Quick GPS Connection Enable and customize settings for the GPS connection utility. USB to PC Enable or disable the enhanced network connectivity. Wireless Control Available for MC3574 models, allow you to customize wireless network connection settings and enable the WiFi (Wireless Fidelity) networking. To configure the wireless network connection settings, tap Network Cards . 6 Customizing Your MC35 Adding programs 97 Wireless Manager Enable or disable wireless features and customize device Bluetooth and phone settings. Adding programs Adding programs to your device Programs bundled with your device at the factory are stored in ROM (read-only memory). You cannot remove these programs, and you'll never accidentally lose ROM contents. ROM programs can be updated using special installation programs with a *.xip extension. All other programs and data files installed to your device after factory installation are stored in RAM (random access memory). You can install any program created for your device, as long as it has enough memory. The most popular place to find software for your device is on the Pocket PC Web site http://www.microsoft.com/ windowsmobile/pocketpc/default.mspx. You can add programs to your device either by using ActiveSync or by downloading the program from the Internet. To add programs using ActiveSync: Before installing a program on your device, you must first install the appropriate software for your device on your computer. 1 Determine your device and processor type so that you know which version of the software to install. (a)Tap , then Settings. (b)On the System tab, tap About . (c)On the Version tab, make a note of the processor information. 2Download the program to your computer (or insert the CD or disk that contains the program into your computer). You may see a single *.xip, *.exe, or *.zip file, a Setup.exe file, or several versions of files for different device types and processors. Be sure to select the program designed for a Pocket PC and your device’s processor type. NOTE:Read any installation instructions, Read Me files, or documentation that come with the program. Many programs provide special installation instructions. 3Connect your device to your computer. 6 Customizing Your MC35 Adding programs 98 4Double-click the *.exe file. •If the file is an installer, the installation wizard will begin. Follow the directions on the screen. Once the software has been installed on your computer, the installer will automatically transfer the software to your device. •If the file is not an installer, you will see an error message stating that the program is valid but it is designed for a different type of computer. You will need to move this file to your device. If you cannot find any installation instructions for the program in the Read Me file or documentation, use the ActiveSync Explore button to copy the program file to the Program Files folder on your device. For more information on copying files using ActiveSync, see page 28. 5Once installation is complete, tap , Programs, then the program icon to launch it. To add a program directly from the Internet: 1 Determine your device and processor type so that you know which version of the software to install. (a)Tap , then Settings. (b)On the System tab, tap About . (c)On the Version tab, make a note of the processor information. 2Download the program to your device straight from the Internet using Internet Explorer Mobile. You may see a single *.xip, *.exe or *.zip file, a Setup.exe file, or several versions of files for different device types and processors. Be sure to select the program designed for a Pocket PC and your device’s processor type. NOTE:Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions. 3Tap the file, such as a *.xip or *.exe file. The installation wizard will begin. 4Follow the onscreen instructions. Adding a program to the Start menu You can choose what program icons should appear on the menu based on which ones you use most often. To add a program to the Start menu program using Settings: 1 Tap , then Settings. 2On the Personal tab, tap Menus . 3Select the check box for the programs you wish to add. If you do not see the program you want, you can either use File Explorer on your device to move the program to the Start Menu folder, or use ActiveSync on your computer to create a shortcut to the program and place the shortcut in the Start Menu folder. To add a program to the Start menu program using File Explorer on your device: 1 Tap , Programs, then File Explorer . 2Tap the My Device icon (tap the folder list, labeled My Documents by default, and then My Device to see a list of all folders on your device). 3Open the path: Windows | Start | Programs. 4Tap and hold the program you want to add to …

Text truncated - open the document above for the full version.

10 Wireless Data Programs Messaging 151 Messaging Use Messaging to: •Send and receive email messages by connecting directly to an email server through an Internet service provider (ISP) or a network. •Synchronize email messages with Microsoft Exchange or Microsoft Outlook on your computer. •Send and receive text messages through your mobile service subscription. Messaging supports 8 bits data with class 0, 1, 2, 3, as well as USDD (Unstructured Supplementary Service Data). To open Messaging: •Tap , then Messaging . To send and receive email: •Tap Menu, then Send and Receive. Synchronizing email messages Email messages can be synchronized as part of the general synchronization process. Enable E-mail synchronization in ActiveSync. To enable E-mail synchronization in ActiveSync: 1 Open ActiveSync on your computer. 2Click Tools, then Options. 3In the Mobile Device list under the Desktop area, select the check box before E-mail. 4Click OK. During synchronization: •Messages are copied from the Outlook Inbox folder on your computer, or from a Microsoft Exchange server, to the Inbox folder (under the ActiveSync account) on your device. •By default, when synchronizing Inbox information with your computer, you receive only messages from the last three days and the first 0.5 KB of each new message. You can also choose to download file attachments. •The messages on your device and on your computer are linked. When you delete a message on your device, it is also deleted from your computer the next time you synchronize, and vice versa. Tap to select a sort order for the messages. Tap Menu, Switch Accounts to select which account to use. Tap to create a new email or text message. Tap to select which account and/or folder to display. 10 Wireless Data Programs Messaging 152 •Messages in subfolders in other email folders in Outlook are synchronized only if the folders have been selected for synchronization in Inbox on your device. Using the message list The messages you receive display in the message list. By default, the most recently received messages display first in the list. When you receive a message, tap it to open it. Unread messages display in bold. You can mark the messages that you want to retrieve in full during your next synchronization or email server connection. Follow the steps below: 1 In the message list, tap and hold the message you want to retrieve. 2On the pop-up menu, tap Download Message. The icons in the Inbox message list give you visual indications of message status. 3Specify your downloading preferences when you set up the service or select your synchronization options. You can change them at any time: •Change options for E-mail synchronization using ActiveSync options. Tap to select the sort order for messages. Tap and hold a message to display a pop-up menu of actions. 10 Wireless Data Programs Messaging 153 •To change options for direct email server connections. In the Messaging window on your device: (a)Tap Menu, Tools, then tap Options. (b)On the Accounts tab, tap the service you want to change. (c)To remove a service, tap and hold the service, then select Delete. Creating an email/text message Whether you want to send an email or text message, you do so by changing the Account option. To do so, tap the double arrows next to the Subject field, then tap the Account field to choose what service you want. The procedure on the next page applies to creating an email message. For procedures on how to create an text message, see page 65. To create an email message: 1 In the message list, tap New. 2Enter the email address of your intended recipients in the To field. You can do this in different ways. •Manually enter the address using any of the input panel options. •Type the first few letters of an email address that is stored in Contacts. The auto-suggest feature suggests email addresses as you type so that you find them more quickly. •Tap the To field or Address Book to display the contact list, then tap a contact from the list. Tap OK to hide the contact list. Make sure multiple email address within the same field are separated with a semicolon. 3Compose your message. The Spell Check feature allows you to search your message for common spelling errors. Tap Menu, then Spell Check. To enter preset or frequently used messages, tap Menu, My Text, then select a message. To attach a voice recording, tap Menu, Insert, Voice Note, then proceed with creating the recording. See page 45 for detailed instructions. 10 Wireless Data Programs Messaging 154 4Tap Send when you've finished the message. If you are working offline, the message is moved to the Outbox folder and sent the next time you’re online. Creating a message Signature You can personalize your email and text messages by appending a signature to it. The signature support of your device allows you to create different signatures for your email and SMS account. This feature also eliminates the need to re-type a closing for every message. To create a signature: 1 In the message list, tap Menu, Tools, then Options. 2Tap the Accounts tab, then Signatures. 3Tap the pick list to select which account to create a signature for. 4Select the “Use signature with this account” check box. The soft keyboard automatically displays. 5Enter a signature in the box. 10 Wireless Data Programs Pocket MSN 155 6You can use the signature for new messages only, or you can select the “Use signature when replying and forwarding” check box to append it to all outgoing messages. 7Tap OK. Managing email messages and folders By default, messages are displayed in one of five folders for each service you have created—Deleted Items, Drafts, Inbox, Outbox, and Sent Items. •The behavior of the Deleted and Sent Items folders depends on the options you have chosen. To set these options, in the message list: (a)Tap Menu, Tools, then Options. (b)On the Message tab, select your options. •If you want to organize messages into additional folders, tap Menu, Tools, then Manag…

Text truncated - open the document above for the full version.

November 8, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia , Maryland 21046 Subject: Short-term confidentiality request regarding application for certification of FCC ID: H9PMC3504 To whom it may concern: Pursuant to DA 04-1705 of the Commission’s public notice, we request short- term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: • External Photos • Test Setup Photos • User’s Manual • Internal Photos Sincerely ----------------------------------------- Alan Mears, Regulatory Engineer Symbol Technologies, Inc. TEL：631-738-5941 FAX：631-738-5520 [email protected]

FCC Confidentiality_long term.doc FCC ID: H9PMC3504 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Bom Block Diagram Schematics Tune up procedure Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely ----------------------------------------- Alan Mears, Regulatory Engineer Symbol Technologies, Inc. TEL：631-738-5941 FAX：631-738-5520 [email protected]

FCC POA.doc Authorization Letter To whom it may concern: We, the undersigned, Symbol Technologies, Inc. hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization is limited to the Symbol Technologies Enterprise Digital Assistant, Model : MC3504 . If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely ----------------------------------------- Alan Mears, Regulatory Engineer Symbol Technologies, Inc. TEL：631-738-5941 FAX：631-738-5520 [email protected]

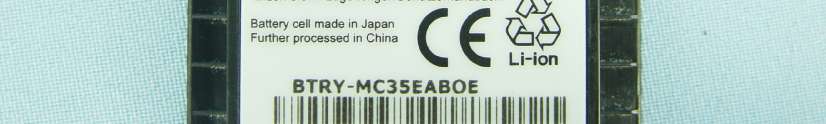

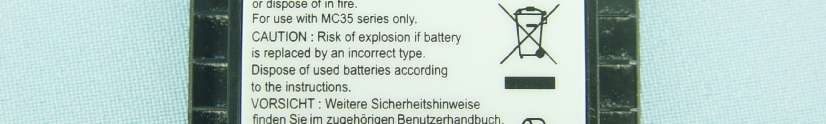

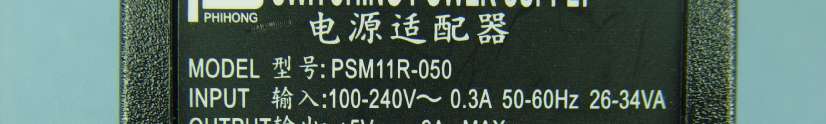

Page 1 CONSTRUCTION PHOTOS OF EUT Without Camera Page 2 Page 3 With Camera Page 4 Page 5 Page 6

MODEL NO.: PART NAME: A/W NO.: SCALE: UNIT : SHEET OF DRAWN:REVIEWED: APPROVED: REVDESCRIPTIONSIGN DATE 1 : 1 mm 1 1 1 : 1 mm 1 1 1. MATERIAL: POLYESTER,THICKNESS= 0.075MM 2. COLOR: BACKGROUND----WHITE LETTERS-----------BLACK 3. ADHESIVE: SPEC REFER TO ES-811-R06, SONY 303 OR TOYO DF2700MR OR EQUIV 4. FINISH: PRINT FRONT SIDE 5. PRINT TOLERANCE OF DIMENSION: +0.3mm/-0.3mm 6. PRINTER TYPE: THERMAL TRANSFER LABEL PRINTER (WEBER 80 OR FARGO PRODIGY), SPEC REFER TO ED-715-F09 7. FACTORY INDENTIFICATION OF CSA MUST BE PRINTED SP310 (MC35) 40.17C14.011 MFG LBL _MC3504 M0VG00 Benny Chen 11/08/2006 Model No.: MC3504 IMEI: XXXXXXXXXXXXXXX P/N: XXXXXX-XXXXXXXXXXX (S) S/N: XXXXXXXXXXXXXXX MFD: 07OCT05 5 V / 2 A MADE IN PHILIPPINES 0168 FCC ID: H9PMC3504 IC: 1549D-MC3504

Label location Model: MC3504

Page 7 Without Camera Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 With Camera Page 26 Page 27

1 APPENDIX A: TEST DATA Liquid Level Photo Tissue HSL835MHz D=151mm Tissue MSL835MHz D=155mm 2 Tissue HSL1900MHz D=150mm Tissue MSL1900MHz D=152mm 3 Tissue HSL2450MHz D=155mm Tissue MSL2450MHz D=152mm 4 Date/Time: 2006/10/30 13:50:06 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-CH128-Mode 1 DUT: Pocket PC Phone ; Type: MC3504 ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz ; Duty Cycle: 1:8.3 Medium: HSL835 Medium parameters used: f = 824.2 MHz; σ = 0.88 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : Internal Antenna ; Air temp. : 22.3 degrees ; Liquid temp. : 21.2 degrees DASY4 Configuration: - Probe: EX3DV4 - SN3578 ; ConvF(8.38, 8.38, 8.38) ; Calibrated: 2006/3/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2006/3/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Touch position - Low Channel 128/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.146 mW/g Touch position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m Peak SAR (extrapolated) = 0.225 W/kg SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.091 mW/g Maximum value of SAR (measured) = 0.144 mW/g Touch position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m Peak SAR (extrapolated) = 0.189 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.105 mW/g Maximum value of SAR (measured) = 0.148 mW/g 5 Date/Time: 2006/10/30 14:28:36 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-CH190-Mode 1 DUT: Pocket PC Phone ; Type: MC3504 ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz ; Duty Cycle: 1:8.3 Medium: HSL835 Medium parameters used: f = 836.6 MHz; σ = 0.9 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type …

Text truncated - open the document above for the full version.
