H9PMC7004EDA (Enterprise Digital Assistant)

© 2005 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design.Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Symbol products.Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.Symbol Technologies, Inc.One Symbol PlazaHoltsville, N.Y. 11742-1300http://www.symbol.comPatentsThis product is covered by one or more of the patents listed on the Web site: www.symbol.com/ patents . WarrantyFor the complete Symbol hardware product warranty statement, go to:http://www.symbol.com/warranty. Battery InformationSymbol rechargeable battery packs are designed and constructed to the highest standards within the industry.However, there are limitations to how long a battery can operate or be stored before needing replacement. Many factors affect the actual life cycle of a battery pack, such as heat, cold, harsh environmental conditions and severe drops.When batteries are stored over six (6) months, some irreversible deterioration in overall battery quality may occur. Store batteries discharged in a dry, cool place, removed from the equipment to prevent loss of capacity, rusting of metallic parts and electrolyte leakage. When storing batteries for one year or longer, they should be charged and discharged at least once a year. If an electrolyte leakage is observed, avoid any contact with affected area and properly dispose of the battery. Replace the battery when a significant loss of run time is detected.Standard warranty period for all Symbol batteries is 30 days, regardless if the battery was purchased separately or included as part of the mobile computer or bar code scanner. For more information on Symbol batteries, please visit:http:/mysymbolcare.symbol.com/battery/batbasics1.html.Battery Charging NoteTo charge the battery for the mobile device, battery and charger temperatures must be between +32° F and +104° F (0° C and +40° C).Ta i w a nEPA (Environmental Protection Administration) requires dry battery producing or importing firms in accordance with Article 15 of the Waste Disposal Act are required to indicate the recycling marks on the batteries used in sales, giveaway or promotion. Contact a qualified Taiwanese recycler for proper battery disposal. Service InformationBefore you use the unit, it must be configured to operate in your facility’s network and run your applications.If you have a problem running your unit or using your equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Symbol Support Center::For the latest version of this guide go to: http://www.symbol.com/manuals United States 1-800-653-5350 Canada 905-629-7226 United Kingdom 0800 328 2424 Asia / Pacific 337-6588 Australia 1-800-672-906 Austria / Österreich 01-5055794-0 Denmark / Danmark 7020-1718 Finland / Suomi 9 5407 580 France 01-40-96-52-21 Germany / Deutschland 6074-49020 Italy / Italia 2-484441 Mexico / México 5-520-1835 Netherlands / Nederland 315-271700 Norway / Norge +47 2232 4375 South Africa 11-809 5311 Spain / España +913244000 Sweden / Sverige 08 445 29 00 Europe/Mid-East Distributor Operations Contact local distributor or call+44 118 945 7360 Latin America Sales Support Inside USA: 1-800-347-0178; Outside USA: +1.954.255.2610 72-71767-01Revision 2 BETA — October 2005 MC70 With Windows ® Mobile 5.0 Licensing, Patent and Regulatory Information END-USER LICENSE AGREEMENT • You have acquired a device (“DEVICE”) that includes software licensed by Symbol Technologies, Inc. from an affiliate of Microsoft Corporation (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved. • IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT Symbol Technologies, Inc. FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT). • SOFTWARE includes software already installed on the DEVICE (“DEVICE Software”) and MS software contained on the CD-ROM disk (“Companion CD”). GRANT OF SOFTWARE LICENSE. This EULA grants you the following license: DEVICE Software. You may use the DEVICE Software as installed on the DEVICE. Companion CD . A Companion CD is included with your DEVICE, and you may install and use the Microsoft® ActiveSync® component on one (1) or more personal computers to exchange information with one (1) or more computing devices that contain a compatible version of the Microsoft® Windows Mobile™ Version 5.0 operating system. For other software component(s) contained on the Companion CD, you may install and use such components only in accordance with the terms of the printed or online end user license agreement(s) provided with such component(s). In the absence of an end user license agreement for particular component(s) of the Companion CD, you may install and us e only one (1) copy of such component(s) on the DEVICE or a single personal computer with which you use the DEVICE. Phone Func…

Text truncated - open the document above for the full version.

-----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Sunday, October 23, 2005 8:11 PM To: [email protected] Cc: [email protected] Subject: 轉寄： TCB Review Comments for (A05-1019a- H9PMC7004) Dear Steve Pls see our reply as below: Question #1: Operational description stated M70 has 11bg WLAN capability. But test report does not have related test data, please clarify. ANS: User manual is general for all MC70xx series products. Depends on the model it may contains different combination of GSM, WLAN and Bluetooth functions and each model has its own FCC ID. For model of MC 7094, all the three systems are integrated. For the other two models, MC7090 is exclusive of GSM system module and MC7004 has only GSM system and BT function. Question #2: It seems not normal that the PDA generate the highest field strength when PDA in lay-down position. Please make sure if tested position is correct. ANS: The position was determined after a pre-scan of all 3 axes. The lay-down position show highest emission and hence be selected for the final test. Question #3: P15 of 22/24 test report stated that a 20 dB pad was used for power measurement, but in P18 the correction factor is only 5.5 dB, please clarify if 20 dB pad has been considered in the power calculation. ANS: 20dB pad loss had already be compensated by offset function in the measurement equipment. -SAR- Question #1: P32, P36 of SAR test report show that 3 time-slots power is less than 1 time-slot power, please explain how this is possible? ANS: This is due to the design characteristic of the power amplifier. This product will output lower output power when multiple time slots are selected. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號

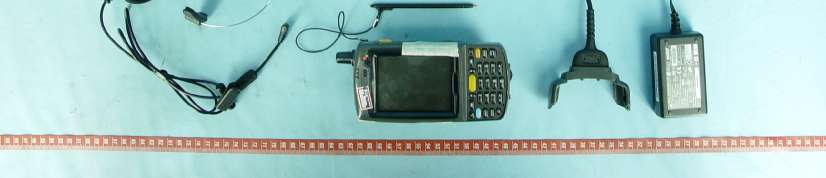

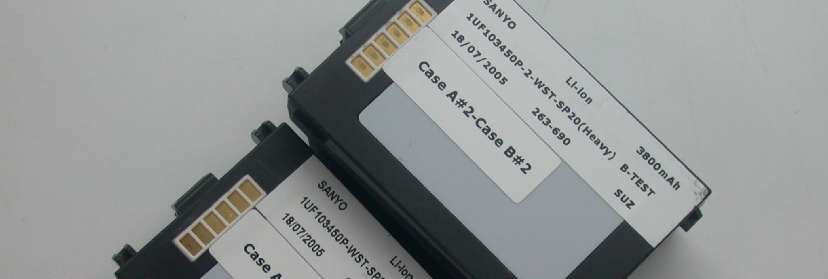

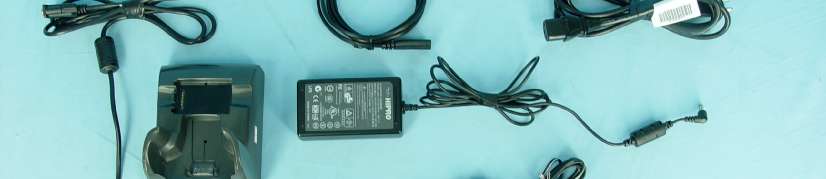

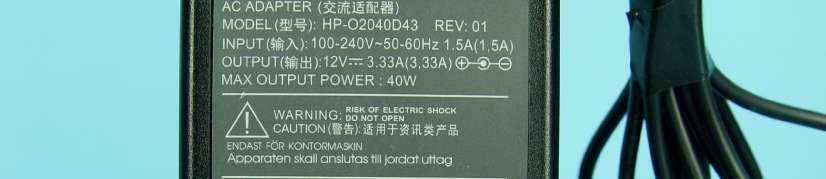

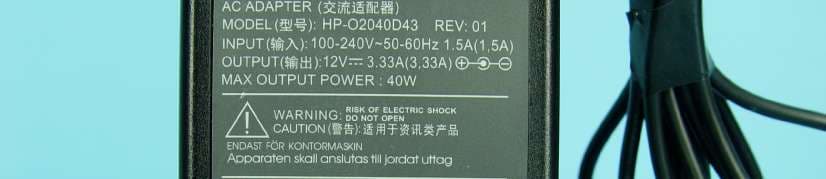

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID : H9PMC7004 Label Location

xxxx S&E XXXXXXX MODE L NO.: PART NAME: A/W NO.: SCA LE: UNIT : SHE ET OF DR AWN:REVIEWED: A PPROVED: RE VDES CRIPTIONSIGN DATE 1 : 1 m m 1 1 1 : 1 m m 1 1 P20 40.13H05.011 LB L REGULATORY (MC7004) M0VG00 Benny Chen 07/13/2005 1. MATERIAL: 0.127mm Velvet Lexan + 3M467 2. COLOR: BACKGROUND----SYMBOL BLACK 01 LETTERS-----------WHITE 3. ADHESIVE: S PEC REFE R TO E S- 811- R06 , S ONY 30 3 OR TOY O DF2700M R OR EQUIV 4. FINISH: P RINT FRONT SIDE 5. PR INT TOLERANCE OF DIM ENSION: +0. 3mm /-0 .3mm 6. PR INTER TYPE: THERM AL TRANSFER L ABE L P RINTE R (W EB ER 80 OR FARGO PRODIGY), SPEC R EFER TO ED -715-F09 7. FA CTORY INDEN TIFICATIO N OF CSA MUST BE PRINTED SEE REGULATORY GUIDE FOR PATENT INFORMATION ICES/NMB-003 CLASS B FCC ID: H9PMC7004 IC: 1549D-MC7004 21.3 mm 46.3 mm 24.6 mm I.T.E. E145483 LISTED

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Right Head Cheek Position 2 Right Head Tilt Position 3 Left Head Cheek Position 4 Left Head Tilt Position 5 Body Worn Position 6 EUT Photo Reference Point (Head) BT Antenna GSM Antenna Reference Point (Body) 7 8 Liquid Level Photo Tissue HSL835MHz D=151mm Tissue MSL835MHz D=150mm 9 Tissue HSL1900MHz D=155mm Tissue MSL1900MHz D=152mm 10 Tissue HSL2450MHz D=155mm Tissue MSL2450MHz D=151mm 11 Date/Time: 2005/10/13 12:02:22 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch128-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7004 ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 824.2 MHz; σ = 0.92 mho/m; ε r = 43.5; ρ = 1000 kg/m 3 ; Liquid level: 151mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Low Channel 128/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.307 mW/g Touch position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.9 V/m Peak SAR (extrapolated) = 0.414 W/kg SAR(1 g) = 0.295 mW/g; SAR(10 g) = 0.214 mW/g Maximum value of SAR (measured) = 0.315 mW/g 12 Date/Time: 2005/10/13 12:31:49 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch190-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7004 ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 836.6 MHz; σ = 0.93 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 ; Liquid level: 151mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Mid Channel 190/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.350 mW/g Touch position - Mid Channel 190/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.1 V/m Peak SAR (extrapolated) = 0.474 W/kg SAR(1 g) = 0.335 mW/g; SAR(10 g) = 0.243 mW/g Maximum value of SAR (measured) = 0.360 mW/g 13 Date/Time: 2005/10/13 13:11:44 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch251-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7004 ; Test Frequency: 848.8 MHz Communication System: PCS 850 ; Frequency: 848.8 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 848.8 MHz; σ = 0.94 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 ; Liquid level: 151mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - High Channel 251/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.403 mW/g Touch position - High Channel 251/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.3 V/m Peak SAR (extrapolated) = 0.539 W/kg SAR(1 g) = 0.383 mW/g; SAR(10 g) = 0.278 mW/g Maximum value of SAR (measured) = 0.407 mW/g 14 Date/Time: 2005/10/13 13:47:22 Test Laboratory: Advance Data Technology Right Head-Tilt-GSM850-Ch128-Mode 2 DUT: EDA-Enterprise Digital Assistant ; Type: MC7004 ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz; Duty Cycle: 1:8.3 Medium: HSL835 Medium parameters used: f = 824.2 MHz; σ = 0.92 mho/m; ε r = 43.5; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 21.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilt position - Low Channel 128/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.259 mW/g Tilt position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.7 V/m Peak SAR (extrapolated) = 0.385 W/kg SAR(1 g) = 0.266 mW/g; SAR(10 g) = 0.177 mW/g Maximum value of SAR (measured) = 0.286 mW/g 15 Date/Time: 2005/10/13 14:14:34 Test Laboratory: Advance Data Technology Right Head-Tilt-GSM850-Ch190-Mode 2 DUT: EDA-Enterprise Digital Assistant ; Type: MC7004 ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium: HSL835 Medium parameters used: f = 836.6 MHz; σ = 0.93 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom sect…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: H9PMC7004 Report No.: SA940915L101Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA940915L10 MODEL NO.: MC7004 RECEIVED: Sep. 15, 2005 TESTED: Oct. 13 ~ Oct. 17, 2005 ISSUED: Oct. 18, 2005 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 65 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA NO. 2177-01 FCC ID: H9PMC7004 Report No.: SA940915L102Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................6 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................7 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION......................10 3.DESCRIPTION OF SUPPORT UNITS................................................................................14 4.DESCRIPTION OF TEST POSITION..................................................................................15 4.1.DESCRIPTION OF ANTENNA LOCATION...................................................................15 4.2.DESCRIPTION OF TEST POSITION............................................................................17 4.2.1.TOUCH/CHEEK TEST POSITION................................................................................18 4.2.2.TILT TEST POSITION..................................................................................................19 4.2.3.BODY-WORN CONFIGURATION.................................................................................19 4.3.DESCRIPTION OF ASSESSMENT POSITION.............................................................20 4.4.DESCRIPTION OF TEST MODE..................................................................................22 4.5.SUMMARY OF TEST RESULT.....................................................................................24 5.TEST RESULTS.................................................................................................................28 5.1TEST PROCEDURES..................................................................................................28 5.2MEASURED SAR RESULTS........................................................................................30 5.3SAR LIMITS.................................................................................................................45 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................46 5.5TEST EQUIPMENT FOR TISSUE PROPERTY............................................................52 6.SYSTEM VALIDATION.......................................................................................................53 6.1TEST EQUIPMENT......................................................................................................53 6.2TEST PROCEDURE.....................................................................................................54 6.3VALIDATION RESULTS...............................................................................................56 6.4SYSTEM VALIDATION UNCERTAINTIES....................................................................57 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................58 7.1.PROBE CALIBRATION UNCERTAINTY.......................................................................58 7.2.ISOTROPY UNCERTAINTY.........................................................................................59 7.3.BOUNDARY EFFECT UNCERTAINTY.........................................................................59 7.4.PROBE LINEARITY UNCERTAINTY............................................................................60 7.5.READOUT ELECTRONICS UNCERTAINTY................................................................60 7.6.RESPONSE TIME UNCERTAINTY..............................................................................60 7.7.INTEGRATION TIME UNCERTAINTY..........................................................................61 7.8.PROBE POSITIONER MECHANICAL TOLERANCE....................................................62 7.9.PROBE POSITIONING.................................................................................................62 7.10.PHANTOM UNCERTAINTY.........................................................................................63 7.11.DASY4 UNCERTAINTY BUDGET................................................................................64 8.INFORMATION ON THE TESTING LABORATORIES.........................................................65 APPENDIX A: TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION APPENDIX E: TEST CONFIGURATIONS FCC ID: H9PMC7004 Report No.: SA940915L103Report Format Version 2.0.2 1. CERTIFICATION PRODUCT : EDA (Enterprise Digital Assistant) MODEL NO.: MC7004 BRAND NAME: Symbol APPLICANT : Symbol Technologies, Inc. TESTED : Oct. 13 ~ Oct. 17, 2005 TEST SAMPLE : PROTOTYPE STANDARDS : FCC Part 2 (Section 2.…

Text truncated - open the document above for the full version.

FCC ID: H9PMC7004 Report No.: RF940915L101Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940915L10 MODEL NO.: MC7004 RECEIVED: Sep. 15, 2005 TESTED: Sep. 22 ~ 28, 2005 ISSUED: Oct. 18, 2005 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: H9PMC7004 Report No.: RF940915L102Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3.GENERAL INFORMATION.....................................................................................7 3.1GENERAL DESCRIPTION OF EUT.......................................................................7 3.2DESCRIPTION OF TEST MODES.........................................................................9 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...................................................10 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................12 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................14 3.4DESCRIPTION OF SUPPORT UNITS..................................................................14 4.TEST TYPES AND RESULTS..............................................................................15 4.1.1CONDUCTED EMISSION MEASUREMENT........................................................15 4.1.2LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................15 4.1.3TEST INSTRUMENTS..........................................................................................15 4.1.4TEST PROCEDURES..........................................................................................16 4.1.5DEVIATION FROM TEST STANDARD.................................................................16 4.1.6TEST SETUP.......................................................................................................17 4.1.7EUT OPERATING CONDITIONS.........................................................................17 4.1.8TEST RESULTS...................................................................................................17 4.2RADIATED EMISSION MEASUREMENT.............................................................30 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................30 4.2.2TEST INSTRUMENTS..........................................................................................31 4.2.3TEST PROCEDURES..........................................................................................32 4.2.4DEVIATION FROM TEST STANDARD.................................................................32 4.2.5TEST SETUP.......................................................................................................33 4.2.6EUT OPERATING CONDITIONS.........................................................................33 4.2.7TEST RESULTS...................................................................................................34 4.3NUMBER OF HOPPING FREQUENCY USED.....................................................40 4.3.1LIMIT OF HOPPING FREQUENCY USED...........................................................40 4.3.2TEST INSTRUMENTS..........................................................................................40 4.3.3TEST PROCEDURES..........................................................................................40 4.3.4DEVIATION FROM TEST STANDARD.................................................................41 4.3.5TEST SETUP.......................................................................................................41 4.3.6TEST RESULTS...................................................................................................41 4.4DWELL TIME ON EACH CHANNEL.....................................................................43 4.4.1LIMIT OF DWELL TIME USED.............................................................................43 4.4.2TEST INSTRUMENTS..........................................................................................43 4.4.3TEST PROCEDURES..........................................................................................43 4.4.4DEVIATION FROM TEST STANDARD.................................................................43 4.4.5TEST SETUP.......................................................................................................44 4.4.6TEST RESULTS...................................................................................................44 FCC ID: H9PMC7004 Report No.: RF940915L103Report Format Version 2.0.4 4.5CHANNEL BANDWIDTH......................................................................................48 4.5.1LIMITS OF CHANNEL BANDWIDTH....................................................................48 4.5.2TEST INSTRUMENTS..........................................................................................48 4.5.3TEST PROCEDURE.............................................................................................48 4.5.4DEVIATION FROM TEST STANDARD...............................................................…

Text truncated - open the document above for the full version.

FCC ID: H9PMC7004 Report no.: RF940915L101Report Format Version 2.0.3 FCC TEST REPORT (PART 22) REPORT NO.: RF940915L10 MODEL NO.: MC7004 RECEIVED: Sep. 15, 2005 TESTED: Sep. 24 ~ Sep. 27, 2005 ISSUED: Oct. 09, 2005 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 56 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: H9PMC7004 Report no.: RF940915L102Report Format Version 2.0.3 TABLE OF CONTENTS 1CERTIFICATION........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY........................................................................6 3GENERAL INFORMATION.........................................................................................7 3.1GENERAL DESCRIPTION OF EUT......................................................................7 3.2DESCRIPTION OF TEST MODES.......................................................................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................10 3.4DESCRIPTION OF SUPPORT UNITS................................................................10 4TEST TYPES AND RESULTS..................................................................................11 4.1MODULATION CHARACTERISTICS..................................................................11 4.1.1DESCRIPTION OF MODULATION TECHNIQUE...............................................11 4.1.2THE ACTIVE TIME SLOT 8 MODULATED FRAME PLOT..................................12 4.2OUTPUT POWER MEASUREMENT..................................................................13 4.2.1LIMITS OF OUTPUT POWER MEASUREMENT................................................13 4.2.2TEST INSTRUMENTS........................................................................................14 4.2.3TEST PROCEDURES........................................................................................15 4.2.4TEST SETUP......................................................................................................16 4.2.5EUT OPERATING CONDITIONS........................................................................17 4.2.6TEST RESULTS...........…

Text truncated - open the document above for the full version.
