Dear reviewer, Due to the change in WLAN antenna (antenna gain increased about 0.5 dBi). We have re-conducted partial of the tests. Please discard following files and used the new files which have “-rev” suffix. Affected old files list below: A. For H9PMC7094 1. Int pho_H9PMC7094.pdf 2. Test Rpt (15.247)-1_H9PMC7094.pdf 3. Test Rpt (15.247)-2_H9PMC7094.pdf 4. Test Rpt (15.407)_H9PMC7094.pdf 5. Test Rpt (Part 22)_H9PMC7094.pdf 6. Test Rpt (Part 24)_H9PMC7094.pdf 7. Test Rpt-SAR (Appendix A)-1_H9PMC7094.pdf 8. Test Rpt-SAR (Appendix A)-2_H9PMC7094.pdf 9. Test Rpt-SAR (Appendix A)-3_H9PMC7094.pdf 10. Test Rpt-SAR_H9PMC7094.pdf B. For H9PMC7090 1. Int pho_H9PMC7090.pdf 2. Test Rpt (15.247)-1_H9PMC7090.pdf 3. Test Rpt (15.247)-2_H9PMC7090.pdf 4. Test Rpt (15.407)_H9PMC7090.pdf 5. Test Rpt-SAR (Appendix A)-1_H9PMC7090.pdf 6. Test Rpt-SAR (Appendix A)-2_H9PMC7090.pdf 7. Test Rpt-SAR_H9PMC7090.pdf Best regards, ADT

Below is the photo comparison between old and new antenna. Old antenna mean the antenna used on 10/14/2005 origin filing New antenna mean the antenna used on 10/28/2005 revise test reports for superseding 10/14/2005 submitted test reports. A better in-band power performance has been achieved by length tuning as show below and accordingly the conducted power and radiated spurious emissions have been re-measured to demonstrate the continue compliance to the related rule parts. OLD Antenna New Ant

Nov. 26, 2005 Applicant: Symbol Technologies Inc FCC ID# H9PMC7090 Correspondence Reference Number: 30003 731 Confirmation Number: EA140628 Date of Original E-mail: 11/22/2005 The responses are as follows: 1) fyi FCC weblink in user manual is wrong: (http://www.fcc.gove/oet/fccid), should be (http://www.fcc.gov/oet/fccid) or (https://gullfoss2.fcc.gov/prod/oet/cf/eas/reports/GenericSearch.cfm) 2) Filing (op desc, user manual, SAR, etc) indicates this handheld-terminal contains Bluetooth (BT) transmitter, but this does not seem to be listed on Form731 application. Typically BT are filed as eqpt class DSS, but can file under DTS. 2a) what is BT FCC ID (module?), or will handheld-terminal always be marketed containing BT such that present FCC ID can include it? 2b) if BT will always be installed and separate (module) FCC ID is not applicable, please submit exhibits into DTS application, or submit separate DSS composite application, to make complete filing for BT device 2c) if separate BT FCC ID will be retained, please submit device FCC ID labeling info for handheld-terminal in this filing 3) This filing has requested confidentiality for device photos; however, the SAR exhibits containing device photos cannot be held confidential. Please submit new exhibits with device photos and SAR report portions in separate files. 4) Some SAR report photos, and DUT-geometry in all SAR data plots, appears to show handheld-terminal with external stub antenna (assumed to be H9PMC7094), whereas this filing is for device does not have stub antenna. please explain, or revise/re-test if data in this filing is for device with stub-antenna. 5) Please list collocated SAR evaluation procedures, including info about grid/distribution additions, and device re-positioning (registration) when device is taken in and out of holder to activate the various transmitters. Response: 1) Thanks and we have revised the user manual. 2) The BT transmitter will be marketed with handheld-terminal always and no separate ID is required. Also, BT test report already included in the submitted 15.247 EMC test report. 3) Thanks for your suggestion and we have removed the test setup photos from the whole reports, and have it relocated to the test setup photo. Please refer to revised EMC test setup photos “TSup_H9PMC7090_rev.pdf “, “Test Rpt- SAR_H9PMC7094_rev2.pdf”“Test Rpt-SAR (Appendix A)_ H9PMC7090_rev3.pdf “,” 1 Test Rpt (15.247)_H9PMC7090_rev2.pdf”and” Test Rpt (15.407)_H9PMC7090_rev2.pdf”. 4) Since H9PMC7090 and H9PMC7094 are identical in shape and dimension except that H9PMC7094 has a extra stub antenna for part 22./ 24 function. So we had reused the DUT-geometry print from H9PMC7094 to the H9PMC7090 without re-editing the file to remove stub-antenna portion. We apologize for the minor error in the data presentation, and all the test data / plots submitted do represent the correct sample and operation. We will fix similar error in future application, thanks. 5) Collocated SAR evaluation procedure: Basically we use the post-procession function offered by DASY4 SAR system to perform the co-located SAR evaluation. The procedure is as follow: 1. Each mode is evaluated individually according to its maximum operating power and typical operating condition for all possible operation configurations and the worth- case-configuration from each mode was noticed and recorded for the following step. 2. Once all modes have been evaluated and individual worst case configuration & value are identified from each mode, the SAMCAD could be use to calculate the worst case collocated SAR by combine the related SAR values from related worst case measurement results. For detail procedure regarding to step 1 & 2 mentioned above and re-position procedure, please refer to following two files: a. Single transmitter SAR evaluation procedures.pdf b. Collocated SAR evaluation procedure.pdf Best regards, ADT 2

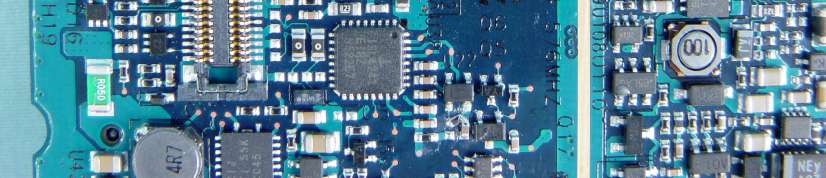

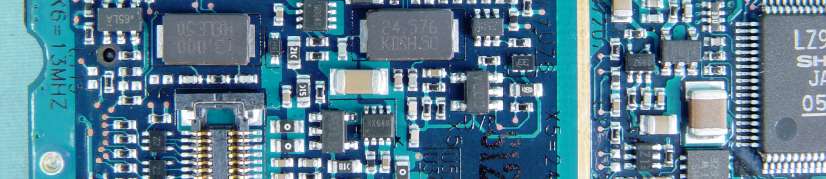

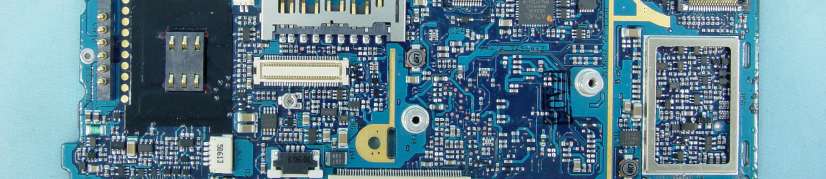

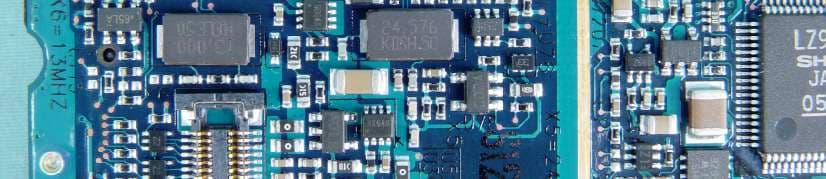

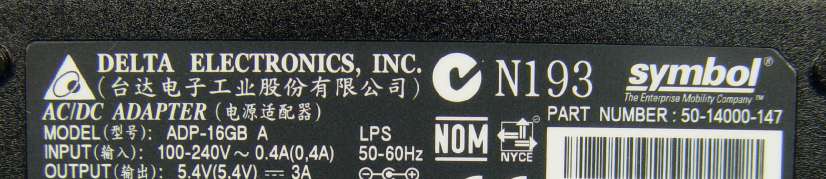

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 1 Label location FCC ID: H9PMC7090

S&E XXXXXXX XXXX MODE L NO.: PART NAME: A/W NO.: SCA LE: UNIT : SHE ET OF DR AWN:REVIEWED: A PPROVED: RE VDES CRIPTIONSIGN DATE 1 : 1 m m 1 1 1 : 1 m m 1 1 P20 40.13H05.021 LB L REGULATORY (MC7090) M0VG00 Benny Chen 07/13/2005 1. MATERIAL: MATERIAL: 0.127mm Velvet Lexan + 3M467 2. COLOR: BACKGROUND----SYMBOL BLACK 01 LETTERS-----------WHITE 3. ADHESIVE: S PEC REFE R TO E S- 811- R06 , S ONY 30 3 OR TOY O DF2700M R OR EQUIV 4. FINISH: P RINT FRONT SIDE 5. PR INT TOLERANCE OF DIM ENSION: +0. 3mm /-0 .3mm 6. PR INTER TYPE: THERM AL TRANSFER L ABE L P RINTE R (W EB ER 80 OR FARGO PRODIGY), SPEC R EFER TO ED -715-F09 7. FA CTORY INDEN TIFICATIO N OF CSA MUST BE PRINTED SEE REGULATORY GUIDE FOR PATENT INFORMATION ICES/NMB-003 CLASS B FCC ID: H9PMC7090 IC: 1549D-MC7090 21.3 mm 46.3 mm 24.6 mm I.T.E. E145483 LISTED

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: H9PMC7090 Report No.: SA940915L13A1Report Format Version 2.0.2 Reference no.: 941017L08 SAR TEST REPORT REPORT NO.: SA940915L13A MODEL NO.: MC7090 RECEIVED: Oct. 17, 2005 TESTED: Oct. 17 ~ Oct. 25, 2005 ISSUED: Oct. 27, 2005 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Symbol Plaza, Holtsville, NY 11742, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 70 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: H9PMC7090 Report No.: SA940915L13A2Report Format Version 2.0.2 Reference no.: 941017L08 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT..............................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS................................................7 2.3GENERAL INOFRMATION OF THE SAR SYSTEM......................................................8 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION.....................11 3.DESCRIPTION OF SUPPORT UNITS........................................................................14 4.DESCRIPTION OF TEST POSITION..........................................................................15 4.1.DESCRIPTION OF ANTENNA LOCATION.................................................................15 4.2.DESCRIPTION OF TEST POSITION..........................................................................18 4.2.1.TOUCH/CHEEK TEST POSITION..............................................................................19 4.2.2.TILT TEST POSITION.................................................................................................20 4.2.3.BODY-WORN CONFIGURATION...............................................................................20 4.3.DESCRIPTION OF ASSESSMENT POSITION...........................................................21 4.4.DESCRIPTION OF TEST MODE................................................................................23 4.5.SUMMARY OF TEST RESULT...................................................................................25 5.TEST RESULTS.................................................................................................................29 5.1TEST PROCEDURES.................................................................................................29 5.2MEASURED SAR RESULTS......................................................................................31 5.3SAR LIMITS................................................................................................................49 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.........................................................49 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...........................................................55 6.SYSTEM VALIDATION.......................................................................................................56 6.1TEST EQUIPMENT....................................................................................................56 6.2TEST PROCEDURE...................................................................................................57 6.3VALIDATION RESULTS..............................................................................................59 6.4SYSTEM VALIDATION UNCERTAINTIES (FOR 2.4GHz)...........................................60 6.5SYSTEM VALIDATION UNCERTAINTIES (FOR 5GHz)..............................................61 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................62 7.1PROBE CALIBRATION UNCERTAINTY.....................................................................62 7.2ISOTROPY UNCERTAINTY........................................................................................63 7.3BOUNDARY EFFECT UNCERTAINTY........................................................................63 7.4PROBE LINEARITY UNCERTAINTY..........................................................................64 7.5READOUT ELECTRONICS UNCERTAINTY...............................................................64 7.6RESPONSE TIME UNCERTAINTY.............................................................................64 7.7INTEGRATION TIME UNCERTAINTY.........................................................................65 7.8PROBE POSITIONER MECHANICAL TOLERANCE...................................................66 7.9PROBE POSITIONING...............................................................................................66 7.10PHANTOM UNCERTAINTY........................................................................................67 7.11DASY4 UNCERTAINTY BUDGET (FOR 2.4GHz).......................................................68 7.12DASY4 UNCERTAINTY BUDGET (FOR 5 ~ 6GHz)....................................................69 8.INFORMATION ON THE TESTING LABORATORIES.........................................................70 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: H9PMC7090 Report No.: SA940915L13A3Report Format Version 2.0.2 Reference no.: 941017L08 1. CERTIFICATION PRODUCT : EDA (Enterprise Digital Assistant) M…

Text truncated - open the document above for the full version.

1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Right Head Cheek Position 2 Right Head Tilt Position 3 Left Head Cheek Position 4 Left Head Tilt Position 5 Body Worn Position The front of the EUT to the flat phantom distance 0 mm 6 EUT Photo Reference Point(Body) Reference Point(Head) Wireless Antenna BT Antenna 7 8 Liquid Level Photo Tissue HSL2450MHz D=155mm(Date:2005/10/17) Tissue HSL2450MHz D=151mm(Date:2005/10/18) 9 Tissue MSL2450MHz D=150mm(Date:2005/10/19) 10 Tissue HSL5800MHz D=150mm(Date:2005/10/24) Tissue MSL5800MHz D=150mm(Date:2005/10/25) 11 Date/Time: 2005/10/17 11:34:40 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch1-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7090 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2412 MHz; σ = 1.76 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : PIFA Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.7 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Low Channel 1/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.271 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m Peak SAR (extrapolated) = 0.486 W/kg SAR(1 g) = 0.252 mW/g; SAR(10 g) = 0.133 mW/g Maximum value of SAR (measured) = 0.277 mW/g 12 Date/Time: 2005/10/17 12:22:23 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch6-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7090 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2437 MHz; σ = 1.79 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : PIFA Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.7 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Mid Channel 6/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.477 mW/g Touch position - Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.1 V/m Peak SAR (extrapolated) = 0.905 W/kg SAR(1 g) = 0.438 mW/g; SAR(10 g) = 0.230 mW/g 13 14 Date/Time: 2005/10/17 13:16:41 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch11-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7090 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2462 MHz; σ = 1.82 mho/m; ε r = 38.3; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : PIFA Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.7 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - High Channel 11/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.225 mW/g Touch position - High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.22 V/m Peak SAR (extrapolated) = 0.447 W/kg SAR(1 g) = 0.207 mW/g; SAR(10 g) = 0.109 mW/g Maximum value of SAR (measured) = 0.224 mW/g 15 Date/Time: 2005/10/17 13:45:57 Test Laboratory: Advance Data Technology Right Head-Tilt-11b-Ch1-Mode 2 DUT: EDA-Enterprise Digital Assistant ; Type: MC7090 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2412 MHz; σ = 1.76 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: CCK Antenna type : PIFA Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.7 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilt position - Low Channel 1/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.189 mW/g Tilt position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.87 V/m Peak SAR (extrapolated) = 0.398 W/kg SAR(1 g) = 0.175 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.191 mW/g 16 Date/Time: 2005/10/17 14:11:11 Test Laboratory: Advance Data Technology Right Head-Tilt-11b-Ch6-Mode 2 DUT: EDA-Enterprise Digital Assistant ; Type: MC7090 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2437 MHz; σ = 1.79 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section:…

Text truncated - open the document above for the full version.

Chapter 30 Multiband Evaluation 30.1 Introduction Wireless devices exist that can transmit at multiple frequencies at the same time. An example of this is a cellular telephone and PDA combination that can simultaneously transmit a cellular telephone signal (e.g., at 900 MHz) and a wireless LAN signal (e.g., at 2450 MHz). It is possible that such a device may be compliant with the regulatory SAR limit at each frequency while the composite SAR from simultaneous transmission is above the limit. Therefore, the accurate determination of the SAR in this situation is important. Given that the tissue simulating liquid and the probe calibration are frequency dependent, and given that existing SAR measurement systems are unable to separate the frequency components of a signal, it is not possible to accurately measure the SAR from such a transmitter using one measurement in one liquid. DASY4 therefore provides the possibility to perform such Multiband Evaluations according to the latest standards, e.g., [1] using the Volume Scan job as well as appropriate routines for the Postprocessing. 30.2 Multiband Measurements The Volume Scan job described in Section 7.2.11 Volume Scan job allows to conduct the mea­ surement of volumes with sufficient spatial extend such as outlined in the procedure proposed in [1]. The resulting measurement jobs can be finally evaluated and combined within the SEMCAD Postprocessor. 30.3 Multiband Data Extractions In order to extract and process measurements within different frequency bands, the SEMCAD Postprocessor allows to combine and subsequently superpose these measurement data in the Chart Manager. 30­1 Multiband Evaluation Application Notes The appropriate process is outlined as follows: 1. Via drag­and­drop, the quantities to be combined can be added to the Chart Manager. Note: Since different media were used at measuring the various bands, the re­ sults from the different Programs need to be added to one single Chart Manager. Therefore, the user can open two (or more) instances of SEMCAD, and drag­drop a specific result from one SEMCAD instance to the Chart Manager of another one. Note: The measurement grids of the jobs which should be combined in the Post­ processor should be the same, i.e., should contain the same number of points located approximately at the same locations. 2. Via multiple selection within the Chart Manager list, the appropriate items to be combined can be chosen. By use of the Shift or Ctrl keys on the keyboard in addition to mouse clicking in oder an appropriate set of items is selected. Application of the Multiband extrac­ tion to a set of items in the Chart Manager. Note: In order to evaluate and combine Averaged SAR, the Custom Averaged SAR result field should be selected. 3. In a next step, the kind of viewer to be used for the visualization or the data export, can be selected. Selection of a viewer type in the Ex­ traction Options dialogue. 4. In a final step, the results are displayed graphically and by numbers in the selected viewer or are exported as defined by the user. Schmid & Partner Engineering AG, DASY4 Manual, August 2004 30­2 Multiband Evaluation Application Notes Display of results (3D Volume Scan) from the superposition of measured data in the viewer. Note: For the Volume Scan job, in addition to the common quantities, SEMCAD allows the extraction of the Total Absorbed Power in the medium. This will be extracted for the Averaged and Interpolated SAR result fields. Note: In order to perform a printout of the combined measurement data, please use the MulitbandPrintout.htm print template provided in the appropriate folder on the DASY4 CD. Schmid & Partner Engineering AG, DASY4 Manual, August 2004 30­3

GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION The DASY4 post-processing software (SEMCAD) automatically executes the following procedures to calculate the field units from the micro-volt readings at the probe connector. The parameters used in the evaluation are stored in the configuration modules of the software: Probe parameters: -Sensitivity Norm i , a i0 , a i1 , a i2 -Conversion factor ConvF i -Diode compression point dcp i Device parameters: -Frequency F -Crest factor cf Media parameters: -Conductivity -Density The first step of the evaluation is a linearization of the filtered input signal to account for the compression characteristics of the detector diode. The compensation depends on the input signal, the diode type and the DC-transmission factor from the diode to the evaluation electronics. If the exciting field is pulsed, the crest factor of the signal must be known to correctly compensate for peak power. The formula for each channel can be given as: i =compensated signal of channel i (i = x, y, z) i =input signal of channel I (i = x, y, z) cf =crest factor of exciting field (DASY parameter) dcp=diode compression point (DASY parameter) i From the compensated input signals the primary field data for each channel can be evaluated: The …
