H9PMC7094EDA (Enterprise Digital Assistant)

© 2005 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design.Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Symbol products.Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.Symbol Technologies, Inc.One Symbol PlazaHoltsville, N.Y. 11742-1300http://www.symbol.comPatentsThis product is covered by one or more of the patents listed on the Web site: www.symbol.com/ patents . WarrantyFor the complete Symbol hardware product warranty statement, go to:http://www.symbol.com/warranty. Battery InformationSymbol rechargeable battery packs are designed and constructed to the highest standards within the industry.However, there are limitations to how long a battery can operate or be stored before needing replacement. Many factors affect the actual life cycle of a battery pack, such as heat, cold, harsh environmental conditions and severe drops.When batteries are stored over six (6) months, some irreversible deterioration in overall battery quality may occur. Store batteries discharged in a dry, cool place, removed from the equipment to prevent loss of capacity, rusting of metallic parts and electrolyte leakage. When storing batteries for one year or longer, they should be charged and discharged at least once a year. If an electrolyte leakage is observed, avoid any contact with affected area and properly dispose of the battery. Replace the battery when a significant loss of run time is detected.Standard warranty period for all Symbol batteries is 30 days, regardless if the battery was purchased separately or included as part of the mobile computer or bar code scanner. For more information on Symbol batteries, please visit:http:/mysymbolcare.symbol.com/battery/batbasics1.html.Battery Charging NoteTo charge the battery for the mobile device, battery and charger temperatures must be between +32° F and +104° F (0° C and +40° C).Ta i w a nEPA (Environmental Protection Administration) requires dry battery producing or importing firms in accordance with Article 15 of the Waste Disposal Act are required to indicate the recycling marks on the batteries used in sales, giveaway or promotion. Contact a qualified Taiwanese recycler for proper battery disposal. Service InformationBefore you use the unit, it must be configured to operate in your facility’s network and run your applications.If you have a problem running your unit or using your equipment, contact your facility’s Technical or Systems Support. If there is a problem with the equipment, they will contact the Symbol Support Center::For the latest version of this guide go to: http://www.symbol.com/manuals United States 1-800-653-5350 Canada 905-629-7226 United Kingdom 0800 328 2424 Asia / Pacific 337-6588 Australia 1-800-672-906 Austria / Österreich 01-5055794-0 Denmark / Danmark 7020-1718 Finland / Suomi 9 5407 580 France 01-40-96-52-21 Germany / Deutschland 6074-49020 Italy / Italia 2-484441 Mexico / México 5-520-1835 Netherlands / Nederland 315-271700 Norway / Norge +47 2232 4375 South Africa 11-809 5311 Spain / España +913244000 Sweden / Sverige 08 445 29 00 Europe/Mid-East Distributor Operations Contact local distributor or call+44 118 945 7360 Latin America Sales Support Inside USA: 1-800-347-0178; Outside USA: +1.954.255.2610 72-71767-01Revision 2 BETA — October 2005 MC70 With Windows ® Mobile 5.0 Licensing, Patent and Regulatory Information END-USER LICENSE AGREEMENT • You have acquired a device (“DEVICE”) that includes software licensed by Symbol Technologies, Inc. from an affiliate of Microsoft Corporation (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved. • IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT Symbol Technologies, Inc. FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT). • SOFTWARE includes software already installed on the DEVICE (“DEVICE Software”) and MS software contained on the CD-ROM disk (“Companion CD”). GRANT OF SOFTWARE LICENSE. This EULA grants you the following license: DEVICE Software. You may use the DEVICE Software as installed on the DEVICE. Companion CD . A Companion CD is included with your DEVICE, and you may install and use the Microsoft® ActiveSync® component on one (1) or more personal computers to exchange information with one (1) or more computing devices that contain a compatible version of the Microsoft® Windows Mobile™ Version 5.0 operating system. For other software component(s) contained on the Companion CD, you may install and use such components only in accordance with the terms of the printed or online end user license agreement(s) provided with such component(s). In the absence of an end user license agreement for particular component(s) of the Companion CD, you may install and us e only one (1) copy of such component(s) on the DEVICE or a single personal computer with which you use the DEVICE. Phone Func…

Text truncated - open the document above for the full version.

Dear reviewer, Due to the change in WLAN antenna (antenna gain increased about 0.5 dBi). We have re-conducted partial of the tests. Please discard following files and used the new files which have “-rev” suffix. Affected old files list below: A. For H9PMC7094 1. Int pho_H9PMC7094.pdf 2. Test Rpt (15.247)-1_H9PMC7094.pdf 3. Test Rpt (15.247)-2_H9PMC7094.pdf 4. Test Rpt (15.407)_H9PMC7094.pdf 5. Test Rpt (Part 22)_H9PMC7094.pdf 6. Test Rpt (Part 24)_H9PMC7094.pdf 7. Test Rpt-SAR (Appendix A)-1_H9PMC7094.pdf 8. Test Rpt-SAR (Appendix A)-2_H9PMC7094.pdf 9. Test Rpt-SAR (Appendix A)-3_H9PMC7094.pdf 10. Test Rpt-SAR_H9PMC7094.pdf B. For H9PMC7090 1. Int pho_H9PMC7090.pdf 2. Test Rpt (15.247)-1_H9PMC7090.pdf 3. Test Rpt (15.247)-2_H9PMC7090.pdf 4. Test Rpt (15.407)_H9PMC7090.pdf 5. Test Rpt-SAR (Appendix A)-1_H9PMC7090.pdf 6. Test Rpt-SAR (Appendix A)-2_H9PMC7090.pdf 7. Test Rpt-SAR_H9PMC7090.pdf Best regards, ADT

Below is the photo comparison between old and new antenna. Old antenna mean the antenna used on 10/14/2005 origin filing New antenna mean the antenna used on 10/28/2005 revise test reports for superseding 10/14/2005 submitted test reports. A better in-band power performance has been achieved by length tuning as show below and accordingly the conducted power and radiated spurious emissions have been re-measured to demonstrate the continue compliance to the related rule parts. OLD Antenna New Ant

The Enterprise Mobility Company SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com FCC ID: H9PMC7094 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Parts List Tune up procedure Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mark S. Luksich Director, Symbol Regulatory Compliance Symbol Technologies, Inc. Tel: +1 631 738 5134 [email protected]

The Enterprise Mobility Company SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11742-1300 • 516-738-2400 Website: http://www.symbol.com 12 DEC 05 FCC ID: H9PMC7094 Federal Communications Commission Authorization and Evaluation Division Short-term Confidentiality Request Pursuant to DA 04-1705 of the Commission’s public notice, we request that the exhibits identified below for the EDA (Enterprise Digital Assistant), are covered by Short term confidentiality for a period of 45 days after the Grant Date of Equipment Authorization. This is to ensure sensitive business information remains confidential until the actual marketing of the device. User Manual Internal Photographs External Photographs Test Setup Photographs If you have any questions regarding this request, please don’t hesitate to contact me. Sincerely, Mark S. Luksich Director, Symbol Regulatory Compliance Symbol Technologies, Inc. Tel: +1 631 738 5134 [email protected]

1 Form 731 ＊Shaded areas are required＊ Applicant¢s FCC Registration Number (FRN): 0005-8761-49 FCC Registered Test Site Number (OATS). Required for Part 15 and 18 applications. Part 15 Item 1. Applicant’s complete, legal business name: Symbol Technologies, Inc. Item 2. Applicant’s mailing address: Line 1: One Symbol Plaza Holtsville Line 2: P.O. Box: City: NY State: Country (if foreign address): United States Zip/Postal Code: 11742-1300 Item 3. FCC ID Grantee Code: H9P Equipment Product Code (14 characters maximum): MC7094 Item 4. Person at the applicant¢s address to receive grant or for contact: First Name: MarcoMail Stop : Last Name: BelliTelephone: 44 118 945 7313 Ext: Title: Fax No.: E-mail: [email protected] Item 5. Instead of Application, FCC is authorized to mail original Grant to: Firm Name: Advance Data Technology Corporation Address Line 1: No. 19, Hwa Ya 2nd Rd., Kwei Shan HsiangP.O.Box: Address Line 2: City: Taoyuan Hsien State: Country: Taiwan, R.O.C.Zip/Postal Code: 333 Person at above address to receive Grant: First name: Stephanie Last Name: Hung Title: SupervisorMail Stop: Item 6. Technical Contact: Firm Name: Advance Data Technology Corporation Tel: 886 3 318 3232Ext:1609 Fax: 886 3 327 0892 First Name: CodyMiddle Initial: Last Name: Chang Address Line 1: No. 19, Hwa Ya 2nd Rd., Kwei Shan HsiangP.O. Box: Address Line 2: City: Taoyuan HsienState: Country (if foreign address): Taiwan, R.O.C.Zip/Postal Code: 333 E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: Advance Data Technology Corporation Tel: 886 3 318 3232Ext:1668 Fax: 886 3 327 0892 First Name: StephanieMiddle Initial: Last Name: Hung Address Line 1: No. 19, Hwa Ya 2nd Rd., Kwei Shan HsiangP.O. Box: Address Line 2: City: Taoyuan HsienState: Country (if foreign address): Taiwan, R.O.C.Zip/Postal Code: 333 E-mail: [email protected] Completion date Note 2 Item 8. * Does this application include a request for short-term confidentiality for any portion(s) of the data contained in this application pursuant to FCC DA 04-1705 dated 6/15/2004? * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR0.459 of the Commission Rules? If “Yes” see instructions Short-Term request: Yes No Permanent request: Yes No Item 9. *Does this applicant request that the Commission defer grant of this application pursuant 47CFR? 0.457(d)(1)(ii)?(See instruction) Yes No If so, specify date when grant may be issued (MM/DD/YYYY) format): Item 10. *Is this application for software defined radio authorization? Yes No Item 10a. Is this application for Modular Approval authorization? Yes No Item 11. *Equipment Class: 3-digits required DTS *Description of Product as it is marketed: (Note: This text will appear below the equipment class on the grant) EDA (Enterprise Digital Assistant) Item 12. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY): Class II permissive change or modification of presently authorized equipment Class III permissive change to software defined radio (Note: this may only be filed for applications pertaining to Software Defined Radio) Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered “Yes ” complete section 13 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right? is in the process of being filed under the FCC ID listed to the right? H9PMC7094 is pending with the FCC under the FCC ID listed to the right? FCC ID Item 14. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: First Name: Last Name: Tel: Ext: Fax: Email: Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE (U.S. TITLE 47, SECTION 503). 3 Item 15. *SECTION 5301(ANTI-DRUG ABUSE)CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. * Does the applicant or authorized agent so certify? Yes No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorizatio…

Text truncated - open the document above for the full version.

1 Dec. 12, 2005 From: Diane Poole [email protected] FCC Equipment Authorization Branch Applicant: Symbol Technologies Inc FCC ID: H9PMC7094 Correspondence Reference Number: 30140 731 Confirmation Number: EA569642 Date of Original E-Mail: 12/9/2005 Subject: FCC Equipment Authorization System 1) fyi FCC weblink in user manual is wrong: (http://www.fcc.gove/oet/fccid), should be (http://www.fcc.gov/oet/fccid) or (https://gullfoss2.fcc.gov/prod/oet/cf/eas/reports/GenericSearch.cfm) 2) Filing (op desc, user manual, SAR, etc) indicates this handheld-terminal contains Bluetooth (BT) transmitter, but this does not seem to be listed on Form731 application. Typically BT are filed as eqpt class DSS, but can file under DTS. 2a) what is BT FCC ID (module?), or will handheld-terminal always be marketed containing BT such that present FCC ID can include it? 2b) if BT will always be installed and separate (module) FCC ID is not applicable, please submit exhibits into DTS application, or submit separate DSS composite application, to make complete filing for BT device 2c) if separate BT FCC ID will be retained, please submit device FCC ID labeling info for handheld-terminal in this filing 3) This filing has requested confidentiality for device photos; however, the SAR exhibits containing device photos cannot be held confidential. Please submit new exhibits with device photos and SAR report portions in separate files. 4) Intentionally blank 5) Please list collocated SAR evaluation procedures, including info about grid/distribution additions, and device re-positioning (registration) when device is taken in and out of holder to activate the various transmitters. 6) Confidential letter was signed by Marco Belli, and he is not in the 731 form. Please correct confidential letter. Response: 1) Thanks and we have revised the user manual. 2) The BT transmitter always contains in handheld-terminal and separate (module) FCC ID is not applicable. We have modified 731 form to include the BT and 5.7G WLAN specs, please refer to revised “Form 731_H9PMC7094_rev.pdf “ 2 3) Thanks for your suggestion and we have removed the test setup photos from the whole reports, and have it relocated to the test setup photo. Please refer to revised EMC test setup photos “TSup_H9PMC7094_rev.pdf “, “Test Rpt (15.247)_H9PMC7094_rev 2.pdf”,“Test Rpt (15.407)_H9PMC7094_rev 2.pdf “,” Test Rpt (Part 22)_H9PMC7094_rev 2.pdf”,” Test Rpt (Part 24)_H9PMC7094_rev 2.pdf”,” Test Rpt- SAR_H9PMC7094_rev 2.pdf”and” Test Rpt-SAR (Appendix A)_H9PMC7094_rev.pdf”. 5) Collocated SAR evaluation procedure : Basically we use the post-procession function offered by DASY4 SAR system to perform the co-located SAR evaluation. The procedure is as follow: 1. Each mode is evaluated individually according to its maximum operating power and typical operating condition for all possible operation configurations and the worth- case-configuration from each mode was noticed and recorded for the following step. 2. Once all modes have been evaluated and individual worst case configuration & value are identified from each mode, the SAMCAD could be use to calculate the worst case collocated SAR by combine the related SAR values from related worst case measurement results. For detail procedure regarding to step 1 & 2 mentioned above and re-position procedure, please refer to following two files: a. Single transmitter SAR evaluation procedures.pdf b. Collocated SAR evaluation procedure.pdf 6) Sorry for the confusion. We have had Mr. Mark S Luksich, who listed in 731 form as contact person of Symbol, signed the confidential request letters. Please refer to uploaded new files. FCC Confidential letter-Mark H9PMC7094_rev 2 .pdf FCC Short-term Confidential letter-H9PMC7094_rev 2 .pdf Thanks very much for your attention and help. Best regards, ADT

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

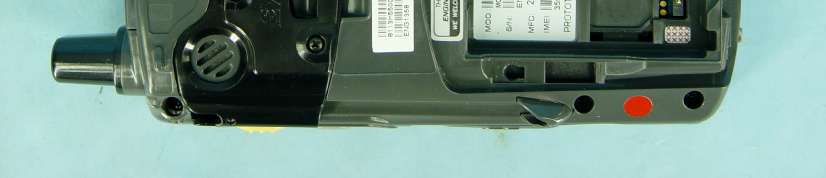

Page 1 Label location FCC ID: H9PMC7094

xxxx S&E XXXXXXX MODE L NO.: PART NAME: A/W NO.: SCA LE: UNIT : SHE ET OF DR AWN:REVIEWED: A PPROVED: RE VDES CRIPTIONSIGN DATE 1 : 1 m m 1 1 1 : 1 m m 1 1 P20 40.13H05.001 LB L REGULATORY (MC7094) M0VG00 Benny Chen 07/13/2005 1. MATERIAL: 0.127mm Velvet Lexan + 3M467 2. COLOR: BACKGROUND----SYMBOL BLACK 01 LETTERS-----------WHITE 3. ADHESIVE: S PEC REFE R TO E S- 811- R06 , S ONY 30 3 OR TOY O DF2700M R OR EQUIV 4. FINISH: P RINT FRONT SIDE 5. PR INT TOLERANCE OF DIM ENSION: +0. 3mm /-0 .3mm 6. PR INTER TYPE: THERM AL TRANSFER L ABE L P RINTE R (W EB ER 80 OR FARGO PRODIGY), SPEC R EFER TO ED -715-F09 7. FA CTORY INDEN TIFICATIO N OF CSA MUST BE PRINTED SEE REGULATORY GUIDE FOR PATENT INFORMATION ICES/NMB-003 CLASS B FCC ID: H9PMC7094 IC: 1549D-MC7094 21.3 mm 46.3 mm 24.6 mm I.T.E. E145483 LISTED

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Right Head Cheek Position Right Head Tilt Position Left Head Cheek Position 2 Left Head Tilt Position 2 Body Worn Position The front of the EUT to the flat phantom distance 0 mm 3 EUT Photo Reference Point(Body) Reference Point(Head) GSM Antenna Wireless Antenna BT Antenna 4 5 Liquid Level Photo Tissue HSL900MHz D=150mm Tissue MSL900MHz D=155mm 6 Tissue HSL1900MHz D=155mm Tissue MSL1900MHz D=150mm 7 Tissue HSL2450MHz D=155mm Tissue MSL2450MHz D=151mm 8 Tissue HSL5800MHz D=150mm Tissue MSL5800MHz D=155mm 9 Date/Time: 2005/9/13 13:48:17 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch128-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 824.2 MHz; σ = 0.929 mho/m; ε r = 43.6; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 22.2 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Low Channel 128/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.320 mW/g Touch position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.6 V/m Peak SAR (extrapolated) = 0.426 W/kg SAR(1 g) = 0.307 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.325 mW/g 10 Date/Time: 2005/9/13 14:11:02 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch190-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 836.6 MHz; σ = 0.94 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 22.2 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Mid Channel 190/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.332 mW/g Touch position - Mid Channel 190/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.4 V/m Peak SAR (extrapolated) = 0.435 W/kg SAR(1 g) = 0.322 mW/g; SAR(10 g) = 0.237 mW/g Maximum value of SAR (measured) = 0.340 mW/g 11 Date/Time: 2005/9/13 14:35:09 Test Laboratory: Advance Data Technology Right Head-Cheek-GSM850-Ch251-Mode 1 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 848.8 MHz Communication System: PCS 850 ; Frequency: 848.8 MHz ; Duty Cycle: 1:8.3 Phantom: SAM 12 Medium parameters used: f = 848.8 MHz; σ = 0.95 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 ; Liquid level: 150mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 22.2 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - High Channel 251/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.377 mW/g Touch position - High Channel 251/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.0 V/m Peak SAR (extrapolated) = 0.503 W/kg SAR(1 g) = 0.361 mW/g; SAR(10 g) = 0.265 mW/g Maximum value of SAR (measured) = 0.382 mW/g 12 Date/Time: 2005/9/13 14:57:58 Test Laboratory: Advance Data Technology Right Head-Tilt-GSM850-Ch128-Mode 2 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 824.2 MHz Communication System: PCS 850 ; Frequency: 824.2 MHz; Duty Cycle: 1:8.3 Medium: HSL900 Medium parameters used: f = 824.2 MHz; σ = 0.929 mho/m; ε r = 43.6; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: GMSK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 22.2 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(6.94, 6.94, 6.94) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilt position - Low Channel 128/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.294 mW/g Tilt position - Low Channel 128/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.4 V/m Peak SAR (extrapolated) = 0.409 W/kg SAR(1 g) = 0.290 mW/g; SAR(10 g) = 0.196 mW/g Maximum value of SAR (measured) = 0.310 mW/g 13 Date/Time: 2005/9/13 15:21:10 Test Laboratory: Advance Data Technology Right Head-Tilt-GSM850-Ch190-Mode 2 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 836.6 MHz Communication System: PCS 850 ; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium: HSL900 Mediu…

Text truncated - open the document above for the full version.

58 Date/Time: 2005/9/17 00:26:29 Test Laboratory: Advance Data Technology Body Worn- E-GPRS1900-Ch810-Keypad Up-Mode 20 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 1909.8 MHz Communication System: PCS 1900 ; Frequency: 1909.8 MHz ; Duty Cycle: 1:4 Medium: MSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.56 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 ; Liquid Level : 150mm Phantom section: Flat Section ; DUT test position : Body ; Modulation Type: 8PSK / UL 2 time solts Separation Distance : 0 mm ( The front side of the EUT to the Phantom) Antenna Type : External Antenna ; Air Temp. : 22.2 degrees ; Liquid Temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.71, 4.71, 4.71) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 810/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.056 mW/g High Channel 810/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.83 V/m Peak SAR (extrapolated) = 0.141 W/kg SAR(1 g) = 0.061 mW/g; SAR(10 g) = 0.033 mW/g Maximum value of SAR (measured) = 0.060 mW/g High Channel 810/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.83 V/m Peak SAR (extrapolated) = 0.063 W/kg SAR(1 g) = 0.042 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.044 mW/g 59 Date/Time: 2005/9/26 10:34:40 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch1-Mode 21 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2412 MHz; σ = 1.8 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : PIFA Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.4 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Low Channel 1/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.282 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.7 V/m Peak SAR (extrapolated) = 0.505 W/kg SAR(1 g) = 0.262 mW/g; SAR(10 g) = 0.138 mW/g Maximum value of SAR (measured) = 0.287 mW/g 60 Date/Time: 2005/9/26 11:22:23 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch6-Mode 21 DUT: EDA-Enterprise Digital Assistant ; Type: MC7094 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2437 MHz; σ = 1.83 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : PIFA…

Text truncated - open the document above for the full version.
