H9PMC9002BData Terminal with two radio modules

© 2003 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Symbol products. Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095;4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; 6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061; 6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587; 6,340,114; 6,340,115; 6,340,119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250;D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104. Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713 rev. 06/02 Warranty (A) Warranty Symbol Technologies (hereafter “Seller”) hardware Products are warranted against defects in workmanship and materials for a period of twelve (12) months from the date of shipment, unless otherwise provided by Seller in writing, provided the Product remains unmodified and is operated under normal and proper conditions. Warranty provisions and durations on software, integrated installed systems, Product modified or designed to meet specific customer specifications (“Custom Products”), remanufactured products, and reconditioned or upgraded products, shall be as provided in the applicable Product specification in effect at the time of purchase or in the accompanying software license. (B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service and maintenance of Products) are warranted against defects in workmanship and materials for a period of thirty (30) days from the date of shipment. Spare parts may be new or originate from returned units under the conditions set forth in subsection D below. (C) Repair of Symbol-branded hardware For repairs on Symbol-branded hardware Products under this Agreement, including repairs covered by warranty, the repair services provided are warranted against defects in workmanship and materials on the repaired component of the Product for a period of thirty (30) days from the shipment date of the repaired Product, or until the end of the original warranty period, whichever is longer. (D) Product Service Products may be serviced or manufactured with parts, components, or subassemblies that originate from returned products and that have been tested as meeting applicable specifications for equivalent new material and Products. The sole obligation of Seller for defective hardware Products is limited to repair or replacement (at Seller’s option) on a “return to service depot” basis with prior Seller authorization. Customer is responsible for shipment to the Seller and assumes all costs and risks associated with this transportation; return shipment to the Customer will be at Seller's expense. Customer shall be responsible for return shipment charges for product returned where Seller determines there is no defect (“No Defect Found”), or for product returned that Seller determines is not eligible for warranty repair. No charge will be made to Buyer for replac…

Text truncated - open the document above for the full version.

© 2003 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Symbol products. Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095;4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; 6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061; 6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587; 6,340,114; 6,340,115; 6,340,119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250;D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104. Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713 rev. 06/02 Warranty (A) Warranty Symbol Technologies (hereafter “Seller”) hardware Products are warranted against defects in workmanship and materials for a period of twelve (12) months from the date of shipment, unless otherwise provided by Seller in writing, provided the Product remains unmodified and is operated under normal and proper conditions. Warranty provisions and durations on software, integrated installed systems, Product modified or designed to meet specific customer specifications (“Custom Products”), remanufactured products, and reconditioned or upgraded products, shall be as provided in the applicable Product specification in effect at the time of purchase or in the accompanying software license. (B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service and maintenance of Products) are warranted against defects in workmanship and materials for a period of thirty (30) days from the date of shipment. Spare parts may be new or originate from returned units under the conditions set forth in subsection D below. (C) Repair of Symbol-branded hardware For repairs on Symbol-branded hardware Products under this Agreement, including repairs covered by warranty, the repair services provided are warranted against defects in workmanship and materials on the repaired component of the Product for a period of thirty (30) days from the shipment date of the repaired Product, or until the end of the original warranty period, whichever is longer. (D) Product Service Products may be serviced or manufactured with parts, components, or subassemblies that originate from returned products and that have been tested as meeting applicable specifications for equivalent new material and Products. The sole obligation of Seller for defective hardware Products is limited to repair or replacement (at Seller’s option) on a “return to service depot” basis with prior Seller authorization. Customer is responsible for shipment to the Seller and assumes all costs and risks associated with this transportation; return shipment to the Customer will be at Seller's expense. Customer shall be responsible for return shipment charges for product returned where Seller determines there is no defect (“No Defect Found”), or for product returned that Seller determines is not eligible for warranty repair. No charge will be made to Buyer for replac…

Text truncated - open the document above for the full version.

SYMBOL TECHNOLOGIES. Symbol Place, Winnersh Triangle, Berkshire, England RG41 5TP Telephone: +44 (0) 118 945 7000 Fax: +44 (0) 118 945 7500 Web site: www.symbol.com Registered Office: Symbol Place, Winnersh Triangle, Berkshire RG41 5TP Registration No. 1096253 - England MB/Confidentiality/MC9002 (MC45, BT Sub-equip) EMEA Division 12 th March 2004 BABT 34 Molesey Road WALTON-ON-THAMES Surrey KT12 4RQ Confidentiality Request This application covers a new application under the FCC ID number listed below. - FCC ID: H9PMC9002B - Company: Symbol Technologies, Inc. - Type of Application: New Application - Product: MC9002 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Symbol Technologies Inc. hereby requests confidential treatment of information accompanying as outlined below: • Schematics • Block Diagrams • Component Views • Bill of Materials • Technical Description • Theory of Operation • Integration Guide The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Marco Belli Symbol Regulatory Compliance Direct Tel: +44 118 945 7313 Direct Fax: +44 118 945 7274 Email: [email protected]

SYMBOL TECHNOLOGIES. Symbol Place, Winnersh Triangle, Berkshire, England RG41 5TP Telephone: +44 (0) 118 945 7000 Fax: +44 (0) 118 945 7500 Web site: www.symbol.com Registered Office: Symbol Place, Winnersh Triangle, Berkshire RG41 5TP Registration No. 1096253 - England MB/Application/MC9002 (MC45_BT_Sub-equip) EMEA Division 12 th March 2004 BABT 34 Molesey Road WALTON-ON-THAMES Surrey KT12 4RQ Letter of Application This application covers a new application under the FCC ID number listed below. - FCC ID: MC9002B - Company: Symbol Technologies, Inc. - Type of Application: New Application - Product: MC9002 Mobile Computer - Reason for Application: Integration of two approved radio modules (GSM & Bluetooth) into a Terminal with Standard Battery and Housing to support Full Alpha Numeric Keypad - Comment: 1 Initial release of the terminal will NOT support simultaneous transmit of co-located transmitters - Comment: 2 This product is a sub-equip of the MC9062 (three radio version) approved under FCCID: H9PMC9062B. The only difference being the RLAN module and associated antenna has been removed. This testing confirms continual compliance to the applicable FCC regulations. Yours sincerely, Marco Belli Symbol Regulatory Compliance Direct Tel: +44 118 945 7313 Direct Fax: +44 118 945 7274 Email: [email protected]

Symbol Technologies, Inc. ƒ One Symbol Plaza, Holtsville, NY 11742-1300 ƒ +1.631.738.2400 ƒ www.symbol.com March 12, 2004 Gemini WAN contains 3 radios: 802.11b/WiFi, Bluetooth, and either a CMDA or GPRS WAN modem. To meet regulatory requirements, only one radio will be operated at a time. This is accomplished by a radio power UI (user interface) that does not allow more than one radio to be powered-on at time (see the attached UI screen). The UI contains three buttons that act as radio power status indicators-- only one of these buttons can be enabled at a time. Further, there is a software interlock that disallows WiFi and Bluetooth from being powered-on simultaneously. Worldwide Regulatory Engineering

SYMBOL TECHNOLOGIES. Symbol Place, Winnersh Triangle, Berkshire, England RG41 5TP Telephone: +44 (0) 118 945 7000 Fax: +44 (0) 118 945 7500 Web site: www.symbol.com Registered Office: Symbol Place, Winnersh Triangle, Berkshire RG41 5TP Registration No. 1096253 - England MB/Regulatory Guide EMEA Division 14 th January 2004 BABT 34 Molesey Road WALTON-ON-THAMES Surrey KT12 4RQ Regulatory Guide The Regulatory guide submitted as part of this application covers the family of MC9000 terminals. This includes the following terminals: − MC9000 − MC9060 − MC9062 − MC9063 Yours sincerely, Marco Belli Symbol Regulatory Compliance Direct Tel: +44 118 945 7313 Direct Fax: +44 118 945 7274 Email: [email protected]

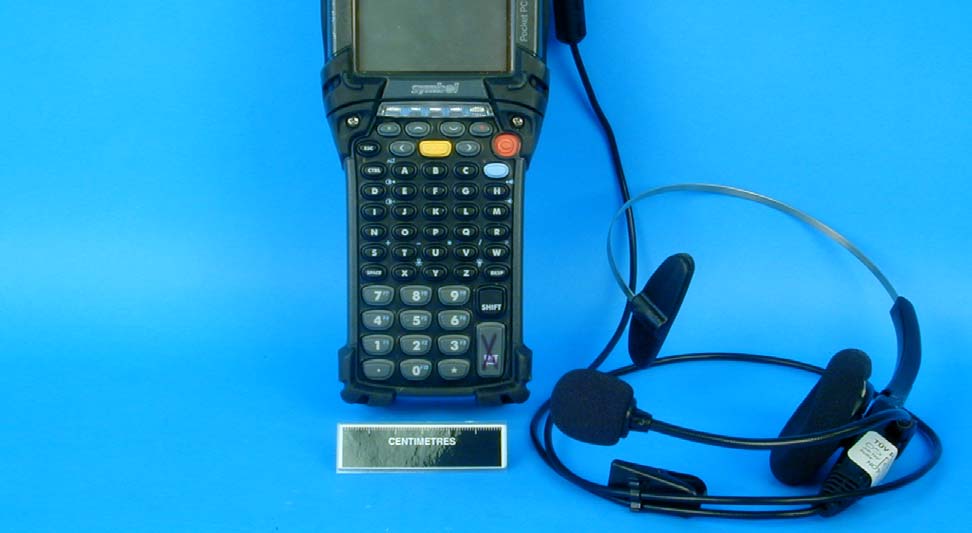

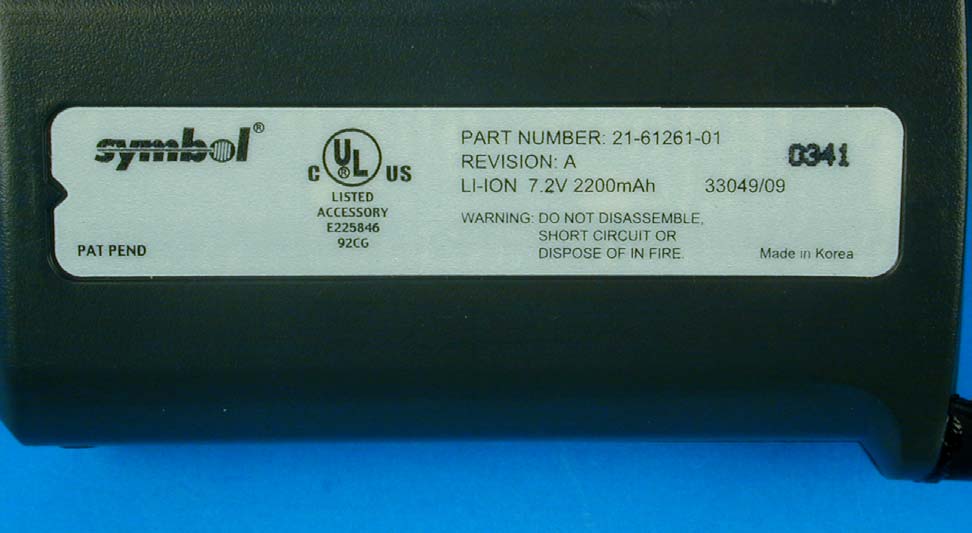

FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 1 of 4 PHOTOGRAPHS OF EQUIPMENT Front view FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 2 of 4 PHOTOGRAPHS OF EQUIPMENT Rear view FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 3 of 4 PHOTOGRAPHS OF EQUIPMENT Battery View FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 4 of 4 PHOTOGRAPHS OF EQUIPMENT Label View

FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT EXTERNAL SHOTS EXTERNAL 1 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT EXTERNAL SHOTS EXTERNAL 2 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT EXTERNAL SHOTS EXTERNAL 3 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT EXTERNAL SHOTS EXTERNAL 4 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT EXTERNAL SHOTS EXTERNAL 5

Regulatory compliance MC9002 Label Longer Enclosure with full Alpha Numeric Keypad GSM & BT Symbol Technologies, Inc. Page 1 of 1

FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the permission of TÜV Product Service LtdPage 1 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 1 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 2 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 2 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 3 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 3 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 4 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 4 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 5 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 5 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 6 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 6 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 7 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 7 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 8 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 8 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 9 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 9 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 10 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 10 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 11 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 11 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 12 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 12 FCC ID: H9PMC9062B SYMBOL TECHNOLOGIES INC MC9062 MOBILE COMPUTER 2004 Not to be reproduced without the Permission of TÜV Product Service LtdPage 13 of 13 PHOTOGRAPHS OF EQUIPMENT Internal View 13

FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 1 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 2 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 3 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 4 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 5 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 6 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 7 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 8 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 9 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 10 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 11 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 12 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 13 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 14 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 15 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 16 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 17 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 18 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 19 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 20 FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT INTERNAL SHOTS INTERNAL 21

FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT ANTENNA PLACEMENT INTERNAL 1 WAN (GSM) ANTENNA FCC ID: H9PMC9002B SYMBOL TECHNOLOGIES INC MOBILE COMPUTER PHOTOGRAPHS OF EQUIPMENT ANTENNA PLACEMENT INTERNAL 2 BLUETOOTH ANTENNA

REPORT ON The Specific Absorption Rate Assessment of the Symbol MC9062 Mobile Computer. Report Number: WS611528 – 001 Issue 3.01August 2004 TUV Product Service Ltd. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44 (0) 1329 443300, Fax: +44 (0) 1329 443331 www.tuvps.co.uk Report Number WS611528 – 001 Issue 3.01Page 1 of 64 REPORT ON:The Specific Absorption Rate Assessment of the Symbol MC9062 Mobile Computer. Report No: WS611528 – 001 Issue 3.01 FCC ID:H9PMC9062B IC:1549D–MC9062B PREPARED FOR:Symbol Technologies One Symbol Plaza Holtsville NY 11742-1300 New York United States of America ATTESTATION:The wireless portable device described within this report has been shown to be capable of compliance for localised specific absorption rate (SAR) for General Population/Uncontrolled Exposure Limits as defined in the European standard EN50361: 2002 and Australian Communications Authority Radio communications (Electromagnetic Radiation – Human Exposure) Standard 2003 of 2.0W/kg, FCC standard Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) and RSS-102 Issue 1 (Provisional) September 25, 1999 of 1.6 W/kg. The measurements shown in this report were made in accordance with the procedures specified in European standard EN50361: 2002, Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01), RSS- 102 Issue 1 (Provisional) September 25 and IEEE 1528-200x (Draft December 2002). All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. A. Miller Senior SAR Test Engineer APPROVED BY: M J Hardy UKAS Signatory DATED:3 rd August 2004 DISTRIBUTION:Symbol Technologies Corporation (CD ROM).Copy No: 1 BABT Copy No.: 2 Copy No.: 1 Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. Report reissued due to minor typographical errors FCC ID: H9PMC9062B IC: 1549D–MC9062B Report Number WS611528 – 001 Issue 3.01Page 2 of 64 CONTENTS EXECUTIVE SUMMARY3 1.1Status4 1.2Declaration of Build Status5 1.3Summary6 1.4Test Result Summary8 TEST DETAILS11 2.1Test Equipment12 2.2Test Software12 2.3Dielectric Properties of Simulant Liquids13 2.4Test Conditions14 2.5Measurement Uncertainty15 2.6SAR Measuring System16 Probe and Amplifier Specification Probe Calibration SAR Measurement Procedure 2.7OET65(c) Flat Phantom Test Position – Graphical Representation34 2.8SAR Distributions (Area Scans – 2D)38 2.9Test Positional Photographs57 2.10Record Photographs58 2.11Copyright Statement64 FCC ID: H9PMC9062B IC: 1549D–MC9062B Report Number WS611528 – 001 Issue 3.01Page 3 of 64 EXECUTIVE SUMMARY The Specific Absorption Rate Assessment of Symbol MC9062 Mobile Computer. PROJECT MANAGER: M. Glasspool FCC ID: H9PMC9062B IC: 1549D–MC9062B Report Number WS611528 – 001 Issue 3.01Page 4 of 64 1.1STATUS MANUFACTURING DESCRIPTIONMobile Computer STATUS OF TESTSpecific Absorption Rate Testing APPLICANTSymbol Technologies Inc MANUFACTURERSymbol Technologies Inc TYPE NUMBERMC9062 PART NUMBERMC9062-KKBHBEEA7WW SERIAL NUMBERALP75360 HARDWARE VERSIONBuild Status Rev 10 (To be released as Rev A) RADIO LANSymbol Main Terminal Module (MTM) with 802.11b embedded Radio. TYPE21-64436 POWER+20dBm BLUETOOTH MODULESymbol Bluetooth Module TYPE21-64381 CLASSClass 1 POWER+20dBm GPRS/GSM TRI-BAND RADIOSiemens AG TYPEMC45 GPRS MULTISLOT CLASSMutli-slot Class 10 IMEI NUMBERIMEI 350450410612371 GSM/GPRS POWER CLASSClass 4 (E-GSM900) Class 1 (DCS1800 & PCS1900) TEST SPECIFICATIONS: US Federal Government, Code of Federal Regulations, Title 47 Telecommunication, Chapter I Federal Communications Commission, part 2, section 1093. Federal Communications Commission (FCC) OET Bulletin 65c, Edition 01-01, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions CENELEC EN 50360: July 2001, Product Standard to demonstrate the compliance of mobile phones with the basic restrictions related to human exposure electromagnetic (300 MHz - 3 GHz). CENELEC EN 50361: July 2001, Basic standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones (300 MHz - 3 GHz). RSS-102 Issue 1 (Provisional) September 25, 1999: Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to radio Frequency Fields. Australian Communications Authority – Radio communications (Electromagnetic Radiation – Human Exposure) Standard 2003. REFERENCES: IEEE 1528 –200X: DRAFT Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques Council Recommendations 1999/519/EC on the limitations of exposure of the general public to electromagnetic fields (0 Hz - 3 GHz) annex II. BABT REGISTRATION NUMBER:WS611528. RECEIPT OF TEST SAMPLES:2 nd February 2004. START OF TEST:2 nd February 2004 FINISH OF TEST:12 th February 2004. FCC ID: H9PMC9062B IC: 1549D–MC9062B Report Number WS611528 – 001 Issue 3.01Page 5 of 64 1.2DECLARATION OF BUILD STATUS MAIN EUT MANUFACTURING DESCRIPTION Mobile Computer MANUFACTURER Symbol Technologies Inc. COUNTRY OF ORIGIN USA TYPEMC9062 PART NUMBER MC9062-KKBHBEEA7WW SERIAL NUMBER ALP75354, ALP75379, ALP75372, ALP75571, ALP75071, ALP75073, ALP75521, ALP75375, ALP75360, ALP76133 HARDWARE VERSIONRev 10 (Manufactured as Rev A) FCC ID H9PMC9062B INDUSTRY CANADA ID 1549D-MC9062B RADIO MODULES INTEGRATEDRLAN, (21-64436) and Bluetooth, (21-64381), GSM/GPRS 900/1800/1900, (MC45) TECHNICAL DESCRIPTION The unit supplied for testing is a Symbol MC9062 Mobile Computer, which offers Tri- Band GSM/GPRS 900/1800/1900, 2.4GHz 802.1…

Text truncated - open the document above for the full version.

REPORT ON Limited FCC CFR 47: Part 24 Testing in support of an Application for Grant of Equipment Authorisation Of a Symbol MC9062 Mobile Computer COMMERCIAL-IN-CONFIDENCE FCC ID: H9PMC9062B Report No OR611528/03 Issue 1 March 2004 BABT, Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44 (0)1329 443300 Website: www.tuvps.co.uk Report No OR611528/03 Issue 1Page 1 of 34 REPORT ONLimited FCC CFR 47: Parts 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation Of a Symbol MC9062 Mobile Computer FCC ID: H9PMC9062B Report No OR611528/03 Issue 1 March 2004 PREPARED FORSymbol Technologies Inc One Symbol Plaza Holtsville NY 11742-1300 New York United States of America PREPARED BY J Plummer Technical Author APPROVED BY C Gould EMC Signatory DATED 05-03-04 DISTRIBUTIONSymbol TechnologiesCopy 1 BABTCopy 2 Copy No ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 and 24. The sample tested was foun…

Text truncated - open the document above for the full version.
