H9PMC9050Portable data terminal including two radios

Introduction The LA-4137 CFWL adapter allows CF Card slot equipped handheld computer systems to configure, connect to and establish a Spectrum24 network. Features Include: • 50-pin Type I adapter card fully compliant with PCMCIA electrical and mechanical specifications • Low-power operation for battery-powered devices with CF Card slots • Pocket PC and Windows CE driver support • Compact Flash form factor (CF+Type I extended) • Automatic data rate and channel selection of 1, 2, 5.5 and 11 Mbps • Wireless software upgrade • Wired Equivalent Privacy (WEP) encryption and decryption • An integrated antenna • Card and Socket Services support • Power management [Continuously Aware Mode (CAM) and Power Save Polling (PSP)]. Scope This Quick Reference Guide contains the CFWL adapter installation and configuration instructions for Windows CE/Pocket PC. Preparation Before beginning the installation, verify the hardware package contains: • LA-4137 CFWL adapter with an integrated antenna • Spectrum24 High Rate 11 Mbps Wireless LAN Software CDROM. Note: Verify the model indicated on the card and packaging before use. Contact the Symbol Support Center if an item is missing or not functioning. Supported Devices The LA-4137 CFWL adapter has been qualified by Symbol Technologies to support the following devices: • Palm/Handheld (PH) computers running Windows CE/Pocket PC • Palm OS (i.e. Hand ERA/TRG Pro). Installing the LA-4137 CFWL Adapter The LA-4137 CFWL adapter installation requires: • a handheld computer with a Type I CF Card slot • a desktop computer with a CDROM drive or Web access • a Spectrum24 High Rate 11 Mbps Wireless LAN Software CDROM. To install the CFWL adapter: 1. Insert the CFWL adapter into the CF Card slot. Arrows on the front of the CFWL adapter indicate the insertion point to the slot. 2. Slide in the CFWL adapter until it firmly seats. Caution! Align the CFWL adapter properly when inserting. Insert the CFWL adapter firmly without forcing. Forcing the CFWL adapter into the slot can damage the device or the adapter. Note: If the CFWL adapter does not fit into the CF Card slot, a 68-pin, male reciever PCMCIA adapter is needed. Additional Information Obtain additional information by contacting Symbol at: 1-800-722-6234, inside North America. +1-516-738-5200, in/outside North America http://www.symbol.com/ Copyright Copyright 2001 by Symbol Technologies, Inc. All rights reserved. No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Symbol Technologies, Inc. (Symbol). The material in this manual is subject to change without notice. Symbol reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication, estoppel, or otherwise under any Symbol Technologies, Inc., intellectual property rights. An implied license only exists for equipment, ciecuits, and subsystems contained in Symbol products. Symbol, the Symbol logo and Spectrum24 are registerd trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademark of their respective companies and are hereby acknowledged. IBM is a registered trademark of International Business Machine Corporation. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and LAN Workplace are registered trademarks of Novell Inc. Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,387,297; 4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D419,548 Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713 Symbol Technologies, Inc. One Symbol Place Holtsville, NY 11742-1300 *73-20990-01A*1 72-52486-01 Revision A ORGI nser Anat PC2MbpsShort.cdr ® LA-4137 Compact Flash Wireless LAN Adapter Quick Reference Guide www.symbol.com Installing and Configuring the Driver in Windows CE Install the Spectrum24 Windows CE device driver from the Spectrum24 High Rate 11 Mbps Wireless LAN Software CDROM or download the driver from the Symbol Web site to a desktop computer. Symbol has bundled the NICTT and NCPA utilities with the Spectrum24 Windows CE driver. Use these utilitie…

Text truncated - open the document above for the full version.

1 2 3 1 Battery Removal MC9000-G Quick Start Guide http://www.symbol.com/mc9000g See Product Reference Guide for more information Trigger Strap Lanyard Cable Adapter Module Magnetic Stripe Reader Stylus Stored in handle Battery Insertion Stylus Removal Snap-on Accessory Installation Charging Instructions Microphone Optional Headphone Jack Optional Display Data Slow Flash = Normal Charge = LED Indicator Location Solid Amber = Full ChargeFast Flash = Charging Error Power Data Power POST IN WORK AREAPOST IN WORK AREA Four Slot Spare Battery ChargerSingle Slot Serial CradleFour Slot Cradles Charge-Only Cradle and Ethernet Cradle Power Indicator LED Bar Scan Button Keypad

© 2003 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license exists only fo r equipment, circuits, and subsystems contained in Symbol products.Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.Symbol Technologies, Inc.One Symbol PlazaHoltsville, N.Y. 11742-1300http://www.symbol.com PatentsThis product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4, 673,805; 4,736,095;4,758,717; 4,760 ,248; 4,806,742; 4,816,660; 4, 845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015, 833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113, 445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168, 148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235, 167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262, 627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280, 164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337, 361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399, 846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420, 411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471, 042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519, 577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557, 093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612, 531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675, 139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734, 152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763, 863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811, 787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,848, 064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902, 989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923, 025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002, 918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892; 6,050, 491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084, 528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114, 712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142, 379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; 6,209, 788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247, 647; 6,308,061; 6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321, 990; 6,328,213; 6,330,244; 6,336,587; 6,340,114; 6,340,115; 6,340, 119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584; D344,501 ; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391 ,250;D405,077; D406,581; D414,171; D414,172; D418,500; D419,548 ; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104.Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (Taiw an); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713rev. 06/02 END-USER LICENSE AGREEMENT • You have acquired a device (“DEVICE”) that includes software licensed by Symbol Technologies, Inc. from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved. • IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT SYMBO L TECHNOLOGIES, INC. FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT). GRANT OF SOFTWARE LICENSE. This EULA grants you the following license: • You may use the SOFTWARE only on the DEVICE.• NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. SYMBOL TECHNOLOGIES, INC. HAS INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON SYMBOL TECHNOLOGIES, INC. TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE. • NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided “AS IS” and with all faults. THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE , ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRIN GEMENT. IF YOU HAVE RE CEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS. • If you use the DEVICE to access or utilize the services or functionality of Microsoft Windows Server products (such as Microsoft Windows NT Server 4.0 (all editions) or Microsoft Windows 2000 Server (all editions)), or use the DEVICE to permit workstation or computing devices to access or ut ilize the services or functionality of Microsoft Windows Server products, you may be required to obtain a Client Access License for the DEVICE and/or each such workstation or computing device. Please refer to the end user license agreement for your Microsoft Windows Server product for additional information. • ActiveSync Software. Your DEVICE …

Text truncated - open the document above for the full version.

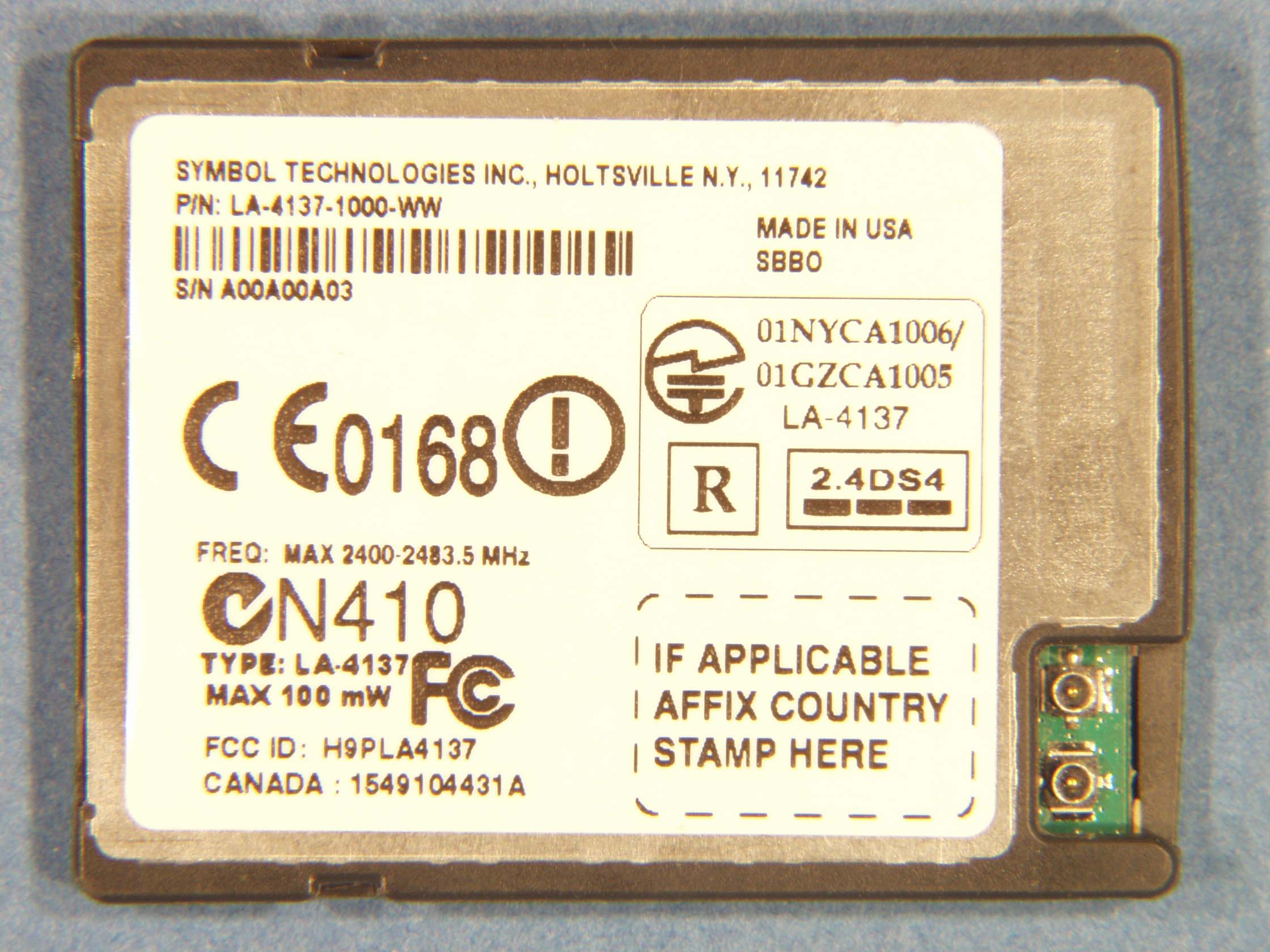

P/N: LA-4137-1020-WW S/N: XXXXXXXXXXXXXXXSYMBOL TECHNOLOGIES INC., HOLTSVILLE N.Y. BAR CODE FCC ID: H9PLA4137P CANADA: 1549104431A N410 FREQ: MAX 2400 - 2483.5 MHz 0168 IF APPLICABLEAFFIX COUNTRY STAMP HERE MADE IN XXX.... XXXX.... TYPE: LA-4137 MAX 100 mW R NYDA0XXX/GZDA0XXX LA-4137-1 THIS DEVICE CONTAINS AN APPROVED RLAN MODULE P/N: LA-4137-1020-WW S/N: XXXXXXXXXXXXXXXSYMBOL TECHNOLOGIES INC., HOLTSVILLE N.Y. BAR CODE FCC ID: H9PLA4137P CANADA: 1549104431A N410 FREQ: MAX 2400 - 2483.5 MHz 0168 IF APPLICABLEAFFIX COUNTRY STAMP HERE MADE IN XXX.... XXXX.... TYPE: LA-4137 MAX 100 mW R NYDA0XXX/GZDA0XXX LA-4137-1 THIS DEVICE CONTAINS AN APPROVED RLAN MODULE

Exhibit 3 Please see TUVPS report nos. OR 611296-2

LABEL POSITION MC9000 series

MC9050 PRODUCT LABEL RLAN & Bluetooth

Exhibit 9 Please see TUVPS report nos. OR611296-2

REPORT ON The Specific Absorption Rate Assessment Of The Symbol MC9050 Mobile Computer. Report Number: WS611296 – 01 issue 4September 2003 TUV Product Service Ltd. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0)1329 443300, Fax: +44(0)1329 443331 www.tuvps.co.uk Report Number WS611296 – 01 issue 4Page 1 of 38 REPORT ON:The Specific Absorption Rate Assessment Of The Symbol MC9050 Mobile Computer Report No: WS611296 – 01 issue 4 FCC ID:H9PMC9050 PREPARED FOR: Symbol Technologies Inc One Symbol Plaza Holtsville NY 11742-1300 ATTESTATION:The wireless portable device described within this report have been shown to be capable of compliance for localised specific absorption rate (SAR) for General Population/Uncontrolled Exposure Limits as defined in the European standard EN50361: 2002 of 2.0W/kg, FCC standard Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) and RSS-102 Issue 1 (Provisional) September 25, 1999 of 1.6 W/kg. The devices were tested in accordance with the measurement procedures specified in European standard EN50361: 2002, Supplement C (Edition 01- 01) to OET Bulletin 65 (Edition 97-01), RSS-102 Issue 1 (Provisional) September 25 and IEEE1528-200x (Draft December 2002). All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. A. Miller Senior SAR Test Engineer APPROVED BY: M Hardy Deputy Wireless Group Leader DATED:25 th September 2003 DISTRIBUTION:Symbol Technologies IncCopy No: 1 BABT Copy No.: 2 Copy No.: 1 Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. This report has been reissued due to typographical errors FCC ID: H9PMC9050 Report Number WS611296 – 01 issue 4Page 2 of 38 CONTENTS EXECUTIVE SUMMARY3 1.1Status4 1.2Summary5 1.3Test Result Summary6 TEST DETAILS7 2.1Test Equipment8 2.2Test Software8 2.3Dielectric Properties of Simulant Liquids9 2.4Test Conditions10 2.5Measurement Uncertainty10 2.6SAR Measuring System11 Probe and Amplifier Specification Probe Calibration SAR Measurement Procedure 2.7OET65(c) Flat Phantom Test Position – Graphical Representation 29 2.8SAR Distributions (Area Scans – 2D)30 2.9Test Positional Photographs34 2.10Record Photographs35 For copyright details see page 0 of 0. FCC ID: H9PMC9050 Report Number WS611296 – 01 issue 4Page 3 of 38 EXECUTIVE SUMMARY The Specific Absorption Rate Assessment Of The Symbol MC9050 Mobile Computer. PROJECT MANAGER: M. GLASSPOOL FCC ID: H9PMC9050 Report Number WS611296 – 01 issue 4Page 4 of 38 1.1STATUS MANUFACTURING DESCRIPTIONMobile Computer STATUS OF TESTSpecific Absorption Rate Testing APPLICANTSymbol Technologies Inc MANUFACTURERSymbol Technologies Inc TYPEMC9050 MODEL NUMBERMC9050-GJOJAEBA2WW SERIAL NUMBERALP68681 HARDWARE VERSIONRev 1 RADIO LANSymbol Compact Flash Card 2.4GHz Direct Spread Spectrum TYPELA-4137 POWER+17dBm RADIO BLUETOOTHSymbol Bluetooth Module TYPE21-58466 POWER0 (Zero) dBm (Class 1) BATTERY MANUFACTURERSymbol Technologies Inc TYPE OR MODEL NUMBER21-61261-01 TEST SPECIFICATIONS: Federal Communications Commission, Code of Federal Regulations, Title 47 (CFR47), Vol. 1, Chapter 1, Part 2 (§2.1091 and §2.1093). Federal Communications Commission (FCC) OET Bulletin 65c, Edition 01-01, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions CENELEC EN 50360: July 2001, Product Standard to demonstrate the compliance of mobile phones with the basic restrictions related to human exposure electromagnetic (300 MHz - 3 GHz). CENELEC EN 50361: July 2001, Basic standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones (300 MHz - 3 GHz). RSS-102 Issue 1 (Provisional) September 25, 1999: Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to radio Frequency Fields REFERENCES: IEEE 1528 –200X: DRAFT Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques Council Recommendations 1999/519/EC on the limitations of exposure of the general public to electromagnetic fields (0 Hz - 3 GHz) annex II. BABT REGISTRATION NUMBER:OR611296/01. RECEIPT OF TEST SAMPLES:23 rd June 2003. START OF TEST:01 st July 2003. FINISH OF TEST:23 rd July 2003. FCC ID: H9PMC9050 Report Number WS611296 – 01 issue 4Page 5 of 38 1.2SUMMARY The unit supplied for testing is a MC9050 Mobile Computer, which offers 2.4GHz 802.11b Wireless LAN and Bluetooth connectivity. The Mobile Computer utilizes the approved LA-4137 Symbol Compact Flash 802.11b RLAN radio card and the 21-58466 Symbol Bluetooth module. SAR testing was first performed with the Compact Flash 802.11b RLAN radio card set to a CW test signal and then placed against a Flat Phantom dimensions 220mmx200mmx150mm and with a sidewall thickness of 2.0mm. The phantom was filled to a depth of 150mm with 2450MHz Body simulant liquid. The dielectric properties were in accordance with the requirements for the dielectric properties specified in Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01). An initial investigation was carried using a ‘snifer-probe’ and a spectrum analyser, to ascertain location of the hot spot; the hot spot was located on the left-hand side of the device. The client requested a separation distance of 1.0 cm from the left hand side of the device when placed against the side of the flat phantom. The assessment was carried out at this distance for all channels. The Symbol MC9050 had an integral antenna so that the requirement for testing with antenna extended and r…

Text truncated - open the document above for the full version.

REPORT ON FCC Part 15 Testing in support of an Application for Grant of Equipment Authorisation of a Symbol MC9050 Mobile Computer FCC ID: H9PMC9050 Report No OR611296-2 Issue 2 August 2003 TUV Product Service Ltd, Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0) 1329 443459, Fax: +44(0) 1329 443331 www.tuvps.co.uk Report No OR6111296/2 Issue 2Page 1 of 39 REPORT ONFCC Part 15C Testing in support of an Application for Grant of Equipment Authorisation of a Symbol Gemini MC9050 Mobile Computer FCC ID: H9PMC9050 Report No OR611296-2 Issue 2 August 2003 PREPARED FORSymbol Technologies Inc One Symbol Plaza Holtsville NY 11742-1300 New York United States of America APPROVED BY C H GOULD Chief Engineer DATED21-08-03 DISTRIBUTIONSymbol Technologies IncCopy 1 (CD) TÜV Product ServiceCopy 2 Copy No Total No of Pages 39 Report No OR6111296/2 Issue 2FCC ID: H9PMC9050Page 2 of 39 Table of Contents Page No STATUS ................................................................................................................................................3 TEST RATIONALE................................................................................................................................4 SYSTEM CONFIGURATION ............................................................................................................... 5 TEST SETUP PHOTOGRAPH .............................................................................................................6 EQUIPMENT INFORMATION .............................................................................................................7 EUT IN RLAN MODE, CONFIGURATION RADIATED EMISSIONS MEASUREMENT AT THE BANDEDGE (MARKER DELTA METHOD) .....8 RADIATED EMISSIONS RLAN MODE ................................................................................................ 10 MAXIMUM PEAK OUTPUT POWER.................................................................................................... 15 EUT IN BLUETOOTH MODE, CONFIGURATION RADIATED EMISSIONS MEASUREMENT AT THE BANDEDGE (MARKER DELTA METHOD) ..... 16 RADIATED EMISSIONS BLUETOOTH MODE .................................................................................... 18 MAXIMUM PEAK OUTPUT POWER................................................................................................... 22 PHOTOGRAPHS OF EQUIPMENT...................................................................................................... 23 MANUFACTURERS LABEL DIAGRAM ............................................................................................... 36 FCC SITE COMPLIANCE LETTER ......................................................................................................37 SYSTEM MEASUREMENT UNCERTAINTY ....................................................................................... 38 COPYRIGHT STATEMENT ................................................................................................................. 39 Report No OR6111296/2 Issue 2FCC ID: H9PMC9050Page 3 of 39 STATUS OBJECTIVETo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. MANUFACTURING DESCRIPTIONMobile Computer APPLICANTSymbol Technologies Inc One Symbol Plaza Holtsville NY 11742-1300 New York United States of America TYPE NUMBERMC9050 MANUFACTURERS MODEL NUMBERMC9050-GJ0JAEBA2WW SERIAL NUMBERALP68681 HARDWARE VERSIONRev 1 TEST SPECIFICATION NUMBERFCC Part 15 Subpart C REGISTRATION NUMBEROR611296/01 QUANTITY OF ITEMS TESTEDOne SECURITY CLASSIFICATION OF EUTUnclassified INCOMING RELEASEDeclaration of Build Status SERIAL NUMBEROR611296 DATE DISPOSALHeld pending disposal REFERENCE NUMBERN/A DATEN/A START OF TEST16 th June 2003 FINISH OF TEST15 th July 2003 TEST ENGINEERSS C Hartley A Guy R Henley RELATED DOCUMENTSANSI C63.4 2001. Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. FCC Public Notice document (DA 00-705 released 30 March 2000) Report No OR6111296/2 Issue 2FCC ID: H9PMC9050Page 4 of 39 TEST RATIONALE This report has been re-issued because of some typing errors in the original report OR611296-2. This report should be read in place of the original. The information contained within this report is intended to show verification of compliance of the Symbol Technologies Inc MC9050 Mobile Computer to the requirements of FCC Specification Part 15. FCC ID H9PMC9050 The unit supplied for testing was a MC9050 Mobile Computer, which offers 2.4GHz 802.11b Wireless LAN and Bluetooth connectivity. The terminal utilizes the approved LA-4137 Symbol Compact Flash 802.11b RLAN radio card and the 21-58466 Symbol Bluetooth module. FCC ID numbers are detailed below: Type: Description Approval FCC IDDate LA4137Symbol Compact Flash RLAN Radio FCC Part15H9PLA4137 21/03/2000 21-58466 Symbol Bluetooth ModuleFCC Part15H9PSNAPPER 10/11/2002 The radios integrated in this terminal are not designed to operate simultaneously and are therefore tested independently. Sub-equipped version (RLAN only) A sub-equipped version of the MC9050 is also available; this version will only offer 802.11b RLAN connectivity as the Symbol Bluetooth module is not included. This report will also be used as an exhibit for a separate FCC application. The FCC ID number of version will be: H9PLA4137. This report details testing carried out in accordance with: • FCC: Part 15.247(c), Radiated Emission Measurement at the Band Edge (Marker Delta method) • FCC: Part 15.247(c), Radiated Emissions • FCC: Part 15.247(b), Maximum Peak Output Power Report No OR6111296/2 Issue 2FCC ID: H9PMC9050Page 5 of 39 SYSTEM CONFIGURATION DURING EMC TESTING The EUT was set-up simulating a typical user installation on the Alternative Open Field Test Site identified on page 37, and tested in accordance with the specification. The test software in the EUT enabled the Test Engineer to select full power and…

Text truncated - open the document above for the full version.

Mobile & Wireless Systems Compact Flash Dipole Compact Flash Dipole (CF Dipole) The CF Dipole antenna is a 2-dBi sleeved- dipole that is omni-directional in azimuth plane. The CF Dipole uses a Murata GSC connector to comply with FCC 15.203 “unique coupling” requirement. In its use as a modular transceiver it could be as close as 2 cm of a persons body. CCS SAR report lists a worst- case SAR, averaged over 1g [mW/g] of 0.923 mW/gm at a separation of 20 mm. This transceiver is designed for use in devices in General Population/Uncontrolled Exposure categories. Location Body worn device Pattern Omni Type Dipole Max Gain 2 dBi Physical See attached dwg Cable Murata 92 Symbol P/N All antenna/terminal configurations used with the LA4137 will maintain a separation distance of 2 cm and a maximum gain of 2 dBi. Antenna Photo Rev 1

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR 802.11b 2.4GHz WIRELESS DSSS Tx/Rx MODULE MODEL: LA4137 FCC ID: H9PLA4137 REPORT NUMBER: 01U1098-1 ISSUE DATE: January 24, 2002 Prepared for SYMBOL TECHNOLOGIES, INC. 6480 VIA DEL ORO DRIVE SAN JOSE, CA 95119-1208 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 01U1098-1 FCC ID: H9PLA4137 DATE: DECEMBER 13, 2001 EUT: 802.11b 2.4 GHz WIRELESS DSSS Tx/Rx MODULE Page 2 of 46 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION---------------------------------------------------------------------------3 2. EUT DESCRIPTION---------------------------------------------------------------------------------------------4 3. TEST METHODOLOGY----------------------------------------------------------------------------------------4 4. TEST FACILITY--------------------------------------------------------------------------------------------------4 5. ACCREDITATION AND LISTING--------------------------------------------------------------------------4 5.1. Laboratory Accreditations and Listings-------------------------------------------------------------------5 6. MEASURING INSTRUMENT CALIBRATION----------------------------------------------------------6 6.1. Measurement Uncertainty-----------------------------------------------------------------------------------6 7. SUPPORT EQUIPMENT / TEST DIAGRAM-------------------------------------------------------------7 8. APPLICABLE RULES AND BRIEF TEST RESULT----------------------------------------------------8 9. TEST SETUP, PROCEDURE AND RESULT------------------------------------------------------------13 9.1. PEAK POWER OUTPUT----------------------------------------------------------------------------------13 9.2. 6 dB BANDWIDTH MEASUREMENT-------------------------------------------------------------------20 9.3. CONDUCTED SPURIOUS EMISSION-----------------------------------------------------------------22 9.4. PEAK POWER SPECTRAL DENSITY-------------------------------------------------------------------26 9.5. PROCESSING GAIN---------------------------------------------------------------------------------------30 9.6. RESTRICTED BAND EDGE MEASUREMENT-------------------------------------------------------31 9.7. RADIATED EMISSION------------------------------------------------------------------------------------33 9.8. POWER LINE CONDUCTED EMISSION--------------------------------------------------------------39 9.9. SETUP PHOTOS--------------------------------------------------------------------------------------------41 ATTACHMENTS • EUT PHOTOGRAPHS REPORT NO: 01U1098-1 FCC ID: H9PLA4137 DATE: DECEMBER 13, 2001 EUT: 802.11b 2.4 GHz WIRELESS DSSS Tx/Rx MODULE Page 3 of 46 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: SYMBOL TECHNOLOGIES, INC. 6480 VIA DEL ORO DRIVE SAN JOSE, CA 85…

Text truncated - open the document above for the full version.
