H9PPPT2833Single-Mode Cellular PDA WAN Terminal

Symbol Technologies Inc

Click to zoom

Application Details

Equipment Class: TNT - Licensed Non-Broadcast Transmitter Worn on Body
Date of Grant: Feb 24, 2002
Application Purpose: Original Equipment
Date of Application: Oct 07, 2001
Equipment Note: Single-Mode Cellular PDA WAN Terminal
Frequency Range: 824.04000000 - 848.97000000
Company: Symbol Technologies Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PPT 2800 Series Pocket PC For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the Holster providing a minimal spacing of 2.5 cm. from the body to the back of the terminal/antenna. To maintain compliance with FCC RF exposure compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 2.5 cm. separation distance between the user’s body and the back of the terminal, including the antenna. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance requirements, and should be avoided. WARNING! Read this information before using your phone PPT 2800 Series  2001 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license only exists for equipment, circuits, and subsystems contained in Symbol products. Symbol is a registered trademark of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,036,098; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,068,190; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104. Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan). European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713. rev. 04/01 1 Quick Reference Introduction Congratulations on your purchase of Symbol Technologies’ PPT 2800 Terminal! Its unique combination of features make this product superior for use in a wide range of applications. These features include: •Pocket size •Personal Information Management software •Microsoft ® Windows ® Pocket PC operating system •RF communication via Symbol’s Spectrum24 wireless network or a wide area network (WAN) •Printing support •1-dimensional scanning capability. About This Guide This guide describes how to set up and use the terminal. The term PPT 2800 refers to the batch terminal and the Spectrum24 terminal. Specific topics covered include: • Parts of the PPT 2800 on page 2 • Installing Batteries on page 4 • Charging the Battery on page 5 • Starting the PPT 2800 on page 8 • Aligning the Screen on page 8 • Using the PPT 2800 on page 9 • Using the Stylus on page 10 • Today Screen on page 11 • …

Text truncated - open the document above for the full version.

Cover Letter(s)

October 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Symbol Technologies, Inc. FCC ID: H9PPPT2833 Part 22 Certification Gentlemen: Submitted herewith, on behalf of Symbol Technologies, Inc. is an application for Part 22 Certification of the following Single-Mode Cellular PDA WAN Terminal w/ Integrated CDPD Radio: FCC ID: H9PPPT2833 TRADE/MODEL(s): SYMBOL PPT2833 EUT TYPE: Single-Mode Cellular PDA WAN Terminal Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) Max. RF Output Power: 0.482 W ERP (26.83 dBm) Max. SAR Measurement: 0.320 mW/g (1 g. avg) AMPS Body SAR; 2.410 mW/g (10 g. avg) AMPS Hand SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, RF warning statement letter, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Sandy Mazzola Regulatory Engineer Symbol Technologies, Inc.

Cover Letter(s)

January 3, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Symbol Technologies, Inc. FCC ID: H9PPPT2833 731 Confirmation No.: EA102674 Correspondence Reference No.: 21387 Request for Tech. Info.: 11/30/01 Dear Joe: Transmitted herewith, on behalf of Symbol Technologies, Inc., is an amendment provided in response to the request for technical information dated November 30, 2001. 1. Please find the attached revised operational description page. 2. The belt clip and holster contains no metallic components. 3. Please find the attached EMC test report and test plots. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Symbol Technologies, Inc.

Cover Letter(s)

January 25, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Symbol Technologies, Inc. FCC ID: H9PPPT2833 731 Confirmation No.: EA102674 Correspondence Reference No.: 21708 Request for Tech. Info.: 1/18/02 Dear Joe: Transmitted herewith, on behalf of Symbol Technologies, Inc., is an amendment provided in response to the request for technical information dated January 18, 2002. 1. Please find the attached SAR report with a revised page 3 showing the maximum peak body SAR of 0.32 mW/g. 2. Please find the attached Z-scan plots verifying liquid depth. 3. Please find the attached dipole validation plot showing the dates. 4. Please find the attached probe calibration data. 5. Please find the attached SAR report, SAR plots, and dipole validation plot showing the measured tissue parameters. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Symbol Technologies, Inc.

Cover Letter(s)

February 5, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Symbol Technologies, Inc. FCC ID: H9PPPT2833 731 Confirmation No.: EA102674 Correspondence Reference No.: 21922 Request for Tech. Info.: 2/05/02 Dear Joe: Transmitted herewith, on behalf of Symbol Technologies, Inc., is an amendment provided in response to the request for technical information dated February 5, 2002. 1. Please find the attached Z-scan plots. 2. Please find the attached SAR plots showing the probe conversion factors. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Symbol Technologies, Inc.

External Photos

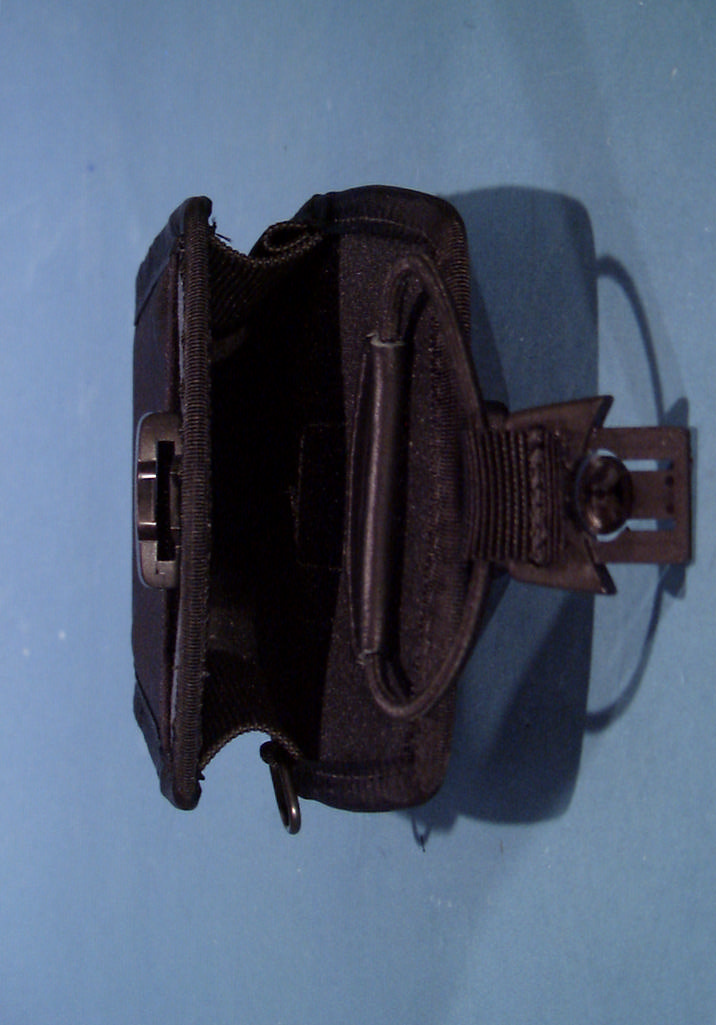

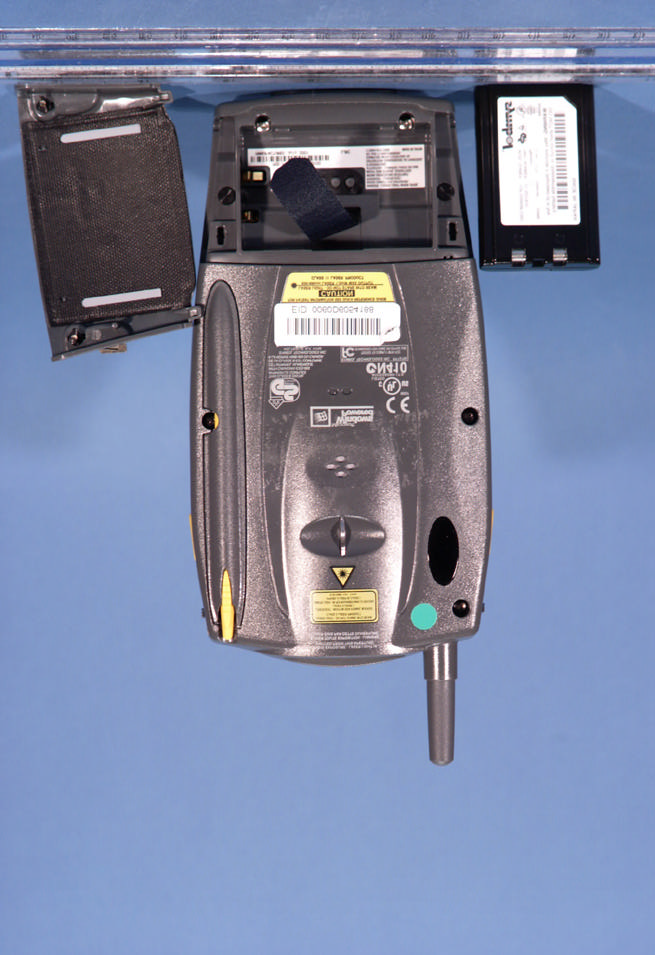

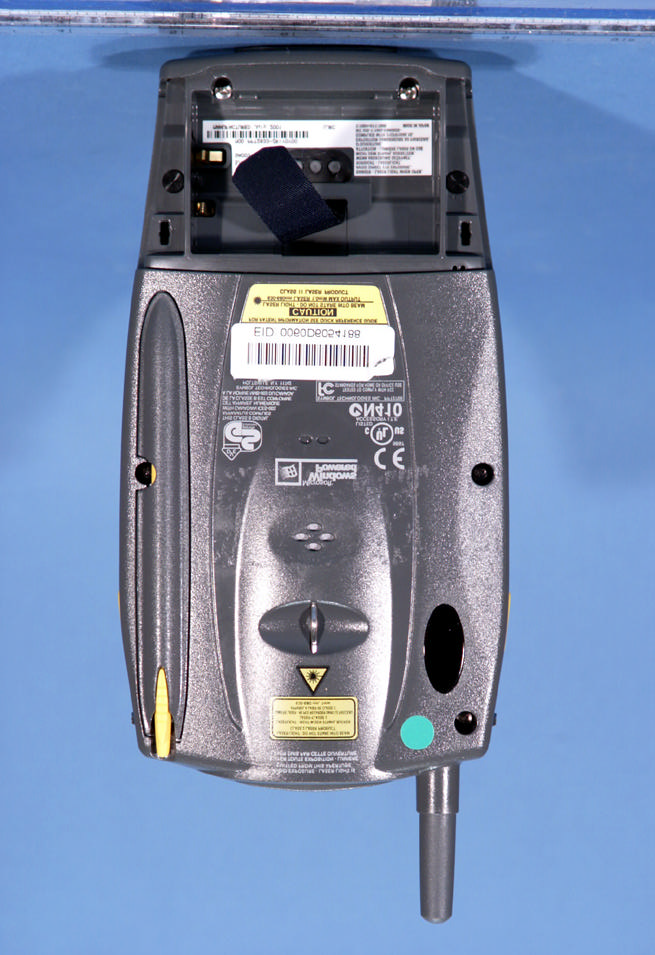

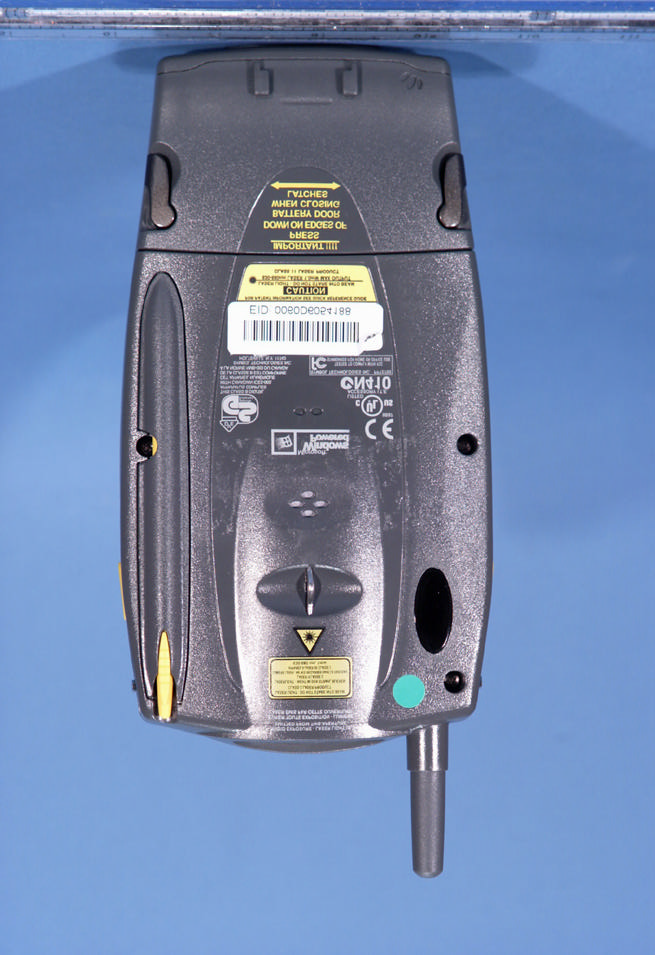

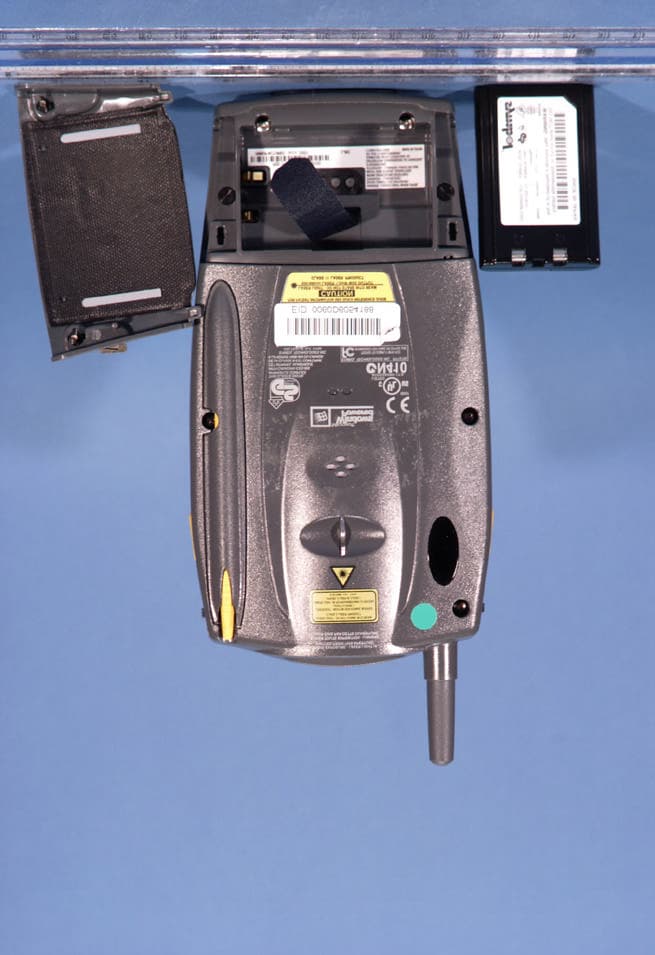

© 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 Cellular PDA WAN Terminal w/Intergrated CDPD Radio Modem

ID Label/Location Info

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. SEE NEXT PAGE Sample FCC Label Symbol Technologies Inc. Model: PPT2833 FCC ID: H9PPPT2833 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This is a sample draft of the label that will be located on the underside of the product. Sandy Mazzola

Internal Photos

RF Exposure Info

SYMBOL FCC ID:H9PPPT2833 -- FM [CDPD] Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.317 mW/g, SAR (10g): 0.191 mW/g SYMBOL PDA Terminal w/Integrated CDPD Radio Modem; Model: PPT2833 FM Mode, Ch.0991 [824.04MHz] Conducted Power = 26.8dBm; Spacing = 2.5cm from back of PDA to flat phantom, w/Holster Test Date -- 08/23/2001 SAR Tot [mW/g] 2.90E-2 8.70E-2 1.45E-1 2.03E-1 2.61E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PPPT2833 -- FM [CDPD] Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.320 mW/g, SAR (10g): 0.235 mW/g SYMBOL PDA Terminal w/Integrated CDPD Radio Modem; Model: PPT2833 FM Mode, Ch.0383 [836.49MHz] Conducted Power = 26.8dBm; Spacing = 2.5cm from back of PDA to flat phantom, w/Holster Test Date -- 08/23/2001 SAR Tot [mW/g] 3.29E-2 9.87E-2 1.65E-1 2.30E-1 2.96E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PPPT2833 -- FM [CDPD] Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.293 mW/g, SAR (10g): 0.214 mW/g SYMBOL PDA Terminal w/Integrated CDPD Radio Modem; Model: PPT2833 FM Mode, Ch.0799 [848.97MHz] Conducted Power = 26.8dBm; Spacing = 2.5cm from back of PDA to flat phantom, w/Holster Test Date -- 08/23/2001 SAR Tot [mW/g] 3.00E-2 9.00E-2 1.50E-1 2.10E-1 2.70E-1 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PPPT2833 -- FM [CDPD] Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 3.42 mW/g, SAR (10g): 2.17 mW/g SYMBOL PDA Terminal w/Integrated CDPD Radio Modem; Model: PPT2833 FM Mode, Ch.0991 [824.04MHz] Conducted Power = 26.8dBm; Spacing = touching back of PDA to flat phantom Test Date -- 08/23/2000 SAR Tot [mW/g] 2.50E-1 7.50E-1 1.25E+0 1.75E+0 2.25E+0 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PPPT2833 -- FM [CDPD] Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 3.84 mW/g, SAR (10g): 2.41 mW/g SYMBOL PDA Terminal w/Integrated CDPD Radio Modem; Model: PPT2833 FM Mode, Ch.0383 [836.49MHz] Conducted Power = 26.8dBm; Spacing = touching back of PDA to flat phantom Test Date -- 08/23/2000 SAR Tot [mW/g] 2.73E-1 8.20E-1 1.37E+0 1.91E+0 2.46E+0 PCTEST Engineering Laboratory, Inc. SYMBOL FCC ID:H9PPPT2833 -- FM [CDPD] Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 3.58 mW/g, SAR (10g): 2.28 mW/g SYMBOL PDA Terminal w/Integrated CDPD Radio Modem; Model: PPT2833 FM Mode, Ch.0799 [848.97MHz] Conducted Power = 26.8dBm; Spacing = touching back of PDA to flat phantom Test Date -- 08/23/2000 SAR Tot [mW/g] 2.74E-1 8.22E-1 1.37E+0 1.92E+0 2.47E+0 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Symbol Technologies Inc. Dates of Tests: August 23, 2001 1 Symbol Plaza Test Report S/N: SAR.210810480.H9P Holtsville, NY 11742-1300 Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Sandy Mazzola, Regulatory Engineer cc: Dean La Rosa, Senior Design Engineer FCC ID H9PPPT2833 APPLICANT SYMBOL TECHNOLOGIES INC. EUT Type: Single-Mode Cellular PDA WAN Terminal w/Integrated CDPD Radio Modem Module Integrated Module: Novatel Wireless Technologies Inc. [FCC ID: NBZNRM-6831] Tx Frequency: 824.04 – 848.97 MHz (AMPS) Rx Frequency: 869.04 – 893.97 MHz (AMPS) Max. RF Output Power: 0.482 W ERP (26.83 dBm) Max. Peak SAR: 0.320 mW/g (1 g. avg) AMPS Body SAR; 2.41 mW/g (10 g. avg) AMPS Hand SAR Trade Name/Model(s): SYMBOL PPT2833 FCC Classification: Licensed Non-Broadcast Transmitter Worn on Body (TNT) Application Type: Certification Serial Number: n/a (pre-production) FCC Rule Part(s): § 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210810480.H9P SAR Measurement Report FCC Part 22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5 5.3 DATA EXTRAPOLATION 6 6.1 PHANTOM, HOLDER & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN CONFIGURATION 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14 13.3 BODY-WORN TEST DATA SUMMARY 15 14.1 SAR TEST EQUIPMENT LIST 16 15.1 CONCLUSION 17 16.1 REFERENCES 18 Test Report S/N: SAR.210810480.H9P SAR Measurement Report Test Dates: August 23, 2001 FCC Part 22 Certification Cellular PDA WAN Terminal w/Integrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849 MHz) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: Symbol Technologies Inc. Address: 1 Symbol Plaza Holtsville, NY 11742-1300 Attention: Sandy Mazzola, Regulatory Engineer cc: Dean La Rosa, Senior Design Engineer • EUT Type: Single-Mode Cellular PDA WAN Terminal w/Integrated CDPD Radio Modem (AMPS) • Trade Name: SYMBOL • FCC IDENTIFIER: H9PPPT2833 • Model: PPT2833 • S/N: Pre-production • Tx Frequency: 824.04 – 848.97 MHz (AMPS) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) • Application Type: Certification • FCC Classification: Licensed Non-Broadcast Transmitted Worn on Body (TNT) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Max. RF Output Power: 0.482 W ERP (26.83 dBm) • Max. Peak SAR: 0.320 mW/g (1 g. avg) AMPS Body SAR; 2.410 mW/g (10 g. avg) AMPS Hand SAR • Integrated Modem Module: Novatel Wireless Technologies Inc. FCC ID: NBZNRM-6831 (CDPD radio module) • Antenna Type: Helical (λ/2) • Antenna Dimensions: 2.8 cm. (Length) • Dates of Test(s): August 23, 2001 • Place of Test(s): PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210810480.H9P 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210810480.H9P SAR Measurement Report Test Dates: August 23, 2001 FCC Part 22 Certification Cellular PDA WAN Terminal w/Integrated CDPD Radio Modem © 2001 PCTEST Lab SYMBOL FCC ID: H9PPPT2833 (Tx 824-849 MHz) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the Nati…

Text truncated - open the document above for the full version.

RF Exposure Info

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

RF Exposure Info

835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.12 mW/g, SAR (10g): 1.43 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.11E-1 6.33E-1 1.06E+0 1.48E+0 1.90E+0 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Symbol Technologies Inc. Dates of Tests: August 23, 2001 1 Symbol Plaza Test Report S/N: SAR.210810480.H9P Holtsville, NY 11742-1300 Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Sandy M…

Text truncated - open the document above for the full version.
