H9PPPT28C6Portable Data Terminal with WLAN PC Module

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the belt-clip placed 2.5 cm. from the body. To comply with RF exposure requirements, a minimum separation distance of 2.5 cm. must be maintained between the user’s body and the belt-clip/holster, including the antenna. The use of other belt-clip/holsters and other non-tested accessories may not comply with FCC RF Exposure requirements and should be avoided. WARNING! Read this information before using your phone

July 29, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988,21 U.S. c. 853(a). Sincerely, Signature Sandy Mazzola Regulatory Engineer Symbol Technologies Inc 1 Symbol Plaza Holtsville, N.Y. 11742-1300 Phone: (63 1) 738-5373 Fax: (631) 738 -3318 or (631) 738-3915 E-mail: mazzolas @ symbol.com SYMBOL TECHNOLOGIES, INC. One Symbol Plaza, Holtsville, NY 11 742-1 300 51 6 738-2400 Web site: http://www.symbol.com

July 29, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 Re: Symbol Technologies FCC ID: H9PPPT2 8C6 Confidentiality Dear Reviewer, Symbol Technologies (“Symbol”), requests that the Block Diagram, Schematics, and operational Description exhibits of the referenced application be withheld from routine availability for public inspection pursuant to Section 0.459 of the Commissions Rules an Freedom of Information Act (“FOIA) Exemption 4, 5 U.S.C. 552 (b) (4). ‘These exhibits consist of “trade secrets (or) commercial or financial information obtained from a person and privileged or confidential” 5 U.S.C. 552 (b) (4), and is therefore entitled to protection from disclosure under FOIA. The documents in question contain trade secrets: detailed technical descriptions, specifications and schematics for a product to be offered for sale. This information would give Symbol’s competitors an unearned and unwarranted competitive advantage. The documents contain “commercial information” within the scope of FOIA exemption 4. This information is the product of Symbol’s investment of money, personnel, and other resources. The result of the investment is a fairly earned position in the marketplace. Premature release of the information threatens substantial and unwarranted harm to Symbol’s competitive position. These materials provide particulars on the product design. For these reasons, Symbol has taken pains to keep this technical information confidential, and intends to continue doing so. Symbol customarily witholds this information from persons outside the employ of Symbol and certain of its suppliers and contractors, and even within these groups routinely limits access to persons having a particular need for the information. If the Commissions were to make these documents public, it would be giving away hard won fruits of Symbols labors without compensation. The filing fee that is required for this confidentiality request is included in the check that accompanies this application. If there are any questions about this request, please call me at the number above. Thank you for your attention. Respectfully Submitted, Sandy Mazzola

July 29, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SYMBOL TECHNOLOGIES INC. FCC ID: H9PPPT28C6 Gentlemen: Attached herewith, on behalf of SYMBOL TECHNOLOGIES INC. is an application for Part 15.247 Certification of the following 2.4GHz Portable Data Terminal w/ Internal LAN Radio Card. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Symbol Technologies Inc.

September 18, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Tim Harrington SUBJECT: Symbol Technologies Inc. FCC ID: H9PPPT28C6 731 Confirmation No.: TC465733 Correspondence Reference No.: 5172 Request for Tech Info.: 9/16/02 Dear Tim: Transmitted herewith, on behalf of Symbol Technologies Inc. is an amendment provided in response to the audit dated September 16, 2002. 1. Please find the attached probe calibration certificate for showing the Probe S/N: 1677 additional conversion factors for 2.450 GHz body. 2. Please find the attached dipole validation plots for 2.45 GHz. Also, attached is revised page 16 of SAR report. 3. We confirm that the Output Power measurement is conducted. The revised page 11 of the EMC report is attached. 4. The SAR setup close-up photo is attached. 5. The client provided software codes to allow the EUT to continually transmit at full power on three different channels. 6. Please find attached the updated users manual with the correct RF warning statement. 7. The warning statement from Symbol is also attached. 8. Please find the attached SAR Z-axis plot with reduced SAR-axis scale. 9. Please note that conducted measurements were made and attached is the revised page 11 (same as answer 3). We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Symbol Technologies Inc.

© 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6

© 2002 PCTEST Lab FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Sample FCC Label Symbol Technologies Inc. Model: PPT28C6 FCC ID: H9PPT28C6 IC:1549-PDT28C6 This is a sample draft of the label that will be located on the underside of the product. Sandy Mazzola Regulatory Engineer Symbol Technologies Inc Holtsville, N. Y. 11742-1300 Phone: (631) 738-5373 Fax: (631) 738-3318 or (631) 738-3915 E-Mail:[email protected]

© 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220701342.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPDT28C6 Page 1 of 21 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Symbol Technologies, Inc. Dates of Tests: July 30-31, 2002 1 Symbol Plaza Test Report S/N: SAR.220701342.H9P Holtsville, NY 11742-1300 Test Site: PCTEST Lab, Columbia, MD USA Attn: Sandy Mazzola FCC ID: H9PPPT28C6 APPLICANT: Symbol Technologies, Inc. EUT Type: Portable Data Terminal with WLAN PC Card Module Tx Frequency: 2412 — 2462 MHz (DSSS) Rx Frequency: 2412 — 2462 MHz (DSSS) Max. RF Output Power: 0.1 W EIRP PCS Max. SAR Measurement: 0.134W/kg PCS Body SAR Trade Name/Model(s): SYMBOL PDT28C6 FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220701342.H9P PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220701342.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPDT28C6 Page 2 of 21 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ................................................................................... 14 Controlled Environment........................................................................................ 14 11. MEASUREMENT UNCERTAINTIES ....................................................................... 15 SAR…

Text truncated - open the document above for the full version.

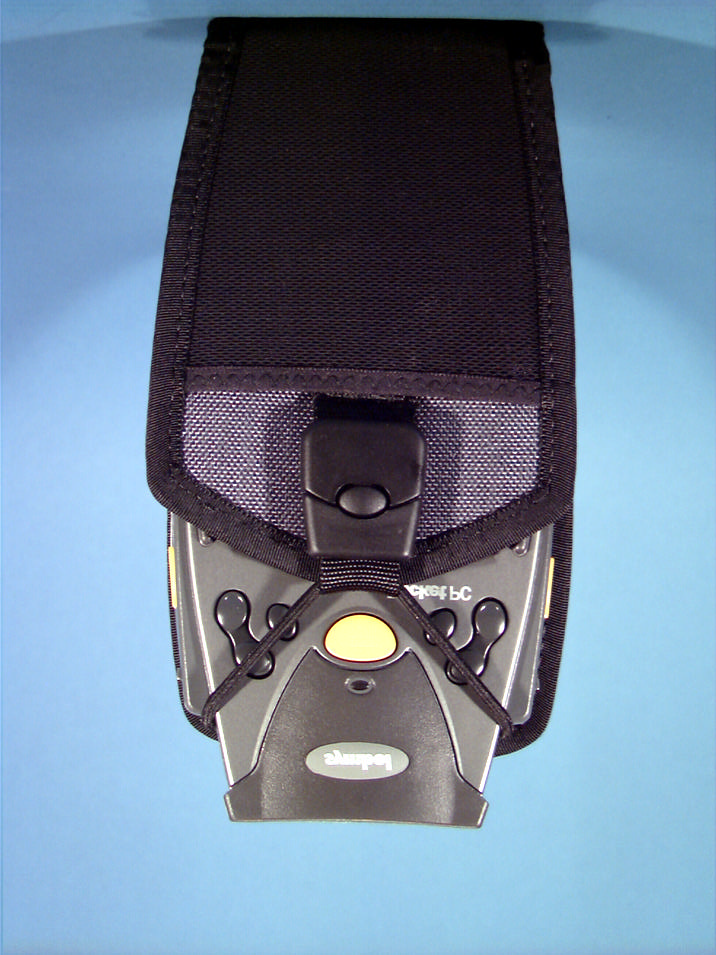

SYMBOL Tech. Inc. FCC ID: H9PPPT28C6 --- 2.4GHz.Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.96 mho/m ε r = 53.6 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 1.0 SAR (1g): 0.108 mW/g, SAR (10g): 0.0337 mW/g SYMBOL 2.4GHz. Pocket PC w/Cisco LKD102040 -- Model: PPT2846 Low Channel [2412MHz] ; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Radiated Power = 100mW; Spacing = 2.5cm. from Backside of EUT to flat phantom, w/Holster and BeltClip Test Date -- 07/31/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.40E-3 1.62E-2 2.70E-2 3.78E-2 4.86E-2 PCTEST Engineering Laboratory, Inc. SYMBOL Tech. Inc. FCC ID: H9PPPT28C6 --- 2.4GHz. Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.96 mho/m ε r = 53.6 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 1.0 SAR (1g): 0.124 mW/g, SAR (10g): 0.0566 mW/g SYMBOL 2.4GHz. Pocket PC w/Cisco LKD102040 -- Model: PPT2846 Mid Channel [2437MHz] ; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Radiated Power = 100mW; Spacing = 2.5cm. from Backside of EUT to flat phantom, w/Holster and BeltClip Test Date -- 07/31/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.06E-2 3.18E-2 5.30E-2 7.42E-2 9.54E-2 PCTEST Engineering Laboratory, Inc. SYMBOL Tech. Inc. FCC ID: H9PPPT28C6 --- 2.4GHz. Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.96 mho/m ε r = 53.6 ρ = 1.00 g/cm 3 ; Antenna Position -- Fixed; Crest Factor 1.0 SAR (1g): 0.134 mW/g , SAR (10g): 0.0356 mW/g SYMBOL 2.4GHz. Pocket PC w/Cisco LKD102040 -- Model: PPT28C6 High Channel [2462MHz] ; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Radiated Power = 100mW; Spacing = 2.5cm. from Backside of EUT to flat phantom, w/Holster and BeltClip Test Date -- 07/31/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 4.10E-3 1.23E-2 2.05E-2 2.87E-2 3.69E-2 PCTEST Engineering Laboratory, Inc.

© 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6

2450MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450MHz Brain: σ = 1.79 mho/m ε r = 40.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 13.2 mW/g, SAR (10g): 7.63 mW/g 2450MHz Brain Dipole Validation (D-2450S, S/N: 105 ) Frequency: 2450MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.1°C / Meas. Tissue Temp. = 22.1°C PCTEST Brain Tissue Simulating Liquid [07/31/2002] SAR Tot [mW/g] 9.87E-1 3.84E+0 6.40E+0 8.98E+0 1.14E+1 PCTEST Engineering Laboratory, Inc. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220701342.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPDT28C6 Page 16 of 21 © 2002 PCTEST Engineering Laboratory, Inc 12. SYSTEM VERIFICATION Tissue Verification Table 12.1 Simulated Tissue Verification [5] Test System Validation Prior to assessment, the system is verified to the ±10% of the specifications at 835MHz and 1900MHz by using the system validation kit(s). (Graphic Plots Attached) Table 12.2 System Validation [5] MEASURED TISSUE PARAMETERS Date(s) 07/31/02 1900MHz Brain 1900MHz Muscle 2450MHz Brain 2450MHz Muscle Liquid Temperature (°C) 22.1 Target Measured Target Measured Target Measured Target Measured Dielectric Constant: ε 40.00 N/A 53.30 N/A 39.20 40.89 52.70 53.60 Conductivity: σ 1.400 N/A 1.520 N/A 1.80 1.410 1.95 1.960 SYSTEM DIPOLE VALIDATION TARGET & MEASURED System Validation Kit: D-1900V2, S/N: 502 1900MHz Brain Targeted SAR 1g (mW/g) 9.925 Measured SAR 1g (mW/g) 10.48 Deviation (%) + 5.58 System Validation Kit: D-2450S, S/N: 105 2450MHz Brain Targeted SAR 1g (mW/g) 13.100 Measured SAR 1g (mW/g) 13.2 Deviation (%) + 0.76 Figure 12.1 Dipole Validation Test Setup

© 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220701341.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPPT28C6 Page 1 of 31 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Symbol Technologies Inc. Dates of Tests: July 30-31, 2002 1 Symbol Plaza Test Report S/N: 15.220701341.H9P Holtsville, NY 11742-1300 Test Site: PCTEST Lab, Columbia MD Attention: Sandy Mazzola, Requlatory Engineer CC: Dean La Rosa, Senior Design Engineer FCC ID H9PPPT28C6 APPLICANT SYMBOL TECHNOLOGIES Inc. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Max Output Power: 0.1 W EIRP PCS / 20.0 dBm Conducted Method/System: Direct Sequence System (DSS) Equipment Type: Portable Data Terminal with WLAN PC Card Module Frequency Range: 2412 — 2462 MHz Model No(s).: SYMBOL PPT28C6 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220701341.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPPT28C6 Page 2 of 31 TABLE OF CONTENTS APPENDIX A – COVER LETTER APPENDIX B - ATTESTATION STATEMENT APPENDIX C - TEST REPORT SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCT INFORMATION 5 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 6 B. RADIATED EMISSIONS 7 C. RESTRICTED BANDS 8 D. ANTENNA REQUIREMENT 9 E. DIRECT SEQUENCE BANDWIDTH 10 F. MAXIMUM PEAK POWER OUTPUT 11 G. POWER DENSITY 12 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 13-16 FREQUENCY MEASUREMENTS (SPURIOUS) 17 LIST OF TEST EQUIPMENT 18 CONCLUSION 19 APPENDIX D - TEST PLOTS APPENDIX E - FCC ID LABEL & LOCATION APPENDIX F - TEST SETUP PHOTOGRAPHS APPENDIX G - EXTERNAL PHOTOGRAPHS APPENDIX H - INTERNAL PHOTOGRAPHS APPENDIX I - BLOCK DIAGRAM(S) APPENDIX J- SCHEMATIC DIAGRAM(S) APPENDIX K - PROCESSING GAIN APPENDIX L - USER’S MANUAL APPENDIX M - SAR MEASUREMENT REPORT APPENDIX N - SAR TEST DATA APPENDIX O - SAR TEST SETUP PHOTOGRAPHS APPENDIX P - DIPOLE VALIDATION APPENDIX Q - PROBE CALIBRATION APPENDIX R - COPY OF FHSS LAN RADIO CARD FCC GRANT PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220701341.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPPT28C6 Page 3 of 31 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Symbol Technologies Inc. Address: 1 Symbol Plaza Holtsville, NY 11742-1300 Attention: Sandy Mazzola, Requlatory Engineer • FCC ID: H9PPPT28C6 • Class: Spread Spectrum Transceiver (DSS) • Type: Portable Data Terminal with WLAN PC Card Module • Freq. Range: 2412 — 2462 MHz • Method/System: Direct Sequence System (DSS) • Model No(s): SYMBOL PPT28C6 • Max. RF Output Power: 0.1 W EIRP PCS • Rule Part(s): § 15.247 • Dates of Tests: July 30-31, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 220701341.H9P NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220701341.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPPT28C6 Page 4 of 31 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Symbol Spread Spectrum Portable Data Terminal w/ WLAN PC Card Module. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220701341.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data…

Text truncated - open the document above for the full version.

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220701341.H9P Test Dates: July 30-31, 2002 EUT Type: Portable Data Terminal FCC ID: H9PPPT28C6 Page 11 of 31 §15.247(b) Maximum Peak Output Power Minimum Standard — The maximum peak output power of the transmitter shall not exceed 1 watt. Max. Power Peak + Atten = dBm ⇒ Watts FREQ Channel Power Output Power Output (MHz) (dBm) (mW) 2412 1 20.0 100 2437 6 20.0 100 2462 11 20.0 100 Table 4. Output Power Measurements Minimum Standard — The transmitter peak output power of the transmitter shall not exceed 1 watt. These are conducted measurements. REMARKS: PASS

© 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6 © 2002 PCTEST Lab Symbol Technologies, Inc. Portable Data Terminal FCC ID: H9PPDT28C6
