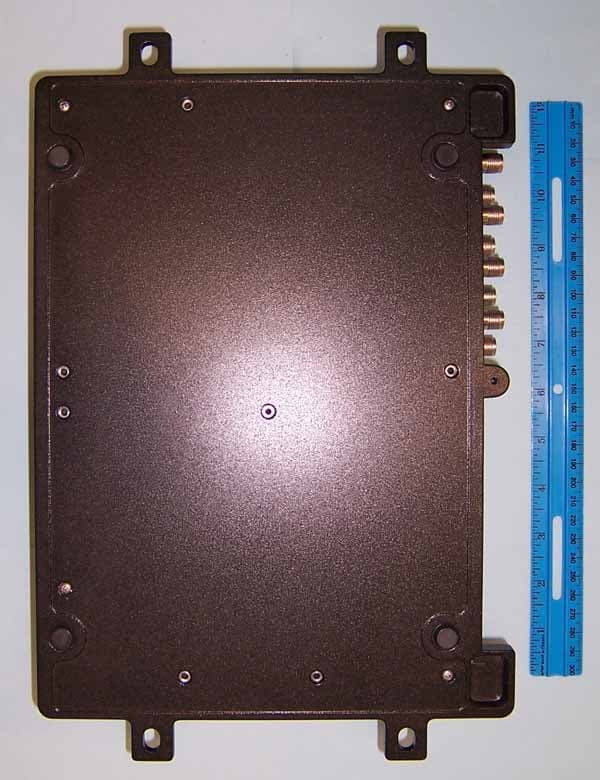

H9PRD11440RF ID Reader

© 2006 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Symbol products. Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Reference Documents Supporting documents are available for viewing/download from the Symbol documentation web site: http://www.symbol.com/manuals Software updates, SDKs, development support and related documents are available from the Symbol Devzone web site: http://devzone.symbol.com Patents This product is covered by one or more of the patents listed on the web site: http://www.symbol.com/patents Warranty For the complete Symbol hardware product warranty statement, go to: http://www.symbol.com/warranty Service Information Before using the unit, it must be configured to operate in the facility network and run the required applications. If a problem occurs using the equipment, contact the facility Technical or Systems Support representative. If there is a problem with the equipment, they will contact the Symbol Support Center: For the latest version of this guide and other supporting documentation, go to: http://www.symbol.com/manuals United States1-800-653-5350 1-631-738-2400 Canada905-629-7226 United Kingdom0800 328 2424 Asia/Pacific+65-6796-9600 Australia1-800-672-906 Austria/Österreich01-5055794-0 Denmark/Danmark7020-1718Finland/Suomi9 5407 580 France01-40-96-52-21Germany/Deutschland6074-49020 Italy/Italia2-484441Mexico/México5-520-1835 Netherlands/Nederland315-271700Norway/Norge+47 2232 4375 South Africa11-809 5311Spain/España Inside Spain91 324 40 00 Sweden/Sverige08 445 29 00 Outside Spain+34 91 324 40 00 Latin America Sales Support 1-800-347-0178 Inside US +1-954-255-2610 Outside US Europe/Mid-East Distributor Operations Contact local distributor or call +44 118 945 7360 72-XXXXX-01 Revision A — XXX 2006 RFID Reader Quick Reference Guide XR400 / XR480 Introduction This QRG (Quick Reference Guide) provides information for the XR Series RFID Readers. The QRG includes LED definitions, port descriptions, and mounting information. For details, refer to the XR Series RFID Reader Integrator Guide P/N 72E-71773-XX, available at: http://www.symbol.com/manuals Product Description The Symbol XR Series RFID Readers are intelligent, multi-protocol UHF RFID readers with RFID read performance that provides real-time, seamless EPC-compliant tags processing. Features: •UHF Generation 2 support (EPC Class 0 and Class 1 supported only in XR400) •Intel XScale ® processor with Windows ® CE •Support for custom or third-party applications •Feature set for event and tag management. Firmware Updates The XR SeriesXR Series RFID Readers are shipped with the current firmware version. To install the latest upgrade refer to the XR Series Integrator Guide P/N 72E-71773-XX, available from: http://www.symbol.com/manuals Note: Ensure that power is not interrupted during a firmware upgrade. LED Definitions LEDs indicate reader status as described in the following table. Physical ConnectionsPorts Mounting For installation instructions refer to the XR Series Integrator Guide P/N 72E-71773-XX, available from: http://www.symbol.com/manuals. 1.Position the XR reader on the wall or shelf, ensuring a minimum clearance of five inches on all sides. Orient the XR reader vertically with the ports at the bottom and ensure that all connected cables hang straight down. 2.Mark the hole locations using the mounting tabs as a guide. Remove the XR400 and drill four mounting holes at the marked locations. 3.Reposition the XR reader over the mounting holes and secure using fasteners appropriate for the surface material. LEDIndication GreenReader is powered on. RedError condition or non-operational mode, e.g., boot-up. YellowSuccessful tag read. USB Client 10/100BaseT Ethernet GPIO Power LEDs Antenna (Reverse TNC)USB HostRS232 Mounting Tabs Mounting Tabs Reset Button PortDescription Antenna (Reverse TNC)XR400/XR480 - Supports up to eight antennas (four transmit, four receive). XR480 - Supports up to eight transceiver antennas. 10/100BaseT EthernetInsert a standard RJ45 Ethernet cable for connection to an Ethernet network. Insert a cross-connect Ethernet cable for connection to a local PC. USB ClientFor future expansion. USB HostSupport for USB Flash drives, USB screen. RS232For serial console only. GPIOInsert a DB15 serial cable for connection to an external device. PowerConnect the Symbol approved power supply (see Power Supply for the Symbol approved power supply). The power supply uses an AC adapter that varies depending on the country. Maximum power consumption: 24 VDC, 1.2 A. Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Regulatory information is available from: http://www.symbol.com/manuals Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the authority to operate the equipment. Antennas: Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulations. Country Approvals Regulato…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 10, 2006 RE: FCC ID: HP9RD11440_ATCB003357 Attention: Gregory M. Snyder / Brian J. Dettling I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the operational description states that the ‘roofing filter’ is ‘set’ to the appropriate pass band according to region. The operational description also states that appropriate attenuation is selected to sufficiently attenuate to meet regulations. This appears to be part of the tune up procedure for the specific region. However, nothing appears to be mentioned in the tune up procedure about this. Please explain where this is done and how it is controlled if not done during the tune up of the device. 2. Page 1 of the internal photo exhibit shows a ‘mini-PCI’ type slot. The schematics indicate that the transmitter module contains the same type connector. It is therefore unclear if the transmitter is on a PCI card plugged into the mother board, or if the transmitter is on one of the larger mother boards. If the transmitter is on a separate card plugged into this mini-PCI slot, then it does not appear that internal photos of the actual transmitter have been provided. Please clearly identify the transmitter portion on the internal photos. Please explain what this slot is used for and if it is active in this particular application. If not active, please explain how it is disabled. 3. Please note that the MPE power stated is about 7.9 W. The 731 states 19.23W. Please note that as this device is a mobile device and as the antenna(s) can be easily removed, the grant power will be the conducted power delivered to the antenna terminals. Please make all associated power levels consistent throughout the documentation. 4. Please provide a manual that contains the appropriate rf exposure information and separation distance as mentioned in the MPE report. 5. Please explain the table on page 11 of the report. The values listed do not appear to coincide with ERP measurement requirements of TIA603. Please note that the listed conducted power added to the 6dBi gain antenna as shown in the table is not the required method for determining ERP. Please provide actual ERP data performed using the antenna substitution method as required in accordance with TIA603. 6. Please note that radiated spurious emissions for part 90 devices is an ERP measurement. Please note that the data in the radiated spurious emissions table (page 29 of the pdf document( is listed in EIRP. While the device appears to be compliant, please provide proper measurement units in the report. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Response to ATCB Comments FCC ID: HP9RD11440 1 Washington Laboratories, Ltd. 7560 LINDBERGH DRIVE GAITHERSBURG, MD 20879 (301) 417 – 0220 FAX # (301) 417 - 9069 April 14, 2006 Mr. Dennis Ward American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 RE: Comments of April 10, 2006 APPLICATION: HP9RD11440 Symbol Technologies, Inc. Dear Mr. Ward: Below are the comments that you have provided regarding the application for certification referenced above. Our responses to those comments are in bold italic. Many responses refer you to additional exhibit(s) which has been uploaded to the application folder at the ATCB website. Thank you for your attention. Please feel free to contact us for any additional information that you may require. Regards, Gregory M. Snyder Chief EMC Engineer, Wireless/Telco Services Manager Brian J. Dettling Documentation Specialist WLL Project: 9081 1) Please note that the operational description states that the ‘roofing filter’ is ‘set’ to the appropriate pass band according to region. The operational description also states that appropriate attenuation is selected to sufficiently attenuate to meet regulations. This appears to be part of the tune up procedure for the specific region. However, nothing appears to be mentioned in the tune up procedure about this. Please explain where this is done and how it is controlled if not done during the tune up of the device. R. The exhibit “RD11440 Operational Description revised” addresses this question. 2) Page 1 of the internal photo exhibit shows a ‘mini-PCI’ type slot. The schematics indicate that the transmitter module contains the same type connector. It is therefore unclear if the transmitter is on a PCI card plugged into the mother board, or if the transmitter is on one of the larger mother boards. If the transmitter is on a separate card plugged into this mini-PCI slot, then it does not appear that internal photos of the actual transmitter have been provided. Please clearly identify the transmitter portion on the Response to ATCB Comments FCC ID: HP9RD11440 2 internal photos. Please explain what this slot is used for and if it is active in this particular application. If not active, please explain how it is disabled. R. The PCI slot is located on the digital board. It is not in use in this device. The transmitter portion is the adjacent mother board. 3) Please note that the MPE power stated is about 7.9 W. The 731 states 19.23W. Please note that as this device is a mobile device and as the antenna(s) can be easily removed, the grant power will be the conducted power delivered to the antenna terminals. Please make all associated power levels consistent throughout the documentation. R. The exhibit “RD11440 Application Form- 731 revised” has been corrected to show the conducted output power. 4) Please provide a manual that contains the appropriate rf exposure information and separation distance as mentioned in the MPE report. R. The exhibit “RD11440 User Manual - QRG revised” contains the corrected separation distance as referenced in the MPE report. 5) Please explain the table on page 11 of the report. The values listed do not appear to coincide with ERP measurement requirements of TIA603. Please note that the listed conducted power added to the 6dBi gain antenna as shown in the table is not the required method for determining ERP. Please provide actual ERP data performed using the antenna substitution method as required in accordance with TIA603. R. The power reported in the 731 is the conducted power measured at the antenna terminals. The Table 3 of the test report lists this measured output power. The other data in the table is provided for information only as the 6dBi antenna is the antenna recommended for use by Symbol. The test report has been revised to better clarify this. 6) Please note that radiated spurious emissions for part 90 devices is an ERP measurement. Please note that the data in the radiated spurious emissions table (page 29 of the pdf document( is listed in EIRP. While the device appears to be compliant, please provide proper measurement units in the report. R. Please see exhibit “RD11440 Test Report revised”. Table 5 has been corrected to the ERP levels.

Label Location

Document 9081-MPE, Rev. 1 FCC ID: H9PRD11440 RF Exposure Evaluation Washington Laboratories, Ltd March 2006 RF Exposure Evaluation Maximum Permissible Exposure Evaluation for Symbol Technologies, Inc. Model RD11440 FCC ID: H9PRD11440 March 22, 2006 Revision 1 Dated: April 19, 2006 WLL PROJECT #: 9081 This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. Document 9081-MPE, Rev. 1 FCC ID: H9PRD11440 RF Exposure Test Evaluation Washington Laboratories, Ltd March 2006 1 Maximum Permissible Exposure Evaluation for FCC ID: H9PRD11440 1.0 Introduction This report has been prepared on behalf of Symbol Technologies, Inc. RD11440 RFID Device to show compliance with the RF exposure requirements as defined in FCC §1.1307. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: ƒ Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). For this test report the Symbol Technologies, Inc. RD11440 RFID device with 6dBi antenna is considered a fixed installation. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Document 9081-MPE, Rev. 1 FCC ID: H9PRD11440 RF Exposure Test Evaluation Washington Laboratories, Ltd March 2006 2 ƒ Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, the Symbol Technologies, Inc. RD11320 XR-400 RFID device is evaluated to the General Population/Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation The highest RF output power of the unit was measured at 38.99dBm at 920.75 MHz. According to §1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure at 910.75 MHz (the lowest frequency of operation) is 0.607mW/cm 2 . The MPE is calculated to show the required separation distance that must be maintained during installation to maintain compliance with the power density limit. The following formula was used to calculate the Power Density: 2 4R PG S π = Where: S = Power Density P = Output Power at the Antenna Terminals G = Gain of Transmit Antenna (linear gain) Document 9081-MPE, Rev. 1 FCC ID: H9PRD11440 RF Exposure Test Evaluation Washington Laboratories, Ltd March 2006 3 R = Distance from Transmitting Antenna To solve for the minimum mounting distance required: S PG R π4 = For this device, the calculation is as follows: S = 0.607 mW/cm 2 P = Output Power = 7925mW G = Worst Case Gain = 6dBi = INVLOG(6/10) = 4 607.04 )4()7925( ×× × = π R = 64.5 cm (Based on continuous transmission) Based on the above calculation the Symbol Technologies, Inc. RD11440 antenna must be mounted such that it …

Text truncated - open the document above for the full version.

Document 9081-MPE, Rev. 2 FCC ID: H9PRD11440 RF Exposure Evaluation Washington Laboratories, Ltd May 2006 Maximum Permissible Exposure Evaluation for Symbol Technologies, Inc. Model RD11440 FCC ID: H9PRD11440 March 22, 2006 Revision 2 Dated: May 30, 2006 WLL PROJECT #: 9081 This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. RF Exposure Evaluation Document 9081-MPE, Rev. 2 FCC ID: H9PRD11440 RF Exposure Test Evaluation Washington Laboratories, Ltd May 2006 1 Maximum Permissible Exposure Evaluation for FCC ID: H9PRD11440 1.0 Introduction This report has been prepared on behalf of Symbol Technologies, Inc. RD11440 RFID Device to show compliance with the RF exposure requirements as defined in FCC §1.1307. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: ƒ Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). For this test report the Symbol Technologies, Inc. RD11440 RFID device with 6dBi antenna is considered a fixed installation. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Document 9081-MPE, Rev. 2 FCC ID: H9PRD11440 RF Exposure Test Evaluation Washington Laboratories, Ltd May 2006 2 ƒ Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, the Symbol Technologies, Inc. RD11320 XR-400 RFID device is evaluated to the General Population/Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation The highest RF output power of the unit was measured at 40.75dBm at 915.75 MHz. According to §1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure at 910.75 MHz (the lowest frequency of operation) is 0.607mW/cm 2 . The MPE is calculated to show the required separation distance that must be maintained during installation to maintain compliance with the power density limit. The following formula was used to calculate the Power Density: 2 4R PG S π = Where: S = Power Density P = Output Power at the Antenna Terminals G = Gain of Transmit Antenna (linear gain) Document 9081-MPE, Rev. 2 FCC ID: H9PRD11440 RF Exposure Test Evaluation Washington Laboratories, Ltd May 2006 3 R = Distance from Transmitting Antenna To solve for the minimum mounting distance required: S PG R π4 = For this device, the calculation is as follows: S = 0.607 mW/cm 2 P = Output Power = 11885mW G = Worst Case Gain = 6dBi = INVLOG(6/10) = 4 607.04 )4()11885( ×× × = π R = 78.9 cm (Based on continuous transmission) Based on the above calculation the Symbol Technologies, Inc. RD11440 antenna must be mounted such that it provides…

Text truncated - open the document above for the full version.

FCC Certification Test Report For the Symbol Technologies, Inc. RD11440 FCC ID: H9PRD11440 WLL JOB# 9081-01 March 24, 2006 Revision 1: April 14, 2006 Prepared for: Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 Symbol Technologies, Inc. RD11440 w/Amplifier FCC Certification Test Report March 2006 FCC Certification Test Report for the Symbol Technologies, Inc. RD11440 FCC ID: H9PRD11440 March 24, 2006 Revision 1: April 14, 2006 WLL JOB# 9081-01 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Chief EMC Engineer Symbol Technologies, Inc. RD11440 w/Amplifier FCC Certification Test Report March 2006 WLL Report #9081-01 - ii - © 2006 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Symbol Technologies, Inc. to support the attached Application for Equipment Authorization. The test report and application are submitted for a Licensed Transmitter under Part 90.353 of the FCC Rules. This Certification Test Report documents the test configuration and test results for a Symbol Technologies, Inc. Model RD11440. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Symbol Technologies, Inc. RD11440 complies with the limits for a Licensed Transmitter device under FCC Part 90.353. Revision 1 of this report addresses issues noted during the TCB review. Section 4.1 and Table 5 have been amended. Symbol Technologies, Inc. RD11440 w/Amplifier FCC Certification Test Report March 2006 WLL Report #9081-01 - iii - © 2006 Washington Laboratories, Ltd. Table of Contents Abstract ........................................................................................................................................... ii 1 Introduction..........................................................................................................................1 1.1 Compliance Statement .....................................................................................................1 1.2 Test Scope ........................................................................................................................1 1.3 Contract Information........................................................................................................1 1.4 Test Dates ........................................................................................................................1 1.5 Test and Support Personnel .............................................................................................1 2 Equipment Under Test .........................................................................................................2 2.1 EUT Identification & Description ...................................................................................2 2.2 Test Configuration ...........................................................................................................2 2.3 Testing Algorithm............................................................................................................3 2.4 Test Location ...................................................................................................................4 2.5 Measurements ..................................................................................................................4 2.5.1 References....................................................................................................................4 2.6 Measurement Uncertainty................................................................................................4 3 Test Equipment .............................................................…

Text truncated - open the document above for the full version.
