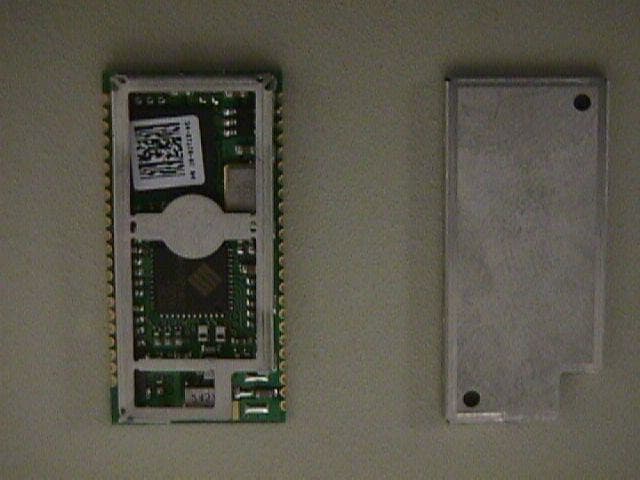

H9PSNAPPERSnapper Modue

Snapper Bluetooth Module Users Guide There is no Snapper Bluetooth Module Users Guide as it is only intended for use in Symbol products only.

Symbol Bluetooth Baseband Asic w/Embedded Flash Silicon Wave SiW1502 Radio Modem BALUN 32MHz 32.768KHz UART SPI CLK TXD RXD CNTL 115.2 kBPS Dual LDO 3.3V Nominal External Antenna Host System Interface Snapper Module Block Diagram SIZEFSCM NODWG NOREV SCALE 1 : 1 SHEET 1 OF 1 Symbol Technologies Inc. BPF 7/10/02

PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 1 of 18 FCC Part 15.247 REPORT Project AZ201382 for Symbol Technologies Inc. Snapper Module FCC ID: H9PSNAPPER BABT 4855 Patrick Henry Drive, Building 6 Santa Clara, CA, 95054 USA Phone: (408) 919 3769 Fax: (408) 919 0585 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 2 of 18 Contents 1 ADMINISTRATIVE DATA 4 1.1 Testing Laboratory 4 1.2 Project Data 4 1.3 Applicant Data 4 2 TEST OBJECT DATA 6 2.1 General EUT Description 6 3 MEASUREMENT RESULTS 7 3.1 General 7 3.2 Test Results 8 4 TEST EQUIPMENT 18 4.1 Test Equipment List 18 PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 3 of 18 Name Signature Date Prepared by Quality Manager Erick Kurniawan Charles Minx, Jr. 2002-04-26 2002-04-26 PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 4 of 18 1. Administrative Data 1.1 Testing Laboratory Company Name: BABT Address: 4855 Patrick Henry Drive, Building 6 Santa Clara, CA, 95054 USA 1.2 Project Data Project Leader: Erick Kurniawan Date of Test Report: 2002-04-26 Date of first Test: 2002-03-15 Date of last Test: 2002-03-21 1.3 Applicant Data Company Name: Symbol Technologies, Inc. Address: One Symbol Plaza Holtsville, NY, 11742 Contact Person: Mr. Sandy Mazzola Phone: (631) 738 5373 Fax: (631) 738 4618 Email: [email protected] PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 5 of 18 1.4 Manufacturer Data Company Name: Manufacturer is Applicant Address: Contact Person: PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 6 of 18 2. Test Object Data 2.1 General EUT Description Product Category: Bluetooth Module Equipment Under Test: Snapper Module HW Version: 0x0081 SW Version: 0x000A Nominal Voltage: 3.3 V Low Voltage: 3.1 V High Voltage: 3.6 V Power Class: 2 Max. Antenna Gain: 0 dBi High Temperature: 60°C Normal Temperature: 25°C Low Temperature: –30°C Additional Information Frequency: 2400.0 – 2483.5 Type of Modulation: 24M0FXD (FHSS) Number of Channels: 79 PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 7 of 18 3. Measurement Results 3.1 General Summary of Test Results: All relevant tests according to FCC CFR Part 15.247, 15.209 were performed and the results of these tests fulfill the requirements of the stated regulations. PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 8 of 18 Test Results 3.2.1 20 dB Bandwidth Subclause §15.247 (a) (1) (ii) 20 dB Bandwidth (kHz) Test Conditions Freq. (MHz) 2402 2441 2480 Normal Temp. Normal Voltage 936 936 936 20 dB Bandwidth Test Graph – 2402 MHz PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 9 of 18 20 dB Bandwidth Test Graph – 2441 MHz 20 dB Bandwidth Test Graph – 2480 MHz PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 10 of 18 Limit: Subclause §15.247 (a) (1) (ii) Occupied bandwidth shall not exceed 1000 kHz Test Equipment Used: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 & 15. PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 11 of 18 3.2.2 Number of Hopping Channels Subclause §15.247 (a) (1) (ii) 79 hopping channels are supported. 3.2.3 Average Time of Occupancy Subclause §15.247 (a) (1) (ii) A Average Time of Occupancy – 2402 MHz PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 12 of 18 Average Time of Occupancy – 2441 MHz Average Time of Occupancy – 2480 MHz PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 13 of 18 The Average time of Occupancy shall not exceed 400mS Test Equipment Used: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 & 15. 3.2.4 Maximum Peak Output Power Subclause §15.247 (b) (1) Maximum Peak Output Power (mW) Test Conditions Freq. (MHz) 2402 2441 2480 Normal Temp. Normal Voltage 0.724 0.676 0.776 Maximum Peak Output Power Graph – 2402 MHz PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 14 of 18 Maximum Peak Output Power Graph – 2441 MHz Maximum Peak Output Power Graph – 2480 MHz PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 15 of 18 Limit: Subclause §15.247 (b) (1) Frequency Range RF Power Output 2400-2483.5 MHz 1.0 Watt Test Equipment Used: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 & 15. PROJECT AZ201382 BABT is a division of TUV America Inc. Project AZ201382 FCC 15.247 Report Page 16 of 18 3.2.5 Emissions Subclause §15.247 (c) (1), 15.205 f (MHz) Emission Amplitude (dBm) Limit Actual Attenuation below freq. Of Operation (dB) Results 2402 -1.4 30.0 dBm Operation Freq. 4804 -47.0 -20 dBc 45.6 Compliant 7206 -40.0 -20 dBc 38.6 Compliant 2441 -1.7 30.0 dBm Operation Freq. 4882 -46.0 -20 dBc 44.3 Compliant 7323 -41.2 -20 dBc 39.5 Compliant 2480 -1.1 30.0 dBm Operation Freq. 4960 -47.5 -20 dBc 46.4 Compliant 7440 -40.2 -20 dBc 39.1 Compliant Limit: Subclause §15.247 (c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or radiated measurement. Attenuation below the general limits specified in §15.209 (a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.20…
