H9PTM1000Trailer Monitoring Unit

TLA TRAILER MONITORING UNIT (TMU) Regulatory Guide R egulatory Information This device is approved under Symbol Technologies, Inc. This guide applies to Model Number: TM1000 All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol equipment, not expressly approved by Symbol, could void the user's authority to operate the equipment. Wireless Device Country Approvals Regulatory markings, subject to certification, are applied to the device signifying the radio(s) are approved for use in the following countries: United States. Operation of the device without regulatory approval is illegal. Frequency of Operation - FCC 2.4 GHz Only. The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The range of channels is limited by firmware. Warning for Use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. RF Exposure Guidelines Safety Information Reducing RF Exposure - Use Properly Only operate the device in accordance with the instructions supplied. International For further information on the safety of RF energy from wireless devices, go to: http://responsibility.motorolasolutions.com/index.php/downloads/. Located under Wireless Communications and Health. US Co-located statement. To comply with FCC RF exposure compliance requirement, the antenna used for this transmitter must not be co-located or operating in conjunction with any other transmitter/antenna except those already approved in this filling. To satisfy US RF exposure requirements, a transmitting device must operate with a minimum separation distance of 20 cm or more from a person's body. The minimum separation distance 20 cm must match the distance established in the SAR Test report . Laser Devices Class 1 Laser devices are not considered to be hazardous when used for their intended purpose. For Class 1 devices replace the label with the following label as appropriate. CAUTIONOnly use Symbol approved and UL Listed accessories. Declared maximum operating temperature: 50°C. MN000908A01b.fm Page 1 Sunday, July 13, 2014 10:27 PM - Class 1 Laser Product - COMPLIES WITH 21CFR1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007 AND IEC 60825-1:2007 (Ed. 2.0); EN 60825-1:2007. Caution - Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Radio Frequency Interference Requirements - FCC Radio Transmitters (Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Service If you have a problem using the equipment, contact your facility's Technical or Systems Support. If there is a problem with the equipment, they will contact the Global Customer Support Center at: http://www.motorolasolutions.com/support. For detailed documentation and the latest version of this guide go to: http://www.motorolasolutions.com/support. © 2014 Symbol Technologies, Inc. All rights reserved. Symbol Technologies reserves the right to make changes to any product to improve reliability, function, or design. Symbol Technologies does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol Technologies products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Symbol Technologies products. Warranty For the complete hardware product warranty statement, go to: http://www.motorola.com/enterprisemobility/warranty. Symbol Technologies, Inc. One Motorola Plaza Holtsville, New York 11742, USA 1-800-927-9626 http://www.motorolasolutions.com Symbol® is a registered trademark, and The Enterprise Mobility Company is a trademark of Symbol Technologies, Inc. All other trademarks and service marks are proprietary to their respective owners. © 2014 Symbol Technologies, Inc. All Rights Reserved. NOTEThis equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. MN000908A01 Revision B — July 2014 Laser Warning Label-Class 1 (No Color Requirement) MN000908A01b.fm Page 2 Sunday, July 13, 2014 10:27 PM

Regulatory Engineering Symbol Technologies, Inc. Symbol Technologies, Inc. One Motorola Plaza, | Holtsville, NY 11742 | 1.631.738.2400 phone | 1.631.627.7179 fax | www.motorolasolution.com July 16, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia MD 21046 Letter of Authorization As the designated signatory for FCC applications under the Grantee code H9P (Symbol Technologies, Inc.), I hereby authorize Marco Belli to sign all corresponding application documents relating to the processes of FCC Approval. This authorization is limited to the following FCC ID: H9PTM1000 If you have any questions regarding the authorization, please don’t hesitate to contact us. Respectfully, Mark S. Luksich Symbol Technologies, Inc. Tel: 631 738 5134 [email protected]

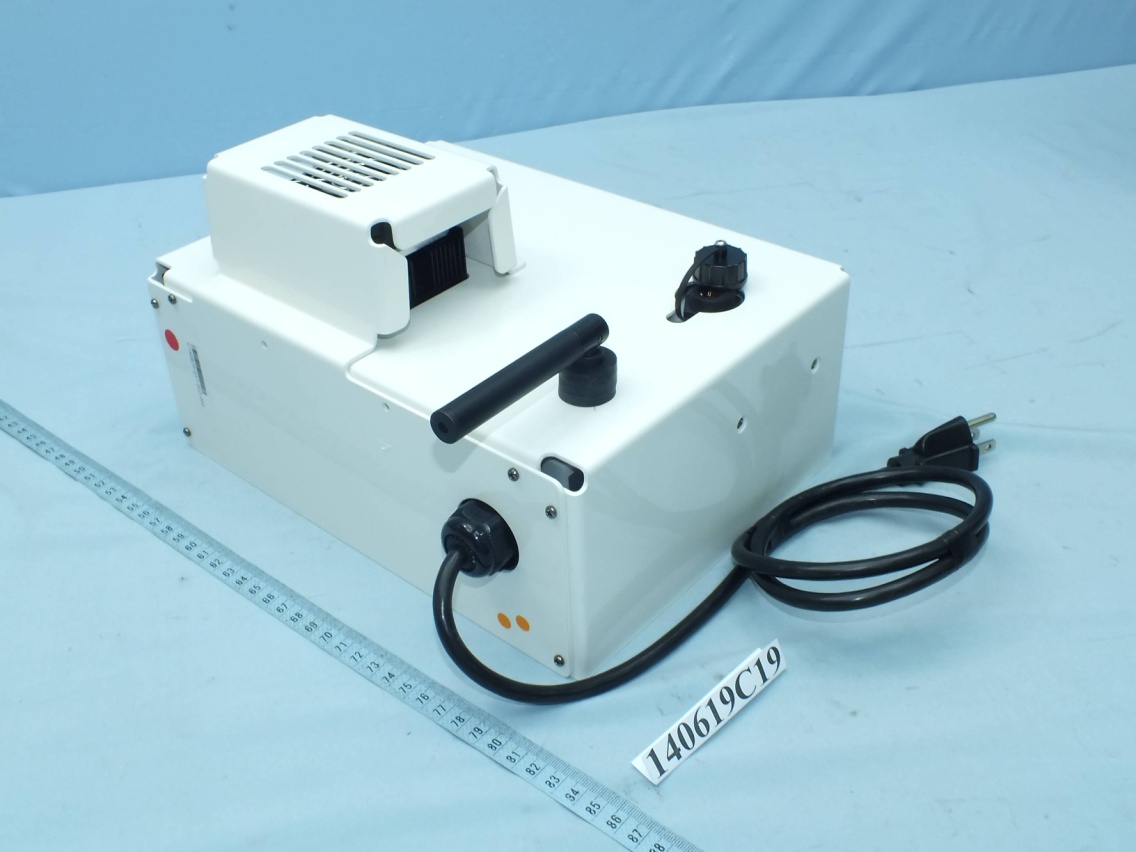

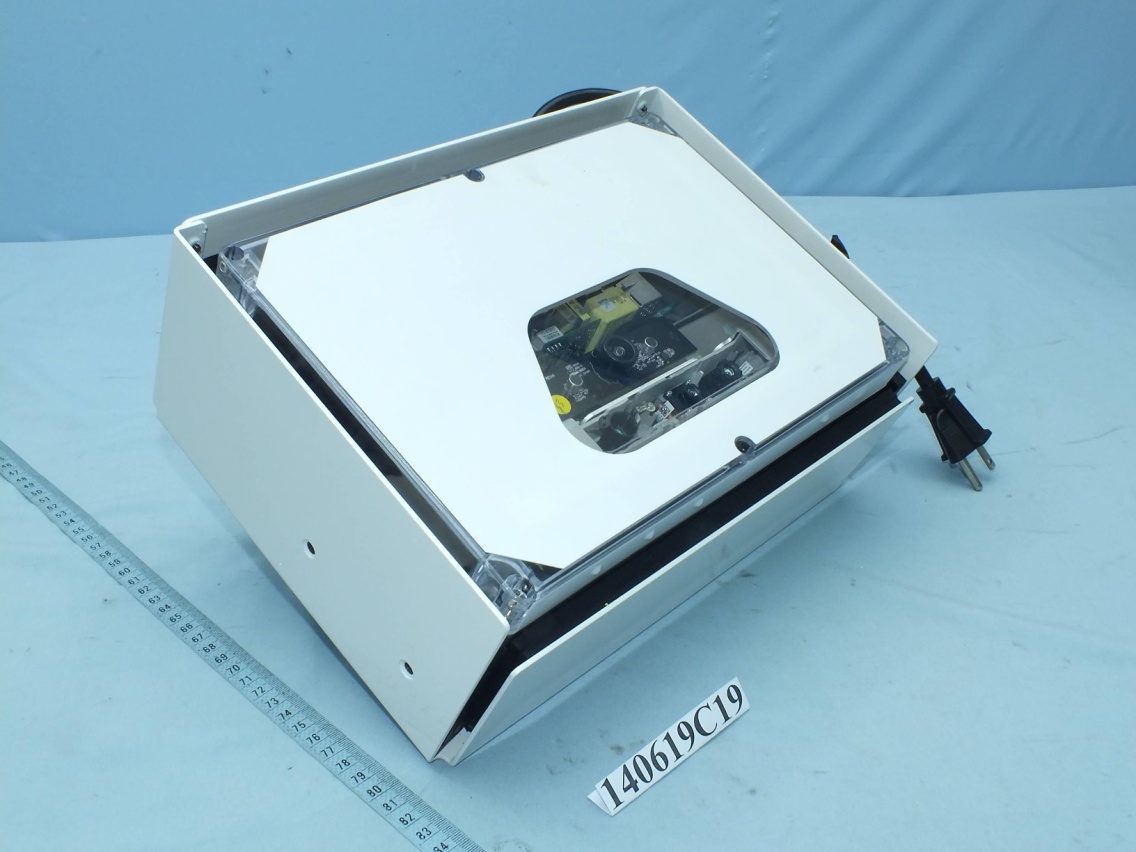

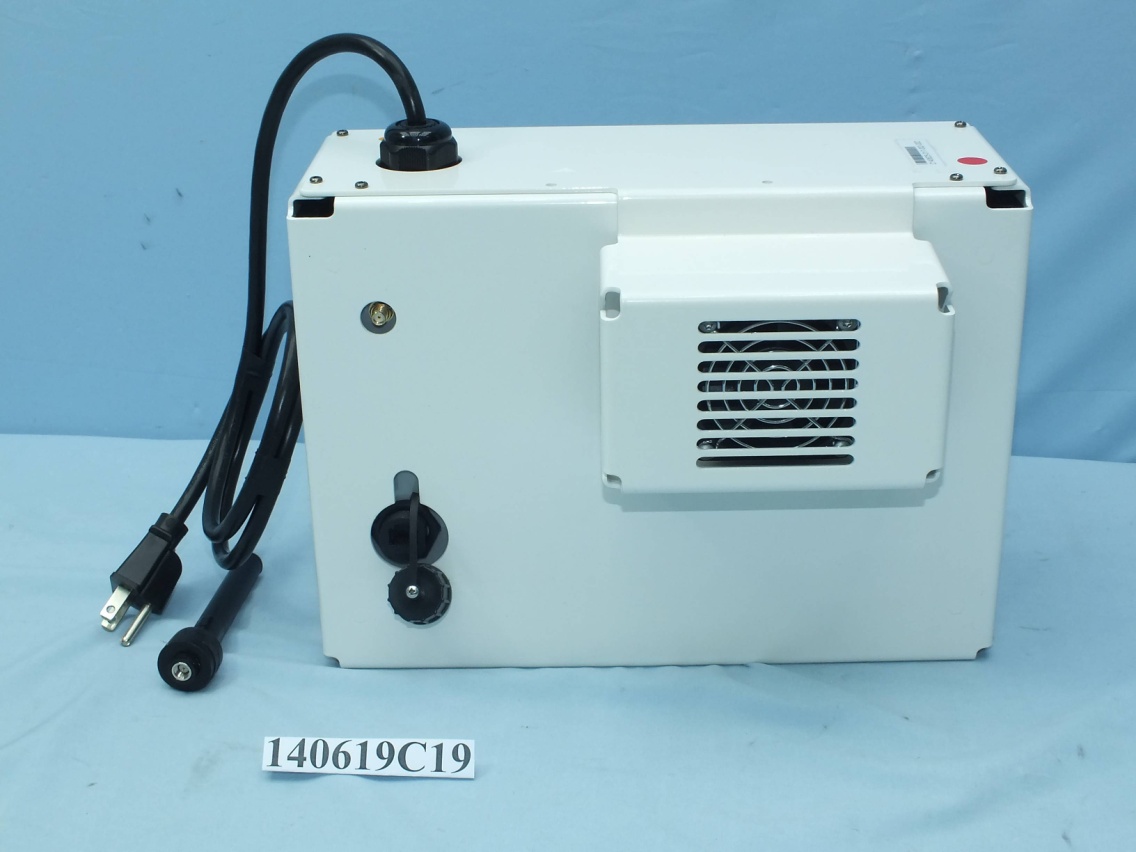

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label Location

Fannie Hsu V3 1510-XXXXXXX Paper / Other PCT4300-D97(RoHS) 白色特多龍#50+網格膠 Label(外購+自印) Notes: 1.供應商: 2.被貼物材質:Aluminum 3.黏貼位置:機器上方 V1New 2014/05/23 90-264 Vac;120-300Vdc,47-63 Hz 100-250V~, 2.5A,50/60Hz 2014/06/13 2014/06/16 V2 V3 PART NO. DRAFTER PART NAME MODEL NO. MA TERIAL 材質 代號 Product Unit 整捲入料 出 紙 方 向 103.06.30 7mm 2.9mm 2mm 5.1mm MODEL : TM1000 MADE IN CHINA 105mm R1x4 70mm 2 P/N : TM1000-10001000-US Symbol Technologies, Inc., Holtsville, N.Y. 11742 FCC ID:H9PTM1000 125V~, 60Hz, 2.5A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. COMPLIES WITH 21CFR1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007 AND IEC 60825-1:2007 (Ed. 2.0); EN 60825-1:2007.

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

Report No.: SA140619C19 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140619C19 MODEL NO.: TM1000 FCC ID: H9PTM1000 RECEIVED: Jun. 19, 2014 TESTED: Jun. 26 ~ Jul. 11, 2014 ISSUED: Jul. 15, 2014 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Motorola Plaza, Holtsville, NY 11742-1300, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA140619C19 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS REPORT ISSUE HISTORY RECORD ......................................................................................... 3 RELEASE CONTROL RECORD ................................................................................................. 4 1. CERTIFICATION .............................................................................................................. 5 2. RF EXPOSURE ................................................................................................................ 6 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................... 6 2.2 MPE CALCULATION FORMULA ..................................................................................... 6 2.3 CLASSIFICATION ............................................................................................................ 6 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................... 6 Report No.: SA140619C19 3 of 6 Report Format Version 5.0.0 REPORT ISSUE HISTORY RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED 1 Original release. Jul. 15, 2014 Report No.: SA140619C19 4 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140619C19 Original release. Jul. 15, 2014 Report No.: SA140619C19 5 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Trailer Monitoring Unit MODEL: TM1000 BRAND: Symbol APPLICANT: Symbol Technologies, Inc. TESTED: Jun. 26 ~ Jul. 11, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: TM1000) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Jul. 15, 2014 Celine Chou / Specialist APPROVED BY : , DATE : Jul. 15, 2014 Ken Liu / Senior Manager Report No.: SA140619C19 6 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 22.80 5.69 20 0.141 1

Report No.: RF140619C19 1 of 61 Report Format Version 5.2.1 FCC TEST REPORT REPORT NO.: RF140619C19 MODEL NO.: TM1000 FCC ID: H9PTM1000 RECEIVED: Jun. 19, 2014 TESTED: Jun. 26 ~ Jul. 11, 2014 ISSUED: Jul. 15, 2014 APPLICANT: Symbol Technologies, Inc. ADDRESS: One Motorola Plaza, Holtsville, NY 11742-1300, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140619C19 2 of 61 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 5 1. CERTIFICATION ............................................................................................................................ 6 2. SUMMARY OF TEST RESULTS ................................................................................................... 7 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 7 3. GENERAL INFORMATION ............................................................................................................ 8 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 8 3.2 DESCRIPTION OF TEST MODES ................................................................................................ 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................................. 10 3.3 DUTY CYCLE OF TEST SIGNAL ................................................................................................ 12 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................ 13 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................................... 13 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 14 4. TEST TYPES AND RESULTS ..................................................................................................... 15 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................................... 15 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................... 15 4.1.2 TEST INSTRUMENTS ................................................................................................................. 16 4.1.3 TEST PROCEDURES ................................................................................................................. 17 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................................... 17 4.1.5 TEST SETUP ............................................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ................................................................................................ 19 4.1.7 TEST RESULTS .......................................................................................................................... 20 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................................. 38 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................... 38 4.2.2 TEST INSTRUMENTS ................................................................................................................. 38 4.2.3 TEST PROCEDURES ................................................................................................................. 39 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................................... 39 4.2.5 TEST SETUP ............................................................................................................................... 39 4.2.6 EUT OPERATING CONDITIONS ................................................................................................ 39 4.2.7 TEST RESULTS .......................................................................................................................... 40 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................................... 42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
