HHC-65A261Zigbee Module

Home Automation Inc

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 17, 2009
Application Purpose: Original Equipment
Date of Application: Dec 17, 2009
Equipment Note: Zigbee Module
Frequency Range: 2405.00000000 - 2480.00000000
Company: Home Automation Inc
Country: United States

Documents & Files

Select a file to view

RF Exposure Info

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: HHC-65A261 IC: 1516A-65A261 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 09-0411-15C Manufacturer: Home Automation Inc. Model: 65A26-1 Manual Home Automation, Inc. Zigbee Module User (Operational) Manual This document contains the intellectual property of Home Automation, Inc. (HAI). HAI authorizes the use of this information for the sole purpose of developing software and systems to work with the Zigbee Module. The specifications in this document are subject to change without notice. Document Number 65R26-1 June, 2009 Copyright © 2008 Home Automation, Inc. All Rights Reserved Page 1 INTRODUCTION This document describes the wireless communications of the Zigbee Module. The Zigbee Module is a portable device that allows for wireless communication between multiple Host devices. This document describes the installation process, electrical connections, electrical specifications, and the FCC statements for compliance. INSTALLATION 1.) Begin by installing the Zigbee Module in the back of the Host device. 2.) After screwing the Zigbee to the back of the Host device, power the Host. 3.) Consult the Host User Manual for network details. ELECTRICAL CONNECTIONS The expansion board should connect to the thermostat using the 8 pin dual row J10 header on the read side (side opposite of LCD). This header consists of a 5V supply, GND, and SPI full-duplex communication or I/O Connections. 8 pin expansion module pin out. ELECTRICAL SPECIFICATIONS Min Typical Max Voltage Level: 4.5V 5.0V 5.5V Current: - - 90ma SPI TX High 2.8V 3.3V 3.6V SPI RX High 2.64V - 5.5V SPI Baud - - 100khz Copyright © 2008 Home Automation, Inc. All Rights Reserved Page 2 Copyright © 2008 Home Automation, Inc. All Rights Reserved Page 3 FCC STATEMENTS OF COMPLIANCE Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement (Part 15.105 (b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC/IC RF Exposure To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure (OET Bulletin 65) To comply with FCC/IC RF exposure requirements for mobile transmitting devices, this transmitter should only used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. Copyright © 2008 Home Automation, Inc. All Rights Reserved Page 4 OEM Responsibility OEM Responsibility to the FCC Rules and Regulations The Zigbee Module has been certified per FCC Part 15 rules for integration into products without further testing or certification. To fulfill the FCC certification requirements the OEM of the Zigbee Module must ensure that the information provided on the Zigbee Label is placed on the outside of the final product. The Zigbee Module is labeled with its own FCC ID Number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC: HHC-65A261” or “Contains FCC: HHC-65A261” The OEM of the Zigbee Module must only use the approved antenna, which has been certified with this module. The OEM of the Zigbee Module must test their final product configuration to comply with Unintentional Radiator Limits before declaring FCC compliance per Part 15 of the FCC rules. OEM Responsibility to the IC Rules and Regulations The Zigbee Module has been certified per IC regulations for integration into products without further testing or certification. To fulfill the IC certification requirements the OEM of the Zigbee Module must ensure that the information provided on the Zigbee Label is placed on the outside of the final product. The Zigbee Module is labeled with its own IC ID Number. If the IC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module IC: 1516A-65A261” or “Contains IC: 1516A-65A261” The OEM of the Zigbee Module must only use the approved antenna, which has been certified with this module. Section 7.1.5 …

Text truncated - open the document above for the full version.

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 December 15, 2009 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: HHC-65A261 To Whom It May Concern: The following application is submitted on behalf of our client, Home Automation Inc., for evaluation of their model 65A26-1 for certification under FCC Part 15.247 for single modular approval. The 65A26-1 is a stand-alone module consisting of a single printed circuit board which is designed to be integrated into specific host devices. The 65A26-1 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

Cover Letter(s)

Advanced Compliance Solutions – 5015 B.U. Bowman Drive, Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 December 15, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Home Automation Inc. respectfully requests confidentiality of certain materials provided with the submission of the 65A26-1 under FCC ID: HHC-65A261 in accordance with FCC Regulations 0.459. The confidentiality request applies to the following exhibits: 09-0411 – Schematics.pdf 09-0411 – System Block Diagram.pdf 09-0411 – Theory of Operation.pdf The 65A26-1 has been developed at considerable effort and expense by Home Automation Inc.. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Sam Wismer Vice President, Technology Agent

External Photos

ID Label/Location Info

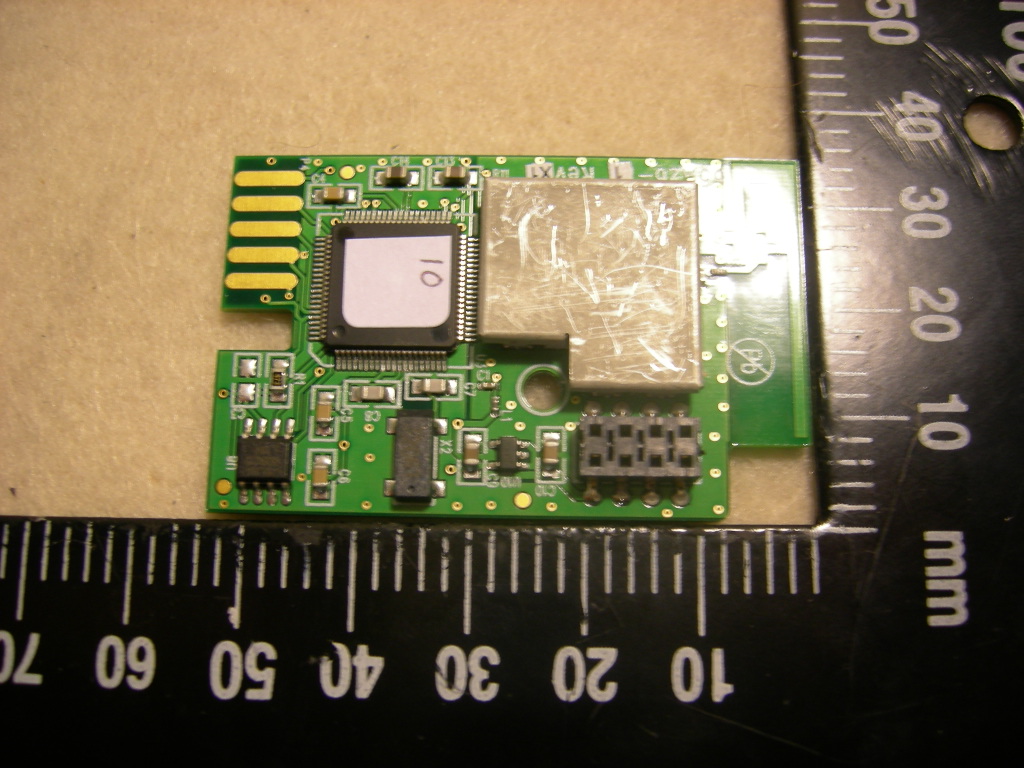

Internal Photos

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: HHC-65A261 IC: 1516A-65A261 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 09-0411-15C Manufacturer: Home Automation Inc. Model: 65A26-1 Test Begin Date: December 10, 2009 Test End Date: December 11, 2009 Report Issue Date: December 15, 2009 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Prepared by: Reviewed by: Sam Mendolia Wireless Certifications Engineer ACS, Inc. Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 36 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.2.1 General ................................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.2 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.2.2 Measurement Results ............................................................................................................ 10 7.3 RADIATED EMISSIONS – FCC: SECTION 15.109(UNINTENTIONAL RADIATION) IC: RSS-210 2.6 .. 12 7.3.1 Measurement Procedure ....................................................................................................... 12 7.3.2 Measurement Results ............................................................................................................ 12 TABLE 7.3-1: RADIATED EMISSIONS TABULATED DATA .......................................................................... 12 7.4 6DB / 99% BANDWIDTH – FCC: SECTION 15.247(A)(2) IC: RSS-210 A8.2(A) ............................. 13 7.4.1 Measurement Procedure ....................................................................................................... 13 7.4.2 Measurement Results ............................................................................................................ 13 7.5 PEAK OUTPUT POWER REQUIREMENT - FCC SECTION 15.247(B)(3) IC: RSS-210 A8.4(4) .......... 18 7.5.1 Measurement Procedure ....................................................................................................... 18 7.5.2 Measurement Results ............................................................................................................ 18 7.6 BAND-EDGE COMPLIANCE AND SPURIOUS EMISSIONS-FCC 15.247D IC:RSS-210 2.6, A8.5 ....... 21 7.6.1 Band-Edge Compliance of RF Conducted Emissions ........................................................... 21 7.6.1.1 Measurement Procedure ................................................................................................................... 21 7.6.1.2 Measurement Results ....................................................................................................................... 21 7.6.2 RF Conducted Spurious Emissions ....................................................................................... 25 7.6.2.1 Measurement Procedure ................................................................................................................... 25 7.6.2.2 Measurement Results ........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Brian A. Yokum(Chief Technology Officer)

[email protected]504-736-9810Fax: 504-253-2955

Test Firm

Advanced Compliance Solutions, Inc.Sam Wismer

[email protected]770-831-8048Fax: 770-831-8598

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	60.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Power output is conducted at the antenna terminal. MPE compliance was demonstrated for antenna(s) of the type and gain as shown in the filing. Final antenna installation and operating configurations of this transmitter including antenna gain and cable loss must not exceed the EIRP of the configuration used for calculating MPE. The module must transmit with a duty factor as indicated in this filing, controlled by firmware and software. Products operating with this module are required to provide a minimum separation distance of at least 20 cm between the antenna and all persons during normal operation. Grantee must coordinate with OEM integrators to ensure the end-users of products operating with this module are provided with operating instructions to satisfy RF exposure requirements. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.
