HHOJHR-AC8651200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router

www.jcgcom.com 1 11AC Intelligent Wireless Router OPERATION INSTRUCTION STAT E M EN T Copyright © 2013 Yichen (Shenzhen) Technology Development Co.,Ltd. All rights reserved JCG is the registered trademark of Yichen (Shenzhen) Technology Development Co.,Ltd. Without explicit written permission of Yichen (Shenzhen) Technology Development Co.,Ltd. , any organization and individual are forbidden to imitate, copy, reproduce, translate this document or use it for other purposes. All other trademarks or registered trademarks mentioned in this document are owned by their respective holders and are under protection of the related laws. The product specifications and information mentioned in this manual are only for reference. Any content update is subject to change without notice. For more detailed product information, visit our office website http://www.jcgcom.com www.jcgcom.com 2 Contents Chapter 1: Introduction 1.1 Purpose and conventions----------------------------------------------------------------------4 Chapter 2: Hardware installation 2.1 Description of panel indicator-----------------------------------------------------------------5 2.2 System requirements---------------------------------------------------------------------------7 2.3 Installation environment------------------------------------------------------------------------8 2.4 Installation environment------------------------------------------------------------------------8 Chapter 3: PC setup 3.1 Set correct network environment------------------------------------------------------------8 Chapter 4: Quick setup gude ------------------------------------------------------ 12 Chapter 5: Operation mode -------------------------------------------------------- 13 Chapter 6: Wireless setup 6.1 Basic setup--------------------------------------------------------------------------------------16 6.2 Basic setup--------------------------------------------------------------------------------------17 6.3 Security setup-----------------------------------------------------------------------------------18 6.4 Access control-----------------------------------------------------------------------------------19 6.5 WDS setup---------------------------------------------------------------------------------------19 6.6 WPS setup---------------------------------------------------------------------------------------20 6.7 Green wireless----------------------------------------------------------------------------------21 Chapter 7: Network setup 7.1 LAN setup----------------------------------------------------------------------------------------22 7.2 WAN setup---------------------------------------------------------------------------------------23 www.jcgcom.com 3 Chapter 8: IPv6 setup ------------------------------------------------------------------ 24 Chapter 9: Firewall setup 9.1 Port filtering--------------------------------------------------------------------------------------24 9.2 IP address filtering-----------------------------------------------------------------------------24 9.3 MAC address filtering-------------------------------------------------------------------------25 9.4 Port filtering--------------------------------------------------------------------------------------25 9.5 URL filtering--------------------------------------------------------------------------------------26 9.6 DMZ host-----------------------------------------------------------------------------------------26 9.7 VLAN----------------------------------------------------------------------------------------------26 Chapter 10: USB setup 10.1 User management----------------------------------------------------------------------------27 10.2 Disk management----------------------------------------------------------------------------28 10.3 File sharing-------------------------------------------------------------------------------------28 10.4 FTP sharing------------------------------------------------------------------------------------29 10.5 Media sharing---------------------------------------------------------------------------------30 10.6 iTunes sharing--------------------------------------------------------------------------------31 10.7 Print sharing-----------------------------------------------------------------------------------31 Chapter 11: QoS --------------------------------------------------------------------------- 40 Chapter 12: Routing setup ----------------------------------------------------------- 42 Chapter 13: System management --------------------------------------------- 43 Chapter 14: FAQ --------------------------------------------------------------------------- 48 Chapter 15: Technical support --------------------------------------------------- 50 www.jcgcom.com 4 Chapter 1: Introduction Thank for you to purchase JCG 11AC dual-frequency wireless broadband router. This product integrates the functions of a router, switch, wireless access point and firewall and adopts the most advanced 11AC wireless technology, so the wireless transmission rate is improved by about 3 times compared to old 802.11N standard. This product supports 64/128 bit WEP encryption and advanced encryption and security mechanism such as WPA and WPA2. This product provides WPS one-key encryption function and enables a user to easily establish a secure wireless network environment. A user can easily and quickly set up a router via the setup wizard and can access and manage a router via Internet at any time and place via remote management function. The JCG 11N wireless broadband router is a series of products with higher performance/price ratio which are specially designed to meet the wireless network access requirement of small-scale enterprises, homes and student dormitory and is the best choice for you to experience wireless Internet surfing and enjoy the wireless network access happiness. It is easy to set up JCG 11AC dual-frequency wireless broadband router without guide of a p…

Text truncated - open the document above for the full version.

Shenzhen Yichen Technology Development Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-12-22 SUBJECT: FCC Application for ( FCCID: HHOJHR-AC865) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Name: Zhou Yong Title: Manager Tel: +86-0755-33019922 Fax: +86-0755-86238830

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Shenzhen Yichen Technology Development Co., Ltd. SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/12/18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Yichen Technology Development Co., Ltd.__ hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： 1200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router Trade Name： Model Name： JHR-AC865 Serial Model： JHR-AC875 FCC ID： HHO JHR-AC865 We affirm that between SIEMIC and ___ Shenzhen Yichen Technology Development Co., Ltd. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: Zhou Yong Title: Manager Tel: +86-0755-33019922 Fax: +86-0755-86238830

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Yichen Technology Development Co., Ltd. 2013/12/18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: HHOJHR-AC865 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Zhou Yong / Manager Contact information / address : 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District,Shenzhen,China

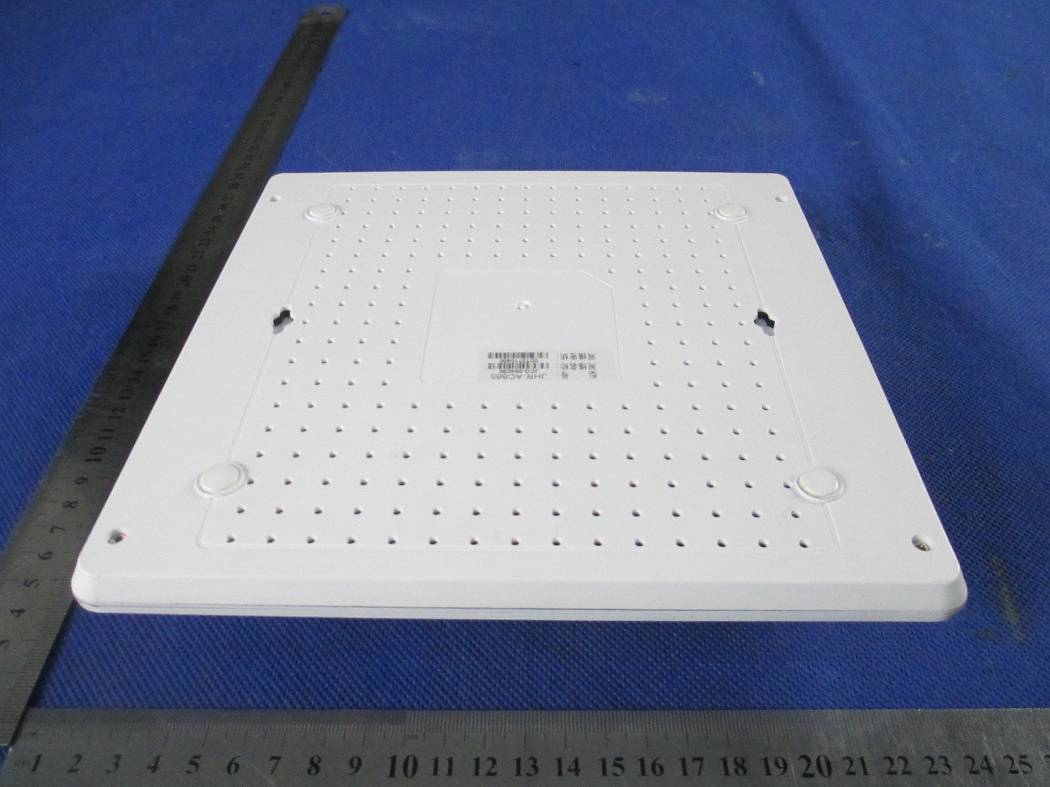

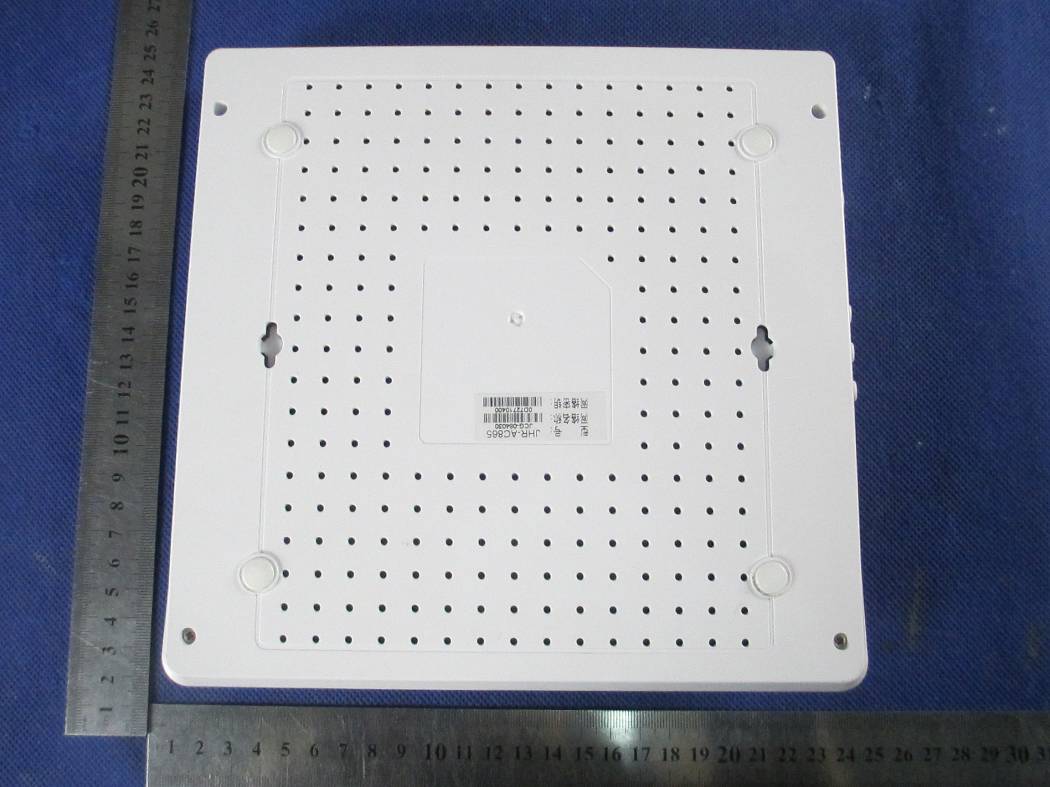

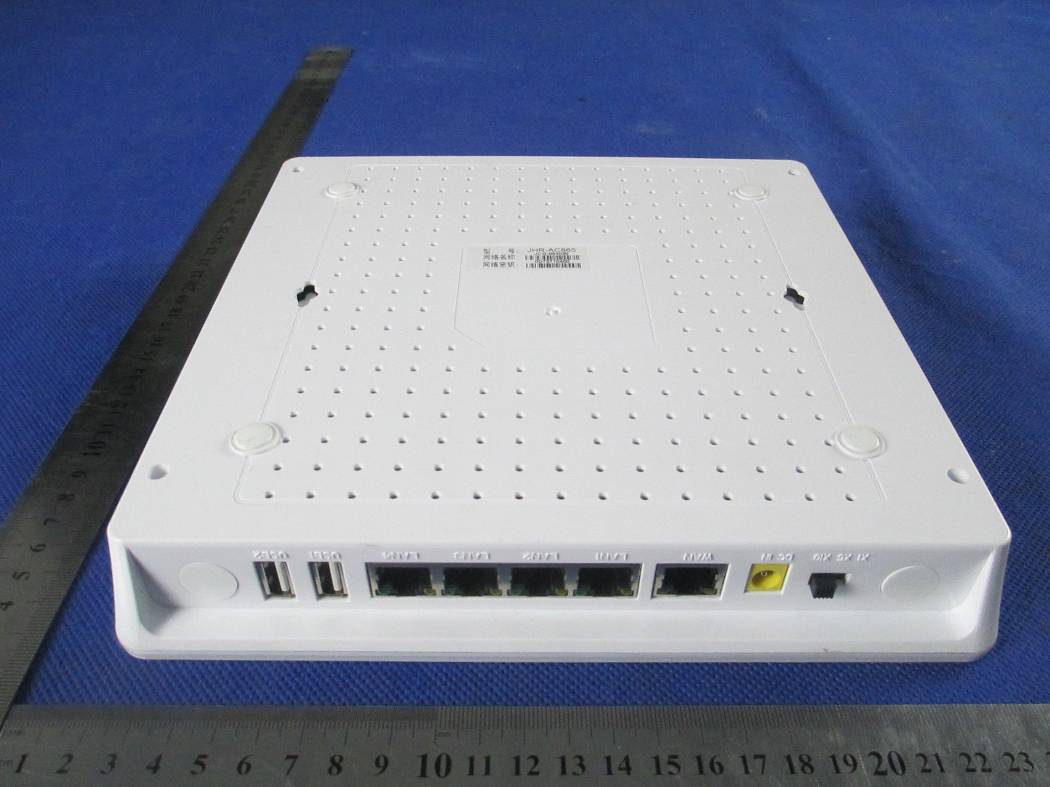

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label 1200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router Model NO.: JHR-AC865 Input Rating: DC 12V/ 2000mA FCC ID: HHOJHR-AC865 Shenzhen Yichen Technoloy Development Co.,LTD Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 5G ANT 5G ANT 2.4G ANT 2.4G ANT Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: HHOJHR-AC865 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna TEST RESULTS 2.4G: Peak output power. Antenna A(B) port Frequency A B Total Power LIMIT Test Channe (MHz) (dBm) dBm dBm TX 802.11b Mode CH01 2412 12.66 12.24 15.47 25.48 CH06 2437 12.57 12.49 15.54 25.48 CH11 2462 12.71 12.38 15.56 25.48 TX 802.11g Mode CH01 2412 11.76 11.42 14.60 25.48 CH06 2437 12.27 11.53 14.93 25.48 CH11 2462 12.36 11.49 14.96 25.48 TX 802.11n/20M Mode CH01 2412 12.29 11.36 14.86 25.48 CH06 2437 12.03 11.57 14.82 25.48 CH11 2462 12.14 11.29 14.75 25.48 TX 802.11n/40M Mode CH03 2422 11.76 10.62 14.24 25.48 CH06 2437 11.59 10.73 14.19 25.48 CH09 2452 11.48 10.39 13.98 25.48 Mode Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11b 12.66 18.45 4.5(6.5dBi) 0.0239 1 Pass 802.11g 12.36 17.22 4.5(6.5dBi) 0.0223 1 Pass 802.11n-HT20 12.29 16.94 4.5(6.5dBi) 0.0219 1 Pass 802.11n-HT40 11.76 15.00 4.5(6.5dBi) 0.0194 1 Pass Frequency MHz Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 2412-2462 15.56 35.97 4.5(6.5dBi) 0.0465 1 Pass 5.8G: Peak output power. Antenna A(B) port Frequency A B Total Power LIMIT Te s t Channe (MHz) (dBm) dBm dBm TX 802.11a Mode CH149 5745 13.53 12.98 16.27 26.48 CH157 5785 13.44 13.23 16.35 26.48 CH165 5825 13.58 13.12 16.37 26.48 TX 802.11g Mode CH149 5745 12.63 12.16 15.41 26.48 CH157 5785 13.14 12.27 15.74 26.48 CH165 5825 13.23 12.23 15.77 26.48 TX 802.11n40M Mode CH151 5755 13.16 12.17 15.70 26.48 CH159 5795 12.93 12.31 15.64 26.48 Mode Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11a 13.58 22.80 3.5(5.4dBi) 0.0245 1 Pass 802.11n (20) 13.23 21.04 3.5(5.4dBi) 0.0226 1 Pass 802.11n(40) 13.16 20.70 3.5(5.4dBi) 0.0222 1 Pass Frequency MHz Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 5745-5825 16.37 43.35 3.5(5.4dBi) 0.0466 1 Pass 5755-5795 15.70 37.15 3.5(5.4dBi) 0.0399 1 Pass Note：This device 5GHz and 2.4GHz can not transmit simultaneously，don't have to assess exposure when transmit simultaneously.

FCC RADIO TEST REPORT FCC ID:HHOJHR-AC865 Product： 1200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router Trade Name： Model Name： JHR-AC865 Serial Model： JHR-AC875 Report No.： NTEK-2013NT1202665F Prepared for Shenzhen Yichen Technoloy Development Co.,LTD 5F,NO.1, Honghualing 2nd industrial Zone, Xili Town,Nanshan District,Shenzhen, China. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 91 Report No.: NTEK-2013NT1202665F TEST RESULT CERTIFICATION Applicant’s name........ Shenzhen Yichen Technoloy Development Co.,LTD Address ........................ 5F,NO.1, Honghualing 2nd industrial Zone, Xili Town,Nanshan District, Shenzhen, China Manufacture's Name... Shenzhen Yichen Technoloy Development Co.,LTD Address ........................ 5F,NO.1, Honghualing 2nd industrial Zone, Xili Town,Nanshan District, Shenzhen, China Product description Product name .................1200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router Model and/or type reference ..................... JHR-AC865 Serial Model .................... N/A Standards.................... FCC Part15.247 Test procedure ................ ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test...................................... Date (s) of performance of tests ....... 02 Dec. 2013 ~16 Dec. 2013 Date of Issue..................................... 16 Dec. 2013 Test Result......................................... Pass Testing Engineer : (Polo Cha) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 91 Report No.: NTEK-2013NT1202665F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 DEVIATION FROM TEST STANDARD 15 3.1.4 TEST SETUP 15 3.1.5 EUT OPERATING CONDITIONS 15 3.1.6 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 18 3.2.1 RADIATED EMISSION LIMITS 18 3.2.2 TEST PROCEDURE 19 3.2.3 DEVIATION FROM TEST STANDARD 19 3.2.4 TEST SETUP 20 3.2.5 EUT OPERATING CONDITIONS 21 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 22 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 23 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 25 4 . POWER SPECTRAL DENSITY TEST 46 4.1 APPLIED PROCEDURES / LIMIT 46 4.1.1 TEST PROCEDURE 46 4.1.2 DEVIATION FROM STANDARD 46 4.1.3 TEST SETUP 46 4.1.4 EUT OPERATION CONDITIONS 46 4.1.5 TEST RESULTS 47 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.1.1 TEST PROCEDURE 61 Page 4 of 91 Report No.: NTEK-2013NT1202665F Table of Contents Page 5.1.2 EUT OPERATION CONDITIONS 61 5.1.3 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 76 6.1 APPLIED PROCEDURES / LIMIT 76 6.1.1 TEST PROCEDURE 76 6.1.2 DEVIATION FROM STANDARD 76 6.1.3 TEST SETUP 76 6.1.4 EUT OPERATION CONDITIONS 76 6.1.5 TEST RESULTS 77 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 79 7.1 DEVIATION FROM STANDARD 79 7.2 TEST SETUP 79 7.3 EUT OPERATION CONDITIONS 79 7.4 TEST RESULTS 80 8 . ANTENNA REQUIREMENT 89 8.1 STANDARD REQUIREMENT 89 8.2 EUT ANTENNA 89 9 . EUT TEST PHOTO 90 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 91 Report No.: NTEK-2013NT1202665F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 91 Report No.: NTEK-2013NT1202665F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 91 Report No.: NTEK-2013NT1202665F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 1200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router Trade Name Model Name JHR-AC865 Product Description The EUT is a 1200Mb/s 802.11ac Intelligent Dual Band Gigabit Wireless Router Operation Frequency: 802.11b/g/n(20MHz):2412~2462 MHz 802.11n(40MHz):2422~2452 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz):150/144.44/130/117/ 115.56/104/86.67/78/52/6.5Mbps 802.11n(40MHz):300/270/240/180/150 /120/108/90/54 Mbps Number Of Channel 802.11b/g/n20MHz:11CH 802.11n40MHz:7CH Max.Output Power(Conducted): 20.06 dBm Operation Frequency: 5725 MHz ~ …

Text truncated - open the document above for the full version.

Page 90 of 91 Report No.: NTEK-2013NT1202665F 9. EUT TEST PHOTO Radiated Measurement Photos Page 91 of 91 Report No.: NTEK-2013NT1202665F Conducted Measurement Photos
