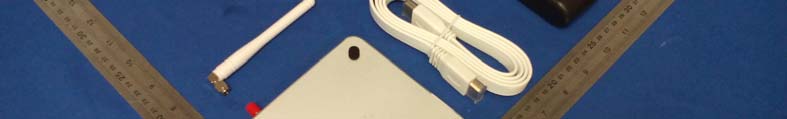

HHOWAWAJI-01Andriod Media Player

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 SHENZHEN YICHEN TECHNOLOGY DEVELOPMENT CO., LTD. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen, china 2014-9-17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, SHENZHEN YICHEN TECHNOLOGY DEVELOPMENT CO., LTD. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: HHOWAWAJI-01 Model: WAWAJI-01 Product name: Andriod Media Player Sincerely, signature : name / title: Yong Zhou / Manager address: 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen, china

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHENZHEN YICHEN TECHNOLOGY DEVELOPMENT CO., LTD. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen, china 2014-9-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: HHOWAWAJI-01 We hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature : name / title: Yong Zhou / Manager address: 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen, china

.

Label location

Antenna location

RF Exposure Evaluation FCC ID: HHOWAWAJI-01 1.1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.3. Test Result of RF Exposure Evaluation Channel Frequency (MHz) Output power to antenna (dBm) Output power to antenna (mW) Antenna Gain(dBi) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2412 15.25 33.50 2 0.01056 1.0 Pass 2437 15.17 32.89 2 0.01037 1.0 Pass 802.11b 2462 15.27 33.65 2 0.01061 1.0 Pass 2412 12.14 16.37 2 0.00516 1.0 Pass 2437 12.21 16.63 2 0.00524 1.0 Pass 802.11g 2462 12.16 16.44 2 0.00518 1.0 Pass 2412 11.35 13.65 2 0.00430 1.0 Pass 2437 11.26 13.37 2 0.00421 1.0 Pass 802.11n (HT20) 2462 11.14 13.00 2 0.00410 1.0 Pass 2422 11.08 12.82 2 0.00404 1.0 Pass 2437 11.03 12.68 2 0.00400 1.0 Pass 802.11n (HT40) 2452 11.06 12.76 2 0.00402 1.0 Pass

FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 1 of 48 FCC TEST REPORT for Shenzhen Yichen Technoloy Development Co.,LTD Andriod Media Player Model Number: WAWAJI-01 FCC ID: HHOWAWAJI-01 Prepared for : Shenzhen Yichen Technoloy Development Co.,LTD Address : 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District,Shenzhen City,China Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Report No. : 14KW091897F Date of Test : Sep. 11~16, 2014 Date of Report : Sep. 17, 2014 FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 2 of 48 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SUMMARY .................................................................................................................................4 2. GENERAL PRODUCT INFORMATION ...............................................................................................4 2.1. Product Function...........................................................................................................................4 2.2. Description of Device (EUT) .........................................................................................................4 2.3. Independent Operation Modes .....................................................................................................5 2.4. Test Supporting System................................................................................................................5 3. TEST SITES .........................................................................................................................................6 3.1. Test Facilities ................................................................................................................................6 3.2. List of Test and Measurement Instruments...................................................................................7 4. TEST SET-UP AND OPERATION MODES .........................................................................................8 4.1. Principle of Configuration Selection ..............................................................................................8 4.2. Block Diagram of Test Set-up .......................................................................................................8 4.3. Test Operation Mode and Test Software ......................................................................................8 4.4. Special Accessories and Auxiliary Equipment ..............................................................................8 4.5. Countermeasures to Achieve EMC Compliance...........................................................................8 5. EMISSION TEST RESULTS ................................................................................................................9 5.1. Conducted Emission at the Mains Terminals Test........................................................................9 5.2. Radiated Emission Test ..............................................................................................................12 6. 6DB OCCUPY BANDWIDTH .............................................................................................................27 6.1. Limits...........................................................................................................................................27 6.2. Test setup ...................................................................................................................................27 6.3. Test result ...................................................................................................................................27 7. BAND EDGE COMPLIANCE TEST ...................................................................................................34 7.1. Limits...........................................................................................................................................34 7.2. Test setup ...................................................................................................................................34 8. OUTPUT POWER TEST ....................................................................................................................37 8.1. Limits...........................................................................................................................................37 8.2. Test setup ...................................................................................................................................37 8.3. Test result ...................................................................................................................................37 9. POWER SPECTRAL DENSITY TEST ...............................................................................................38 9.1. Limits...........................................................................................................................................38 9.2. Test setup ...................................................................................................................................38 9.3. Test result ...................................................................................................................................38 10. ANTENNA REQUIREMENTS ..........................................................................................................41 10.1. Limits.........................................................................................................................................41 10.2. Result........................................................................................................................................41 11. PHOTOGRAPHS OF TEST SET-UP ...............................................................................................42 12. PHOTOGRAPHS OF THE EUT…

Text truncated - open the document above for the full version.

FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 25 of 48 802.11b 2437MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 26 of 48 802.11b 2462MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 27 of 48 6. 6DB OCCUPY BANDWIDTH 6.1. Limits For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz Test data: 6.2. Test setup 1. Set analyzer center frequency to DTS channel center frequency. 2. Set the RBW =100kHz. 3. Set the VBW = 300kHz 4. Detector = peak. 5. Sweep time = auto couple. 6. Trace mode = max hold. 7. Allow trace to fully stabilize. 8. Measure and record the result in the test report. 6.3. Test result Channel Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result 2412 9.07 >0.5 Pass 2437 9.12 >0.5 Pass 802.11b 2462 9.56 >0.5 Pass 2412 15.46 >0.5 Pass 2437 14.20 >0.5 Pass 802.11g 2462 14.86 >0.5 Pass 2412 16.09 >0.5 Pass 2437 15.03 >0.5 Pass 802.11n(HT20) 2462 15.88 >0.5 Pass 2422 35.15 >0.5 Pass 2437 35.11 >0.5 Pass 802.11n(HT40) 2452 35.23 >0.5 Pass FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 28 of 48 Test plot as follows: 802.11b 2412MHz 802.11b 2437MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 29 of 48 802.11b 2462MHz 802.11g 2412MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 30 of 48 802.11g 2437MHz 802.11g 2462MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 31 of 48 802.11n(HT20) 2412MHz 802.11n(HT20) 2437MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 32 of 48 802.11n(HT20) 2462MHz 802.11n(HT40) 2422MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 33 of 48 802.11n(HT40) 2437MHz 802.11n(HT40) 2452MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 34 of 48 7. BAND EDGE COMPLIANCE TEST 7.1. Limits All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 7.2. Test setup The EUT was placed on a turn table which was 0.8 m above the ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was set 3 m away from the receiving antenna which was mounted on an antenna tower. The measuring antenna moved up and down to find out the maximum emission level. It moved from 1 m to 4 m for both horizontal and vertical polarizations. The bandwidth of the Spectrum’s VBW is set at 3MHz and RBW is set at 1MHz for peak emissions measurement above 1GHz and 1MHz RBW, 10Hz VBW for average emissions measure. For conduct test, a)Set instrument center frequency to the frequency of the emission to be measured (must be within 2 MHz of the authorized band edge). b) Set span to 2 MHz ,c) RBW = 100 kHz, d) VBW ≥ 3 x RBW. e) Detector = RMS f) Averaging type = power, g) Sweep time = auto, The emission was below the15.209 limit. FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 35 of 48 For radiated test as follows: Band edge Limit (dBuV/m) Frequency (MHz) Antenna polarization (H/V) PK PK AV <2400 H 50.09 74.00 54.00 <2400 V 51.37 74.00 54.00 >2483.5 H 52.26 74.00 54.00 802.11b >2483.5 V 50.99 74.00 54.00 <2400 H 52.62 74.00 54.00 <2400 V 51.10 74.00 54.00 >2483.5 H 52.46 74.00 54.00 802.11g >2483.5 V 51.03 74.00 54.00 <2400 H 52.25 74.00 54.00 <2400 V 51.12 74.00 54.00 >2483.5 H 52.46 74.00 54.00 802.11n(HT20) >2483.5 V 51.37 74.00 54.00 <2400 H 52.57 74.00 54.00 <2400 V 52.00 74.00 54.00 >2483.5 H 51.43 74.00 54.00 802.11n(HT40) >2483.5 V 52.11 74.00 54.00 FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 36 of 48 For conducted test plot as follows: 802.11b 2412MHz 802.11b 2462MHz 802.11g 2412MHz 802.11g 2462MHz 802.11n(HT20) 2412MHz 802.11n(HT20) 2462MHz 802.11n(HT40) 2422MHz 802.11n(HT40) 2452MHz FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 37 of 48 8. OUTPUT POWER TEST 8.1. Limits For systems using digital modulation in the 2400~2483.5MHz, The Peak out put Power shall not exceed 1W(30dBm) 8.2. Test setup 1. The Transmitter output (antenna port) was connected to the power meter. 2. Turn on the EUT and power meter and then record the peak power value. 3. Repeat above procedures on all channels needed to be tested. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. 8.3. Test result Channel Frequency (MHz) Peak output Power(dBm) Limit (dBm) Result 2412 15.25 30 Pass 2437 15.17 30 Pass 802.11b 2462 15.27 30 Pass 2412 12.14 30 Pass 2437 12.21 30 Pass 802.11g 2462 12.16 30 Pass 2412 11.35 30 Pass 2437 11.26 30 Pass 802.11n(HT20) 2462 11.14 30 Pass 2422 11.08 30 Pass 2437 11.03 30 Pass 802.11n(HT40) 2452 11.06 30 Pass FCC ID: HHOWAWAJI-01 Keyway Testing Technology Co., Ltd. Report No. 14KW091897F Page 38 of 48 9. POWER SPECTRAL DENSITY TEST 9.1. Limits For digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8dBm in any 3kHz band during any time interval of continuous transmission. 9.2. Test setup 1. Set analyzer center frequency to DTS channel center frequency. 2. Set the span to 1.5 times the DTS channel bandwidth. 3. Set the RBW =3kHz. 4. Set the VBW = 3 times RBW. 5. Detector = peak. 6. Sweep time = auto couple. 7. Trace mode = max hold. 8. Allow trace to fully stabilize. 9. Use the peak marker function to determine the maximum amplitude level. 9.3. Test result Channel Frequency (MHz) Power density (dBm/3KHz) Limit (dBm/3KHz) Resul…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission
