HHOYC001Intelligent Wireless Router

55 44 33 22 11 D D C C B B A A PA RT3052 2.4GHz TX0 40MHzXTAL AntennaConnector BPF 2.4GHz TX02.4GHz RX0 3.3V LNA SPDT Switch Step-DownRegulator 2.4GHz RX0 2.4GHz TX1 2.4GHz RX1 BPF 2.4GHz RX1 SPDT Switch 2.4GHz TX1 PA LNA AntennaConnector RJ45x5 Transformer USBConnectorRGMII/MIIConnector RGMII/MII I/FUSB I/F 12V Step-DownRegulator 1.5V 12V Step-DownRegulator 5V 12V FLASH2Mx16SDRAMx28Mx16 SerialEEPROM RESET LDO 2.0V 3.3V SPIFLASH RT3052 AP Block 2.2 11n 2.4G AP-RT3052 Block RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 14 14 Monday, December 21, 2009 TitleSize Document Number Rev Date: Sheet of

Shenzhen Yichen Technology Development Co., LTD Declaration letter for multiple models We, Shenzhen Yichen Technology Development Co., LTD 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Declare that the following product(s): Product Description: Intelligent Wireless Router Model Number: JHR-N815R, JHR-N835R, JHR-N845R, JHR-N855R, JHR-N865R, JHR-N875R, JHR-N885R, JHR-N895R Utilize the identical circuit design, PCB layout, shielding and interface with (JHR-N825R), only the cosmetic is difference. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Date of issue: 2012-06-12 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

Agents letter (for TCB – TCB approval): Shenzhen Yichen Technology Development Co., Ltd. FCC ID: HHOYC001 Product Name: Intelligent Wireless Router Model No.: JHR-825R, JHR-815R, JHR-835R, JHR-845R, JHR-855R, JHR-865R, JHR-875R, JHR-885R, JHR-895R Date (2012-06-12) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Shenzhen Yichen Technology Development Co., Ltd. / 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China., hereby authorize John Zhi (TUV SUD China Group-Shenzhen), to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (31/12/2014) Sincerely,

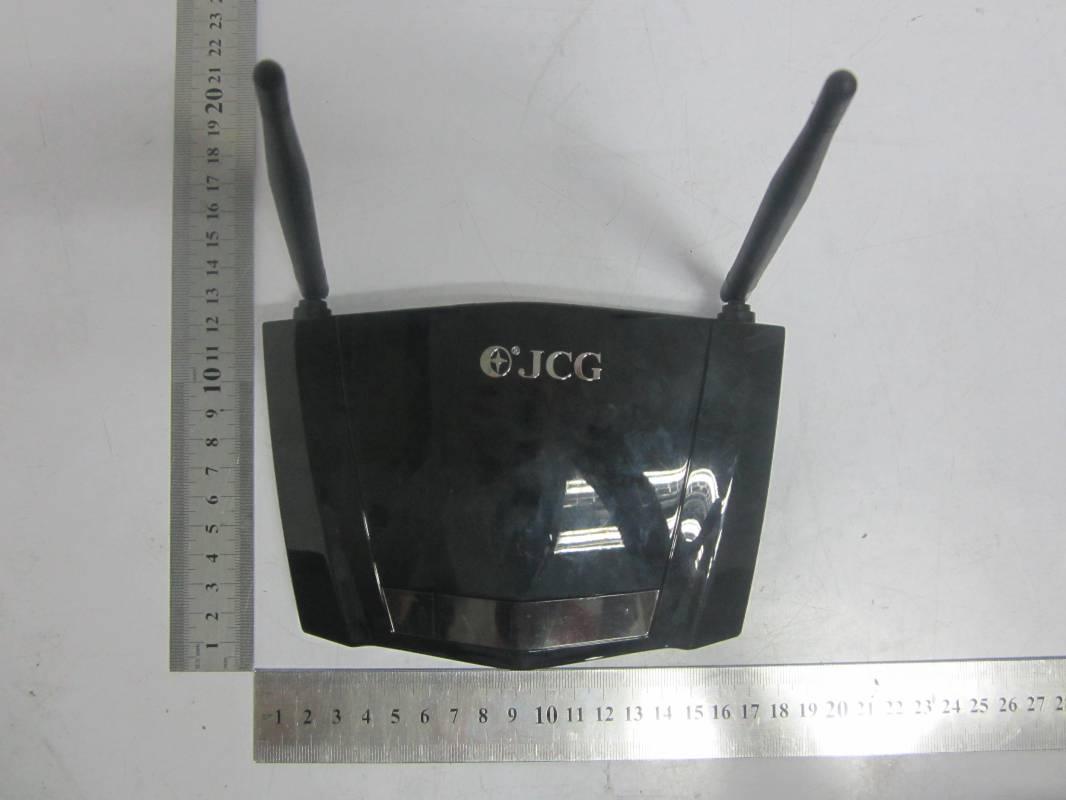

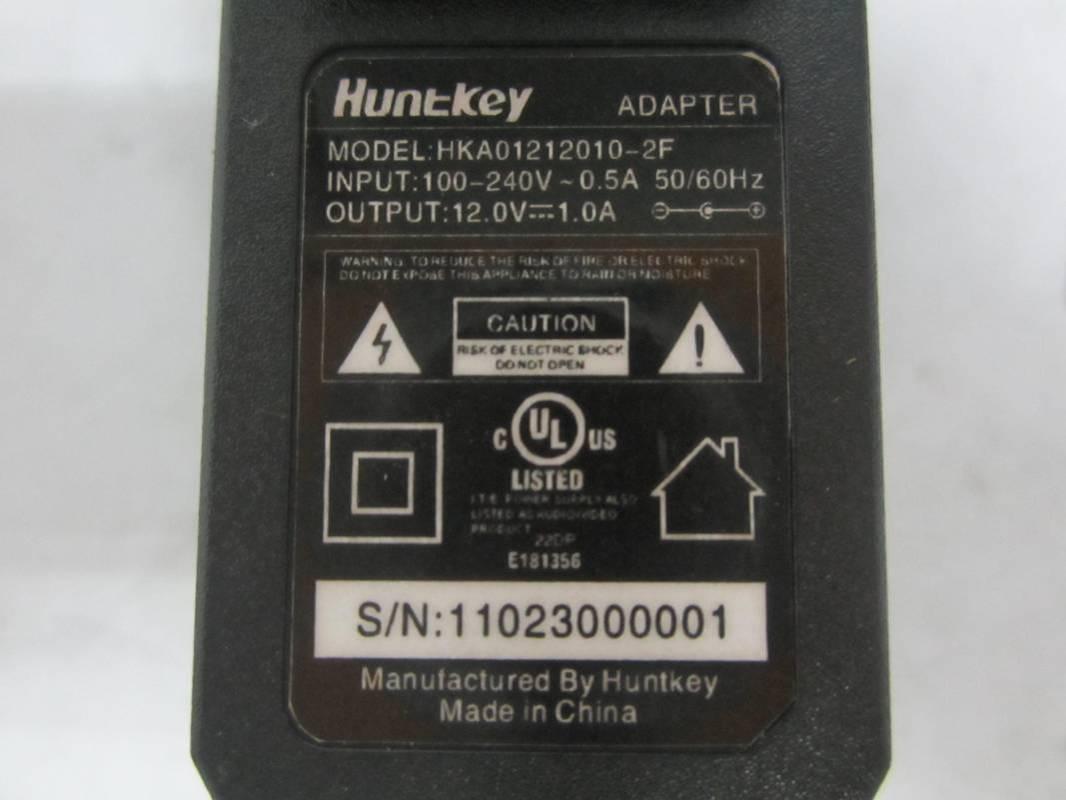

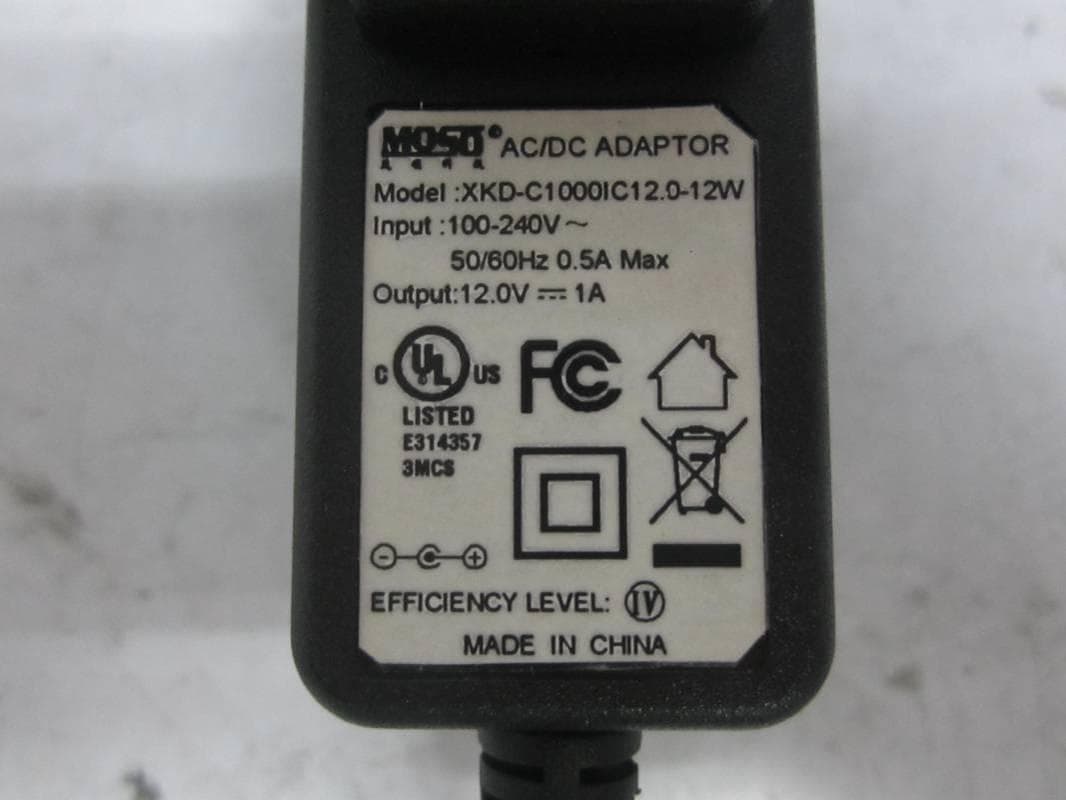

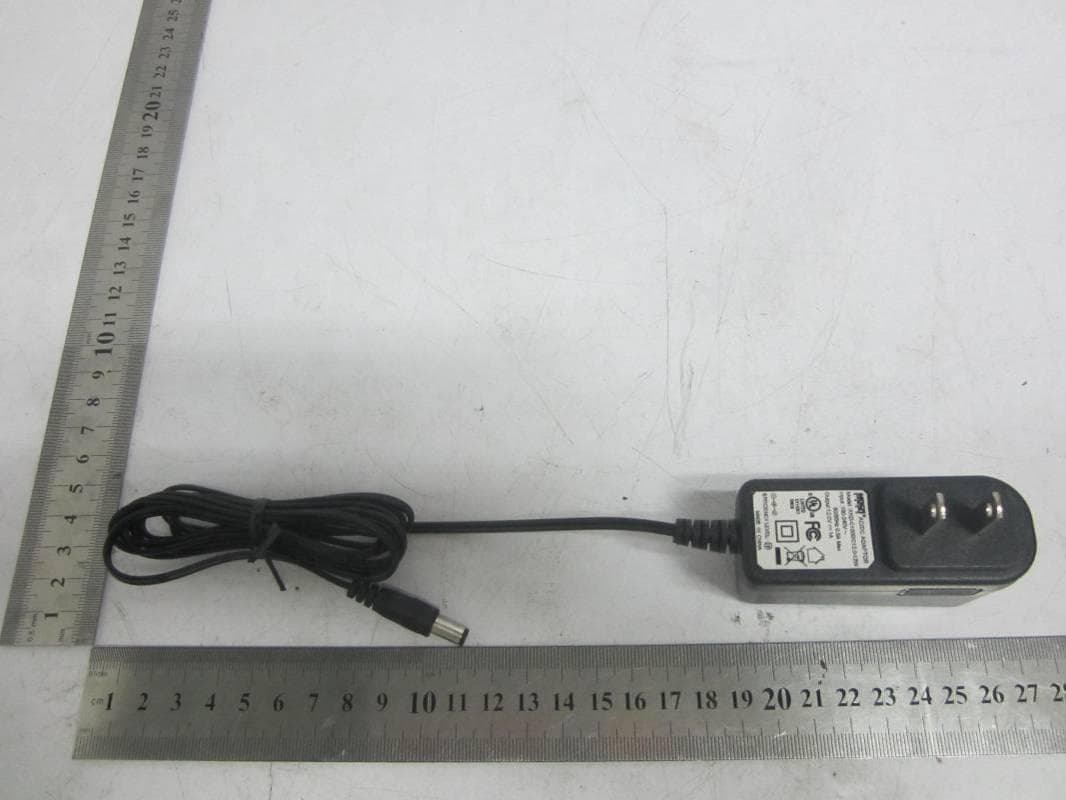

Report No.:68.870.12.020.02F APPENDIX B – External of EUT Page 1 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.020.02F APPENDIX B – External of EUT Page 2 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.020.02F APPENDIX B – External of EUT Page 3 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.020.02F APPENDIX B – External of EUT Page 4 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Adapter Report No.:68.870.12.020.02F APPENDIX B – External of EUT Page 5 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Adapter

TEST REPORT Date: 2012-06-15 Report No.: 68.870.12.020.02F Page 1 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Applicant:Shenzhen Yichen Technology Development Co., Ltd. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Description of Samples:Model name: Intelligent Wireless Router Brand name: Model no.: JHR-N825R,JHR-N815R,JHR-N835R, JHR-N845R, JHR-N855R, JHR-N865R, JHR-N875R, JHR-N885R, JHR-N895R FCCID:HHOYC001 Date Samples Received:2012-06-01 Date Tested:2012-06-01 to 2012-06-11 Investigation Requested:FCC Part 15 Subpart B Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- John ZhiNicolas Cheng Project EngineerProject Manager Wireless & Telecom departmentWireless &Telecom department Report No.: 68.870.12.020.02F Page 2 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. CONTENT: Cover Page 1 of 17 Content Page 2 of 17 1.0General Details 1.1 Test Laboratory Page 3 of 17 1.2Applicant Details Page 3 of 17 1.3Equipment Under Test [EUT] Page 4 of 17 1.4 Equipment Modification Page 4 of 17 1.5 Related Submittal(s) Grants Page 4 of 17 2.0Technical Details 2.1 Investigations Requested Page 5 of 17 2.2 Test Standards and Results Summary Page 5 of 17 3.0Test Methodology 3.1 Radiated Emission Page 6 of 17 3.2 Field Strength Calculation Page 6 of 17 3.3Conducted Emission Page 6 of 17 4.0Test Result 4.1 Spurious Radiated Emission Page 7-11 of 17 4.2Conducted Emission Page 12-16 of 17 5.0List of Equipment Page 17 of 17 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 68.870.12.020.02F Page 3 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.0General Details 1.1Test Laboratory SEM.Test Compliance Services Co., Ltd. EMC Laboratory registered by FCC with FCC Registration Number:994117 Test By˖ Susan Su 1.2Applicant Details Applicant Shenzhen Yichen Technology Development Co., Ltd. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Manufacturer Shenzhen Yichen Technology Development Co., Ltd. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Report No.: 68.870.12.020.02F Page 4 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.3Equipment Under Test [EUT] Description of Sample Model Name:Intelligent Wireless Router Manufacturer:Shenzhen Yichen Technology Development Co., Ltd. Brand Name: Model Number:JHR-N825R, JHR-N815R,JHR-N835R, JHR-N845R, JHR-N855R, JHR-N865R, JHR-N875R, JHR-N885R, JHR-N895R Rating:DC12V, 1A powered by AC/DC adapter Model : HKA01212010-2F, XKD-C1000IC12.0-12W Accessories and Auxiliary Equipment: AC/DC power adaptor. EUT Exercising Software:Provided by manufacturer Descriptionof EUT The Equipment Under Test (EUT) is aIntelligent Wireless RouterSystemoperated at 2.4GHz. DSSS for IEEE 802.11b ; OFDM for IEEE 802.11g/n Operation Principle: This Systems using embedded MIMO RF transceiver consists of two receivers and two transmitters used to form a complete 2.4GHz ISM band Wireless LAN application. The EUT shall be simultaneous transmission at the antenna 0 and antenna 1 for 802.11g , 802.11n HT20 or HT40, 802.11b mode shall be transmission only single antenna (antenna 0 or antenna 1). Since the EUT can communicate with computer via LAN port, this report is to demonstrate the EMC test result for this function. As per client declaration, the model JHR-N815R, JHR-N835R, JHR-N845R, JHR- N855R, JHR-N865R, JHR-N875R, JHR-N885R, JHR-N895R, which utilize the identical circuit design, PCB layout, shielding and interface with the model JHR- N825R, only the cosmetic is difference. Therefore the mainly perform test on JHR- N825R model. 1.4Equipment Modification No modification was done by TÜV SÜD China 1.5Related Submittal(s) Grants This is a signal application subject to Certificate Authorization. Report No.: 68.870.12.020.02F Page 5 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 for FCC Verification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest Result PassFailedN/A Radiated Emissions, 30MHz to 4.5GHz Part 15.109 Conducted Emissions on AC, 0.15MHz to 30MHz Part 15.107 Note: N/A - Not Applicable Report No.: 68.870.12.020.02F Page 6 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3…

Text truncated - open the document above for the full version.

Report No.:68.870.12.020.02F APPENDIX A – Photos of Test Setup Page 1 of 1 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Conducted Emission Radiated Emission
