HHOYC003Intelligent Wireless Router

Intelligent Wireless Router JHR-N805R JHR-N825R JHR-N916R JHR-N926R Quick Installation Guide VER: 0.0.1 About this Guide Thank you for choosing JCG Wireless Broadband Router. As a cost-effective product, this Intelligent Wireless Router provides dedicated solution for small office, home and dormitory. It integrates a variety of wireless applications, such as wireless bridge model, AP model etc. It provides a wide range of data security protection; support WEP, WPA, and WPS Encryption method. It is the best option of surfing on the wireless Internet and enjoying the fun of the wireless Internet and satisfies your need to watch high-definition video The JCG Intelligent Wireless Router is easy to configure, even if you are not so familiar with the router. In order to better use all functions of this product, please read this guide carefully before you install the router, Trademark, copyright statement: as a brand (trademark) is registered by Shenzhen Yichen Technology Development Co., Ltd. The copyright property of all the parts of the products, including accessories, software is owned by Shenzhen Yichen Technology Development Co., Ltd. Without permission, nobody shall be arbitrarily imitate, copy, or translate the products. The product specification and information in the manual are referred as a reference purposes only. May be its content will be updated without notice. Welcome to logon our website: http://www.jcg.com.cn Quick Installation Guide You should configure the Router correctly to ensure the normal use of the Router. This chapter describes how to configure the basic functions of the Wireless Router. We will show the detailed configuration in the next chapter. 1 Configuring windows XP of the PC 1. Configure the IP address Click the start menu, select network connect, show in figure 1-1 Figure 1- 1 Right-click the local connection as shown in figure 1-2.then select Properties will pop up figure 1-3 shown in the Network connection properties dialog box. Figure 1- 2 Figure 1- 3 Double-click Internet Protocol (TCP/IP) will appear IP address page. If you choose to automatically receive the IP address and the DNS server address, the computer will be gain the IP address from the router (Show in figure 1-4).Of course, you can also choose manual-setting as shown in figure 1-5. Figure 1- 4 Figure 1- 5 2. Connect wireless network The wireless network will be connected after finished configuring the network parameter. Select View available wireless connection as show in figure 1-2, your wireless network card will be in search of available network connection in current environment. Then the wireless network will be linked successfully by click link button. If the network is encrypted, password dialog box will pop up prompting you to enter key. Wireless N Router default network name(SSID) is JCG, select this network to connect the wireless router(show in figure 1-6). Figure 1- 6 Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the router. If the result is similar to that show in figure 1-7, the connection between your PC and your router has been established. Figure 1- 7 If the link can not be established, please check the hardware connection between your PC and the router is normal, IP address is correct. 1.2 Quick Installation Guide Launch a Web browser (Internet Explorer 5.0 or higher) when the computer and the 150M Wireless Router are correctly connected, close the proxy browser. Then input http://192.168.1.1 into the browser address bar, press the Enter key, there will appear a login window as figure 1-8. Enter admin for the User Name and Password, both in lower case letters. Also you can modify the user name and the password to ensure the network security. Figure 1- 8 If the User Name and Password are correct, Router Management screen will appear, show in figure 1-9: Figure 1- 9 Click on Quick Setup the button, show in figure 2-10 , the router supports five connection type to connect to Internet. Figure 2-10 Click on the Next button, show in figure 1-11, If you use the DHCP (Auto config) connection, the router will receive the IP parameters from your ISP without needing to enter any parameter, show in figure 1-11 figure 1-11 ② If you use the STATIC(fixed IP) connection, the Static IP settings page will appear, show in figure 1-12, enter the Static IP address, Subnet Mask, Default Gateway and DNS figure 1-12 ③ If you use the PPPoE(ADSL) connection, the PPPoE settings page will appear, show in figure 1-13, please enter the user name and the password provided by your ISP. figure 1-13 Click on the Next button, show in figure 1-14. This page is used to configure the parameters for wireless LAN clients which may connect to your Access Point figure 1-14 Click on NEXT, the button, show in figure 1-15 Now, Quick Installation Guide is complete. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receivin…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A PA RT3050 2.4GHz TX0 40MHzXTAL AntennaConnector BPF 2.4GHz TX02.4GHz RX0 3.3V LNA SPDT Switch Step-DownRegulator 2.4GHz RX0 RJ45x5 Transformer USBConnector USB I/F 12V Step-DownRegulator 1.5V 12V Step-DownRegulator 5V 12V FLASH1Mx16SDRAMx18Mx16 SerialEEPROM RESET LDO 2.0V 3.3V RT3050 AP Block 2.2 11n 2.4G AP-RT3050 - w/USB & LNA RALINK TECHNOLOGY, CORP. CONFIDENTIAL C 14 14 Tuesday, September 16, 2008 TitleSize Document Number Rev Date: Sheet of

Agents letter (for TCB – TCB approval): Shenzhen Yichen Technology Development Co., Ltd. FCC ID: HHOYC003 Product Name: Intelligent Wireless Router Model No.: JHR-805R Date (2012-06-12) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Shenzhen Yichen Technology Development Co., Ltd. / 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China., hereby authorize John Zhi (TUV SUD China Group-Shenzhen), to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (31/12/2014) Sincerely,

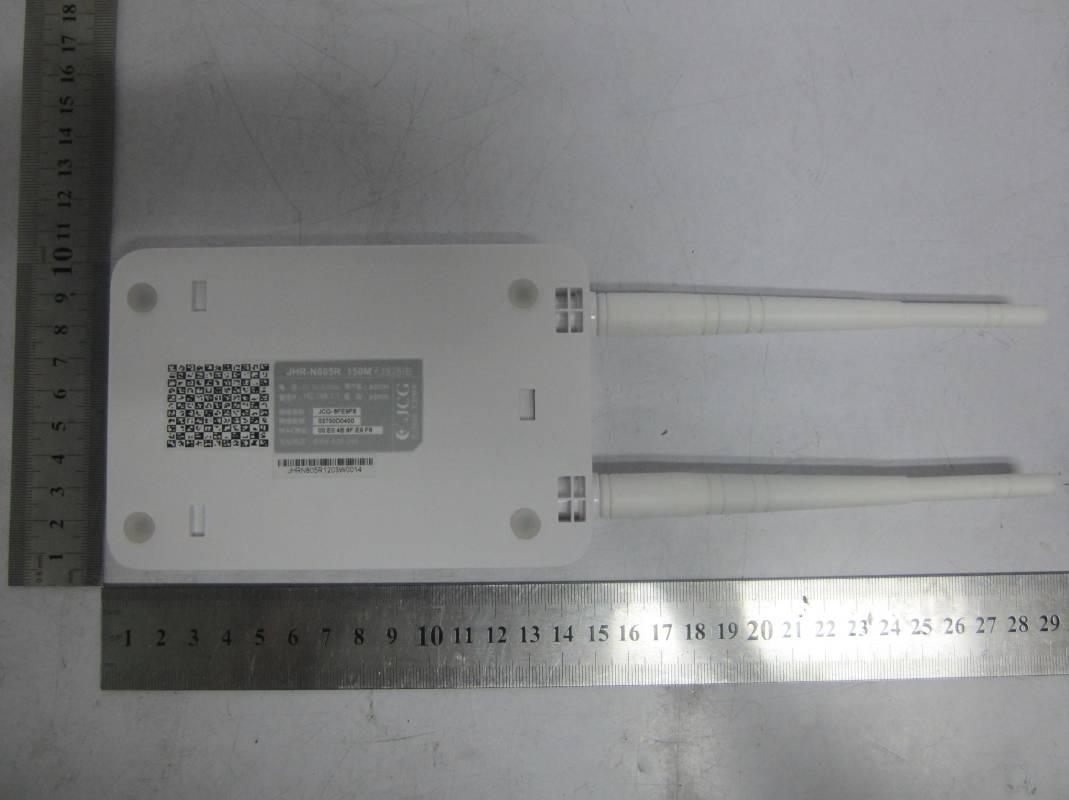

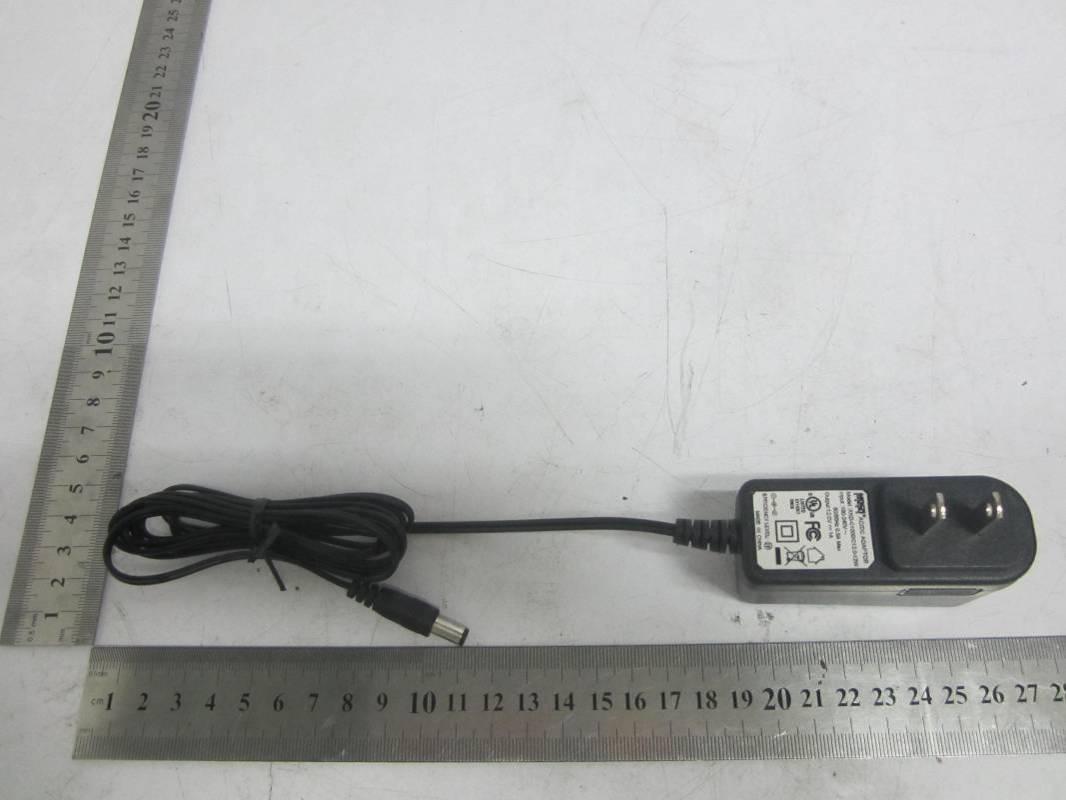

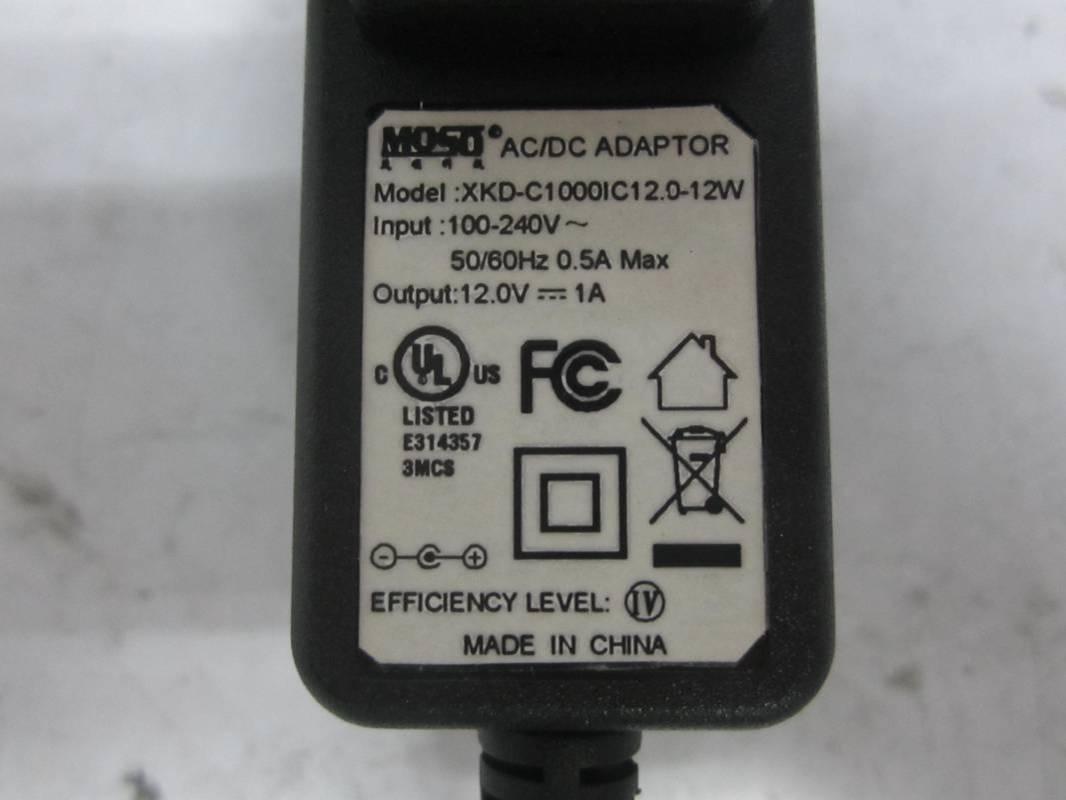

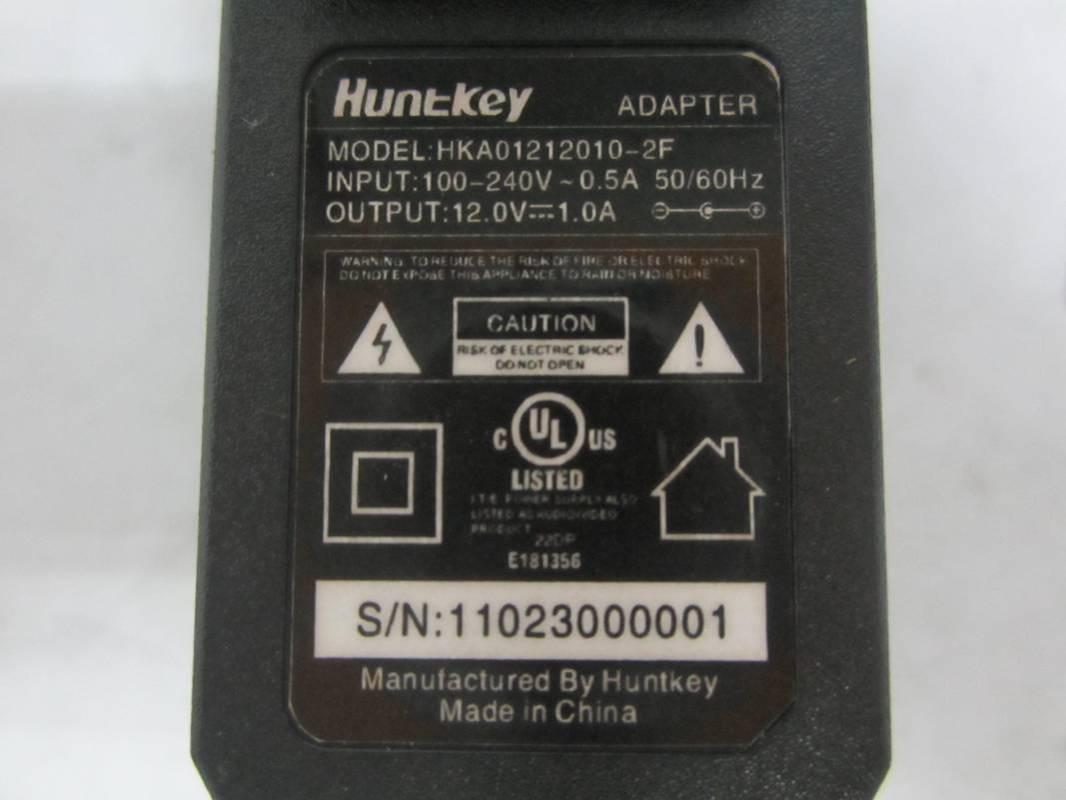

Report No.:68.870.12.026.02F APPENDIX B – External of EUT Page 1 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.026.02F APPENDIX B – External of EUT Page 2 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.026.02F APPENDIX B – External of EUT Page 3 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.026.02F APPENDIX B – External of EUT Page 4 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Adapter Report No.:68.870.12.026.02F APPENDIX B – External of EUT Page 5 of 5 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Adapter

Label and Label location

Report No.:68.870.12.026.02F APPENDIX C – Internal of EUT Page 1 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Report No.:68.870.12.026.02F APPENDIX C – Internal of EUT Page 2 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China.

亥⸱: 1/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD ᇒᡧ Customer ҉䗠、ᢰ ᰕᵏ 2012ᒤ03ᴸ19ᰕ Date ૱਽㿴Ṭ 2.4Ghz 4dBiⲭ㢢аփᔿཙ㓯-113⚠-L60 Description ᯉਧ Part No. 伎ᆷؑ᢯䇔ㆮㄐΨ ᐕ〻 ENGINEERING DEPARTMENT ૱؍ Q C DEPARTMENT ъ࣑ SALES DEPARTMENT ᶠࡈ㛆ѭ⿰亮䮯伎 ᇒᡧ᢯䇔ㆮㄐΨ ᐕ〻 ENGINEERING DEPARTMENT ૱؍ Q C DEPARTMENT ⭏ӗ MANUFACTORY DEPARTMENT 䟷䍝 PURCHASING DEPARTMENT ޜਨൠ൰: ␡ൣᐲ⁚዇䭷㾯ඁ矢४ᇍẀই䐟76ਧ TEL:0755- 89737182 89737230 FAX˖0755-89737181 23961312 MOBILE:13805501189 Ɉ ᝏ䉒㔉Ҹᮍޜਨ䘱ṧ᢯䇔ѻᵪՊ . ྲᜐ㫉᢯䇔䙊䗷 , ✖䈧ሶ↔㺘ㆮഎᮍޜਨ . OWE GRATITUDE TO GIVE US THE OPPORTUNITY OF SAMPLE APPROVAL.PLEASE RETURN THIS FROM TO US AFTER YOURS ACCEPT. ๭གྷڸ APPROVAL SHEET 亥⸱: 2/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD 㺘Ṭ㕆ਧΨ FMC-213  ⭥ಘᢰᵟ৲ᮠ ⭥ᙗ㜭ᤷḷ Electrical Specifications 仁⦷㤳ത 2400~2500MHz Frequency Range 2400~2500MHz ⭥঻傫⌒∄İ1.92 VSWR İ1.92 䗃ޕ䱫ᣇ50¡ Input Impedance 50¡ ᴰབྷ䗃ޕ࣏⦷ 50W Maximum Input Power 50W ᵪỠᤷḷ Mechanical Specifications 㓯ᶀ仌㢢113⚠ Antenna Color RF 1.13 GRAY ᧕ਓᖒᔿ࢕Ⳟ䭰䭑 Input connector Plating Tin ཙ㓯䮯ᓖ䵢㓯60mm Cable length60mm ᐕ֌⑙ᓖ-40ć~+85ć Working Temperature -40ć~+85ć ᐕ֌(t)ᓖ 20~80% Working Humidity 20~80% ໪ᕲࠩኖᅓދᏳቸᄎࣇྲྀ 亥⸱: 3/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD ཙ㓯㖁㔌⍻䈅˖ 亥⸱: 4/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD 2Dˣ3DRaditation Pattern: ` 2.4GHz Gain: 3.98dBi 2.45GHz Gain:3.93dBi 2.5GHz Gain:4.00dBi 亥⸱: 5/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD ກ㜦ᡀ࠶㺘: 亥⸱: 6/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD 䬌ᶀ㿴Ṭ : 亥⸱: 7/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD RF1.13 㓯ᶀ㔃ᶴ৲ᮠ : 亥⸱: 8/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD ᕩ㉗ᶀ䍘䇱᰾ 亥⸱: 9/8 䂀⧂ゑ歭⸖≰䟄⷟㦘棟⏻⚇ TEL:89737182 FAX:89737181 E-mail:[email protected] http://www fyxdz.com SHENZHEN FLY ELECTRONIC CO.,LTD 䬼ਸ䠁ᶀ䍘䇱᰾ :

U2 the 40 MHz crystal oscillator provides the base clock source of U1 Wireless LAN network interface controller’s operating. U1 drives reference differential clock for modulator and demodulator of embedded RF transceiver. U1 combines a MAC and 1T1R capable based for host connection. RF transceiver consists of one receiver and one transmitter used to form a complete 2.4GHz ISM band Wireless LAN application. Through the antenna then transmit out as 2412MHz to 2462MHz (for US, and 2412MHz to 2472MHz for EU) for 802.11b/g/n-HT20 transmission mode and 2422MHz to 2452MHz (for US, and 2422MHz to 2462MHz for EU) for 802.11n-HT40 transmission mode. Antenna, Ground, and Power Source There are two external 2.4GHz band Fixed Antenna. Whole system power source is fed with DC 12Volt by DC interface.

55 44 33 22 11 D D C C B B A A Filename:AP-RT3052-V33RW-LNA-2X2-2ANT-2L-090225.DSN FLASHRST_N PA_PE_G0WE_NANT_TRNSDRAM_CLKFLASH_CSNPA_PE_G1SDRAM_RASNOE_N TXOM4CPURST_N MADDR[0:22] JTAGRST_NTXOP4 MDATA[0:31] ANT_TRNBSDRAM_CSNRFIN_G0RFIN_G1RFOUT_G0RFOUT_G1 SECU_LEDWLAN_LEDLINK4LINK3LINK2LINK1LINK0RXIM4RXIP4RXIM3RXIP3TXOM3TXOP3TXOM2TXOP2RXIM2RXIP2RXIM1RXIP1TXOM1TXOP1TXOM0TXOP0RXIM0RXIP0 LNA_PE_G1LNA_PE_G0 PWR_LEDWPS_LEDWPS_PBCRST_PBC TitleSize Document Number Rev Date: Sheet of AP-RT3052-V33RW-LNA.SCH 3.3 11n 2.4G AP-RT3052 RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 114 Friday, August 26, 2011 TitleSize Document Number Rev Date: Sheet of AP-RT3052-V33RW-LNA.SCH 3.3 11n 2.4G AP-RT3052 RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 114 Friday, August 26, 2011 TitleSize Document Number Rev Date: Sheet of AP-RT3052-V33RW-LNA.SCH 3.3 11n 2.4G AP-RT3052 RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 114 Friday, August 26, 2011 6-LED6-LED LINK0LINK1LINK2LINK3LINK4SECU_LEDWLAN_LEDWPS_LEDPWR_LEDWPS_PBCRST_PBC 1-CPU-RT30501-CPU-RT3050 FLASH_CSNWE_NOE_NSDRAM_CLKSDRAM_CSNSDRAM_RASNMADDR[0:22]MDATA[0:31] TXOM4 TXOP4 RXIM4 RXIP4 ANT_TRNANT_TRNBPA_PE_G0PA_PE_G1 CPURST_N JTAGRST_N SECU_LED WLAN_LED RFOUT_G0RFOUT_G1RFIN_G0RFIN_G1 LINK3LINK2LINK0LINK1LINK4 RXIM3 RXIP0RXIP1RXIP2RXIP3 RXIM0RXIM1RXIM2 TXOP0TXOP1TXOP2TXOP3 TXOM0TXOM1TXOM2TXOM3 LNA_PE_G0LNA_PE_G1 PWR_LED WPS_LED WPS_PBC RST_PBC 2-MEMORY2-MEMORY FLASH_CSN OE_N WE_N SDRAM_CLK SDRAM_CSN SDRAM_RASN MADDR[0:22] MDATA[0:31] FLASHRST_n 3-WLAN3-WLAN ANT_TRN ANT_TRNB PA_PE_G0PA_PE_G1 RFIN_G0RFIN_G1 RFOUT_G0RFOUT_G1 LNA_PE_G0LNA_PE_G1 4-ETHERNET4-ETHERNET TXOM4TXOP4RXIM4RXIP4RXIM3RXIP3TXOM3TXOP3TXOM2TXOP2RXIM2RXIP2RXIM1RXIP1TXOM1TXOP1TXOM0TXOP0RXIM0RXIP0 5-POWER5-POWER CPURST_NFLASHRST_NJTAGRST_N 55 44 33 22 11 D D C C B B A A LDOPLL_Out LDOADC_Out 1.5V LDO_In 1.2VLDODIG_Out LDORF_Out Place RT1 closeto Power Amp. 3.3V Input RFG0_IN GINP0 RFIN_G0 ADC_V12D RF2G_INN0 1.5VDD 1.2VD RF2G_INP0 PLL_V12A 1.5VD RF_V12A OSC_O 40MX2PLL_VC_CAPBG_RES_12K40MX1 ADC_VREF025PADC_VREF025NADC_VREFADC_VREFP0ADC_VREFN0 ANT_TRNANT_TRNB TSSI_IN0 WLAN_LED LNA_PE_G0PA_PE_G0 3.3VD GND RFG0_OUT GND RFOUT_G0 RFIN_G0 (9) ANT_TRN (10)ANT_TRNB (10)WLAN_LED (13) PA_PE_G0 (8)LNA_PE_G0 (9) RFOUT_G0 (8) GND 1.2VD GND GND GND GND GND GND 1.5VD GND GND GND GND GND GND GND GND 3.3VD GND 3.3VD GND GND GND GND TitleSize Document Number Rev Date: Sheet of 11-RT3052-RF-A.SCH 3.3 RT3052-A RF RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 214 Thursday, August 25, 2011 TitleSize Document Number Rev Date: Sheet of 11-RT3052-RF-A.SCH 3.3 RT3052-A RF RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 214 Thursday, August 25, 2011 TitleSize Document Number Rev Date: Sheet of 11-RT3052-RF-A.SCH 3.3 RT3052-A RF RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 214 Thursday, August 25, 2011 C1210pF/NIC1210pF/NI 12 C17 10pF C17 10pF 12 R712K 1%R712K 1% 12 C7 1nF C7 1nF 12 C1010pF/NIC1010pF/NI 12 2.5x3.2 U2 XTAL/3.2x2.5/40MHz 2.5x3.2 U2 XTAL/3.2x2.5/40MHz 1 2 4 3 L1 1.2nH L1 1.2nH 12 C3 1.5pF C3 1.5pF 1 2 C18 100pF C18 100pF 12 C206 4.7uF/NI C206 4.7uF/NI 12 t RT1 CT6103-3435-5P t RT1 CT6103-3435-5P 12 C131uFC131uF 12 C8 100pF C8 100pF 12 C401nFC401nF 12 C21.2pFC21.2pF 12 R1800 ohmR1800 ohm 1 2 C35 0.1uF C35 0.1uF 1 2 C28 0.1uF C28 0.1uF 12 C11 10pF C11 10pF 1 2 C32 0.1uF C32 0.1uF 1 2 R610KR610K 12 C39 0.1uF C39 0.1uF 12 C90.1uFC90.1uF 12 C37 22nF C37 22nF 12 C31 4.7uF C31 4.7uF 12 C38 0.1uF C38 0.1uF 12 U1A RT3052-14x14 U1A RT3052-14x14 RF0_2G_INN A3 RF0_2G_OUT A2 RF0_LNA_PE C10 RF0_PA_PE D2 RF0_TSSI_IN B8 RF1_2G_INP B1 RF1_2G_INN C1 RF1_2G_OUT D1 RF1_LNA_PE B12 RF1_PA_PE E1 WLAN_LED_N F4 ANT_TRN F3 ANT_TRNB G4 BASE_TRX_QN C9 BASE_TRX_QP D9 BASE_TRX_IN D8 BASE_TRX_IP C8 PLL_X2 C7 PLL_X1 C6 PLL_VC_CAP A5 RF0_2G_INP A4 BG_RES_12K A6 RF1_LO_V12A E3 RF0_LO_V12A D3 RF_BB1_V12A B3 VCO_VCO_V12A B4 VCO_LO_V12A C4 PLL_PRE_V12A C5 PLL_DIV_V12A B5 BG_V33A D6 LDORF_OUT_V12 A7 LDORF_IN_VX B7 LDOPLL_OUT_V12 B6 RF_BB2_V12A A8 ADC_VREF A12 ADC_VREFN A9 ADC_VREFP A10 ADC_VREF025N B11 ADC_VREF025P A11 ADC_V12A B9 ADC_V12D B10 LDOADC_OUT_V12 D11 LDOADC_IN_VX C11 LDODIG_IN_VX C12 LDODIG_OUT_V12 A13 RF_V33A E2 RF0_V12A A1 RF1_V12A C2 RF1_TSSI_IN D7 LDO_V33A D12 C5 22nF C5 22nF 12 R5 10K R5 10K 1 2 C33 0.1uF C33 0.1uF 1 2 C4 10pF C4 10pF 1 2 C36 39pF C36 39pF 1 2 C15 1uF C15 1uF 12 C221uFC221uF 12 C203 1nF/NI C203 1nF/NI 12 L2 1.5nH L2 1.5nH 1 2 C202 4.7uF/NI C202 4.7uF/NI 12 C34 100pF C34 100pF 12 C29 1nF C29 1nF 12 L50 ohmL50 ohm 1 2 C16 10nF C16 10nF 12 C6 100pF C6 100pF 12 C1 10nF C1 10nF 1 2 C25 10nF C25 10nF 12 55 44 33 22 11 D D C C B B A A TDI/TMS/TCK /DINT pull up ICE-Connector 2.54mm SDCS_NFLASHCSN FLASH_CSNWE_N EJTAG-TRSTN 3.3VD SDCLK SDRAM_CSNSDRAM_CLK SDRAS_N EJTAG-TDOEJTAG-TMSEJTAG-TCK WEN EJTAG-TDI OEN OE_NSDRAM_RASN CPURST_NWPS_PBCPWR_LEDWPS_LEDRST_PBCSRAMCSNSECU_LEDUART_RXUART_TX 3.3VD 3.3VD MD7 MA9 MD10MD14 MA6MA20MA22MD9MA18MA17MD15 MD11MD0 MA2MA4MA3MD7MD8MD1MD10MD5MD3MA10 MD5MD1 MA13 MD15MD3 MA16MD13MA14 MD9 MA12MA19 MD8 MD6 MD4 MD0 MA18 MA0MA7MA5 MD13 MD14MA21MD12 MD12 MD11 MD2 MA11 MADDR21 MA20 MD2MD4MA15MA8 MA21MD6 MADDR22MADDR20 MA22 MA1 MDATA8MDATA2MDATA10MDATA11MDATA15MDATA14MDATA9MDATA3MADDR18MDATA4MDATA5MDATA6MDATA13MDATA0 MDATA[0:31] MDATA7MDATA12MDATA1 MA6MA2MA3MA1MA13MA12MA7MA5MA9MA14MA11MA0MA17MA4MA10MA15MA8 MADDR22MADDR10MADDR9MADDR17MADDR11MADDR12 MADDR[0:22] MADDR1MADDR7MADDR21MADDR2MADDR5MADDR0MADDR20MADDR15MADDR18MADDR6MADDR4MADDR3MADDR14MADDR8MADDR13MADDR19MADDR16 MA16MA19 SPI_CLK SPI_DIN SPI_ENSPI_DOUTSPI_CLK SPI_CLKSPI_DOUT WP_SPISPI_DINSPI_EN HOLD_SPI SPI_DOUT SPI_DIN SPI_ENWP_SPIHOLD_SPI FLASH_CSN (6)OE_N (6,7)SDRAM_CSN (7)SDRAM_CLK (7)WE_N (6,7)SDRAM_RASN (7) CPURST_N (12)WPS_PBC (13)WPS_LED (13)PWR_LED (13)RST_PBC (13)SECU_LED (13) MDATA[0:31] (6,7) MADDR[0:22] (6,7) GND 3.3VD GND GND GND 3.3VD 3.3VD 3.3VD 3.3VD GND 3.3VD GND TitleSize Document Number Rev Date: Sheet of 12-RT3052-Peripheral-B.SCH 3.3 RT3052-B Peripheral RALINK TECHNOLOGY, CORP. CONFIDENTIAL B 314 Friday, August 26, 2011 TitleSize Document Number Rev Date: Sheet of…

Text truncated - open the document above for the full version.

TEST REPORT Date: 2012-06-15 Report No.: 68.870.12.026.02F Page 1 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Applicant:Shenzhen Yichen Technology Development Co., Ltd. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Description of Samples:Model name: Intelligent Wireless Router Brand name: Model no.: JHR-N805R FCCID:HHOYC003 Date Samples Received:2012-06-01 Date Tested:2012-06-01 to 2012-06-11 Investigation Requested:FCC Part 15 Subpart B Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- John ZhiNicolas Cheng Project EngineerProject Manager Wireless & Telecom departmentWireless &Telecom department Report No.: 68.870.12.026.02F Page 2 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. CONTENT: Cover Page 1 of 17 Content Page 2 of 17 1.0General Details 1.1 Test Laboratory Page 3 of 17 1.2Applicant Details Page 3 of 17 1.3Equipment Under Test [EUT] Page 4 of 17 1.4 Equipment Modification Page 4 of 17 1.5 Related Submittal(s) Grants Page 4 of 17 2.0Technical Details 2.1 Investigations Requested Page 5 of 17 2.2 Test Standards and Results Summary Page 5 of 17 3.0Test Methodology 3.1 Radiated Emission Page 6 of 17 3.2 Field Strength Calculation Page 6 of 17 3.3Conducted Emission Page 6 of 17 4.0Test Result 4.1 Spurious Radiated Emission Page 7-11 of 17 4.2Conducted Emission Page 12-16 of 17 5.0List of Equipment Page 17 of 17 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 68.870.12.026.02F Page 3 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.0General Details 1.1Test Laboratory SEM.Test Compliance Services Co., Ltd. EMC Laboratory registered by FCC with FCC Registration Number:994117 Test By˖ Susan Su 1.2Applicant Details Applicant Shenzhen Yichen Technology Development Co., Ltd. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Manufacturer Shenzhen Yichen Technology Development Co., Ltd. 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, 518055 Shenzhen, Guangdong, People’s Republic Of China. Report No.: 68.870.12.026.02F Page 4 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 1.3EquipmentUnder Test [EUT] Description of Sample Model Name:Intelligent Wireless Router Manufacturer:Shenzhen Yichen Technology Development Co., Ltd. Brand Name: Model Number:JHR-N805R Rating:DC12V, 1A powered by AC/DC adapter Model : HKA01212010-2F, XKD-C1000IC12.0-12W Accessories and Auxiliary Equipment: AC/DC power adaptor. EUT Exercising Software:Provided by manufacturer Description of EUT The Equipment Under Test (EUT) is an Intelligent Wireless Router System operated at 2.4GHz. DSSS for IEEE 802.11b ; OFDM for IEEE 802.11g/nOperation Principle: This system using embedded MAC RF transceiver consists of one receiver and one transmitter used to form a complete 2.4GHz ISM band Wireless LAN application. All IEEE 802.11b/g/nHT20 and HT40 shall be transmitted via antenna 0 only, antenna 1 is designed to receive signal. Since the EUT can communicate with computer viaLANport, this report is to demonstrate the EMC test result for this function. 1.4EquipmentModification Nomodification wasdonebyTÜV SÜDChina 1.5Related Submittal(s) Grants This is a signal application subject to Certificate Authorization. Report No.: 68.870.12.026.02F Page 5 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 for FCC Verification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest Result PassFailedN/A Radiated Emissions, 30MHz to 4.5GHz Part 15.109 Conducted Emissions on AC, 0.15MHz to 30MHz Part 15.107 Note: N/A - Not Applicable Report No.: 68.870.12.026.02F Page 6 of 17 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 mwas established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above…

Text truncated - open the document above for the full version.

Report No.:68.870.12.026.02F APPENDIX A – Photos of Test Setup Page 1 of 1 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001,Fuqiang Road, Futian District, Shenzhen, China. Conducted Emission Radiated Emission
